Weatherproof speakers: 100 V

Available by popular demand: weatherproof PA speakers with IP classification. Exactly the right speakers whenever a high sound quality, a high volume capability and a respective resistance to all weather conditions are required. Ideally suited for permanent open-air applications, e.g. at fairground attractions, PA applications in pedestrian areas, at sports facilities and wherever a weather-protected installation of the speakers is not possible.

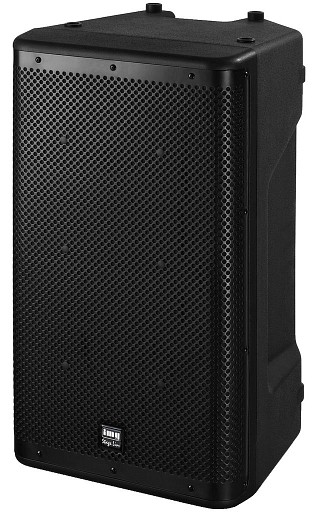

Weatherproof high-performance PA speaker system, 120 WRMS

High-performance 2-way bass-reflex system with cabinet made of ABS plastic
100 V line technique
30 cm (12") PA bass speaker with impregnated paper cone
25 mm (1") horn tweeter system
Excellent sound characteristics
Front grille with water-repellent gauze

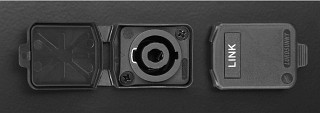

Speaker in and parallel out
Metal parts made of stainless steel
4 x M10 threaded insert each at the top and bottom for suspended installation
Stand sleeve

Production Partner 04/2012

"With the PAB-12WP/SW, the product range of IMG Stage Line now includes a weatherproof (IP45) 12/2 speaker system. It is available at an attractive price yet has plenty to offer. The speaker system provides impressive test results and a great sound experience. Overall, the PAB-12WP/SW and the PAB-120WP/SW can definitely be recommended for purchase, especially if you need a solid 12/2 speaker system which is able to still operate effectively even under difficult boundary conditions." Test author Anselm Goertz

Specifications:

Frequency range: 42-20,000 Hz
Resonant frequency (fs): -

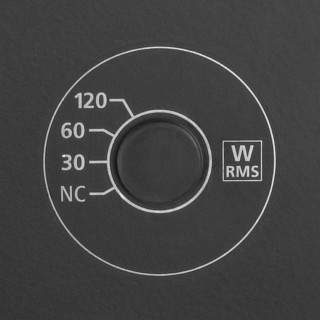

Power capability, 100 V: 120/60/30 W_RMS
Power capability, 8 Ω: -
Power capability, 4 Ω: -
SPL (1 W/m): 98 dB
Max. rated SPL: 119 dB
Type of speaker: 300
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: -10 °C to +40 °C
Dimensions: 370x655x410 mm
Weight: 21 kg
Other features: 2 x SPEAKER par. in/out bass-reflex

Weatherproof speakers: 100 V, Weatherproof high-performance PA speaker system, 50 WRMS in 100 V operation or up to 100 WMAX/50 WRMS in 4 operation, PAB-52WP/WS — Enlarge

Available by popular demand: weatherproof PA speakers with IP classification. Exactly the right speakers whenever a high sound quality, a high volume capability and a respective resistance to all weather conditions are required. Ideally suited for permanent open-air applications, e.g. at fairground attractions, PA applications in pedestrian areas, at sports facilities and wherever a weather-protected installation of the speakers is not possible.

Weatherproof high-performance PA speaker system, 50 WRMS in 100 V operation or up to 100 WMAX/50 WRMS in 4 Ω operation

Compact wideband bass-reflex system with cabinet made of ABS plastic
100 V or 4 Ω operation, selectable
13 cm (5") high-quality full range speaker with aluminium cone
Excellent sound characteristics
Front grille with water-repellent gauze
Recessed connection terminal with cover plate and high-strength cable gland
Metal parts and wall bracket made of stainless steel

PROSOUND 05/2011

"The cabinets give a solid impression ... and meet IP45 requirements. All four speaker systems are suitable for pleasant background music ... the large PAB-8WP/WS is capable of quite high volume levels ... however, the small ones should not be underestimated ... these speaker systems are impressive and the price is quite reasonable for weatherproof speaker systems."

Specifications:

Frequency range: 60-18,000 Hz
Resonant frequency (fs): -
Power capability, 100 V: 50/25/12.5 W_RMS
Power capability, 8 Ω: -
Power capability, 4 Ω: 100 W_MAX, 50 W_RMS
SPL (1 W/m): 87 dB
Max. rated SPL: 104 dB
Type of speaker: 130
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: -10 °C to +40 °C
Dimensions: 200x200x190 mm
Weight: 5.1 kg
Other features: screw terminal mounting bracket, bass-reflex

Weatherproof speakers: 100 V, Weatherproof high-performance PA speaker system, 100WRMS in 100 V operation or up to 180 WMAX/100 WRMS in 8 operation, PAB-6WP/WS — Enlarge

Available by popular demand: weatherproof PA speakers with IP classification. Exactly the right speakers whenever a high sound quality, a high volume capability and a respective resistance to all weather conditions are required. Ideally suited for permanent open-air applications, e.g. at fairground attractions, PA applications in pedestrian areas, at sports facilities and wherever a weather-protected installation of the speakers is not possible.

Weatherproof high-performance PA speaker system, 100WRMS in 100 V operation or up to 180 WMAX/100 WRMS in 8 Ω operation

Compact 2-way bass-reflex system with cabinet made of ABS plastic
100 V or 8 Ω operation, selectable
16 cm bass speaker with coated carbon fibre cone
30 mm dome tweeter with horn front attachment
Excellent sound characteristics
Front grille with water-repellent gauze
Recessed connection terminal with cover plate and high-strength cable gland
Metal parts and wall bracket made of stainless steel

PROSOUND 05/2011

"The cabinets give a solid impression ... and meet IP45 requirements. All four speaker systems are suitable for pleasant background music ... the large PAB-8WP/WS is capable of quite high volume levels ... however, the small ones should not be underestimated ... these speaker systems are impressive and the price is quite reasonable for weatherproof speaker systems."

Specifications:

Frequency range: 42-19,000 Hz
Resonant frequency (fs): -
Power capability, 100 V: 100/50/25 W_RMS
Power capability, 8 Ω: 180 W_MAX, 100 W_RMS
Power capability, 4 Ω: -
SPL (1 W/m): 90 dB
Max. rated SPL: 110 dB
Type of speaker: 165
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: -10 °C to +40 °C
Dimensions: 200x370x240 mm
Weight: 7.1 kg
Other features: screw terminal mounting bracket, bass-reflex

Weatherproof speakers: 100 V, Weatherproof high-performance PA speaker system, 120 WRMS in 100 V operation or up to 240 WMAX/120 WRMS in 8 operation, PAB-8WP/WS — Enlarge

Available by popular demand: weatherproof PA speakers with IP classification. Exactly the right speakers whenever a high sound quality, a high volume capability and a respective resistance to all weather conditions are required. Ideally suited for permanent open-air applications, e.g. at fairground attractions, PA applications in pedestrian areas, at sports facilities and wherever a weather-protected installation of the speakers is not possible.

Weatherproof high-performance PA speaker system, 120 WRMS in 100 V operation or up to 240 WMAX/120 WRMS in 8 Ω operation

High-performance 2-way bass-reflex system with cabinet made of ABS plastic
100 V or 8 Ω operation, selectable
20 cm (8") PA bass speaker with impregnated paper cone
25 mm (1") horn tweeter system
Excellent sound characteristics
Front grille with water-repellent gauze
Recessed connection terminal with cover plate and high-strength cable gland
Speaker in and parallel out, screw terminal
Metal parts and wall bracket made of stainless steel

PROSOUND 05/2011

"The cabinets give a solid impression ... and meet IP45 requirements. All four speaker systems are suitable for pleasant background music ... the large PAB-8WP/WS is capable of quite high volume levels ... however, the small ones should not be underestimated ... these speaker systems are impressive and the price is quite reasonable for weatherproof speaker systems."

Specifications:

Frequency range: 48-20,000 Hz
Resonant frequency (fs): -
Power capability, 100 V: 120/60/30 W_RMS
Power capability, 8 Ω: 240 W_MAX, 120 W_RMS
Power capability, 4 Ω: -
SPL (1 W/m): 96 dB
Max. rated SPL: 117 dB
Type of speaker: 200
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: -10 °C to +40 °C
Dimensions: 240x430x250 mm
Weight: 13.1 kg
Other features: 2 x SPEAKER par in/out screw terminal mounting bracket, bass-reflex

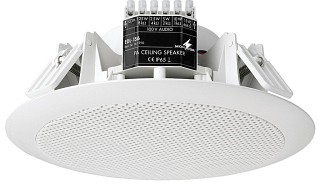

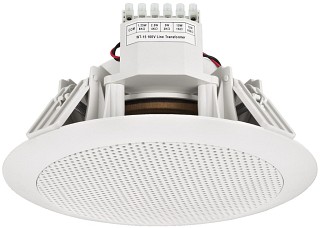

Weatherproof speakers: 100 V, Weatherproof PA ceiling speaker EDL-155 — Enlarge

Weatherproof PA ceiling speaker, heat-resistant up to 100 °C. For applications in saunas and swimming pool areas.

100 V line technique
2-way system with dome tweeter
Excellent sound
White plastic housing
Weatherproof speaker cone
Tested according to ASTM B117 (400 h salt spray test)
For a ceiling thickness from 2 to 25 mm

Specifications:

Frequency range: 70-18,000 Hz
Power capability, 100 V: 15/10/5/2.5/1.25 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): 87 dB
Max. rated SPL: 99 dB
Type of speaker: 130
Mounting cutout: Ø 165 mm
Mounting depth: 95 mm
Admiss. ambient temp.: -20 °C to +100 °C
Dimensions: Ø 202 mm x 100 mm
Weight: 1.05 kg
Other features: -

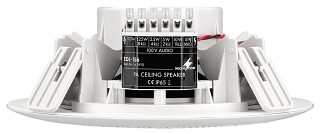

Weatherproof speakers: 100 V, Weatherproof PA ceiling speaker EDL-156 — Enlarge

Weatherproof PA ceiling speaker, heat-resistant up to 100 °C. For applications in saunas and swimming pool areas.

100 V line technique
2-way system with dome tweeter
Excellent sound
White plastic housing
Weatherproof speaker cone
Tested according to ASTM B117 (400 h salt spray test)
For a ceiling thickness from 2 to 25 mm

Specifications:

Frequency range: 60-20,000 Hz
Power capability, 100 V: 15/10/5/2.5/1.25 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): 88 dB
Max. rated SPL: 100 dB
Type of speaker: 180
Mounting cutout: Ø 190 mm
Mounting depth: 75 mm
Admiss. ambient temp.: -20 °C to +100 °C
Dimensions: Ø 226 mm x 100 mm
Weight: 1.1 kg
Other features: -

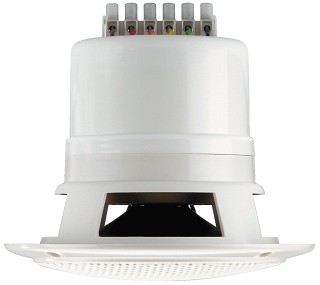

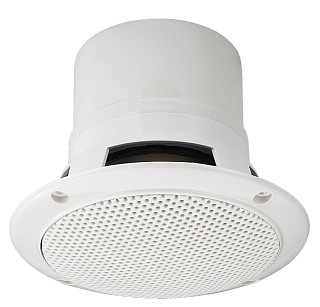

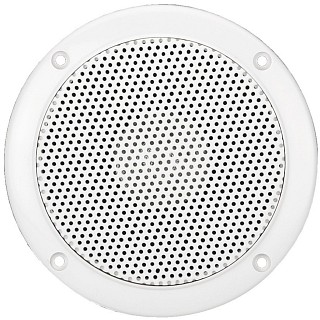

Weatherproof speakers: 100 V, Weatherproof flush-mount PA speaker EDL-204 — Enlarge

Weatherproof flush-mount PA speaker

100 V line technique
Full range speaker with dual cone, perfect sound characteristics
Splashproof due to white one-piece plastic design, high-quality polypropylene cone with rubber surround
For indoor and outdoor applications
Supplied with stainless steel mounting screws

Specifications:

Frequency range: 100-18,000 Hz
Power capability, 100 V: 20/15/10/5/2.5 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): -
Max. rated SPL: -
Type of speaker: 100
Mounting cutout: Ø 104 mm
Mounting depth: 102 mm
Admiss. ambient temp.: -10 °C to +40 °C
Dimensions: Ø 132 mm x 118 mm
Weight: 820 g
Other features: -

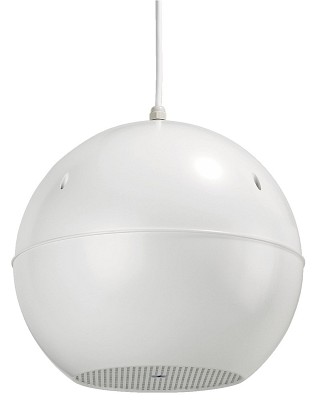

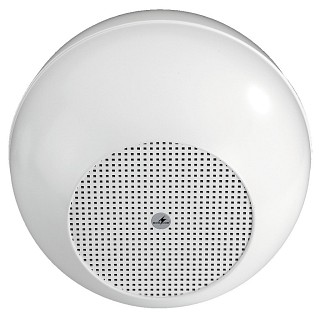

Weatherproof PA ball speaker

100 V line technique or 8 Ω operation
White ABS cabinet (self-extinguishing, complies with standard UL 94V-0)
Supplied with 480 cm connection cable and canopy

Specifications:

Frequency range: 120-20,000 Hz
Power capability, 100 V: 20/10/5 W_RMS
Power capability, 8 Ω: 20 W/8 Ω
SPL (1 W/m): 94 dB
Max. rated SPL: -
Type of speaker: -
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: -10 °C to +40 °C
Dimensions: Ø 265 mm
Weight: 2.2 kg
Other features: -

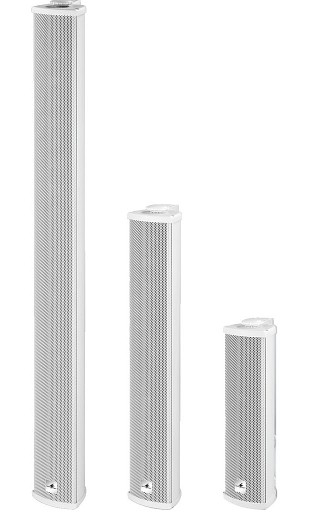

Weatherproof speakers: 100 V, PA column speakers, in extruded aluminium cabinets ETS-210TW/WS — Enlarge

Slim Design, Weatherproof Version

PA column speakers, in extruded aluminium cabinets.

Weatherproof and hose-proof
100 V line technique
2-way version (with additional integrated tweeters for a clearly improved sound)
Connection cable with 5-step power taps
2 x M6 threaded bushing
Aluminium front grille
Supplied with mounting brackets

Specifications:

Frequency range: 170-20,000 Hz
Number of speakers: 2+1
Power rating: 10/5/2.5/1.25/0.63 W_RMS
SPL (1 W/1 m): 86 dB
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: 80x280x70 mm
Weight: 1 kg

Weatherproof speakers: 100 V, PA column speakers, in extruded aluminium cabinets ETS-220TW/WS — Enlarge

Slim Design, Weatherproof Version

PA column speakers, in extruded aluminium cabinets.

Weatherproof and hose-proof
100 V line technique
2-way version (with additional integrated tweeters for a clearly improved sound)
Connection cable with 5-step power taps
2 x M6 threaded bushing
Aluminium front grille
Supplied with mounting brackets

Specifications:

Frequency range: 150-20,000 Hz
Number of speakers: 4+2
Power rating: 20/15/10/5/2.5 W_RMS
SPL (1 W/1 m): 89 dB
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: 80x469x70 mm
Weight: 1.7 kg

Weatherproof speakers: 100 V, PA column speakers, in extruded aluminium cabinets ETS-240TW/WS — Enlarge

Slim Design, Weatherproof Version

PA column speakers, in extruded aluminium cabinets.

Weatherproof and hose-proof
100 V line technique
2-way version (with additional integrated tweeters for a clearly improved sound)
Connection cable with 5-step power taps
2 x M6 threaded bushing
Aluminium front grille
Supplied with mounting brackets

Specifications:

Frequency range: 150-20,000 Hz
Number of speakers: 8+4
Power rating: 40/30/20/10/5 W_RMS
SPL (1 W/1 m): 90 dB
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: 80x846x70 mm
Weight: 2.8 kg

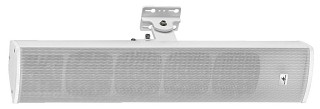

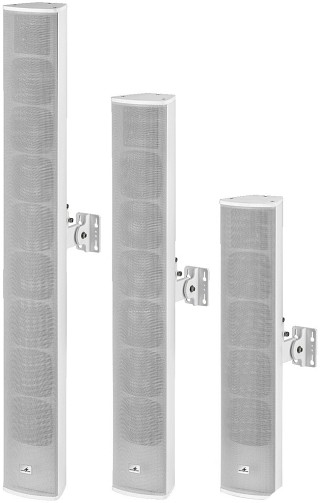

Weatherproof speakers: 100 V, Weatherproof PA column speakers ETS-422TW/WS — Enlarge

Weatherproof PA column speakers, with a top-quality sound.

Weatherproof and hose-proof, extruded aluminium cabinet
100 V line technique
2-way version (with additional integrated tweeter for a clearly improved sound)
Integrated crossover network
Aluminium front grille
Supplied with a robust tiltable and movable aluminium wall bracket
Connection via cable with 4 power taps

Specifications:

Frequency range: 130-20,000 Hz
Number of speakers: 4+1
Power rating: 20/10/5/2.5 W_RMS
SPL (1 W/1 m): 92 dB
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: 124x610x108 mm
Weight: 4 kg

Weatherproof speakers: 100 V, Weatherproof PA column speakers ETS-442TW/WS — Enlarge

Weatherproof PA column speakers, with a top-quality sound.

Weatherproof and hose-proof, extruded aluminium cabinet
100 V line technique
2-way version (with additional integrated tweeter for a clearly improved sound)
Integrated crossover network
Aluminium front grille
Supplied with a robust tiltable and movable aluminium wall bracket
Connection via cable with 4 power taps

Specifications:

Frequency range: 110-20,000 Hz
Number of speakers: 8+1
Power rating: 40/20/10/5 W_RMS
SPL (1 W/1 m): 93 dB
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: 124x1,016x108 mm
Weight: 7.7 kg

Weatherproof speakers: 100 V, Weatherproof horn speaker (music horn), 2-way technology IT-100TW — Enlarge

The music horns from MONACOR are the state-of-the-art solution in order to use the full range of a horn speaker with a clearly extended frequency range. The 2-way technology with a dynamic cone bass-midrange speaker and a horn tweeter allows for an increase in the sound quality and permits to radiate the keynotes of voices and instruments which cannot be achieved by conventional horn speakers. The music horns are a perfect solution whenever an optimum voice volume and/or a more complete music transmission is required.

Weatherproof horn speaker (music horn), 2-way technology

100 V line technique
Weatherproof and IP66 certified
Wideband sound with clear bass frequencies
13 cm bass-midrange speaker and 25 mm (1") horn
Suitable for indoor and outdoor applications
Robust plastic housing of very low resonance
Supplied with stainless steeel mounting bracket
4 power taps, connection via screw terminals

Specifications:

Power rating: 30/15/7.5/3.75 W_RMS
Frequency range: 110-16,000 Hz
SPL (1 W/1 m): 99 dB
Radiation angle (hor./vert.): 110°/60°
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: 310x215x330 mm
Weight: 4.7 kg
Special feature: IP66, ABS, 2-way
Replacement voice coil: -

The music horns from MONACOR are the state-of-the-art solution in order to use the full range of a horn speaker with a clearly extended frequency range. The 2-way technology with a dynamic cone bass-midrange speaker and a horn tweeter allows for an increase in the sound quality and permits to radiate the keynotes of voices and instruments which cannot be achieved by conventional horn speakers. The music horns are a perfect solution whenever an optimum voice volume and/or a more complete music transmission is required.

Weatherproof horn speaker (music horn), 2-way technology

100 V line technique with high power taps
Weatherproof and IP66 certified
Very wideband sound with a distinct bass volume
16 cm bass-midrange speaker and 25 mm (1") horn
Suitable for general indoor and outdoor applications wherever a high sound pressure level and an excellent sound are required
Robust light grey ABS plastic housing
Supplied with mounting bracket and stainless steel screws
Connection via screw terminal strip with 4 power taps

Specifications:

Power rating: 30/15/7.5/3.75 W_RMS
Frequency range: 100-15,000 Hz
SPL (1 W/1 m): 101 dB
Radiation angle (hor./vert.): 100°/60°
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: 370x250x300 mm
Weight: 4.7 kg
Special feature: IP66, ABS, 2-way
Replacement voice coil: -

Weatherproof speakers: 100 V, Weatherproof horn speaker (music horn), 2-way technology IT-400TW — Enlarge

The music horns from MONACOR are the state-of-the-art solution in order to use the full range of a horn speaker with a clearly extended frequency range. The 2-way technology with a dynamic cone bass-midrange speaker and a horn tweeter allows for an increase in the sound quality and permits to radiate the keynotes of voices and instruments which cannot be achieved by conventional horn speakers. The music horns are a perfect solution whenever an optimum voice volume and/or a more complete music transmission is required.

Weatherproof horn speaker (music horn), 2-way technology

100 V line technique with very high tapping power
Weatherproof and IP66 certified
Very wideband sound with a distinct bass volume, even at very high volume levels
16 cm bass-midrange speaker and 25 mm (1") horn
Suitable for general indoor and outdoor applications wherever a high sound pressure level and an excellent sound are required
Robust plastic housing with extra low resonance and very high rear dampening
Supplied with mounting bracket and screws made of stainless steel
Connection via screw terminals with 4 power taps

Specifications:

Power rating: 60/30/15/7.5 W_RMS
Frequency range: 100-15,000 Hz
SPL (1 W/1 m): 101 dB
Radiation angle (hor./vert.): 100°/60°
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: 420x335x400 mm
Weight: 7.1 kg
Special feature: IP66, ABS, 2-way
Replacement voice coil: -

Weatherproof speakers: 100 V

Weatherproof high-performance PA speaker system, 120 WRMS, PAB-120WP/WS

Weatherproof high-performance PA speaker system, 50 WRMS in 100 V operation or up to 100 WMAX/50 WRMS in 4 Ω operation, PAB-52WP/WS

Weatherproof high-performance PA speaker system, 100WRMS in 100 V operation or up to 180 WMAX/100 WRMS in 8 Ω operation, PAB-6WP/WS

Weatherproof high-performance PA speaker system, 120 WRMS in 100 V operation or up to 240 WMAX/120 WRMS in 8 Ω operation, PAB-8WP/WS

Weatherproof PA ceiling speaker EDL-155

Weatherproof PA ceiling speaker EDL-156

Weatherproof flush-mount PA speaker EDL-204

Weatherproof PA ball speaker EDL-420/WS

PA column speakers, in extruded aluminium cabinets ETS-210TW/WS

PA column speakers, in extruded aluminium cabinets ETS-220TW/WS

PA column speakers, in extruded aluminium cabinets ETS-240TW/WS

Weatherproof PA column speakers ETS-422TW/WS

Weatherproof PA column speakers ETS-442TW/WS

Weatherproof horn speaker (music horn), 2-way technology IT-100TW

Weatherproof horn speaker (music horn), 2-way technology IT-300TW

Weatherproof horn speaker (music horn), 2-way technology IT-400TW
