Speaker systems: 100 V

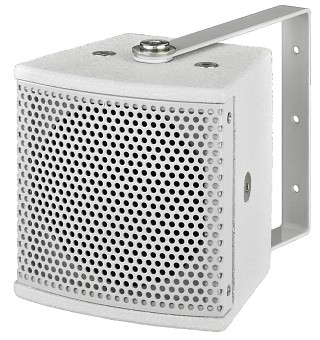

Miniature PA speaker system ESP-303/WS

Miniature PA speaker system

100 V PA speaker system of a very compact size
8 cm (3") full range speaker with phase plug
Power taps: 10/5/2.5 W
High-quality wooden cabinet in black (SW) or white (WS) with protective metal grille
Multi-purpose positioning and installation options
4 x M8 threaded inserts
2 x M6 threaded inserts, suitable e.g. for support LST-40
Use of subwoofer systems is recommended
Supplied with mounting bracket

Specifications:

Frequency range: 180-20,000 Hz
Power capability, 100 V: 10/5/2.5 W_RMS
Power capability, 8 Ω: _-
Power capability, 4 Ω: -
SPL (1 W/m): 88 dB
Max. rated SPL: 99 dB
Type of speaker: -
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: 0-40 °C
Dimensions: 120x120x105 mm
Weight: 1 kg
Other features: spring-load. speaker term.

Price per unit (Order No. mo-163230) EUR 88,95 excl. VAT: € 74.75 / $ 83.72

Miniature PA speaker system ESP-305/SW

Miniature PA speaker system

100 V PA speaker system of a very compact size
13 cm (5") full range speaker with neodymium magnet system
Power taps: 20/10/5 W
High-quality wooden cabinet in black (SW) or white (WS) with protective metal grille
Multi-purpose positioning and installation options
4 x M8 threaded inserts
2 x M6 threaded inserts, suitable e.g. for support LST-40
Use of subwoofer systems is recommended
Supplied with mounting bracket

Specifications:

Frequency range: 140-18,000 Hz
Power capability, 100 V: 20/10/5 W_RMS
Power capability, 8 Ω: _-
Power capability, 4 Ω: -
SPL (1 W/m): 93 dB
Max. rated SPL: 106 dB
Type of speaker: -
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: 0-40 °C
Dimensions: 147x146x152 mm
Weight: 1.2 kg
Other features: spring-load. speaker term.

Price per unit (Order No. mo-163240) EUR 154,20 excl. VAT: € 129.58 / $ 145.13

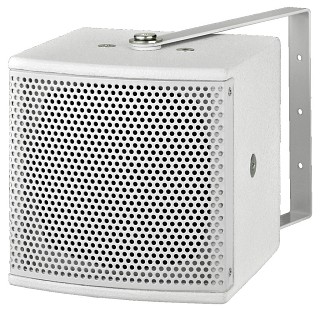

Miniature PA speaker system ESP-305/WS

Miniature PA speaker system

100 V PA speaker system of a very compact size
13 cm (5") full range speaker with neodymium magnet system
Power taps: 20/10/5 W
High-quality wooden cabinet in black (SW) or white (WS) with protective metal grille
Multi-purpose positioning and installation options
4 x M8 threaded inserts
2 x M6 threaded inserts, suitable e.g. for support LST-40
Use of subwoofer systems is recommended
Supplied with mounting bracket

Specifications:

Frequency range: 140-18,000 Hz
Power capability, 100 V: 20/10/5 W_RMS
Power capability, 8 Ω: _-
Power capability, 4 Ω: -
SPL (1 W/m): 93 dB
Max. rated SPL: 106 dB
Type of speaker: -
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: 0-40 °C
Dimensions: 147x146x152 mm
Weight: 1.2 kg
Other features: spring-load. speaker term.

Price per unit (Order No. mo-163250) EUR 159,00 excl. VAT: € 133.61 / $ 149.65

Universal PA speaker system EUL-10

Universal PA speaker system

100 V line technique, 2-way version
Excellent sound quality
5-step power selector switch
Diecast metal cabinet with black (EUL-10) or white (EUL-10/WS) textured coating and protective metal grille
Movable mounting bracket

Controls on the left side of the cabinet.

Specifications:

Frequency range: 60-18,000 Hz
Power rating: 10/5/2.5/1.25 W_RMS
Type of speaker:
Dimensions: 118x220x115 mm
Weight: 2.2 kg

Price per unit (Order No. mo-160330) - not available

Universal PA speaker system EUL-10/WS

Universal PA speaker system

100 V line technique, 2-way version
Excellent sound quality
5-step power selector switch
Diecast metal cabinet with black (EUL-10) or white (EUL-10/WS) textured coating and protective metal grille
Movable mounting bracket

Controls on the left side of the cabinet.

Specifications:

Frequency range: 60-18,000 Hz
Power rating: 10/5/2.5/1.25 W_RMS
Type of speaker:
Dimensions: 118x220x115 mm
Weight: 2.2 kg

Price per unit (Order No. mo-160850) - not available

PA speaker system in 100 V line technique EUL-2/SW

This series of speaker systems including subwoofer from MONACOR sets standards in the modern PA technology: high-quality lacquered cabinets of a perfect design, lightweight but robust and of high power capability, with an amazing sound and a high efficiency, the EUL-2... with professional 100 V technology. Real PA speaker systems for versatile applications at a very attractive price.

PA speaker system in 100 V line technique

High-quality cabinet with durable PU coating
20 cm (2 x 8") double bass speaker of high power capability and a dyn. 25 mm (1") horn tweeter
Well-balanced and dynamic sound for speech and music applications
SPEAKON connection, rotary switch for power selection, stand sleeve
A subwoofer support is useful for bass reproductions of high requirements (e.g. with EUL-2SUB/SW)
This speaker can be integrated into any existing or new 100 V system by simply connecting it in parallel, as long as the amplifier features the respective power reserves!

Matching adapter piece for speaker system PAST-28/SW is available at option.

Specifications:

Power capabilities:
100 V operation: 50/37.5/25/12.5 W_RMS
8 Ω operation: -
General information:
Frequency range: 70-19,000 Hz
SPL (1 W/1 m): 95 dB
Admiss. ambient temp.: 0-40 °C
Dimensions: 320x485x250 mm
Weight: 8.7 kg
Connections: 1 x SPEAKON

Price per unit (Order No. mo-174450) EUR 482,08 excl. VAT: € 405.11 / $ 453.72

Pair of miniature PA speaker systems EUL-26/SW

Pair of miniature PA speaker systems

Speakers for general applications, very small dimensions in 100 V technology
Can also be connected at 8 Ω
6.5 cm (2.5") full range speaker
Good sound characteristics and speech intelligibility
Black (SW) or white (WS) plastic cabinet
Turnable, movable and tiltable due to wall bracket with ball joint
For completing the low-frequency sound reproduction, an additional subwoofer system is recommended (e.g. EUL-2SUB/SW, SOUND-100SUB)

Specifications:

Power capabilities:
100 V operation: 6 W_RMS
8 Ω operation: 20 W_MAX/10 W_RMS
General information:
Frequency range: 150-20,000 Hz
SPL (1 W/1 m): 88 dB
Admiss. ambient temp.: 0-40 °C
Dimensions: 90x90x115 mm
Weight: 0.65 kg
Connections: spring-load speaker term.

Price per pair (Order No. mo-163280) EUR 80,39 excl. VAT: € 67.55 / $ 75.66

Pair of miniature PA speaker systems EUL-26/WS

Pair of miniature PA speaker systems

Speakers for general applications, very small dimensions in 100 V technology
Can also be connected at 8 Ω
6.5 cm (2.5") full range speaker
Good sound characteristics and speech intelligibility
Black (SW) or white (WS) plastic cabinet
Turnable, movable and tiltable due to wall bracket with ball joint
For completing the low-frequency sound reproduction, an additional subwoofer system is recommended (e.g. EUL-2SUB/SW, SOUND-100SUB)

Specifications:

Power capabilities:
100 V operation: 6 W_RMS
8 Ω operation: 20 W_MAX/10 W_RMS
General information:
Frequency range: 150-20,000 Hz
SPL (1 W/1 m): 88 dB
Admiss. ambient temp.: 0-40 °C
Dimensions: 90x90x115 mm
Weight: 0.65 kg
Connections: spring-load speaker term.

Price per pair (Order No. mo-163290) EUR 80,39 excl. VAT: € 67.55 / $ 75.66

Pair of universal PA speaker systems EUL-30/SW

Pair of universal PA speaker systems

100 V line technique, 2-way version
EUL-80... with a 25 mm dome tweeter, EUL-60... and EUL-30... with an 11 mm dome tweeter
Excellent sound quality
6-step power selector switch
Black (SW) or white (WS) plastic cabinet
Movable mounting bracket
Mounting in corners possible as well due to bevelled shape of cabinets

Specifications:

Frequency range: 80-20,000 Hz
Power rating (100 V): 15/7.5/4/2/1 W_RMS
SPL (1 W/1 m): 87 dB
Max. rated SPL: 98 dB
Dimensions: 130x192x115 mm
Weight (piece): 1.4 kg
Connections: spring-load. speaker term.
Mounting facility: movable mounting bracket
System:

Price per pair (Order No. mo-161150) EUR 151,84 excl. VAT: € 127.60 / $ 142.91

Pair of universal PA speaker systems EUL-30/WS

Pair of universal PA speaker systems

100 V line technique, 2-way version
EUL-80... with a 25 mm dome tweeter, EUL-60... and EUL-30... with an 11 mm dome tweeter
Excellent sound quality
6-step power selector switch
Black (SW) or white (WS) plastic cabinet
Movable mounting bracket
Mounting in corners possible as well due to bevelled shape of cabinets

Specifications:

Frequency range: 80-20,000 Hz
Power rating (100 V): 15/7.5/4/2/1 W_RMS
SPL (1 W/1 m): 87 dB
Max. rated SPL: 98 dB
Dimensions: 130x192x115 mm
Weight (piece): 1.4 kg
Connections: spring-load speaker term.
Mounting facility: movable mounting bracket
System:

Price per pair (Order No. mo-161160) EUR 151,84 excl. VAT: € 127.60 / $ 142.91

Pair of universal PA speaker systems EUL-42/WS

Pair of universal PA speaker systems

100 V line technique, 2-way version
White plastic cabinet with metal front grille
Integrated suspension device for wall mounting
Movable mounting bracket

Specifications:

Frequency range: 80-18,000 Hz
Power rating (100 V): 10/5/2.5 W_RMS
SPL (1 W/1 m): 87 dB
Max. rated SPL: 97 dB
Dimensions: 95x150x82 mm
Weight (piece): 960 g
Connections: spring-load. speaker term.
Mounting facility: 2 x 1-hole wall holder 2 x 5 mm thread for mounting bracket
System: 2-way

Price per pair (Order No. mo-161970) EUR 106,40 excl. VAT: € 89.41 / $ 100.14

Pair of universal PA speaker systems EUL-60/SW

Pair of universal PA speaker systems

100 V line technique, 2-way version
EUL-80... with a 25 mm dome tweeter, EUL-60... and EUL-30... with an 11 mm dome tweeter
Excellent sound quality
6-step power selector switch
Black (SW) or white (WS) plastic cabinet
Movable mounting bracket
Mounting in corners possible as well due to bevelled shape of cabinets

Specifications:

Frequency range: 60-20,000 Hz
Power rating (100 V): 15/7.5/4/2/1 W_RMS
SPL (1 W/1 m): 89 dB
Max. rated SPL: 100 dB
Dimensions: 215x290x172 mm
Weight (piece): 3.4 kg
Connections: spring-load. speaker term.
Mounting facility: movable mounting bracket
System: bass-reflex

Price per pair (Order No. mo-161170) EUR 292,50 excl. VAT: € 245.80 / $ 275.29

Pair of universal PA speaker systems EUL-60/WS

Pair of universal PA speaker systems

100 V line technique, 2-way version
EUL-80... with a 25 mm dome tweeter, EUL-60... and EUL-30... with an 11 mm dome tweeter
Excellent sound quality
6-step power selector switch
Black (SW) or white (WS) plastic cabinet
Movable mounting bracket
Mounting in corners possible as well due to bevelled shape of cabinets

Specifications:

Frequency range: 60-20,000 Hz
Power rating (100 V): 15/7.5/4/2/1 W_RMS
SPL (1 W/1 m): 89 dB
Max. rated SPL: 100 dB
Dimensions: 215x290x172 mm
Weight (piece): 3.4 kg
Connections: spring-load. speaker term.
Mounting facility: movable mounting bracket
System: bass-reflex

Price per pair (Order No. mo-161180) EUR 292,50 excl. VAT: € 245.80 / $ 275.29

Additional PA speakers EUL-75/WS

Additional PA speakers Speakers of particularly high-quality workmanship, suitable for PA applications of high requirements in adjoining areas, e.g. living area, but also for offices, practices and waiting rooms. The speaker system provides an excellent sound due to the application of an efficient hi-fi full range speaker and sound-optimized filters.

PA speaker system

100 V line technique
6-step power selector switch
Hi-fi full range speaker
Excellent sound quality
White grained wooden cabinet with metal front grille
Standing speaker with wall holder

Specifications:

Frequency range: 70-18,000 Hz
Power rating (100 V): 10/5/2.5/1.25/0.625 W_RMS
SPL (1 W/1 m): 86 dB
Max. rated SPL: 96 dB
Dimensions: 180x290x170 mm
Weight (piece): 3.8 kg
Connections: spring-load. speaker term.
Mounting facility: 1 x wall holder
System: 130

Price per unit (Order No. mo-162500) EUR 113,80 excl. VAT: € 95.63 / $ 107.11

Pair of universal PA speaker systems EUL-80/SW

Pair of universal PA speaker systems

100 V line technique, 2-way version
EUL-80... with a 25 mm dome tweeter, EUL-60... and EUL-30... with an 11 mm dome tweeter
Excellent sound quality
6-step power selector switch
Black (SW) or white (WS) plastic cabinet
Movable mounting bracket
Mounting in corners possible as well due to bevelled shape of cabinets

Specifications:

Frequency range: 40-20,000 Hz
Power rating (100 V): 30/15/7.5/4/2 W_RMS
SPL (1 W/1 m): 89 dB
Max. rated SPL: 103 dB
Dimensions: 270x370x220 mm
Weight (piece): 5.4 kg
Connections: spring-load. speaker term.
Mounting facility: movable mounting bracket
System: bass-reflex

Price per pair (Order No. mo-161190) EUR 343,30 excl. VAT: € 288.49 / $ 323.11

Pair of universal PA speaker systems EUL-80/WS

Pair of universal PA speaker systems

100 V line technique, 2-way version
EUL-80... with a 25 mm dome tweeter, EUL-60... and EUL-30... with an 11 mm dome tweeter
Excellent sound quality
6-step power selector switch
Black (SW) or white (WS) plastic cabinet
Movable mounting bracket
Mounting in corners possible as well due to bevelled shape of cabinets

Specifications:

Frequency range: 40-20,000 Hz
Power rating (100 V): 30/15/7.5/4/2 W_RMS
SPL (1 W/1 m): 89 dB
Max. rated SPL: 103 dB
Dimensions: 270x370x220 mm
Weight (piece): 5.4 kg
Connections: spring-load. speaker term.
Mounting facility: movable mounting bracket
System: bass-reflex

Price per pair (Order No. mo-161230) EUR 343,30 excl. VAT: € 288.49 / $ 323.11
