Mixers and players

CD and MP3 player CD-112

CD and MP3 player, with USB interface and SD/MMC card slot.

USB storage media can be connected directly
For SD/MMC cards up to 32 GB (FAT16/FAT32), available at option
Anti-shock system
Supports ID3 tags
Folder navigation
Autoplay function
Fast forward and reverse
Track programming
Repeat function (repeat 1, repeat all, random repeat)
Random play
Supplied with infrared remote control
482 mm (19") rack installation with supplied mounting brackets, 1 RS
Audio CD/CD-R/CD-RW/MP3 CD

Also suitable for hi-fi and PA applications.

tastenwelt 05/2011

"Twice as good! With the new CD/MP3 players CD-112 and CD-112TRS from IMG Stage Line, a musician can meet every requirement."

Specifications:

General information:
Frequency range: 20-20,000 Hz
THD:<0.1 %
Channel separation:>60 dB
Dynamic range:>96 dB
S/N ratio:>70 dB
Output, analogue: 1.2 V
Output, digital: -
Power supply: 230 V /50 Hz/50 VA
Admiss. ambient temp.: 0-40 °C
Dim., player mech.: 482x44x265 mm, 1 RS
Dim., control panel: -
Weight: 4 kg
Connections:
Analogue output: 1 x RCA L/R
Digital output: -
Fader start: -
Control connection: -

Price per unit (Order No. mo-212800) - not available

CD and MP3 player with FM RDS tuner CD-112RDS/BT

CD and MP3 player with FM RDS tuner and Bluetooth receiver.

Bluetooth receiver for the wireless connection of laptops, smartphones or tablet PCs
FM RDS tuner with 30 station presets
USB storage media can be connected directly
For SD/MMC cards up to 32 GB (FAT16/FAT32), available at option
Anti-shock system
Supports ID3 tags
Folder navigation
Autoplay function
Fast forward and reverse
Track programming
Repeat function (repeat 1, repeat all, repeat folder)
Random play
RS-232 interface for remote control
Supplied with infrared remote control and antenna
482 mm (19") rack installation with supplied mounting brackets, 1 RS
Audio CD/CD-R/CD-RW/MP3 CD

proaudio.de 12/2013

"It features an almost intuitive operation and is provided with an excellent multilingual instruction manual (also in German) containing most detailed information. The complete operating system is practice-orientated. It delivers a high-quality sound and also meets professional requirements which is important, e.g. for high-quality reproductions in theatres. The CD-112RDS/BT is available at a very reasonable price and provides a great variety of reproduction facilities. Thus, it will certainly be interesting for a wide range of users and makes it suitable, e.g. for PA applications in halls and conference centres, multimedia applications, the use in theatres, etc."

Also suitable for PA applications.

Specifications:

General information:
Frequency range: 20-20,000 Hz
THD:<0.1 %
Channel separation:>60 dB
Dynamic range:>96 dB
S/N ratio:>70 dB
Output, analogue: 1.2 V
Output, digital: -
Power supply: 230 V /50 Hz/50 VA
Admiss. ambient temp.: 0-40 °C
Dim., player mech.: 482x44x265 mm, 1 RS
Dim., control panel: -
Weight: 4.1 kg
Connections:
Analogue output: 1 x XLR L/R, bal. (CD) 1 x XLR L/R, bal. (priority) 1 x RCA L/R (Bluetooth) 1 x RCA L/R (tuner)
Digital output: -
Fader start: -
Control connection: -

Price per unit (Order No. mo-212950) EUR 691,53 excl. VAT: € 581.12 / $ 650.85

CD and MP3 player with recording function CD-113DPR

CD and MP3 player with recording function, USB interface and SD/MMC card slot.

Recording/copying from CD, USB medium, SD/MMC card or external source (aux) onto USB medium or SD/MMC card
Manual level control for external source
Recording level display
USB storage media can be connected directly
For SD/MMC cards up to 32 GB (FAT16/FAT32), available at option
Anti-shock system
Supports ID3 tags
Folder navigation
Autoplay function (selectable via jumper)
Fast forward and reverse
Track programming
Repeat function (repeat 1, repeat all, repeat folder, random repeat)
Random play
Supplied with infrared remote control
482 mm (19") rack installation with supplied mounting brackets, 1 RS
Audio CD/CD-R/CD-RW/MP3 CD

Also suitable for hi-fi and PA applications.

Specifications:

General information:
Frequency range: 20-20,000 Hz
THD:<0.1 %
Channel separation:>60 dB
Dynamic range:>96 dB
S/N ratio:>80 dB
Output, analogue: 1.2 V
Output, digital: -
Power supply: 230 V /50 Hz/50 VA
Admiss. ambient temp.: 0-40 °C
Dim., player mech.: 482x44x265 mm, 1 RS
Dim., control panel: -
Weight: 3.9 kg
Connections: 1 x RCA L/R (aux input)
Analogue output: 1 x RCA L/R
Digital output: -
Fader start: -
Control connection: -

Price per unit (Order No. mo-213080) - not available

Compact MP3 recorder DPR-10

Compact MP3 recorder, with USB interface and SD/MMC card slot.

USB storage media can be connected directly (e.g. USB flash drive)
For SD/MMC cards up to 8 GB (FAT16/FAT32), available at option
Recording from USB medium, SD/MMC card or external source (aux) onto USB medium or SD/MMC card
Selectable recording bit rate: 96/128/192 kbps
Supports MP3
Supports ID3 tags
Fast forward and reverse
Track programming
Folder navigation
Repeat function (repeat 1, repeat all, repeat album)
Random play
Intro play
Supplied with infrared remote control
12 V power supply via plug-in PSU, available at option

Also suitable for hi-fi and PA applications.

Specifications:

General information:
Frequency range: 20-20,000 Hz
THD:<0.3 %
Channel separation:>60 dB
Dynamic range:>96 dB
S/N ratio:>60 dB
Output, analogue: 1.2 V
Output, digital: -
Power supply: via optional PSU, e.g. PSS-600E
Admiss. ambient temp.: 0-40 °C
Dim., player mech.: 175x52x110 mm
Dim., control panel: -
Weight: 545 g
Connections: 1 x RCA L/R (aux input)
Analogue output: 1 x RCA L/R
Digital output: -
Fader start: -
Control connection: -

Price per unit (Order No. mo-172740) - not available

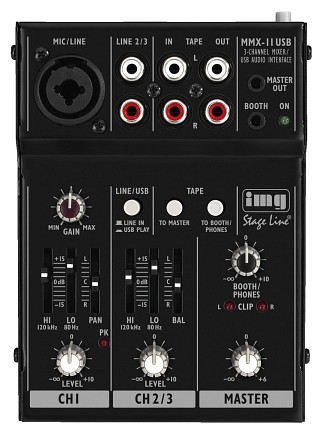

2-channel miniature audio mixer MMX-11USB

2-channel miniature audio mixer, with 3 inputs and USB interface.

Integrated USB audio interface (will be identified and addressed as an external sound card)
Full duplex USB port (allows for simultaneous recording and reproduction) for the reproduction of digital audio data from a PC and for recording mixings onto a PC
1 mono input channel with gain control, 2-way equalizer and pan pot control, peak LED
1 stereo input channel with level control, 2-way equalizer and balance control
Tape record/play connections
1 x 3.5 mm stereo output (master)
Adjustable headphone output
+20 V phantom power, permanent
Clip LED
Robust metal housing of compact size

Specifications:

Mic: 0.5 mV
Line: 2 mV (channel 1) 150 mV (channel 2)
Tape: 420 mV
Master, stereo L/R: 6 V max.
Monitor: 6 V max. (headphones)
Frequency range: 20-20,000 Hz
THD:<0.05 %
S/N ratio: 81 dB, weighted
Bass: ±15 dB/80 Hz
Treble: ±15 dB/12 kHz
Phantom power: +20 V
Power supply: via USB interface or via suppl. PSU
Admiss. ambient temp.: 0-40 °C
Dimensions: 102x45x140 mm
Weight: 430 g
Inputs: 1 x combo (XLR/6.3 mm jack, mic/line) 1 x RCA L/R, line in 1 x RCA L/R, tape in
Outputs: 1 x 3.5 mm jack, main out 1 x 3.5 mm jack, monitor 1 x RCA L/R, tape out

Price per unit (Order No. mo-202840) EUR 69,41 excl. VAT: € 58.33 / $ 65.33

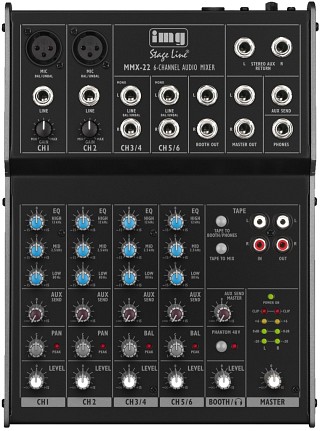

4-channel audio mixer MMX-22

4-channel audio mixer, with 6 inputs.

2 mono input channels, each with gain control, 3-way equalizer and pan pot
2 stereo input channels, each with 3-way equalizer and balance control
Adjustable aux send output
Control room function
Tape record/play connections
+48 V phantom power, can be switched centrally
Adjustable headphone output
Stereo LED level display
Power supply via supplied PSU

Specifications:

Mic, mono: 0.5 mV, bal.
Line, mono: 1 mV
Line, stereo: 10 mV, bal.
Insert, mono: -
Tape, stereo: 100 mV
Aux, stereo: 100 mV
Master, stereo L/R: 650 mV
Control room, stereo: 2 V
Record, stereo: 650 mV
Insert, mono: -
Aux1, mono: 9.5 V
Aux2, mono: -
Headphones, stereo: 8 Ω
Frequency range: 20-20,000 Hz
THD:<0.05 %
S/N ratio:>74 dB
Crosstalk: -63 dB
Bass: ±15 dB/80 Hz
Midrange: ±15 dB/2.5 kHz
Treble: ±15 dB/12 kHz
Phantom power: +48 V
Power supply: via suppl. PSU
Admiss. ambient temp.: 0-40 °C
Dimensions: 190x50x260 mm
Weight: 1.7 kg

Price per unit (Order No. mo-202770) - not available

4-channel audio mixer MMX-22UFX

4-channel audio mixer, with 6 inputs, DSP effect unit and USB interface. Plug and mix!

Integrated USB audio interface (will be identified and addressed as an external sound card)
Full duplex USB port (allows for simultaneous recording and reproduction) for the reproduction of digital audio data from a PC and for recording mixings onto a PC
2 mono input channels, each with gain control, 3-way equalizer and pan pot
2 stereo input channels, each with 3-way equalizer and balance control
DSP with 16 different effects
Aux send output
Control room function
Tape record/play connections
+48 V phantom power, can be switched centrally
Adjustable headphone output
Stereo LED level display
Power supply via supplied PSU

Specifications:

Mic, mono: 0.5 mV, bal.
Line, mono: 1 mV
Line, stereo: 10 mV, bal.
Insert, mono: -
Tape, stereo: 100 mV
Aux, stereo: 100 mV
Master, stereo L/R: 650 mV
Control room, stereo: 2 V
Record, stereo: 650 mV
Insert, mono: -
Aux1, mono: 9.5 V
Aux2, mono: -
Headphones, stereo: 8 Ω
Frequency range: 20-20,000 Hz
THD:<0.05 %
S/N ratio:>74 dB
Crosstalk: -63 dB
Bass: ±15 dB/80 Hz
Midrange: ±15 dB/2.5 kHz
Treble: ±15 dB/12 kHz
Phantom power: +48 V
Power supply: via suppl. PSU
Admiss. ambient temp.: 0-40 °C
Dimensions: 190x65x260 mm
Weight: 2.4 kg

Price per unit (Order No. mo-202780) - not available

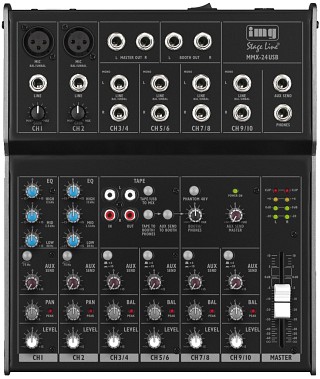

6-channel audio mixer MMX-24USB

6-channel audio mixer, with 10 inputs and USB interface. Plug and mix!

Integrated USB audio interface (will be identified and addressed as an external sound card)
Full duplex USB port (allows for simultaneous recording and reproduction) for the reproduction of digital audio data from a PC and for recording mixings onto a PC
2 mono input channels, each with gain control, 3-way equalizer, low cut and pan pot
4 stereo input channels, each with balance control
Adjustable aux send output
Control room function
Tape record/play connections
+48 V phantom power, can be switched centrally
Adjustable headphone output
Stereo LED level display
Power supply via supplied PSU

Specifications:

Mic, mono: 0.5 mV, bal.
Line, mono: 1 mV
Line, stereo: 10 mV, bal.
Insert, mono: -
Tape, stereo: 100 mV
Aux, stereo: -
Master, stereo L/R: 650 mV
Control room, stereo: 2 V
Record, stereo: 650 mV
Insert, mono: -
Aux1, mono: 9.5 V
Aux2, mono: -
Headphones, stereo: 8 Ω
Frequency range: 20-20,000 Hz
THD:<0.05 %
S/N ratio:>74 dB
Crosstalk: -63 dB
Bass: ±15 dB/80 Hz
Midrange: ±15 dB/2.5 kHz
Treble: ±15 dB/12 kHz
Phantom power: +48 V
Power supply: via suppl. PSU
Admiss. ambient temp.: 0-40 °C
Dimensions: 220x65x260 mm
Weight: 2.1 kg

Price per unit (Order No. mo-202790) - not available

3-zone mixer MPX-4PA

3-zone mixer

3 zones with routing facility of all input channels as desired
XLR and RCA zone outputs
6 input channels (4 stereo ways, 2 microphone ways)
Both microphone ways can only be routed together
Recessed gain control for each input channel
Microphone ways, each with 2-way tone control, talkover and PAD switch
Stereo channels, switchable 2 x phono/line and 2 x line/line
Zone outputs, each with 3-way equalizer, LED level display of the stereo master, balance control, pre-fader listening (PFL) and mono/stereo selector switch
Adjustable headphone output with pre-fader listening (PFL) to the stereo input channels and the zone outputs
Connection for gooseneck light GNL-204 or GNL-205

Specifications:

Mic input: 1.5 mV
Phono input: 3 mV
CD input: 150 mV
Line input: 150 mV
Master output: 1 V/600 Ω
Record output: -
Headphones: 8 Ω
Frequency range: 20-20,000 Hz
THD: 0.1 %
S/N ratio: 61 dB, unweighted
Equalizer, bass: +12 dB, -12 dB/50 Hz
Equalizer, midrange: +12 dB, -12 dB/1 kHz
Equalizer, treble: +12 dB, -12 dB/10 kHz
Talkover: -16 dB
Gooseneck light: 12 V/5 W, BNC
Power supply: 230 V /50 Hz/20 VA
Admiss. ambient temp.: 0-40 °C
Dimensions: 482x177x105 mm, 4 RS
Weight: 3.75 kg

Price per unit (Order No. mo-202070) EUR 441,79 excl. VAT: € 371.25 / $ 415.80

4-channel voice/music mixer VMX-440/SW

4-channel voice/music mixer

Mixing made easy! An easy-to-use operating concept and clearly arranged features. Two stereo line sources and two mono microphone sources can be mixed together without any problems. Each input channel features a tone control. The master output levels can be preadjusted via recessed trimming potentiometers in order to protect them against overload. An optional remote switch can mute the stereo master outputs.

2 stereo line inputs
2 balanced microphone inputs
Parallel stereo line input on the front panel
3-way equalizer for each microphone input
Common 2-way tone control for the two line inputs
Muting via optional momentary push-button/switch
2 adjustable stereo master outputs
Master output level can be preadjusted via trimming potentiometers
Adjustable headphone output
Stereo record output
482 mm (19") rack installation, 1 RS, with supplied mounting brackets

Specifications:

Line input, stereo: 100 mV/10 kΩ
Microphone input: 1 mV/600 Ω
Master output, stereo: 1-3 V/100 Ω
Record output, stereo: 1 V/100 Ω
Headphones, stereo: 32 Ω, 2 x 15 mW
Frequency range: 20-20,000 Hz
THD: 0.05 %
S/N ratio:>60 dB
Equalizer, bass: ±12 dB/30 Hz
Equalizer, midrange: ±12 dB/1 kHz (voice only)
Equalizer, treble: ±12 dB/12 kHz
Power supply: 230 V /50 Hz/10 VA
Admiss. ambient temp.: 0-40 °C
Dimensions: 482x45x274 mm, 1 RS
Weight: 2.9 kg
Line input, stereo: 3 x RCA L/R
Microphone input: 2 x 6.3 mm jack, bal.
Master output, stereo: 2 x RCA L/R
Record output, stereo: 1 x RCA L/R
Headphones: 1 x 6.3 mm jack
Mute: plug-in screw terminal

Price per unit (Order No. mo-202530) EUR 164,60 excl. VAT: € 138.32 / $ 154.92

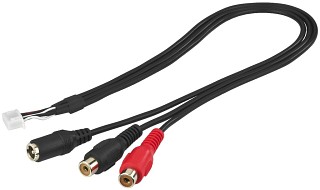

Connection cable for the insertion modules of the DMP-... series as well as M-32CD and M-34CDP DMP-12CC

Connection cable for the insertion modules of the DMP-... series as well as M-32CD and M-34CDP

Ready made-up adapter cable for connecting DMP-100, DMP-100T, DMP-200, DMP-250, M-32CD and M-34CDP to an amplifier or mixer
5-pin multipoint connector to RCA jack L/R and low-voltage jack 5.5/2.1 mm
Total cable length: approx. 40 cm

Price per unit (Order No. mo-212930) EUR 16,81 excl. VAT: € 14.13 / $ 15.82

RDS tuner/CD player insertion with USB interface PA-1140RCD

RDS tuner/CD player insertion with USB interface, for the PA mixing amplifiers with insertion compartment at the front.

USB flash drive can be connected directly

FM/AM tuner section:

RDS function for FM
24 station presets (18 x FM, 6 x AM)
Digital display
Station scanning

CD player section:

Anti-shock system
Slot-in mechanism
Random play, scan and repeat functions
Display of track/time
Shock-proof due to oil shock absorber
Audio CD/CD-R/CD-RW/MP3 CD

Price per unit (Order No. mo-173530) EUR 574,30 excl. VAT: € 482.61 / $ 540.52

Timer insertion PA-1200C

Timer insertion, with DCF77 radio-controlled clock receiver for the PA mixing amplifiers with insertion compartment.

40 memory places, to be programmed and edited as desired
3 selectable chimes, remote-controllable
3 relay contacts (NO/NC) for switching external units
A combination with digital message insertion PA-1120DMT allows time-controlled announcements

Price per unit (Order No. mo-171160) - not available

4-zone mixer PA-4040MPX

4-zone mixer, for general multi-room PA applications.

4 zones with routing facility of all input channels as desired
3 inputs microphone/line via comb. jacks
2 inputs line stereo via RCA jacks
Each input channel with gain control, 2-way tone control and zone routing switch
Microphone inputs with +15 V phantom power, to be switched on as required
Priority function for channels 1-3, switchable
Independent paging input, can be routed to each zone
4 zone outputs, can be adjusted individually
Connection for monitor speaker
Level control via zone VU meter and monitor VU meter
Adjustable headphone output
Mains operation or 24 V emergency power operation

Specifications:

Mic/line: 5 mV/4 kΩ, 100 mV/10 kΩ
Line: 100 mV/30 kΩ
Telephone paging: 40 mV/5 kΩ
Line (zone): 1.7 V, bal.
Line (mix out): 3.95 V
Monitor speakers: 8 Ω/1 W
Frequency range: 50-17,000 Hz
Bass: ±10 dB/100 Hz
Treble: ±10 dB/10 kHz
Mic:>65 dB
Line:>75 dB
THD:<1 %
Admiss. ambient temp.: 0-40 °C
Power supply: 230 V /50 Hz/20 VA, 24 V DC current /600 mA
Dimensions: 482x133x220 mm, 3 RS
Weight: 4.5 kg

Price per unit (Order No. mo-173450) EUR 371,20 excl. VAT: € 311.93 / $ 349.36

Mono PA mixing amplifier PA-8120RCD

Mono PA mixing amplifier, with integrated CD/MP3 player and radio.

1 x 120 WRMS
CD player with drawer mechanism, repeat function and random play, reproduction of audio CD/CD-R/CD-RW, MP3 CD, USB interface, separate on/off switch
AM/FM radio module with 5 programmable station buttons, scan buttons, volume control and separate on/off switch
4 mic/line inputs, to be configured via DIP switches (mic/line, phase, high-pass filter, 48 V phantom power)
2 aux inputs, to be configured via DIP switches (aux1/aux2, 10 dB attenuation, high-pass filter)
Siren function and chime function
Priority circuit
Speaker outputs via screw terminals
Line output
Insert facility for preamplifier
Input and output level controls
2-way tone control for the output
482 mm (19") rack installation

Specifications:

Output power: 120 W_RMS
Mic input: 1.8 mV
Aux input: 300 mV
Phono input: -
Speaker output: 4/8/16 Ω, 70/100 V
Frequency range: 50-16,500 Hz, ±3 dB
Equalizer bass: ±10 dB/100 Hz
Equalizer midrange: -
Equalizer treble: ±10 dB/10 kHz
S/N ratio:>65 dB
THD: 0.5 % (1 W)
Power supply: 230 V /50 Hz/365 VA
Admiss. ambient temp.: 0-40 °C
Dimensions: 483x110x450 mm, 2 RS
Weight: 10.5 kg
Special feature: USB
Inputs:
Microphone: mic/line: 4 x XLR/6.3 mm (combo) 4 x plug-in screw terminal
Aux, phono: 2 x RCA L/R (aux 1/2) 2 x plug-in screw terminal

Price per unit (Order No. mo-173040) EUR 939,00 excl. VAT: € 789.08 / $ 883.76

Mono PA mixing amplifier PA-890RCD

Mono PA mixing amplifier, with integrated CD/MP3 player and radio.

1 x 80 WRMS
CD player with drawer mechanism, repeat function and random play, reproduction of audio CD/CD-R/CD-RW, MP3 CD, USB interface, separate on/off switch
AM/FM radio module with 5 programmable station buttons, scan buttons, separate on/off switch
3 mic inputs, 1 of which can be switched mic/line
Siren function
Speaker outputs via screw terminals
Input level control
2-way tone control for the output
Mains operation or 24 V emergency power operation

Specifications:

Output power: 80 W_RMS
Mic input: 1.5 mV
Aux input: 300 mV
Phono input: -
Speaker output: 4 Ω, 70/100 V
Frequency range: 50-15,000 Hz, ±3 dB
Equalizer bass: ±10 dB/100 Hz
Equalizer midrange: -
Equalizer treble: ±10 dB/10 kHz
S/N ratio:>52 dB
THD: 1 %
Power supply: 230 V /50 Hz/265 VA
Admiss. ambient temp.: 0-40 °C
Dimensions: 400x340x110 mm, 2 RS
Weight: 9.5 kg
Special feature: USB
Inputs:
Microphone: 3 x 6.3 mm jack
Aux, phono: 1 x 6.3 mm jack

Price per unit (Order No. mo-173030) - not available

CD player module M-32CD

CD player module, with anti-shock system and MP3 reproduction.

Slot-in mechanism
USB port for external storage media
Random play, repeat function
Track programming
Supplied with remote control
Power supply: 12 V DC current /800 mA
Dimensions: 174x52x160 mm
Mounting cutout: 155x50x150 mm
Audio CD/CD-R/CD-RW/MP3 CD

Price per unit (Order No. mo-173350) EUR 300,50 excl. VAT: € 252.52 / $ 282.82
