PA amplifiers: 2-channel

Professional stereo PA amplifier, with integrated crossover network and limiter.

LCD for indicating temperature, operating mode, protective function
Integrated crossover network: 120 Hz, 24 dB/oct., selectable: subwoofer, full range or satellite operation
3 operating modes can be selected (stereo, parallel or bridged)
Temperature-controlled fans
2 level controls
Ground lift function
Speaker switch-on delay
Protective circuit with LED indication for protection against short circuit, overheating and DC voltage overlay at the outputs
Each channel with LEDs for indicating operating voltage, level and limiter
NEUTRIK SPEAKON connections

STA-1400, STA-1000 and STA-600 are supplied with 3-pin IEC panel plugs and matching mains cables.

Beat 01/2012

"Two MEGA-112 as top parts as well as one MEGA-118SUB were brought to the test. We used the power amplifiers STA-600 and STA-1400 for the top parts in bi-amping and the STA-1000 for the bass reproduction. For the functional control, we applied the digital speaker management DSM-260. The units were tested in a small factory building ... it featured many windows, a concrete floor and several tiled surfaces, allowing the high frequencies to show no mercy ... however, with the precise equalizers of the DSM-260, we were able to tame these very quickly ... the unit allows to optimise the sound quickly and intuitively ... we turned the volume up and achieved an impressive performance. The subwoofer is very stable and provides a really powerful sound. The MEGA-112 impresses by a really well-balanced sound. Full and dynamic dance music with a really great sound can thus be achieved. This PA system is able to easily provide a professional sound for 400 guests, even for the more sophisticated listener. Thumbs up. The selected PA combination is very suitable for everyone performing at temporary locations."

Specifications:

Output power:
RMS power:
2 Ω: -
4 Ω: 2 x 500 W_RMS
8 Ω: 2 x 350 W_RMS
4 Ω bridged operation: -
8 Ω bridged operation: 1 x 1,000 W_RMS
Max. power: 1,600 W_MAX
General information:
Inputs: 1 V/20 kΩ
Frequency range: 20-20,000 Hz
S/N ratio:>95 dB
Crosstalk attenuation:>60 dB
THD:<0.1 %
Power supply: 230 V /50 Hz/1,600 VA
Admiss. ambient temp.: 0-40 °C
Dimensions: 482x88x418 mm, 2 RS
Weight: 15 kg
Connections:
Inputs (per channel): XLR, bal. 6.3 mm jack, bal.
Outputs (per channel): NEUTRIK SPEAKON speaker screw terminals

PA amplifiers: 2-channel, Digital stereo PA amplifier STA-1000D — Enlarge

The new generation of digital PA amplifiers from IMG Stage Line impresses with a high power capability and high energy efficiency. Other features include a silent operation and a low weight which make this series suitable for both fixed installations and mobile applications.

Digital stereo PA amplifier

Class D concept
Excellent acoustic performance
Extra wide dynamic range with very low THD
Excellent pulse response also in the bass range
482 mm (19") rack installation, 2 RS
Silent operation due to temperature-controlled fans which are only activated if the temperature rises above 85 °C
Lightweight design due to compact switch-mode PSU
Energy-saving concept due to high efficiency
2 level controls
Protected against short circuit, overtemperature, DC voltage at the output and overload
LEDs for indicating power, signal, bridge, overload (clip), overheating and protect
Bridged operation
Wide mains voltage range: 85-265 V
NEUTRIK POWERCON and SPEAKON connections

SOUNDCHECK 03/2015

"The STA-1000D and STA-2000D provide an unobtrusive sound reproduction of a high quality. No matter whether classical music, rock music or voice reproductions, the power amplifier perfectly meets any requirement."

tools4music 02/2015

"The power amplifiers STA-200D and STA-1000D from IMG Stage Line impress by an elaborated selection and configuration of the inner components. Due to the low weight and the mounting depth of 335 mm only, this series is suitable for both rack mounting and installation into shelves. With these test results, they are also suitable for hi-fi applications. I consider these 'lightweights' to be very well-suited for small to medium-sized entertainment applications, PA applications at conferences and for speech transmissions well as a multi-channel power amplifier for stage monitoring."

+ Operating reliability

+ Weight

+ Test results: low THD, perfect frequency response and S/N ratio

+ Low-maintenance design

+ Protective circuits

+ Very wide operating voltage range

+ Workmanship

+ Efficiency

- No XLR feedthrough connector

Specifications:

Output power:
RMS power:
4 Ω: 2 x 500 W_RMS 2 x 580 W_MAX
8 Ω: 2 x 280 W_RMS 2 x 310 W_MAX
8 Ω bridged operation: 1 x 1,000 W_RMS 1 x 1,060 W_MAX
4 Ω bridged operation: 1 x 1,000 W_RMS 1 x 1,060 W_MAX
Max. power: 1,200 W_MAX
General information:
Inputs: 1 V/10 kΩ (XLR, bal.), 1 V/5 kΩ (RCA)
Frequency range: 20-20,000 Hz
S/N ratio:>119 dB, A-weighted
Crosstalk attenuation: -
THD:<0.05 %
Power supply: 230 V /50 Hz/1,160 VA
Admiss. ambient temp.: 0-40 °C
Dimensions: 482x335x89 mm, 2 RS
Weight: 5.85 kg

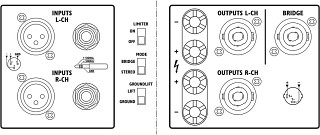

Connections: 1 x NEUTRIK POWERCON 1 x 3-pole XLR L/R 1 x RCA L/R 1 x NEUTRIK SPEAKON L/R 1 x NEUTRIK SPEAKON bridge

PA amplifiers: 2-channel, Digital stereo PA amplifier, with DSP technology STA-1000DSP — Enlarge

The Series of High-performance Digital Amplifiers Professional equipment consisting of high-quality components, ideally suited for fixed installations and mobile use. Special features:

Class D concept
Silent operation due to temperature-controlled fan
Extra wide dynamic range with very low THD
Unbeatable reasons:Excellent acoustic performance
High power reserves
Energy-saving concept due to high efficiency
Impresses by an extra lightweight design

Digital stereo PA amplifier, with DSP technology.

Class D concept
Excellent acoustic performance
Extra wide dynamic range with very low THD
Excellent pulse response also in the bass range
482 mm (19") rack installation, 2 RS
Silent operation due to temperature-controlled fans which are only activated if the temperature rises above 85 °C
Lightweight design due to compact switch-mode PSU
Energy-saving concept due to high efficiency
Protected against short circuit, overtemperature, DC voltage at the output and overload
Power LED
Bridged operation
Wide mains voltage range: 85-265 V
NEUTRIK POWERCON and SPEAKON connections

DSP specifications:

Audio performance

Dynamic range (inputs): 120 dB
Dynamic range (DSP output): 117 dB
Frequency range: 10-40,000 Hz
Latency: 0.62 ms

Interface

Ethernet and USB interface
Real-time control via PC software
Integrated LCD controller
Supplied with PC software

Digital audio performance

Sampling rate: 96 kHz
Mixed mode: 64-bit digital processing

Inputs and outputs

Input sensitivity (setting: 0 dB): 1.2 V
Maximum input voltage: 11 V
Maximum output voltage for subwoofer: 3 V

DSP audio controlling parameters

10 parametric filters for each input and output
Types of filters: bell, shelving, notch or all-pass
Delay for each input: up to 800 ms; delay for each otuput: 5 ms
Filters: Butterworth, Bessel, Linkwitz-Riley with up to 24 dB/oct.
Limiter for each input and output
Selectable phase: 180°
80 presets can be stored

Specifications:

Output power:
RMS power:
4 Ω: 2 x 500 W_RMS 2 x 580 W_MAX
8 Ω: 2 x 280 W_RMS 2 x 310 W_MAX
8 Ω bridged operation: 1 x 1,000 W_RMS 1 x 1,060 W_MAX
4 Ω bridged operation: _-
Max. power: 1,200 W_MAX
General information:
Inputs: 1.2 V/24 kΩ (XLR, bal.)
Frequency range: 20-20,000 Hz
S/N ratio:>119 dB, A-weighted
Crosstalk attenuation: -
THD:<0.05 %
Power supply: 230 V /50 Hz/1,160 VA
Admiss. ambient temp.: 0-40 °C
Dimensions: 482x335x89 mm, 2 RS
Weight: 5.85 kg
Connections: 1 x NEUTRIK POWERCON 1 x NEUTRIK SPEAKON L/R 1 x NEUTRIK SPEAKON bridge 1 x 3-pole XLR L/R 1 x 3-pole XLR (subwoofer) USB Ethernet (Cat. 5)

PA amplifiers: 2-channel, Professional stereo PA amplifier STA-1400 — Enlarge

Professional stereo PA amplifier, with integrated crossover network and limiter.

LCD for indicating temperature, operating mode, protective function
Integrated crossover network: 120 Hz, 24 dB/oct., selectable: subwoofer, full range or satellite operation
3 operating modes can be selected (stereo, parallel or bridged)
Temperature-controlled fans
2 level controls
Ground lift function
Speaker switch-on delay
Protective circuit with LED indication for protection against short circuit, overheating and DC voltage overlay at the outputs
Each channel with LEDs for indicating operating voltage, level and limiter
NEUTRIK SPEAKON connections

STA-1400, STA-1000 and STA-600 are supplied with 3-pin IEC panel plugs and matching mains cables.

Beat 01/2012

"Two MEGA-112 as top parts as well as one MEGA-118SUB were brought to the test. We used the power amplifiers STA-600 and STA-1400 for the top parts in bi-amping and the STA-1000 for the bass reproduction. For the functional control, we applied the digital speaker management DSM-260. The units were tested in a small factory building ... it featured many windows, a concrete floor and several tiled surfaces, allowing the high frequencies to show no mercy ... however, with the precise equalizers of the DSM-260, we were able to tame these very quickly ... the unit allows to optimise the sound quickly and intuitively ... we turned the volume up and achieved an impressive performance. The subwoofer is very stable and provides a really powerful sound. The MEGA-112 impresses by a really well-balanced sound. Full and dynamic dance music with a really great sound can thus be achieved. This PA system is able to easily provide a professional sound for 400 guests, even for the more sophisticated listener. Thumbs up. The selected PA combination is very suitable for everyone performing at temporary locations."

Specifications:

Output power:
RMS power:
2 Ω: -
4 Ω: 2 x 700 W_RMS
8 Ω: 2 x 450 W_RMS
4 Ω bridged operation: -
8 Ω bridged operation: 1 x 1,400 W_RMS
Max. power: 2,100 W_MAX
General information:
Inputs: 1 V/20 kΩ
Frequency range: 20-20,000 Hz
S/N ratio:>95 dB
Crosstalk attenuation:>60 dB
THD:<0.1 %
Power supply: 230 V /50 Hz/2,300 VA
Admiss. ambient temp.: 0-40 °C
Dimensions: 482x88x418 mm, 2 RS
Weight: 16.7 kg

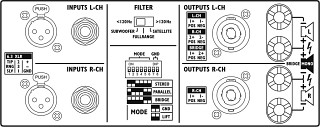

Connections:
Inputs (per channel): XLR, bal. 6.3 mm jack, bal.
Outputs (per channel): NEUTRIK SPEAKON speaker screw terminals

PA amplifiers: 2-channel, 4-channel digital PA amplifier STA-2000D — Enlarge

The new generation of digital PA amplifiers from IMG Stage Line impresses with a high power capability and high energy efficiency. Other features include a silent operation and a low weight which make this series suitable for both fixed installations and mobile applications.

4-channel digital PA amplifier

Class D concept
Excellent acoustic performance
Extra wide dynamic range with very low THD
Excellent pulse response also in the bass range
482 mm (19") rack installation, 2 RS
2 or 4 channels in bridged mode
Silent operation due to temperature-controlled fans which are only activated if the temperature rises above 85 °C
Lightweight design due to compact switch-mode PSU
Energy-saving concept due to high efficiency
4 level controls
Protected against short circuit, overtemperature, DC voltage at the output and overload
LEDs for indicating power, signal, bridge, overload (clip), overheating and protect
Bridged operation
Wide mains voltage range: 85-265 V
NEUTRIK POWERCON and SPEAKON connections

SOUNDCHECK 03/2015

"The STA-1000D and STA-2000D provide an unobtrusive sound reproduction of a high quality. No matter whether classical music, rock music or voice reproductions, the power amplifier perfectly meets any requirement."

tools4music 02/2015

"The power amplifiers STA-200D and STA-1000D from IMG Stage Line impress by an elaborated selection and configuration of the inner components. Due to the low weight and the mounting depth of 335 mm only, this series is suitable for both rack mounting and installation into shelves. With these test results, they are also suitable for hi-fi applications. I consider these 'lightweights' to be very well-suited for small to medium-sized entertainment applications, PA applications at conferences and for speech transmissions well as a multi-channel power amplifier for stage monitoring."

+ Operating reliability

+ Weight

+ Test results: low THD, perfect frequency response and S/N ratio

+ Low-maintenance design

+ Protective circuits

+ Very wide operating voltage range

+ Workmanship

+ Efficiency

- No XLR feedthrough connector

Specifications:

Output power:
RMS power:
4 Ω: 4 x 500 W_RMS 4 x 580 W_MAX
8 Ω: 4 x 280 W_RMS 4 x 310 W_MAX
8 Ω bridged operation: 2 x 1,000 W_RMS 2 x 1,060 W_MAX
4 Ω bridged operation: 2 x 1,000 W_RMS 2 x 1,060 W_MAX
Max. power: 2,400 W_MAX
General information:
Inputs: 1 V/10 kΩ (XLR, bal.), 1 V/5 kΩ (RCA)
Frequency range: 20-20,000 Hz
S/N ratio:>119 dB, A-weighted
Crosstalk attenuation: -
THD:<0.05 %
Power supply: 230 V /50 Hz/2,320 VA
Admiss. ambient temp.: 0-40 °C
Dimensions: 482x335x89 mm, 2 RS
Weight: 6.6 kg
Connections: 1 x NEUTRIK POWERCON 4 x 3-pole XLR 4 x RCA 4 x NEUTRIK SPEAKON 2 x NEUTRIK SPEAKON bridge

PA amplifiers: 2-channel, Digital stereo PA amplifier STA-200D — Enlarge

Digital stereo PA amplifier, with 5 switchable line inputs.

Class D concept
Silent operation due to fanless cooling concept
High power reserves due to generously dimensioned toroidal core transformer
High-efficiency power amplifiers
3.5 mm connection with switchable sensitivity on the front panel
2 level controls
Protected against short circuit, overvoltage and overtemperature
LEDs for indicating power, overload (clip), protect and overheating
Extra slim and robust design, 1 RS

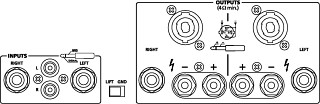

Specifications:

Output power:
RMS power:
4 Ω: 2 x 125 W_RMS
8 Ω: 2 x 75 W_RMS
8 Ω bridged operation: -
4 Ω bridged operation: -
Max. power: 300 W_MAX
General information:
Inputs: 1 V/23 kΩ (RCA), 90 mV-1 V (jack)
Frequency range: 20-20,000 Hz
S/N ratio:>100 dB, A-weighted
Crosstalk attenuation:>56 dB
THD:<0.05 %
Power supply: 230 V /50 Hz/350 VA
Admiss. ambient temp.: 0-40 °C
Dimensions: 483x44x268 mm, 1 RS
Weight: 4.7 kg
Connections: 1 x 3.5 mm stereo jack 4 x RCA L/R 1 x SPEAKER L/R 1 x spring-load. speaker term. L/R

PA amplifiers: 2-channel, Professional stereo PA amplifier STA-2200 — Enlarge

Professional stereo PA amplifier, with integrated crossover network and limiter.

2 Ω stable
Class H technology with power-optmised PSU technology
LCD for indicating temperature, operating mode, protective function
Integrated crossover network: 120 Hz, 24 dB/oct., selectable: subwoofer, full range or satellite operation
3 operating modes can be selected (stereo, parallel or bridged)
Temperature-controlled fans
2 level controls
Ground lift function
Speaker switch-on delay
Protective circuit with LED indication for protection against short circuit, overheating and DC voltage overlay at the outputs
Each channel with LEDs for indicating operating voltage, level and limiter
NEUTRIK SPEAKON connections

STA-2200 is equipped with a POWERCON jack (power rating: 20 A). Supplied without mains cable (AAC-115P is available at option). The amplifier can be operated at a 2 Ω load, the protective circuits are designed accordingly. The stated 2 Ω performance values must not be exceeded, otherwise the thermic protective circuit will be activated.

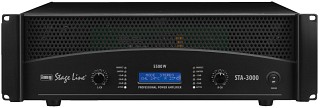

SOUNDCHECK 07/2009 On the STA-3000 and STA-2200

"The STA-3000 and STA-2200 are certainly real recommendations for anyone searching for solid power at an attractive price. The amplifiers are suitable for general applications and definitely provide sufficient power for a modern PA system."

Specifications:

Output power:
RMS power:
2 Ω: 2 x 750 W_RMS
4 Ω: 2 x 1,100 W_RMS
8 Ω: 2 x 700 W_RMS
4 Ω bridged operation: 1 x 1,500 W_RMS
8 Ω bridged operation: 1 x 2,000 W_RMS
Max. power: 4,000 W_MAX
General information:
Inputs: 1 V/20 kΩ
Frequency range: 20-20,000 Hz
S/N ratio:>100 dB
Crosstalk attenuation:>60 dB
THD:<0.1 %
Power supply: 230 V /50 Hz/3,600 VA
Admiss. ambient temp.: 0-40 °C
Dimensions: 482x88x479 mm, 2 RS
Weight: 23 kg

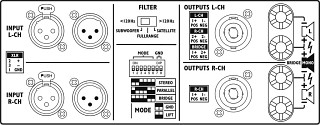

Connections:
Inputs (per channel): XLR, bal., can be fed through
Outputs (per channel): NEUTRIK SPEAKON speaker screw terminals

PA amplifiers: 2-channel, Stereo PA amplifier STA-225 — Enlarge

Stereo PA amplifier, with integrated limiter.

LCD for indicating temperature, operating mode, power
2 operating modes can be selected (stereo or bridged)
Limiter function can be switched on additionally
Temperature-controlled fan
2 level controls
Ground lift function
Speaker switch-on delay
Protective circuit with LED indication for protection against short circuit and overheating
Each channel with LEDs for limiter, level and signal

tastenwelt 02/2012

"The plastic housings are of neat workmanship ... the MMX-842USB is a good choice ... the STA-225 features all standard protective circuits, even a clip limiter can be switched on additionally. A display shows useful information on the operation. The system tested provided a really appealing sound: a nice deep bass reproduction and a clear midrange of the 12" speakers and a full and clear reproduction of the high frequencies, too. With the support of a subwoofer, the volume which can be achieved is already sufficient to show a great performance at smaller to medium-sized events. Neither the active bass speaker nor the passive top parts provide an unpleasant or even overstrained sound." (PA setup of PAB-112MK2, PSUB-115AK, STA-225, MMX-842USB)

Specifications:

Output power:
RMS power:
4 Ω: 2 x 350 W_RMS
8 Ω: 2 x 250 W_RMS
8 Ω bridged operation: 1 x 700 W_RMS
Max. power: 1,000 W_MAX
General information:
Inputs: 1.3 V/10 kΩ
Frequency range: 10-50,000 Hz
S/N ratio:>80 dB
Crosstalk attenuation:>50 dB
THD:<0.1 %
Power supply: 230 V /50 Hz/1,600 VA
Admiss. ambient temp.: 0-40 °C
Dimensions: 482x100x330 mm, 2 RS
Weight: 10.3 kg
Connections: 2 x XLR, bal. 2 x 6.3 mm jack, bal. 3 x SPEAKER 2 x pair of screw terminals

PA amplifiers: 2-channel, Stereo PA amplifier STA-235 — Enlarge

Stereo PA amplifier, with integrated limiter.

LCD for indicating temperature, operating mode, power
2 operating modes can be selected (stereo or bridged)
Limiter function can be switched on additionally
Temperature-controlled fans
2 level controls
Ground lift function
Speaker switch-on delay
Protective circuit with LED indication for protection against short circuit and overheating
Each channel with LEDs for indicating overload, level and signal

Specifications:

Output power:
RMS power:
4 Ω: 2 x 500 W_RMS
8 Ω: 2 x 400 W_RMS
8 Ω bridged operation: 1 x 1,000 W_RMS
Max. power: 1,400 W_MAX
General information:
Inputs: 1.2 V/10 kΩ
Frequency range: 10-50,000 Hz
S/N ratio:>80 dB
Crosstalk attenuation:>50 dB
THD:<0.1 %
Power supply: 230 V /50 Hz/2,000 VA
Admiss. ambient temp.: 0-40 °C
Dimensions: 482x100x330 mm, 2 RS
Weight: 11.5 kg
Connections: 2 x XLR, bal. 2 x 6.3 mm jack, bal. 3 x SPEAKER 2 x pair of screw terminals

PA amplifiers: 2-channel, Professional stereo PA amplifier STA-3000 — Enlarge

Professional stereo PA amplifier, with integrated crossover network and limiter.

2 Ω stable
Class H technology with power-optimised PSU technology
LCD for indicating temperature, operating mode, protective function
Integrated crossover network: 120 Hz, 24 dB/oct., switchable subwoofer, full range or satellite operation
3 operating modes can be selected (stereo, parallel or bridged)
Temperature-controlled fans
2 level controls
Ground lift function
Speaker switch-on delay
Protective circuit with LED indication for protection against short circuit, overheating and DC voltage overlay at the outputs
Each channel with LEDs for indicating operating voltage, level and limiter
NEUTRIK SPEAKON connections

STA-3000 is equipped with a POWERCON jack (power rating: 32 A) in order to ensure a power supply of 25 A in 2 Ω operation. Supplied without mains cable. The mains cable AAC-215P which is available at option is sufficient for 4 Ω or 8 Ω operation. A POWERCON plug NAC-3FCHC, a mains cable with a cable cross section of at least 2.5 mm2 and a CEE plug are required for the 2 Ω operation. The amplifier can be operated at a 2 Ω load, the protective circuits are designed accordingly. The stated 2 Ω performance values must not be exceeded, otherwise the thermal protective circuit will be activated.

SOUNDCHECK 07/2009 On the STA-3000 and STA-2200

"The STA-3000 and STA-2200 are certainly real recommendations for anyone searching for solid power at an attractive price. The amplifiers are suitable for general applications and definitely provide sufficient power for a modern PA system."

Specifications:

Output power:
RMS power:
2 Ω: 2 x 1,250 W_RMS
4 Ω: 2 x 1,500 W_RMS
8 Ω: 2 x 1,000 W_RMS
4 Ω bridged operation: 1 x 2,500 W_RMS
8 Ω bridged operation: 1 x 3,000 W_RMS
Max. power: 5,500 W_MAX
General information:
Inputs: 1 V/20 kΩ
Frequency range: 20-20,000 Hz
S/N ratio:>100 dB
Crosstalk attenuation:>60 dB
THD:<0.1 %
Power supply: 230 V /50 Hz/5,000 VA
Admiss. ambient temp.: 0-40 °C
Dimensions: 482x132x519 mm, 3 RS
Weight: 32 kg
Connections:
Inputs (per channel): XLR, bal., can be fed through
Outputs (per channel): NEUTRIK SPEAKON

PA amplifiers: 2-channel, Digital stereo PA amplifier STA-400D — Enlarge

The new generation of digital PA amplifiers from IMG Stage Line impresses with a high power capability and high energy efficiency. Other features include a silent operation and a low weight which make this series suitable for both fixed installations and mobile applications.

Digital stereo PA amplifier

Class D concept
482 mm (19") rack installation, 1 RS, with supplied mounting brackets
Silent operation due to temperature-controlled fans
Lightweight design due to compact switch-mode PSU
Energy-saving concept due to high efficiency
Powerful bass reproduction due to large buffer capacitors (high power reserves)
2 level controls
Protected against short circuit and overtemperature
LEDs for indicating power, overload (clip) and protect
Super slimline design
NEUTRIK SPEAKON connections

EVENT Rookie 01/2015 on the STA-400D and STA-800D

"Small and powerful surely applies to them. The two test units didn't really show any weakness. It should be noted that the minimum noise created by the two amplifiers is almost record-breaking ..."

Specifications:

Output power:
RMS power:
4 Ω: 2 x 270 W_RMS 2 x 325 W_MAX
8 Ω: 2 x 180 W_RMS 2 x 240 W_MAX
8 Ω bridged operation: _-
4 Ω bridged operation: -
Max. power: 700 W_MAX
General information:
Inputs: 1 V/10 kΩ (XLR, bal.), 1 V/4.7 kΩ (RCA)
Frequency range: 20-20,000 Hz
S/N ratio:>110 dB, A-weighted
Crosstalk attenuation: -
THD:<0.02 %
Power supply: 230 V /50 Hz/600 VA
Admiss. ambient temp.: 0-40 °C
Dimensions: 482x277x52 mm, 1 RS
Weight: 2.5 kg
Connections: 1 x 3-pin IEC jack 1 x 3-pole XLR L/R 1 x RCA L/R 1 x NEUTRIK SPEAKON L/R 2 x pair of screw terminals

PA amplifiers: 2-channel, Professional stereo PA amplifier STA-600 — Enlarge

Professional stereo PA amplifier, with integrated crossover network and limiter.

LCD for indicating temperature, operating mode, protective function
Integrated crossover network: 120 Hz, 24 dB/oct., selectable: subwoofer, full range or satellite operation
3 operating modes can be selected (stereo, parallel or bridged)
Temperature-controlled fans
2 level controls
Ground lift function
Speaker switch-on delay
Protective circuit with LED indication for protection against short circuit, overheating and DC voltage overlay at the outputs
Each channel with LEDs for indicating operating voltage, level and limiter
NEUTRIK SPEAKON connections

STA-1400, STA-1000 and STA-600 are supplied with 3-pin IEC panel plugs and matching mains cables.

Beat 01/2012

"Two MEGA-112 as top parts as well as one MEGA-118SUB were brought to the test. We used the power amplifiers STA-600 and STA-1400 for the top parts in bi-amping and the STA-1000 for the bass reproduction. For the functional control, we applied the digital speaker management DSM-260. The units were tested in a small factory building ... it featured many windows, a concrete floor and several tiled surfaces, allowing the high frequencies to show no mercy ... however, with the precise equalizers of the DSM-260, we were able to tame these very quickly ... the unit allows to optimise the sound quickly and intuitively ... we turned the volume up and achieved an impressive performance. The subwoofer is very stable and provides a really powerful sound. The MEGA-112 impresses by a really well-balanced sound. Full and dynamic dance music with a really great sound can thus be achieved. This PA system is able to easily provide a professional sound for 400 guests, even for the more sophisticated listener. Thumbs up. The selected PA combination is very suitable for everyone performing at temporary locations."

Specifications:

Output power:
RMS power:
2 Ω: -
4 Ω: 2 x 300 W_RMS
8 Ω: 2 x 200 W_RMS
4 Ω bridged operation: -
8 Ω bridged operation: 1 x 550 W_RMS
Max. power: 1,000 W_MAX
General information:
Inputs: 1 V/20 kΩ
Frequency range: 20-20,000 Hz
S/N ratio:>95 dB
Crosstalk attenuation:>60 dB
THD:<0.1 %
Power supply: 230 V /50 Hz/1,000 VA
Admiss. ambient temp.: 0-40 °C
Dimensions: 482x88x418 mm, 2 RS
Weight: 12.5 kg
Connections:
Inputs (per channel): XLR, bal. 6.3 mm jack, bal.
Outputs (per channel): NEUTRIK SPEAKON speaker screw terminals

PA amplifiers: 2-channel, Stereo PA amplifier STA-700 — Enlarge

Stereo PA amplifier, for general applications.

Fan cooling
2 level controls
Ground lift switch
Speaker switch-on delay
Protective circuit with LED indication for protection against short circuit, overheating and DC voltage overlay at the outputs
1 LED per channel for indicating overload (clip)

Specifications:

Output power:
RMS power:
4 Ω: 2 x 275 W_RMS
8 Ω: 2 x 200 W_RMS
Max. power: 800 W_MAX
General information:
Inputs: 0.85 V/55 kΩ
Frequency range: 10-20,000 Hz
S/N ratio: 85 dB
Crosstalk attenuation:>43 dB
THD:<0.05 %
Power supply: 230 V /50 Hz/1,100 VA
Admiss. ambient temp.: 0-40 °C
Dimensions: 482x98x296 mm, 2 RS
Weight: 9.4 kg
Inputs: 1 x 6.3 mm jack L/R,
: 1 x RCA L/R
Outputs: 2 x SPEAKER 1 x 6.3 mm jack L/R 2 x pair of screw terminals

PA amplifiers: 2-channel

Professional stereo PA amplifier STA-1000

Digital stereo PA amplifier STA-1000D

Digital stereo PA amplifier, with DSP technology STA-1000DSP

Professional stereo PA amplifier STA-1400

4-channel digital PA amplifier STA-2000D

Digital stereo PA amplifier STA-200D

Professional stereo PA amplifier STA-2200

Stereo PA amplifier STA-225

Stereo PA amplifier STA-235

Professional stereo PA amplifier STA-3000

Digital stereo PA amplifier STA-400D

Professional stereo PA amplifier STA-600

Stereo PA amplifier STA-700
