Passive PA speakers: 8"

Professional PA speaker systems which have been matched to the special requirements of mobile applications. The applied bass speakers and tweeter systems from BEYMA or FAITAL provide a high-quality sound for an excellent performance.

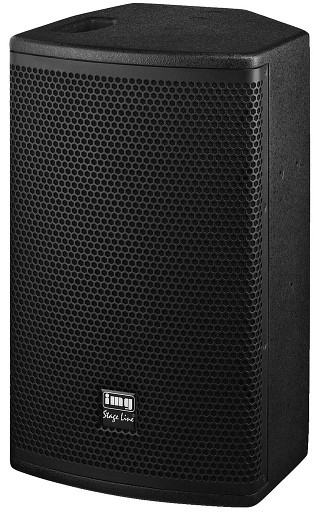

Professional PA speaker system, 400 WMAX, 200 WRMS, 8 Ω


• Compact professional full range bass-reflex system
• Cabinet made of birch plywood
• 20 cm (8", BEYMA) bass speaker
• 25 mm (1", 44 mm voice coil, BEYMA) horn tweeter, can be turned by 90°
• Neutral sound tuning
• Multi-purpose positioning and installation options
• "Catch & Carry" carrying handle
• M8 threaded inserts for suspended installation
• 2 x NEUTRIK SPEAKON terminal, in/out
• Stand sleeve, robust front grille

Specifications:

• System: 2-way bass-reflex
• Bass speaker: 20 cm (8", BEYMA)
• Tweeter: 25 mm (1") dyn. mid-high range speaker (44 mm voice coil, BEYMA)
• Power capabilities:
• Music power: 400 W_MAX
• Power rating: 200 W_RMS
• General information:
• Impedance: 8 Ω
• Frequency range: 65-20,000 Hz
• SPL (1 W/1 m): 95 dB
• Max. rated SPL: 120 dB
• Admiss. ambient temp.: 0-40 °C
• Dimensions: 290x480x312 mm
• Inputs: 1 x NEUTRIK SPEAKON
• Outputs: 1 x NEUTRIK SPEAKON par. out
• Weight: 12.8 kg

Multi-purpose PA speakers for versatile applications: the 300 series from IMG Stage Line. They can be used for both fixed installations and mobile applications. Ideally suited for powerful PA applications of good level stability in rooms as well as for rearfill applications and sidefill applications. The very compact and easy-to-transport systems are also very well-suited for mobile applications when combined with suitable subwoofers, e.g. PSUB-12AKA or PSUB-15AKA and as small floor monitors.


Universal PA speaker system, 250 WMAX, 8 Ω


• Compact 8/2 full range bass-reflex system
• 20 cm (8") bass speaker, 25 mm (1") horn tweeter
• Tweeter protection circuit
• High-quality MDF wooden cabinet in black (SW) or white (WS), with protective metal grille
• Multi-purpose positioning and installation options
• 4 x M8 threaded inserts for suspended installation
• Supplied with mounting bracket and integrated stand sleeve
• NEUTRIK SPEAKON terminal



EVENT Rookie 08/2012

"Any speaker with a great appearance should ideally provide a great sound. This is exactly what the PAB-306/SW and PAB-308/SW do - throughout low volume levels and high volume levels. Even though, these speaker systems are not intended for excessive volume levels, they deliver a surprisingly powerful sound. Based on subjective assessment, the PAB-306 with the two 6.5" speakers supplies a fuller, more prominent sound. However, with a slightly lower frequency range, the PAB-308 provides a little bit more bass. Each user should decide whether this will be required for the intended range of application, or not. The slim and unobtrusive appearance is also an advantage of the PAB-306. With its particularly slimline design, this speaker system is particularly suitable for the use as a small monitor speaker. It can be fully recommended for small monitoring, unobtrusive room and background music or as a fill for larger systems. Both models are available in rock 'n' roll black and gala white."


SOUNDCHECK 04/2013

"With the PAB-308/SW and the PSUB-15AKA, IMG Stage Line provides PA systems which, despite their small size, are capable of very high volume levels. The PAB-308/SW allows for a good intelligibility whenever speech is reproduced. You were able to understand every word sung by the vocalist, even without any help from the equalizer."

Specifications:

• System: 2-way bass-reflex
• Bass speaker: 20 cm (8")
• Tweeter: 25 mm (1") horn tweeter
• Power capabilities:
• Music power: 250 W_MAX
• Power rating: 125 W_RMS
• General information:
• Impedance: 8 Ω
• Frequency range: 60-20,000 Hz
• SPL (1 W/1 m): 93 dB
• Max. rated SPL: 115 dB
• Admiss. ambient temp.: 0-40 °C
• Dimensions: 258x410x247 mm
• Inputs: 1 x NEUTRIK SPEAKON
• Outputs: 1 x NEUTRIK SPEAKON par. out
• Weight: 7.5 kg

Multi-purpose PA speakers for versatile applications: the 300 series from IMG Stage Line. They can be used for both fixed installations and mobile applications. Ideally suited for powerful PA applications of good level stability in rooms as well as for rearfill applications and sidefill applications. The very compact and easy-to-transport systems are also very well-suited for mobile applications when combined with suitable subwoofers, e.g. PSUB-12AKA or PSUB-15AKA and as small floor monitors.

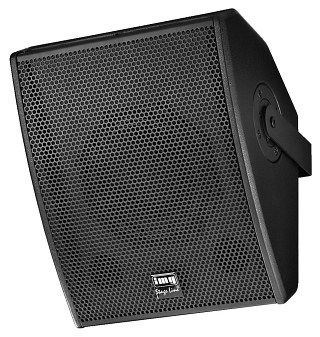

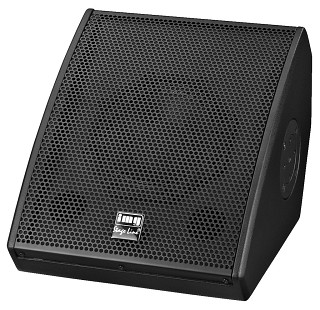

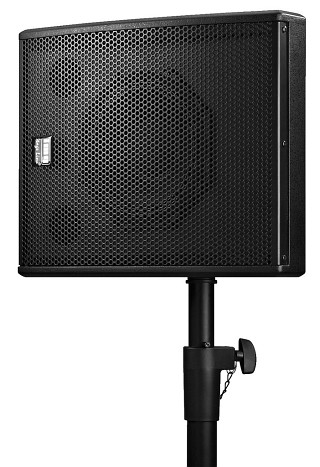

Universal PA speaker system, 300 WMAX, 150 WRMS, 8 Ω


• Compact 8/2 full range bass-reflex system
• 20 cm (8") coaxial speaker system with 25 mm (1", 44 mm voice coil) horn tweeter
• High-quality cabinet made of birch plywood with metal protective grille
• Multi-purpose positioning and installation options, especially as a floor monitor
• M10 threaded inserts for bracket mounting, M8 threaded insert as a mounting safeguard
• Supplied with mounting bracket and integrated stand sleeve
• NEUTRIK SPEAKON terminal

Specifications:

• System: 2-way bass-reflex
• Bass speaker: 20 cm (8")
• Tweeter: 25 mm (1", 44 mm voice coil) horn tweeter
• Power capabilities:
• Music power: 300 W_MAX
• Power rating: 150 W_RMS
• General information:
• Impedance: 8 Ω
• Frequency range: 80-20,000 Hz
• SPL (1 W/1 m): 96 dB
• Max. rated SPL: 117 dB
• Admiss. ambient temp.: 0-40 °C
• Dimensions: 340x303x379 mm
• Inputs: 1 x NEUTRIK SPEAKON
• Outputs: 1 x NEUTRIK SPEAKON, par. out
• Weight: 10 kg

The 100 series provides PA speaker systems of high power capability with a nice sound for PA and DJ applications and is suitable for medium-sized to large function rooms. The timeless plastic cabinets are also very robust and have extensively been tested in practical operation.

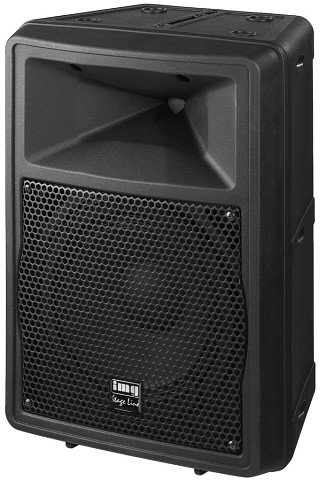

DJ and power speaker system, 200 WMAX, 8 Ω


• High-performance full range system of high efficiency
• Robust plastic cabinet
• 20 cm (8") bass speaker with diecast aluminum basket
• 25 mm (1", 34 mm voice coil) horn tweeter
• Bass-reflex system
• Multi-purpose positioning and installation options
• M6 threaded inserts (2 x top, 1 x bottom)
• 2 x speaker terminal, in/out
• Stand adapter for standard stands

Specifications:

• Bass-midrange speaker: 20 cm (8")
• Power capabilities:
• Music power: 200 W_MAX
• Power rating: 100 W_RMS
• General information:
• Impedance: 8 Ω
• Frequency range: 60-19,000 Hz
• SPL (1 W/1 m): 95 dB
• Max. rated SPL: 114 dB
• Admiss. ambient temp.: 0-40 °C
• Dimensions (WxHxD): 290x405x220 mm
• Weight: 7.4 kg
• Connections: 2 x SPEAKER par. in/out

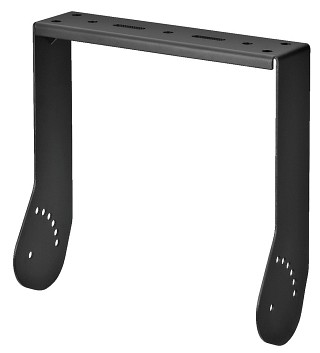

Wall bracket, for horizontal mounting of a speaker system MEGA-DSP08 or MOVE-08.

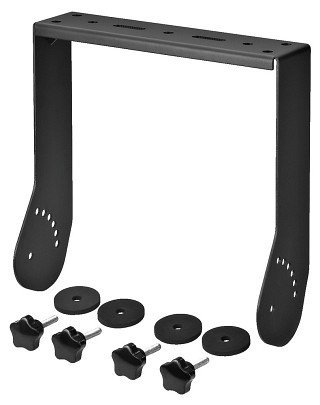

Bracket, for vertical suspension of a speaker system MEGA-DSP08 or MOVE-08.

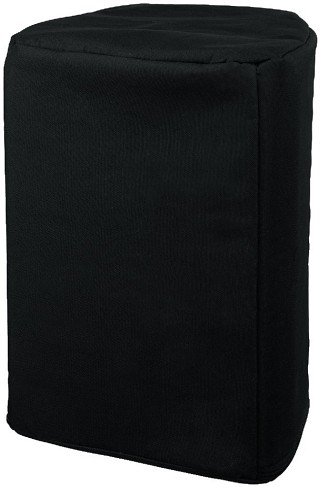

Protective bag for speaker systems

PAB-115BAG: for the PA speaker systems PAB-115MK2, PAK-115MK2, PAB-15XC, PAK-15XC

PAB-112BAG: for the PA speaker systems PAB-112MK2, PAK-112MK2, PAB-12XC, PAK-12XC

PAB-110BAG: for the PA speaker systems PAB-110MK2, PAK-110MK2, PAB-10XC, PAK-10XC

PAB-108BAG: for the PA speaker systems PAB-108MK2, PAK-108MK2, PAB-8XC, PAK-8XC


• Outer material of solid, black artificial textile with soft inner lining
• Openings for stand and handle, cover straps to be closed with hook and loop fastener or zip fastener
• Additional cable bag
