Light effect units

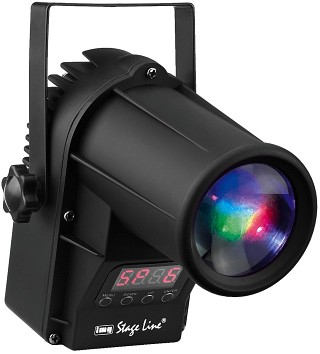

LED spotlight LED-10SPOT

LED spotlight, small design with extra high luminous intensity.

3 primary colours (red, green and blue) plus white.

1 x 4-in-1 high-performance RGBW LED, 10 W (beam angle: 7°), for highest luminous efficiency
Controllable via 7 or 4 DMX channels, selectable
Control panel with LED display for DMX addressing and preadjustments
Long life with low power consumption
Built-in fan
Movable mounting bracket
Power supply via supplied PSU
Dimensions: 100x122x128 mm
Weight: 660 g

dj-magazin.de 08/2013

"A spotlight with an extraordinary luminous intensity. The spotlight was tested with colour change for approx. 8 hours. For sufficient cooling, it features a small built-in low-noise fan. A great unit for various applications."

Price per unit (Order No. mo-386410) - not available (_)

LED spotlight LED-36SPOT

LED spotlight, small design with extra high luminous intensity.

1 super-bright white LED, 3 W, for highest luminous efficiency
Long life with low power consumption
Supplied with 2 lenses (6°/11°)
Power supply: 230 V /50 Hz/10 VA
Dimensions: 74x78x104 mm
Weight: 350 g

Price per unit (Order No. mo-383780) - not available (_)

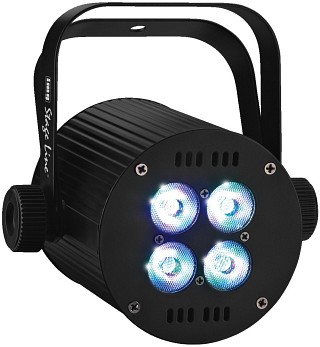

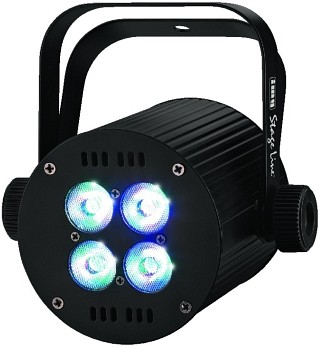

LED spotlight PARL-40DMX

LED spotlight, in a compact housing.

3 primary colours (red, green and blue) plus white, with colour mixer/dimmer and stroboscope function via DMX interface.

4 super-bright 4-in-1 RGBW LEDs, 8 W each (beam angle: 25°), for highest luminous efficiency
Controllable via 8, 6, 5, 4 or 3 DMX channels, selectable
Music-controlled via integrated microphone
Master/slave mode with automatic run of programs
Control panel with LED display for addressing and preadjustments
Processor-controlled colour change
Long life with low power consumption
Built-in fan
Overtemperature protection
Also suitable as a standing spotlight due to 2 movable mounting brackets
Power supply: 230 V /50 Hz/50 VA
Dimensions: Ø 120 mm x 130 mm
Weight: 1.3 kg

Price per unit (Order No. mo-386430) - not available (_)

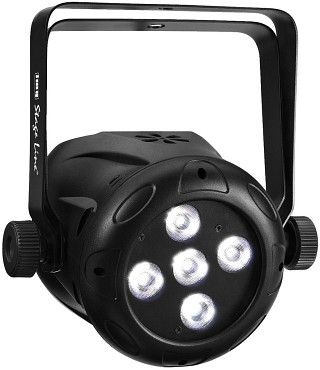

LED spotlight PARL-74RGBW

LED spotlight, in a compact plastic housing.

3 primary colours (red, green and blue) plus white, with colour mixer/dimmer and stroboscope function via DMX interface.

5 super-bright 4-in-1 RGBW LEDs, 8 W each (beam angle: 40°), for highest luminous efficiency
Controllable via 8, 6, 5, 4 or 3 DMX channels, selectable
Music-controlled via integrated microphone
Master/slave mode with automatic run of programs, 7 show programs
Control panel with LED display for addressing and preadjustments
Processor-controlled colour change
Long life with low power consumption and low heat generation
Also suitable as a standing spotlight due to 2 movable mounting brackets
Power supply: 230 V /50 Hz/70 VA
Dimensions: Ø 155 mm x 180 mm
Weight: 1.9 kg

tastenwelt 05/2013

"The small spotlight is suitable for versatile applications. It is both suitable for discos and show effects, for atmospheric lighting in bars or at exhibitions and vernissages. Very good price-performance ratio."

+ Very bright LEDs

+ Red, green, blue and white

Price per unit (Order No. mo-386320) EUR 161,70 excl. VAT: € 135.88 / $ 152.19

LED spotlight set PARL-45SET

LED spotlight set

This compact lighting system features a low weight, 4 slimline LED spotlights and highest luminous efficiency and is ideally suited for mobile applications.

Each spotlight features 3 super-bright 3-in-1 high-performance RGB LEDs, 9 W each
LED beam angle: 15° each
Movable and tiltable spotlights
DMX control function for 15 or 3 channels, selectable
Music-controlled
Master/slave mode with automatic run of programs
Controllable via supplied foot controller with 2 foot switches
Control panel with LED display for addressing and preadjustments
Black lacquered control unit
The LED spotlights can be mounted either above or underneath the control unit
Steel lighting stand, height can be adjusted in 6 steps (max. height: 2.1 m), with locking pin
Supplied with nylon transport bag for control unit with LED spotlights, mounting brackets, foot controller, connection cable and transport bag for lighting stand
Power supply: 230 V /50 Hz/55 VA
Dimensions: 900x240x50 mm (control unit with LED spotlights)
Weight: 8.7 kg

Price per unit (Order No. mo-386850) EUR 308,30 excl. VAT: € 259.08 / $ 290.16

LED DMX light effect panel RGBL-412DMX

LED DMX light effect panel, 3 primary colours (red, green and blue) plus white, with colour mixer and DMX control.

16 super-bright 4-in-1 RGBW LEDs, 8 W each, for highest luminous efficiency
Controllable via 34, 32, 18, 10, 6 or 4 DMX channels, selectable
Music-controlled via integrated microphone, adjustable sensitivity
Master/slave mode with automatic run of programs
Control panel with LED display for DMX addressing and preadjustments
Processor-controlled colour change and running light effects
Long life with low power consumption
Built-in fans
Overtemperature protection
Black lacquered aluminium housing with movable mounting brackets for wall mounting and ceiling suspension
Power supply: 230 V /50 Hz/170 VA
Dimensions: 102x11x13.5 cm
Weight: 4.5 kg

SOUNDCHECK 03/2014

"The luminous power of the mounted LEDs is not just high, but also very impressive. In maximum mode, 34 DMX channels can be controlled. It allows you to activate individual programs and the stroboscope mode as well as to adjust colour and brightness for two diodes at a time."

Price per unit (Order No. mo-386440) EUR 357,00 excl. VAT: € 300.00 / $ 336.00

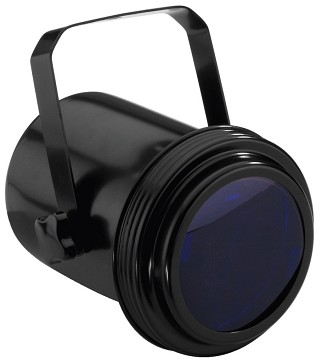

Spotlight PAR-36/SW

Spotlight, e.g. for mirror balls.

Metal housing with mounting bracket
Connection cable with earthed plug (approx. 1.2 m)
Matching set of colour filters LEF-36SET and lamp (6 V, 30 W max., e.g. HLT-6/30) are available at option
Power supply: 230 V /50 Hz/40 VA
Dimensions: Ø 120 mm x 160 mm
Weight: 1.2 kg

Supplied without set of filters.

Price per unit (Order No. mo-380960) - not available (_)

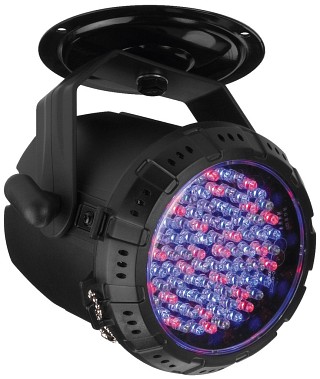

LED spotlight, RGB PARL-30SPOT

LED spotlight, RGB

Controllable via 4 DMX channels
Operating modes: DMX, music-controlled, automatic and master/slave
Controllable via mini remote control LC-3 or controllers LED-4C, LED-8C, available at option
Automatic or manual DMX addressing
Supplied with mounting bracket and mounting plate
1.2 m connection cable with earthed plug
Power supply: 230 V /50 Hz/10 VA
Dimensions: Ø 120 mm x 120 mm
Weight: 1 kg

PARL-30SPOT: 90 super-bright LEDs, 5 mm each (beam angle: 20°), for highest luminous efficiency (red: 24, green: 33, blue: 33) PARL-30WASH: 91 super-bright LEDs, 5 mm each (beam angle: 50°), for highest luminous efficiency (red: 31, green: 30, blue: 30)

Price per unit (Order No. mo-383100) EUR 94,20 excl. VAT: € 79.16 / $ 88.66

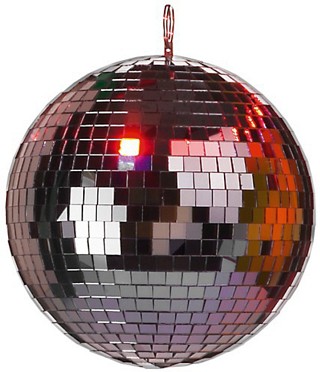

Mirror Balls MB-200

Mirror Balls For decoration purposes.

Hard plastic base material, single-coloured mirror bevels glued on
Matching motors for 360 degree rotation are available at option

MB-200 = Ø 20 cm; 880 g

MB-300 = Ø 30 cm; 2,100 g; with safety eyelet

Price per unit (Order No. mo-380050) EUR 16,57 excl. VAT: € 13.92 / $ 15.60

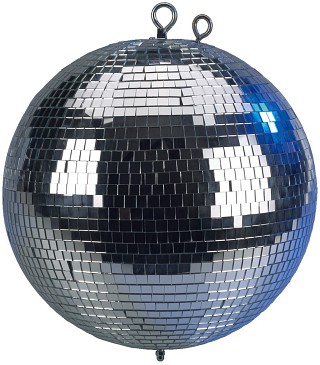

Mirror Balls MB-300

Mirror Balls For decoration purposes.

Hard plastic base material, single-coloured mirror bevels glued on
Matching motors for 360 degree rotation are available at option

MB-200 = Ø 20 cm; 880 g

MB-300 = Ø 30 cm; 2,100 g; with safety eyelet

Price per unit (Order No. mo-380060) EUR 37,56 excl. VAT: € 31.56 / $ 35.35

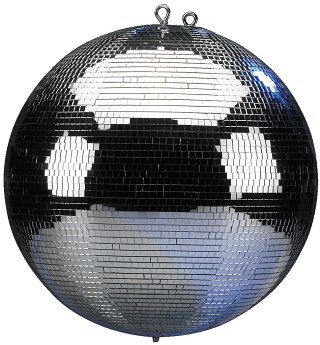

Mirror ball MB-5002

Mirror ball, for applications in public areas, e.g. discotheques.

Base material of hard plastic, single-coloured mirror bevels glued on
Holding eyelet
Additional safety eyelet with continuous axis
Diameter: 50 cm
Weight: 6.2 kg
Matching mirror ball motor MBM-1002 is available at option

Only for installation by experts, as otherwise persons and units will be put at risk. Mirror ball and motor must by all means be connected with a safety rope.

Price per unit (Order No. mo-382720) EUR 125,60 excl. VAT: € 105.55 / $ 118.21

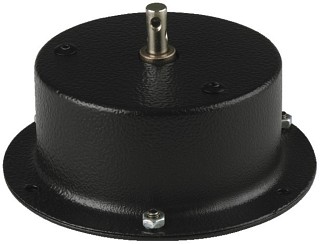

Mirror ball motors MBM-100

Mirror ball motors, for decoration purposes.

Matching the mirror balls MB-200 and MB-300
Black lacquered metal housing, Ø 10 cm
Mains connection cable with earthed plug
Power supply: 230 V /50 Hz/3 VA
Weight: 450 g

MBM-100 = 1 rpm

MBM-300 = 3 rpm

Price per unit (Order No. mo-380840) - not available

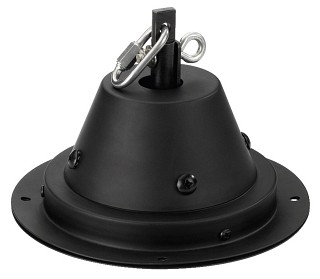

Mirror ball motor MBM-1002

Mirror ball motor, for applications in public areas, e.g. discotheques.

Matching the mirror ball MB-5002
Black lacquered metal housing, Ø 19.5 cm
Quick-acting closure for ropes
Additional safety eyelet
Supplied with safety rope
Supplied without mounting chain
Load capacity: 10 kg

Only for installation by experts, as otherwise persons and units will be put at risk. Mirror ball and motor must by all means be connected with a safety rope.

Price per unit (Order No. mo-382350) - not available

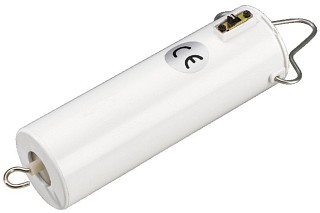

Mirror ball motor, 1.5 rpm MBM-15

Mirror ball motor, 1.5 rpm, for decoration purposes.

Battery operation 1 x 1.5 V battery D size (supplied without battery)
Dimensions: Ø 40 mm x 140 mm
Load capacity: 900 g
Weight: 120 g

Price per unit (Order No. mo-380920) EUR 11,22 excl. VAT: € 9.43 / $ 10.56

Mirror ball motors MBM-300

Mirror ball motors, for decoration purposes.

Matching the mirror balls MB-200 and MB-300
Black lacquered metal housing, Ø 10 cm
Mains connection cable with earthed plug
Power supply: 230 V /50 Hz/3 VA
Weight: 450 g

MBM-100 = 1 rpm

MBM-300 = 3 rpm

Price per unit (Order No. mo-380850) - not available (_)
