Speaker systems: Active speaker systems

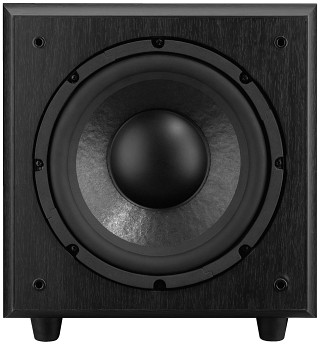

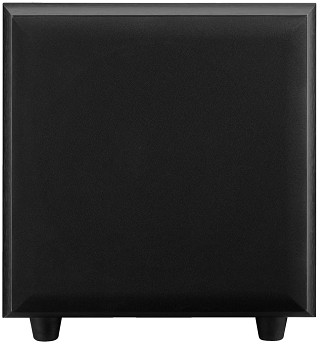

Active subwoofer system, 200 WMAX, 120 WRMS, SOUND-100SUB

With the 2-way active systems and the subwoofers of the SOUND series, efficient speakers with a powerful sound are available in different sizes and with different features. They are all integrated into high-quality bass-reflex MDF cabinets and feature speakers with magnetic shielding. The speaker systems are ideally suited as active hi-fi speaker systems, high-end PC speakers and for small PA applications requiring a powerful sound, e.g. media presentations.

Active subwoofer system, 200 WMAX, 120 WRMS

Active subwoofer provides a pulsed sound and a powerful bass reproduction. For adding to the active SOUND speaker systems, but also to any other compact speaker for hi-fi or home cinema applications and home recordings
Beside the variable input sensitivity, a phase switch and an automatic switch-on system which can additionally be activated, the amplifier features an adjustable crossover frequency (50-150 Hz)
High-quality bass-reflex MDF cabinet (black wood veneer look)
25 cm (10") bass speaker
Volume control for the subwoofer
Inputs via 1 x RCA L/R, RCA LFE or screw terminals for high-level L/R
Additional outputs for mid-high range speakers, thus well-suited for the connection to already existing speaker cables

Specifications:

Frequency range: 35-100 Hz
Amplifier power: 200 W_MAX, 120 W_RMS
Inputs: 150 mV/24 kΩ (RCA L/R) 55 mV/16 kΩ (RCA mono) 2.3 V/440 Ω (high IN)
SPL (1 W/1 m): 88 dB
Max. rated SPL: 108 dB
Admiss. ambient temp.: 0-40 °C
Power supply: 230 V /50 Hz/240 VA
Dimensions (WxHxD): 330x360x360 mm
Weight: 13 kg
Connections: 1 x RCA (L/R), unbal., IN 1 x RCA (mono), unbal., IN 1 x screw terminal (stereo), high-level IN 1 x screw terminal (stereo), high-level OUT
Other features: -

Price per unit (Order No. mo-250730) EUR 401,84 excl. VAT: € 337.68 / $ 374.83

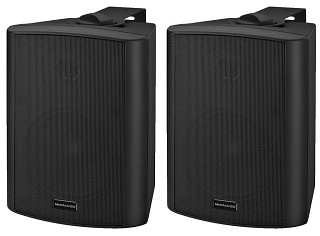

Active 2-way stereo speaker system, 2 x 40 W_MAX, 2 x 20 W_RMS MKA-50SET/SW

Speaker systems: Active speaker systems, Active 2-way stereo speaker system, 2 x 40 W<sub>MAX</sub>, 2 x 20 W<sub>RMS</sub> MKA-50SET/SW — Enlarge

Active 2-way stereo speaker system, 2 x 40 WMAX, 2 x 20 WRMS

Set consists of one active and one passive speaker system. Connection of the passive system to the active system via spring-loaded speaker terminals
Active speaker system with integrated 2-channel amplifier and PSU
Speakers with magnetic shielding
Auto-standby function
Volume control and 2-way tone control

Specifications:

Frequency range: 60-20,000 Hz
Amplifier power: 2 x 40 W_MAX/2 x 20 W_RMS
Inputs:
SPL (1 W/1 m): 89 dB each speaker system
Max. rated SPL: 102 dB each speaker system
Admiss. ambient temp.: 0-40 °C
Power supply: 230 V /50 Hz/110 VA
Dimensions (WxHxD): 180x250x160 mm
Weight: 5.9 kg (pair)
Connections: 1 x RCA L/R (active speak. system only) 1 x 3.5 mm jack screw terminals (both speaker systems)
Other features: supplied with mounting brackets

Price per pair (Order No. mo-132350) EUR 257,04 excl. VAT: € 216.00 / $ 239.76

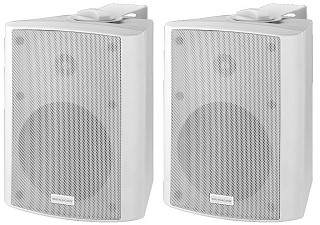

Active 2-way stereo speaker system, 2 x 40 W_MAX, 2 x 20 W_RMS MKA-50SET/WS

Speaker systems: Active speaker systems, Active 2-way stereo speaker system, 2 x 40 W<sub>MAX</sub>, 2 x 20 W<sub>RMS</sub> MKA-50SET/WS — Enlarge

Active 2-way stereo speaker system, 2 x 40 WMAX, 2 x 20 WRMS

Set consists of one active and one passive speaker system. Connection of the passive system to the active system via spring-loaded speaker terminals
Active speaker system with integrated 2-channel amplifier and PSU
Speakers with magnetic shielding
Auto-standby function
Volume control and 2-way tone control

Specifications:

Frequency range: 60-20,000 Hz
Amplifier power: 2 x 40 W_MAX/2 x 20 W_RMS
Inputs:
SPL (1 W/1 m): 89 dB each speaker system
Max. rated SPL: 102 dB each speaker system
Admiss. ambient temp.: 0-40 °C
Power supply: 230 V /50 Hz/110 VA
Dimensions (WxHxD): 180x250x160 mm
Weight: 5.9 kg (pair)
Connections: 1 x RCA L/R (active speaker system only) 1 x 3.5 mm jack screw terminals (both speaker systems)
Other features: supplied with mounting brackets

Price per pair (Order No. mo-132360) EUR 257,04 excl. VAT: € 216.00 / $ 239.76

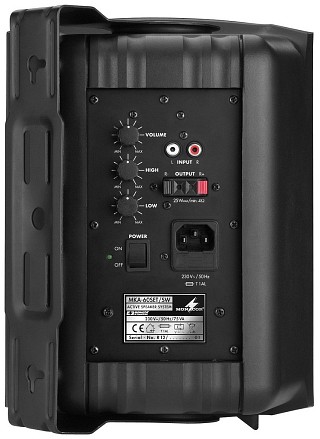

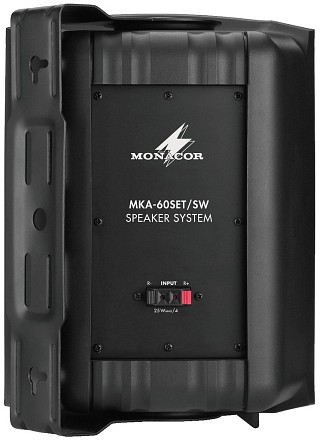

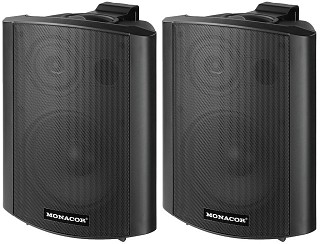

Active 2-way stereo speaker system, 2 x 25 W_MAX, 2 x 15 W_RMS MKA-60SET/SW

Speaker systems: Active speaker systems, Active 2-way stereo speaker system, 2 x 25 W<sub>MAX</sub>, 2 x 15 W<sub>RMS</sub> MKA-60SET/SW — Enlarge

Active 2-way stereo speaker system, 2 x 25 WMAX, 2 x 15 WRMS

Set consists of one active and one passive speaker system. Connection of the passive system to the active system via spring-loaded speaker terminals
Active speaker system with integrated 2-channel amplifier, stereo RCA input, volume control and 2-way tone control, built-in PSU with 3-pin IEC jack
16 cm (6½") bass speaker system and dome tweeter
Black (SW) or white (WS) plastic cabinet
Movable mounting bracket

Specifications:

Frequency range: 45-20,000 Hz
Amplifier power: 2 x 25 W_MAX/2 x 15 W_RMS
Inputs: 400 mV/10 kΩ
SPL (1 W/1 m): 89 dB each speaker system
Max. rated SPL: 100 dB each speaker system
Admiss. ambient temp.: 0-40 °C
Power supply: 230 V /50 Hz/75 VA
Dimensions (WxHxD): 220x293x170 mm
Weight: 8 kg (pair)
Connections: 1 x RCA L/R (active speaker system only) spring-load. speaker term. (link) (both speaker systems)
Other features:

Price per pair (Order No. mo-131580) - not available
