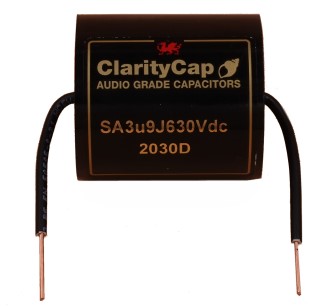

ClarityCap SA The SA range of capacitors is widely recognized as a sensibly priced premium audio grade capacitor. Time and time again users are astounded by the performance to price.

The capacitor was developed in conjunction with a well known and highly respected manufacturer of loudspeakers and has since become the product of choice for many manufacturers around the world.

The capacitors are wound onto a nylon core using a 10µm (630Vdc) polypropylene film. This technique allows the winding tension to be tightly controlled, resulting in a capacitor devoid of as many air pockets as possible. Insulated copper terminals are hand soldered to give the best possible connection. The inherently low dissipation and dielectric absorption factors of polypropylene allied with the design's excellent mechanical stability results in an extremely detailed sonic performance.

As with all ClarityCap products tape and resin colours are flexible. Unless otherwise specified SA capacitors are supplied with black tape and black resin.

Technical details

Tolerance +/-5% standard. Others by request   Dissipation factor ≤ 0.001 @ 1 kHz, 20 °C
Rated voltage 630Vdc Insulation resistance ≥ 10 000 MΩ x µF / C, C>330nF
≥ 30 000 MΩ , C<330nF @ rated voltage, 20 °C
Dielectric absorption ≤ 0.1% @ 20 °C Proof voltage test 1.5 x rated voltage for 30s. Not to be repeated
Environmental category 55/100/56 to EN 60068 - 1 (IEC 68 - 1) Bump EN 60068 - 2 - 29 (EIC 68 - 2 - 29) Test Eb 400m/s2, 1000 bumps
Temperature range -55 to +100 °C Vibration EN 60068 - 2 - 6 (EIC 68 - 2 - 6) Test Fc 100 to 500 Hz 0.75mm or 98m/s2

Selected pairs of capacitors (capacitance difference less than 1%) are available at an additional charge of EUR 4,76 excl. VAT: € 4.00 / $ 4.48

ClarityCap SA 630Vdc

Product ID C/µF U/Vdc Dimensions
DxL/mm		 Price
cc-sa010-630 0.10 630 30.0 x 20.0 EUR 7,00 excl. VAT: € 5.88 / $ 6.59
cc-sa015-630 0.15 630 21.0 x 20.0 EUR 7,00 excl. VAT: € 5.88 / $ 6.59
cc-sa018-630 0.18 630   - not available (_)
cc-sa020-630 0.20 630   EUR 7,00 excl. VAT: € 5.88 / $ 6.59
cc-sa022-630 0.22 630 24.0 x 20.0 - not available
cc-sa027-630 0.27 630   - not available (_)
cc-sa033-630 0.33 630 26.0 x 19.0 - not available
cc-sa039-630 0.39 630   - not available (_)
cc-sa044-630 0.44 630   EUR 7,00 excl. VAT: € 5.88 / $ 6.59
cc-sa047-630 0.47 630 22.0 x 28.0 EUR 7,00 excl. VAT: € 5.88 / $ 6.59
cc-sa056-630 0.56 630 21.0 x 28.0 - not available
cc-sa068-630 0.68 630 25.0 x 28.0 EUR 7,00 excl. VAT: € 5.88 / $ 6.59
cc-sa082-630 0.82 630 19.0 x 38.0 - not available
cc-sa10-630 1.0 630 22.0 x 39.0 - not available
cc-sa12-630 1.2 630   EUR 8,00 excl. VAT: € 6.72 / $ 7.53
cc-sa13-630 1.3 630   EUR 8,00 excl. VAT: € 6.72 / $ 7.53
cc-sa14-630 1.4 630   EUR 8,00 excl. VAT: € 6.72 / $ 7.53
cc-sa15-630 1.5 630 27.0 x 39.0 EUR 8,00 excl. VAT: € 6.72 / $ 7.53
cc-sa16-630 1.6 630   EUR 8,00 excl. VAT: € 6.72 / $ 7.53
cc-sa17-630 1.7 630   EUR 8,00 excl. VAT: € 6.72 / $ 7.53
cc-sa18-630 1.8 630 29.0 x 39.0 EUR 8,00 excl. VAT: € 6.72 / $ 7.53
cc-sa20-630 2.0 630   EUR 9,50 excl. VAT: € 7.98 / $ 8.94
cc-sa22-630 2.2 630 31.0 x 39.0 EUR 10,00 excl. VAT: € 8.40 / $ 9.41
cc-sa26-630 2.6 630   - not available
cc-sa27-630 2.7 630 33.0 x 39.0 - not available
cc-sa28-630 2.8 630   - not available
cc-sa30-630 3.0 630   EUR 10,00 excl. VAT: € 8.40 / $ 9.41
cc-sa33-630 3.3 630 35.0 x 39.0 EUR 10,00 excl. VAT: € 8.40 / $ 9.41
cc-sa39-630 3.9 630 35.0 x 38.5 EUR 11,00 excl. VAT: € 9.24 / $ 10.35
cc-sa43-630 4.3 630   - not available
cc-sa44-630 4.4 630   - not available
cc-sa47-630 4.7 630 35.0 x 46.0 EUR 14,00 excl. VAT: € 11.76 / $ 13.18
cc-sa50-630 5.0 630   - not available
cc-sa55-630 5.5 630   - not available
cc-sa56-630 5.6 630 38.0 x 46.0 EUR 14,00 excl. VAT: € 11.76 / $ 13.18
cc-sa62-630 6.2 630   - not available
cc-sa68-630 6.8 630 42.0 x 46.0 EUR 14,60 excl. VAT: € 12.27 / $ 13.74
cc-sa80-630 8.0 630   EUR 15,50 excl. VAT: € 13.03 / $ 14.59
cc-sa82-630 8.2 630 45.0 x 46.0 EUR 16,40 excl. VAT: € 13.78 / $ 15.44
cc-sa90-630 9.0 630   EUR 16,50 excl. VAT: € 13.87 / $ 15.53
cc-sa100-630 10.0 630 49.0 x 46.0 - not available
cc-sa120-630 12.0 630 40.0 x 65.0 EUR 17,00 excl. VAT: € 14.29 / $ 16.00
cc-sa150-630 15.0 630 49.0 x 66.0 EUR 21,00 excl. VAT: € 17.65 / $ 19.76
cc-sa160-630 16.0 630   EUR 21,20 excl. VAT: € 17.82 / $ 19.95
cc-sa180-630 18.0 630 53.0 x 66.0 - not available
cc-sa200-630 20.0 630   - not available
cc-sa220-630 22.0 630 58.0 x 66.0 - not available
cc-sa240-630 24.0 630   EUR 35,50 excl. VAT: € 29.83 / $ 33.41
cc-sa270-630 27.0 630 64.0 x 66.0 EUR 40,00 excl. VAT: € 33.61 / $ 37.65
cc-sa300-630 30.0 630   - not available
cc-sa330-630 33.0 630 70.0 x 66.0 EUR 50,00 excl. VAT: € 42.02 / $ 47.06
cc-sa390-630 39.0 630 76.0 x 66.0 EUR 60,00 excl. VAT: € 50.42 / $ 56.47
cc-sa470-630 47.0 630 82.0 x 66.0 EUR 70,00 excl. VAT: € 58.82 / $ 65.88
cc-sa500-630 50.0 630   EUR 80,00 excl. VAT: € 67.23 / $ 75.29
