ClarityCap PX

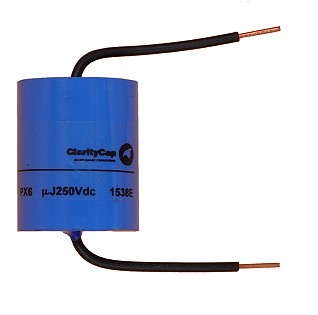

ClarityCap PX The PX range is fast growing into a favourite worldwide budget capacitor.

It is currently specified by some of the best known brands throughout Europe, North America, and Asia. It's unsurpassed performance to price ratio make it a very attractive proposition.

Constructed from a 250Vdc (6µm) rated film the component is spindle wound. It is then given a special heat treatment before the insulated copper terminals are hand soldered to achieve the best possible connection.

The inherently low dissipation and dielectric absorption factors of polypropylene allied with an excellent mechanical stability results in an extremely detailed sonic performance. The construction also results in a low self inductance and ESR (Equivalent Series Resistance) and the devices are highly stable with regard to temperature and frequency.

As with all ClarityCap products tape and resin colours are flexible. Unless otherwise specified PX capacitors are supplied with blue tape and blue resin.

Technical details

Tolerance +/-5% standard. Others by request   Dissipation factor ≤ 0.001 @ 1 kHz, 20 °C
Rated voltage 250Vdc Insulation resistance ≥ 10 000 MΩ x µF / C, C>330nF
≥ 30 000 MΩ , C<330nF @ rated voltage, 20 °C
Dielectric absorption ≤ 0.1% @ 20 °C Proof voltage test 1.5 x rated voltage for 30s. Not to be repeated
Environmental category 55/100/56 to EN 60068 - 1 (IEC 68 - 1) Bump EN 60068 - 2 - 29 (EIC 68 - 2 - 29) Test Eb 400m/s2, 1000 bumps
Temperature range -55 to +100 °C Vibration EN 60068 - 2 - 6 (EIC 68 - 2 - 6) Test Fc 10 to 500 Hz 0.75mm or 98m/s2

Selected pairs of capacitors (capacitance difference less than 1%) are available at an additional charge of EUR 2,80 excl. VAT: € 2.35 / $ 2.56

ClarityCap PX 250Vdc

Product ID C/µF U/Vdc Dimensions
DxL/mm		 Price
cc-px010-250 0.10 250   - not available
cc-px015-250 0.15 250 10.0 (5.0) x 20.0 EUR 2,10 excl. VAT: € 1.76 / $ 1.92
cc-px022-250 0.22 250 11.0 (6.0) x 20.0 EUR 2,30 excl. VAT: € 1.93 / $ 2.11
cc-px033-250 0.33 250 12.5 (8.0) x 20.0 EUR 2,10 excl. VAT: € 1.76 / $ 1.92
cc-px047-250 0.47 250 15.0 (10.0) x 20.0 EUR 2,20 excl. VAT: € 1.85 / $ 2.02
cc-px056-250 0.56 250 14.0 (10.0) x 21.5 EUR 2,30 excl. VAT: € 1.93 / $ 2.11
cc-px068-250 0.68 250 17.0 (12.5) x 20.0 EUR 2,40 excl. VAT: € 2.02 / $ 2.20
cc-px082-250 0.82 250 16.5 (12.0) x 21.0 EUR 2,50 excl. VAT: € 2.10 / $ 2.29
cc-px10-250 1.0 250 16.0 (11.5) x 30.0 EUR 3,90 excl. VAT: € 3.28 / $ 3.57
cc-px12-250 1.2 250 16.0 (11.0) x 28.5 EUR 2,50 excl. VAT: € 2.10 / $ 2.29
cc-px15-250 1.5 250 19.0 (14.0) x 30.0 EUR 2,80 excl. VAT: € 2.35 / $ 2.56
cc-px18-250 1.8 250 18.5 (14.0) x 28.5 EUR 3,16 excl. VAT: € 2.66 / $ 2.89
cc-px22-250 2.2 250 22.0 (17.5) x 30.0 on request
cc-px25-250 2.5 250   EUR 3,70 excl. VAT: € 3.11 / $ 3.39
cc-px27-250 2.7 250 21.5 (17.5) x 28.0 EUR 3,30 excl. VAT: € 2.77 / $ 3.02
cc-px30-250 3.0 250   EUR 4,00 excl. VAT: € 3.36 / $ 3.66
cc-px33-250 3.3 250 26.5 (22.0) x 30.0 EUR 4,10 excl. VAT: € 3.45 / $ 3.76
cc-px36-250 3.6 250   EUR 4,18 excl. VAT: € 3.51 / $ 3.83
cc-px39-250 3.9 250 22.5 (18.0) x 33.5 EUR 4,20 excl. VAT: € 3.53 / $ 3.85
cc-px47-250 4.7 250 27.0 (22.5) x 34.0 EUR 11,70 excl. VAT: € 9.83 / $ 10.72
cc-px50-250 5.0 250   on request
cc-px56-250 5.6 250 26.0 (22.0) x 33.5 EUR 5,00 excl. VAT: € 4.20 / $ 4.58
cc-px60-250 6.0 250   EUR 9,00 excl. VAT: € 7.56 / $ 8.24
cc-px68-250 6.8 250 32.0 (27.0) x 34.0 EUR 10,50 excl. VAT: € 8.82 / $ 9.62
cc-px82-250 8.2 250 26.0 (22.0) x 45.5 EUR 6,20 excl. VAT: € 5.21 / $ 5.68
cc-px90-250 9.0 250   - not available
cc-px100-250 10.0 250 31.0 (26.0) x 47.0 EUR 7,50 excl. VAT: € 6.30 / $ 6.87
cc-px120-250 12.0 250 31.5 (27.5) x 46.0 EUR 9,80 excl. VAT: € 8.24 / $ 8.98
cc-px150-250 15.0 250 37.0 (32.0) x 47.0 EUR 13,80 excl. VAT: € 11.60 / $ 12.64
cc-px160-250 16.0 250   EUR 12,80 excl. VAT: € 10.76 / $ 11.72
cc-px180-250 18.0 250 36.0 (34.0) x 45.0 EUR 15,90 excl. VAT: € 13.36 / $ 14.56
cc-px220-250 22.0 250 44.0 (39.0) x 47.0 EUR 17,50 excl. VAT: € 14.71 / $ 16.03
cc-px250-250 25.0 250   EUR 19,10 excl. VAT: € 16.05 / $ 17.49
cc-px300-250 30.0 250   EUR 21,50 excl. VAT: € 18.07 / $ 19.69
cc-px330-250 33.0 250 46.0 (41.0) x 60.0 EUR 29,00 excl. VAT: € 24.37 / $ 26.56
cc-px470-250 47.0 250 54.0 (49.0) x 60.0 EUR 26,60 excl. VAT: € 22.35 / $ 24.36
cc-px680-250 68.0 250 57.0 (58.0) x 60.0 EUR 46,00 excl. VAT: € 38.66 / $ 42.13
cc-px820-250 82.0 250 63.5 x 60.0 EUR 53,70 excl. VAT: € 45.13 / $ 49.19
cc-px1000-250 100.0 250 70.0 x 60.5 EUR 64,90 excl. VAT: € 54.54 / $ 59.45
