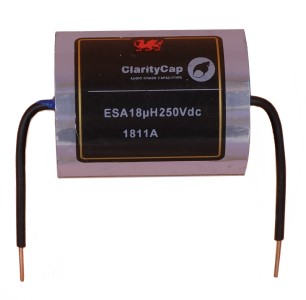

ESA

The ESA range has been developed as a direct result of the 2 year research programme conducted between ClarityCap and the world renowned Acoustics Research Centre at the University of Salford.

The performance of the ESA capacitors has been dramatically enhanced by reducing resonant sonic outputs from the capacitor winding itself. This is achieved by careful selection of the highest quality polypropylene base film combined with thick pure aluminium metallisation and close control of critical production processes.

The resulting ESA range offers exceptional performance in audio applications at both 250Vdc and 630Vdc. A guaranteed 3% tolerance ensures component to component consistency for a balanced system and reproducibility across production runs.

As with all ClarityCap products tape and resin colours are flexible. Unless otherwise specified ESA capacitors are supplied with silver tape and black resin.

Technical details

Tolerance	+/-3% standard. Others by request	Dissipation factor	≤ 0.001 @ 1 kHz, 20 °C
Rated voltage	250Vdc or 630Vdc	Insulation resistance	≥ 10 000 MΩ x µF / C, C>330nF ≥ 30 000 MΩ , C<330nF @ rated voltage, 20 °C
Dielectric absorption	≤ 0.1% @ 20 °C	Proof voltage test	1.5 x rated voltage for 30s. Not to be repeated
Environmental category	55/100/56 to EN 60068 - 1 (IEC 68 - 1)	Bump	EN 60068 - 2 - 29 (EIC 68 - 2 - 29) Test Eb 400m/s², 1000 bumps
Temperature range	-40 to +70 °C	Vibration	EN 60068 - 2 - 6 (EIC 68 - 2 - 6) Test Fc 100 to 500 Hz 0.75mm or 98m/s²

Selected pairs of capacitors (capacitance difference less than 1%) are available at an additional charge of EUR 2,80

excl. VAT: € 2.35 / $ 2.56

ClarityCap ESA 250Vdc

Product ID	C/µF	U/Vdc	Dimensions DxL/mm	Price
cc-esa047-250	0.47	250	13.0 x 20.0	EUR 4,80 excl. VAT: € 4.03 / $ 4.40
cc-esa068-250	0.68	250	16.0 x 20.0	EUR 6,06 excl. VAT: € 5.09 / $ 5.55
cc-esa082-250	0.82	250		- not available (_)
cc-esa10-250	1.0	250	16.0 x 28.0	EUR 4,90 excl. VAT: € 4.12 / $ 4.49
cc-esa12-250	1.2	250	18.0 x 28.0	EUR 5,28 excl. VAT: € 4.44 / $ 4.84
cc-esa15-250	1.5	250	19.0 x 28.0	EUR 9,47 excl. VAT: € 7.96 / $ 8.67
cc-esa17-250	1.7	250		EUR 6,20 excl. VAT: € 5.21 / $ 5.68
cc-esa20-250	2.0	250	18,0 x 28,0	- not available
cc-esa22-250	2.2	250	21.0 x 28.0	EUR 6,90 excl. VAT: € 5.80 / $ 6.32
cc-esa27-250	2.7	250	23.0 x 28.0	EUR 6,90 excl. VAT: € 5.80 / $ 6.32
cc-esa30-250	3.0	250	24.0 x 28.0	EUR 9,90 excl. VAT: € 8.32 / $ 9.07
cc-esa33-250	3.3	250	24.0 x 28.0	EUR 10,60 excl. VAT: € 8.91 / $ 9.71
cc-esa39-250	3.9	250	25.0 x 33.0	EUR 7,40 excl. VAT: € 6.22 / $ 6.78
cc-esa40-250	4.0	250		EUR 8,40 excl. VAT: € 7.06 / $ 7.69
cc-esa47-250	4.7	250	25.0 x 33.0	EUR 14,50 excl. VAT: € 12.18 / $ 13.28
cc-esa56-250	5.6	250	28.0 x 33.0	EUR 9,90 excl. VAT: € 8.32 / $ 9.07
cc-esa68-250	6.8	250	31.0 x 33.0	EUR 12,00 excl. VAT: € 10.08 / $ 10.99
cc-esa82-250	8.2	250	34.0 x 33.0	EUR 18,80 excl. VAT: € 15.80 / $ 17.22
cc-esa100-250	10.0	250	31.0 x 45.0	EUR 16,20 excl. VAT: € 13.61 / $ 14.84
cc-esa120-250	12.0	250		EUR 15,20 excl. VAT: € 12.77 / $ 13.92
cc-esa150-250	15.0	250	37.0 x 45.0	EUR 17,00 excl. VAT: € 14.29 / $ 15.57
cc-esa160-250	16.0	250	35.0 x 45.0	- not available
cc-esa180-250	18.0	250	40.0 x 45.0	EUR 33,00 excl. VAT: € 27.73 / $ 30.23
cc-esa200-250	20.0	250	38.0 x 45.0	- not available
cc-esa220-250	22.0	250	45.0 x 45.0	EUR 29,80 excl. VAT: € 25.04 / $ 27.30
cc-esa250-250	25.0	250	43.0 x 45.0	EUR 38,80 excl. VAT: € 32.61 / $ 35.54
cc-esa270-250	27.0	250	50.0 x 45.0	EUR 25,90 excl. VAT: € 21.76 / $ 23.72
cc-esa330-250	33.0	250	47.0 x 60.0	EUR 45,80 excl. VAT: € 38.49 / $ 41.95
cc-esa390-250	39.0	250	52.0 x 60.0	EUR 40,00 excl. VAT: € 33.61 / $ 36.64
cc-esa400-250	40.0	250		EUR 48,00 excl. VAT: € 40.34 / $ 43.97
cc-esa470-250	47.0	250	56.0 x 60.0	EUR 61,00 excl. VAT: € 51.26 / $ 55.87
cc-esa560-250	56.0	250		- not available (_)
cc-esa680-250	68.0	250	67.0 x 60.0	on request
cc-esa820-250	82.0	250		EUR 85,00 excl. VAT: € 71.43 / $ 77.86
cc-esa1000-250	100.0	250	70.0 x 60.0	EUR 115,00 excl. VAT: € 96.64 / $ 105.34
cc-esa1500-250	150.0	250		EUR 151,00 excl. VAT: € 126.89 / $ 138.31

ClarityCap ESA 630Vdc

Product ID	C/µF	U/Vdc	Dimensions DxL/mm	Price
cc-esa001-630	0.010	630		- not available (_)
cc-esa0022-630	0.022	630		- not available (_)
cc-esa0047-630	0.047	630		- not available (_)
cc-esa010-630	0.10	630	30.0 x 20.0	EUR 8,20 excl. VAT: € 6.89 / $ 7.51
cc-esa015-630	0.15	630	21.0 x 20.0	EUR 9,30 excl. VAT: € 7.82 / $ 8.52
cc-esa020-630	0.20	630		EUR 8,00 excl. VAT: € 6.72 / $ 7.33
cc-esa022-630	0.22	630	24.0 x 20.0	EUR 8,80 excl. VAT: € 7.39 / $ 8.06
cc-esa033-630	0.33	630	29.0 x 20.0	EUR 9,00 excl. VAT: € 7.56 / $ 8.24
cc-esa047-630	0.47	630	22.0 x 28.0	EUR 8,20 excl. VAT: € 6.89 / $ 7.51
cc-esa056-630	0.56	630	25.0 x 28.0	EUR 8,50 excl. VAT: € 7.14 / $ 7.79
cc-esa068-630	0.68	630	25.0 x 28.0	EUR 8,80 excl. VAT: € 7.39 / $ 8.06
cc-esa082-630	0.82	630	19.0 x 38.0	EUR 10,00 excl. VAT: € 8.40 / $ 9.16
cc-esa10-630	1.0	630	22.0 x 39.0	EUR 10,30 excl. VAT: € 8.66 / $ 9.43
cc-esa12-630	1.2	630	24.0 x 39.0	EUR 9,00 excl. VAT: € 7.56 / $ 8.24
cc-esa13-630	1.3	630	21.0 x 39.0	EUR 10,80 excl. VAT: € 9.08 / $ 9.89
cc-esa15-630	1.5	630	27.0 x 39.0	EUR 10,00 excl. VAT: € 8.40 / $ 9.16
cc-esa16-630	1.6	630	28.0 x 39.0	EUR 11,60 excl. VAT: € 9.75 / $ 10.63
cc-esa18-630	1.8	630	29.0 x 39.0	EUR 14,20 excl. VAT: € 11.93 / $ 13.01
cc-esa19-630	1.9	630	25.0 x 39.0	EUR 12,90 excl. VAT: € 10.84 / $ 11.82
cc-esa20-630	2.0	630		EUR 13,30 excl. VAT: € 11.18 / $ 12.18
cc-esa22-630	2.2	630	31.0 x 39.0	EUR 16,20 excl. VAT: € 13.61 / $ 14.84
cc-esa26-630	2.6	630		EUR 15,00 excl. VAT: € 12.61 / $ 13.74
cc-esa27-630	2.7	630	33.0 x 39.0	EUR 17,40 excl. VAT: € 14.62 / $ 15.94
cc-esa30-630	3.0	630	34.0 x 39.0	EUR 15,50 excl. VAT: € 13.03 / $ 14.20
cc-esa33-630	3.3	630	35.0 x 39.0	EUR 13,60 excl. VAT: € 11.43 / $ 12.46
cc-esa39-630	3.9	630	39.0 x 39.0	EUR 18,00 excl. VAT: € 15.13 / $ 16.49
cc-esa40-630	4.0	630	35.0 x 39.0	EUR 17,00 excl. VAT: € 14.29 / $ 15.57
cc-esa44-630	4.4	630		- not available
cc-esa47-630	4.7	630	35.0 x 46.0	EUR 21,00 excl. VAT: € 17.65 / $ 19.24
cc-esa56-630	5.6	630	38.0 x 46.0	EUR 20,00 excl. VAT: € 16.81 / $ 18.32
cc-esa60-630	6.0	630	42.0 x 46.0	EUR 23,80 excl. VAT: € 20.00 / $ 21.80
cc-esa68-630	6.8	630	42.0 x 46.0	EUR 28,70 excl. VAT: € 24.12 / $ 26.29
cc-esa80-630	8.0	630		EUR 25,00 excl. VAT: € 21.01 / $ 22.90
cc-esa82-630	8.2	630	45.0 x 46.0	on request
cc-esa100-630	10.0	630	49.0 x 46.0	EUR 31,00 excl. VAT: € 26.05 / $ 28.39
cc-esa120-630	12.0	630		EUR 32,00 excl. VAT: € 26.89 / $ 29.31
cc-esa150-630	15.0	630	49.0 x 66.0	EUR 44,00 excl. VAT: € 36.97 / $ 40.30
cc-esa160-630	16.0	630	50.0 x 66.0	EUR 49,00 excl. VAT: € 41.18 / $ 44.88
cc-esa180-630	18.0	630	53.0 x 66.0	EUR 59,00 excl. VAT: € 49.58 / $ 54.04
cc-esa200-630	20.0	630		EUR 63,00 excl. VAT: € 52.94 / $ 57.71
cc-esa220-630	22.0	630	58.0 x 66.0	EUR 65,00 excl. VAT: € 54.62 / $ 59.54
cc-esa240-630	24.0	630		EUR 80,10 excl. VAT: € 67.31 / $ 73.37
cc-esa270-630	27.0	630	64.0 x 66.0	EUR 81,00 excl. VAT: € 68.07 / $ 74.19
cc-esa330-630	33.0	630	70.0 x 66.0	EUR 98,00 excl. VAT: € 82.35 / $ 89.76
cc-esa390-630	39.0	630	76.0 x 66.0	EUR 121,00 excl. VAT: € 101.68 / $ 110.83
cc-esa470-630	47.0	630	82.0 x 66.0	EUR 125,00 excl. VAT: € 105.04 / $ 114.50
