H core coils H50 H71 H100 H125 H140 baked varnish BH71 BH100 BH125 BH140 BH180 hepta strand LH45 LH60

Mundorf Drum-core coil (H coil, Mcoil H)

MCoil Drum-Core coils made from oxygenfree copper (OFC) round-wire have been developed for mid, low and parallel applications for which compact dimensions, a low basic distortion level as well as the lowest possible internal resistance and a reasonable value for money ratio are of key importance.

The fine properties of the H series can be further improved by applying Baked Wire Treatment as introduced with BH series.

The tonal quality of these coils is a convincing blend of the typical harmoniously-neutral sound of solid core copper round-wire and the natural vitality and enhanced tonal dynamic of HP3616.

The fine properties of the H series can be further improved by applying Baked Wire Treatment as introduced with BH series.

Please note: The power values Pmax in the following tables were determined at 20 degrees Celsius ambient temperature and free convection. They are just a guideline and - since we are not the manufacturers - cannot be guaranteed by us.

H core coils H50 H71 H100 H125 H140 baked varnish BH71 BH100 BH125 BH140 BH180 hepta strand LH45 LH60

Mundorf Drum Core coil (H core) H50

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID	L/mH	R/Ohm	Wire- D/mm	Pmax^*) 8Ohm	Coil Size (DxH/mm)	Price
M-h50-068	0.68	0.36	0.50	16 W	26 x 25	EUR 10,20 excl. VAT: € 8.57 / $ 9.34
M-h50-082	0.82	0.39	0.50	15 W	26 x 25	EUR 10,20 excl. VAT: € 8.57 / $ 9.34
M-h50-100	1.0	0.45	0.50	15 W	26 x 25	EUR 10,20 excl. VAT: € 8.57 / $ 9.34
M-h50-120	1.2	0.49	0.50	14 W	26 x 25	EUR 10,20 excl. VAT: € 8.57 / $ 9.34
M-h50-150	1.5	0.56	0.50	13 W	26 x 25	EUR 10,20 excl. VAT: € 8.57 / $ 9.34
M-h50-180	1.8	0.61	0.50	13 W	26 x 25	EUR 10,20 excl. VAT: € 8.57 / $ 9.34
M-h50-200	2.0	0.65	0.50	12 W	26 x 25	EUR 10,20 excl. VAT: € 8.57 / $ 9.34
M-h50-220	2.2	0.69	0.50	12 W	26 x 25	EUR 10,20 excl. VAT: € 8.57 / $ 9.34
M-h50-270	2.7	0.78	0.50	12 W	26 x 25	EUR 10,20 excl. VAT: € 8.57 / $ 9.34
M-h50-300	3.0	0.78	0.50	13 W	26 x 25	EUR 10,20 excl. VAT: € 8.57 / $ 9.34
M-h50-330	3.3	0.88	0.50	12 W	26 x 25	EUR 10,20 excl. VAT: € 8.57 / $ 9.34
M-h50-390	3.9	0.96	0.50	12 W	26 x 25	EUR 10,20 excl. VAT: € 8.57 / $ 9.34
M-h50-560	5.6	1.1	0.50	11 W	26 x 25	EUR 11,20 excl. VAT: € 9.41 / $ 10.26
M-h50-470	4.7	1.0	0.50	13 W	26 x 25	EUR 10,60 excl. VAT: € 8.91 / $ 9.71
M-h50-680	6.8	1.3	0.50	11 W	26 x 25	EUR 11,60 excl. VAT: € 9.75 / $ 10.63
M-h50-820	8.2	1.6	0.50	9.2 W	26 x 25	EUR 12,20 excl. VAT: € 10.25 / $ 11.17
M-h50-1000	10.0	1.8	0.50	7.2 W	30 x 25	EUR 12,60 excl. VAT: € 10.59 / $ 11.54
M-h50-1200	12.0	2.0	0.50	6.9 W	30 x 25	EUR 13,60 excl. VAT: € 11.43 / $ 12.46
M-h50-1500	15.0	2.3	0.50	6.5 W	30 x 25	EUR 14,60 excl. VAT: € 12.27 / $ 13.37
M-h50-1800	18.0	2.6	0.50	6.1 W	30 x 25	EUR 15,50 excl. VAT: € 13.03 / $ 14.20
M-h50-2200	22.0	3.0	0.50	5.6 W	30 x 25	EUR 16,50 excl. VAT: € 13.87 / $ 15.11
M-h50-2700	27.0	3.4	0.50	5.3 W	30 x 25	EUR 17,50 excl. VAT: € 14.71 / $ 16.03

*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

H core coils H50 H71 H100 H125 H140 baked varnish BH71 BH100 BH125 BH140 BH180 hepta strand LH45 LH60

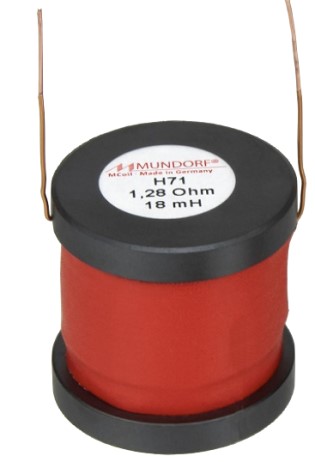

Mundorf Drum Core coil (H core) H71

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID	L/mH	R/Ohm	Wire- D/mm	Pmax^*) 8Ohm	Coil Size (DxH/mm)	Price
M-h71-100	1.0	0.25	0.71	39 W	26 x 25	EUR 8,80 excl. VAT: € 7.39 / $ 8.06
M-h71-120	1.2	0.27	0.71	38 W	26 x 25	EUR 9,30 excl. VAT: € 7.82 / $ 8.52
M-h71-150	1.5	0.31	0.71	35 W	26 x 25	EUR 9,70 excl. VAT: € 8.15 / $ 8.88
M-h71-180	1.8	0.34	0.71	34 W	26 x 25	EUR 10,20 excl. VAT: € 8.57 / $ 9.34
M-h71-200	2.0	0.36	0.71	33 W	26 x 25	EUR 10,60 excl. VAT: € 8.91 / $ 9.71
M-h71-220	2.2	0.38	0.71	32 W	26 x 25	EUR 10,60 excl. VAT: € 8.91 / $ 9.71
M-h71-270	2.7	0.42	0.71	31 W	26 x 25	EUR 11,20 excl. VAT: € 9.41 / $ 10.26
M-h71-300	3.0	0.44	0.71	32 W	26 x 25	EUR 11,60 excl. VAT: € 9.75 / $ 10.63
M-h71-330	3.3	0.47	0.71	31 W	26 x 25	EUR 11,60 excl. VAT: € 9.75 / $ 10.63
M-h71-390	3.9	0.50	0.71	32 W	30 x 25	EUR 12,20 excl. VAT: € 10.25 / $ 11.17
M-h71-470	4.7	0.46	0.71	37 W	30 x 25	EUR 12,60 excl. VAT: € 10.59 / $ 11.54
M-h71-560	5.6	0.62	0.71	29 W	30 x 25	EUR 13,20 excl. VAT: € 11.09 / $ 12.09
M-h71-680	6.8	0.70	0.71	27 W	35 x 25	EUR 13,60 excl. VAT: € 11.43 / $ 12.46
M-h71-820	8.2	0.80	0.71	25 W	35 x 25	EUR 14,60 excl. VAT: € 12.27 / $ 13.37
M-h71-1000	10.0	0.87	0.71	24 W	35 x 25	EUR 15,50 excl. VAT: € 13.03 / $ 14.20
M-h71-1200	12.0	0.98	0.71	22 W	35 x 25	EUR 16,50 excl. VAT: € 13.87 / $ 15.11
M-h71-1500	15.0	1.2	0.71	26 W	40 x 37	EUR 18,50 excl. VAT: € 15.55 / $ 16.95
M-h71-1800	18.0	1.3	0.71	24 W	40 x 37	EUR 20,40 excl. VAT: € 17.14 / $ 18.69
M-h71-2200	22.0	1.5	0.71	22 W	40 x 37	EUR 22,40 excl. VAT: € 18.82 / $ 20.52
M-h71-2700	27.0	1.7	0.71	20 W	40 x 37	EUR 24,40 excl. VAT: € 20.50 / $ 22.35
M-h71-3300	33.0	1.9	0.71	18 W	40 x 37	EUR 26,30 excl. VAT: € 22.10 / $ 24.09
M-h71-4700	47.0	2.8	0.71	13 W	40 x 37	EUR 35,10 excl. VAT: € 29.50 / $ 32.15

*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

H core coils H50 H71 H100 H125 H140 baked varnish BH71 BH100 BH125 BH140 BH180 hepta strand LH45 LH60

Mundorf Drum Core coil (H core) H100

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID	L/mH	R/Ohm	Wire- D/mm	Pmax^*) 8Ohm	Coil Size (DxH/mm)	Price
M-h100-068	0.68	0.11	1.00	143 W	30 x 25	EUR 12,60 excl. VAT: € 10.59 / $ 11.54
M-h100-082	0.82	0.12	1.00	137 W	30 x 25	EUR 12,60 excl. VAT: € 10.59 / $ 11.54
M-h100-100	1.0	0.14	1.00	124 W	30 x 25	EUR 12,60 excl. VAT: € 10.59 / $ 11.54
M-h100-120	1.2	0.15	1.00	120 W	30 x 25	EUR 13,20 excl. VAT: € 11.09 / $ 12.09
M-h100-150	1.5	0.17	1.00	108 W	30 x 25	EUR 13,60 excl. VAT: € 11.43 / $ 12.46
M-h100-180	1.8	0.19	1.00	103 W	35 x 25	EUR 14,60 excl. VAT: € 12.27 / $ 13.37
M-h100-200	2.0	0.20	1.00	102 W	35 x 25	EUR 15,50 excl. VAT: € 13.03 / $ 14.20
M-h100-220	2.2	0.21	1.00	103 W	35 x 25	EUR 15,50 excl. VAT: € 13.03 / $ 14.20
M-h100-270	2.7	0.24	1.00	93 W	35 x 25	EUR 16,50 excl. VAT: € 13.87 / $ 15.11
M-h100-300	3.0	0.25	1.00	120 W	40 x 37	EUR 17,50 excl. VAT: € 14.71 / $ 16.03
M-h100-330	3.3	0.27	1.00	111 W	40 x 37	EUR 17,50 excl. VAT: € 14.71 / $ 16.03
M-h100-390	3.9	0.30	1.00	104 W	40 x 37	EUR 18,50 excl. VAT: € 15.55 / $ 16.95
M-h100-470	4.7	0.34	1.00	97 W	40 x 37	EUR 19,50 excl. VAT: € 16.39 / $ 17.86
M-h100-560	5.6	0.39	1.00	88 W	40 x 37	EUR 21,40 excl. VAT: € 17.98 / $ 19.60
M-h100-680	6.8	0.46	1.00	76 W	40 x 37	EUR 23,40 excl. VAT: € 19.66 / $ 21.43
M-h100-820	8.2	0.54	1.00	115 W	51 x 51	EUR 27,30 excl. VAT: € 22.94 / $ 25.01
M-h100-1000	10.0	0.64	1.00	76 W	51 x 51	EUR 29,30 excl. VAT: € 24.62 / $ 26.84
M-h100-1200	12.0	0.71	1.00	77 W	51 x 51	EUR 31,20 excl. VAT: € 26.22 / $ 28.58
M-h100-1500	15.0	0.83	1.00	70 W	51 x 51	EUR 34,20 excl. VAT: € 28.74 / $ 31.33
M-h100-1800	18.0	0.95	1.00	63 W	51 x 51	EUR 39,10 excl. VAT: € 32.86 / $ 35.81
M-h100-2200	22.0	1.2	1.00	50 W	51 x 51	EUR 42,00 excl. VAT: € 35.29 / $ 38.47

*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

H core coils H50 H71 H100 H125 H140 baked varnish BH71 BH100 BH125 BH140 BH180 hepta strand LH45 LH60

Mundorf Drum Core coil (H core) H125

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID	L/mH	R/Ohm	Wire- D/mm	Pmax^*) 8Ohm	Coil Size (DxH/mm)	Price
M-h125-068	0.68	0.09	1.25	198 W	30 x 25	EUR 14,60 excl. VAT: € 12.27 / $ 13.37
M-h125-082	0.82	0.10	1.25	197 W	35 x 25	EUR 15,50 excl. VAT: € 13.03 / $ 14.20
M-h125-100	1.0	0.11	1.25	190 W	35 x 25	EUR 16,50 excl. VAT: € 13.87 / $ 15.11
M-h125-120	1.2	0.12	1.25	184 W	35 x 25	EUR 17,50 excl. VAT: € 14.71 / $ 16.03
M-h125-150	1.5	0.12	1.25	207 W	40 x 37	EUR 18,50 excl. VAT: € 15.55 / $ 16.95
M-h125-180	1.8	0.14	1.25	191 W	40 x 37	EUR 19,50 excl. VAT: € 16.39 / $ 17.86
M-h125-220	2.2	0.17	1.25	167 W	40 x 37	EUR 20,40 excl. VAT: € 17.14 / $ 18.69
M-h125-270	2.7	0.19	1.25	159 W	40 x 37	EUR 21,40 excl. VAT: € 17.98 / $ 19.60
M-h125-330	3.3	0.21	1.25	152 W	40 x 37	EUR 20,40 excl. VAT: € 17.14 / $ 18.69
M-h125-390	3.9	0.24	1.25	141 W	40 x 37	EUR 25,30 excl. VAT: € 21.26 / $ 23.17
M-h125-470	4.7	0.29	1.25	147 W	51 x 51	EUR 29,30 excl. VAT: € 24.62 / $ 26.84
M-h125-560	5.6	0.33	1.25	138 W	51 x 51	EUR 32,20 excl. VAT: € 27.06 / $ 29.49
M-h125-680	6.8	0.37	1.25	132 W	51 x 51	EUR 35,10 excl. VAT: € 29.50 / $ 32.15
M-h125-820	8.2	0.42	1.25	123 W	51 x 51	EUR 38,10 excl. VAT: € 32.02 / $ 34.90
M-h125-1000	10.0	0.48	1.25	114 W	51 x 51	EUR 42,00 excl. VAT: € 35.29 / $ 38.47
M-h125-1200	12.0	0.54	1.25	107 W	51 x 51	EUR 46,90 excl. VAT: € 39.41 / $ 42.96

*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

H core coils H50 H71 H100 H125 H140 baked varnish BH71 BH100 BH125 BH140 BH180 hepta strand LH45 LH60

Mundorf Drum Core coil (H core) H140

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID	L/mH	R/Ohm	Wire- D/mm	Pmax^*) 8Ohm	Coil Size (DxH/mm)	Price
M-h140-100	1.0	0.08	1.4	333 W	40 x 37	EUR 18,50 excl. VAT: € 15.55 / $ 16.95
M-h140-120	1.2	0.09	1.4	316 W	40 x 37	EUR 19,50 excl. VAT: € 16.39 / $ 17.86
M-h140-150	1.5	0.11	1.4	275 W	40 x 37	EUR 21,40 excl. VAT: € 17.98 / $ 19.60
M-h140-180	1.8	0.12	1.4	267 W	40 x 37	EUR 23,40 excl. VAT: € 19.66 / $ 21.43
M-h140-200	2.0	0.13	1.4	260 W	40 x 37	EUR 20,50 excl. VAT: € 17.23 / $ 18.78
M-h140-220	2.2	0.14	1.4	254 W	40 x 37	EUR 25,30 excl. VAT: € 21.26 / $ 23.17
M-h140-270	2.7	0.17	1.4	251 W	51 x 51	EUR 29,30 excl. VAT: € 24.62 / $ 26.84
M-h140-300	3.0	0.19	1.4	240 W	51 x 51	EUR 26,40 excl. VAT: € 22.18 / $ 24.18
M-h140-330	3.3	0.19	1.4	256 W	51 x 51	EUR 32,20 excl. VAT: € 27.06 / $ 29.49
M-h140-390	3.9	0.22	1.4	235 W	51 x 51	EUR 35,10 excl. VAT: € 29.50 / $ 32.15
M-h140-470	4.7	0.26	1.4	211 W	51 x 51	EUR 38,10 excl. VAT: € 32.02 / $ 34.90
M-h140-560	5.6	0.29	1.4	199 W	51 x 51	EUR 41,00 excl. VAT: € 34.45 / $ 37.55
M-h140-680	6.8	0.33	1.4	184 W	51 x 51	- not available (_)

*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

Audaphon air coils L7 L10 L13 core coils M12 M14 Mundorf Luft L100 L140 H coreH71 H100 H140 Monacor Trafo

Mundorf drum (H core) coil H112 and H132

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID	L/mH	R/Ohm	Wire- D/mm	Pmax^*) 8Ohm	Coil Size (DxH/mm)	Price
M-h132-560	5.6	0.47	1.32	116 W	56 x 35	EUR 37,10 excl. VAT: € 31.18 / $ 33.98
M-h112-820	8.2	0.30	1.12	182 W	56 x 35	EUR 37,10 excl. VAT: € 31.18 / $ 33.98

*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

Mundorf baked varnish H core coil

The microphonics effect (interaction of current flowing through the coil -> magnetic field -> -> mechanical movement of coil wires -> and the resulting induced voltage in the coil) adds information to the original signal. Details of the original signal are overlaid and alienated; the music lacks three-dimensionality and transparency. To avoid this, the wires should be more secured in place.

This can be done by

manufacturing the coil with baked varnish wires and where the entire coil is then baked too,
impregnating the coil in a vacuum with special varnish down to the innermost wires and is then baked
using a foil coil.

H core coils H50 H71 H100 H125 H140 baked varnish BH71 BH100 BH125 BH140 BH180 hepta strand LH45 LH60

Mundorf Drum Core coil (H core) BH71

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID	L/mH	R/Ohm	Wire- D/mm	Pmax^*) 8Ohm	Coil Size (DxH/mm)	Price
M-bh71-100	1.0	0.25	0.71	39 W	26 x 25	EUR 10,60 excl. VAT: € 8.91 / $ 9.71
M-bh71-120	1.2	0.27	0.71	38 W	26 x 25	EUR 11,20 excl. VAT: € 9.41 / $ 10.26
M-bh71-150	1.5	0.31	0.71	35 W	26 x 25	EUR 11,60 excl. VAT: € 9.75 / $ 10.63
M-bh71-180	1.8	0.34	0.71	34 W	26 x 25	EUR 12,20 excl. VAT: € 10.25 / $ 11.17
M-bh71-200	2.0	0.36	0.71	33 W	26 x 25	EUR 12,60 excl. VAT: € 10.59 / $ 11.54
M-bh71-220	2.2	0.38	0.71	32 W	26 x 25	EUR 12,60 excl. VAT: € 10.59 / $ 11.54
M-bh71-270	2.7	0.42	0.71	31 W	26 x 25	EUR 13,20 excl. VAT: € 11.09 / $ 12.09
M-bh71-300	3.0	0.44	0.71	32 W	26 x 25	EUR 13,60 excl. VAT: € 11.43 / $ 12.46
M-bh71-330	3.3	0.47	0.71	31 W	26 x 25	EUR 13,60 excl. VAT: € 11.43 / $ 12.46
M-bh71-390	3.9	0.58	0.71	28 W	30 x 25	EUR 14,20 excl. VAT: € 11.93 / $ 13.01
M-bh71-470	4.7	0.64	0.71	27 W	30 x 25	EUR 14,60 excl. VAT: € 12.27 / $ 13.37
M-bh71-560	5.6	0.62	0.71	29 W	30 x 25	EUR 15,50 excl. VAT: € 13.03 / $ 14.20
M-bh71-680	6.8	0.70	0.71	27 W	35 x 25	EUR 16,50 excl. VAT: € 13.87 / $ 15.11
M-bh71-820	8.2	0.80	0.71	25 W	35 x 25	EUR 17,50 excl. VAT: € 14.71 / $ 16.03
M-bh71-1000	10.0	0.87	0.71	24 W	35 x 25	EUR 18,50 excl. VAT: € 15.55 / $ 16.95
M-bh71-1200	12.0	0.98	0.71	22 W	35 x 25	EUR 19,50 excl. VAT: € 16.39 / $ 17.86
M-bh71-1500	15.0	1.2	0.71	26 W	40 x 37	EUR 21,40 excl. VAT: € 17.98 / $ 19.60
M-bh71-1800	18.0	1.3	0.71	24 W	40 x 37	EUR 23,40 excl. VAT: € 19.66 / $ 21.43
M-bh71-2200	22.0	1.5	0.71	22 W	40 x 37	EUR 25,30 excl. VAT: € 21.26 / $ 23.17
M-bh71-2700	27.0	1.7	0.71	20 W	40 x 37	EUR 27,30 excl. VAT: € 22.94 / $ 25.01
M-bh71-3300	33.0	2.0	0.71	17 W	40 x 37	EUR 29,30 excl. VAT: € 24.62 / $ 26.84

*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

H core coils H50 H71 H100 H125 H140 baked varnish BH71 BH100 BH125 BH140 BH180 hepta strand LH45 LH60

Mundorf Drum Core coil (H core) BH100

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID	L/mH	R/Ohm	Wire- D/mm	Pmax^*) 8Ohm	Coil Size (DxH/mm)	Price
M-bh100-100	1.0	0.13	1.00	134 W	30 x 25	EUR 15,10 excl. VAT: € 12.69 / $ 13.83
M-bh100-120	1.2	0.15	1.00	120 W	30 x 25	EUR 15,50 excl. VAT: € 13.03 / $ 14.20
M-bh100-150	1.5	0.17	1.00	108 W	30 x 25	EUR 16,50 excl. VAT: € 13.87 / $ 15.11
M-bh100-180	1.8	0.18	1.00	108 W	35 x 25	EUR 17,50 excl. VAT: € 14.71 / $ 16.03
M-bh100-200	2.0	0.20	1.00	102 W	35 x 25	EUR 18,50 excl. VAT: € 15.55 / $ 16.95
M-bh100-220	2.2	0.21	1.00	103 W	35 x 25	EUR 18,50 excl. VAT: € 15.55 / $ 16.95
M-bh100-270	2.7	0.24	1.00	93 W	35 x 25	EUR 19,50 excl. VAT: € 16.39 / $ 17.86
M-bh100-300	3.0	0.25	1.00	120 W	40 x 37	EUR 20,40 excl. VAT: € 17.14 / $ 18.69
M-bh100-330	3.3	0.26	1.00	115 W	40 x 37	EUR 20,40 excl. VAT: € 17.14 / $ 18.69
M-bh100-390	3.9	0.30	1.00	104 W	40 x 37	EUR 21,40 excl. VAT: € 17.98 / $ 19.60
M-bh100-470	4.7	0.34	1.00	97 W	40 x 37	EUR 22,40 excl. VAT: € 18.82 / $ 20.52
M-bh100-560	5.6	0.39	1.00	88 W	40 x 37	EUR 24,40 excl. VAT: € 20.50 / $ 22.35
M-bh100-680	6.8	0.46	1.00	76 W	40 x 37	EUR 26,30 excl. VAT: € 22.10 / $ 24.09
M-bh100-820	8.2	0.54	1.00	115 W	51 x 51	EUR 31,20 excl. VAT: € 26.22 / $ 28.58
M-bh100-1000	10.0	0.63	1.00	77 W	51 x 51	EUR 33,20 excl. VAT: € 27.90 / $ 30.41
M-bh100-1200	12.0	0.72	1.00	76 W	51 x 51	EUR 35,10 excl. VAT: € 29.50 / $ 32.15
M-bh100-1500	15.0	0.83	1.00	70 W	51 x 51	EUR 37,10 excl. VAT: € 31.18 / $ 33.98

*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

H core coils H50 H71 H100 H125 H140 baked varnish BH71 BH100 BH125 BH140 BH180 hepta strand LH45 LH60

Mundorf Drum Core coil (H core) BH125

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID	L/mH	R/Ohm	Wire- D/mm	Pmax^*) 8Ohm	Coil Size (DxH/mm)	Price
M-bh125-068	0.68	0.09	1.25	198 W	30 x 25	EUR 17,50 excl. VAT: € 14.71 / $ 16.03
M-bh125-082	0.82	0.10	1.25	197 W	35 x 25	EUR 18,50 excl. VAT: € 15.55 / $ 16.95
M-bh125-100	1.0	0.11	1.25	190 W	35 x 25	EUR 19,50 excl. VAT: € 16.39 / $ 17.86
M-bh125-120	1.2	0.12	1.25	184 W	35 x 25	EUR 20,40 excl. VAT: € 17.14 / $ 18.69
M-bh125-150	1.5	0.12	1.25	207 W	40 x 37	EUR 21,40 excl. VAT: € 17.98 / $ 19.60
M-bh125-180	1.8	0.14	1.25	191 W	40 x 37	EUR 22,40 excl. VAT: € 18.82 / $ 20.52
M-bh125-220	2.2	0.17	1.25	167 W	40 x 37	EUR 23,40 excl. VAT: € 19.66 / $ 21.43
M-bh125-270	2.7	0.19	1.25	159 W	40 x 37	EUR 25,30 excl. VAT: € 21.26 / $ 23.17
M-bh125-330	3.3	0.21	1.25	152 W	40 x 37	EUR 27,30 excl. VAT: € 22.94 / $ 25.01
M-bh125-390	3.9	0.24	1.25	141 W	40 x 37	EUR 29,30 excl. VAT: € 24.62 / $ 26.84
M-bh125-470	4.7	0.29	1.25	147 W	51 x 51	EUR 33,20 excl. VAT: € 27.90 / $ 30.41
M-bh125-560	5.6	0.33	1.25	138 W	51 x 51	EUR 35,10 excl. VAT: € 29.50 / $ 32.15
M-bh125-680	6.8	0.37	1.25	132 W	51 x 51	EUR 38,10 excl. VAT: € 32.02 / $ 34.90
M-bh125-820	8.2	0.42	1.25	123 W	51 x 51	EUR 41,00 excl. VAT: € 34.45 / $ 37.55
M-bh125-1000	10.0	0.48	1.25	114 W	51 x 51	EUR 44,90 excl. VAT: € 37.73 / $ 41.13
M-bh125-1200	12.0	0.54	1.25	107 W	51 x 51	EUR 50,80 excl. VAT: € 42.69 / $ 46.53

*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

H core coils H50 H71 H100 H125 H140 baked varnish BH71 BH100 BH125 BH140 BH180 hepta strand LH45 LH60

Mundorf Drum Core coil (H core) BH140

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID	L/mH	R/Ohm	Wire- D/mm	Pmax^*) 8Ohm	Coil Size (DxH/mm)	Price
M-bh140-100	1.0	0.08	1.4	333 W	40 x 37	EUR 21,40 excl. VAT: € 17.98 / $ 19.60
M-bh140-120	1.2	0.09	1.4	316 W	40 x 37	EUR 22,40 excl. VAT: € 18.82 / $ 20.52
M-bh140-150	1.5	0.10	1.4	302 W	40 x 37	EUR 23,40 excl. VAT: € 19.66 / $ 21.43
M-bh140-180	1.8	0.12	1.4	267 W	40 x 37	EUR 25,30 excl. VAT: € 21.26 / $ 23.17
M-bh140-200	2.0	0.13	1.4	260 W	40 x 37	EUR 28,30 excl. VAT: € 23.78 / $ 25.92
M-bh140-220	2.2	0.14	1.4	254 W	40 x 37	EUR 28,30 excl. VAT: € 23.78 / $ 25.92
M-bh140-270	2.7	0.17	1.4	251 W	51 x 51	EUR 33,20 excl. VAT: € 27.90 / $ 30.41
M-bh140-300	3.0	0.18	1.4	254 W	51 x 51	EUR 36,10 excl. VAT: € 30.34 / $ 33.07
M-bh140-330	3.3	0.19	1.4	256 W	51 x 51	EUR 36,10 excl. VAT: € 30.34 / $ 33.07
M-bh140-390	3.9	0.22	1.4	235 W	51 x 51	EUR 39,10 excl. VAT: € 32.86 / $ 35.81
M-bh140-470	4.7	0.26	1.4	211 W	51 x 51	EUR 42,00 excl. VAT: € 35.29 / $ 38.47

*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

H core coils H50 H71 H100 H125 H140 baked varnish BH71 BH100 BH125 BH140 BH180 hepta strand LH45 LH60

Mundorf Drum Core coil (H core) BH180

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID	L/mH	R/Ohm	Wire- D/mm	Pmax^*) 8Ohm	Coil Size (DxH/mm)	Price
M-bh180-039	0.39	0.04	1.8	837 W	40 x 38	EUR 28,30 excl. VAT: € 23.78 / $ 25.92
M-bh180-047	0.47	0.05	1.8	730 W	40 x 38	EUR 29,30 excl. VAT: € 24.62 / $ 26.84
M-bh180-056	0.56	0.05	1.8	791 W	40 x 38	EUR 30,20 excl. VAT: € 25.38 / $ 27.66
M-bh180-068	0.68	0.06	1.8	710 W	40 x 38	EUR 31,20 excl. VAT: € 26.22 / $ 28.58
M-bh180-082	0.82	0.06	1.8	761 W	40 x 38	EUR 33,20 excl. VAT: € 27.90 / $ 30.41
M-bh180-100	1.0	0.07	1.8	696 W	40 x 38	EUR 35,10 excl. VAT: € 29.50 / $ 32.15
M-bh180-120	1.2	0.08	1.8	647 W	40 x 38	EUR 37,10 excl. VAT: € 31.18 / $ 33.98
M-bh180-150	1.5	0.09	1.8	609 W	40 x 38	EUR 39,10 excl. VAT: € 32.86 / $ 35.81
M-bh180-180	1.8	0.10	1.8	578 W	40 x 38	EUR 42,00 excl. VAT: € 35.29 / $ 38.47
M-bh180-200	2.0	0.11	1.8	537 W	40 x 38	EUR 48,90 excl. VAT: € 41.09 / $ 44.79
M-bh180-220	2.2	0.12	1.8	507 W	40 x 38	EUR 48,90 excl. VAT: € 41.09 / $ 44.79

*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

H core coils H50 H71 H100 H125 H140 baked varnish BH71 BH100 BH125 BH140 BH180 hepta strand LH45 LH60

Mundorf Hepta Strand LH45 with H core

If the air core coils have too high resistance or do not provide the required power, the H-core coils LH45 and LH60 offer a solution.

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID	L/mH	R/Ohm	Wire- D/mm	Pmax^*) 8Ohm	Coil Size (DxH/mm)	Price
M-lh45-120	1.2	0.14	7x0.45	174 W	40 x 37	EUR 24,40 excl. VAT: € 20.50 / $ 22.35
M-lh45-150	1.5	0.16	7x0.45	174 W	40 x 37	EUR 26,30 excl. VAT: € 22.10 / $ 24.09
M-lh45-180	1.8	0.18	7x0.45	175 W	40 x 37	EUR 29,30 excl. VAT: € 24.62 / $ 26.84
M-lh45-220	2.2	0.21	7x0.45	93 W	51 x 51	EUR 33,20 excl. VAT: € 27.90 / $ 30.41
M-lh45-270	2.7	0.24	7x0.45	114 W	51 x 51	EUR 37,10 excl. VAT: € 31.18 / $ 33.98
M-lh45-330	3.3	0.27	7x0.45	136 W	51 x 51	EUR 41,00 excl. VAT: € 34.45 / $ 37.55
M-lh45-390	3.9	0.31	7x0.45	139 W	51 x 51	EUR 44,90 excl. VAT: € 37.73 / $ 41.13
M-lh45-470	4.7	0.34	7x0.45	148 W	51 x 51	EUR 48,90 excl. VAT: € 41.09 / $ 44.79
M-lh45-560	5.6	0.40	7x0.45	139 W	51 x 51	EUR 55,70 excl. VAT: € 46.81 / $ 51.02
M-lh45-680	6.8	0.53	7x0.45	115 W	51 x 51	EUR 63,60 excl. VAT: € 53.45 / $ 58.26

*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

H core coils H50 H71 H100 H125 H140 baked varnish BH71 BH100 BH125 BH140 BH180 hepta strand LH45 LH60

Mundorf Hepta Strand LH60 with H core

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID	L/mH	R/Ohm	Wire- D/mm	Pmax^*) 8Ohm	Coil Size (DxH/mm)	Price
M-LH60-082	0.82	0.07	7x0.60	491 W	40 x 38	EUR 33,90 excl. VAT: € 28.49 / $ 31.05

*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.
