Woofer

open a bigger photo
Audaphon WCL 180-8-HO

open a bigger photo

recommended cabinet 1:
closed cabinet with 4,4 L volume
from 125/79 Hz (-3dB/-8dB)

recommended cabinet 2:
17 L volume bass reflex cabinet
with HP70 reflex tube, 10 cm long.
from 61/50 Hz (-3dB/-8dB).

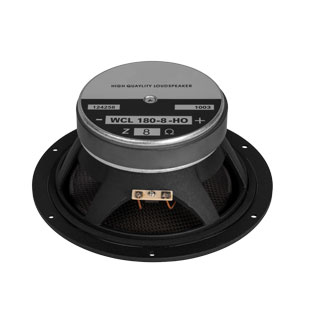

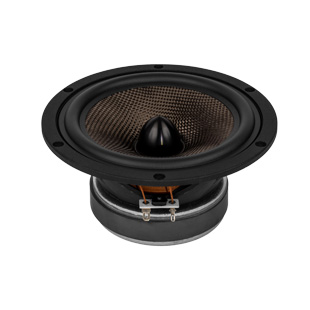

Audaphon WCL 180-8-HO

order no. au-wcl-180-8-ho

EUR 99,00 excl. VAT: € 83.19 / $ 96.50

bass-midrange driver with carbon cone. The basket is made of die-cast.

power handling (continuous/programme) = 60 W
frequency range = 60-2500 Hz
resonance frequency fs = 67 Hz
impedance R = 8 Ohm
sound pressure level SPL = 91 dB (2,83V; 1m)
DC resistance Re = 6,3 Ohm
force factor BL = 8,18 N/A
voice coil inductance L = 0,386 mH
effective piston radiating area Sd = 145,2 cm²
effective mechanical mass incl. air load mms = 12,46 g
equivalent volume of compliance Vas = 13,3 l
total Q factor Qts = 0,43 (Qms=3,27, Qes=0,49)
voice coil diameter = 36 mm
maximum peak linear excursion vibration x_lin = +/- 3 mm
mounting diameter d = 145 mm
overall diameter d = 180 mm
mounting depth (not countersunk) t = 81 mm

show kits to this chassis hide kits

open a bigger photo

recommended cabinet 1:
closed cabinet with 6,2 L volume
from 93/59 Hz (-3dB/-8dB)

recommended cabinet 2:
18 L volume bass reflex cabinet
with HP70 reflex tube, 21 cm long.
from 51/39 Hz (-3dB/-8dB).

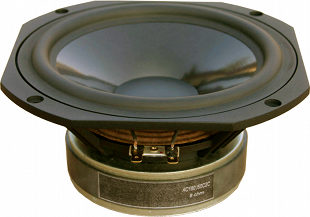

Audaphon AC 180/50C2C

order no. auc-ac18050c2c

EUR 160,00 excl. VAT: € 134.45 / $ 155.97

. The basket is made of die-cast.

power handling (continuous/programme) = 150/300 W
resonance frequency fs = 35 Hz
impedance R = 8 Ohm
sound pressure level SPL = 90 dB (2,83V; 1m)
DC resistance Re = 7 Ohm
force factor BL = 9 N/A
voice coil inductance L = 0,67 mH
effective piston radiating area Sd = 168 cm²
effective mechanical mass incl. air load mms = 19,5 g
equivalent volume of compliance Vas = 45 l
total Q factor Qts = 0,3 (Qms=3,57, Qes=0,33)
maximum peak linear excursion vibration x_lin = +/- 6 mm
mounting diameter d = 165,5 mm
overall diameter d = 204 (184x184) mm
mounting depth (not countersunk) t = 87 mm
mass m = 2,51 kg

show kits to this chassis hide kits

open a bigger photo

recommended cabinet 1:
closed cabinet with 13,1 L volume
from 82/52 Hz (-3dB/-8dB)

recommended cabinet 2:
33 L volume bass reflex cabinet
with HP70 reflex tube, 14 cm long.
from 48/36 Hz (-3dB/-8dB).

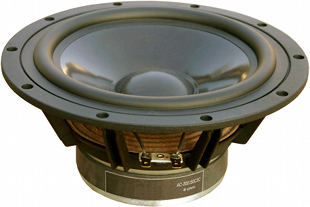

Audaphon AC 200/50C2C

order no. auc-ac20050c2c

EUR 180,00 excl. VAT: € 151.26 / $ 175.46

. The basket is made of die-cast.

power handling (continuous/programme) = 150/300 W
resonance frequency fs = 27 Hz
impedance R = 8 Ohm
sound pressure level SPL = 90 dB (2,83V; 1m)
DC resistance Re = 7 Ohm
force factor BL = 8,8 N/A
voice coil inductance L = 0,67 mH
effective piston radiating area Sd = 220 cm²
effective mechanical mass incl. air load mms = 20,2 g
equivalent volume of compliance Vas = 130 l
total Q factor Qts = 0,26 (Qms=4,25, Qes=0,28)
maximum peak linear excursion vibration x_lin = +/- 6 mm
mounting diameter d = 190 mm
overall diameter d = 225 mm
mounting depth (not countersunk) t = 98 mm
mass m = 2,57 kg

show kits to this chassis hide kits

Tweeter Ribbon Tweeter Classic Air Motion Transformer Woofer Subwoofer no longer sold

The cabinet volume calculations are executed considering an external resistance of 0.3 Ohm. We are using, if no other data is known or available, the information supplied by the manufacturer.

Please note: the frequency response doesn't say much about the cut-off frequency inside the cabinet! Therefore, we mostly give you 2 examples with dimensioning considerations and an indication, how low the loudspeaker will reproduce.
