Audaphon

Audaphon is a German brand that searches worldwide for loudspeaker drivers with the highest quality characteristics.

Audaphon drivers feature an excellent price / performance ratio.

Only high-grade materials are used to ensure solidity and best possible sound.

For the high frequency range Audaphon offers

high quality domes,
ribbon tweeter
and Air Motion Transformer

of which the latter can hardly be surpassed in terms of airiness and transparency.

To our building proposals with Audaphon drivers.

no longer sold

open a bigger photo

Audaphon AC APR 3.2

order no. auc-apr32

EUR 200,00 excl. VAT: € 168.07 / $ 196.64

ribbon tweeter.

power handling (continuous/programme) = 50 W
frequency range = 1400-30000 Hz
impedance R = 6 Ohm
sound pressure level SPL = 94 dB (2,83V; 1m)
effective piston radiating area Sd = 8,5 cm²
effective mechanical mass incl. air load mms = 0,026 g
overall diameter d = 140 x 74 mm
mounting depth (not countersunk) t = 77 mm

show kits to this chassis hide kits

open a bigger photo

Audaphon AC APR 2.0

order no. auc-apr20

EUR 190,00 excl. VAT: € 159.66 / $ 186.81

ribbon tweeter.

power handling (continuous/programme) = 40 W
frequency range = 1700-30000 Hz
impedance R = 6 Ohm
sound pressure level SPL = 93 dB (2,83V; 1m)
effective piston radiating area Sd = 5,95 cm²
effective mechanical mass incl. air load mms = 0,018 g
overall diameter d = 120 x 74 mm
mounting depth (not countersunk) t = 90 mm

show kits to this chassis hide kits

open a bigger photo

Audaphon AC APR 2.2

order no. auc-apr22

EUR 130,00 excl. VAT: € 109.24 / $ 127.82

ribbon tweeter.

power handling (continuous/programme) = 30 W
frequency range = 1700-30000 Hz
impedance R = 6 Ohm
sound pressure level SPL = 91 dB (2,83V; 1m)
effective piston radiating area Sd = 5,1 cm²
effective mechanical mass incl. air load mms = 0,016 g
overall diameter d = 110 x 74 mm
mounting depth (not countersunk) t = 84 mm

show kits to this chassis hide kits

recommended cabinet 1:
closed cabinet with 7,7 L volume
from 78/49 Hz (-3dB/-8dB)

recommended cabinet 2:
31 L volume bass reflex cabinet
with HP70 reflex tube, 16 cm long.
from 37/31 Hz (-3dB/-8dB).

Audaphon MB 18-8

order no. not-available

- not available

16 cm bass driver with paper cone. To avoid compression effects the driver possesses a pole piece hole. The basket is made of die-cast.

power handling (continuous/programme) = 70/140 W
resonance frequency fs = 44,5 Hz
impedance R = 8 Ohm
sound pressure level SPL = 87 dB (2,83V; 1m)
DC resistance Re = 7,3 Ohm
force factor BL = 8,11 N/A
voice coil inductance L = 0,75 mH
effective piston radiating area Sd = 133 cm²
effective mechanical mass incl. air load mms = 16 g
equivalent volume of compliance Vas = 19 l
total Q factor Qts = 0,46 (Qms=6,5, Qes=0,49)
voice coil diameter = 30 mm
maximum peak linear excursion vibration x_lin = +/- 2,5 mm
mounting diameter d = 145 mm
overall diameter d = 180 mm
mounting depth (not countersunk) t = 83 mm
mass m = 2,2 kg

show kits to this chassis hide kits

open a bigger photo

recommended cabinet 1:
closed cabinet with 18 L volume
from 60/38 Hz (-3dB/-8dB)

recommended cabinet 2:
73 L volume bass reflex cabinet
with HP100 reflex tube, 26 cm long.
from 28/24 Hz (-3dB/-8dB).

Audaphon AC 250SW

order no. not-available

- not available

. The basket is made of die-cast.

power handling (continuous/programme) = 180/360 W
resonance frequency fs = 35 Hz
impedance R = 4 Ohm
sound pressure level SPL = 88 dB (2,83V; 1m)
DC resistance Re = 3,6 Ohm
force factor BL = 10,1 N/A
voice coil inductance L = 0,84 mH
effective piston radiating area Sd = 330 cm²
effective mechanical mass incl. air load mms = 101 g
equivalent volume of compliance Vas = 42 l
total Q factor Qts = 0,45 (Qms=2,35, Qes=0,56)
maximum peak linear excursion vibration x_lin = +/- 8 mm
mounting diameter d = 238 mm
overall diameter d = 260 mm
mounting depth (not countersunk) t = 126,5 mm
mass m = 5,5 kg

show kits to this chassis hide kits

open a bigger photo
Audaphon AC 165/50CK (square basket)

open a bigger photo

recommended cabinet 1:
closed cabinet with 1,3 L volume
from 152/96 Hz (-3dB/-8dB)

recommended cabinet 2:
2,3 L volume bass reflex cabinet
with HP50 reflex tube, 38 cm long.
from 103/76 Hz (-3dB/-8dB).

Audaphon AC 165/50CK (square basket)

order no. not-available

- not available

. The basket is made of die-cast.

power handling (continuous/programme) = 150/300 W
resonance frequency fs = 37 Hz
impedance R = 8 Ohm
sound pressure level SPL = 89 dB (2,83V; 1m)
DC resistance Re = 7 Ohm
force factor BL = 12,3 N/A
voice coil inductance L = 0,67 mH
effective piston radiating area Sd = 133 cm²
effective mechanical mass incl. air load mms = 13,7 g
equivalent volume of compliance Vas = 24 l
total Q factor Qts = 0,19 (Qms=3,68, Qes=0,2)
maximum peak linear excursion vibration x_lin = +/- 6 mm
mounting diameter d = 148 mm
overall diameter d = 178 (163x163) mm
mounting depth (not countersunk) t = 82,5 mm
mass m = 2,4 kg

show kits to this chassis hide kits

open a bigger photo

recommended cabinet 1:
closed cabinet with 1,7 L volume
from 152/96 Hz (-3dB/-8dB)

recommended cabinet 2:
3 L volume bass reflex cabinet
with HP50 reflex tube, 28 cm long.
from 103/76 Hz (-3dB/-8dB).

Audaphon AC 165/50C2C

order no. not-available

- not available

. The basket is made of die-cast.

power handling (continuous/programme) = 150/300 W
resonance frequency fs = 37 Hz
impedance R = 8 Ohm
sound pressure level SPL = 90 dB (2,83V; 1m)
DC resistance Re = 7 Ohm
force factor BL = 10,8 N/A
voice coil inductance L = 0,67 mH
effective piston radiating area Sd = 133 cm²
effective mechanical mass incl. air load mms = 14,3 g
equivalent volume of compliance Vas = 32 l
total Q factor Qts = 0,19 (Qms=4,22, Qes=0,2)
maximum peak linear excursion vibration x_lin = +/- 6 mm
mounting diameter d = 151 mm
overall diameter d = 185 mm
mounting depth (not countersunk) t = 82,5 mm
mass m = 2,6 kg

show kits to this chassis hide kits

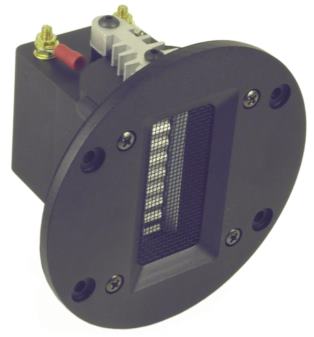

Audaphon JP 2.0

order no. not-available

- not available

ribbon tweeter.

frequency range = 1700-40000 Hz
resonance frequency fs = 370 Hz
impedance R = 7 Ohm
sound pressure level SPL = 93 dB (2,83V; 1m)
DC resistance Re = 7 Ohm
effective piston radiating area Sd = 9,6 cm²
effective mechanical mass incl. air load mms = 0,025 g
overall diameter d = 164 x 70,4 mm
mounting depth (not countersunk) t = 70 mm

PDF data sheet

show kits to this chassis hide kits

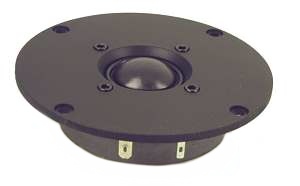

Audaphon TWS 25/6

order no. not-available

- not available

25 mm dome tweeter with fabric dome. The voice coil windings are immersed in magnetic fluid to increase short term power handling capacity, to reduce the compression and the Q factor..

power handling (continuous/programme) = 100(ab2,5kHz) W
frequency range = 1000-30000 Hz
resonance frequency fs = 1655 Hz
impedance R = 6 Ohm
sound pressure level SPL = 93 dB (2,83V; 1m)
DC resistance Re = 5,15 Ohm
voice coil diameter = 25 mm
mounting diameter d = 71 mm
overall diameter d = 104 mm

PDF data sheet

journal Hobby HiFi
Fazit: Günstiger Preis und überzeugende akustische Leistungen schließen sich nicht unbedingt aus - der TWS 25/6 ist dafür das beste Beispiel.

show kits to this chassis hide kits

open a bigger photo

Audaphon AC APR 3.3

order no. not-available

- not available

ribbon tweeter.

power handling (continuous/programme) = 60 W
frequency range = 1400-30000 Hz
impedance R = 6 Ohm
sound pressure level SPL = 95 dB (2,83V; 1m)
effective piston radiating area Sd = 11,05 cm²
effective mechanical mass incl. air load mms = 0,034 g
overall diameter d = 168 x 80 mm
mounting depth (not countersunk) t = 76 mm

journal Hobby HiFi
Mit dem APR3.3 erhält der Musikliebhaber einen exzellenten Hochtöner mit High-End-Qualitäten, sehr guter Pegelfesligkeit und dem für wenig bedämpfte Räume besonders vorteilhaften verfikalen stark bündelnden Abstrahlverhalten.

show kits to this chassis hide kits

open a bigger photo

Audaphon AC G2

order no. not-available

- not available

ribbon tweeter.

power handling (continuous/programme) = 40 W
frequency range = 1700-40000 Hz
impedance R = 8 Ohm
sound pressure level SPL = 96 dB (2,83V; 1m)
effective piston radiating area Sd = 5,95 cm²
effective mechanical mass incl. air load mms = 0,014 g
overall diameter d = 120 x 74 mm
mounting depth (not countersunk) t = 85 mm

show kits to this chassis hide kits

open a bigger photo

Audaphon AC G3

order no. not-available

- not available

ribbon tweeter.

power handling (continuous/programme) = 60 W
frequency range = 1300-40000 Hz
impedance R = 8 Ohm
sound pressure level SPL = 100 dB (2,83V; 1m)
effective piston radiating area Sd = 11 cm²
effective mechanical mass incl. air load mms = 0,026 g
overall diameter d = 168 x 74 mm
mounting depth (not countersunk) t = 90 mm

show kits to this chassis hide kits

open a bigger photo

Audaphon AC G2Si

order no. not-available

- not available

ribbon tweeter.

power handling (continuous/programme) = 30 W
frequency range = 1700-40000 Hz
impedance R = 6 Ohm
sound pressure level SPL = 96 dB (2,83V; 1m)
effective piston radiating area Sd = 5,1 cm²
effective mechanical mass incl. air load mms = 0,012 g
overall diameter d = 110 mm
mounting depth (not countersunk) t = 84 mm

show kits to this chassis hide kits

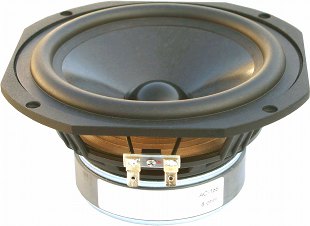

open a bigger photo

recommended cabinet 1:
closed cabinet with 17 L volume
from 69/44 Hz (-3dB/-8dB)

recommended cabinet 2:
61 L volume bass reflex cabinet
with HP70 reflex tube, 9 cm long.
from 35/28 Hz (-3dB/-8dB).

Audaphon AC 165

order no. not-available

- not available

. The basket is made of die-cast.

power handling (continuous/programme) = 60/120 W
resonance frequency fs = 32 Hz
impedance R = 8 Ohm
sound pressure level SPL = 89 dB (2,83V; 1m)
DC resistance Re = 7 Ohm
force factor BL = 5,3 N/A
voice coil inductance L = 0,35 mH
effective piston radiating area Sd = 133 cm²
effective mechanical mass incl. air load mms = 9,6 g
equivalent volume of compliance Vas = 76 l
total Q factor Qts = 0,37 (Qms=3,38, Qes=0,41)
maximum peak linear excursion vibration x_lin = +/- 5 mm
mounting diameter d = 148 mm
overall diameter d = 178 (163x163) mm
mounting depth (not countersunk) t = 75,5 mm
mass m = 1,35 kg

show kits to this chassis hide kits

open a bigger photo

recommended cabinet 1:
closed cabinet with 8,4 L volume
from 86/54 Hz (-3dB/-8dB)

recommended cabinet 2:
19 L volume bass reflex cabinet
with HP70 reflex tube, 26 cm long.
from 53/40 Hz (-3dB/-8dB).

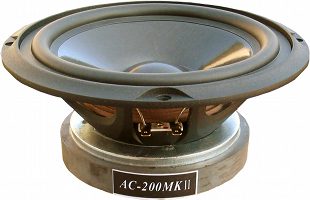

Audaphon AC 200MK2

order no. not-available

- not available

. The basket is made of die-cast.

power handling (continuous/programme) = 150/300 W
resonance frequency fs = 25 Hz
impedance R = 8 Ohm
sound pressure level SPL = 90 dB (2,83V; 1m)
DC resistance Re = 7 Ohm
force factor BL = 10,6 N/A
voice coil inductance L = 0,67 mH
effective piston radiating area Sd = 220 cm²
effective mechanical mass incl. air load mms = 29,2 g
equivalent volume of compliance Vas = 108 l
total Q factor Qts = 0,24 (Qms=3,99, Qes=0,25)
maximum peak linear excursion vibration x_lin = +/- 8 mm
mounting diameter d = 182 mm
overall diameter d = 222 mm
mounting depth (not countersunk) t = 97 mm
mass m = 3,01 kg

show kits to this chassis hide kits

open a bigger photo

recommended cabinet 1:
closed cabinet with 29 L volume
from 55/35 Hz (-3dB/-8dB)

recommended cabinet 2:
81 L volume bass reflex cabinet
with HP100 reflex tube, 30 cm long.
from 31/24 Hz (-3dB/-8dB).

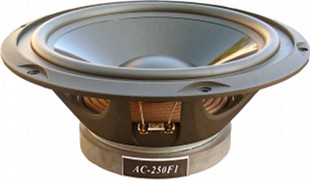

Audaphon AC 250F1

order no. not-available

- not available

. The basket is made of die-cast.

power handling (continuous/programme) = 150/300 W
resonance frequency fs = 20 Hz
impedance R = 8 Ohm
sound pressure level SPL = 89 dB (2,83V; 1m)
DC resistance Re = 7 Ohm
force factor BL = 11,8 N/A
voice coil inductance L = 0,67 mH
effective piston radiating area Sd = 346 cm²
effective mechanical mass incl. air load mms = 64,5 g
equivalent volume of compliance Vas = 224 l
total Q factor Qts = 0,29 (Qms=2,75, Qes=0,32)
maximum peak linear excursion vibration x_lin = +/- 8 mm
mounting diameter d = 232 mm
overall diameter d = 278 mm
mounting depth (not countersunk) t = 116 mm
mass m = 3,94 kg

show kits to this chassis hide kits

open a bigger photo

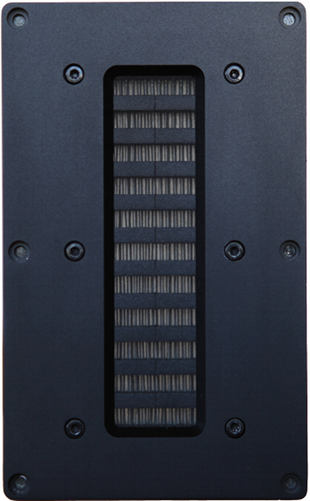

Audaphon AC Air Motion Transformer AST 30130

order no. not-available

- not available

air motion transformer.

power handling (continuous/programme) = 120 W
frequency range = 700-22000 Hz
impedance R = 5 Ohm
sound pressure level SPL = 98 dB (2,83V; 1m)
overall diameter d = 180 x 110 mm
mounting depth (not countersunk) t = 28 mm

show kits to this chassis hide kits

open a bigger photo

recommended cabinet 1:
closed cabinet with 65 L volume
from 42/27 Hz (-3dB/-8dB)

recommended cabinet 2:
258 L volume bass reflex cabinet
with HP100 reflex tube, 12 cm long.
from 20/17 Hz (-3dB/-8dB).

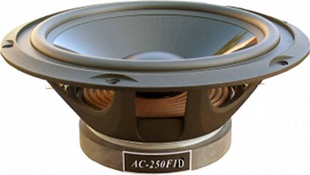

Audaphon AC 250F1D

order no. not-available

- not available

. The basket is made of die-cast. The driver is made with a double voice coil and the given impedance values are for connection in series.

power handling (continuous/programme) = 150/300 W
resonance frequency fs = 23 Hz
impedance R = 16 Ohm
sound pressure level SPL = 89 dB (2,83V; 1m)
DC resistance Re = 13,6 Ohm
force factor BL = 6,4 N/A
voice coil inductance L = 0,46 mH
effective piston radiating area Sd = 346 cm²
effective mechanical mass incl. air load mms = 64,5 g
equivalent volume of compliance Vas = 184 l
total Q factor Qts = 0,44 (Qms=2,74, Qes=0,53)
maximum peak linear excursion vibration x_lin = +/- 8 mm
mounting diameter d = 232 mm
overall diameter d = 278 mm
mounting depth (not countersunk) t = 116 mm
mass m = 3,94 kg

show kits to this chassis hide kits

open a bigger photo

Audaphon AC G3Si

order no. not-available

- not available

ribbon tweeter.

power handling (continuous/programme) = 50 W
frequency range = 1400-40000 Hz
impedance R = 6 Ohm
sound pressure level SPL = 99 dB (2,83V; 1m)
effective piston radiating area Sd = 8,5 cm²
effective mechanical mass incl. air load mms = 0,02 g
overall diameter d = 140 x 74 mm
mounting depth (not countersunk) t = 77 mm

show kits to this chassis hide kits

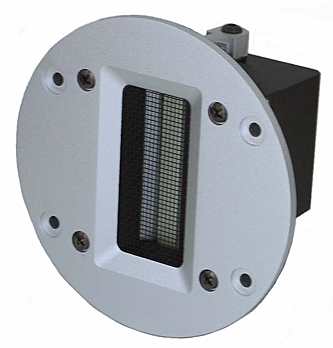

Audaphon Neo CD 3.0

order no. not-available

- not available

ribbon tweeter.

frequency range = 1400-40000 Hz
resonance frequency fs = 400 Hz
impedance R = 7 Ohm
sound pressure level SPL = 90 dB (2,83V; 1m)
DC resistance Re = 7 Ohm
effective piston radiating area Sd = 4,8 cm²
effective mechanical mass incl. air load mms = 0,018 g
mounting diameter d = 90 mm
overall diameter d = 110 mm
mounting depth (not countersunk) t = 68 mm

PDF data sheet

show kits to this chassis hide kits

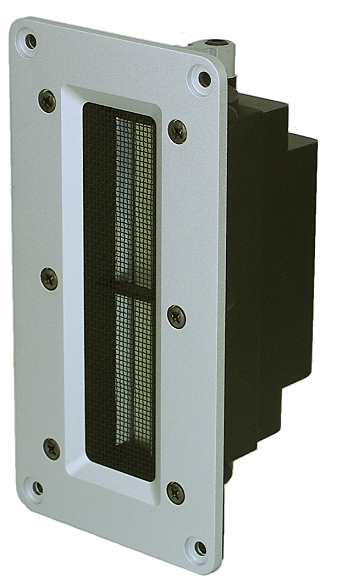

Audaphon Neo CD 2.0

order no. not-available

- not available

ribbon tweeter.

frequency range = 1200-40000 Hz
resonance frequency fs = 350 Hz
impedance R = 7 Ohm
sound pressure level SPL = 92 dB (2,83V; 1m)
DC resistance Re = 7 Ohm
effective piston radiating area Sd = 9,6 cm²
effective mechanical mass incl. air load mms = 0,034 g
overall diameter d = 164 x 70,4 mm
mounting depth (not countersunk) t = 70 mm

PDF data sheet

show kits to this chassis hide kits

Audaphon JP 3.0

order no. not-available

- not available

ribbon tweeter.

frequency range = 1700-40000 Hz
resonance frequency fs = 220 Hz
impedance R = 7 Ohm
sound pressure level SPL = 91 dB (2,83V; 1m)
DC resistance Re = 7 Ohm
effective piston radiating area Sd = 4,8 cm²
effective mechanical mass incl. air load mms = 0,011 g
mounting diameter d = 90 mm
overall diameter d = 110 mm
mounting depth (not countersunk) t = 68 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

Audaphon AC G2i

order no. not-available

- not available

ribbon tweeter.

power handling (continuous/programme) = 30 W
frequency range = 1700-40000 Hz
impedance R = 6 Ohm
sound pressure level SPL = 94 dB (2,83V; 1m)
effective piston radiating area Sd = 5,1 cm²
effective mechanical mass incl. air load mms = 0,012 g
overall diameter d = 110 mm
mounting depth (not countersunk) t = 84 mm

show kits to this chassis hide kits

open a bigger photo

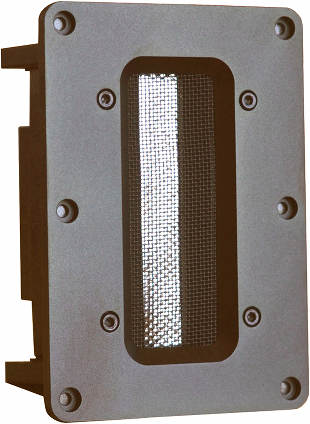

Audaphon AC APR 1.1

order no. not-available

- not available

ribbon tweeter.

power handling (continuous/programme) = 80 W
frequency range = 900-30000 Hz
impedance R = 6 Ohm
sound pressure level SPL = 95 dB (2,83V; 1m)
effective piston radiating area Sd = 15,95 cm²
effective mechanical mass incl. air load mms = 0,048 g
overall diameter d = 150 x 106 mm
mounting depth (not countersunk) t = 100 mm

show kits to this chassis hide kits

open a bigger photo

Audaphon AC Air Motion Transformer AST 30100

order no. not-available

- not available

air motion transformer.

power handling (continuous/programme) = 100 W
frequency range = 900-23000 Hz
impedance R = 4 Ohm
sound pressure level SPL = 97 dB (2,83V; 1m)
overall diameter d = 150 x 110 mm
mounting depth (not countersunk) t = 27 mm

show kits to this chassis hide kits

open a bigger photo

recommended cabinet 1:
closed cabinet with 5,4 L volume
from 93/59 Hz (-3dB/-8dB)

recommended cabinet 2:
16 L volume bass reflex cabinet
with HP70 reflex tube, 25 cm long.
from 51/39 Hz (-3dB/-8dB).

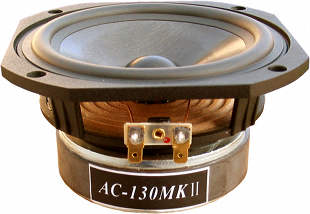

Audaphon AC 130MK2

order no. not-available

- not available

. The basket is made of die-cast.

power handling (continuous/programme) = 60/120 W
resonance frequency fs = 35 Hz
impedance R = 8 Ohm
sound pressure level SPL = 90 dB (2,83V; 1m)
DC resistance Re = 7 Ohm
force factor BL = 5,63 N/A
voice coil inductance L = 0,35 mH
effective piston radiating area Sd = 95 cm²
effective mechanical mass incl. air load mms = 9 g
equivalent volume of compliance Vas = 39 l
total Q factor Qts = 0,3 (Qms=3,02, Qes=0,33)
maximum peak linear excursion vibration x_lin = +/- 5 mm
mounting diameter d = 124 mm
overall diameter d = 157 (140x140) mm
mounting depth (not countersunk) t = 67 mm
mass m = 1,36 kg

show kits to this chassis hide kits

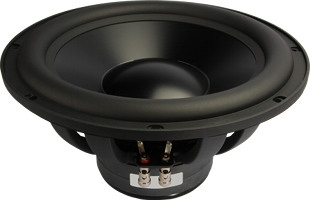

open a bigger photo

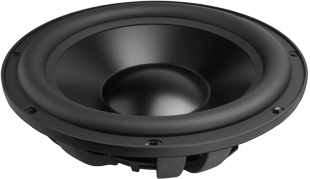

Audaphon WC Passiv PR 31

order no. not-available

- not available

. The basket is made of die-cast.

resonance frequency fs = 12,5-19 Hz
effective piston radiating area Sd = 513 cm²
effective mechanical mass incl. air load mms = 270 g
equivalent volume of compliance Vas = 98 l
total Q factor Qts = 0,4 (Qms=12,8, Qes=0,41)
mounting diameter d = 282 mm
overall diameter d = 312 mm
mounting depth (not countersunk) t = 110 mm
mass m = 1,65 kg

show kits to this chassis hide kits

Tweeter Ribbon Tweeter Classic Air Motion Transformer Woofer Subwoofer no longer sold

The cabinet volume calculations are executed considering an external resistance of 0.3 Ohm. We are using, if no other data is known or available, the information supplied by the manufacturer.

Please note: the frequency response doesn't say much about the cut-off frequency inside the cabinet! Therefore, we mostly give you 2 examples with dimensioning considerations and an indication, how low the loudspeaker will reproduce.
