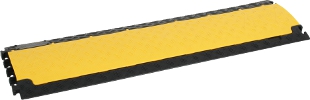

Defender Nano cable crossover

Defender Nano cable crossover

Defender Nano cable crossover, Defender Nano cable crossover — Enlarge

Defender Nano cable crossover, Defender Nano cable crossover — Enlarge

Defender Nano cable crossover, Defender Nano cable crossover — Enlarge

Defender Nano cable crossover, Defender Nano cable crossover — Enlarge

The smallest unit, with great potential. Light, professional, wheelchair accessible and universally applicable.

With its' 6 channels the DEFENDER NANO meets all demands for a professional cable crossover in the smallest size.

Thanks to the addition of this compact, extremely light (approx. only 4kg!) and durable (including vehicle traffic) cable crossover, the DEFENDER Series of cable protectors is now complete in the compact sector.

Like all of the Defender series crossovers, the DEFENDER NANO is resistant to oils, acids, and petrol, and has a patented self-cleaning hinged closure. (EU Patent No.: EP1366550)

Ideal fields of operation

Exhibitions
Sidewalks and footpaths
Market places
Christmas markets
Workshops
Warehouses
Shopping centres
Department stores etc.

Technical Data:

Length: 100 cm
Width: 28 cm
Height: 3,2 cm
Channels: 6
Channel diameter: 18 mm
Weight: 4,37 kg
Load bearing capacity: approx. 2t for a surface area of 20 × 20 cm
Operating Temperature range: -30°C to +60°C
Flame Class: B2 (also available as B1 - hardly combustible, in accordance with DIN 4102)

Laser labelling on request (see template and requirements in download section).

PDF data sheet Technical drawing

PDF data sheet Technical Report (German Technical Control Board - TÜV, in German)

PDF data sheet EG Declaration of Conformity

PDF data sheet Laser engraving template and requirements

price per unit (Order No. ah-85150) EUR 118,00 excl. VAT: € 99.16 / $ 107.09

Defender Nano cable crossover with black lid

Defender Nano cable crossover, Defender Nano cable crossover with black lid — Enlarge

Defender Nano cable crossover, Defender Nano cable crossover with black lid — Enlarge

Defender Nano cable crossover, Defender Nano cable crossover with black lid — Enlarge

Defender Nano cable crossover, Defender Nano cable crossover with black lid — Enlarge

The smallest unit, with great potential. Light, professional, wheelchair accessible and universally applicable.

With its' 6 channels the DEFENDER NANO meets all demands for a professional cable crossover in the smallest size.

Thanks to the addition of this compact, extremely light (approx. only 4kg!) and durable (including vehicle traffic) cable crossover, the DEFENDER Series of cable protectors is now complete in the compact sector.

Like all of the Defender series crossovers, the DEFENDER NANO is resistant to oils, acids, and petrol, and has a patented self-cleaning hinged closure. (EU Patent No.: EP1366550)

Ideal fields of operation

Exhibitions
Sidewalks and footpaths
Market places
Christmas markets
Workshops
Warehouses
Shopping centres
Department stores etc.

Technical Data:

Length: 100 cm
Width: 28 cm
Height: 3,2 cm
Channels: 6
Channel diameter: 18 mm
Weight: 4,37 kg
Load bearing capacity: approx. 2t for a surface area of 20 × 20 cm
Operating Temperature range: -30°C to +60°C
Flame Class: B2 (also available as B1 - hardly combustible, in accordance with DIN 4102)

Laser labelling on request (see template and requirements in download section).

PDF data sheet Technical drawing

PDF data sheet Technical Report (German Technical Control Board - TÜV, in German)

PDF data sheet EG Declaration of Conformity

PDF data sheet Laser engraving template and requirements

price per unit (Order No. ah-85150BLK) EUR 118,00 excl. VAT: € 99.16 / $ 107.09

Defender Nano 85158F - End ramp female

Defender Nano cable crossover, Defender Nano 85158F - End ramp female — Enlarge

End ramp for cable outlet reduces the risk of tripping.

PDF data sheet Laser engraving template and requirements

PDF data sheet EG Declaration of Conformity

price per unit (Order No. ah-85158F) EUR 37,80 excl. VAT: € 31.76 / $ 34.31

Defender Nano 85158M - End ramp male

Defender Nano cable crossover, Defender Nano 85158M - End ramp male — Enlarge

End ramp for cable outlet reduces the risk of tripping.

PDF data sheet Laser engraving template and requirements

PDF data sheet EG Declaration of Conformity

price per unit (Order No. ah-85158M) EUR 37,80 excl. VAT: € 31.76 / $ 34.31
