Cable drums

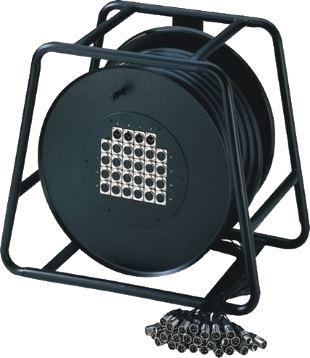

20 channel stagebox metal LC 30 m, with drum

Technical Data
  • 20 channels (16 in, 4 Returns)
  • Fix mounted on cable drum (4 wheels included)
  • 30 m Multicore
  • Wire strain relief
PDF data sheet Technical drawing, dimensions

price per unit   (Order No. ah-K20C30D) EUR 405,00 excl. VAT: € 340.34 / $ 408.40

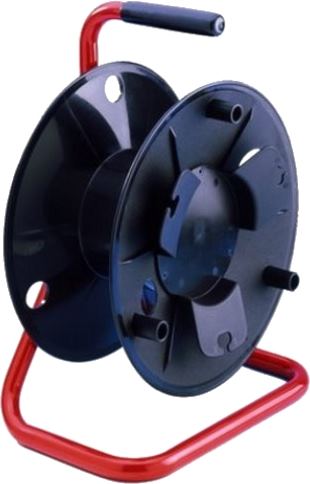

Sommer Cable 70220 - Cable drum, small, plastic

Cable drums, Sommer Cable 70220 - Cable drum, small,  plastic
Technical Data:
  • Frame: Red steel
  • Brake version

Capacity depends on outside cable diameter:

  • Cable: Ø 6,5 mm = 100m
  • Cable: Ø 8 mm = 80m
  • Cable: Ø 10 mm = 60m
  • Cable: Ø 12 mm = 40m
  • Cable: Ø 14 mm = 30m

price per unit   (Order No. ah-70220) EUR 25,60 excl. VAT: € 21.51 / $ 25.82

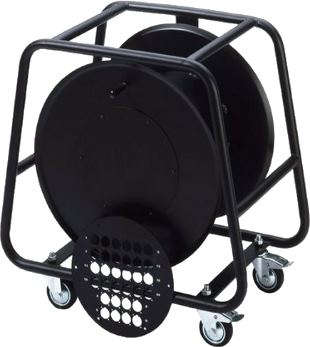

Sommer Cable 70230 - Cable Drum constructed in the same way like K28C30D

Technical Data:
  • Cable drum similar to K28C30D
  • For 30 m / 28 pair multicore
  • Blind panel included
  • Punched 24/8 round panel
  • 80 mm castors
  • Weight: 13,6Kg
  • Dimensions (H x W x D): 46 cm x 54 cm x 45 cm
PDF data sheet Technical drawing, dimensions

price per unit   (Order No. ah-70230) EUR 190,00 excl. VAT: € 159.66 / $ 191.60

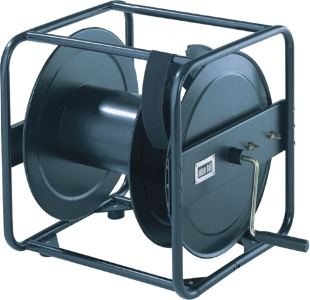

Sommer Cable 70250 - Cable drum, black

Cable drum, black powder coated Steel, suitable for long runs of multicore.

Technical Data:

  • Axle bearings
  • Brake
  • Removable handle
  • Dimensions (W x D x H): 54 cm x 45 cm x 46 cm
  • Diameter, drum: 13,5 cm

The following chart shows the length of cable in meters that will fit on the drum, depending on the outside diameter of the cable:

  • Cable: Ø 12 mm = 230 m
  • Cable: Ø 15 mm = 150 m
  • Cable: Ø 18 mm = 100 m
  • Cable: Ø 20 mm = 80 m
  • Cable: Ø 22 mm = 70m
  • Cable: Ø 24 mm = 60 m
  • Cable: Ø 26 mm = 50 m
  • Cable: Ø 28 mm = 40 m
  • Cable: Ø 30 mm = 36 m
  • Cable: Ø 32 mm = 32 m

price per unit   (Order No. ah-70250) EUR 192,00 excl. VAT: € 161.34 / $ 193.61


Sommer Cable 70260 - Kabeltrommel schwarz

Cable drums, Sommer Cable 70260 - Kabeltrommel schwarz
Cable drum, black powder coated Steel, suitable for long runs of multicore.

Technical Data:

  • Axle bearings
  • Brake
  • Removable handle
  • Dimensions (W x D x H): 54 cm x 45 cm x 46 cm
  • Diameter, drum: 15,3 cm

Fassungsvermögen entsprechend Kabeldurchmesser:

  • Kabel: Ø 12 mm = 210 m
  • Kabel: Ø 15 mm = 150 m
  • Kabel: Ø 18 mm = 120 m
  • Kabel: Ø 20 mm = 100 m
  • Kabel: Ø 22 mm = 80 m
  • Kabel: Ø 24 mm = 70 m
  • Kabel: Ø 26 mm = 60 m
  • Kabel: Ø 28 mm = 52 m
  • Kabel: Ø 30 mm = 45 m

price per unit   (Order No. ah-70260) EUR 231,00 excl. VAT: € 194.12 / $ 232.94
