Compression driver for Horns   Horn   Coaxial speaker   Full Range   Mids   Woofer   8 inch woofer   10 inch woofer   12 inch woofer   15 inch woofer   18 inch woofer   21 inch woofer   no longer sold

Faital

Since its inception in 1958 Faital has specialized in the design and manufacture of loudspeakers for a variety of industries. Starting in the early 60’s with 40% of the total Italian market demand for loudspeakers, Faital steadily grew to become today one of Europe’s largest loudspeaker manufacturers. All the while Faital also focused on improving and increasing its industrialization and technological capabilities. Today Faital can count on 8 facilities worldwide.




Compression driver for Horns

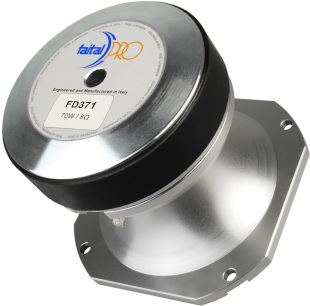

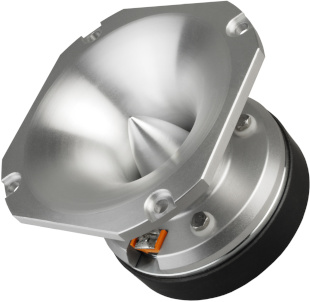

Faital Pro FD 371 A
open a bigger photo
Faital Pro FD 371 A
open a bigger photo

Faital Pro FD 371 A

order no. ah-FPFD371A

EUR 147,40 excl. VAT: € 123.87 / $ 141.21

.

  • power handling (continuous/programme) = 35/70 W
  • frequency range = 2600-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 107 dB (1W; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil diameter = 37 mm
  • mounting diameter d = 91 mm
  • overall diameter d = 115,2 mm
  • mounting depth (not countersunk) t = 79 mm
  • mass m = 1,3 kg
PDF data sheet

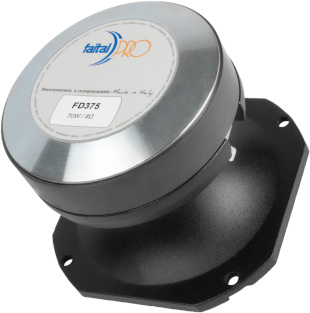

Faital Pro FD 375 A
open a bigger photo
Faital Pro FD 375 A
open a bigger photo

Faital Pro FD 375 A

order no. ah-fpfd375a

EUR 103,70 excl. VAT: € 87.14 / $ 99.34

.

  • power handling (continuous/programme) = 35/70 W
  • frequency range = 2600-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 107 dB (1W; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil diameter = 37 mm
  • mounting diameter d = 91 mm
  • overall diameter d = 115,2 mm
  • mounting depth (not countersunk) t = 79 mm
  • mass m = 1,24 kg
PDF data sheet

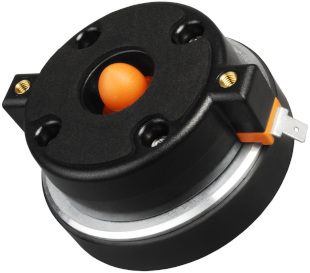

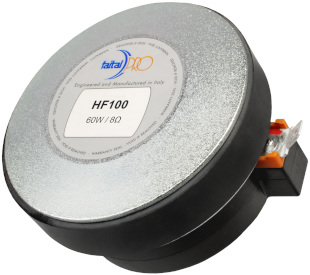

Faital Pro HF 100 A
open a bigger photo
Faital Pro HF 100 A
open a bigger photo

Faital Pro HF 100 A

order no. ah-FPHF100A

EUR 51,11 excl. VAT: € 42.95 / $ 48.96

1 inch high frequency compression driver with ketone polymer cone.

  • power handling (continuous/programme) = 30/60 W
  • frequency range = 1500-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 108 dB (1W; 1m)
  • DC resistance Re = 6 Ohm
  • voice coil diameter = 25 mm
  • overall diameter d = 108 mm
  • mounting depth (not countersunk) t = 55 mm
  • mass m = 0,83 kg
PDF data sheet

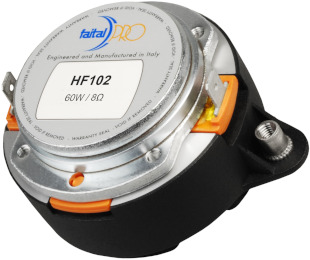

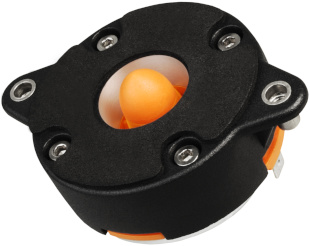

Faital Pro HF 102 A
open a bigger photo
Faital Pro HF 102 A
open a bigger photo

Faital Pro HF 102 A

order no. ah-FPHF102A

EUR 66,88 excl. VAT: € 56.20 / $ 64.07

1 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 30/60 W
  • frequency range = 1800-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 107 dB (1W; 1m)
  • DC resistance Re = 6 Ohm
  • voice coil diameter = 25 mm
  • overall diameter d = 91 mm
  • mounting depth (not countersunk) t = 43 mm
  • mass m = 0,3 kg
PDF data sheet

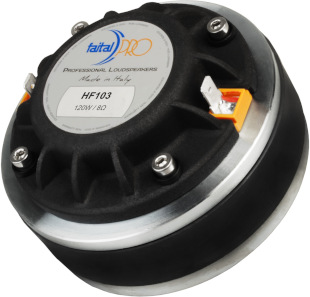

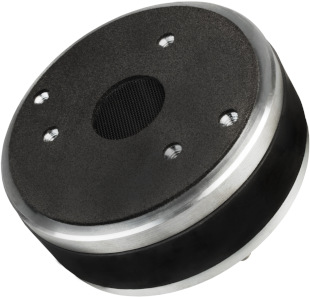

Faital Pro HF 103 A
open a bigger photo
Faital Pro HF 103 A
open a bigger photo

Faital Pro HF 103 A

order no. ah-fphf103a

EUR 103,70 excl. VAT: € 87.14 / $ 99.34

1 inch high frequency compression driver with ketone polymer cone.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 1000-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 107 dB (1W; 1m)
  • DC resistance Re = 5,8 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 100 mm
  • mounting depth (not countersunk) t = 55 mm
  • mass m = 1,3 kg
PDF data sheet

Faital Pro HF 103 B
open a bigger photo
Faital Pro HF 103 B
open a bigger photo

Faital Pro HF 103 B

order no. ah-fphf103b

EUR 103,70 excl. VAT: € 87.14 / $ 99.34

1 inch high frequency compression driver with ketone polymer cone.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 1000-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 107 dB (1W; 1m)
  • DC resistance Re = 10,5 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 100 mm
  • mounting depth (not countersunk) t = 55 mm
  • mass m = 1,3 kg
PDF data sheet

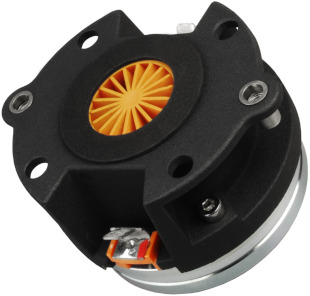

Faital Pro HF 104 A
open a bigger photo
Faital Pro HF 104 A
open a bigger photo

Faital Pro HF 104 A

order no. ah-FPHF104A

EUR 111,00 excl. VAT: € 93.28 / $ 106.34

1 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 40/80 W
  • frequency range = 1500-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 108 dB (1W; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil diameter = 37 mm
  • overall diameter d = 91 mm
  • mounting depth (not countersunk) t = 51 mm
  • mass m = 0,67 kg
PDF data sheet

Faital Pro HF 104 B
open a bigger photo
Faital Pro HF 104 B
open a bigger photo

Faital Pro HF 104 B

order no. ah-fphf104b

EUR 111,00 excl. VAT: € 93.28 / $ 106.34

1 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 40/80 W
  • frequency range = 1500-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 108 dB (1W; 1m)
  • DC resistance Re = 11 Ohm
  • voice coil diameter = 37 mm
  • overall diameter d = 91 mm
  • mounting depth (not countersunk) t = 51 mm
  • mass m = 0,67 kg
PDF data sheet

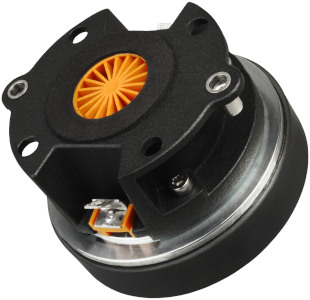

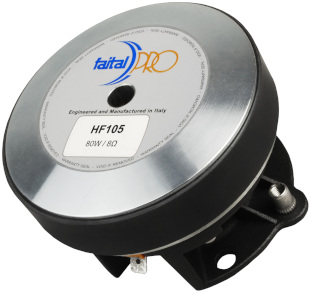

Faital Pro HF 105 A
open a bigger photo
Faital Pro HF 105 A
open a bigger photo

Faital Pro HF 105 A

order no. ah-FPHF105A

EUR 95,00 excl. VAT: € 79.83 / $ 91.01

1 inch high frequency compression driver with ketone polymer cone.

  • power handling (continuous/programme) = 40/80 W
  • frequency range = 1400-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 107 dB (1W; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil diameter = 37 mm
  • overall diameter d = 91 mm
  • mounting depth (not countersunk) t = 61 mm
  • mass m = 1,1 kg
PDF data sheet

Faital Pro HF 105 B
open a bigger photo
Faital Pro HF 105 B
open a bigger photo

Faital Pro HF 105 B

order no. ah-fphf105b

EUR 95,00 excl. VAT: € 79.83 / $ 91.01

1 inch high frequency compression driver with ketone polymer cone.

  • power handling (continuous/programme) = 40/80 W
  • frequency range = 1400-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 107 dB (1W; 1m)
  • DC resistance Re = 11 Ohm
  • voice coil diameter = 37 mm
  • overall diameter d = 91 mm
  • mounting depth (not countersunk) t = 61 mm
  • mass m = 1,1 kg
PDF data sheet

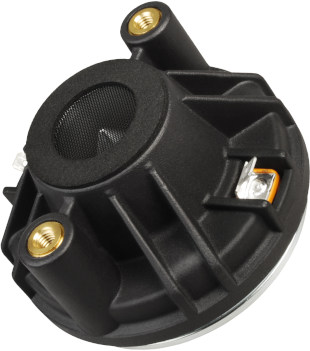

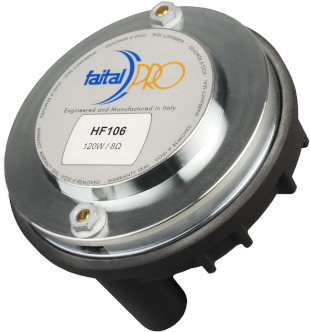

Faital Pro HF 106 A
open a bigger photo
Faital Pro HF 106 A
open a bigger photo

Faital Pro HF 106 A

order no. ah-fphf106a

EUR 179,40 excl. VAT: € 150.76 / $ 171.86

1 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 1300-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110 dB (1W; 1m)
  • DC resistance Re = 5,4 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 95,7 mm
  • mounting depth (not countersunk) t = 58,8 mm
  • mass m = 1,1 kg
PDF data sheet

Faital Pro HF 106 B
open a bigger photo
Faital Pro HF 106 B
open a bigger photo

Faital Pro HF 106 B

order no. ah-fphf106b

EUR 179,40 excl. VAT: € 150.76 / $ 171.86

1 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 1300-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 110 dB (1W; 1m)
  • DC resistance Re = 10,3 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 95,7 mm
  • mounting depth (not countersunk) t = 58,8 mm
  • mass m = 1,1 kg
PDF data sheet

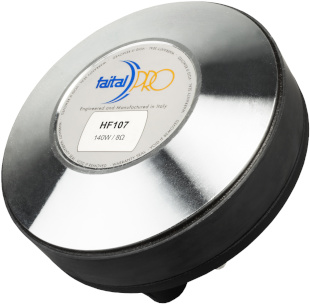

Faital Pro HF 107 A
open a bigger photo
Faital Pro HF 107 A
open a bigger photo

Faital Pro HF 107 A

order no. ah-FPHF107A

EUR 134,50 excl. VAT: € 113.03 / $ 128.85

1 inch high frequency compression driver with ketone polymer cone.

  • power handling (continuous/programme) = 70/140 W
  • frequency range = 1300-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 5,4 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 121 mm
  • mounting depth (not countersunk) t = 75,4 mm
  • mass m = 2,5 kg
PDF data sheet

Faital Pro HF 107 B
open a bigger photo
Faital Pro HF 107 B
open a bigger photo

Faital Pro HF 107 B

order no. ah-fphf107b

EUR 134,50 excl. VAT: € 113.03 / $ 128.85

1 inch high frequency compression driver with ketone polymer cone.

  • power handling (continuous/programme) = 70/140 W
  • frequency range = 1300-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 10,3 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 121 mm
  • mounting depth (not countersunk) t = 75,4 mm
  • mass m = 2,5 kg
PDF data sheet

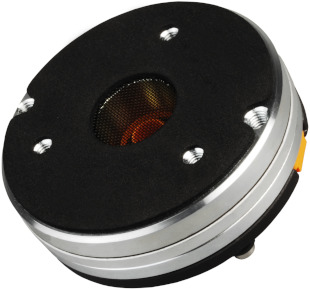

Faital Pro HF 108 A
open a bigger photo
Faital Pro HF 108 A
open a bigger photo

Faital Pro HF 108 A

order no. ah-fphf108a

EUR 150,50 excl. VAT: € 126.47 / $ 144.18

1 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 1000-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 5,8 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 87 mm
  • mounting depth (not countersunk) t = 41 mm
  • mass m = 0,8 kg
PDF data sheet

Faital Pro HF 108 B
open a bigger photo
Faital Pro HF 108 B
open a bigger photo

Faital Pro HF 108 B

order no. ah-fphf108b

EUR 150,50 excl. VAT: € 126.47 / $ 144.18

1 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 1000-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 10,5 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 87 mm
  • mounting depth (not countersunk) t = 41 mm
  • mass m = 0,8 kg
PDF data sheet

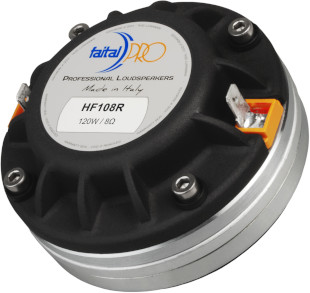

Faital Pro HF 108R A
open a bigger photo
Faital Pro HF 108R A
open a bigger photo

Faital Pro HF 108R A

order no. ah-fphf108ra

EUR 150,50 excl. VAT: € 126.47 / $ 144.18

1 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 1000-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 5,8 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 87 mm
  • mounting depth (not countersunk) t = 41 mm
  • mass m = 0,8 kg
PDF data sheet

Faital Pro HF 108R B
open a bigger photo
Faital Pro HF 108R B
open a bigger photo

Faital Pro HF 108R B

order no. ah-fphf108rb

EUR 150,50 excl. VAT: € 126.47 / $ 144.18

1 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 1000-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 10,5 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 87 mm
  • mounting depth (not countersunk) t = 41 mm
  • mass m = 0,8 kg
PDF data sheet

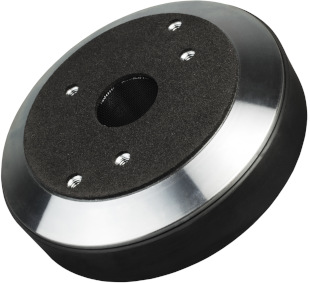

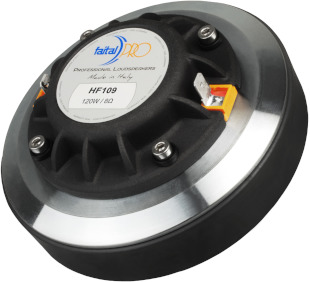

Faital Pro HF 109 A
open a bigger photo
Faital Pro HF 109 A
open a bigger photo

Faital Pro HF 109 A

order no. ah-fphf109a

EUR 121,60 excl. VAT: € 102.18 / $ 116.49

1 inch high frequency compression driver with ketone polymer cone.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 1000-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 108 dB (1W; 1m)
  • DC resistance Re = 5,8 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 121 mm
  • mounting depth (not countersunk) t = 55 mm
  • mass m = 2,2 kg
PDF data sheet

Faital Pro HF 109 B
open a bigger photo
Faital Pro HF 109 B
open a bigger photo

Faital Pro HF 109 B

order no. ah-fphf109b

EUR 121,60 excl. VAT: € 102.18 / $ 116.49

1 inch high frequency compression driver with ketone polymer cone.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 1000-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 108 dB (1W; 1m)
  • DC resistance Re = 10,5 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 121 mm
  • mounting depth (not countersunk) t = 55 mm
  • mass m = 2,2 kg
PDF data sheet

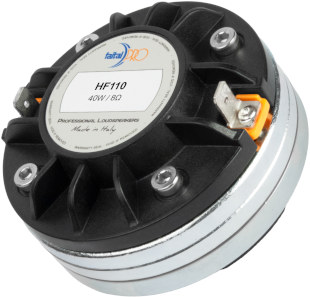

Faital Pro HF 110 A
open a bigger photo
Faital Pro HF 110 A
open a bigger photo

Faital Pro HF 110 A

order no. ah-fphf110a

EUR 99,94 excl. VAT: € 83.98 / $ 95.74

1 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 40/80 W
  • frequency range = 2000-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110 dB (1W; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil diameter = 37 mm
  • overall diameter d = 72 mm
  • mounting depth (not countersunk) t = 35 mm
  • mass m = 0,52 kg
PDF data sheet

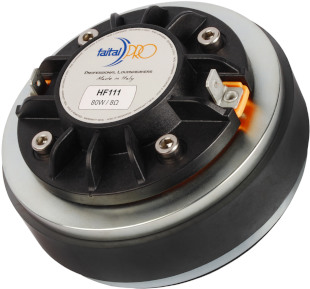

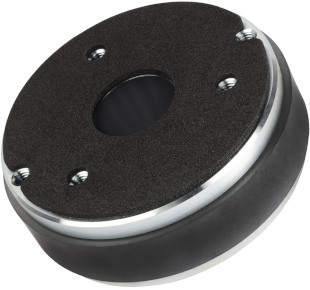

Faital Pro HF 111 A
open a bigger photo
Faital Pro HF 111 A
open a bigger photo

Faital Pro HF 111 A

order no. ah-fphf111a

EUR 78,28 excl. VAT: € 65.78 / $ 74.99

1 inch high frequency compression driver with ketone polymer cone.

  • power handling (continuous/programme) = 40/80 W
  • frequency range = 2000-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 107 dB (1W; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil diameter = 37 mm
  • overall diameter d = 90 mm
  • mounting depth (not countersunk) t = 47 mm
  • mass m = 1,3 kg
PDF data sheet

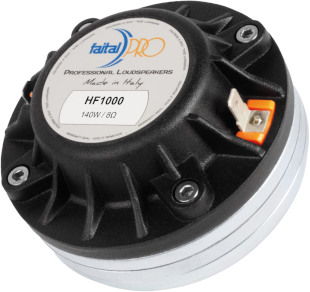

Faital Pro HF 1000 A
open a bigger photo
Faital Pro HF 1000 A
open a bigger photo

Faital Pro HF 1000 A

order no. ah-fphf1000a

EUR 207,50 excl. VAT: € 174.37 / $ 198.78

1 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 70/140 W
  • frequency range = 1000-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110 dB (1W; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil diameter = 52 mm
  • overall diameter d = 90 mm
  • mounting depth (not countersunk) t = 48,5 mm
  • mass m = 0,985 kg
PDF data sheet

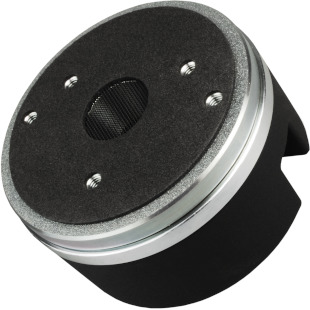

Faital Pro HF 10AK A
open a bigger photo
Faital Pro HF 10AK A
open a bigger photo

Faital Pro HF 10AK A

order no. ah-FPHF10AKA

EUR 184,70 excl. VAT: € 155.21 / $ 176.94

1 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 800-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110 dB (1W; 1m)
  • DC resistance Re = 5,8 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 102 mm
  • mounting depth (not countersunk) t = 54 mm
  • mass m = 1,4 kg
PDF data sheet

Faital Pro HF 10AK B
open a bigger photo
Faital Pro HF 10AK B
open a bigger photo

Faital Pro HF 10AK B

order no. ah-fphf10akb

EUR 184,70 excl. VAT: € 155.21 / $ 176.94

1 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 800-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 110 dB (1W; 1m)
  • DC resistance Re = 8,2 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 102 mm
  • mounting depth (not countersunk) t = 54 mm
  • mass m = 1,4 kg
PDF data sheet

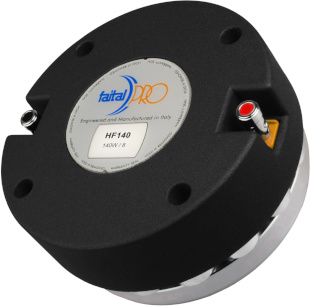

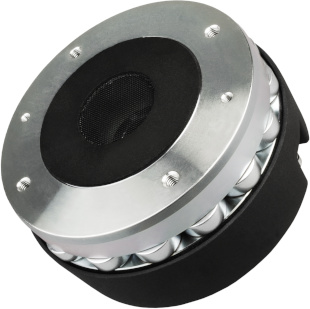

Faital Pro HF 140 A
open a bigger photo
Faital Pro HF 140 A
open a bigger photo

Faital Pro HF 140 A

order no. ah-FPHF140A

EUR 237,90 excl. VAT: € 199.92 / $ 227.90

1.4 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 70/140 W
  • frequency range = 500-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 5,6 Ohm
  • voice coil diameter = 74 mm
  • overall diameter d = 130,5 mm
  • mounting depth (not countersunk) t = 62 mm
  • mass m = 2,9 kg
PDF data sheet

Faital Pro HF 140 B
open a bigger photo
Faital Pro HF 140 B
open a bigger photo

Faital Pro HF 140 B

order no. ah-fphf140b

EUR 237,90 excl. VAT: € 199.92 / $ 227.90

1.4 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 70/140 W
  • frequency range = 500-18000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 8,2 Ohm
  • voice coil diameter = 74 mm
  • overall diameter d = 130,5 mm
  • mounting depth (not countersunk) t = 62 mm
  • mass m = 2,9 kg
PDF data sheet

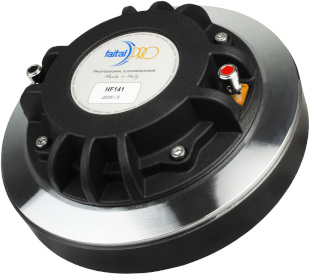

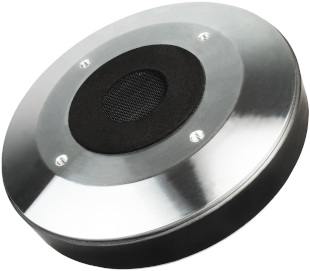

Faital Pro HF 141 A
open a bigger photo
Faital Pro HF 141 A
open a bigger photo

Faital Pro HF 141 A

order no. ah-fphf141a

EUR 235,60 excl. VAT: € 197.98 / $ 225.70

1.4 inch high frequency compression driver with titanium cone.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 5,6 Ohm
  • voice coil diameter = 74 mm
  • overall diameter d = 170 mm
  • mounting depth (not countersunk) t = 66 mm
  • mass m = 4,7 kg
PDF data sheet

Faital Pro HF 141 B
open a bigger photo
Faital Pro HF 141 B
open a bigger photo

Faital Pro HF 141 B

order no. ah-fphf141b

EUR 235,60 excl. VAT: € 197.98 / $ 225.70

1.4 inch high frequency compression driver with titanium cone.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-18000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 8,2 Ohm
  • voice coil diameter = 74 mm
  • overall diameter d = 170 mm
  • mounting depth (not countersunk) t = 66 mm
  • mass m = 4,7 kg
PDF data sheet

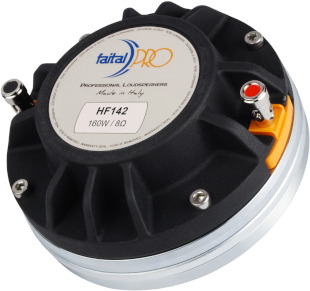

Faital Pro HF 142 A
open a bigger photo
Faital Pro HF 142 A
open a bigger photo

Faital Pro HF 142 A

order no. ah-fphf142a

EUR 244,70 excl. VAT: € 205.63 / $ 234.42

1.4 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 700-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110 dB (1W; 1m)
  • DC resistance Re = 6,7 Ohm
  • voice coil diameter = 65 mm
  • overall diameter d = 115 mm
  • mounting depth (not countersunk) t = 54,5 mm
  • mass m = 1,64 kg
PDF data sheet

Faital Pro HF 142 B
open a bigger photo
Faital Pro HF 142 B
open a bigger photo

Faital Pro HF 142 B

order no. ah-fphf142b

EUR 244,70 excl. VAT: € 205.63 / $ 234.42

1.4 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 700-18000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 110 dB (1W; 1m)
  • DC resistance Re = 13,4 Ohm
  • voice coil diameter = 65 mm
  • overall diameter d = 115 mm
  • mounting depth (not countersunk) t = 54,5 mm
  • mass m = 1,64 kg
PDF data sheet

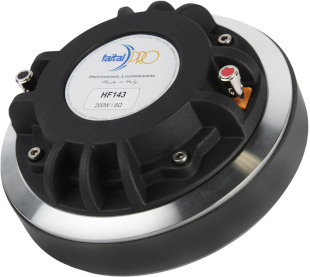

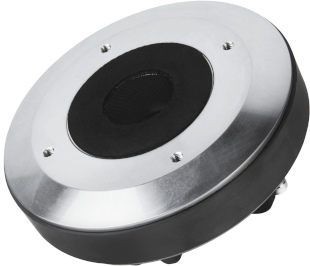

Faital Pro HF 143 A
open a bigger photo
Faital Pro HF 143 A
open a bigger photo

Faital Pro HF 143 A

order no. ah-fphf143a

EUR 209,00 excl. VAT: € 175.63 / $ 200.22

1.4 inch high frequency compression driver with titanium cone.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 108 dB (1W; 1m)
  • DC resistance Re = 5,6 Ohm
  • voice coil diameter = 74 mm
  • overall diameter d = 156 mm
  • mounting depth (not countersunk) t = 64,5 mm
  • mass m = 4 kg
PDF data sheet

Faital Pro HF 143 B
open a bigger photo
Faital Pro HF 143 B
open a bigger photo

Faital Pro HF 143 B

order no. ah-fphf143b

EUR 209,00 excl. VAT: € 175.63 / $ 200.22

1.4 inch high frequency compression driver with titanium cone.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-18000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 108 dB (1W; 1m)
  • DC resistance Re = 8,2 Ohm
  • voice coil diameter = 74 mm
  • overall diameter d = 156 mm
  • mounting depth (not countersunk) t = 64,5 mm
  • mass m = 4 kg
PDF data sheet

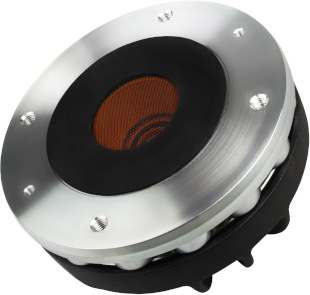

Faital Pro HF 144 A
open a bigger photo
Faital Pro HF 144 A
open a bigger photo

Faital Pro HF 144 A

order no. ah-FPHF144A

EUR 225,70 excl. VAT: € 189.66 / $ 216.22

1.4 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 700-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil diameter = 65 mm
  • overall diameter d = 123 mm
  • mounting depth (not countersunk) t = 63,5 mm
  • mass m = 2 kg
PDF data sheet

Faital Pro HF 144 B
open a bigger photo
Faital Pro HF 144 B
open a bigger photo

Faital Pro HF 144 B

order no. ah-fphf144b

EUR 225,70 excl. VAT: € 189.66 / $ 216.22

1.4 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 700-18000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 11 Ohm
  • voice coil diameter = 65 mm
  • overall diameter d = 123 mm
  • mounting depth (not countersunk) t = 63,5 mm
  • mass m = 2 kg
PDF data sheet

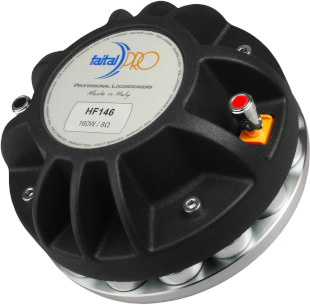

Faital Pro HF 146 A
open a bigger photo
Faital Pro HF 146 A
open a bigger photo

Faital Pro HF 146 A

order no. ah-fphf146a

EUR 225,70 excl. VAT: € 189.66 / $ 216.22

1.4 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 700-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil diameter = 65 mm
  • overall diameter d = 123 mm
  • mounting depth (not countersunk) t = 63,5 mm
  • mass m = 2 kg
PDF data sheet

Faital Pro HF 146 B
open a bigger photo
Faital Pro HF 146 B
open a bigger photo

Faital Pro HF 146 B

order no. ah-fphf146a

EUR 225,70 excl. VAT: € 189.66 / $ 216.22

1.4 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 700-18000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 11 Ohm
  • voice coil diameter = 65 mm
  • overall diameter d = 123 mm
  • mounting depth (not countersunk) t = 63,5 mm
  • mass m = 2 kg
PDF data sheet

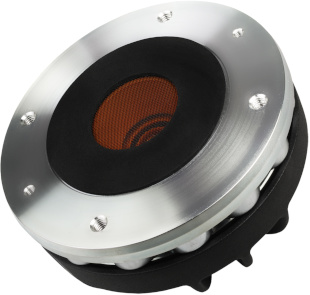

Faital Pro HF 146R A
open a bigger photo
Faital Pro HF 146R A
open a bigger photo

Faital Pro HF 146R A

order no. ah-fphf146ra

EUR 225,70 excl. VAT: € 189.66 / $ 216.22

1.4 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 700-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil diameter = 65 mm
  • overall diameter d = 123 mm
  • mounting depth (not countersunk) t = 63,5 mm
  • mass m = 2 kg
PDF data sheet

Faital Pro HF 146R B
open a bigger photo
Faital Pro HF 146R B
open a bigger photo

Faital Pro HF 146R B

order no. ah-fphf146rb

EUR 225,70 excl. VAT: € 189.66 / $ 216.22

1.4 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 700-18000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 11 Ohm
  • voice coil diameter = 65 mm
  • overall diameter d = 123 mm
  • mounting depth (not countersunk) t = 63,5 mm
  • mass m = 2 kg
PDF data sheet

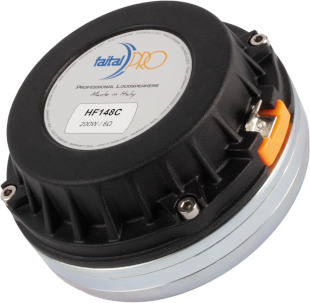

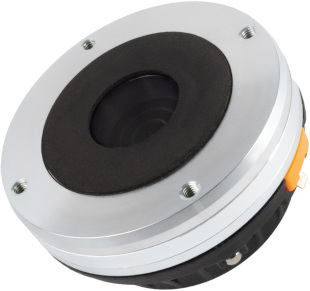

Faital Pro HF 148C A
open a bigger photo
Faital Pro HF 148C A
open a bigger photo

Faital Pro HF 148C A

order no. ah-fphf148ca

EUR 299,40 excl. VAT: € 251.60 / $ 286.82

1.4 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 600-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110 dB (1W; 1m)
  • DC resistance Re = 5,6 Ohm
  • voice coil diameter = 74 mm
  • overall diameter d = 116 mm
  • mounting depth (not countersunk) t = 55 mm
  • mass m = 1,9 kg
PDF data sheet

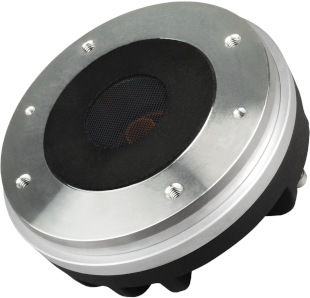

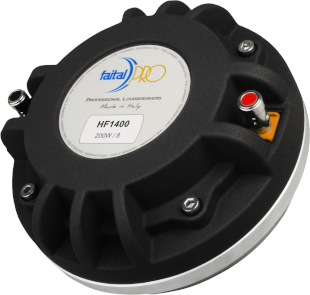

Faital Pro HF 1400 A
open a bigger photo
Faital Pro HF 1400 A
open a bigger photo

Faital Pro HF 1400 A

order no. ah-fphf1400a

EUR 359,50 excl. VAT: € 302.10 / $ 344.39

1.4 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110 dB (1W; 1m)
  • DC resistance Re = 5,6 Ohm
  • voice coil diameter = 74 mm
  • overall diameter d = 130,5 mm
  • mounting depth (not countersunk) t = 55 mm
  • mass m = 2,5 kg
PDF data sheet

Faital Pro HF 1400 B
open a bigger photo
Faital Pro HF 1400 B
open a bigger photo

Faital Pro HF 1400 B

order no. ah-fphf1400b

EUR 359,50 excl. VAT: € 302.10 / $ 344.39

1.4 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-18000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 110 dB (1W; 1m)
  • DC resistance Re = 8,2 Ohm
  • voice coil diameter = 74 mm
  • overall diameter d = 130,5 mm
  • mounting depth (not countersunk) t = 55 mm
  • mass m = 2,5 kg
PDF data sheet

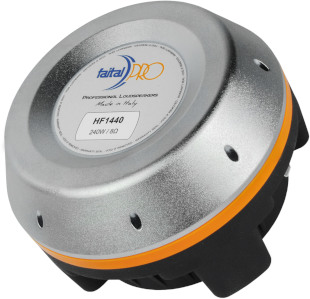

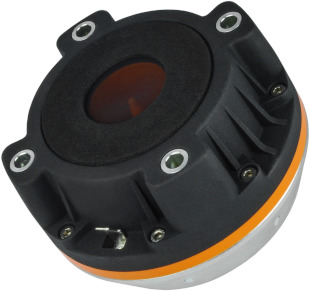

Faital Pro HF 1440 A
open a bigger photo
Faital Pro HF 1440 A
open a bigger photo

Faital Pro HF 1440 A

order no. ah-fphf1440a

EUR 332,90 excl. VAT: € 279.75 / $ 318.91

1.4 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 120/240 W
  • frequency range = 500-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 6,8 Ohm
  • voice coil diameter = 86 mm
  • overall diameter d = 124 mm
  • mounting depth (not countersunk) t = 75 mm
  • mass m = 2,1 kg
PDF data sheet

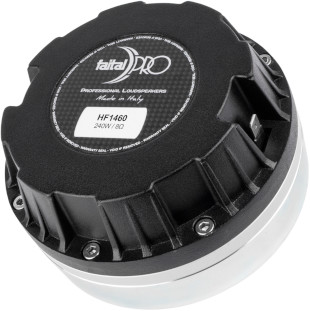

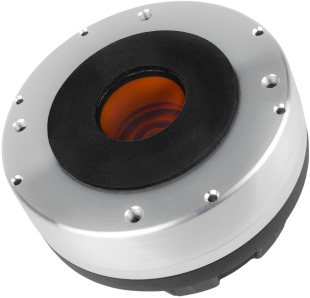

Faital Pro HF 1460 A
open a bigger photo
Faital Pro HF 1460 A
open a bigger photo

Faital Pro HF 1460 A

order no. ah-fphf1460a

EUR 460,60 excl. VAT: € 387.06 / $ 441.25

1.4 inch high frequency compression driver with high quality cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 120/240 W
  • frequency range = 600-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 5,6 Ohm
  • voice coil diameter = 86 mm
  • overall diameter d = 120 mm
  • mounting depth (not countersunk) t = 65 mm
  • mass m = 2 kg
PDF data sheet

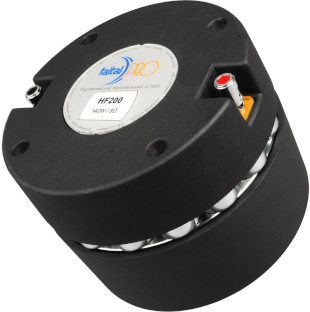

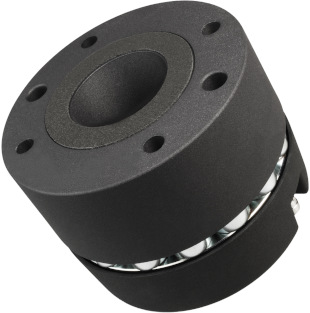

Faital Pro HF 200 A
open a bigger photo
Faital Pro HF 200 A
open a bigger photo

Faital Pro HF 200 A

order no. ah-FPHF200A

EUR 254,00 excl. VAT: € 213.45 / $ 243.33

2 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 70/140 W
  • frequency range = 500-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 5,6 Ohm
  • voice coil diameter = 74 mm
  • overall diameter d = 130,5 mm
  • mounting depth (not countersunk) t = 95 mm
  • mass m = 3,2 kg
PDF data sheet

Faital Pro HF 200 B
open a bigger photo
Faital Pro HF 200 B
open a bigger photo

Faital Pro HF 200 B

order no. ah-fphf200b

EUR 247,80 excl. VAT: € 208.24 / $ 237.39

2 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 70/140 W
  • frequency range = 500-18000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 8,2 Ohm
  • voice coil diameter = 74 mm
  • overall diameter d = 130,5 mm
  • mounting depth (not countersunk) t = 95 mm
  • mass m = 3,2 kg
PDF data sheet

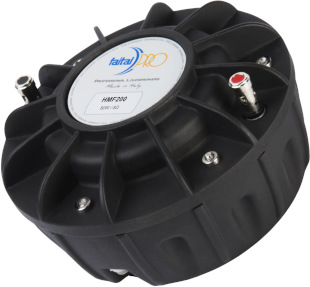

Faital Pro HMF 200 A
open a bigger photo
Faital Pro HMF 200 A
open a bigger photo

Faital Pro HMF 200 A

order no. ah-fphmf200a

EUR 259,20 excl. VAT: € 217.82 / $ 248.31

2 inch high frequency compression driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 40/80 W
  • frequency range = 450-9000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 108 dB (1W; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil diameter = 37 mm
  • overall diameter d = 144 mm
  • mounting depth (not countersunk) t = 77 mm
  • mass m = 1,65 kg
PDF data sheet

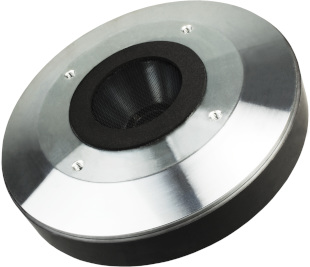

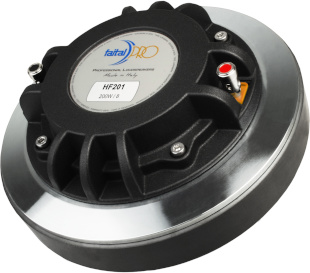

Faital Pro HF 201 A
open a bigger photo
Faital Pro HF 201 A
open a bigger photo

Faital Pro HF 201 A

order no. ah-fphf201a

EUR 235,60 excl. VAT: € 197.98 / $ 225.70

2 inch high frequency compression driver with titanium cone.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 108 dB (1W; 1m)
  • DC resistance Re = 5,6 Ohm
  • voice coil diameter = 74 mm
  • overall diameter d = 170 mm
  • mounting depth (not countersunk) t = 66 mm
  • mass m = 4,6 kg
PDF data sheet

Faital Pro HF 201 B
open a bigger photo
Faital Pro HF 201 B
open a bigger photo

Faital Pro HF 201 B

order no. ah-fphf201b

EUR 235,60 excl. VAT: € 197.98 / $ 225.70

2 inch high frequency compression driver with titanium cone.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-18000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 108 dB (1W; 1m)
  • DC resistance Re = 8,2 Ohm
  • voice coil diameter = 74 mm
  • overall diameter d = 170 mm
  • mounting depth (not countersunk) t = 66 mm
  • mass m = 4,6 kg
PDF data sheet

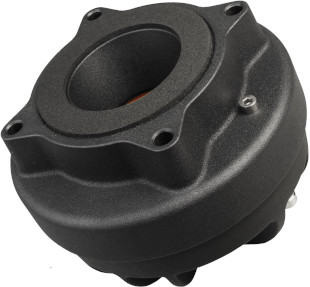

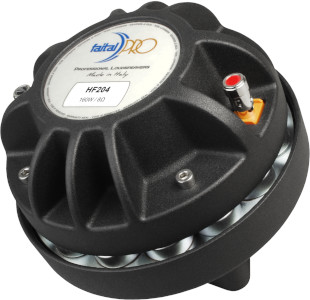

Faital Pro HF 204 A
open a bigger photo
Faital Pro HF 204 A
open a bigger photo

Faital Pro HF 204 A

order no. ah-FPHF204A

EUR 236,40 excl. VAT: € 198.66 / $ 226.47

2 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 500-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 108 dB (1W; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil diameter = 65 mm
  • overall diameter d = 130,5 mm
  • mounting depth (not countersunk) t = 91,5 mm
  • mass m = 2,3 kg
PDF data sheet

Faital Pro HF 204 B
open a bigger photo
Faital Pro HF 204 B
open a bigger photo

Faital Pro HF 204 B

order no. ah-fphf204b

EUR 236,40 excl. VAT: € 198.66 / $ 226.47

2 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 500-18000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 108 dB (1W; 1m)
  • DC resistance Re = 11 Ohm
  • voice coil diameter = 65 mm
  • overall diameter d = 130,5 mm
  • mounting depth (not countersunk) t = 91,5 mm
  • mass m = 2,3 kg
PDF data sheet

Faital Pro HF 206 A
open a bigger photo
Faital Pro HF 206 A
open a bigger photo

Faital Pro HF 206 A

order no. ah-fphf206a

EUR 236,40 excl. VAT: € 198.66 / $ 226.47

2 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 500-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil diameter = 65 mm
  • overall diameter d = 130,5 mm
  • mounting depth (not countersunk) t = 91,5 mm
  • mass m = 2,3 kg
PDF data sheet

Faital Pro HF 206 B
open a bigger photo
Faital Pro HF 206 B
open a bigger photo

Faital Pro HF 206 B

order no. ah-fphf206b

EUR 236,40 excl. VAT: € 198.66 / $ 226.47

2 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 500-18000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 11 Ohm
  • voice coil diameter = 65 mm
  • overall diameter d = 130,5 mm
  • mounting depth (not countersunk) t = 91,5 mm
  • mass m = 2,3 kg
PDF data sheet

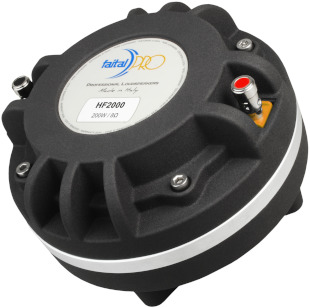

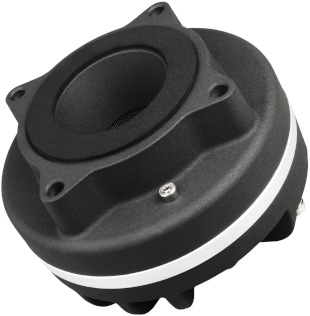

Faital Pro HF 2000 A
open a bigger photo
Faital Pro HF 2000 A
open a bigger photo

Faital Pro HF 2000 A

order no. ah-fphf2000a

EUR 371,60 excl. VAT: € 312.27 / $ 355.99

2 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110 dB (1W; 1m)
  • DC resistance Re = 5,6 Ohm
  • voice coil diameter = 74 mm
  • overall diameter d = 130,5 mm
  • mounting depth (not countersunk) t = 83,5 mm
  • mass m = 2,75 kg
PDF data sheet

Compression driver for Horns   Horn   Coaxial speaker   Full Range   Mids   Woofer   8 inch woofer   10 inch woofer   12 inch woofer   15 inch woofer   18 inch woofer   21 inch woofer   no longer sold
The cabinet volume calculations are executed considering an external resistance of 0.3 Ohm. We are using, if no other data is known or available, the information supplied by the manufacturer.

Please note: the frequency response doesn't say much about the cut-off frequency inside the cabinet! Therefore, we mostly give you 2 examples with dimensioning considerations and an indication, how low the loudspeaker will reproduce.

Home

© Copyright 2024 Daniel Gattig; All rights reserved. - errors and omissions excepted
