Eighteen Sound

Eighteen Sound is a designer and manufacturer of high quality professional audio loudspeakers, with advanced development and manufacturing technologies, and located in Reggio Emilia, Italy.ound




Compression driver for Horns

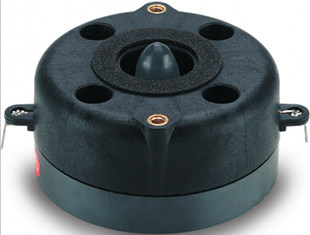

Eighteen Sound Driver HD 125

order no. 18s-hd125

EUR 70,61 excl. VAT: € 59.34 / $ 64.08

1 inch high frequency compression driver with high quality cone.

  • power handling (continuous/programme) = 25/50 W
  • frequency range = 2000-18000 Hz
  • resonance frequency fs = 1800 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 3,5 N/A
  • voice coil diameter = 25,4 mm
  • mass m = 0,8 kg
PDF data sheet

Eighteen Sound Driver HD 125, 16 Ohm

order no. 18s-hd125-16

EUR 62,00 excl. VAT: € 52.10 / $ 56.27

1 inch high frequency compression driver with high quality cone.

  • power handling (continuous/programme) = 25/50 W
  • frequency range = 2000-18000 Hz
  • resonance frequency fs = 1800 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 106 dB (2,83V; 1m)
  • voice coil diameter = 25,4 mm
  • mass m = 0,8 kg
PDF data sheet

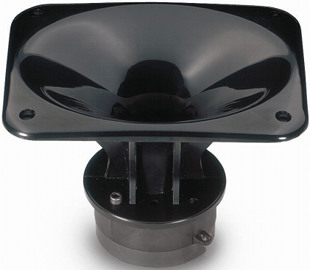

Eighteen Sound Driver XD 125

order no. 18s-xd125

EUR 95,25 excl. VAT: € 80.04 / $ 86.45

1 inch high frequency compression driver with high quality cone.

  • power handling (continuous/programme) = 25/50 W
  • frequency range = 2000-18000 Hz
  • resonance frequency fs = 1800 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 3,5 N/A
  • voice coil diameter = 25,4 mm
  • mass m = 0,8 kg
PDF data sheet

Eighteen Sound Driver XD 125, 16 Ohm

order no. 18s-xd125-16

EUR 83,75 excl. VAT: € 70.38 / $ 76.01

1 inch high frequency compression driver with high quality cone.

  • power handling (continuous/programme) = 25/50 W
  • frequency range = 2000-18000 Hz
  • resonance frequency fs = 1800 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 106 dB (2,83V; 1m)
  • voice coil diameter = 25,4 mm
  • mass m = 0,8 kg
PDF data sheet

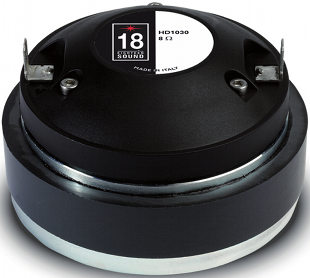

Eighteen Sound Driver HD 1030

order no. 18s-1hd1030

EUR 83,75 excl. VAT: € 70.38 / $ 76.01

1 inch high frequency compression driver with titanium cone.

  • power handling (continuous/programme) = 30/60 W
  • frequency range = 1800-20000 Hz
  • resonance frequency fs = 920 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 106 dB (2,83V; 1m)
  • DC resistance Re = 5,8 Ohm
  • force factor BL = 5 N/A
  • voice coil diameter = 34 mm
  • mass m = 1 kg
PDF data sheet

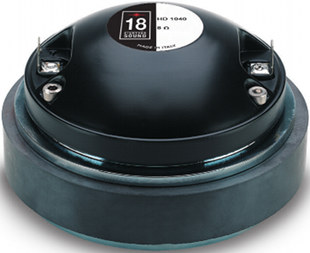

Eighteen Sound Driver HD 1040

order no. 18s-hd1040

EUR 141,20 excl. VAT: € 118.66 / $ 128.15

1 inch high frequency compression driver with titanium cone.

  • power handling (continuous/programme) = 40/80 W
  • frequency range = 1600-20000 Hz
  • resonance frequency fs = 690 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 107 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 7,4 N/A
  • voice coil diameter = 44 mm
  • mass m = 1,8 kg
PDF data sheet

Eighteen Sound Driver HD 1040, 16 Ohm

order no. 18s-hd1040-16

EUR 133,00 excl. VAT: € 111.76 / $ 120.71

1 inch high frequency compression driver with titanium cone.

  • power handling (continuous/programme) = 40/80 W
  • frequency range = 1600-20000 Hz
  • resonance frequency fs = 690 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 104 dB (2,83V; 1m)
  • voice coil diameter = 44 mm
  • mass m = 1,8 kg
PDF data sheet

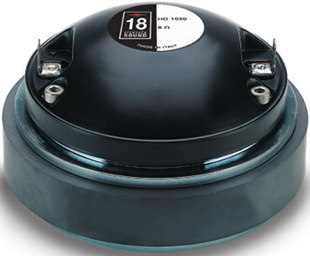

Eighteen Sound Driver HD 1050

order no. 18s-hd1050

EUR 144,50 excl. VAT: € 121.43 / $ 131.14

1 inch high frequency compression driver with titanium cone.

  • power handling (continuous/programme) = 50/100 W
  • frequency range = 1600-20000 Hz
  • resonance frequency fs = 700 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 107 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 7,4 N/A
  • voice coil diameter = 44 mm
  • mass m = 1,8 kg
PDF data sheet

Eighteen Sound Driver HD 1050, 16 Ohm

order no. 18s-hd1050-16

EUR 131,40 excl. VAT: € 110.42 / $ 119.25

1 inch high frequency compression driver with titanium cone.

  • power handling (continuous/programme) = 50/100 W
  • frequency range = 1600-20000 Hz
  • resonance frequency fs = 700 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 104 dB (2,83V; 1m)
  • voice coil diameter = 44 mm
  • mass m = 1,8 kg
PDF data sheet

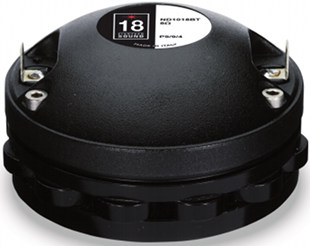

Eighteen Sound Neodym Driver ND 1018 BT

order no. 18s-nd1018bt

EUR 215,10 excl. VAT: € 180.76 / $ 195.22

1 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 50/100 W
  • frequency range = 1600-20000 Hz
  • resonance frequency fs = 890 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 108 dB (2,83V; 1m)
  • DC resistance Re = 5,3 Ohm
  • force factor BL = 8,2 N/A
  • total Q factor Qts = (Qms= , Qes=)
  • voice coil diameter = 44 mm
  • mass m = 1 kg
PDF data sheet

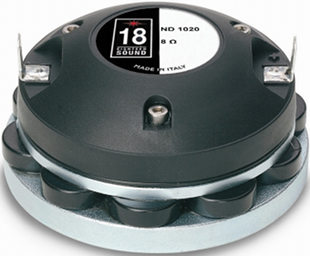

Eighteen Sound Neodym Driver ND 1020

order no. 18s-nd1020

EUR 142,90 excl. VAT: € 120.08 / $ 129.69

1 inch high frequency compression driver with high quality cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 30/60 W
  • frequency range = 1600-20000 Hz
  • resonance frequency fs = 730 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 108,5 dB (2,83V; 1m)
  • DC resistance Re = 5,8 Ohm
  • force factor BL = 6 N/A
  • voice coil diameter = 34,4 mm
  • mass m = 1,1 kg
PDF data sheet

Eighteen Sound Neodym Driver ND 1020, 4 Ohm

order no. 18s-nd1020-4

- not available (_)

1 inch high frequency compression driver with high quality cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 30/60 W
  • frequency range = 1600-20000 Hz
  • resonance frequency fs = 730 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 111,5 dB (2,83V; 1m)
  • force factor BL = 6 N/A
  • voice coil diameter = 34,4 mm
  • mass m = 1,1 kg
PDF data sheet

Eighteen Sound Neodym Driver ND 1020, 16 Ohm

order no. 18s-nd1020-16

- not available (_)

1 inch high frequency compression driver with high quality cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 30/60 W
  • frequency range = 1600-20000 Hz
  • resonance frequency fs = 730 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 105,5 dB (2,83V; 1m)
  • force factor BL = 6 N/A
  • voice coil diameter = 34,4 mm
  • mass m = 1,1 kg
PDF data sheet

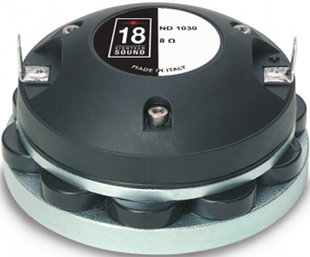

Eighteen Sound Neodym Driver ND 1030

order no. 18s-nd1030

EUR 137,90 excl. VAT: € 115.88 / $ 125.15

1 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 30/60 W
  • frequency range = 1800-20000 Hz
  • resonance frequency fs = 920 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 107 dB (2,83V; 1m)
  • DC resistance Re = 5,8 Ohm
  • force factor BL = 6 N/A
  • voice coil diameter = 34 mm
  • mass m = 0,8 kg
PDF data sheet

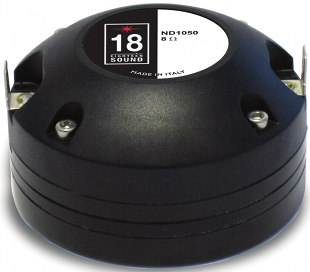

Eighteen Sound Neodym Driver ND 1050

order no. 18s-nd1050

EUR 215,10 excl. VAT: € 180.76 / $ 195.22

1 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 50/100 W
  • frequency range = 1600-20000 Hz
  • resonance frequency fs = 720 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110 dB (2,83V; 1m)
  • DC resistance Re = 5,3 Ohm
  • force factor BL = 8,5 N/A
  • voice coil diameter = 44 mm
  • mass m = 0,65 kg
PDF data sheet

Eighteen Sound Neodym Driver ND 1050, 16 Ohm

order no. 18s-nd1050-16

- not available (_)

1 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 50/100 W
  • frequency range = 1600-20000 Hz
  • resonance frequency fs = 720 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 107 dB (2,83V; 1m)
  • voice coil diameter = 44 mm
  • mass m = 0,65 kg
PDF data sheet

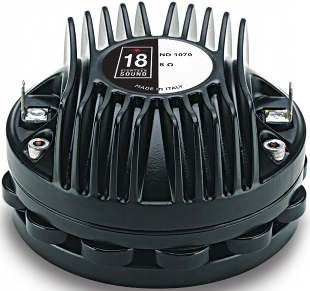

Eighteen Sound Neodym Driver ND 1070

order no. 18s-nd1070

EUR 223,30 excl. VAT: € 187.65 / $ 202.66

1 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 50/100 W
  • frequency range = 1600-20000 Hz
  • resonance frequency fs = 800 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (2,83V; 1m)
  • DC resistance Re = 5,3 Ohm
  • force factor BL = 8,2 N/A
  • voice coil diameter = 44 mm
  • mass m = 1,1 kg
PDF data sheet

Eighteen Sound Neodym Driver ND 1070, 16 Ohm

order no. 18s-nd1070-16

EUR 182,30 excl. VAT: € 153.19 / $ 165.45

1 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 50/100 W
  • frequency range = 1600-20000 Hz
  • resonance frequency fs = 800 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 106 dB (2,83V; 1m)
  • voice coil diameter = 44 mm
  • mass m = 1,1 kg
PDF data sheet

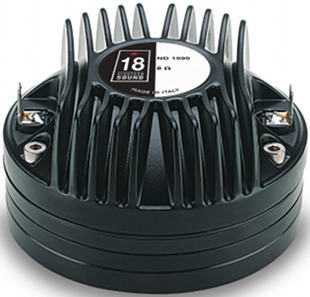

Eighteen Sound Neodym Driver ND 1090

order no. 18s-nd1090

EUR 233,20 excl. VAT: € 195.97 / $ 211.64

1 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 50/100 W
  • frequency range = 1600-20000 Hz
  • resonance frequency fs = 790 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110 dB (2,83V; 1m)
  • DC resistance Re = 5,3 Ohm
  • force factor BL = 9,1 N/A
  • voice coil diameter = 44 mm
  • mass m = 1,2 kg
PDF data sheet

Eighteen Sound Neodym Driver ND 1090, 16 Ohm

order no. 18s-nd1090-16

EUR 190,50 excl. VAT: € 160.08 / $ 172.89

1 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 50/100 W
  • frequency range = 1600-20000 Hz
  • resonance frequency fs = 790 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 107 dB (2,83V; 1m)
  • voice coil diameter = 44 mm
  • mass m = 1,2 kg
PDF data sheet

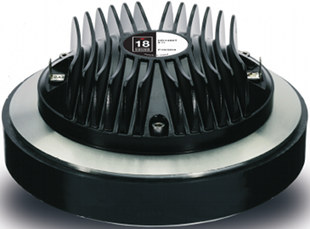

Eighteen Sound Driver HD 1480 T

order no. 18s-1-4hd1480t

EUR 318,60 excl. VAT: € 267.73 / $ 289.15

1.4 inch high frequency compression driver with titanium cone.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-20000 Hz
  • resonance frequency fs = 500 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 12,8 N/A
  • voice coil diameter = 75 mm
  • mass m = 5,3 kg
PDF data sheet

Eighteen Sound Driver HD 1480 T, 16 Ohm

order no. 18s-1-4hd1480t-16

- not available (_)

1.4 inch high frequency compression driver with titanium cone.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-20000 Hz
  • resonance frequency fs = 500 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 106 dB (2,83V; 1m)
  • voice coil diameter = 75 mm
  • mass m = 5,3 kg
PDF data sheet

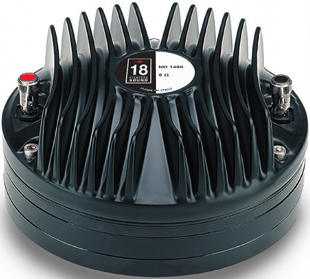

Eighteen Sound Neodym Driver ND 1480

order no. 18s-nd1480

EUR 537,00 excl. VAT: € 451.26 / $ 487.36

1.4 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-20000 Hz
  • resonance frequency fs = 550 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 15,5 N/A
  • voice coil diameter = 75 mm
  • mass m = 3,1 kg
PDF data sheet

Eighteen Sound Neodym Driver ND 1480, 16 Ohm

order no. 18s-nd1480-16

EUR 433,50 excl. VAT: € 364.29 / $ 393.43

1.4 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-20000 Hz
  • resonance frequency fs = 550 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 107 dB (2,83V; 1m)
  • voice coil diameter = 75 mm
  • mass m = 3,1 kg
PDF data sheet

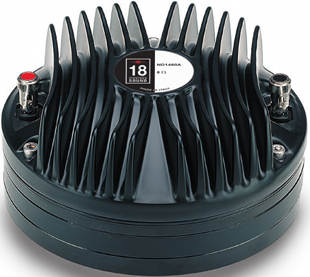

Eighteen Sound Neodym Driver ND 1480 A

order no. 18s-nd1480alu

EUR 451,60 excl. VAT: € 379.50 / $ 409.86

1.4 inch high frequency compression driver with aluminium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 500-20000 Hz
  • resonance frequency fs = 480 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 111 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 15,5 N/A
  • voice coil diameter = 75 mm
  • mass m = 3,1 kg
PDF data sheet

Eighteen Sound Neodym Driver ND 1480 A, 16 Ohm

order no. 18s-nd1480alu-16

EUR 451,60 excl. VAT: € 379.50 / $ 409.86

1.4 inch high frequency compression driver with aluminium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 500-20000 Hz
  • resonance frequency fs = 480 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 108 dB (2,83V; 1m)
  • voice coil diameter = 75 mm
  • mass m = 3,1 kg
PDF data sheet

Eighteen Sound Neodym Driver ND 1460

order no. 18s-nd1460

EUR 454,90 excl. VAT: € 382.27 / $ 412.85

1.4 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-20000 Hz
  • resonance frequency fs = 560 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 13,5 N/A
  • voice coil diameter = 75 mm
  • mass m = 3,2 kg
PDF data sheet

Eighteen Sound Neodym Driver ND 1460, 16 Ohm

order no. 18s-nd1460-16

EUR 353,10 excl. VAT: € 296.72 / $ 320.46

1.4 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-20000 Hz
  • resonance frequency fs = 560 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 106 dB (2,83V; 1m)
  • voice coil diameter = 75 mm
  • mass m = 3,2 kg
PDF data sheet

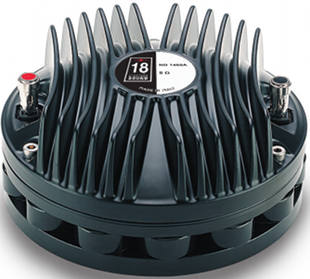

Eighteen Sound Neodym Driver ND 1460 A

order no. 18s-nd1460alu

EUR 464,70 excl. VAT: € 390.50 / $ 421.74

1.4 inch high frequency compression driver with aluminium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 500-20000 Hz
  • resonance frequency fs = 480 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 13,5 N/A
  • voice coil diameter = 75 mm
  • mass m = 3,2 kg
PDF data sheet

Eighteen Sound Neodym Driver ND 1460 A, 16 Ohm

order no. 18s-nd1460alu-16

EUR 464,70 excl. VAT: € 390.50 / $ 421.74

1.4 inch high frequency compression driver with aluminium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 500-20000 Hz
  • resonance frequency fs = 480 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 107 dB (2,83V; 1m)
  • voice coil diameter = 75 mm
  • mass m = 3,2 kg
PDF data sheet

Eighteen Sound Neodym Driver NSD 1460 N

order no. 18s-1-4nsd1460n

EUR 360,67 excl. VAT: € 303.08 / $ 327.33

1.4 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-20000 Hz
  • resonance frequency fs = 580 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 13,5 N/A
  • voice coil diameter = 74,4 mm
  • mass m = 3,2 kg
PDF data sheet

Eighteen Sound Neodym Driver NSD 1460 N, 16 Ohm

order no. 18s-1-4nsd1460n-16

EUR 360,67 excl. VAT: € 303.08 / $ 327.33

1.4 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-20000 Hz
  • resonance frequency fs = 580 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 107 dB (2,83V; 1m)
  • force factor BL = 13,5 N/A
  • voice coil diameter = 74,4 mm
  • mass m = 3,2 kg
PDF data sheet

Eighteen Sound Neodym Driver NSD 1480 N

order no. 18s-1-4nsd1480n

EUR 583,00 excl. VAT: € 489.92 / $ 529.11

1.4 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-20000 Hz
  • resonance frequency fs = 570 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 111 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 15,5 N/A
  • voice coil diameter = 75 mm
  • mass m = 3,1 kg
PDF data sheet

Eighteen Sound Neodym Driver NSD 1480 N, 16 Ohm

order no. 18s-1-4nsd1480n-16

EUR 495,90 excl. VAT: € 416.72 / $ 450.06

1.4 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-20000 Hz
  • resonance frequency fs = 570 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 108 dB (2,83V; 1m)
  • voice coil diameter = 75 mm
  • mass m = 3,1 kg
PDF data sheet

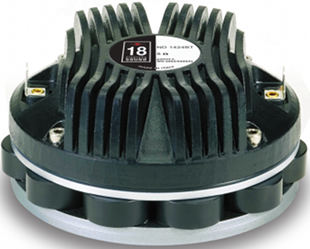

Eighteen Sound Neodym Driver ND 1424 BT

order no. 18s-1-4nd1424bt

EUR 367,90 excl. VAT: € 309.16 / $ 333.89

1.4 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 70/140 W
  • frequency range = 800-20000 Hz
  • resonance frequency fs = 480 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 10,5 N/A
  • voice coil diameter = 60 mm
  • mass m = 1,7 kg
PDF data sheet

Eighteen Sound Neodym Driver ND 1424 BT, 16 Ohm

order no. 18s-1-4nd1424bt-16

EUR 287,40 excl. VAT: € 241.51 / $ 260.83

1.4 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 70/140 W
  • frequency range = 800-20000 Hz
  • resonance frequency fs = 480 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 106 dB (2,83V; 1m)
  • voice coil diameter = 60 mm
  • mass m = 1,7 kg
PDF data sheet

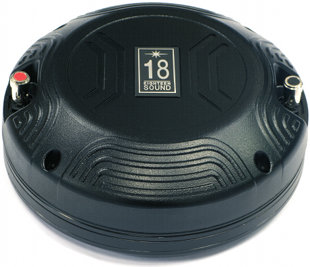

Eighteen Sound Beryllium Driver ND 4015 BE

order no. 18s-nd4015-be

EUR 2791,70 excl. VAT: € 2345.97 / $ 2533.64

1.5 inch high frequency compression driver with beryllium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 140/280 W
  • frequency range = 900-20000 Hz
  • resonance frequency fs = 400 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 113 dB (2,83V; 1m)
  • DC resistance Re = 4,2 Ohm
  • force factor BL = 13,4 N/A
  • voice coil diameter = 100 mm
  • mass m = 3,2 kg
PDF data sheet

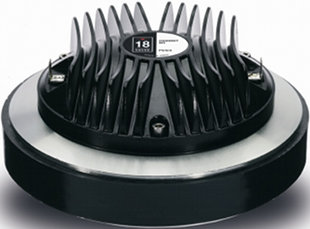

Eighteen Sound Driver HD 2080 T

order no. 18s-2hd2080t

EUR 290,00 excl. VAT: € 243.70 / $ 263.19

2 inch high frequency compression driver with titanium cone.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-20000 Hz
  • resonance frequency fs = 520 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 12,8 N/A
  • voice coil diameter = 75 mm
  • mass m = 5,3 kg
PDF data sheet

Eighteen Sound Driver HD 2080 T, 16 Ohm

order no. 18s-2hd2080t-16

EUR 290,00 excl. VAT: € 243.70 / $ 263.19

2 inch high frequency compression driver with titanium cone.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-20000 Hz
  • resonance frequency fs = 520 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 106 dB (2,83V; 1m)
  • voice coil diameter = 75 mm
  • mass m = 5,3 kg
PDF data sheet

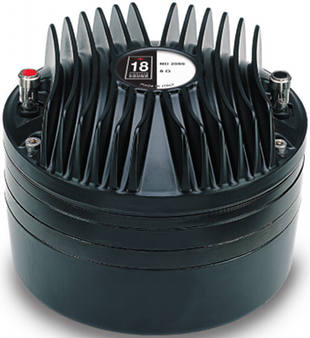

Eighteen Sound Neodym Driver ND 2080

order no. 18s-nd2080

EUR 550,10 excl. VAT: € 462.27 / $ 499.25

2 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-20000 Hz
  • resonance frequency fs = 500 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 15,5 N/A
  • voice coil diameter = 75 mm
  • mass m = 3,6 kg
PDF data sheet

Eighteen Sound Neodym Driver ND 2080, 16 Ohm

order no. 18s-nd2080-16

EUR 451,60 excl. VAT: € 379.50 / $ 409.86

2 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-20000 Hz
  • resonance frequency fs = 500 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 107 dB (2,83V; 1m)
  • voice coil diameter = 75 mm
  • mass m = 3,6 kg
PDF data sheet

Eighteen Sound Neodym Driver ND 2080 A

order no. 18s-nd2080alu

EUR 469,70 excl. VAT: € 394.71 / $ 426.28

2 inch high frequency compression driver with aluminium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 500-20000 Hz
  • resonance frequency fs = 420 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 111 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 15,5 N/A
  • mass m = 3,6 kg
PDF data sheet

Eighteen Sound Neodym Driver ND 2080 A, 16 Ohm

order no. 18s-nd2080alu-16

EUR 469,70 excl. VAT: € 394.71 / $ 426.28

2 inch high frequency compression driver with aluminium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 500-20000 Hz
  • resonance frequency fs = 420 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 108 dB (2,83V; 1m)
  • mass m = 3,6 kg
PDF data sheet

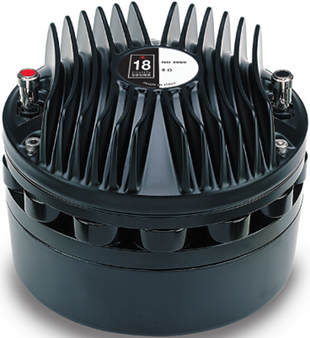

Eighteen Sound Neodym Driver ND 2060

order no. 18s-nd2060

EUR 474,60 excl. VAT: € 398.82 / $ 430.73

2 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-20000 Hz
  • resonance frequency fs = 560 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 13,5 N/A
  • voice coil diameter = 75 mm
  • mass m = 3,6 kg
PDF data sheet

Eighteen Sound Neodym Driver ND 2060, 16 Ohm

order no. 18s-nd2060-16

EUR 371,10 excl. VAT: € 311.85 / $ 336.80

2 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-20000 Hz
  • resonance frequency fs = 560 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 106 dB (2,83V; 1m)
  • voice coil diameter = 75 mm
  • mass m = 3,6 kg
PDF data sheet

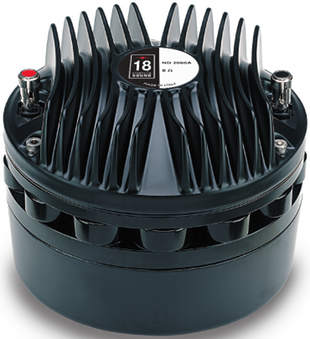

Eighteen Sound Neodym Driver ND 2060 A

order no. 18s-nd2060alu

EUR 379,30 excl. VAT: € 318.74 / $ 344.24

2 inch high frequency compression driver with aluminium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 500-20000 Hz
  • resonance frequency fs = 420 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 13,5 N/A
  • voice coil diameter = 75 mm
  • mass m = 3,6 kg
PDF data sheet

Eighteen Sound Neodym Driver ND 2060 A, 16 Ohm

order no. 18s-nd2060alu-16

EUR 379,30 excl. VAT: € 318.74 / $ 344.24

2 inch high frequency compression driver with aluminium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 500-20000 Hz
  • resonance frequency fs = 420 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 107 dB (2,83V; 1m)
  • voice coil diameter = 75 mm
  • mass m = 3,6 kg
PDF data sheet




Horn

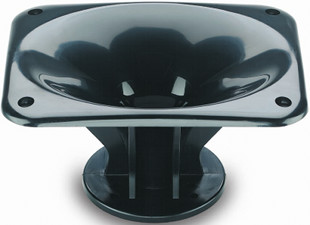

Eighteen Sound XT 120

order no. 18s-xt120

EUR 34,26 excl. VAT: € 28.79 / $ 31.09

Horn for a compression driver with 1 inch throat.

  • Throat diameter = 1 inch
  • nominal angle (HxV) = 90x60 Deg
  • Cut off frequency : 1500 Hz
  • over all dimensions (HxWxD) = 150 x 200 x 103 mm
  • baffle cutout dimensions (HxW) = 132 x 170 mm
  • net weight = 0,35 kg
PDF data sheet

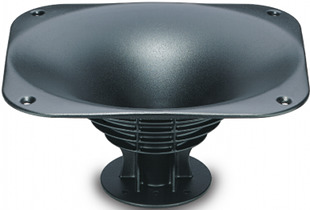

Eighteen Sound XT 1086

order no. 18s-xt1086

EUR 75,54 excl. VAT: € 63.48 / $ 68.56

Horn for a compression driver with 1 inch throat.

  • Throat diameter = 1 inch
  • nominal angle (HxV) = 80x60 Deg
  • Cut off frequency : 800 Hz
  • over all dimensions (HxWxD) = 215 x 260 x 126 mm
  • baffle cutout dimensions (HxW) = 197 x 242 mm
  • net weight = 1 kg
PDF data sheet

Eighteen Sound XT 1464

order no. 18s-xt1464

EUR 77,18 excl. VAT: € 64.86 / $ 70.05

Horn for a compression driver with 1,4 inch throat.

  • Throat diameter = 1,4 inch
  • nominal angle (HxV) = 60x50 Deg
  • Cut off frequency : 500 Hz
  • over all dimensions (HxWxD) = 304 x 380 x 257 mm
  • baffle cutout dimensions (HxW) = 285 x 362 mm
  • net weight = 1,3 kg
PDF data sheet

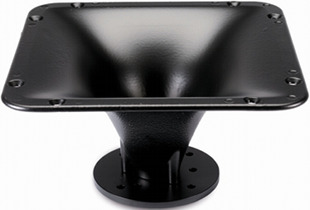

Eighteen Sound XR 1064

order no. 18s-xr1064-alu

EUR 68,97 excl. VAT: € 57.96 / $ 62.59

Horn for a compression driver with 1 inch throat.

  • Throat diameter = 1 inch
  • nominal angle (HxV) = 60x40 Deg
  • Cut off frequency : 800 Hz
  • over all dimensions (HxWxD) = 210 x 210 x 110 mm
  • baffle cutout dimensions (HxW) = 180 x 180 mm
  • net weight = 1,5 kg
PDF data sheet

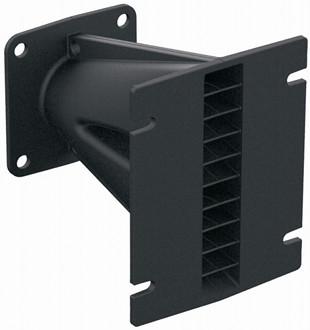

Eighteen Sound XG 10

order no. 18s-xg10

EUR 84,24 excl. VAT: € 70.79 / $ 76.45

Horn for a compression driver with 1 inch throat.

  • Throat diameter = 1 inch
  • nominal angle (HxV) = 100x10 Deg
  • Cut off frequency : 1000 Hz
  • over all dimensions (HxWxD) = 101 x 87 x 130 mm
  • net weight = 0,4 kg
PDF data sheet

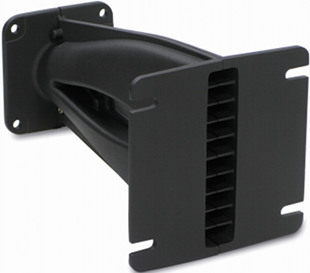

Eighteen Sound XG 14

order no. 18s-xg14

EUR 88,02 excl. VAT: € 73.97 / $ 79.88

Horn for a compression driver with 1,4 inch throat.

  • Throat diameter = 1,4 inch
  • nominal angle (HxV) = 100x10 Deg
  • Cut off frequency : 800 Hz
  • over all dimensions (HxWxD) = 126 x 133 x 215 mm
  • net weight = 1 kg
PDF data sheet




Mids

Eighteen Sound 8 M 400
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,8 L volume
from 265/167 Hz (-3dB/-8dB)

recommended cabinet 2:
4,7 L volume bass reflex cabinet
with HP70 reflex tube, 8 cm long.
from 153/116 Hz (-3dB/-8dB).

Eighteen Sound 8 M 400

order no. 18s-8m400

EUR 132,57 excl. VAT: € 111.40 / $ 120.32

20 cm midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 250/320 W
  • frequency range = 120-6100 Hz
  • resonance frequency fs = 90 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 100,5 dB (2,83V; 1m)
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 12,2 N/A
  • voice coil inductance L = 0,95 mH
  • effective piston radiating area Sd = 227 cm2
  • effective mechanical mass incl. air load mms = 14 g
  • equivalent volume of compliance Vas = 16,2 l
  • total Q factor Qts = 0,27 (Qms=6,2, Qes=0,28)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 186 mm
  • overall diameter d = 210 mm
  • mounting depth (not countersunk) t = 105,5 mm
  • mass m = 4,5 kg
PDF data sheet

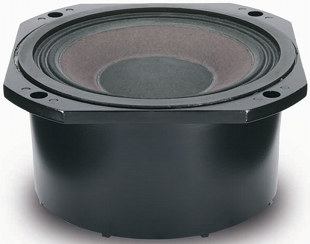

Eighteen Sound 8 NM 610

order no. 18s-8nm610

EUR 566,60 excl. VAT: € 476.13 / $ 514.23

22 cm midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 400/600 W
  • frequency range = 400-5000 Hz
  • impedance R = 8 Ohm
  • effective piston radiating area Sd = 220 cm2
  • voice coil diameter = 75 mm
  • mounting diameter d = 192 mm
  • overall diameter d = 240 mm
  • mass m = 3,9 kg
PDF data sheet

Eighteen Sound 8 NM 610, 16 Ohm
open a bigger photo

recommended cabinet 1:
closed cabinet with 0,11 L volume
from 928/586 Hz (-3dB/-8dB)

recommended cabinet 2:
0,24 L volume bass reflex cabinet
with HP70 reflex tube, 16 cm long.
from 584/435 Hz (-3dB/-8dB).

Eighteen Sound 8 NM 610, 16 Ohm

order no. 18s-8nm610-16

EUR 479,50 excl. VAT: € 402.94 / $ 435.18

22 cm midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 400/600 W
  • frequency range = 400-5000 Hz
  • resonance frequency fs = 259 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 104 dB (2,83V; 1m)
  • DC resistance Re = 10 Ohm
  • force factor BL = 31 N/A
  • voice coil inductance L = 0,5 mH
  • effective piston radiating area Sd = 220 cm2
  • effective mechanical mass incl. air load mms = 17 g
  • equivalent volume of compliance Vas = 1,6 l
  • total Q factor Qts = 0,23 (Qms=1,2, Qes=0,28)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 192 mm
  • overall diameter d = 240 mm
  • mounting depth (not countersunk) t = 113 mm
  • mass m = 3,9 kg
PDF data sheet

The cabinet volume calculations are executed considering an external resistance of 0.3 Ohm. We are using, if no other data is known or available, the information supplied by the manufacturer.

Please note: the frequency response doesn't say much about the cut-off frequency inside the cabinet! Therefore, we mostly give you 2 examples with dimensioning considerations and an indication, how low the loudspeaker will reproduce.

Home

© Copyright (c) Daniel Gattig, 2023; All rights reserved. - errors and omissions excepted
