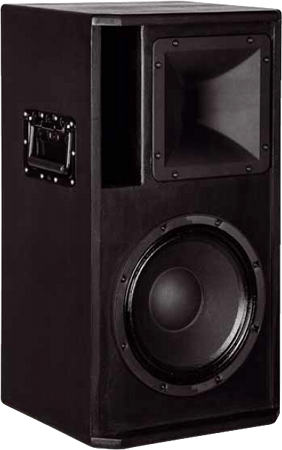

Visaton PA 110 H   Shelf speaker as in K+T 6/2018

Technical data
  • impedance: 8 Ohm
  • sensivity (2,83V/1m): 92 dB
  • size (HxWxD): 610 x 330 x 275 mm
  • frequency range (-8dB): 55 - 19000 Hz
  • crossover frequency(s): 1600 Hz
  • speaker type: bass reflex

Visaton PA 110 H is a two way compact speaker. For this we recommend the subwoofer Visaton Sub PA 240.

Visaton PA 110 H is a bass-reflex cabinet loudspeaker with drivers of Visaton .

The kit is delivered with the following drivers:
- a Visaton DR 45 H mit HT 21 tweeter
- a Visaton PAW 25 woofer

The loudspeaker has been developed by Visaton.

The crossover consists of:
- a 2nd order high-pass filter (12 dB per octave slope) for the tweeter.
- a 2nd order low-pass filter (12 dB per octave slope) for the woofer.

The frequency response of this speaker is nearly linear.

The decay spectrum is perfect.

At low volume, i.e. 85 dB at 1 m, the nonlinear distortions are below 1% above 200 Hz and doesn't exceed 2% at 95 dB at 1 m between 300 and 15000 Hz.

Conclusion of the magazine Klang+Ton:

Our kit consists of

  • Visaton DR 45 N.8 Ohm
  • Visaton HT 21
  • Visaton woofer PAW 25, 8 Ohm
  • Damping Sonofil 100 x 35 cm for 20 litres
  • Terminal T105 Au, with brass, gold plated
  • 2m Speaker cable 2x1.5 mm2, transparent
  • 0,5x Pan screws 3.5x17 black, 8 pieces
  • 2x Allen wood screws, black, 5x30 mm, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • Audaphon MKT CAP 2.2 μF / 160 Vdc
  • Audaphon MKT CAP 15 μF / 160 Vdc
  • 1.0 mm air core coil, 0.47 mH/0.32 Ohm
  • 1.3 mm air core coil, 2.2 mH/0.48 Ohm
  • Metal-oxide resistor, 10W 2.2 Ohm (red-red-gold)
  • Metal-oxide resistor, 10W 22 Ohm (red-red-black)

Kit without cabinet, price per speaker   EUR 711,00 excl. VAT: € 597.48 / $ 645.28

Kit with high-end crossover

The high-end kit is delivered with baked varnish air core coils for minimizing microphonic effects. - The current flow through the coil creates a magnetic field which sets the reel of wire in motion. This motion induces a voltage in the coil which adds itself to the signal. The stiffer the reel of wire is, the less the signal will be altered. The capacitors for the tweeter are of type polypropylen (MKP) Clarity-Cap CSA 630.

Kit with high-end-crossover without cabinet, price per speaker   EUR 752,00 excl. VAT: € 631.93 / $ 682.49

Impedance correction

If you want to use a valve amplifier with this speaker an impedance correction should be employed. In this case the component quality is less important; therefore, we offer only one kit (upon request higher quality components are available).


Price per impedance correction for one speaker, to be mounted on a small wooden board.     EUR 13,70 excl. VAT: € 11.51 / $ 12.43

universal PCB

If you prefer to mount the crossover components on a universal PCB instead on wood
PCB 150x115 mm, tin plated, price per unit:   EUR 4,70 excl. VAT: € 3.95 / $ 4.27
We recommend one board per kit (2 boards per speaker pair)
