PCB's

Universal PCBs or grid PCBs are suitable for mounting crossovers.


Universal PCB, small

PCB's, Universal PCB, small
Enlarge

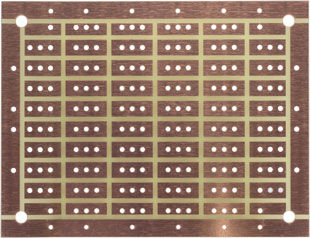

Epoxy glass fibre laminate PCB 150 x 115 mm with 35 um Cu layer.

Available with spacer:, Price   (Order No. "I-2754") EUR 5,70 excl. VAT: € 4.79 / $ 5.22

without accessories:, Price   (Order No. "I-8805017") EUR 4,70 excl. VAT: € 3.95 / $ 4.31

Spacer for PCBs, Price for 100 pcs   (Order No. "I-7354") EUR 10,40 excl. VAT: € 8.74 / $ 9.53

Fitting connecting terminals for assembly

Universal PCB, small, Fitting connecting terminals for assembly
Enlarge

2- and 4-pin terminal block for PCB mount, terminal body: black GRP compound, terminal: gold plated brass, terminal distance 10 mm, for wire up to 4 mm² diameter.

Price per unit   (Order No. "str-klm-2") - not available 2-pin

Price per unit   (Order No. "str-klm-4") - not available 4-pin

Universal PCB, large

Universal PCB, large, Fitting connecting terminals for assembly
Enlarge

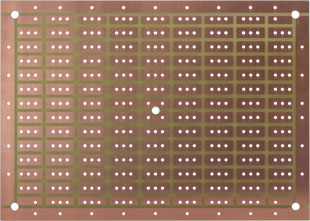

Epoxy glass fibre laminate PCB 220 x 155 mm with 35 um Cu layer.

with spacer, Price   (Order No. "I-2755") EUR 12,90 excl. VAT: € 10.84 / $ 11.82

without spacer, Price   (Order No. "I-8805002") EUR 11,80 excl. VAT: € 9.92 / $ 10.81

Spacer for PCBs, Price for 100 pcs   (Order No. "I-7354") EUR 10,40 excl. VAT: € 8.74 / $ 9.53

Fitting connecting terminals for assembly

Universal PCB, large, Fitting connecting terminals for assembly
Enlarge

2- and 4-pin terminal block for PCB mount, terminal body: black GRP compound, terminal: gold plated brass, terminal distance 10 mm, for wire up to 4 mm² diameter.

Price per unit   (Order No. "str-klm-2") - not available 2-pin

Price per unit   (Order No. "str-klm-4") - not available 4-pin


Grid PCB's

Grid PCB's, Fitting connecting terminals for assembly
Enlarge

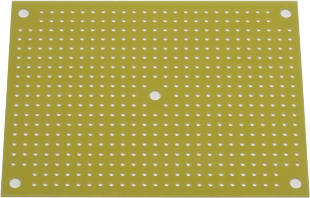

If you do not wish a PCB with copper conductors, grid PCB's made of epoxy glass fibre laminate are also available. The components are placed on one side and connected on the other.

These PCB come in different sizes, however, all of them have a grid spacing of 5 mm.

Grid PCB's with spacers

RA140, 140 x 102 mm, Price   (Order No. "str-RA140") EUR 4,20 excl. VAT: € 3.53 / $ 3.85

RA160, 159 x 127 mm, Price   (Order No. "str-RA160") EUR 5,90 excl. VAT: € 4.96 / $ 5.40

RA 240, 240 x 165 mm, Price   (Order No. "str-RA240") EUR 8,60 excl. VAT: € 7.23 / $ 7.88

Grid PCB's without spacers

RA140, 140 x 102 mm, Price   (Order No. "I-2765") EUR 3,70 excl. VAT: € 3.11 / $ 3.39

RA160, 159 x 127 mm, Price   (Order No. "I-2766") EUR 5,10 excl. VAT: € 4.29 / $ 4.67

RA 240, 240 x 165 mm, Price   (Order No. "I-2767") EUR 7,60 excl. VAT: € 6.39 / $ 6.96

Spacer for PCBs, Price for 100 pcs   (Order No. "I-7354") EUR 10,40 excl. VAT: € 8.74 / $ 9.53

Fitting connecting terminals for assembly

Grid PCB's, Fitting connecting terminals for assembly
Enlarge

2- and 4-pin terminal block for PCB mount, terminal body: black GRP compound, terminal: gold plated brass, terminal distance 10 mm, for wire up to 4 mm² diameter.

Price per unit   (Order No. "str-klm-2") - not available 2-pin

Price per unit   (Order No. "str-klm-4") - not available 4-pin

Terminal block, small

Grid PCB's, Terminal block, small
Enlarge

2- and 4-pin terminal block for PCB mount, terminal body: blue compound, terminal distance 5 mm, for wire up to 2.5 mm² diameter.

Price per unit   (Order No. "str-klk-2") - not available 2-pin

Price per unit   (Order No. "str-klk-4") - not available 4-pin
