Vienne   Floorstanding as in K+T 4/2024

Technical data
  • impedance: 6 Ohm
  • sensivity (2,83V/1m): 85 dB
  • size (HxWxD): 1050 x 220 x 240 mm
  • frequency range (-8dB): 33 - 32000 Hz
  • crossover frequency(s): 1100 Hz
  • speaker type: bass reflex
Enlarge

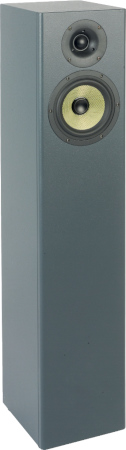

Vienne is a two way floorstanding speaker.

Vienne is a bass-reflex cabinet loudspeaker with drivers of Wavecor .

The kit is delivered with the following drivers:
- a Wavecor TW030WA12 tweeter
- a Wavecor WF182BD14 woofer

The loudspeaker has been developed by Daniel Gattig and Dennis Frank.

The crossover consists of:
- a 3rd order high-pass filter (18 dB per octave slope) for the tweeter.
- a 3rd order low-pass filter (18 dB per octave slope) for the woofer.

The frequency response of this speaker is perfectly linear.

The decay spectrum is perfect.

At low volume, i.e. 85 dB at 1 m, the nonlinear distortions are below 0,5% above 300 Hz and doesn't exceed 0,7% at 95 dB at 1 m between 300 and 15000 Hz.

An excerpt from the Klang+Ton review (Translation of the author into English)

Conclusion of the magazine Klang+Ton:

Our kit consists of

  • Wavecor silk dome tweeter TW030WA12, 8 Ohm
  • Wavecor Mid/Woofer WF182BD14 kevlar / carbon, die cast, 8 Ohm
  • Bass reflex tube HP50, 50x143mm, black
  • Damping fleece MT Bondum 800 (30 x 50 x 2 cm)
  • 1,5x Damping Sonofil 100 x 35 cm for 20 litres
  • Binding Post PK28 I, gold plated (one pair, red and black)
  • 3m Speaker cable 2x1.5 mm2, transparent
  • Pan screws 3.5x17 black, torx, 8 pieces
  • 0,5x Pan screws 4x20 black, torx, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • Audaphon MKP CAP Superior 1.0 μF / 400 Vdc
  • Audaphon MKP CAP Superior 5.6 μF / 400 Vdc
  • Audaphon MKP CAP Superior 15 μF / 400 Vdc
  • Audaphon MKT CAP 33 μF / 160 Vdc
  • Mundorf air core coil L140, 0.47 mH/0.19 Ohm
  • 1.0 mm air core coil, 1.5 mH/0.63 Ohm
  • Audaphon M core coil M12, 3.3 mH/0.27 0hm
  • Metal-oxide resistor, 10W 8.2 Ohm (grey-red-gold)
  • Metal-oxide resistor, 10W 22 Ohm (red-red-black)

Kit without cabinet, price per speaker   EUR 477,00 excl. VAT: € 400.84 / $ 436.92

Kit with high-end crossover

The high-end kit is delivered with baked varnish air core coils on important parts of the crossover for minimizing microphonic effects. - The current flow through the coil creates a magnetic field which sets the reel of wire in motion. This motion induces a voltage in the coil which adds itself to the signal. The stiffer the reel of wire is, the less the signal will be altered. The capacitors for the Wavecor TW030WA12 are of type polypropylen (MKP) Clarity-Cap CSA 630 V.

  • ClarityCap PWA capacitor 33 μF / 160 Vdc
  • ClarityCap CSA capacitor 5.6 μF / 630 Vdc
  • ClarityCap CSA capacitor 15 μF / 630 Vdc
  • ClarityCap ESA capacitor 1 μF / 250 Vdc
  • Mundorf baked varnish air core coil BL100, 1.5 mH/0.62 Ohm
  • Mundorf baked varnish air core coil BL140, 0.47 mH/0.19 Ohm
  • Mundorf H core baked varnish coil BH100, 3.3 mH/0.26 0hm
  • Metal-oxide resistor, 10W 8.2 Ohm (grey-red-gold)
  • Metal-oxide resistor, 10W 22 Ohm (red-red-black)

Kit with high-end-crossover without cabinet, price per speaker   EUR 558,00 excl. VAT: € 468.91 / $ 511.11

Impedance correction

If you want to use a valve amplifier with this speaker an impedance correction should be employed. In this case the component quality is less important; therefore, we offer only one kit (upon request higher quality components are available).

  • Audaphon MKT CAP 15 μF / 160 Vdc
  • 0.7 mm air core coil, 1.2 mH/1.08 Ohm
  • ceramic resistor 15 Ohm/20 Watt

Price per impedance correction for one speaker, to be mounted on a small wooden board.     EUR 17,30 excl. VAT: € 14.54 / $ 15.85

universal PCB

If you prefer to mount the crossover components on a universal PCB instead on wood
PCB 150x115 mm, tin plated, price per unit:   EUR 4,70 excl. VAT: € 3.95 / $ 4.31
We recommend one board per kit (2 boards per speaker pair)

Measurements

measurmentsMeasurements on this speaker
