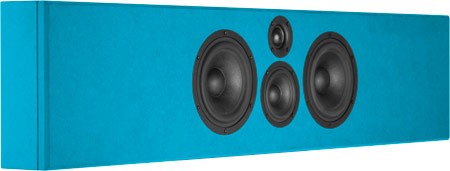

Seine   wall-mounted speaker as in K+T 3/2020

Technical data
  • impedance: 4 Ohm
  • sensivity (2,83V/1m): 87 dB
  • size (HxWxD): 260 x 1200 x 100 mm
  • frequency range (-8dB): 38 - 33000 Hz
  • crossover frequency(s): 220, 1700 Hz
  • speaker type: closed box
Enlarge

Seine is a three way wall-mounted speaker, which is particularly suitable as a center.

Seine is a closed-cabinet loudspeaker with drivers of Wavecor .

The kit is delivered with the following drivers:
- a Wavecor TW030WA14 tweeter
- a Wavecor WF120BD05 mids driver
- two Wavecor WF182BD10 woofers

The loudspeaker has been developed by Dennis Frank and Daniel Gattig.

The crossover consists of:
- a 3rd order high-pass filter (18 dB per octave slope) for the tweeter.
- a band pass consisting of a first order high pass filter (6 dB per octave slope) and a 3rd order low-pass filter (18 dB per octave slope) for the mids-woofer.
- a 2nd order low-pass filter (12 dB per octave slope) for the woofer.

The frequency response of this speaker is perfectly linear.

The decay spectrum as shown in the waterfall diagram is exemplary, free of any disturbing resonance.

At low volume, i.e. 85 dB at 1 m, the nonlinear distortions are below 0.4% above 300 Hz and doesn't exceed 1.1% at 95 dB at 1 m between 300 and 13000 Hz.

Our kit consists of

  • Wavecor silk dome tweeter TW030WA14, 8 Ohm
  • Wavecor Mid/Woofer WF120BD05 glass fiber, die cast, 4 Ohm
  • 2x Wavecor Mid/Woofer WF182BD10 glass fiber, die cast, 8 Ohm
  • 0,5x Damping fleece MT Bondum 800 (30 x 50 x 2 cm)
  • Damping Sonofil 100 x 35 cm for 20 litres
  • Female banana jacks, red and black
  • 2m Speaker cable 2x1.5 mm2 black/red
  • 2x Pan screws 3.5x17 black, torx, 8 pieces
  • 0,5x Pan screws 4x20 black, torx, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • ClarityCap PWA capacitor 24 μF / 160 Vdc
  • 2x ClarityCap PWA capacitor 47 μF / 160 Vdc
  • Audaphon MKP CAP Superior 8.2 μF / 400 Vdc
  • Audaphon MKP CAP Superior 15 μF / 400 Vdc
  • Audaphon MKT CAP 33 μF / 160 Vdc
  • Mundorf, electrolytic capacitor, etched, 100 μF/100 Vdc
  • 3x Mundorf, electrolytic capacitor, etched, 470 μF/63 Vdc
  • Mundorf air core coil L140, 0.27 mH/0.13 Ohm
  • 1.4 mm air core coil, 0.82 mH/0.26 Ohm
  • 0.7 mm air core coil, 0.39 mH/0.49 Ohm
  • Mundorf bs140 core coil 6.8 mH/0.3Ohm
  • Mundorf H core coil H100, 3.3 mH/0.27 0hm
  • Mundorf H core coil H100, 4.7 mH/0.34 0hm
  • ceramic resistor 3.3 Ohm/20 Watt
  • 4x ceramic resistor 10 Ohm/20 Watt
  • Metal-oxide resistor, 10W 2.7 Ohm (red-purple-gold)
  • Metal-oxide resistor, 10W 15 Ohm (brown-green-black)

Kit without cabinet, price per speaker   EUR 973,00 excl. VAT: € 817.65 / $ 883.06

Price for a pair of custom speakers of any color   EUR 1983,00 excl. VAT: € 1666.39 / $ 1799.70

Kit with high-end crossover

The high-end kit is delivered with baked varnish air core coils for minimizing microphonic effects. - The current flow through the coil creates a magnetic field which sets the reel of wire in motion. This motion induces a voltage in the coil which adds itself to the signal. The stiffer the reel of wire is, the less the signal will be altered. The capacitors for the Wavecor TE030WA14 are of type polypropylen (MKP) Clarity-Cap ESA 250 V.

  • ClarityCap PWA capacitor 24 μF / 160 Vdc
  • 2x ClarityCap PWA capacitor 47 μF / 160 Vdc
  • ClarityCap ESA capacitor 8.2 μF / 250 Vdc
  • ClarityCap ESA capacitor 15 μF / 250 Vdc
  • Audaphon MKT CAP 33 μF / 160 Vdc
  • Mundorf, electrolytic capacitor, etched, 100 μF/100 Vdc
  • 3x Mundorf, electrolytic capacitor, etched, 470 μF/63 Vdc
  • Mundorf baked varnish air core coil BL71, 0.39 mH/0.51 Ohm
  • Mundorf baked varnish air core coil BL140, 0.27 mH/0.14 Ohm
  • Mundorf baked varnish air core coil BL140, 0.82 mH/0.26 Ohm
  • Mundorf bs140 core coil 6.8 mH/0.3Ohm
  • Mundorf H core baked varnish coil BH100, 3.3 mH/0.26 0hm
  • Mundorf H core baked varnish coil BH100, 4.7 mH/0.34 0hm
  • ceramic resistor 3.3 Ohm/20 Watt
  • 4x ceramic resistor 10 Ohm/20 Watt
  • Metal-oxide resistor, 10W 2.7 Ohm (red-purple-gold)
  • Metal-oxide resistor, 10W 15 Ohm (brown-green-black)

Kit with high-end-crossover without cabinet, price per speaker   EUR 1011,00 excl. VAT: € 849.58 / $ 917.55

universal PCB

If you prefer to mount the crossover components on a universal PCB instead on wood
PCB 220x155 mm, order no. I-8805002, price per unit:   EUR 11,80 excl. VAT: € 9.92 / $ 10.71
We recommend one board per kit (2 boards per speaker pair)

Measurements

measurmentsMeasurements on this speaker

Pictures

PhotosPictures of this loudspeaker
