Omnes Audio Power Punk   Floorstanding as in K+T 3/2020

Technical data
  • impedance: 6 Ohm
  • sensivity (2,83V/1m): 91 dB
  • size (HxWxD): 1397 x 530 x 320 mm
  • frequency range (-8dB): 30 - 19000 Hz
  • crossover frequency(s): Hz
  • speaker type: dipol

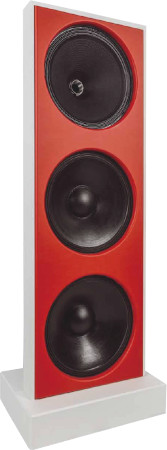

Power Punk is a three way floorstanding speaker.

Power Punk is a dipole loudspeaker with drivers of Omnes Audio .

The kit is delivered with the following drivers:
- a Omnes Audio CX15 coaxial driver
- two Omnes Audio OBW15PA woofers

The loudspeaker has been developed by Baur Akustik.

The crossover consists of:
- a 2nd order high-pass filter (12 dB per octave slope) for the coax-tweeter.
- a band pass consisting of a 2nd order high pass filter (12 dB per octave slope) and a 2nd order low-pass filter (12 dB per octave slope) for the coax-mids-woofer.
- a 2nd order low-pass filter (12 dB per octave slope) for the woofer.

The frequency response of this speaker is mostly linear.

The decay spectrum (waterfall spectrum) shows a decelerated swing-out behaviour in the mid-range.

At low volume, i.e. 85 dB at 1 m, the nonlinear distortions are below 1,4% above 300 Hz and doesn't exceed 4,5% at 95 dB at 1 m between 300 and 15000 Hz.

Our kit consists of

  • 2x Omnes Audio OBW15PA
  • Omnes Audio CX15
  • Binding Post PK31, gold plated (one pair, red and black)
  • 4m Speaker cable 2x1.5 mm2, transparent
  • 3x Pan screws 4x20 black, torx, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • ClarityCap PWA capacitor 22 μF; / 160 Vdc
  • ClarityCap PWA capacitor 47 μF; / 250 Vdc
  • Audaphon MKP CAP Superior 2.2 μF; / 400 Vdc
  • Audaphon MKP CAP Superior 3.3 μF; / 400 Vdc
  • Mundorf, electrolytic capacitor, unetched, 100μF / 50 Vdc
  • Mundorf air core coil L50, 1.2 mH/1.62 0hm
  • Mundorf air core coil L140, 1.0 mH/0.30 Ohm
  • Mundorf air core coil L140, 4.7 mH/0.77 Ohm
  • 0.7 mm air core coil, 0.33 mH/0.48 Ohm
  • 0.7 mm air core coil, 0.56 mH/0.64 Ohm
  • Mundorf ferrite core coil F50 8.2mH/3.14Ohm
  • ceramic resistor 2.7 Ohm/20 Watt
  • ceramic resistor 3.3 Ohm/20 Watt
  • 2x ceramic resistor 10 Ohm/20 Watt
  • ceramic resistor 15 Ohm/20 Watt
  • Metal-oxide resistor, 10W 1.8 Ohm (brown-grey-gold)

Kit without cabinet, price per speaker   - not available

Kit with high-end crossover

The high-end kit is delivered with baked varnish air core coils on important parts of the crossover for minimizing microphonic effects. - The current flow through the coil creates a magnetic field which sets the reel of wire in motion. This motion induces a voltage in the coil which adds itself to the signal. The stiffer the reel of wire is, the less the signal will be altered. The capacitors for the Omnes Audio CX15 are of type polypropylen (MKP) Clarity-Cap CSA 630 V.

  • ClarityCap PWA capacitor 22 μF; / 160 Vdc
  • ClarityCap PWA capacitor 47 μF; / 400 Vdc
  • ClarityCap CSA capacitor 3.3 μF; / 630 Vdc
  • Audaphon MKP CAP Superior 2.2 μF; / 400 Vdc
  • Audaphon MKT CAP 100 μF; / 160 Vdc
  • Mundorf baked varnish air core coil BL71, 0.33 mH/0.48 Ohm
  • Mundorf baked varnish air core coil BL71, 0.56 mH/0.64 Ohm
  • Mundorf baked varnish air core coil BL140, 1.0 mH/0.30 Ohm
  • Mundorf baked varnish air core coil BL140, 4.7 mH/0.83 Ohm
  • Mundorf air core coil L50, 1.2 mH/1.62 0hm
  • Mundorf ferrite core coil F50 8.2mH/3.14Ohm
  • ceramic resistor 2.7 Ohm/20 Watt
  • ceramic resistor 3.3 Ohm/20 Watt
  • 2x ceramic resistor 10 Ohm/20 Watt
  • ceramic resistor 15 Ohm/20 Watt
  • Metal-oxide resistor, 10W 1.8 Ohm (brown-grey-gold)

Kit with high-end-crossover without cabinet, price per speaker   - not available

Impedance correction

If you want to use a valve amplifier with this speaker an impedance correction should be employed. In this case the component quality is less important; therefore, we offer only one kit (upon request higher quality components are available).

  • Audaphon MKT CAP 3.9 μF; / 160 Vdc
  • 0.7 mm air core coil, 0.68 mH/0.70 Ohm
  • ceramic resistor 5.6 Ohm/20 Watt

Price per impedance correction for one speaker, to be mounted on a small wooden board.     EUR 8,10 excl. VAT: € 6.81 / $ 7.35

universal PCB

If you prefer to mount the crossover components on a 240 x 165 mm universal PCB instead on wood:
Universal PCB RA240, order no.. str-RA240, price per unit:   EUR 8,60 excl. VAT: € 7.23 / $ 7.81
We recommend one board per kit (two boards for a speaker pair)
