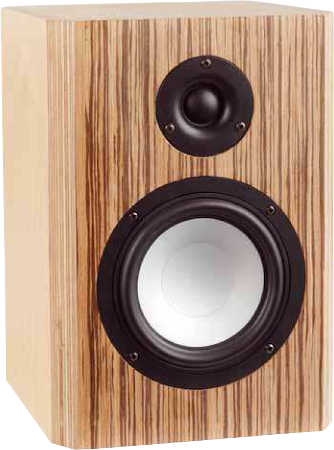

Omnes Audio Spirit 5.1   Shelf speaker as in K+T 6/2020

Technical data
  • impedance: 4 Ohm
  • sensivity (2,83V/1m): 85 dB
  • size (HxWxD): 300 x 210 x 230 mm
  • frequency range (-8dB): 55 - 30000 Hz
  • crossover frequency(s): Hz
  • speaker type: bass reflex

Omnes Audio Spirit 5.1 is a two way compact speaker.

Omnes Audio Spirit 5.1 is a bass-reflex cabinet loudspeaker with drivers of Omnes Audio .

The kit is delivered with the following drivers:
- a Omnes Audio T 25 H tweeter
- a Omnes Audio MW 5 Alu midrange / bass driver

The loudspeaker has been developed by Baur Akustik.

The crossover consists of:
- a 2nd order high-pass filter (12 dB per octave slope) for the tweeter.
- a 2nd order low-pass filter (12 dB per octave slope) for the woofer.

The frequency response of this speaker is nearly linear.

The decay spectrum is nearly perfect.

At low volume, i.e. 85 dB at 1 m, the nonlinear distortions are below 0.5% above 300 Hz and doesn't exceed 1.4% at 95 dB at 1 m between 300 and 15000 Hz.

Our kit consists of

  • Omnes Audio T25 H
  • Omnes Audio MW 5.0 Alu
  • Bass reflex tube HP50, 50x143mm, black
  • 0,5x PE sealing tape, 5x2 mm, 7.5 m
  • Damping Sonofil 100 x 35 cm for 20 litres
  • Terminal T105 Au, with brass, gold plated
  • 1,5m Speaker cable 2x1.5 mm2, transparent
  • 1,5x Pan screws 3.5x17 black, torx, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • Audaphon MKP CAP Superior 22 μF; / 400 Vdc
  • JB, electrolytic capacitor, bipolar advanced, 68μF / 50 Vdc
  • Mundorf air core coil L50, 0.47 mH/0.93 0hm
  • 1.0 mm air core coil, 1.8 mH/0.7 Ohm
  • Metal-oxide resistor, 10W 3.3 Ohm (orange-orange-gold)
  • Metal-oxide resistor, 10W 4.7 Ohm (yellow-violet-gold)

Kit without cabinet, price per speaker   EUR 81,30 excl. VAT: € 68.32 / $ 73.78

Kit with high-end crossover

The high-end kit is delivered with baked varnish air core coils on important parts of the crossover for minimizing microphonic effects. - The current flow through the coil creates a magnetic field which sets the reel of wire in motion. This motion induces a voltage in the coil which adds itself to the signal. The stiffer the reel of wire is, the less the signal will be altered. The capacitors for the Omnes Audio T 25 H are of type polypropylen (MKP) Clarity-Cap ESA 250 V.

  • ClarityCap ESA capacitor 22 μF; / 250 Vdc
  • Audaphon MKT CAP 68 μF; / 160 Vdc
  • Mundorf baked varnish air core coil BL100, 1.8 mH/0.70 Ohm
  • Mundorf air core coil L50, 0.47 mH/0.93 0hm
  • Metal-oxide resistor, 10W 3.3 Ohm (orange-orange-gold)
  • Metal-oxide resistor, 10W 4.7 Ohm (yellow-violet-gold)

Kit with high-end-crossover without cabinet, price per speaker   EUR 147,00 excl. VAT: € 123.53 / $ 133.41

Impedance correction

If you want to use a valve amplifier with this speaker an impedance correction should be employed. In this case the component quality is less important; therefore, we offer only one kit (upon request higher quality components are available).

  • JB, electrolytic capacitor, bipolar advanced, 22μF / 50 Vdc
  • 0.7 mm air core coil, 1.8 mH/1.15 Ohm
  • ceramic resistor 8.2 Ohm/20 Watt

Price per impedance correction for one speaker, to be mounted on a small wooden board.     EUR 15,90 excl. VAT: € 13.36 / $ 14.43

universal PCB

If you prefer to mount the crossover components on a 140 x 102 mm universal PCB instead on wood:
Universal PCB RA140, order no.. str-RA140, price per unit:   EUR 4,20 excl. VAT: € 3.53 / $ 3.81
We recommend one board per kit (two boards for a speaker pair)
