Omnes Audio Base 3.AL (CT 312)   Shelf speaker as in K+T 6/2020

Technical data
  • impedance: 8 Ohm
  • sensivity (2,83V/1m): 80 dB
  • size (HxWxD): 230 x 132 x 180 mm
  • frequency range (-8dB): 70 - 18000 Hz
  • crossover frequency(s): Hz
  • speaker type: bass reflex

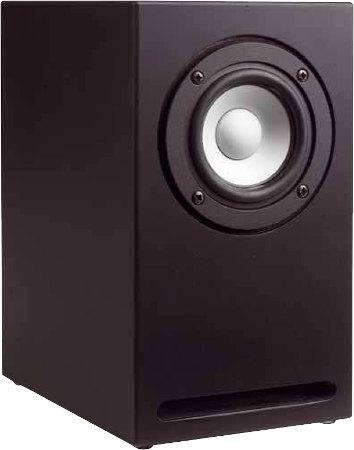

Omnes Audio Base 3.AL is a compact loudspeaker with a full range driver.

Omnes Audio Base 3.AL is a bass-reflex cabinet loudspeaker with drivers of Omnes Audio .

The kit is delivered with a Omnes Audio BB 3.AL full range driver

The loudspeaker has been developed by Baur Akustik.

The crossover consists of:
- a blocking circuit in series with the full range driver.

The frequency response of this speaker is nearly linear. There are some resonances in the mids.

The decay spectrum is nearly perfect. In the middle frequencies there are some resonances.

At low volume, i.e. 85 dB at 1 m, the nonlinear distortions are below 0,4% above 300 Hz and doesn't exceed 0,7% at 95 dB at 1 m between 300 and 15000 Hz.

Our kit consists of

  • Omnes Audio, full range BB3 AL
  • Damping fleece MT Bondum 800 (30 x 50 x 2 cm)
  • Binding Post PK31, gold plated (one pair, red and black)
  • 1m Speaker cable 2x1.5 mm2, transparent
  • 0,5x Pan screws 3.5x17 black, torx, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • Audaphon MKT CAP 15 μF; / 160 Vdc
  • 0.7 mm air core coil, 0.22 mH/0.34 Ohm
  • Metal-oxide resistor, 10W 3.9 Ohm (orange-white-gold)

Kit without cabinet, price per speaker   EUR 67,60 excl. VAT: € 56.81 / $ 61.35

Kit with high-end crossover

The high-end kit is delivered with baked varnish air core coils for minimizing microphonic effects. - The current flow through the coil creates a magnetic field which sets the reel of wire in motion. This motion induces a voltage in the coil which adds itself to the signal. The stiffer the reel of wire is, the less the signal will be altered. The capacitors for the Omnes Audio BB 3.AL are of type polypropylen (MKP) Audaphon 400 V.

  • Audaphon MKP CAP Superior 15 μF; / 400 Vdc
  • Mundorf baked varnish air core coil BL71, 0.22 mH/0.34 Ohm
  • Metal-oxide resistor, 10W 3.9 Ohm (orange-white-gold)

Kit with high-end-crossover without cabinet, price per speaker   EUR 73,00 excl. VAT: € 61.34 / $ 66.25

universal PCB

If you prefer to mount the crossover components on a 140 x 102 mm universal PCB instead on wood:
Universal PCB RA140, order no.. str-RA140, price per unit:   EUR 4,20 excl. VAT: € 3.53 / $ 3.81
We recommend one board per kit (two boards for a speaker pair)
