NEO Kyma   Shelf speaker as in K+T 3/2024

Technical data
  • impedance: 4 Ohm
  • sensivity (2,83V/1m): 87 dB
  • size (HxWxD): 300 x 176 x 222 mm
  • frequency range (-8dB): 65 - 38000 Hz
  • crossover frequency(s): 1400 Hz
  • speaker type: bass reflex
Enlarge

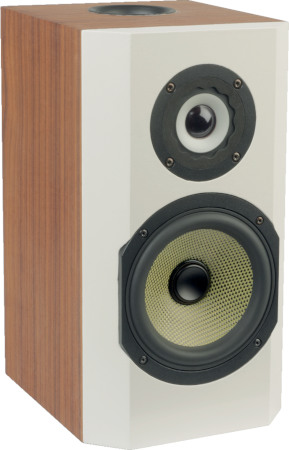

NEO Kyma is a two way compact speaker.

NEO Kyma is a bass-reflex cabinet loudspeaker with drivers of Wavecor .

The kit is delivered with the following drivers:
- a Wavecor TW045WA01 tweeter
- a Wavecor WF152BD11 woofer

The loudspeaker has been developed by David Hahn.

The crossover consists of:
- a 3rd order high-pass filter (18 dB per octave slope) for the tweeter.
- a 2nd order low-pass filter (12 dB per octave slope) for the woofer.

The frequency response of this speaker is perfectly linear.

The decay spectrum is nearly perfect.

At low volume, i.e. 85 dB at 1 m, the nonlinear distortions are below 0,5% above 300 Hz and doesn't exceed 1,5% at 95 dB at 1 m between 300 and 15000 Hz.

An excerpt from the Klang+Ton review (Translation of the author into English)

Conclusion of the magazine Klang+Ton:

Our kit consists of

  • Wavecor cone assisted dome tweeter TW045WA01, 4 Ohm
  • Wavecor Mid/Woofer WF152BD11, 4 Ohm, die cast, truncated, kevlar/carbon cone
  • Bass reflex tube HP50, 50x143mm, black
  • 0,5x Damping 10, 970 x 470 mm, adhesive
  • 0,5x Damping Sonofil 100 x 35 cm for 20 litres
  • 2x Bitumex board 32.5 x 24.5 cm, 2,5 mm
  • Binding Post PK31, gold plated (one pair, red and black)
  • 2m Speaker cable 2x2.5 mm2, transparent
  • 0,5x Pan screws 3.5x17 black, torx, 8 pieces
  • 0,5x Pan screws 4x20 black, torx, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • Jantzen Cross Cap MKP capacitor 15 μF / 400V
  • Jantzen Cross Cap MKP capacitor 18 μF / 400V
  • Jantzen Cross Cap MKP capacitor 22 μF / 400V
  • 2x Jantzen Cross Cap MKP capacitor 39 μF / 400V
  • Mundorf air core coil L125, 1.0 mH/0.36 Ohm
  • 0.7 mm air core coil, 0.33 mH/0.48 Ohm
  • 0.7 mm air core coil, 0.47 mH/0.50 Ohm
  • 0.7 mm air core coil, 0.68 mH/0.70 Ohm
  • Metal-oxide resistor, 10W 2.2 Ohm (red-red-gold)
  • 2x Metal-oxide resistor, 10W 3.9 Ohm (orange-white-gold)
  • Metal-oxide resistor, 10W 4.7 Ohm (yellow-violet-gold)

Kit without cabinet, price per speaker   EUR 581,00 excl. VAT: € 488.24 / $ 532.18

Kit with high-end crossover

The high-end kit is delivered with baked varnish air core coils on important parts of the crossover for minimizing microphonic effects. - The current flow through the coil creates a magnetic field which sets the reel of wire in motion. This motion induces a voltage in the coil which adds itself to the signal. The stiffer the reel of wire is, the less the signal will be altered. The capacitors for the Wavecor TW045WA01 are of type polypropylen (MKP) Mundorf MCAP EVO Silber Gold Öl 450 V.

  • Mundorf MCAP EVO Oil 39 μF / 350 V
  • Mundorf MCAP EVO Silver Gold Öl 15 μF / 450 V
  • Jantzen Cross Cap MKP capacitor 39 μF / 400V
  • Mundorf MKP capacitor 18 μF / 250 V
  • Mundorf MKP capacitor 22 μF / 250 V
  • Mundorf baked varnish air core coil BL125, 1.0 mH/0.36 Ohm
  • Mundorf baked varnish air core coil BL71, 0.33 mH/0.48 Ohm
  • Mundorf baked varnish air core coil BL71, 0.47 mH/0.57 Ohm
  • Mundorf baked varnish air core coil BL71, 0.68 mH/0.71 Ohm
  • Mresist Classic 2,2 Ohm / 10 Watt
  • 2x Mresist Classic 3,9 Ohm / 10 Watt
  • Mresist Classic 4,7 Ohm / 10 Watt

Kit with high-end-crossover without cabinet, price per speaker   EUR 785,00 excl. VAT: € 659.66 / $ 719.03

universal PCB

If you prefer to mount the crossover components on a universal PCB instead on wood
PCB 150x115 mm, tin plated, price per unit:   EUR 4,70 excl. VAT: € 3.95 / $ 4.31
We recommend one board per kit (2 boards per speaker pair)
