Long Tall Sally Halbiert 2 Wege   Shelf speaker as in Hobby Hifi 6/2019

Technical data
  • impedance: 8 Ohm
  • sensivity (2,83V/1m): 84 dB
  • size (HxWxD): 450 x 158 x 300 mm
  • frequency range (-8dB): 50 - 17000 Hz
  • crossover frequency(s): 4000 Hz
  • speaker type: bass reflex

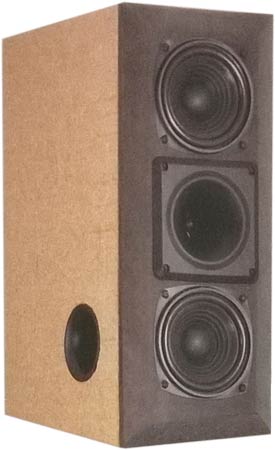

Long Tall Sally Geviertelt is a two way compact speaker.

Long Tall Sally Geviertelt is a bass-reflex cabinet loudspeaker with drivers of Monacor .

The kit is delivered with the following drivers:
- a Monacor MPT-165 tweeter
- two Monacor SP-60/4 woofers

The loudspeaker has been developed by Bernd Timmermanns.

The crossover consists of:
- a 2nd order high-pass filter (12 dB per octave slope) for the tweeter.
- a 2nd order low-pass filter (12 dB per octave slope) for the woofer.

The frequency response of this speaker is nearly linear.

The decay spectrum is nearly perfect.

Our kit consists of

  • 2x Monacor SP-60/4
  • Monacor MPT-165 piezo tweeter
  • 2x Bass reflex tube HP50, 50x145 mm, black
  • 0,5x PE sealing tape, 5x2 mm, 7.5 m
  • 0,25x Damping Sonofil 100 x 35 cm for 20 litres
  • 0,5x Audaphon Damping 10, 970 x 470 mm, adhesive
  • Binding Post PK31, gold plated (one pair, red and black)
  • 1,5m Speaker cable 2x1.5 mm2, transparent
  • 1,5x Pan screws 4x20 black, torx, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • Audaphon MKP CAP Superior 1.0 μF / 400 Vdc
  • electrolytic capacitor, etched, 47 μF/100 Vdc
  • electrolytic capacitor, unetched, 3.9 μF / 70 Vdc
  • 1.0 mm air core coil, 1.2 mH/0.54 Ohm
  • 0.7 mm air core coil, 0.47 mH/0.50 Ohm
  • 0.7 mm air core coil, 0.68 mH/0.70 Ohm
  • Metal-oxide resistor, 5W 8.2 Ohm (grey-red-gold)
  • 2x Metal-oxide resistor, 5W 22 Ohm (red-red-black)

Kit without cabinet, price per speaker   EUR 132,00 excl. VAT: € 110.92 / $ 119.80

In this kit are no plans for the cabinet included. There is only a recomment for the cabinet sizes and the bass reflex port data.

Kit with high-end crossover

The high-end kit is delivered with baked varnish air core coils on important parts of the crossover for minimizing microphonic effects. - The current flow through the coil creates a magnetic field which sets the reel of wire in motion. This motion induces a voltage in the coil which adds itself to the signal. The stiffer the reel of wire is, the less the signal will be altered. The capacitors for the Monacor MPT-165 are of type polypropylen (MKP) Audaphon MKP CAP Superior.

Kit with high-end-crossover without cabinet, price per speaker   EUR 151,00 excl. VAT: € 126.89 / $ 137.04

In this kit are no plans for the cabinet included. There is only a recomment for the cabinet sizes and the bass reflex port data.

universal PCB

If you prefer to mount the crossover components on a 159 x 127 mm universal PCB instead on wood:
Universal PCB RA160, order no.. str-RA160, price per unit:   EUR 5,90 excl. VAT: € 4.96 / $ 5.35
We recommend one board per kit (two boards for a speaker pair)
