CT 294   Floorstanding as in CT, K+T 6/2017

Technical data
  • impedance: 4 Ohm
  • sensivity (2,83V/1m): 84 dB
  • size (HxWxD): 900 x 160 x 206 mm
  • frequency range (-8dB): 31 - 24000 Hz
  • crossover frequency(s): 2300 Hz
  • speaker type: bass reflex

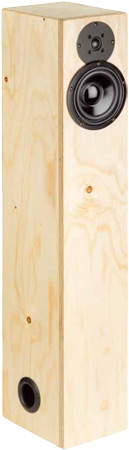

CT294 is a two way floorstanding speaker.

CT294 is a bass-reflex cabinet loudspeaker with drivers of Visaton .

The kit is delivered with the following drivers:
- a Visaton G20 SC tweeter
- a Visaton W130 S4 midrange / bass driver

The loudspeaker has been developed by Holger Barske and Thomas Schmidt.

The crossover consists of:
- a 2nd order high-pass filter (12 dB per octave slope) for the tweeter.
- a 3rd order low-pass filter (18 dB per octave slope) for the mids-woofer.

The frequency response of this speaker is nearly linear.

The decay spectrum (waterfall spectrum) shows a decelerated swing-out behaviour in the mid-range.

At low volume, i.e. 85 dB at 1 m, the nonlinear distortions are below 0,5% above 300 Hz and doesn't exceed 1,5% at 95 dB at 1 m between 300 and 15000 Hz.

Our kit consists of

  • Visaton tweeter G20 SC
  • Visaton W130 S, 4 Ohm
  • Bass reflex tube HP50, 50x143mm, black
  • Damping Sonofil for 20 litres, white
  • 0,25x Foam N25-30, 100 x 50 cm, black
  • Terminal T80AU (80 mm square)
  • 2,5m Speaker cable 2x1.5 mm2, transparent
  • 1,5x Pan screws 4x20 black, cross recess, 8 pieces
  • 5x Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • Audaphon MKT CAP 2.2 μF / 160 Vdc
  • Audaphon MKT CAP 4.7 μF / 160 Vdc
  • Audaphon MKT CAP 10 μF / 160 Vdc
  • 1.0 mm air core coil, 0.22 mH/0.21 Ohm
  • 1.0 mm air core coil, 1.5 mH/0.63 Ohm
  • 0.7 mm air core coil, 0.22 mH/0.34 Ohm
  • Metal-oxide resistor, 10W 1.5 Ohm (brown-green-gold)
  • Metal-oxide resistor, 10W 2.2 Ohm (red-red-gold)

Kit without cabinet, price per speaker   EUR 157,00 excl. VAT: € 131.93 / $ 142.49

Kit with high-end crossover

Kit with high-end-crossover without cabinet, price per speaker   EUR 192,00 excl. VAT: € 161.34 / $ 174.25

universal PCB

If you prefer to mount the crossover components on a 159 x 127 mm universal PCB instead on wood:
Universal PCB RA160, order no.. str-RA160, price per unit:   EUR 5,90 excl. VAT: € 4.96 / $ 5.35
We recommend one board per kit (two boards for a speaker pair)
