Tweeter Mids

Bliesma

To our building proposals with Bliesma drivers.

Tweeter

open a bigger photo

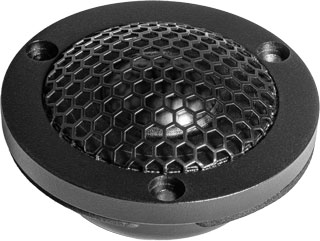

Bliesma T25A-6 (Aluminum-Magnesium Alloy Dome)

open a bigger photo

Bliesma T25A-6 (Aluminum-Magnesium Alloy Dome)

order no. bliesma-t25a-6

EUR 172,55 excl. VAT: € 145.00 / $ 169.65

24 mm dome tweeter with aluminium dome.

frequency range = 1800-35000 Hz
resonance frequency fs = 870 Hz
impedance R = 6 Ohm
sound pressure level SPL = 92 dB (2,83V; 1m)
DC resistance Re = 5,2 Ohm
force factor BL = 2,6 N/A
voice coil inductance L = 0,008 mH
effective piston radiating area Sd = 5,7 cm²
effective mechanical mass incl. air load mms = 0,13 g
total Q factor Qts = 0,51 (Qms=1,35, Qes=0,82)
voice coil diameter = 24 mm
maximum peak linear excursion vibration x_lin = +/- 1 mm
mounting diameter d = 48 mm
overall diameter d = 68 mm
mounting depth (not countersunk) t = 26 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

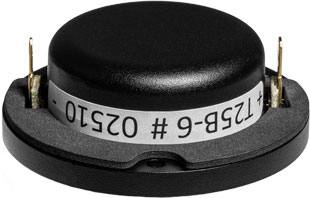

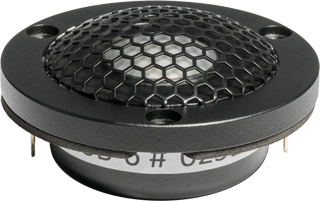

Bliesma T25B-6 (Beryllium Dome)

open a bigger photo

Bliesma T25B-6 (Beryllium Dome)

order no. bliesma-t25b-6

EUR 340,00 excl. VAT: € 285.71 / $ 334.29

24 mm dome tweeter with beryllium dome.

frequency range = 1800-40000 Hz
resonance frequency fs = 870 Hz
impedance R = 6 Ohm
sound pressure level SPL = 93 dB (2,83V; 1m)
DC resistance Re = 5,2 Ohm
force factor BL = 2,6 N/A
voice coil inductance L = 0,008 mH
effective piston radiating area Sd = 5,7 cm²
effective mechanical mass incl. air load mms = 0,11 g
total Q factor Qts = 0,51 (Qms=1,35, Qes=0,82)
voice coil diameter = 24 mm
maximum peak linear excursion vibration x_lin = +/- 1 mm
mounting diameter d = 48 mm
overall diameter d = 68 mm
mounting depth (not countersunk) t = 26 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

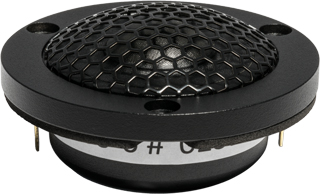

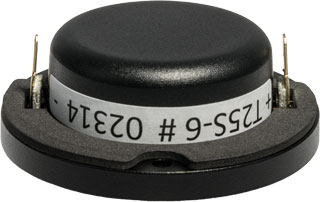

Bliesma T25S-6 (Silk Dome)

open a bigger photo

Bliesma T25S-6 (Silk Dome)

order no. bliesma-t25s-6

EUR 172,55 excl. VAT: € 145.00 / $ 169.65

24 mm dome tweeter with fabric dome.

frequency range = 2200-22000 Hz
resonance frequency fs = 940 Hz
impedance R = 6 Ohm
sound pressure level SPL = 91 dB (2,83V; 1m)
DC resistance Re = 5,2 Ohm
force factor BL = 2,6 N/A
voice coil inductance L = 0,008 mH
effective piston radiating area Sd = 5,7 cm²
effective mechanical mass incl. air load mms = 0,16 g
total Q factor Qts = 0,51 (Qms=1,35, Qes=0,82)
voice coil diameter = 24 mm
maximum peak linear excursion vibration x_lin = +/- 1 mm
mounting diameter d = 48 mm
overall diameter d = 68 mm
mounting depth (not countersunk) t = 23 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

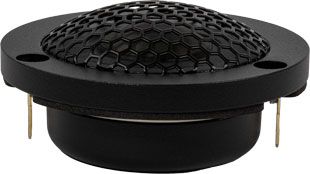

Bliesma T25T-6 (TeXtreme Dome)

open a bigger photo

Bliesma T25T-6 (TeXtreme Dome)

order no. bliesma-t25t-6

EUR 289,00 excl. VAT: € 242.86 / $ 284.14

24 mm dome tweeter with high quality dome.

frequency range = 2200-30000 Hz
resonance frequency fs = 940 Hz
impedance R = 6 Ohm
sound pressure level SPL = 91 dB (2,83V; 1m)
DC resistance Re = 5,2 Ohm
force factor BL = 2,6 N/A
voice coil inductance L = 0,008 mH
effective piston radiating area Sd = 5,7 cm²
effective mechanical mass incl. air load mms = 0,15 g
total Q factor Qts = 0,46 (Qms=1,31, Qes=0,71)
voice coil diameter = 24 mm
maximum peak linear excursion vibration x_lin = +/- 1 mm
mounting diameter d = 48 mm
overall diameter d = 68 mm
mounting depth (not countersunk) t = 23 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

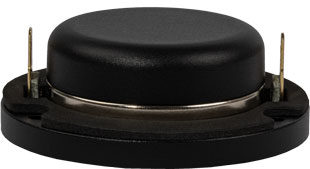

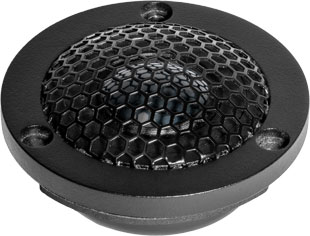

Bliesma T25D-6 (CVD Diamond Dome)

open a bigger photo

Bliesma T25D-6 (CVD Diamond Dome)

order no. bliesma-t25d-6

on request

24 mm dome tweeter with diamond dome.

frequency range = 2200-40000 Hz
resonance frequency fs = 870 Hz
impedance R = 6 Ohm
sound pressure level SPL = 91 dB (2,83V; 1m)
DC resistance Re = 5,2 Ohm
force factor BL = 2,6 N/A
voice coil inductance L = 0,008 mH
effective piston radiating area Sd = 5,7 cm²
effective mechanical mass incl. air load mms = 0,15 g
total Q factor Qts = 0,51 (Qms=1,35, Qes=0,82)
voice coil diameter = 24 mm
maximum peak linear excursion vibration x_lin = +/- 1 mm
mounting diameter d = 48 mm
overall diameter d = 68 mm
mounting depth (not countersunk) t = 23 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

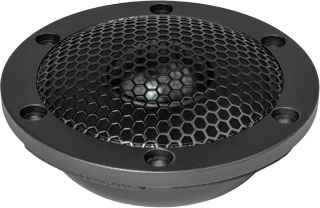

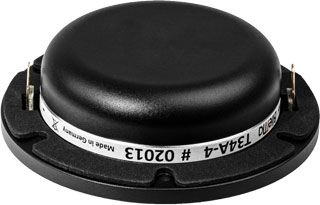

Bliesma T34A-4 (Aluminum-Magnesium Alloy Dome)

open a bigger photo

Bliesma T34A-4 (Aluminum-Magnesium Alloy Dome)

order no. bliesma-t34a-4

EUR 339,00 excl. VAT: € 284.87 / $ 333.30

34 mm dome tweeter with aluminium dome.

frequency range = 1300-35000 Hz
resonance frequency fs = 790 Hz
impedance R = 4 Ohm
sound pressure level SPL = 96 dB (2,83V; 1m)
DC resistance Re = 3,3 Ohm
force factor BL = 3,5 N/A
voice coil inductance L = 0,008 mH
effective piston radiating area Sd = 10,5 cm²
effective mechanical mass incl. air load mms = 0,28 g
total Q factor Qts = 0,35 (Qms=2,1, Qes=0,42)
voice coil diameter = 34 mm
maximum peak linear excursion vibration x_lin = +/- 1,55 mm
mounting diameter d = 78 mm
overall diameter d = 104 mm
mounting depth (not countersunk) t = 29,5 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

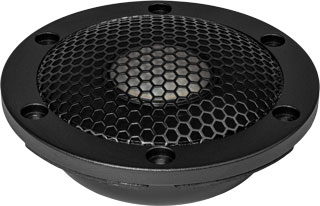

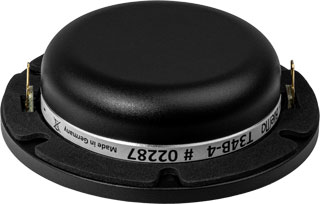

Bliesma T34B-4 (Beryllium Dome)

open a bigger photo

Bliesma T34B-4 (Beryllium Dome)

order no. bliesma-t34b-4

EUR 529,00 excl. VAT: € 444.54 / $ 520.11

34 mm dome tweeter with beryllium dome.

frequency range = 1300-40000 Hz
resonance frequency fs = 800 Hz
impedance R = 4 Ohm
sound pressure level SPL = 97,5 dB (2,83V; 1m)
DC resistance Re = 3,3 Ohm
force factor BL = 3,5 N/A
voice coil inductance L = 0,008 mH
effective piston radiating area Sd = 10,5 cm²
effective mechanical mass incl. air load mms = 0,26 g
total Q factor Qts = 0,35 (Qms=2,1, Qes=0,42)
voice coil diameter = 34 mm
maximum peak linear excursion vibration x_lin = +/- 1,55 mm
mounting diameter d = 78 mm
overall diameter d = 104 mm
mounting depth (not countersunk) t = 29,5 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

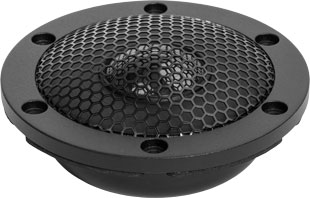

Bliesma T34D-4 (CVD Diamond Dome)

open a bigger photo

Bliesma T34D-4 (CVD Diamond Dome)

order no. bliesma-t34d-4

on request

34 mm dome tweeter with diamond dome.

frequency range = 1300-40000 Hz
resonance frequency fs = 710 Hz
impedance R = 4 Ohm
sound pressure level SPL = 96 dB (2,83V; 1m)
DC resistance Re = 3,3 Ohm
force factor BL = 3,5 N/A
voice coil inductance L = 0,008 mH
effective piston radiating area Sd = 10,5 cm²
effective mechanical mass incl. air load mms = 0,32 g
total Q factor Qts = 0,27 (Qms=1,22, Qes=0,35)
voice coil diameter = 34 mm
maximum peak linear excursion vibration x_lin = +/- 1,55 mm
mounting diameter d = 78 mm
overall diameter d = 104 mm
mounting depth (not countersunk) t = 29,5 mm

PDF data sheet

show kits to this chassis hide kits

Mids

open a bigger photo

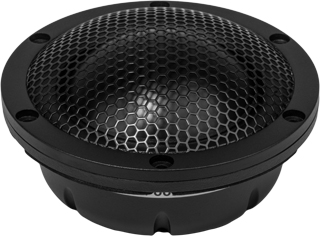

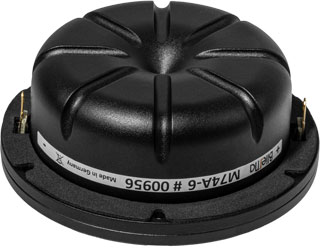

Bliesma M74A-6 (Aluminum-Magnesium Alloy Dome)

open a bigger photo

Bliesma M74A-6 (Aluminum-Magnesium Alloy Dome)

order no. bliesma-m74a-6

EUR 419,00 excl. VAT: € 352.10 / $ 411.96

74 mm mids dome with aluminium dome.

frequency range = 400-6000 Hz
resonance frequency fs = 400 Hz
impedance R = 6 Ohm
sound pressure level SPL = 95 dB (2,83V; 1m)
DC resistance Re = 5,6 Ohm
force factor BL = 6,8 N/A
voice coil inductance L = 0,036 mH
effective piston radiating area Sd = 50,25 cm²
effective mechanical mass incl. air load mms = 2,3 g
total Q factor Qts = 0,67 (Qms=6,4, Qes=0,75)
voice coil diameter = 74 mm
maximum peak linear excursion vibration x_lin = +/- 1,2 mm
mounting diameter d = 100 mm
overall diameter d = 121 mm
mounting depth (not countersunk) t = 45 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

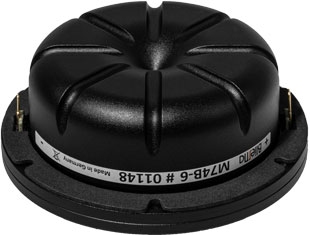

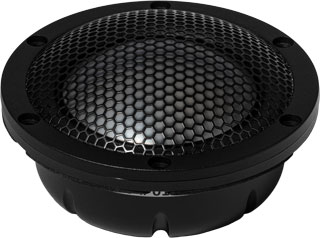

Bliesma M74B-6 (Beryllium Dome)

open a bigger photo

Bliesma M74B-6 (Beryllium Dome)

order no. bliesma-m74b-6

EUR 929,00 excl. VAT: € 780.67 / $ 913.39

74 mm mids dome with beryllium dome.

frequency range = 440-8000 Hz
resonance frequency fs = 440 Hz
impedance R = 6 Ohm
sound pressure level SPL = 97 dB (2,83V; 1m)
DC resistance Re = 5,6 Ohm
force factor BL = 6,8 N/A
voice coil inductance L = 0,036 mH
effective piston radiating area Sd = 50,25 cm²
effective mechanical mass incl. air load mms = 1,8 g
total Q factor Qts = 0,84 (Qms=7,6, Qes=0,94)
voice coil diameter = 74 mm
maximum peak linear excursion vibration x_lin = +/- 1,2 mm
mounting diameter d = 100 mm
overall diameter d = 121 mm
mounting depth (not countersunk) t = 45 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

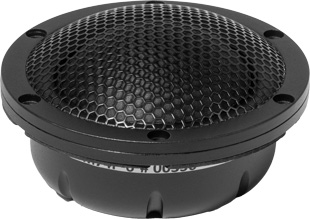

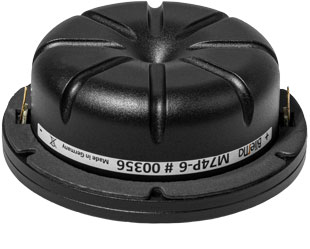

Bliesma M74P-6 (Paper Dome)

open a bigger photo

Bliesma M74P-6 (Paper Dome)

order no. bliesma-m74p-6

EUR 419,00 excl. VAT: € 352.10 / $ 411.96

74 mm mids dome with paper dome.

frequency range = 400-4500 Hz
resonance frequency fs = 400 Hz
impedance R = 6 Ohm
sound pressure level SPL = 95 dB (2,83V; 1m)
DC resistance Re = 5,6 Ohm
force factor BL = 6,8 N/A
voice coil inductance L = 0,036 mH
effective piston radiating area Sd = 50,25 cm²
effective mechanical mass incl. air load mms = 2,3 g
total Q factor Qts = 0,5 (Qms=3, Qes=0,6)
voice coil diameter = 74 mm
maximum peak linear excursion vibration x_lin = +/- 1,2 mm
mounting diameter d = 100 mm
overall diameter d = 121 mm
mounting depth (not countersunk) t = 45 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

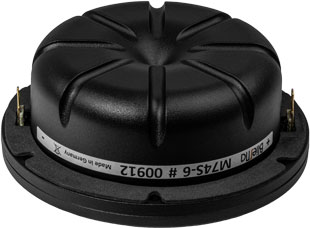

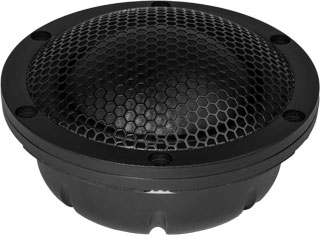

Bliesma M74S-6 (Silk Dome)

open a bigger photo

Bliesma M74S-6 (Silk Dome)

order no. bliesma-m74s-6

EUR 419,00 excl. VAT: € 352.10 / $ 411.96

74 mm mids dome with fabric dome.

frequency range = 425-4500 Hz
resonance frequency fs = 425 Hz
impedance R = 6 Ohm
sound pressure level SPL = 97 dB (2,83V; 1m)
DC resistance Re = 5,6 Ohm
force factor BL = 6,8 N/A
voice coil inductance L = 0,036 mH
effective piston radiating area Sd = 50,25 cm²
effective mechanical mass incl. air load mms = 2 g
total Q factor Qts = 0,62 (Qms=6,6, Qes=0,68)
voice coil diameter = 74 mm
maximum peak linear excursion vibration x_lin = +/- 1,2 mm
mounting diameter d = 100 mm
overall diameter d = 121 mm
mounting depth (not countersunk) t = 45 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

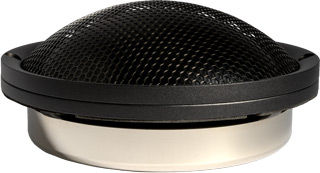

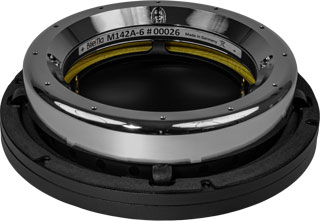

Bliesma M142A-6 (Aluminum-Magnesium Alloy Dome)

open a bigger photo

recommended cabinet 1:
closed cabinet with 3,4 L volume
from 173/109 Hz (-3dB/-8dB)

recommended cabinet 2:
10 L volume bass reflex cabinet
with HP70 reflex tube, 9 cm long.
from 96/73 Hz (-3dB/-8dB).

Bliesma M142A-6 (Aluminum-Magnesium Alloy Dome)

order no. bliesma-m142a-6

EUR 1045,00 excl. VAT: € 878.15 / $ 1027.44

137 mm mids dome with aluminium dome.

frequency range = 180-2800 Hz
resonance frequency fs = 65 Hz
impedance R = 6 Ohm
sound pressure level SPL = 94,5 dB (2,83V; 1m)
DC resistance Re = 5,4 Ohm
force factor BL = 8,8 N/A
voice coil inductance L = 0,03 mH
effective piston radiating area Sd = 180,3 cm²
effective mechanical mass incl. air load mms = 11 g
equivalent volume of compliance Vas = 24,6 l
total Q factor Qts = 0,3 (Qms=8,3, Qes=0,31)
voice coil diameter = 137 mm
maximum peak linear excursion vibration x_lin = +/- 1,85 mm
mounting diameter d = 158 mm
overall diameter d = 180 mm
mounting depth (not countersunk) t = 47,8 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

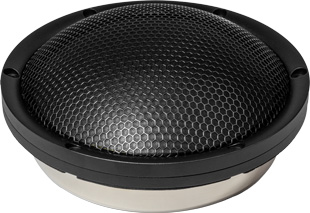

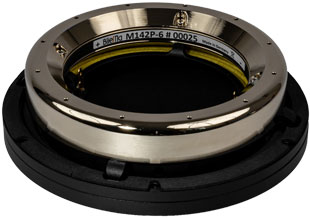

Bliesma M142P-6 (Paper Dome)

open a bigger photo

recommended cabinet 1:
closed cabinet with 3,6 L volume
from 162/102 Hz (-3dB/-8dB)

recommended cabinet 2:
11,1 L volume bass reflex cabinet
with HP70 reflex tube, 9 cm long.
from 89/68 Hz (-3dB/-8dB).

Bliesma M142P-6 (Paper Dome)

order no. bliesma-m142p-6

EUR 1050,00 excl. VAT: € 882.35 / $ 1032.35

137 mm mids dome with paper dome.

frequency range = 180-2200 Hz
resonance frequency fs = 63 Hz
impedance R = 6 Ohm
sound pressure level SPL = 94 dB (2,83V; 1m)
DC resistance Re = 5,4 Ohm
force factor BL = 8,8 N/A
voice coil inductance L = 0,03 mH
effective piston radiating area Sd = 180,3 cm²
effective mechanical mass incl. air load mms = 11,7 g
equivalent volume of compliance Vas = 24,6 l
total Q factor Qts = 0,31 (Qms=7,3, Qes=0,32)
voice coil diameter = 137 mm
maximum peak linear excursion vibration x_lin = +/- 1,85 mm
mounting diameter d = 158 mm
overall diameter d = 180 mm
mounting depth (not countersunk) t = 47,8 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

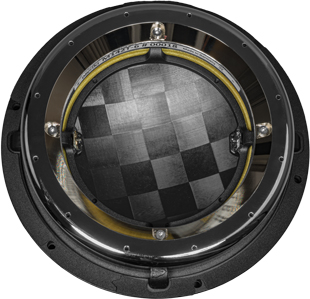

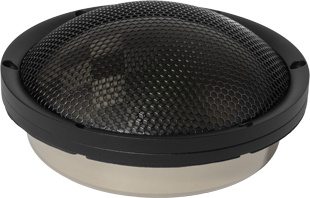

Bliesma M142T-6 (TeXtreme Dome)

open a bigger photo

recommended cabinet 1:
closed cabinet with 3,4 L volume
from 175/111 Hz (-3dB/-8dB)

recommended cabinet 2:
10 L volume bass reflex cabinet
with HP70 reflex tube, 9 cm long.
from 97/74 Hz (-3dB/-8dB).

Bliesma M142T-6 (TeXtreme Dome)

order no. bliesma-m142t-6

EUR 1245,00 excl. VAT: € 1046.22 / $ 1224.08

137 mm mids dome with high quality dome.

frequency range = 180-2800 Hz
resonance frequency fs = 66 Hz
impedance R = 6 Ohm
sound pressure level SPL = 94,5 dB (2,83V; 1m)
DC resistance Re = 5,4 Ohm
force factor BL = 8,8 N/A
voice coil inductance L = 0,03 mH
effective piston radiating area Sd = 180,3 cm²
effective mechanical mass incl. air load mms = 10,9 g
equivalent volume of compliance Vas = 24,6 l
total Q factor Qts = 0,3 (Qms=9,2, Qes=0,31)
voice coil diameter = 137 mm
maximum peak linear excursion vibration x_lin = +/- 1,85 mm
mounting diameter d = 158 mm
overall diameter d = 180 mm
mounting depth (not countersunk) t = 47,8 mm

PDF data sheet

show kits to this chassis hide kits

Tweeter Mids

The cabinet volume calculations are executed considering an external resistance of 0.3 Ohm. We are using, if no other data is known or available, the information supplied by the manufacturer.

Please note: the frequency response doesn't say much about the cut-off frequency inside the cabinet! Therefore, we mostly give you 2 examples with dimensioning considerations and an indication, how low the loudspeaker will reproduce.
