Audimax Core   Floorstanding as in Hobby Hifi 4/2018

Technical data
  • impedance: 6 Ohm
  • sensivity (2,83V/1m): 86 dB
  • size (HxWxD): 1200 x 250 x 350 mm
  • frequency range (-8dB): 26 - 40000 Hz
  • crossover frequency(s): 1650 Hz
  • speaker type: bass reflex

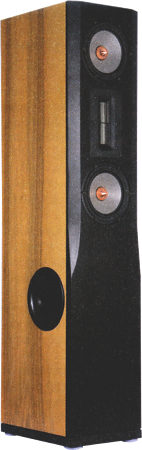

Audimax Core is a two way floorstanding speaker.

Audimax Core is a bass-reflex cabinet loudspeaker with drivers of SEAS and Audaphon.

The kit is delivered with the following drivers:
- a Audaphon Neo pro 5i ribbon-tweeter
- two SEAS Excel 18MW12T woofers

The loudspeaker has been developed by Bernd Timmermanns.

The crossover consists of:
- a 3rd order high-pass filter (18 dB per octave slope) for the tweeter.
- a 2nd order low-pass filter (12 dB per octave slope) for the woofer.

The frequency response of this speaker is perfectly linear.

The decay spectrum as shown in the waterfall diagram is exemplary, free of any disturbing resonance.

At medium volume, i.e. 90 dB at 1 m, the nonlinear distortions are below 0,4% above 100 Hz.

Our kit consists of

  • Audaphon ribbon NeoPro5i, aluminium, black, 1/2 package
  • 2x Hobby-HiFi woofer 18MW12T, produced by SEAS
  • Jetset 100AT, bass reflex tube system, outer part
  • Jetset 100IT, bass reflex tube system, inner part
  • 0,5x Jetset 100MR, bass reflex tube system, middle
  • JetSet 100, 90grad 4 inch male to female elbow
  • Damping fleece MT Bondum 800 (30 x 50 x 2 cm)
  • 0,5x PE sealing tape, 5x2 mm, 7.5 m
  • Damping Sonofil 100 x 35 cm for 20 litres
  • Audaphon Damping 10, 970 x 470 mm, adhesive
  • Binding Post PK31, gold plated (one pair, red and black)
  • 5m Speaker cable 2x2.5 mm2, transparent
  • 2,5x Pan screws 4x20 black, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • Mundorf MCAP EVO Oil 0.47 μF / 450 V
  • Mundorf MCAP EVO Oil 1.5 μF / 450 V
  • 2x Mundorf MCAP EVO Oil 4.7 μF / 450 V
  • 2x Mundorf MCAP EVO Oil 10 μF / 450 V
  • Mundorf baked varnish air core coil BL71, 0.18 mH/0.34 Ohm
  • Mundorf baked varnish air core coil BL71, 0.22 mH/0.34 Ohm
  • Mundorf baked varnish air core coil BL71, 0.68 mH/0.71 Ohm
  • Mundorf baked varnish air core coil BL140, 2.2 mH/0.46 Ohm
  • Metal-oxide resistor, 10W 6.8 Ohm (blue-grey-gold)
  • Metal-oxide resistor, 10W 8.2 Ohm (grey-red-gold)
  • 2x Metal-oxide resistor, 5W 0.47 Ohm 5% (yellow-purple-silver)
  • Metal-oxide resistor, 5W 3.3 Ohm (orange-orange-gold)

Kit without cabinet, price per speaker   EUR 1679,00 excl. VAT: € 1410.92 / $ 1523.80

Kit with high-end crossover

The high-end kit is delivered with baked varnish air core coils on important parts of the crossover for minimizing microphonic effects. - The current flow through the coil creates a magnetic field which sets the reel of wire in motion. This motion induces a voltage in the coil which adds itself to the signal. The stiffer the reel of wire is, the less the signal will be altered. The capacitors for the tweeter are of type polypropylen (MKP) Mundorf Supreme Evo Öl.

Kit with high-end-crossover without cabinet, price per speaker   EUR 1852,00 excl. VAT: € 1556.30 / $ 1680.81

Impedance correction

If you want to use a valve amplifier with this speaker an impedance correction should be employed. In this case the component quality is less important; therefore, we offer only one kit (upon request higher quality components are available).


Price per impedance correction for one speaker, to be mounted on a small wooden board.     EUR 21,50 excl. VAT: € 18.07 / $ 19.51

universal PCB

If you prefer to mount the crossover components on a 159 x 127 mm universal PCB instead on wood:
Universal PCB RA160, order no.. str-RA160, price per unit:   EUR 5,90 excl. VAT: € 4.96 / $ 5.35
We recommend one board per kit (two boards for a speaker pair)

Cable

If you want to connect the tweeter via a cable with individual conductors (as high-frequency currents are only transported in the conductor surface), we recommend using a Kimber cable, that we carry in a large selection. For each tweeter we recommend 1.5m for a pair then 3m.
