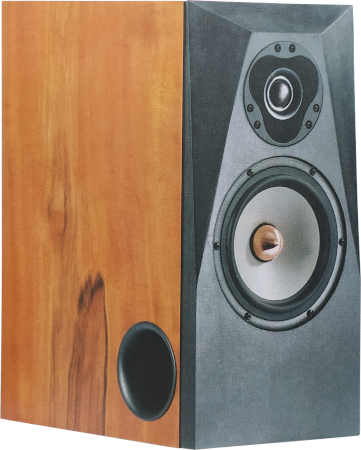

Audimax Bookshelf FD   Shelf speaker as in Hobby Hifi 3/2020

Technical data
  • impedance: 6 Ohm
  • sensivity (2,83V/1m): 81 dB
  • size (HxWxD): 440 x 220 x 340 mm
  • frequency range (-8dB): 31 - 40000 Hz
  • crossover frequency(s): 2200 Hz
  • speaker type: bass reflex

Audimax Bookshelf FD is a two way compact speaker.

Audimax Bookshelf FD is a bass-reflex cabinet loudspeaker with drivers of Hobby Hifi (Made by SEAS) and Scan Speak.

The kit is delivered with the following drivers:
- a Scan Speak D3004/662000 tweeter
- a Hobby Hifi MW12T (Made by SEAS) woofer

The loudspeaker has been developed by Bernd Timmermanns.

The crossover consists of:
- a 3rd order high-pass filter (18 dB per octave slope) for the tweeter.
- a 3rd order low-pass filter (18 dB per octave slope) for the woofer.

The frequency response of this speaker is perfectly linear.

The decay spectrum is perfect.

At medium volume, i.e. 90 dB at 1 m, the nonlinear distortions are below 0,4% above 200 Hz.

Our kit consists of

  • ScanSpeak Illuminator D3004/6620-00, 1/2 package
  • Hobby-HiFi woofer 18MW12T, produced by SEAS
  • 0,5x Jetset 70MR, bass reflex tube system, middle
  • Jetset 70AT, bass reflex tube system, outer part
  • Jetset 70IT, bass reflex tube system, inner part
  • JetSet 90grad 3 inch male to female elbow 70
  • 0,5x PE sealing tape, 5x2 mm, 7.5 m
  • 0,5x Damping Sonofil 100 x 35 cm for 20 litres
  • 0,5x Audaphon Damping 10, 970 x 470 mm, adhesive
  • Binding Post PK31, gold plated (one pair, red and black)
  • 2m Speaker cable 2x2.5 mm2, transparent
  • 2,5x Pan screws 4x20 black, torx, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • Mundorf MCAP EVO Oil 1 μF; / 450 V
  • Mundorf MCAP EVO Oil 4.7 μF; / 450 V
  • Mundorf MCAP EVO Oil 10 μF; / 450 V
  • Audaphon MKP CAP Superior 1.5 μF; / 400 Vdc
  • Audaphon MKP CAP Superior 3.3 μF; / 400 Vdc
  • Audaphon MKP CAP Superior 4.7 μF; / 400 Vdc
  • Mundorf baked varnish air core coil BL71, 0.22 mH/0.34 Ohm
  • Mundorf baked varnish air core coil BL71, 0.39 mH/0.51 Ohm
  • Mundorf baked varnish air core coil BL140, 0.82 mH/0.26 Ohm
  • Mundorf baked varnish air core coil BL140, 3.3 mH/0.59 Ohm
  • Mundorf ferrite core coil F50 22mH/6.69Ohm
  • Metal-oxide resistor, 10W 5.6 Ohm (green-blue-gold)
  • Metal-oxide resistor, 10W 10 Ohm (brown-black-black)
  • Metal-oxide resistor, 5W 1.0 Ohm (brown-black-gold)
  • Metal-oxide resistor, 5W 4.7 Ohm (yellow-violet-gold)
  • Metal-oxide resistor, 5W 33 Ohm (orange-orange-black)

Kit without cabinet, price per speaker   EUR 993,00 excl. VAT: € 834.45 / $ 901.21

Kit with high-end crossover

The high-end kit is delivered with copper foil and baked varnish air core coils on important parts of the crossover for minimizing microphonic effects. - The current flow through the coil creates a magnetic field which sets the reel of wire in motion. This motion induces a voltage in the coil which adds itself to the signal. The stiffer the reel of wire is, the less the signal will be altered. The capacitors for the Scan Speak D3004/662000 are of type polypropylen (MKP) Mundorf EVO Silver Gold Öl 450 V.

  • Mundorf MCAP EVO Silver Gold Öl 1 μF; / 450 V
  • Mundorf MCAP EVO Silver Gold Öl 4.7 μF; / 450 V
  • Mundorf MCAP EVO Silver Gold Öl 10 μF; / 450 V
  • Audaphon MKP CAP Superior 1.5 μF; / 400 Vdc
  • Audaphon MKP CAP Superior 3.3 μF; / 400 Vdc
  • Audaphon MKP CAP Superior 4.7 μF; / 400 Vdc
  • Mundorf copper foil coil CFC14-0.39mH/0.14Ohm
  • Mundorf copper foil coil CFC14-0.82mH/0.22Ohm
  • Mundorf copper foil coil CFC14-3.3mH/0.50Ohm
  • Mundorf baked varnish air core coil BL71, 0.22 mH/0.34 Ohm
  • Mundorf ferrite core coil F50 22mH/6.69Ohm
  • Metal-oxide resistor, 10W 5.6 Ohm (green-blue-gold)
  • Metal-oxide resistor, 10W 10 Ohm (brown-black-black)
  • Metal-oxide resistor, 5W 1.0 Ohm (brown-black-gold)
  • Metal-oxide resistor, 5W 4.7 Ohm (yellow-violet-gold)
  • Metal-oxide resistor, 5W 33 Ohm (orange-orange-black)

Kit with high-end-crossover without cabinet, price per speaker   EUR 1250,00 excl. VAT: € 1050.42 / $ 1134.45

Impedance correction

If you want to use a valve amplifier with this speaker an impedance correction should be employed. In this case the component quality is less important; therefore, we offer only one kit (upon request higher quality components are available).

  • Mundorf, electrolytic capacitor, unetched, 22μF / 70 Vdc
  • Mundorf baked varnish air core coil BL71, 1.0 mH/1.02 Ohm
  • ceramic resistor 12 Ohm/20 Watt

Price per impedance correction for one speaker, to be mounted on a small wooden board.     EUR 19,90 excl. VAT: € 16.72 / $ 18.06

universal PCB

If you prefer to mount the crossover components on a 159 x 127 mm universal PCB instead on wood:
Universal PCB RA160, order no.. str-RA160, price per unit:   EUR 5,90 excl. VAT: € 4.96 / $ 5.35
We recommend one board per kit (two boards for a speaker pair)

Additionally needed universal PCB

If you prefer to mount the crossover components on a 140 x 102 mm universal PCB instead on wood:
Universal PCB RA140, order no.. str-RA140, price per unit:   EUR 4,20 excl. VAT: € 3.53 / $ 3.81
We recommend one board per kit (two boards for a speaker pair)
