Tweeter   Compression driver for Horns   Full Range   Coaxial speaker   Mids   Woofer   Horn   Diverse

SICA

SICA was born from passion as all beautiful things are. In 1979, a group of young men with love and passion for music and hi-fi stroked the loudspeaker market, creating a modern, professional, dynamic and flexible industrial enterprise, with constant expansion on both the manufacturing and the commercial sides.. Custom designed and engineered semi-automatic manufacturing lines merge precision and quality with the typical creativity of the "made in Italy”. The full customization capability of the products, together with a dynamic proactive approach to the production schedules for the fastest possible lead times, enabled SICA to gain all the international markets, establishing a relevant presence in the five continents.

Letters in the name of the cone drivers:
F: ferrite magnet
K: kapton carrier for low losses
S: glass fibre carrier
D: with second cone for reproduction of high frequencies
C: has a hole in the middle to insert a tweeter
Cx: Is a coaxial loudspeaker
the second digit usually indicates the voice coil diameter in inches.




Tweeter

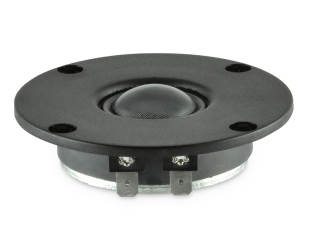

SICA LP 85.25/95 TW 8 (Z009040)
open a bigger photo

SICA LP 85.25/95 TW 8 (Z009040)

order no. sica-LP8525-95TW8

EUR 24,50 excl. VAT: € 20.59 / $ 22.24

25 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 20 W
  • impedance R = 8 Ohm
  • voice coil diameter = 25 mm
  • mounting diameter d = 62 mm
  • overall diameter d = 85 mm
  • mounting depth (not countersunk) t = 23,5 mm
  • mass m = 0,26 kg

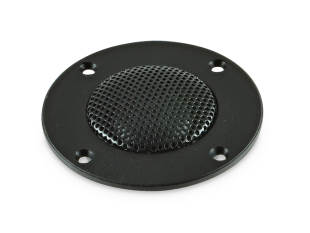

SICA LP 66.25/N14 TW 8 (Z008950)
open a bigger photo

SICA LP 66.25/N14 TW 8 (Z008950)

order no. sica-LP6625-N14TW8

EUR 28,40 excl. VAT: € 23.87 / $ 25.77

25 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 17 W
  • impedance R = 8 Ohm
  • voice coil diameter = 25 mm
  • mounting diameter d = 46 mm
  • overall diameter d = 66 mm
  • mounting depth (not countersunk) t = 20 mm
  • mass m = 0,09 kg

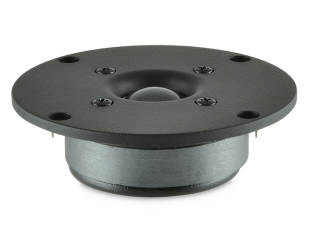

SICA LP 111.25/245 TW 8 (Z009215)
open a bigger photo

SICA LP 111.25/245 TW 8 (Z009215)

order no. sica-LP11125-245TW8

EUR 28,00 excl. VAT: € 23.53 / $ 25.41

25 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 25 W
  • frequency range = 2000-20000 Hz
  • impedance R = 8 Ohm
  • voice coil diameter = 25 mm
  • mounting diameter d = 84 mm
  • overall diameter d = 110 mm
  • mounting depth (not countersunk) t = 32,9 mm
  • mass m = 0,6 kg

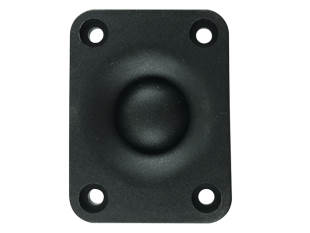

SICA LP38x50.18/N5TW 8 (Z008701)
open a bigger photo

SICA LP38x50.18/N5TW 8 (Z008701)

order no. sica-LP38x5018-N5TW8

EUR 14,70 excl. VAT: € 12.35 / $ 13.34

18 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 12 W
  • frequency range = 4000-22000 Hz
  • impedance R = 8 Ohm
  • total Q factor Qts = (Qms=, Qes= )
  • voice coil diameter = 18 mm
  • mounting diameter d = 34 mm
  • overall diameter d = 53x58 mm
  • mounting depth (not countersunk) t = 16,6 mm
  • mass m = 0,03 kg

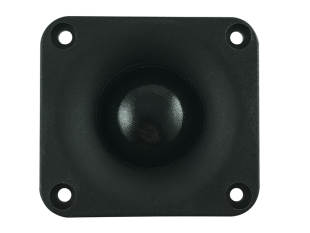

SICA LP53x58.28/N20TW 8 (Z008985)
open a bigger photo

SICA LP53x58.28/N20TW 8 (Z008985)

order no. sica-LP53x5828-N20TW8

EUR 36,20 excl. VAT: € 30.42 / $ 32.85

28 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 20 W
  • frequency range = 3000-18000 Hz
  • impedance R = 8 Ohm
  • voice coil diameter = 28 mm
  • mounting diameter d = 49 mm
  • overall diameter d = 53x58 mm
  • mounting depth (not countersunk) t = 23,9 mm
  • mass m = 0,08 kg


SICA LP 90.28/N92 TW 8 (Z009160C)

order no. sica-LP9028-N92TW8

EUR 78,40 excl. VAT: € 65.88 / $ 71.15

28 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 25 W
  • frequency range = 2000-20000 Hz
  • impedance R = 8 Ohm
  • voice coil diameter = 28 mm
  • mounting diameter d = 67 mm
  • overall diameter d = 90 mm
  • mounting depth (not countersunk) t = 37,5 mm
  • mass m = 0,41 kg


SICA LP 110.28/380TW 8 (Z009240C)

order no. sica-LP11028-380TW8

EUR 51,90 excl. VAT: € 43.61 / $ 47.10

28 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 25 W
  • frequency range = 2000-20000 Hz
  • impedance R = 8 Ohm
  • voice coil diameter = 28 mm
  • mounting diameter d = 67 mm
  • overall diameter d = 90 mm
  • mounting depth (not countersunk) t = 37,5 mm
  • mass m = 0,8 kg


SICA LP 98.25/245 TW 8 (Z009170C)

order no. sica-LP9825-245TW8

EUR 28,40 excl. VAT: € 23.87 / $ 25.77

25 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 25 W
  • frequency range = 2500-20000 Hz
  • impedance R = 8 Ohm
  • voice coil diameter = 25 mm
  • mounting diameter d = 78 mm
  • overall diameter d = 98 mm
  • mounting depth (not countersunk) t = 32,4 mm
  • mass m = 0,6 kg




Compression driver for Horns

SICA CD 60.38/N92 TW 8 (Z009484)
open a bigger photo

SICA CD 60.38/N92 TW 8 (Z009484)

order no. sica-CD6038-N92TW8

EUR 85,20 excl. VAT: € 71.60 / $ 77.32

1 inch high frequency compression driver with high quality cone.

  • power handling (continuous/programme) = 30 W
  • impedance R = 8 Ohm
  • voice coil diameter = 38 mm
  • overall diameter d = 60 mm
  • mounting depth (not countersunk) t = 45,4 mm
  • mass m = 0,4 kg

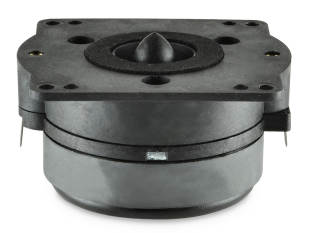

SICA CD 78.26/245 TW 8 (Z009442)
open a bigger photo

SICA CD 78.26/245 TW 8 (Z009442)

order no. sica-CD7826-245TW8

EUR 36,30 excl. VAT: € 30.50 / $ 32.94

1 inch high frequency compression driver with high quality cone.

  • power handling (continuous/programme) = 16 W
  • impedance R = 8 Ohm
  • voice coil diameter = 26 mm
  • overall diameter d = 78 mm
  • mounting depth (not countersunk) t = 51,6 mm
  • mass m = 0,6 kg

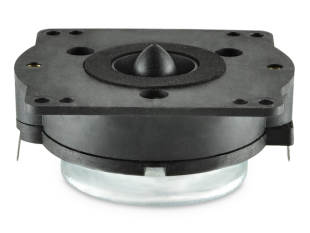

SICA CD 78.26/N92 TW 8 (Z009450)
open a bigger photo

SICA CD 78.26/N92 TW 8 (Z009450)

order no. sica-CD7826-N92TW8

EUR 68,60 excl. VAT: € 57.65 / $ 62.26

1 inch high frequency compression driver with high quality cone.

  • power handling (continuous/programme) = 20 W
  • impedance R = 8 Ohm
  • voice coil diameter = 26 mm
  • overall diameter d = 78 mm
  • mounting depth (not countersunk) t = 43,6 mm
  • mass m = 0,4 kg

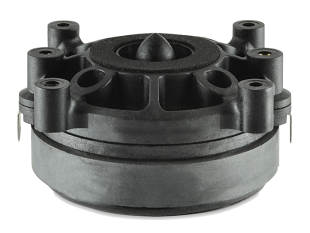

SICA CD 83.26/380 TW 8 (Z009470)
open a bigger photo

SICA CD 83.26/380 TW 8 (Z009470)

order no. sica-CD8326-380TW8

EUR 46,00 excl. VAT: € 38.66 / $ 41.75

1 inch high frequency compression driver with high quality cone.

  • power handling (continuous/programme) = 20 W
  • impedance R = 8 Ohm
  • voice coil diameter = 26 mm
  • overall diameter d = 83 mm
  • mounting depth (not countersunk) t = 50,9 mm
  • mass m = 0,8 kg

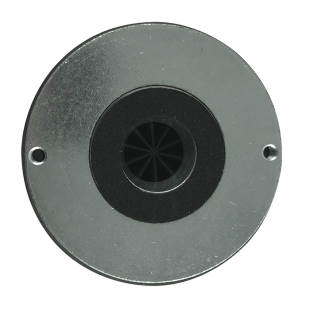

SICA CD 60.38/405 TW 8 (Z009487)
open a bigger photo

SICA CD 60.38/405 TW 8 (Z009487)

order no. sica-CD6038-405TW8

EUR 58,80 excl. VAT: € 49.41 / $ 53.36

1 inch high frequency compression driver with high quality cone.

  • power handling (continuous/programme) = 30 W
  • impedance R = 8 Ohm
  • voice coil diameter = 38 mm
  • overall diameter d = 90 mm
  • mounting depth (not countersunk) t = 46,6 mm
  • mass m = 0,93 kg

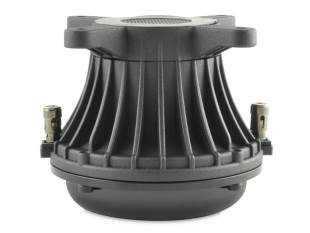

SICA CD 105.65/N220 TW 8 (Z009497)
open a bigger photo

SICA CD 105.65/N220 TW 8 (Z009497)

order no. sica-CD10565-N220TW8

EUR 215,60 excl. VAT: € 181.18 / $ 195.67

1.4 inch high frequency compression driver with high quality cone.

  • power handling (continuous/programme) = 80 W
  • impedance R = 8 Ohm
  • voice coil diameter = 65 mm
  • overall diameter d = 105 mm
  • mounting depth (not countersunk) t = 88,7 mm
  • mass m = 1,3 kg


SICA CD120.44/fe640 TW 8 (Z009491c)

order no. sica-CD12044-fe640TW8

EUR 99,90 excl. VAT: € 83.95 / $ 90.67

1 inch high frequency compression driver with high quality cone.

  • power handling (continuous/programme) = 60 W
  • frequency range = 1500-20000 Hz
  • impedance R = 8 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 121 mm
  • mounting depth (not countersunk) t = 52 mm
  • mass m = 1,9 kg


SICA CD120.44/fe640 TW 8 PI (Z009491Pc)

order no. sica-CD12044-fe640TW8PI

EUR 103,80 excl. VAT: € 87.23 / $ 94.21

1 inch high frequency compression driver with high quality cone.

  • power handling (continuous/programme) = 60 W
  • frequency range = 1500-20000 Hz
  • impedance R = 8 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 121 mm
  • mounting depth (not countersunk) t = 52 mm
  • mass m = 1,9 kg


SICA CD 95.44/N240 TW 8 (Z009493c)

order no. sica-CD9544-N240TW8

EUR 173,40 excl. VAT: € 145.71 / $ 157.37

1 inch high frequency compression driver with high quality cone.

  • power handling (continuous/programme) = 60 W
  • frequency range = 1500-20000 Hz
  • impedance R = 8 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 96 mm
  • mounting depth (not countersunk) t = 47 mm
  • mass m = 1,1 kg


SICA CD 95.44/N240 PI 8 (Z009493Pc)

order no. sica-CD9544-N240PI8

EUR 178,30 excl. VAT: € 149.83 / $ 161.82

1 inch high frequency compression driver with high quality cone.

  • power handling (continuous/programme) = 60 W
  • frequency range = 1500-20000 Hz
  • impedance R = 8 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 96 mm
  • mounting depth (not countersunk) t = 47 mm
  • mass m = 1,1 kg




Full Range

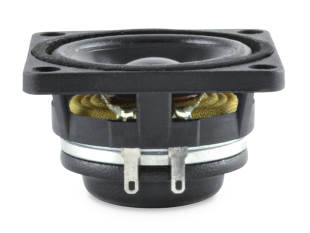

SICA 2H0,8CS (Z000795)
open a bigger photo

SICA 2H0,8CS (Z000795)

order no. sica-2H08CS

EUR 25,50 excl. VAT: € 21.43 / $ 23.14

4 cm full range driver with paper cone.

  • power handling (continuous/programme) = 20 W
  • frequency range = 200-20000 Hz
  • resonance frequency fs = 216 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 2,6 N/A
  • voice coil inductance L = 0,2 mH
  • effective piston radiating area Sd = 11,3 cm2
  • effective mechanical mass incl. air load mms = 0,9 g
  • equivalent volume of compliance Vas = 0,1 l
  • total Q factor Qts = 0,73 (Qms=2,75, Qes=1)
  • voice coil diameter = 20 mm
  • maximum peak linear excursion vibration xlin = +/- 2,7 mm
  • mounting diameter d = 48 mm
  • overall diameter d = 52,5 mm
  • mass m = 0,1 kg

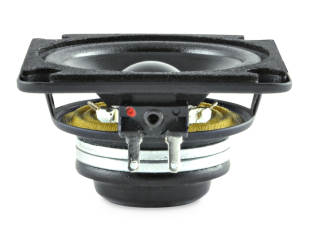

SICA 2,5H0,8CS (Z000855)
open a bigger photo

SICA 2,5H0,8CS (Z000855)

order no. sica-25H08CS

EUR 22,50 excl. VAT: € 18.91 / $ 20.42

6 cm full range driver with paper cone.

  • power handling (continuous/programme) = 20 W
  • frequency range = 180-20000 Hz
  • resonance frequency fs = 185 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5 Ohm
  • force factor BL = 2,8 N/A
  • voice coil inductance L = 0,12 mH
  • effective piston radiating area Sd = 18,9 cm2
  • effective mechanical mass incl. air load mms = 1,5 g
  • equivalent volume of compliance Vas = 0,2 l
  • total Q factor Qts = 0,92 (Qms=5,23, Qes=1,11)
  • voice coil diameter = 20 mm
  • maximum peak linear excursion vibration xlin = +/- 2,6 mm
  • mounting diameter d = 61 mm
  • overall diameter d = 66 mm
  • mass m = 0,1 kg

SICA 3L0,8SL (Z000900)
open a bigger photo

SICA 3L0,8SL (Z000900)

order no. sica-3L08SL

EUR 22,50 excl. VAT: € 18.91 / $ 20.42

7 cm full range driver with paper cone.

  • power handling (continuous/programme) = 20 W
  • frequency range = 150-20000 Hz
  • resonance frequency fs = 145 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 2,8 N/A
  • voice coil inductance L = 0,11 mH
  • effective piston radiating area Sd = 30,2 cm2
  • effective mechanical mass incl. air load mms = 2 g
  • equivalent volume of compliance Vas = 0,8 l
  • total Q factor Qts = 1,02 (Qms=4,92, Qes=1,28)
  • voice coil diameter = 20 mm
  • maximum peak linear excursion vibration xlin = +/- 2,5 mm
  • mounting diameter d = 73 mm
  • overall diameter d = 79 mm
  • mounting depth (not countersunk) t = 44,9 mm
  • mass m = 0,1 kg

SICA 3,5L1SL (Z00963C)
open a bigger photo

SICA 3,5L1SL (Z00963C)

order no. sica-35L1SL

EUR 35,20 excl. VAT: € 29.58 / $ 31.95

8 cm full range driver with paper cone.

  • power handling (continuous/programme) = 20 W
  • frequency range = 180-20000 Hz
  • resonance frequency fs = 185 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5 Ohm
  • force factor BL = 2,8 N/A
  • voice coil inductance L = 0,12 mH
  • effective piston radiating area Sd = 18,9 cm2
  • effective mechanical mass incl. air load mms = 1,5 g
  • equivalent volume of compliance Vas = 0,2 l
  • total Q factor Qts = 0,92 (Qms=5,23, Qes=1,11)
  • voice coil diameter = 20 mm
  • maximum peak linear excursion vibration xlin = +/- 2,6 mm
  • mounting diameter d = 81 mm
  • overall diameter d = 88 mm
  • mass m = 0,1 kg

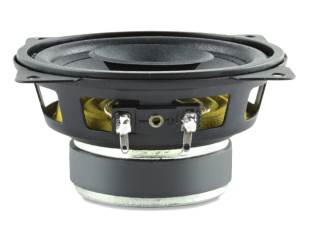

SICA 4D0,8CS 8 Ohm (Z001300)
open a bigger photo

SICA 4D0,8CS 8 Ohm (Z001300)

order no. sica-4D08CS-8Ohm

EUR 20,50 excl. VAT: € 17.23 / $ 18.61

9 cm full range driver with paper cone.

  • power handling (continuous/programme) = 35 W
  • frequency range = 140-20000 Hz
  • resonance frequency fs = 140 Hz
  • impedance R = 4 Ohm
  • DC resistance Re = 3 Ohm
  • force factor BL = 2,65 N/A
  • voice coil inductance L = 0,14 mH
  • effective piston radiating area Sd = 44,2 cm2
  • effective mechanical mass incl. air load mms = 3,1 g
  • equivalent volume of compliance Vas = 1,2 l
  • total Q factor Qts = 0,92 (Qms=4,2, Qes=1,18)
  • voice coil diameter = 20 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 90 mm
  • overall diameter d = 100 mm
  • mounting depth (not countersunk) t = 50 mm
  • mass m = 0,4 kg

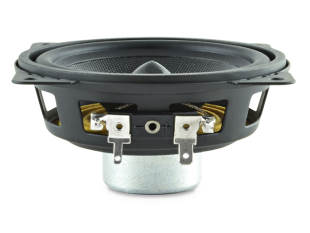

SICA 4L 1SL 8 (Z001449)
open a bigger photo

SICA 4L 1SL 8 (Z001449)

order no. sica-4L1SL8

EUR 35,20 excl. VAT: € 29.58 / $ 31.95

9 cm full range driver with paper cone.

  • power handling (continuous/programme) = 60 W
  • frequency range = 110-10000 Hz
  • resonance frequency fs = 108,3 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 6 Ohm
  • force factor BL = 5,1 N/A
  • voice coil inductance L = 0,37 mH
  • effective piston radiating area Sd = 44,2 cm2
  • effective mechanical mass incl. air load mms = 5 g
  • equivalent volume of compliance Vas = 1,2 l
  • total Q factor Qts = 0,63 (Qms=3,15, Qes=0,78)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 90 mm
  • overall diameter d = 100 mm
  • mounting depth (not countersunk) t = 46,5 mm
  • mass m = 0,2 kg

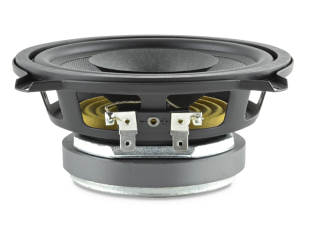

SICA 5 D 1 CS 8 Ohm (Z002400)
open a bigger photo

recommended cabinet 1:
closed cabinet with 3,5 L volume
from 121/76 Hz (-3dB/-8dB)

recommended cabinet 2:
14,1 L volume bass reflex cabinet
with HP50 reflex tube, 6 cm long.
from 55/47 Hz (-3dB/-8dB).

SICA 5 D 1 CS 8 Ohm (Z002400)

order no. sica-5D1CS-8Ohm

EUR 32,10 excl. VAT: € 26.97 / $ 29.13

12 cm full range driver with paper cone.

  • power handling (continuous/programme) = 60 W
  • frequency range = 80-18000 Hz
  • resonance frequency fs = 79 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 6 Ohm
  • force factor BL = 5,73 N/A
  • voice coil inductance L = 0,33 mH
  • effective piston radiating area Sd = 78,5 cm2
  • effective mechanical mass incl. air load mms = 6,4 g
  • equivalent volume of compliance Vas = 5,5 l
  • total Q factor Qts = 0,52 (Qms=4,95, Qes=0,58)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 45 mm
  • mounting diameter d = 113 mm
  • overall diameter d = 130,5 mm
  • mounting depth (not countersunk) t = 58,1 mm
  • mass m = 0,9 kg

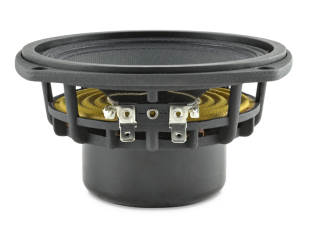

SICA 5M 1,5PL (Z002649)
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,1 L volume
from 230/145 Hz (-3dB/-8dB)

recommended cabinet 2:
4,5 L volume bass reflex cabinet
with HP50 reflex tube, 5 cm long.
from 106/90 Hz (-3dB/-8dB).

SICA 5M 1,5PL (Z002649)

order no. sica-5M15PL

EUR 97,00 excl. VAT: € 81.51 / $ 88.03

12 cm full range driver with paper cone.

  • power handling (continuous/programme) = 130 W
  • frequency range = 150-10000 Hz
  • resonance frequency fs = 145 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 6 Ohm
  • force factor BL = 7,69 N/A
  • voice coil inductance L = 0,1 mH
  • effective piston radiating area Sd = 84,9 cm2
  • effective mechanical mass incl. air load mms = 6,1 g
  • equivalent volume of compliance Vas = 2 l
  • total Q factor Qts = 0,5 (Qms=5,12, Qes=0,56)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 2,5 mm
  • mounting diameter d = 113 mm
  • overall diameter d = 132 mm
  • mounting depth (not countersunk) t = 72 mm
  • mass m = 0,8 kg

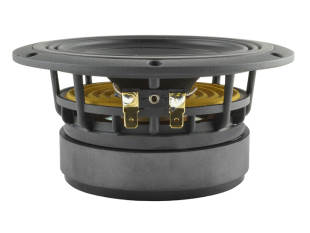

SICA 5,5 C 1,5 PL (Z002810)
open a bigger photo

recommended cabinet 1:
closed cabinet with 0,86 L volume
from 155/98 Hz (-3dB/-8dB)

recommended cabinet 2:
2,7 L volume bass reflex cabinet
with HP50 reflex tube, 29 cm long.
from 83/65 Hz (-3dB/-8dB).

SICA 5,5 C 1,5 PL (Z002810)

order no. sica-55C15PL

EUR 101,90 excl. VAT: € 85.63 / $ 92.48

14 cm full range driver with paper cone.

  • power handling (continuous/programme) = 120 W
  • frequency range = 60-20000 Hz
  • resonance frequency fs = 62 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 6 Ohm
  • force factor BL = 7,89 N/A
  • voice coil inductance L = 0,5 mH
  • effective piston radiating area Sd = 78,5 cm2
  • effective mechanical mass incl. air load mms = 10,6 g
  • equivalent volume of compliance Vas = 5,4 l
  • total Q factor Qts = 0,32 (Qms=4,67, Qes=0,34)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 113 mm
  • overall diameter d = 151 mm
  • mounting depth (not countersunk) t = 71,5 mm
  • mass m = 1,7 kg

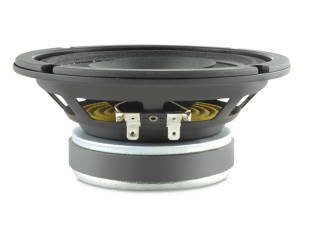

SICA 6 D 1,5 CS 8 (Z004002)
open a bigger photo

SICA 6 D 1,5 CS 8 (Z004002)

order no. sica-6D15CS8

EUR 46,10 excl. VAT: € 38.74 / $ 41.84

15 cm full range driver with paper cone.

  • power handling (continuous/programme) = 100 W
  • frequency range = 100-18000 Hz
  • resonance frequency fs = 108,5 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 6 Ohm
  • force factor BL = 7,38 N/A
  • voice coil inductance L = 0,2 mH
  • effective piston radiating area Sd = 122,7 cm2
  • effective mechanical mass incl. air load mms = 10,4 g
  • equivalent volume of compliance Vas = 4,4 l
  • total Q factor Qts = 0,63 (Qms=3,12, Qes=0,79)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 143 mm
  • overall diameter d = 166 mm
  • mounting depth (not countersunk) t = 72,1 mm
  • mass m = 1,4 kg

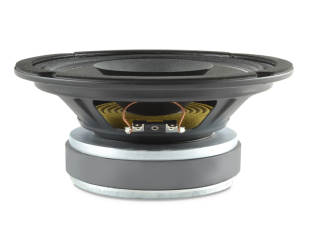

SICA 8 D 1,5 CS 8 (Z004950)
open a bigger photo

recommended cabinet 1:
closed cabinet with 3,5 L volume
from 165/104 Hz (-3dB/-8dB)

recommended cabinet 2:
10,3 L volume bass reflex cabinet
with HP70 reflex tube, 10 cm long.
from 91/70 Hz (-3dB/-8dB).

SICA 8 D 1,5 CS 8 (Z004950)

order no. sica-8D15CS8

EUR 75,00 excl. VAT: € 63.03 / $ 68.07

19 cm full range driver with paper cone.

  • power handling (continuous/programme) = 130 W
  • frequency range = 65-15000 Hz
  • resonance frequency fs = 62 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 6,6 Ohm
  • force factor BL = 11,18 N/A
  • voice coil inductance L = 0,35 mH
  • effective piston radiating area Sd = 213,8 cm2
  • effective mechanical mass incl. air load mms = 16,8 g
  • equivalent volume of compliance Vas = 25,5 l
  • total Q factor Qts = 0,3 (Qms=2,21, Qes=0,35)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 184 mm
  • overall diameter d = 210 mm
  • mounting depth (not countersunk) t = 88,6 mm
  • mass m = 3,1 kg

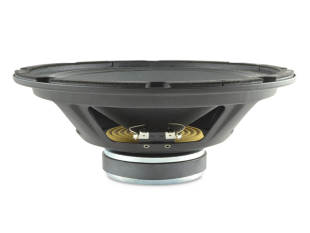

SICA 10 D 1,5 CS 8 (Z006510)
open a bigger photo

SICA 10 D 1,5 CS 8 (Z006510)

order no. sica-10D15CS8

EUR 65,60 excl. VAT: € 55.13 / $ 59.54

25 cm full range driver with paper cone.

  • power handling (continuous/programme) = 100 W
  • frequency range = 70-15000 Hz
  • resonance frequency fs = 68 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5 Ohm
  • force factor BL = 6,26 N/A
  • voice coil inductance L = 0,26 mH
  • effective piston radiating area Sd = 330,1 cm2
  • effective mechanical mass incl. air load mms = 22,6 g
  • equivalent volume of compliance Vas = 37,5 l
  • total Q factor Qts = 1,12 (Qms=12,27, Qes=1,23)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 237 mm
  • overall diameter d = 266 mm
  • mounting depth (not countersunk) t = 97,4 mm
  • mass m = 1,9 kg

SICA 12 D 1,5 CS 8 (Z007360)
open a bigger photo

SICA 12 D 1,5 CS 8 (Z007360)

order no. sica-12D15CS8

EUR 103,80 excl. VAT: € 87.23 / $ 94.21

30 cm full range driver with paper cone.

  • power handling (continuous/programme) = 130 W
  • frequency range = 65-15000 Hz
  • resonance frequency fs = 62 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 9,51 N/A
  • voice coil inductance L = 0,35 mH
  • effective piston radiating area Sd = 490,9 cm2
  • effective mechanical mass incl. air load mms = 35,5 g
  • equivalent volume of compliance Vas = 63,5 l
  • total Q factor Qts = 0,75 (Qms=18,3, Qes=0,78)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 287 mm
  • overall diameter d = 318 mm
  • mounting depth (not countersunk) t = 134,7 mm
  • mass m = 3,7 kg




Coaxial speaker

SICA 6,5 C 1,5 CP 8 + 8 (Z004102)
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,9 L volume
from 146/92 Hz (-3dB/-8dB)

recommended cabinet 2:
5,8 L volume bass reflex cabinet
with HP50 reflex tube, 14 cm long.
from 80/62 Hz (-3dB/-8dB).

SICA 6,5 C 1,5 CP 8 + 8 (Z004102)

order no. sica-65C15CP8

EUR 114,70 excl. VAT: € 96.39 / $ 104.10

16 cm coax driver with paper cone.

  • power handling (continuous/programme) = 120 W
  • frequency range = 50-18000 Hz
  • resonance frequency fs = 56,8 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 7,43 N/A
  • voice coil inductance L = 0,44 mH
  • effective piston radiating area Sd = 122,7 cm2
  • effective mechanical mass incl. air load mms = 13,1 g
  • equivalent volume of compliance Vas = 12,8 l
  • total Q factor Qts = 0,31 (Qms=4,05, Qes=0,34)
  • voice coil diameter = 38 mm
  • mounting diameter d = 143 mm
  • overall diameter d = 174 mm
  • mounting depth (not countersunk) t = 79,5 mm
  • mass m = 1,7 kg

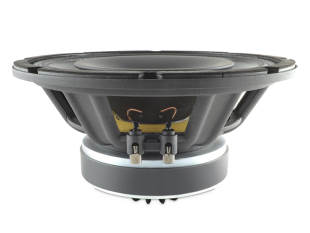

SICA 12 C3 CP 8+8 (Z007996)
open a bigger photo

recommended cabinet 1:
closed cabinet with 13,4 L volume
from 115/73 Hz (-3dB/-8dB)

recommended cabinet 2:
44 L volume bass reflex cabinet
with 2x HP100 reflex tube, 19 cm long.
from 61/48 Hz (-3dB/-8dB).

SICA 12 C3 CP 8+8 (Z007996)

order no. sica-12C3CP8+8

EUR 254,80 excl. VAT: € 214.12 / $ 231.25

30 cm coax driver with paper cone.

  • power handling (continuous/programme) = 400 W
  • frequency range = 50-20000 Hz
  • resonance frequency fs = 49 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5 Ohm
  • force factor BL = 16,03 N/A
  • voice coil inductance L = 1,02 mH
  • effective piston radiating area Sd = 530,9 cm2
  • effective mechanical mass incl. air load mms = 58 g
  • equivalent volume of compliance Vas = 72,8 l
  • total Q factor Qts = 0,33 (Qms=7,21, Qes=0,35)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 8 mm
  • mounting diameter d = 284 mm
  • overall diameter d = 320 mm
  • mounting depth (not countersunk) t = 167,3 mm
  • mass m = 8,3 kg




Mids

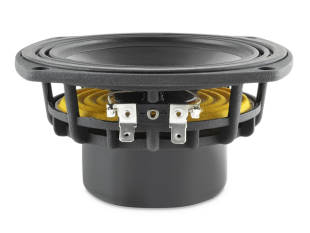

SICA 5N 1,5 PL (Z002650)
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,6 L volume
from 136/86 Hz (-3dB/-8dB)

recommended cabinet 2:
5,4 L volume bass reflex cabinet
with HP50 reflex tube, 17 cm long.
from 70/55 Hz (-3dB/-8dB).

SICA 5N 1,5 PL (Z002650)

order no. sica-5N15PL

EUR 84,20 excl. VAT: € 70.76 / $ 76.42

12 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 130 W
  • frequency range = 60-5000 Hz
  • resonance frequency fs = 61 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 6,65 N/A
  • voice coil inductance L = 0,34 mH
  • effective piston radiating area Sd = 78,5 cm2
  • effective mechanical mass incl. air load mms = 8 g
  • equivalent volume of compliance Vas = 7,4 l
  • total Q factor Qts = 0,36 (Qms=4,1, Qes=0,39)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 113 mm
  • overall diameter d = 132 mm
  • mounting depth (not countersunk) t = 71 mm
  • mass m = 0,8 kg

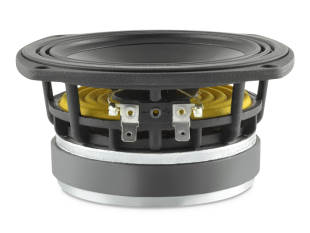

SICA 5F 1,5 CP (Z002652)
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,2 L volume
from 152/96 Hz (-3dB/-8dB)

recommended cabinet 2:
3,8 L volume bass reflex cabinet
with HP35 reflex tube, 9 cm long.
from 83/64 Hz (-3dB/-8dB).

SICA 5F 1,5 CP (Z002652)

order no. sica-5F15CP

EUR 54,80 excl. VAT: € 46.05 / $ 49.73

12 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 100 W
  • frequency range = 60-5000 Hz
  • resonance frequency fs = 59 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 6,95 N/A
  • voice coil inductance L = 0,48 mH
  • effective piston radiating area Sd = 78,5 cm2
  • effective mechanical mass incl. air load mms = 7,6 g
  • equivalent volume of compliance Vas = 8,4 l
  • total Q factor Qts = 0,31 (Qms=4,32, Qes=0,33)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 113 mm
  • overall diameter d = 132 mm
  • mounting depth (not countersunk) t = 65,5 mm
  • mass m = 1,4 kg

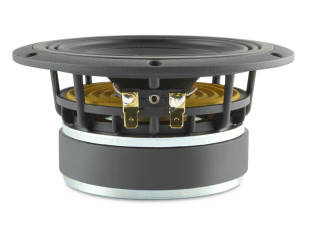

SICA 5,5 H 1,5 PL (Z002800)
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,9 L volume
from 102/65 Hz (-3dB/-8dB)

recommended cabinet 2:
6,8 L volume bass reflex cabinet
with HP50 reflex tube, 26 cm long.
from 52/41 Hz (-3dB/-8dB).

SICA 5,5 H 1,5 PL (Z002800)

order no. sica-55H15PL

EUR 67,60 excl. VAT: € 56.81 / $ 61.35

14 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 120 W
  • frequency range = 48-550 Hz
  • resonance frequency fs = 48,5 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 6 Ohm
  • force factor BL = 74 N/A
  • voice coil inductance L = 0,53 mH
  • effective piston radiating area Sd = 78,5 cm2
  • effective mechanical mass incl. air load mms = 12 g
  • equivalent volume of compliance Vas = 7,8 l
  • total Q factor Qts = 0,37 (Qms=4,15, Qes=0,41)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 6,5 mm
  • mounting diameter d = 113 mm
  • overall diameter d = 151 mm
  • mounting depth (not countersunk) t = 71,5 mm
  • mass m = 1,5 kg

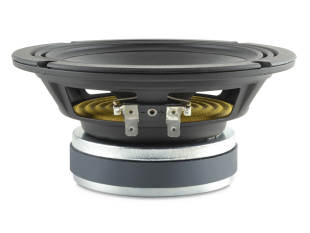

SICA 6 E 1,5 CS 8 (Z004035)
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,7 L volume
from 127/80 Hz (-3dB/-8dB)

recommended cabinet 2:
9,8 L volume bass reflex cabinet
with HP70 reflex tube, 21 cm long.
from 64/51 Hz (-3dB/-8dB).

SICA 6 E 1,5 CS 8 (Z004035)

order no. sica-6E15CS8

EUR 43,10 excl. VAT: € 36.22 / $ 39.12

15 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 100 W
  • frequency range = 60-4000 Hz
  • resonance frequency fs = 60 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5 Ohm
  • force factor BL = 7,5 N/A
  • voice coil inductance L = 0,61 mH
  • effective piston radiating area Sd = 122,7 cm2
  • effective mechanical mass incl. air load mms = 13,3 g
  • equivalent volume of compliance Vas = 11,3 l
  • total Q factor Qts = 0,38 (Qms=2,4, Qes=0,45)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 142 mm
  • overall diameter d = 166 mm
  • mounting depth (not countersunk) t = 75,7 mm
  • mass m = 1,5 kg

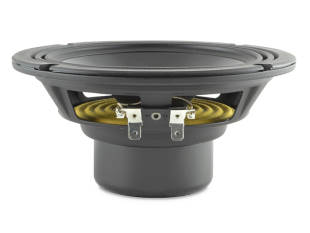

SICA 6L1,5 SL 8 (Z004059)
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,8 L volume
from 122/77 Hz (-3dB/-8dB)

recommended cabinet 2:
10,4 L volume bass reflex cabinet
with HP70 reflex tube, 21 cm long.
from 61/49 Hz (-3dB/-8dB).

SICA 6L1,5 SL 8 (Z004059)

order no. sica-6L15SL8

EUR 91,00 excl. VAT: € 76.47 / $ 82.59

15 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 130 W
  • frequency range = 60-4000 Hz
  • resonance frequency fs = 59 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5 Ohm
  • force factor BL = 7,5 N/A
  • voice coil inductance L = 0,48 mH
  • effective piston radiating area Sd = 122,7 cm2
  • effective mechanical mass incl. air load mms = 14,1 g
  • equivalent volume of compliance Vas = 11 l
  • total Q factor Qts = 0,39 (Qms=2,31, Qes=0,47)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 3,9 mm
  • mounting diameter d = 142 mm
  • overall diameter d = 166 mm
  • mounting depth (not countersunk) t = 79,2 mm
  • mass m = 0,9 kg

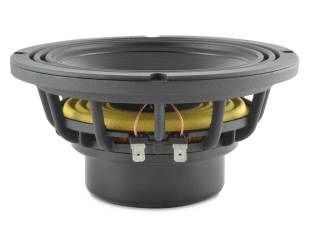

SICA 6NR 2PL 8 (Z004068)
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,5 L volume
from 151/95 Hz (-3dB/-8dB)

recommended cabinet 2:
4,7 L volume bass reflex cabinet
with HP50 reflex tube, 16 cm long.
from 81/63 Hz (-3dB/-8dB).

SICA 6NR 2PL 8 (Z004068)

order no. sica-6NR2PL8

EUR 127,40 excl. VAT: € 107.06 / $ 115.62

15 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 200 W
  • frequency range = 60-5000 Hz
  • resonance frequency fs = 60,5 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 9,86 N/A
  • voice coil inductance L = 0,51 mH
  • effective piston radiating area Sd = 122,7 cm2
  • effective mechanical mass incl. air load mms = 15,7 g
  • equivalent volume of compliance Vas = 9,4 l
  • total Q factor Qts = 0,32 (Qms=6,05, Qes=0,34)
  • voice coil diameter = 50 mm
  • maximum peak linear excursion vibration xlin = +/- 6,5 mm
  • mounting diameter d = 143 mm
  • overall diameter d = 166 mm
  • mounting depth (not countersunk) t = 82,8 mm
  • mass m = 1,5 kg

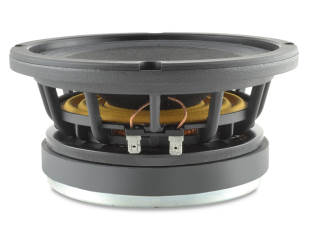

SICA 6M 2 CP 4 (Z004079)
open a bigger photo

recommended cabinet 1:
closed cabinet with 0,74 L volume
from 301/190 Hz (-3dB/-8dB)

recommended cabinet 2:
2,6 L volume bass reflex cabinet
with HP70 reflex tube, 13 cm long.
from 155/122 Hz (-3dB/-8dB).

SICA 6M 2 CP 4 (Z004079)

order no. sica-6M2CP4

EUR 79,30 excl. VAT: € 66.64 / $ 71.97

15 cm midrange driver with paper cone.

  • power handling (continuous/programme) = 150 W
  • frequency range = 130-6000 Hz
  • resonance frequency fs = 135 Hz
  • impedance R = 4 Ohm
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 8,62 N/A
  • voice coil inductance L = 0,38 mH
  • effective piston radiating area Sd = 138,9 cm2
  • effective mechanical mass incl. air load mms = 10,8 g
  • equivalent volume of compliance Vas = 3,5 l
  • total Q factor Qts = 0,35 (Qms=4,05, Qes=0,38)
  • voice coil diameter = 50 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 143 mm
  • overall diameter d = 166 mm
  • mounting depth (not countersunk) t = 77,8 mm
  • mass m = 2,7 kg

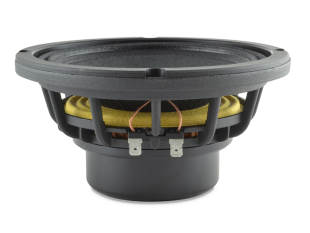

SICA 6 N 2,5 PL 8 (Z004080)
open a bigger photo

recommended cabinet 1:
closed cabinet with 0,49 L volume
from 244/154 Hz (-3dB/-8dB)

recommended cabinet 2:
1,3 L volume bass reflex cabinet
with HP50 reflex tube, 25 cm long.
from 143/108 Hz (-3dB/-8dB).

SICA 6 N 2,5 PL 8 (Z004080)

order no. sica-6N25PL8

EUR 130,30 excl. VAT: € 109.50 / $ 118.26

15 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 300 W
  • frequency range = 80-5000 Hz
  • resonance frequency fs = 80 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 13,5 N/A
  • voice coil inductance L = 0,62 mH
  • effective piston radiating area Sd = 122,7 cm2
  • effective mechanical mass incl. air load mms = 17,1 g
  • equivalent volume of compliance Vas = 4,9 l
  • total Q factor Qts = 0,26 (Qms=3,05, Qes=0,29)
  • voice coil diameter = 65 mm
  • maximum peak linear excursion vibration xlin = +/- 6,5 mm
  • mounting diameter d = 143 mm
  • overall diameter d = 166 mm
  • mounting depth (not countersunk) t = 82,8 mm
  • mass m = 1,5 kg

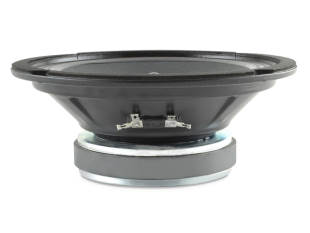

SICA 8 M 1,5 CS 8 (Z004930)
open a bigger photo

SICA 8 M 1,5 CS 8 (Z004930)

order no. sica-8M15CS8

EUR 59,70 excl. VAT: € 50.17 / $ 54.18

19 cm midrange driver with paper cone.

  • power handling (continuous/programme) = 100 W
  • frequency range = 500-6000 Hz
  • resonance frequency fs = 460 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 6 Ohm
  • force factor BL = 9,83 N/A
  • voice coil inductance L = 0,37 mH
  • effective piston radiating area Sd = 213,8 cm2
  • effective mechanical mass incl. air load mms = 11,6 g
  • equivalent volume of compliance Vas = 0,7 l
  • total Q factor Qts = 1,82 (Qms=12,36, Qes=2,13)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 1 mm
  • mounting diameter d = 184 mm
  • overall diameter d = 210 mm
  • mounting depth (not countersunk) t = 82 mm
  • mass m = 2,7 kg

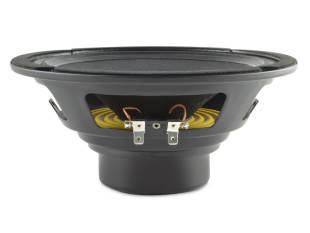

SICA 8 L 2 SL 8 (Z005055)
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,9 L volume
from 160/101 Hz (-3dB/-8dB)

recommended cabinet 2:
9,1 L volume bass reflex cabinet
with HP70 reflex tube, 13 cm long.
from 86/67 Hz (-3dB/-8dB).

SICA 8 L 2 SL 8 (Z005055)

order no. sica-8L2SL8

EUR 120,50 excl. VAT: € 101.26 / $ 109.36

19 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 200 W
  • frequency range = 65-3000 Hz
  • resonance frequency fs = 64 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 6,1 Ohm
  • force factor BL = 12,3 N/A
  • voice coil inductance L = 0,85 mH
  • effective piston radiating area Sd = 213,8 cm2
  • effective mechanical mass incl. air load mms = 22,1 g
  • equivalent volume of compliance Vas = 18,2 l
  • total Q factor Qts = 0,32 (Qms=2,69, Qes=0,36)
  • voice coil diameter = 50 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 181 mm
  • overall diameter d = 210 mm
  • mounting depth (not countersunk) t = 94,5 mm
  • mass m = 1,6 kg

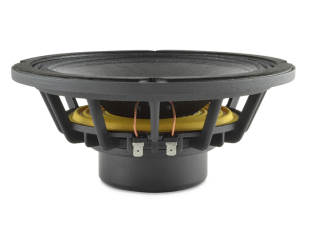

SICA 8 N 2,5 PL 8 (Z005200)
open a bigger photo

recommended cabinet 1:
closed cabinet with 2 L volume
from 198/125 Hz (-3dB/-8dB)

recommended cabinet 2:
6,2 L volume bass reflex cabinet
with HP70 reflex tube, 12 cm long.
from 108/83 Hz (-3dB/-8dB).

SICA 8 N 2,5 PL 8 (Z005200)

order no. sica-8N25PL8

EUR 147,90 excl. VAT: € 124.29 / $ 134.23

19 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 300 W
  • frequency range = 75-4000 Hz
  • resonance frequency fs = 77 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 12,95 N/A
  • voice coil inductance L = 0,37 mH
  • effective piston radiating area Sd = 213,8 cm2
  • effective mechanical mass incl. air load mms = 20,3 g
  • equivalent volume of compliance Vas = 13,7 l
  • total Q factor Qts = 0,31 (Qms=4,21, Qes=0,33)
  • voice coil diameter = 65 mm
  • maximum peak linear excursion vibration xlin = +/- 6,2 mm
  • mounting diameter d = 184 mm
  • overall diameter d = 210 mm
  • mounting depth (not countersunk) t = 90 mm
  • mass m = 1,8 kg

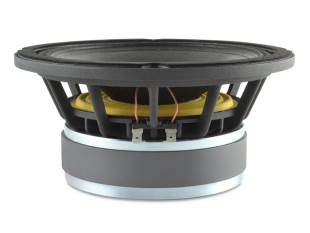

SICA 8 Fe 2,5 CP 8 (Z005203)
open a bigger photo

recommended cabinet 1:
closed cabinet with 2 L volume
from 207/131 Hz (-3dB/-8dB)

recommended cabinet 2:
5,4 L volume bass reflex cabinet
with HP70 reflex tube, 13 cm long.
from 118/90 Hz (-3dB/-8dB).

SICA 8 Fe 2,5 CP 8 (Z005203)

order no. sica-8Fe25CP8

EUR 106,80 excl. VAT: € 89.75 / $ 96.93

19 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 300 W
  • frequency range = 70-4000 Hz
  • resonance frequency fs = 73 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 13,01 N/A
  • voice coil inductance L = 0,5 mH
  • effective piston radiating area Sd = 213,8 cm2
  • effective mechanical mass incl. air load mms = 19,8 g
  • equivalent volume of compliance Vas = 16,6 l
  • total Q factor Qts = 0,28 (Qms=3,73, Qes=0,3)
  • voice coil diameter = 65 mm
  • maximum peak linear excursion vibration xlin = +/- 6,5 mm
  • mounting diameter d = 184 mm
  • overall diameter d = 210 mm
  • mounting depth (not countersunk) t = 98 mm
  • mass m = 4,5 kg

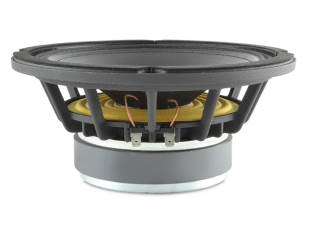

SICA 8 Fe 2 CP 8 (Z005112)
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,7 L volume
from 167/106 Hz (-3dB/-8dB)

recommended cabinet 2:
8,4 L volume bass reflex cabinet
with HP70 reflex tube, 13 cm long.
from 90/70 Hz (-3dB/-8dB).

SICA 8 Fe 2 CP 8 (Z005112)

order no. sica-8Fe2CP8

EUR 86,20 excl. VAT: € 72.44 / $ 78.23

19 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 200 W
  • frequency range = 65-3000 Hz
  • resonance frequency fs = 67 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 6,1 Ohm
  • force factor BL = 12,27 N/A
  • voice coil inductance L = 0,78 mH
  • effective piston radiating area Sd = 213,8 cm2
  • effective mechanical mass incl. air load mms = 21,7 g
  • equivalent volume of compliance Vas = 16,9 l
  • total Q factor Qts = 0,32 (Qms=2,27, Qes=0,37)
  • voice coil diameter = 50 mm
  • maximum peak linear excursion vibration xlin = +/- 7 mm
  • mounting diameter d = 184 mm
  • overall diameter d = 210 mm
  • mounting depth (not countersunk) t = 93 mm
  • mass m = 2,8 kg

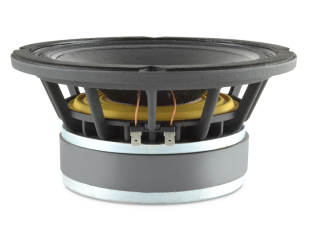

SICA 8 S 2,5 CP 8 (Z005205)
open a bigger photo

recommended cabinet 1:
closed cabinet with 3,4 L volume
from 127/80 Hz (-3dB/-8dB)

recommended cabinet 2:
11,3 L volume bass reflex cabinet
with HP70 reflex tube, 17 cm long.
from 67/52 Hz (-3dB/-8dB).

SICA 8 S 2,5 CP 8 (Z005205)

order no. sica-8S25CP8

EUR 108,70 excl. VAT: € 91.34 / $ 98.65

19 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 300 W
  • frequency range = 50-3500 Hz
  • resonance frequency fs = 54 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 11,9 N/A
  • voice coil inductance L = 1 mH
  • effective piston radiating area Sd = 213,8 cm2
  • effective mechanical mass incl. air load mms = 30,3 g
  • equivalent volume of compliance Vas = 18,6 l
  • total Q factor Qts = 0,33 (Qms=3,44, Qes=0,37)
  • voice coil diameter = 65 mm
  • maximum peak linear excursion vibration xlin = +/- 7 mm
  • mounting diameter d = 184 mm
  • overall diameter d = 210 mm
  • mounting depth (not countersunk) t = 98 mm
  • mass m = 4,5 kg

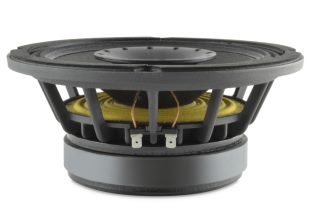

SICA 8 C 2 CP 8 (Z005061)
open a bigger photo

recommended cabinet 1:
closed cabinet with 2 L volume
from 209/132 Hz (-3dB/-8dB)

recommended cabinet 2:
6 L volume bass reflex cabinet
with HP70 reflex tube, 11 cm long.
from 115/89 Hz (-3dB/-8dB).

SICA 8 C 2 CP 8 (Z005061)

order no. sica-8C2CP8

EUR 102,90 excl. VAT: € 86.47 / $ 93.39

19 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 200 W
  • frequency range = 80-4500 Hz
  • resonance frequency fs = 78,5 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 6,1 Ohm
  • force factor BL = 13,5 N/A
  • voice coil inductance L = 0,8 mH
  • effective piston radiating area Sd = 213,8 cm2
  • effective mechanical mass incl. air load mms = 18,2 g
  • equivalent volume of compliance Vas = 14,7 l
  • total Q factor Qts = 0,3 (Qms=4,55, Qes=0,32)
  • voice coil diameter = 50 mm
  • maximum peak linear excursion vibration xlin = +/- 7 mm
  • mounting diameter d = 184 mm
  • overall diameter d = 210 mm
  • mounting depth (not countersunk) t = 90 mm
  • mass m = 3 kg

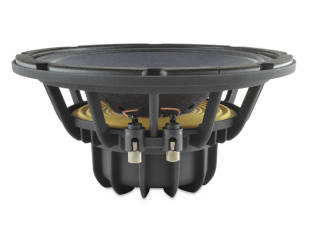

SICA 10 K 3 PL 8 (Z005840)
open a bigger photo

recommended cabinet 1:
closed cabinet with 4 L volume
from 154/97 Hz (-3dB/-8dB)

recommended cabinet 2:
10,2 L volume bass reflex cabinet
with HP70 reflex tube, 12 cm long.
from 91/68 Hz (-3dB/-8dB).

SICA 10 K 3 PL 8 (Z005840)

order no. sica-10K3PL8

EUR 237,10 excl. VAT: € 199.24 / $ 215.18

25 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 400 W
  • frequency range = 50--3000 Hz
  • resonance frequency fs = 50,6 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 16,05 N/A
  • voice coil inductance L = 0,49 mH
  • effective piston radiating area Sd = 346,4 cm2
  • effective mechanical mass incl. air load mms = 42,1 g
  • equivalent volume of compliance Vas = 40 l
  • total Q factor Qts = 0,26 (Qms=5,02, Qes=0,27)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 8,5 mm
  • mounting diameter d = 232 mm
  • overall diameter d = 268 mm
  • mounting depth (not countersunk) t = 128,5 mm
  • mass m = 2,8 kg




Woofer

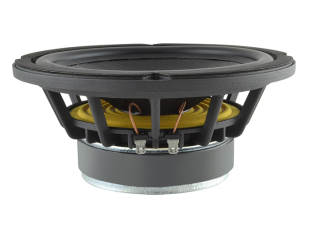

SICA 8 H 2 CP 8 (Z005158)
open a bigger photo

recommended cabinet 1:
closed cabinet with 17 L volume
from 63/40 Hz (-3dB/-8dB)

recommended cabinet 2:
69 L volume bass reflex cabinet
with HP100 reflex tube, 25 cm long.
from 29/24 Hz (-3dB/-8dB).

SICA 8 H 2 CP 8 (Z005158)

order no. sica-8H2CP8

EUR 101,90 excl. VAT: € 85.63 / $ 92.48

19 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 200 W
  • frequency range = 35-3000 Hz
  • resonance frequency fs = 38 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 6,1 Ohm
  • force factor BL = 9,45 N/A
  • voice coil inductance L = 0,59 mH
  • effective piston radiating area Sd = 213,8 cm2
  • effective mechanical mass incl. air load mms = 32,7 g
  • equivalent volume of compliance Vas = 34,8 l
  • total Q factor Qts = 0,48 (Qms=5,25, Qes=0,53)
  • voice coil diameter = 50 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm
  • mounting diameter d = 184 mm
  • overall diameter d = 210 mm
  • mounting depth (not countersunk) t = 93 mm
  • mass m = 2,7 kg

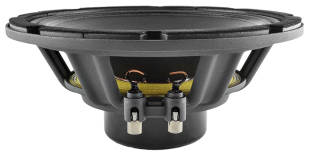

SICA 10 N 3 PL 8 (Z005844)
open a bigger photo

recommended cabinet 1:
closed cabinet with 5,2 L volume
from 140/88 Hz (-3dB/-8dB)

recommended cabinet 2:
14,7 L volume bass reflex cabinet
with HP100 reflex tube, 24 cm long.
from 79/60 Hz (-3dB/-8dB).

SICA 10 N 3 PL 8 (Z005844)

order no. sica-10N3PL8

EUR 225,40 excl. VAT: € 189.41 / $ 204.56

25 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 400 W
  • frequency range = 50-3500 Hz
  • resonance frequency fs = 51 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 15,89 N/A
  • voice coil inductance L = 0,73 mH
  • effective piston radiating area Sd = 346,4 cm2
  • effective mechanical mass incl. air load mms = 41 g
  • equivalent volume of compliance Vas = 40,5 l
  • total Q factor Qts = 0,29 (Qms=8,05, Qes=0,3)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 8 mm
  • mounting diameter d = 232 mm
  • overall diameter d = 268 mm
  • mounting depth (not countersunk) t = 114,5 mm
  • mass m = 2,8 kg

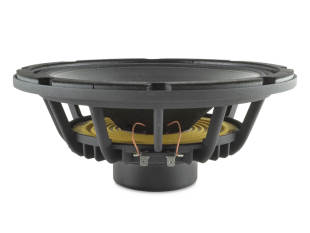

SICA 10 N 2,5 PL 8 (Z005701)
open a bigger photo

recommended cabinet 1:
closed cabinet with 8,6 L volume
from 127/80 Hz (-3dB/-8dB)

recommended cabinet 2:
30 L volume bass reflex cabinet
with HP100 reflex tube, 11 cm long.
from 66/52 Hz (-3dB/-8dB).

SICA 10 N 2,5 PL 8 (Z005701)

order no. sica-10N25PL8

EUR 172,00 excl. VAT: € 144.54 / $ 156.10

25 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 300 W
  • frequency range = 55-3500 Hz
  • resonance frequency fs = 57 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 12,8 N/A
  • voice coil inductance L = 0,5 mH
  • effective piston radiating area Sd = 346,4 cm2
  • effective mechanical mass incl. air load mms = 32,5 g
  • equivalent volume of compliance Vas = 40,9 l
  • total Q factor Qts = 0,36 (Qms=4,25, Qes=0,39)
  • voice coil diameter = 65 mm
  • maximum peak linear excursion vibration xlin = +/- 7 mm
  • mounting diameter d = 232 mm
  • overall diameter d = 268 mm
  • mounting depth (not countersunk) t = 111,5 mm
  • mass m = 2,2 kg

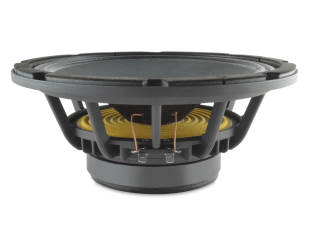

SICA 10 C 2 CP 8 (Z006781)
open a bigger photo

recommended cabinet 1:
closed cabinet with 9,4 L volume
from 129/81 Hz (-3dB/-8dB)

recommended cabinet 2:
28 L volume bass reflex cabinet
with HP100 reflex tube, 12 cm long.
from 70/54 Hz (-3dB/-8dB).

SICA 10 C 2 CP 8 (Z006781)

order no. sica-10C2CP8

EUR 121,50 excl. VAT: € 102.10 / $ 110.27

25 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 200 W
  • frequency range = 55-3500 Hz
  • resonance frequency fs = 50 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 12,7 N/A
  • voice coil inductance L = 0,81 mH
  • effective piston radiating area Sd = 346,4 cm2
  • effective mechanical mass incl. air load mms = 27,3 g
  • equivalent volume of compliance Vas = 63,2 l
  • total Q factor Qts = 0,31 (Qms=4,71, Qes=0,33)
  • voice coil diameter = 50 mm
  • maximum peak linear excursion vibration xlin = +/- 7 mm
  • mounting diameter d = 232 mm
  • overall diameter d = 268 mm
  • mounting depth (not countersunk) t = 111,5 mm
  • mass m = 3,5 kg

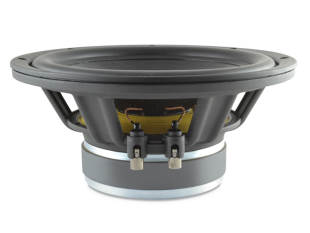

SICA 10 SR 2,5 CP CP 8 (Z006013)
open a bigger photo

recommended cabinet 1:
closed cabinet with 10,6 L volume
from 86/54 Hz (-3dB/-8dB)

recommended cabinet 2:
33 L volume bass reflex cabinet
with HP100 reflex tube, 29 cm long.
from 46/36 Hz (-3dB/-8dB).

SICA 10 SR 2,5 CP CP 8 (Z006013)

order no. sica-10SR25CPCP8

EUR 124,40 excl. VAT: € 104.54 / $ 112.90

25 cm bass driver with paper cone.

  • power handling (continuous/programme) = 300 W
  • frequency range = 35-2000 Hz
  • resonance frequency fs = 34,5 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 13,7 N/A
  • voice coil inductance L = 1,16 mH
  • effective piston radiating area Sd = 353 cm2
  • effective mechanical mass incl. air load mms = 56,5 g
  • equivalent volume of compliance Vas = 66,7 l
  • total Q factor Qts = 0,32 (Qms=6,35, Qes=0,34)
  • voice coil diameter = 65 mm
  • maximum peak linear excursion vibration xlin = +/- 10 mm
  • mounting diameter d = 232 mm
  • overall diameter d = 268 mm
  • mounting depth (not countersunk) t = 122 mm
  • mass m = 5 kg

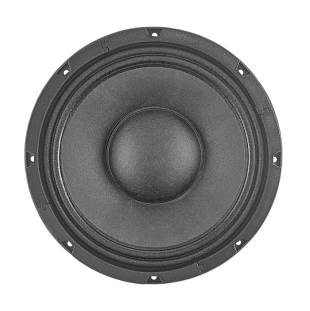

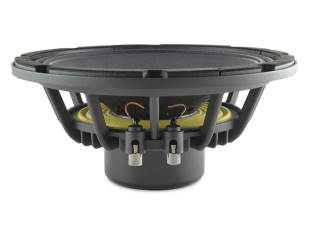

SICA 10 S3 PL 8 (Z006015)
open a bigger photo

recommended cabinet 1:
closed cabinet with 4 L volume
from 131/83 Hz (-3dB/-8dB)

recommended cabinet 2:
10,2 L volume bass reflex cabinet
with HP70 reflex tube, 19 cm long.
from 77/58 Hz (-3dB/-8dB).

SICA 10 S3 PL 8 (Z006015)

order no. sica-10S3PL8

EUR 239,10 excl. VAT: € 200.92 / $ 217.00

25 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 400 W
  • frequency range = 40-2000 Hz
  • resonance frequency fs = 43 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 16,86 N/A
  • voice coil inductance L = 1,18 mH
  • effective piston radiating area Sd = 346,4 cm2
  • effective mechanical mass incl. air load mms = 58,5 g
  • equivalent volume of compliance Vas = 39,9 l
  • total Q factor Qts = 0,26 (Qms=4,8, Qes=0,28)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm
  • mounting diameter d = 232 mm
  • overall diameter d = 268 mm
  • mounting depth (not countersunk) t = 120,5 mm
  • mass m = 3,1 kg

SICA 10 S3 CP 8 (Z006017)
open a bigger photo

recommended cabinet 1:
closed cabinet with 5,5 L volume
from 115/73 Hz (-3dB/-8dB)

recommended cabinet 2:
16 L volume bass reflex cabinet
with HP70 reflex tube, 15 cm long.
from 65/49 Hz (-3dB/-8dB).

SICA 10 S3 CP 8 (Z006017)

order no. sica-10S3CP8

EUR 173,40 excl. VAT: € 145.71 / $ 157.37

25 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 400 W
  • frequency range = 40-2000 Hz
  • resonance frequency fs = 42 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 15,58 N/A
  • voice coil inductance L = 1,19 mH
  • effective piston radiating area Sd = 346,4 cm2
  • effective mechanical mass incl. air load mms = 56,8 g
  • equivalent volume of compliance Vas = 42,8 l
  • total Q factor Qts = 0,29 (Qms=4,83, Qes=0,31)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 8,5 mm
  • mounting diameter d = 232 mm
  • overall diameter d = 268 mm
  • mounting depth (not countersunk) t = 122,5 mm
  • mass m = 6,1 kg

SICA 12 L1 2,5 SL 8 (Z007903)
open a bigger photo

recommended cabinet 1:
closed cabinet with 17 L volume
from 106/67 Hz (-3dB/-8dB)

recommended cabinet 2:
60 L volume bass reflex cabinet
with 2x HP100 reflex tube, 15 cm long.
from 55/43 Hz (-3dB/-8dB).

SICA 12 L1 2,5 SL 8 (Z007903)

order no. sica-12L125SL8

EUR 179,00 excl. VAT: € 150.42 / $ 162.45

30 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 300 W
  • frequency range = 50-3000 Hz
  • resonance frequency fs = 47,5 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 14,2 N/A
  • voice coil inductance L = 0,75 mH
  • effective piston radiating area Sd = 490,9 cm2
  • effective mechanical mass incl. air load mms = 47 g
  • equivalent volume of compliance Vas = 81,8 l
  • total Q factor Qts = 0,36 (Qms=7,5, Qes=0,38)
  • voice coil diameter = 65 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 2,87 mm
  • overall diameter d = 318 mm
  • mounting depth (not countersunk) t = 130,2 mm
  • mass m = 2,3 kg

SICA 12 N 3 PL 8 (Z007983)
open a bigger photo

recommended cabinet 1:
closed cabinet with 12,1 L volume
from 122/77 Hz (-3dB/-8dB)

recommended cabinet 2:
36 L volume bass reflex cabinet
with 2x HP100 reflex tube, 22 cm long.
from 68/52 Hz (-3dB/-8dB).

SICA 12 N 3 PL 8 (Z007983)

order no. sica-12N3PL8

EUR 233,20 excl. VAT: € 195.97 / $ 211.64

30 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 400 W
  • frequency range = 45-3000 Hz
  • resonance frequency fs = 46 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5 Ohm
  • force factor BL = 16 N/A
  • voice coil inductance L = 0,8 mH
  • effective piston radiating area Sd = 530,9 cm2
  • effective mechanical mass incl. air load mms = 56,5 g
  • equivalent volume of compliance Vas = 87,9 l
  • total Q factor Qts = 0,3 (Qms=7,5, Qes=0,31)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm
  • mounting diameter d = 284 mm
  • overall diameter d = 320 mm
  • mounting depth (not countersunk) t = 135,4 mm
  • mass m = 3,5 kg

SICA 12 C 2 CP 8 (Z007852)
open a bigger photo

recommended cabinet 1:
closed cabinet with 30 L volume
from 102/65 Hz (-3dB/-8dB)

recommended cabinet 2:
120 L volume bass reflex cabinet
with 2x HP100 reflex tube, 3 cm long.
from 49/40 Hz (-3dB/-8dB).

SICA 12 C 2 CP 8 (Z007852)

order no. sica-12C2CP8

EUR 128,30 excl. VAT: € 107.82 / $ 116.44

30 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 200 W
  • frequency range = 60-3500 Hz
  • resonance frequency fs = 58,4 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 13,7 N/A
  • voice coil inductance L = 0,83 mH
  • effective piston radiating area Sd = 530,9 cm2
  • effective mechanical mass incl. air load mms = 40 g
  • equivalent volume of compliance Vas = 74,3 l
  • total Q factor Qts = 0,45 (Qms=5,6, Qes=0,49)
  • voice coil diameter = 50 mm
  • maximum peak linear excursion vibration xlin = +/- 7 mm
  • mounting diameter d = 284 mm
  • overall diameter d = 320 mm
  • mounting depth (not countersunk) t = 130,4 mm
  • mass m = 3,8 kg

SICA 12 C 2.,5 CP 8 (Z007857)
open a bigger photo

recommended cabinet 1:
closed cabinet with 11,6 L volume
from 134/85 Hz (-3dB/-8dB)

recommended cabinet 2:
34 L volume bass reflex cabinet
with 2x HP100 reflex tube, 18 cm long.
from 74/57 Hz (-3dB/-8dB).

SICA 12 C 2.,5 CP 8 (Z007857)

order no. sica-12C25CP8

EUR 160,70 excl. VAT: € 135.04 / $ 145.85

30 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 300 W
  • frequency range = 55-3500 Hz
  • resonance frequency fs = 50,5 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 17,3 N/A
  • voice coil inductance L = 1,12 mH
  • effective piston radiating area Sd = 530,9 cm2
  • effective mechanical mass incl. air load mms = 47 g
  • equivalent volume of compliance Vas = 84,5 l
  • total Q factor Qts = 0,3 (Qms=8,85, Qes=0,31)
  • voice coil diameter = 65 mm
  • maximum peak linear excursion vibration xlin = +/- 8,5 mm
  • mounting diameter d = 284 mm
  • overall diameter d = 320 mm
  • mounting depth (not countersunk) t = 132,3 mm
  • mass m = 5 kg

SICA 12 K 4 PL 8 (Z008020)
open a bigger photo

recommended cabinet 1:
closed cabinet with 3,6 L volume
from 165/104 Hz (-3dB/-8dB)

recommended cabinet 2:
8 L volume bass reflex cabinet
with HP100 reflex tube, 35 cm long.
from 102/76 Hz (-3dB/-8dB).

SICA 12 K 4 PL 8 (Z008020)

order no. sica-12K4PL8

EUR 343,00 excl. VAT: € 288.24 / $ 311.29

30 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 1000 W
  • frequency range = 50-3000 Hz
  • resonance frequency fs = 48 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 24,7 N/A
  • voice coil inductance L = 0,74 mH
  • effective piston radiating area Sd = 530,9 cm2
  • effective mechanical mass incl. air load mms = 93,6 g
  • equivalent volume of compliance Vas = 46,3 l
  • total Q factor Qts = 0,24 (Qms=4,41, Qes=0,25)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm
  • mounting diameter d = 284 mm
  • overall diameter d = 320 mm
  • mounting depth (not countersunk) t = 154,8 mm
  • mass m = 6,6 kg

SICA 12 F4 CP 8 (Z008019)
open a bigger photo

recommended cabinet 1:
closed cabinet with 3 L volume
from 180/114 Hz (-3dB/-8dB)

recommended cabinet 2:
5,8 L volume bass reflex cabinet
with HP100 reflex tube, 43 cm long.
from 119/88 Hz (-3dB/-8dB).

SICA 12 F4 CP 8 (Z008019)

order no. sica-12F4CP8

EUR 277,30 excl. VAT: € 233.03 / $ 251.67

30 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 700 W
  • frequency range = 45-3000 Hz
  • resonance frequency fs = 46 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 26,01 N/A
  • voice coil inductance L = 1,33 mH
  • effective piston radiating area Sd = 530,9 cm2
  • effective mechanical mass incl. air load mms = 92,1 g
  • equivalent volume of compliance Vas = 52 l
  • total Q factor Qts = 0,2 (Qms=6,24, Qes=0,21)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 10 mm
  • mounting diameter d = 284 mm
  • overall diameter d = 320 mm
  • mounting depth (not countersunk) t = 147,3 mm
  • mass m = 11,7 kg

SICA 12 S 4 PL 8 (Z007951)
open a bigger photo

recommended cabinet 1:
closed cabinet with 4,8 L volume
from 133/84 Hz (-3dB/-8dB)

recommended cabinet 2:
11,3 L volume bass reflex cabinet
with HP100 reflex tube, 39 cm long.
from 81/61 Hz (-3dB/-8dB).

SICA 12 S 4 PL 8 (Z007951)

order no. sica-12S4PL8

EUR 337,10 excl. VAT: € 283.28 / $ 305.94

30 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 1000 W
  • frequency range = 40-2000 Hz
  • resonance frequency fs = 40,4 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 23,5 N/A
  • voice coil inductance L = 1,15 mH
  • effective piston radiating area Sd = 530,9 cm2
  • effective mechanical mass incl. air load mms = 109 g
  • equivalent volume of compliance Vas = 57,01 l
  • total Q factor Qts = 0,25 (Qms=4,5, Qes=0,26)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm
  • mounting diameter d = 284 mm
  • overall diameter d = 320 mm
  • mounting depth (not countersunk) t = 154,8 mm
  • mass m = 6,6 kg

SICA 12 PFS 4 CP 8 (Z007954)
open a bigger photo

recommended cabinet 1:
closed cabinet with 5,1 L volume
from 124/78 Hz (-3dB/-8dB)

recommended cabinet 2:
12,5 L volume bass reflex cabinet
with HP100 reflex tube, 41 cm long.
from 74/55 Hz (-3dB/-8dB).

SICA 12 PFS 4 CP 8 (Z007954)

order no. sica-12PFS4CP8

EUR 249,90 excl. VAT: € 210.00 / $ 226.80

30 cm bass driver with paper cone.

  • power handling (continuous/programme) = 1000 W
  • frequency range = 35-2000 Hz
  • resonance frequency fs = 39 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 23,88 N/A
  • voice coil inductance L = 1,76 mH
  • effective piston radiating area Sd = 530,9 cm2
  • effective mechanical mass incl. air load mms = 120 g
  • equivalent volume of compliance Vas = 55,6 l
  • total Q factor Qts = 0,26 (Qms=4,6, Qes=0,27)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 10 mm
  • mounting diameter d = 284 mm
  • overall diameter d = 320 mm
  • mounting depth (not countersunk) t = 153,3 mm
  • mass m = 11,5 kg

SICA 15 Fe 3 CP 8 (Z008308)
open a bigger photo

recommended cabinet 1:
closed cabinet with 29 L volume
from 97/61 Hz (-3dB/-8dB)

recommended cabinet 2:
94 L volume bass reflex cabinet
with 2x HP100 reflex tube, 9 cm long.
from 52/40 Hz (-3dB/-8dB).

SICA 15 Fe 3 CP 8 (Z008308)

order no. sica-15Fe3CP8

EUR 208,70 excl. VAT: € 175.38 / $ 189.41

36 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 400 W
  • frequency range = 40-2000 Hz
  • resonance frequency fs = 40,2 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 19,1 N/A
  • voice coil inductance L = 1,22 mH
  • effective piston radiating area Sd = 855,3 cm2
  • effective mechanical mass incl. air load mms = 91 g
  • equivalent volume of compliance Vas = 170,4 l
  • total Q factor Qts = 0,33 (Qms=9,52, Qes=0,34)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 10 mm
  • mounting diameter d = 355 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 161 mm
  • mass m = 8,1 kg

SICA 15 F 4 CP 8 (Z008321)
open a bigger photo

recommended cabinet 1:
closed cabinet with 11,1 L volume
from 130/82 Hz (-3dB/-8dB)

recommended cabinet 2:
27 L volume bass reflex cabinet
with 2x HP100 reflex tube, 28 cm long.
from 77/58 Hz (-3dB/-8dB).

SICA 15 F 4 CP 8 (Z008321)

order no. sica-15F4CP8

EUR 275,30 excl. VAT: € 231.34 / $ 249.85

36 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 700 W
  • frequency range = 40-2000 Hz
  • resonance frequency fs = 41 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 25,9 N/A
  • voice coil inductance L = 1,48 mH
  • effective piston radiating area Sd = 855,3 cm2
  • effective mechanical mass incl. air load mms = 130 g
  • equivalent volume of compliance Vas = 120,4 l
  • total Q factor Qts = 0,25 (Qms=7,42, Qes=0,26)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 10 mm
  • mounting diameter d = 355 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 169 mm
  • mass m = 12,1 kg

SICA 15 K 3 PL 8 (Z008331)
open a bigger photo

recommended cabinet 1:
closed cabinet with 18 L volume
from 118/74 Hz (-3dB/-8dB)

recommended cabinet 2:
48 L volume bass reflex cabinet
with 2x HP100 reflex tube, 16 cm long.
from 68/51 Hz (-3dB/-8dB).

SICA 15 K 3 PL 8 (Z008331)

order no. sica-15K3PL8

EUR 300,80 excl. VAT: € 252.77 / $ 272.99

36 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 400 W
  • frequency range = 40-2000 Hz
  • resonance frequency fs = 40 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 21,4 N/A
  • voice coil inductance L = 0,6 mH
  • effective piston radiating area Sd = 855,3 cm2
  • effective mechanical mass incl. air load mms = 99 g
  • equivalent volume of compliance Vas = 166,1 l
  • total Q factor Qts = 0,27 (Qms=8,31, Qes=0,28)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 11 mm
  • mounting diameter d = 355 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 169 mm
  • mass m = 4 kg

SICA 15 K 4 PL 8 (Z008339)
open a bigger photo

recommended cabinet 1:
closed cabinet with 13,4 L volume
from 124/78 Hz (-3dB/-8dB)

recommended cabinet 2:
38 L volume bass reflex cabinet
with 2x HP100 reflex tube, 19 cm long.
from 70/53 Hz (-3dB/-8dB).

SICA 15 K 4 PL 8 (Z008339)

order no. sica-15K4PL8

EUR 382,20 excl. VAT: € 321.18 / $ 346.87

36 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 1200 W
  • frequency range = 45-2000 Hz
  • resonance frequency fs = 45,2 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 24,2 N/A
  • voice coil inductance L = 0,84 mH
  • effective piston radiating area Sd = 855,3 cm2
  • effective mechanical mass incl. air load mms = 118 g
  • equivalent volume of compliance Vas = 105 l
  • total Q factor Qts = 0,29 (Qms=13,8, Qes=0,3)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 10,5 mm
  • mounting diameter d = 355 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 176,8 mm
  • mass m = 7 kg

SICA 15 F 4 CP 8 (Z008321)
open a bigger photo

recommended cabinet 1:
closed cabinet with 11,1 L volume
from 130/82 Hz (-3dB/-8dB)

recommended cabinet 2:
27 L volume bass reflex cabinet
with 2x HP100 reflex tube, 28 cm long.
from 77/58 Hz (-3dB/-8dB).

SICA 15 F 4 CP 8 (Z008321)

order no. sica-15FE4CP8

EUR 279,00 excl. VAT: € 234.45 / $ 253.21

36 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 700 W
  • frequency range = 40-2000 Hz
  • resonance frequency fs = 41 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 25,9 N/A
  • voice coil inductance L = 1,48 mH
  • effective piston radiating area Sd = 855,3 cm2
  • effective mechanical mass incl. air load mms = 130 g
  • equivalent volume of compliance Vas = 120,4 l
  • total Q factor Qts = 0,25 (Qms=7,42, Qes=0,26)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 10 mm
  • mounting diameter d = 355 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 169 mm
  • mass m = 12,1 kg

SICA 15 PFS3 8 (Z008314)
open a bigger photo

recommended cabinet 1:
closed cabinet with 51 L volume
from 70/44 Hz (-3dB/-8dB)

recommended cabinet 2:
204 L volume bass reflex cabinet
with 2x HP100 reflex tube, 7 cm long.
from 33/28 Hz (-3dB/-8dB).

SICA 15 PFS3 8 (Z008314)

order no. sica-15PFS38

EUR 215,60 excl. VAT: € 181.18 / $ 195.67

36 cm bass driver with paper cone.

  • power handling (continuous/programme) = 500 W
  • frequency range = 35-2000 Hz
  • resonance frequency fs = 39 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 17,5 N/A
  • voice coil inductance L = 1,36 mH
  • effective piston radiating area Sd = 855,3 cm2
  • effective mechanical mass incl. air load mms = 127,7 g
  • equivalent volume of compliance Vas = 135,5 l
  • total Q factor Qts = 0,45 (Qms=3,24, Qes=0,52)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm
  • mounting diameter d = 355 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 163 mm
  • mass m = 7,7 kg

SICA 15 S 4 PL 8 Ohm (Z008175)
open a bigger photo

recommended cabinet 1:
closed cabinet with 16 L volume
from 108/68 Hz (-3dB/-8dB)

recommended cabinet 2:
44 L volume bass reflex cabinet
with 2x HP100 reflex tube, 23 cm long.
from 61/47 Hz (-3dB/-8dB).

SICA 15 S 4 PL 8 Ohm (Z008175)

order no. sica-15S4PL8Ohm

EUR 362,60 excl. VAT: € 304.71 / $ 329.08

36 cm bass driver with paper cone.

  • power handling (continuous/programme) = 1200 W
  • frequency range = 35-2000 Hz
  • resonance frequency fs = 38 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 23,84 N/A
  • voice coil inductance L = 1,38 mH
  • effective piston radiating area Sd = 855,3 cm2
  • effective mechanical mass incl. air load mms = 134,1 g
  • equivalent volume of compliance Vas = 135,9 l
  • total Q factor Qts = 0,28 (Qms=14,5, Qes=0,29)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 11,5 mm
  • mounting diameter d = 355 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 176,8 mm
  • mass m = 7 kg

SICA 15 PFS4 8 Ohm (Z008318)
open a bigger photo

recommended cabinet 1:
closed cabinet with 20 L volume
from 89/56 Hz (-3dB/-8dB)

recommended cabinet 2:
69 L volume bass reflex cabinet
with 2x HP100 reflex tube, 21 cm long.
from 47/37 Hz (-3dB/-8dB).

SICA 15 PFS4 8 Ohm (Z008318)

order no. sica-15PFS48Ohm

EUR 288,10 excl. VAT: € 242.10 / $ 261.47

36 cm bass driver with paper cone.

  • power handling (continuous/programme) = 1200 W
  • frequency range = 35-2000 Hz
  • resonance frequency fs = 39 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,3 Ohm
  • force factor BL = 24,24 N/A
  • voice coil inductance L = 1,8 mH
  • effective piston radiating area Sd = 855,3 cm2
  • effective mechanical mass incl. air load mms = 166,5 g
  • equivalent volume of compliance Vas = 103,9 l
  • total Q factor Qts = 0,34 (Qms=4,87, Qes=0,37)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm
  • mounting diameter d = 355 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 175 mm
  • mass m = 12,3 kg

SICA 18 F 3 CP 8 (Z008362)
open a bigger photo

recommended cabinet 1:
closed cabinet with 129 L volume
from 55/35 Hz (-3dB/-8dB)

recommended cabinet 2:
512 L volume bass reflex cabinet
with 4x HP100 reflex tube, 10 cm long.
from 26/22 Hz (-3dB/-8dB).

SICA 18 F 3 CP 8 (Z008362)

order no. sica-18F3CP8-

EUR 219,50 excl. VAT: € 184.45 / $ 199.21

43 cm bass driver with paper cone.

  • power handling (continuous/programme) = 400 W
  • frequency range = 30-700 Hz
  • resonance frequency fs = 30,8 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 16,9 N/A
  • voice coil inductance L = 1,41 mH
  • effective piston radiating area Sd = 1164,2 cm2
  • effective mechanical mass incl. air load mms = 155 g
  • equivalent volume of compliance Vas = 340 l
  • total Q factor Qts = 0,44 (Qms=3,05, Qes=0,52)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 10,5 mm
  • mounting diameter d = 417 mm
  • overall diameter d = 462 mm
  • mounting depth (not countersunk) t = 196,5 mm
  • mass m = 8,6 kg

SICA 18 PF 4 CP 8 (Z008394)
open a bigger photo

recommended cabinet 1:
closed cabinet with 52 L volume
from 70/44 Hz (-3dB/-8dB)

recommended cabinet 2:
206 L volume bass reflex cabinet
with 4x HP100 reflex tube, 24 cm long.
from 34/27 Hz (-3dB/-8dB).

SICA 18 PF 4 CP 8 (Z008394)

order no. sica-18PF4CP8

EUR 316,50 excl. VAT: € 265.97 / $ 287.24

43 cm bass driver with paper cone.

  • power handling (continuous/programme) = 1400 W
  • frequency range = 35-700 Hz
  • resonance frequency fs = 38 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 24,6 N/A
  • voice coil inductance L = 1,85 mH
  • effective piston radiating area Sd = 1164,2 cm2
  • effective mechanical mass incl. air load mms = 229,2 g
  • equivalent volume of compliance Vas = 147,3 l
  • total Q factor Qts = 0,44 (Qms=6,46, Qes=0,47)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 10 mm
  • mounting diameter d = 417 mm
  • overall diameter d = 462 mm
  • mounting depth (not countersunk) t = 209,5 mm
  • mass m = 13 kg

SICA 18 K 4 PL 8 (Z008402)
open a bigger photo

recommended cabinet 1:
closed cabinet with 34 L volume
from 89/56 Hz (-3dB/-8dB)

recommended cabinet 2:
111 L volume bass reflex cabinet
with 4x HP100 reflex tube, 30 cm long.
from 48/37 Hz (-3dB/-8dB).

SICA 18 K 4 PL 8 (Z008402)

order no. sica-18K4PL8

EUR 409,60 excl. VAT: € 344.20 / $ 371.74

43 cm bass driver with paper cone.

  • power handling (continuous/programme) = 1200 W
  • frequency range = 35-700 Hz
  • resonance frequency fs = 36,8 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 6 Ohm
  • force factor BL = 26,8 N/A
  • voice coil inductance L = 1,6 mH
  • effective piston radiating area Sd = 1164,2 cm2
  • effective mechanical mass incl. air load mms = 178,8 g
  • equivalent volume of compliance Vas = 201 l
  • total Q factor Qts = 0,33 (Qms=4,62, Qes=0,35)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 10 mm
  • mounting diameter d = 417 mm
  • overall diameter d = 462 mm
  • mounting depth (not countersunk) t = 211 mm
  • mass m = 8,3 kg

SICA 18 S 4 PL P 8 (Z008405)
open a bigger photo

recommended cabinet 1:
closed cabinet with 52 L volume
from 73/46 Hz (-3dB/-8dB)

recommended cabinet 2:
194 L volume bass reflex cabinet
with 4x HP100 reflex tube, 23 cm long.
from 36/29 Hz (-3dB/-8dB).

SICA 18 S 4 PL P 8 (Z008405)

order no. sica-18S4PLP8

EUR 398,80 excl. VAT: € 335.13 / $ 361.94

43 cm bass driver with paper cone.

  • power handling (continuous/programme) = 1200 W
  • frequency range = 35-700 Hz
  • resonance frequency fs = 36,2 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 23,54 N/A
  • voice coil inductance L = 1,35 mH
  • effective piston radiating area Sd = 1164,2 cm2
  • effective mechanical mass incl. air load mms = 197 g
  • equivalent volume of compliance Vas = 189 l
  • total Q factor Qts = 0,39 (Qms=6,56, Qes=0,42)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 10,1 mm
  • mounting diameter d = 417 mm
  • overall diameter d = 462 mm
  • mounting depth (not countersunk) t = 211 mm
  • mass m = 8,3 kg

SICA 21 S 4 PL 8 (Z008424)
open a bigger photo

recommended cabinet 1:
closed cabinet with 35 L volume
from 92/58 Hz (-3dB/-8dB)

recommended cabinet 2:
103 L volume bass reflex cabinet
with 4x HP100 reflex tube, 31 cm long.
from 51/39 Hz (-3dB/-8dB).

SICA 21 S 4 PL 8 (Z008424)

order no. sica-21S4PL8

EUR 448,80 excl. VAT: € 377.14 / $ 407.31

51 cm bass driver with paper cone.

  • power handling (continuous/programme) = 1200 W
  • frequency range = 35-500 Hz
  • resonance frequency fs = 34,6 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 36,1 N/A
  • voice coil inductance L = 1,6 mH
  • effective piston radiating area Sd = 1661,9 cm2
  • effective mechanical mass incl. air load mms = 325 g
  • equivalent volume of compliance Vas = 255 l
  • total Q factor Qts = 0,3 (Qms=9,95, Qes=0,31)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 10,7 mm
  • mounting diameter d = 497 mm
  • overall diameter d = 545 mm
  • mounting depth (not countersunk) t = 249 mm
  • mass m = 10,5 kg




Horn

SICA Horn 290x160 (Q07015A)
open a bigger photo

SICA Horn 290x160 (Q07015A)

order no. sica-Horn290x160

EUR 18,60 excl. VAT: € 15.63 / $ 16.88

Horn for a compression driver with 1 inch throat.

  • Throat diameter = 1 inch
  • nominal angle (HxV) = 80 x 60 Deg
  • over all dimensions (HxWxD) = 290x160x150 mm
  • material: pa

SICA Horn 200x160 (Q07020A)
open a bigger photo

SICA Horn 200x160 (Q07020A)

order no. sica-Horn200x160

EUR 19,60 excl. VAT: € 16.47 / $ 17.79

Horn for a compression driver with 1 inch throat.

  • Throat diameter = 1 inch
  • nominal angle (HxV) = 60 x 90 Deg
  • over all dimensions (HxWxD) = 200x160x100 mm
  • material: pa

SICA Horn D 140mm (Q07030A)
open a bigger photo

SICA Horn D 140mm (Q07030A)

order no. sica-HornD140mm

EUR 12,00 excl. VAT: € 10.08 / $ 10.89

Horn for a compression driver with 1 inch throat.

  • Throat diameter = 1 inch
  • nominal angle (HxV) = 80 x 80 Deg
  • over all dimensions (HxWxD) = 140x80 mm
  • material: pa

SICA Waveguide Line Array 1
open a bigger photo

SICA Waveguide Line Array 1"/4" (Q07050A)

order no. sica-WG-LA-1-4

EUR 23,50 excl. VAT: € 19.75 / $ 21.33

Horn for a compression driver with 1 inch throat.

  • Throat diameter = 1 inch
  • nominal angle (HxV) = 80 Deg
  • over all dimensions (HxWxD) = 87x110x112 mm
  • material: hifi




Diverse


recommended cabinet 1:
closed cabinet with 0,33 L volume
from 243/153 Hz (-3dB/-8dB)

recommended cabinet 2:
1,2 L volume bass reflex cabinet
with 2cm-Rohr reflex tube, 4 cm long.
from 122/98 Hz (-3dB/-8dB).

SICA 4E1 CS 8 (Z001800C)

order no. sica-4E1CS8

EUR 30,30 excl. VAT: € 25.46 / $ 27.50

.

  • power handling (continuous/programme) = 70 W
  • frequency range = 120-10000 Hz
  • resonance frequency fs = 118 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 5,76 N/A
  • voice coil inductance L = 0,14 mH
  • effective piston radiating area Sd = 44,2 cm2
  • effective mechanical mass incl. air load mms = 3,9 g
  • equivalent volume of compliance Vas = 1,3 l
  • total Q factor Qts = 0,39 (Qms=1,85, Qes=0,49)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 90 mm
  • overall diameter d = 104 mm
  • mounting depth (not countersunk) t = 58,3 mm
  • mass m = 1 kg


recommended cabinet 1:
closed cabinet with 2,5 L volume
from 157/99 Hz (-3dB/-8dB)

recommended cabinet 2:
9,8 L volume bass reflex cabinet
with HP50 reflex tube, 5 cm long.
from 70/61 Hz (-3dB/-8dB).

SICA 5 N 1,5 PL 8 (Z002647C)

order no. sica-5N15PL8

EUR 87,20 excl. VAT: € 73.28 / $ 79.14

.

  • power handling (continuous/programme) = 130 W
  • frequency range = 100-5000 Hz
  • resonance frequency fs = 110,6 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 6,21 N/A
  • voice coil inductance L = 0,31 mH
  • effective piston radiating area Sd = 84,9 cm2
  • effective mechanical mass incl. air load mms = 7,1 g
  • equivalent volume of compliance Vas = 3 l
  • total Q factor Qts = 0,56 (Qms=2,55, Qes=0,72)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 113 mm
  • overall diameter d = 132 mm
  • mounting depth (not countersunk) t = 72 mm
  • mass m = 0,8 kg


recommended cabinet 1:
closed cabinet with 6,7 L volume
from 85/54 Hz (-3dB/-8dB)

recommended cabinet 2:
26 L volume bass reflex cabinet
with HP70 reflex tube, 16 cm long.
from 41/34 Hz (-3dB/-8dB).

SICA 6,5 H 1,5 CP 8 (z004100)

order no. sica-65H15CP8

EUR 81,00 excl. VAT: € 68.07 / $ 73.51

.

  • power handling (continuous/programme) = 120 W
  • frequency range = 40-4500 Hz
  • resonance frequency fs = 45,4 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 6,1 Ohm
  • force factor BL = 7,02 N/A
  • voice coil inductance L = 0,48 mH
  • effective piston radiating area Sd = 122,7 cm2
  • effective mechanical mass incl. air load mms = 13 g
  • equivalent volume of compliance Vas = 20,2 l
  • total Q factor Qts = 0,42 (Qms=5,21, Qes=0,46)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 8,5 mm
  • mounting diameter d = 143 mm
  • overall diameter d = 175 mm
  • mounting depth (not countersunk) t = 77,5 mm
  • mass m = 1,6 kg


recommended cabinet 1:
closed cabinet with 1,5 L volume
from 165/104 Hz (-3dB/-8dB)

recommended cabinet 2:
4,8 L volume bass reflex cabinet
with HP50 reflex tube, 13 cm long.
from 88/68 Hz (-3dB/-8dB).

SICA 6 N 2 PL 8 (Z004083C )

order no. sica-6N2PL8

EUR 129,00 excl. VAT: € 108.40 / $ 117.08

.

  • power handling (continuous/programme) = 200 W
  • frequency range = 70-5000 Hz
  • resonance frequency fs = 68 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 9,5 N/A
  • voice coil inductance L = 0,61 mH
  • effective piston radiating area Sd = 122,7 cm2
  • effective mechanical mass incl. air load mms = 13,5 g
  • equivalent volume of compliance Vas = 8,7 l
  • total Q factor Qts = 0,33 (Qms=4,02, Qes=0,36)
  • voice coil diameter = 50 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 143 mm
  • overall diameter d = 166 mm
  • mounting depth (not countersunk) t = 82,8 mm
  • mass m = 1,5 kg


recommended cabinet 1:
closed cabinet with 1,1 L volume
from 216/136 Hz (-3dB/-8dB)

recommended cabinet 2:
2,7 L volume bass reflex cabinet
with HP70 reflex tube, 28 cm long.
from 129/97 Hz (-3dB/-8dB).

SICA 8 K 3 PL 8 (Z005520C )

order no. sica-8K3PL8

EUR 199,00 excl. VAT: € 167.23 / $ 180.61

.

  • power handling (continuous/programme) = 400 W
  • frequency range = 65-3000 Hz
  • resonance frequency fs = 68,1 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 16,1 N/A
  • voice coil inductance L = 0,37 mH
  • effective piston radiating area Sd = 213,8 cm2
  • effective mechanical mass incl. air load mms = 29 g
  • equivalent volume of compliance Vas = 12,2 l
  • total Q factor Qts = 0,25 (Qms=3,85, Qes=0,27)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 6,5 mm
  • mounting diameter d = 184 mm
  • overall diameter d = 210 mm
  • mounting depth (not countersunk) t = 93 mm
  • mass m = 2,4 kg


recommended cabinet 1:
closed cabinet with 5,7 L volume
from 134/85 Hz (-3dB/-8dB)

recommended cabinet 2:
17 L volume bass reflex cabinet
with HP100 reflex tube, 22 cm long.
from 73/56 Hz (-3dB/-8dB).

SICA 10 Fe 3 CP8 (Z005831C)

order no. sica-10Fe3CP8

EUR 166,60 excl. VAT: € 140.00 / $ 151.20

.

  • power handling (continuous/programme) = 450 W
  • frequency range = 50-3000 Hz
  • resonance frequency fs = 52 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 15,35 N/A
  • voice coil inductance L = 0,67 mH
  • effective piston radiating area Sd = 346,4 cm2
  • effective mechanical mass incl. air load mms = 41,4 g
  • equivalent volume of compliance Vas = 38,6 l
  • total Q factor Qts = 0,31 (Qms=7,5, Qes=0,32)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 7,5 mm
  • mounting diameter d = 232 mm
  • overall diameter d = 268 mm
  • mounting depth (not countersunk) t = 122,5 mm
  • mass m = 6,6 kg


recommended cabinet 1:
closed cabinet with 9 L volume
from 124/78 Hz (-3dB/-8dB)

recommended cabinet 2:
32 L volume bass reflex cabinet
with HP100 reflex tube, 11 cm long.
from 63/50 Hz (-3dB/-8dB).

SICA 10 Fe 2,5 CP 8 (Z005710C)

order no. sica-10Fe25CP8

EUR 139,10 excl. VAT: € 116.89 / $ 126.24

.

  • power handling (continuous/programme) = 300 W
  • frequency range = 55-3500 Hz
  • resonance frequency fs = 57 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 12,8 N/A
  • voice coil inductance L = 0,46 mH
  • effective piston radiating area Sd = 346,4 cm2
  • effective mechanical mass incl. air load mms = 33,5 g
  • equivalent volume of compliance Vas = 39,7 l
  • total Q factor Qts = 0,37 (Qms=4,23, Qes=0,4)
  • voice coil diameter = 65 mm
  • maximum peak linear excursion vibration xlin = +/- 7 mm
  • mounting diameter d = 232 mm
  • overall diameter d = 268 mm
  • mounting depth (not countersunk) t = 119,5 mm
  • mass m = 4,9 kg


recommended cabinet 1:
closed cabinet with 2,2 L volume
from 185/117 Hz (-3dB/-8dB)

recommended cabinet 2:
5,3 L volume bass reflex cabinet
with HP70 reflex tube, 18 cm long.
from 110/83 Hz (-3dB/-8dB).

SICA 10 K4 PL 8 ( Z006950)

order no. sica-10K4PL8

EUR 307,70 excl. VAT: € 258.57 / $ 279.26

.

  • power handling (continuous/programme) = 800 W
  • frequency range = 55-4000 Hz
  • resonance frequency fs = 58,5 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 6,1 Ohm
  • force factor BL = 21,62 N/A
  • voice coil inductance L = 0,4 mH
  • effective piston radiating area Sd = 346,4 cm2
  • effective mechanical mass incl. air load mms = 53,9 g
  • equivalent volume of compliance Vas = 23,4 l
  • total Q factor Qts = 0,25 (Qms=8,99, Qes=0,26)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 7 mm
  • mounting diameter d = 232 mm
  • overall diameter d = 268 mm
  • mounting depth (not countersunk) t = 136 mm
  • mass m = 6,3 kg


recommended cabinet 1:
closed cabinet with 14,1 L volume
from 99/62 Hz (-3dB/-8dB)

recommended cabinet 2:
47 L volume bass reflex cabinet
with 2x HP100 reflex tube, 27 cm long.
from 52/41 Hz (-3dB/-8dB).

SICA 12 S 3 PL 8 (Z007946C)

order no. sica-12S3PL8

EUR 254,80 excl. VAT: € 214.12 / $ 231.25

.

  • power handling (continuous/programme) = 400 W
  • frequency range = 40-2000 Hz
  • resonance frequency fs = 42 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 16,8 N/A
  • voice coil inductance L = 1,04 mH
  • effective piston radiating area Sd = 530,9 cm2
  • effective mechanical mass incl. air load mms = 74,8 g
  • equivalent volume of compliance Vas = 76,9 l
  • total Q factor Qts = 0,34 (Qms=6,1, Qes=0,36)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm
  • mounting diameter d = 284 mm
  • overall diameter d = 320 mm
  • mounting depth (not countersunk) t = 139,4 mm
  • mass m = 3,5 kg


recommended cabinet 1:
closed cabinet with 19 L volume
from 69/44 Hz (-3dB/-8dB)

recommended cabinet 2:
73 L volume bass reflex cabinet
with 2x HP100 reflex tube, 38 cm long.
from 34/27 Hz (-3dB/-8dB).

SICA 12 SR 3 PL 8 (Z007948C)

order no. sica-12SR3PL8

EUR 260,60 excl. VAT: € 218.99 / $ 236.51

.

  • power handling (continuous/programme) = 400 W
  • frequency range = 35-2000 Hz
  • resonance frequency fs = 36 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,3 Ohm
  • force factor BL = 17,02 N/A
  • voice coil inductance L = 1,15 mH
  • effective piston radiating area Sd = 490,9 cm2
  • effective mechanical mass incl. air load mms = 108,5 g
  • equivalent volume of compliance Vas = 60,4 l
  • total Q factor Qts = 0,42 (Qms=5,9, Qes=0,45)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 11 mm
  • mounting diameter d = 284 mm
  • overall diameter d = 320 mm
  • mounting depth (not countersunk) t = 142,9 mm
  • mass m = 3,5 kg


recommended cabinet 1:
closed cabinet with 16 L volume
from 76/48 Hz (-3dB/-8dB)

recommended cabinet 2:
61 L volume bass reflex cabinet
with 2x HP100 reflex tube, 38 cm long.
from 38/30 Hz (-3dB/-8dB).

SICA 12 SR 3 CP 8 (Z007942C)

order no. sica-12SR3CP8

EUR 172,40 excl. VAT: € 144.87 / $ 156.46

.

  • power handling (continuous/programme) = 450 W
  • frequency range = 35-2000 Hz
  • resonance frequency fs = 36,8 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 16,39 N/A
  • voice coil inductance L = 1,14 mH
  • effective piston radiating area Sd = 490,9 cm2
  • effective mechanical mass incl. air load mms = 100,1 g
  • equivalent volume of compliance Vas = 64 l
  • total Q factor Qts = 0,39 (Qms=3,2, Qes=0,44)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 8,8 mm
  • mounting diameter d = 284 mm
  • overall diameter d = 320 mm
  • mounting depth (not countersunk) t = 140,8 mm
  • mass m = 7,3 kg


recommended cabinet 1:
closed cabinet with 21 L volume
from 94/60 Hz (-3dB/-8dB)

recommended cabinet 2:
79 L volume bass reflex cabinet
with 2x HP100 reflex tube, 14 cm long.
from 47/38 Hz (-3dB/-8dB).

SICA 12 PF 3 CP 8 (Z007845C)

order no. sica-12PF3CP8

EUR 182,20 excl. VAT: € 153.11 / $ 165.36

.

  • power handling (continuous/programme) = 500 W
  • frequency range = 45-3000 Hz
  • resonance frequency fs = 47 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 15,38 N/A
  • voice coil inductance L = 0,7 mH
  • effective piston radiating area Sd = 530,9 cm2
  • effective mechanical mass incl. air load mms = 60 g
  • equivalent volume of compliance Vas = 76,5 l
  • total Q factor Qts = 0,39 (Qms=5,8, Qes=0,42)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 8,5 mm
  • mounting diameter d = 284 mm
  • overall diameter d = 320 mm
  • mounting depth (not countersunk) t = 141,3 mm
  • mass m = 6,7 kg


recommended cabinet 1:
closed cabinet with 55 L volume
from 70/44 Hz (-3dB/-8dB)

recommended cabinet 2:
200 L volume bass reflex cabinet
with 2x HP100 reflex tube, 7 cm long.
from 35/28 Hz (-3dB/-8dB).

SICA 15 S 3 PL 8 (Z008173c)

order no. sica-15S3PL8

EUR 264,60 excl. VAT: € 222.35 / $ 240.14

.

  • power handling (continuous/programme) = 400 W
  • frequency range = 35-2000 Hz
  • resonance frequency fs = 33 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 17,1 N/A
  • voice coil inductance L = 1,15 mH
  • effective piston radiating area Sd = 855,3 cm2
  • effective mechanical mass incl. air load mms = 105 g
  • equivalent volume of compliance Vas = 230 l
  • total Q factor Qts = 0,38 (Qms=14,1, Qes=0,39)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 11,1 mm
  • mounting diameter d = 355 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 161 mm
  • mass m = 3,9 kg


SICA 8 SR 2 CP 8 (Z005064)

order no. sica-8SR2CP8

EUR 98,00 excl. VAT: € 82.35 / $ 88.94

.

  • power handling (continuous/programme) = W
  • frequency range = Hz
  • resonance frequency fs = Hz
  • impedance R = Ohm
  • DC resistance Re = Ohm
  • force factor BL = N/A
  • voice coil inductance L = mH
  • effective piston radiating area Sd = cm2
  • effective mechanical mass incl. air load mms = g
  • equivalent volume of compliance Vas = l
  • total Q factor Qts = (Qms= , Qes= )
  • voice coil diameter = mm
  • maximum peak linear excursion vibration xlin = +/- mm
  • mounting diameter d = mm
  • overall diameter d = mm
  • mounting depth (not countersunk) t = mm
  • mass m = kg


SICA 10 K 3 PL 4 (Z005842)

order no. sica-10K3PL4

EUR 237,10 excl. VAT: € 199.24 / $ 215.18

.

  • power handling (continuous/programme) = W
  • frequency range = Hz
  • resonance frequency fs = Hz
  • impedance R = Ohm
  • DC resistance Re = Ohm
  • force factor BL = N/A
  • voice coil inductance L = mH
  • effective piston radiating area Sd = cm2
  • effective mechanical mass incl. air load mms = g
  • equivalent volume of compliance Vas = l
  • total Q factor Qts = (Qms= , Qes= )
  • voice coil diameter = mm
  • maximum peak linear excursion vibration xlin = +/- mm
  • mounting diameter d = mm
  • overall diameter d = mm
  • mounting depth (not countersunk) t = mm
  • mass m = kg


SICA 3,5L1SL 4 (Z00964C)

order no. sica-35L1SL4

EUR 35,20 excl. VAT: € 29.58 / $ 31.95

.


SICA 3,5F1CS (Z00960C)

order no. sica-35F1CS

EUR 22,50 excl. VAT: € 18.91 / $ 20.42

.


SICA 3,5 H 1 CS 8 (Z00957C )

order no. sica-35H1CS8

EUR 23,80 excl. VAT: € 20.00 / $ 21.60

.


SICA 3,5H1SL 4 (Z00959C)

order no. sica-35H1SL4

EUR 31,30 excl. VAT: € 26.30 / $ 28.41

.


SICA LP 102.25/160Cx 4 Ohm (Z001640)

order no. sica-LP10225-160Cx-4Ohm

EUR 35,20 excl. VAT: € 29.58 / $ 31.95

.


SICA LP 102.25/160 WG 8 Ohm (Z001670)

order no. sica-LP10225-160WG-8Ohm

EUR 25,40 excl. VAT: € 21.34 / $ 23.05

.


SICA 4E1 CS 4 (Z001802)

order no. sica-4E1CS4

EUR 32,90 excl. VAT: € 27.65 / $ 29.86

.


SICA 4D1 CS 16 (Z001815)

order no. sica-4D1CS16

EUR 30,30 excl. VAT: € 25.46 / $ 27.50

.


SICA 4L 1SL 4 (Z001451)

order no. sica-4L1SL4

EUR 35,20 excl. VAT: € 29.58 / $ 31.95

.


SICA 5 C 1 CS 4 Ohm (Z002320)

order no. sica-5C1CS-4Ohm

EUR 41,10 excl. VAT: € 34.54 / $ 37.30

.


SICA 5 H 1 CS 8 Ohm (Z002410)

order no. sica-5H1CS-8Ohm

EUR 32,30 excl. VAT: € 27.14 / $ 29.31

.


SICA 5 E 1,25 CS 8 Ohm (Z002601)

order no. sica-5E125CS-8Ohm

EUR 42,10 excl. VAT: € 35.38 / $ 38.21

.


SICA 5H 1,5 PL (Z002655)

order no. sica-5H15PL

EUR 57,80 excl. VAT: € 48.57 / $ 52.46

.


SICA 6 D 0,8 CS 4 Ohm (Z00J3020)

order no. sica-6D08CS-4Ohm

EUR 31,30 excl. VAT: € 26.30 / $ 28.41

.


SICA 6 D 1 CS 4 (Z003720)

order no. sica-6D1CS4

EUR 33,30 excl. VAT: € 27.98 / $ 30.22

.


SICA 6 C 1 CS 4 (Z003930)

order no. sica-6C1CS4

EUR 39,50 excl. VAT: € 33.19 / $ 35.85

.


SICA 6 E2 1,25 CS 4 (Z003982)

order no. sica-6E2125CS4

EUR 40,10 excl. VAT: € 33.70 / $ 36.39

.


SICA 6 D 1,5 CS 4 (Z004003)

order no. sica-6D15CS4

EUR 44,10 excl. VAT: € 37.06 / $ 40.02

.


SICA 6 M 1,5 CS 8 (Z004040)

order no. sica-6M15CS8

EUR 48,00 excl. VAT: € 40.34 / $ 43.56

.


SICA 6 M1 1,5 CS 4 (Z004050)

order no. sica-6M115CS4

EUR 54,80 excl. VAT: € 46.05 / $ 49.73

.


SICA 6 M 1,5 CP 4 Ohm (Z004044)

order no. sica-6M15CP4Ohm

EUR 53,90 excl. VAT: € 45.29 / $ 48.92

.


SICA 6 M 1,5 CP 8 Ohm (Z004045)

order no. sica-6M15CP8Ohm

EUR 53,90 excl. VAT: € 45.29 / $ 48.92

.


SICA 6 E 1,5 CS 4 (Z004036)

order no. sica-6E15CS4

EUR 43,10 excl. VAT: € 36.22 / $ 39.12

.


SICA 6 F 1,5 CP 8 (Z004054)

order no. sica-6F15CP8

EUR 52,90 excl. VAT: € 44.45 / $ 48.01

.


SICA 6 H 1,5 CP 8 (Z004037)

order no. sica-6H15CP8

EUR 54,80 excl. VAT: € 46.05 / $ 49.73

.


SICA 6 H 1,5 CP 16 (Z004038)

order no. sica-6H15CP16

EUR 54,80 excl. VAT: € 46.05 / $ 49.73

.


SICA 6L1,5 SL 4 (Z004058)

order no. sica-6L15SL4

EUR 91,00 excl. VAT: € 76.47 / $ 82.59

.


SICA 6L1 1,5 SL 8 (Z004060)

order no. sica-6L115SL8

EUR 91,00 excl. VAT: € 76.47 / $ 82.59

.


SICA 6NR 2 CP 16 (Z004074)

order no. sica-6NR2CP16

EUR 75,40 excl. VAT: € 63.36 / $ 68.43

.


SICA 6 M2 PL 8 (Z004078C )

order no. sica-6M2PL8

EUR 132,50 excl. VAT: € 111.34 / $ 120.25

.


SICA 6 N 2,5 PL 4 (Z004081)

order no. sica-6N25PL4

EUR 130,30 excl. VAT: € 109.50 / $ 118.26

.


SICA 6 N 2,5 PL 16 (Z004082)

order no. sica-6N25PL16

EUR 130,30 excl. VAT: € 109.50 / $ 118.26

.


SICA 6 CX 2 PL 8+8 (Z004091)

order no. sica-6CX2PL8+8

EUR 237,10 excl. VAT: € 199.24 / $ 215.18

.


SICA 6M1,5 PL 8 (Z004042)

order no. sica-6M15PL8

EUR 104,80 excl. VAT: € 88.07 / $ 95.11

.


SICA 6,5 " Passivmembrane DRS 34HZ (Z003184)

order no. sica-65-PassivmembraneDRS34HZ

EUR 38,20 excl. VAT: € 32.10 / $ 34.67

.


SICA 8 H 1 CS 8 (Z004290)

order no. sica-8H1CS8

EUR 46,00 excl. VAT: € 38.66 / $ 41.75

.


SICA 8 E 1,5 CS 4 (Z004640)

order no. sica-8E15CS4

EUR 49,00 excl. VAT: € 41.18 / $ 44.47

.


SICA 8 E 1,5 CS 8 (Z004641)

order no. sica-8E15CS8

EUR 49,00 excl. VAT: € 41.18 / $ 44.47

.


SICA 8 D1 1,5 CS 8 (Z004650)

order no. sica-8D115CS8

EUR 55,80 excl. VAT: € 46.89 / $ 50.64

.


SICA 8 D1 1,5 CS 4 (Z004670)

order no. sica-8D115CS4

EUR 56,50 excl. VAT: € 47.48 / $ 51.28

.


SICA 8 H 1,5 CS 4 (Z004690)

order no. sica-8H15CS4

EUR 61,00 excl. VAT: € 51.26 / $ 55.36

.


SICA 8 H 1,5 CS 8 (Z004700)

order no. sica-8H15CS8

on request

.


SICA 8 M 1,5 CS 4 (Z004931)

order no. sica-8M15CS4

EUR 59,70 excl. VAT: € 50.17 / $ 54.18

.


SICA 8 E3 1,5 CS 4 (Z004943)

order no. sica-8E315CS4

EUR 77,40 excl. VAT: € 65.04 / $ 70.25

.


SICA 8E2 1,5 CS 8 (Z005090)

order no. sica-8E215CS8

EUR 62,70 excl. VAT: € 52.69 / $ 56.90

.


SICA 8E2 1,5 CS 4 (Z005091)

order no. sica-8E215CS4

EUR 62,70 excl. VAT: € 52.69 / $ 56.90

.


SICA 8 E 2 CS 4 (Z005110C)

order no. sica-8E2CS4

EUR 74,40 excl. VAT: € 62.52 / $ 67.52

.


SICA 8 E 2 CS 8 (Z005120C)

order no. sica-8E2CS8

EUR 74,40 excl. VAT: € 62.52 / $ 67.52

.


SICA 8 E1 2 CS 4 (Z005160)

order no. sica-8E12CS4

EUR 81,30 excl. VAT: € 68.32 / $ 73.78

.


SICA 8 L 2 SLS 8 (Z005052)

order no. sica-8L2SLS8

EUR 120,50 excl. VAT: € 101.26 / $ 109.36

.


SICA 8 L 2 SL 4 (Z005056)

order no. sica-8L2SL4

EUR 120,50 excl. VAT: € 101.26 / $ 109.36

.


SICA 8 N 2,5 PL 16 (Z005351)

order no. sica-8N25PL16

EUR 147,90 excl. VAT: € 124.29 / $ 134.23

.


SICA 8 N 2,5 PL 4 (Z005202)

order no. sica-8N25PL4

EUR 147,90 excl. VAT: € 124.29 / $ 134.23

.


SICA 8 Fe 2,5 CP 4 (Z005206)

order no. sica-8Fe25CP4

EUR 106,80 excl. VAT: € 89.75 / $ 96.93

.


SICA 8 Fe 2 CP 4 (Z005113)

order no. sica-8Fe2CP4

EUR 86,20 excl. VAT: € 72.44 / $ 78.23

.


SICA 8 BS 2,5 PL 8 (Z005140 )

order no. sica-8BS25PL8

EUR 149,00 excl. VAT: € 125.21 / $ 135.23

.


SICA 8 BS 2,5 PL 4 (Z005141)

order no. sica-8BS25PL4

EUR 147,90 excl. VAT: € 124.29 / $ 134.23

.


SICA 8 D 1,5 PL 8 (Z004450)

order no. sica-8D15PL8

EUR 114,60 excl. VAT: € 96.30 / $ 104.01

.


SICA 8 CX 2.5 PL 8+8 (Z005209)

order no. sica-8CX25PL8+8

EUR 281,20 excl. VAT: € 236.30 / $ 255.21

.


SICA 8 P CS LP 208. Passivmembrane (Z004180)

order no. sica-8PCSLP208Passivmembrane

EUR 43,30 excl. VAT: € 36.39 / $ 39.30

.


SICA 10 D 1 CS 4 (Z006060)

order no. sica-10D1CS4

EUR 45,00 excl. VAT: € 37.82 / $ 40.84

.


SICA 10 D 1 CS 8 (Z006090)

order no. sica-10D1CS8

EUR 45,00 excl. VAT: € 37.82 / $ 40.84

.


SICA 10 D 1,5 CS 4 (Z006490)

order no. sica-10D15CS4

EUR 65,60 excl. VAT: € 55.13 / $ 59.54

.


SICA 10B 1,5 CS 8 (Z006591)

order no. sica-10B15CS8

EUR 69,50 excl. VAT: € 58.40 / $ 63.08

.


SICA 10 E 1,5 CS 4 (Z006790)

order no. sica-10E15CS4

- not available

.


SICA 10 E 2 CS 8 (Z006830)

order no. sica-10E2CS8

EUR 88,20 excl. VAT: € 74.12 / $ 80.05

.


SICA 10 E 2 CS 4 (Z006840)

order no. sica-10E2CS4

EUR 88,20 excl. VAT: € 74.12 / $ 80.05

.


SICA 10 L 2,5 SL 8 (Z006900)

order no. sica-10L25SL8

EUR 144,00 excl. VAT: € 121.01 / $ 130.69

.


SICA 10 L 2,5 SL 4 (Z006901)

order no. sica-10L25SL4

EUR 144,00 excl. VAT: € 121.01 / $ 130.69

.


SICA 11 L 2,5 SL 16 (Z006902)

order no. sica-11L25SL16

EUR 144,00 excl. VAT: € 121.01 / $ 130.69

.


SICA 10 BP 2 CS 8 (Z005890)

order no. sica-10BP2CS8

EUR 88,20 excl. VAT: € 74.12 / $ 80.05

.


SICA 10 BP 2,5 SL 8 (Z005901)

order no. sica-10BP25SL8

EUR 159,70 excl. VAT: € 134.20 / $ 144.94

.


SICA 10 BP 2,5 SL 4 Ohm (Z005902)

order no. sica-10BP25SL-4Ohm

EUR 159,70 excl. VAT: € 134.20 / $ 144.94

.


SICA 10 BS 2,5 PL 4 (Z005909)

order no. sica-10BS25PL4

EUR 159,70 excl. VAT: € 134.20 / $ 144.94

.


SICA 10 BS 2,5 PL 8 (Z005910)

order no. sica-10BS25PL8

EUR 159,70 excl. VAT: € 134.20 / $ 144.94

.


SICA 10 BP 2,5 PL 8 (z005913)

order no. sica-10BP25PL8

EUR 159,70 excl. VAT: € 134.20 / $ 144.94

.


SICA 10 BS 3 PL 8 (Z005950)

order no. sica-10BS3PL8

EUR 239,10 excl. VAT: € 200.92 / $ 217.00

.


SICA 10 Fe 2 CP 8 (Z005781C)

order no. sica-10Fe2CP8

EUR 109,70 excl. VAT: € 92.18 / $ 99.56

.


SICA 10 Fe 3 CP4 (Z005832C)

order no. sica-10Fe3CP4

EUR 166,60 excl. VAT: € 140.00 / $ 151.20

.


SICA 10 N 2,5 PL 4 (Z005703)

order no. sica-10N25PL4

EUR 170,50 excl. VAT: € 143.28 / $ 154.74

.


SICA 10 Fe 2,5CP 4 (Z005711C)

order no. sica-10Fe25CP4

EUR 139,10 excl. VAT: € 116.89 / $ 126.24

.


SICA 10 CX3 PL P 8+8 (Z005893)

order no. sica-10CX3PLP8+8

- not available

.


SICA 10 SR 2 PL 8 (Z006003)

order no. sica-10SR2PL8

EUR 207,70 excl. VAT: € 174.54 / $ 188.50

.


SICA 10 SR 2 PL 4 (Z006004)

order no. sica-10SR2PL4

EUR 160,70 excl. VAT: € 135.04 / $ 145.85

.


SICA 10 SR 2,5 CP CP 4 (Z006014)

order no. sica-10SR25CPCP4

EUR 124,40 excl. VAT: € 104.54 / $ 112.90

.


SICA 10 S3 CP 4 (Z006018)

order no. sica-10S3CP4

EUR 173,40 excl. VAT: € 145.71 / $ 157.37

.


SICA 10P CP Passivmembrane Alukorb Gummisicke ( Z006000 )

order no. sica-10PCPPassivmembraneAlukorbGummisicke

EUR 62,50 excl. VAT: € 52.52 / $ 56.72

.


SICA 12 D 1,5 CS 4 (Z007380)

order no. sica-12D15CS4

EUR 103,80 excl. VAT: € 87.23 / $ 94.21

.


SICA 12 D 1,5 CS 16 (Z007410)

order no. sica-12D15CS16

EUR 103,80 excl. VAT: € 87.23 / $ 94.21

.


SICA 12 E 2 CS 8 (Z007660)

order no. sica-12E2CS8

EUR 112,70 excl. VAT: € 94.71 / $ 102.28

.


SICA 12 E 2,5 CS 8 (Z007950)

order no. sica-12E25CS8

EUR 120,50 excl. VAT: € 101.26 / $ 109.36

.


SICA 12 E 2,5 CS 16 (Z007959)

order no. sica-12E25CS16

EUR 120,50 excl. VAT: € 101.26 / $ 109.36

.


SICA 12 E 2,5 CS 4 (Z007960)

order no. sica-12E25CS4

EUR 120,50 excl. VAT: € 101.26 / $ 109.36

.


SICA 12 E1 2,5 CS 8 (Z007910)

order no. sica-12E125CS8

EUR 126,40 excl. VAT: € 106.22 / $ 114.72

.


SICA 12 S 2,5 CS 4 (Z007930)

order no. sica-12S25CS4

EUR 126,40 excl. VAT: € 106.22 / $ 114.72

.


SICA 12 S 2,5 CS 8 (Z007931)

order no. sica-12S25CS8

EUR 126,40 excl. VAT: € 106.22 / $ 114.72

.


SICA 12 L 2,5 SL 4 (Z007901)

order no. sica-12L25SL4

- not available

.


SICA 12 L 2,5 SL 8 (Z007902)

order no. sica-12L25SL8

- not available

.


SICA 12 L1 2,5 SL 4 (Z007904)

order no. sica-12L125SL4

EUR 179,00 excl. VAT: € 150.42 / $ 162.45

.


SICA 12 L1 2,5 SL 16 (Z007899)

order no. sica-12L125SL16

EUR 179,00 excl. VAT: € 150.42 / $ 162.45

.


SICA 12 S 2,5 SL 8 (Z007905)

order no. sica-12S25SL8

EUR 157,70 excl. VAT: € 132.52 / $ 143.12

.


SICA 12 S 2,5 SL 16 (Z007906)

order no. sica-12S25SL16

EUR 168,50 excl. VAT: € 141.60 / $ 152.92

.


SICA 12 L1 2,5 SLS 8 (Z007907)

order no. sica-12L125SLS8

EUR 168,50 excl. VAT: € 141.60 / $ 152.92

.


SICA 12 L2 2,5 SL 4 (Z007908)

order no. sica-12L225SL4

- not available

.


SICA 12 N 3 PL 4 (Z007984)

order no. sica-12N3PL4

EUR 233,20 excl. VAT: € 195.97 / $ 211.64

.


SICA 12 L 3 SL 4 (Z007985)

order no. sica-12L3SL4

EUR 226,30 excl. VAT: € 190.17 / $ 205.38

.


SICA 12 L 3 SL 8 (Z007986)

order no. sica-12L3SL8

EUR 226,30 excl. VAT: € 190.17 / $ 205.38

.


SICA 12 F 3 CP 8 (Z007988)

order no. sica-12F3CP8

EUR 184,20 excl. VAT: € 154.79 / $ 167.17

.


SICA 12 F 3 CP 4 (Z007989)

order no. sica-12F3CP4

EUR 184,20 excl. VAT: € 154.79 / $ 167.17

.


SICA 12 Fe 3 CP 8 (Z007992)

order no. sica-12Fe3CP8

EUR 178,30 excl. VAT: € 149.83 / $ 161.82

.


SICA 12 Fe 3 CP 4 (Z007993)

order no. sica-12Fe3CP4

EUR 178,30 excl. VAT: € 149.83 / $ 161.82

.


SICA 12 N 2,5 PL 8 (Z007971)

order no. sica-12N25PL8

EUR 167,50 excl. VAT: € 140.76 / $ 152.02

.


SICA 12 N 2,5 PL 4 (Z007972)

order no. sica-12N25PL4

EUR 167,50 excl. VAT: € 140.76 / $ 152.02

.


SICA 12 Fe 2,5 CP 8 (Z007861c)

order no. sica-12Fe25CP8

EUR 144,00 excl. VAT: € 121.01 / $ 130.69

.


SICA 12 S 3 PL 4 (Z007945C)

order no. sica-12S3PL4

EUR 254,80 excl. VAT: € 214.12 / $ 231.25

.


SICA 12 S 3 CP 8 (Z007940C)

order no. sica-12S3CP8

EUR 166,60 excl. VAT: € 140.00 / $ 151.20

.


SICA 12 SR 3 PL 4 (Z007949C)

order no. sica-12SR3PL4

EUR 260,60 excl. VAT: € 218.99 / $ 236.51

.


SICA 12 SR 3 CP 4 (Z007943C)

order no. sica-12SR3CP4

EUR 172,40 excl. VAT: € 144.87 / $ 156.46

.


SICA 12 PF 3 CP 4 (Z007844C)

order no. sica-12PF3CP4

EUR 182,20 excl. VAT: € 153.11 / $ 165.36

.


SICA 12 PFS 3 CP 8 (Z007947C)

order no. sica-12PFS3CP8

- not available

.


SICA 12 BP 2,5 PL 8 (Z007831C)

order no. sica-12BP25PL8

EUR 160,70 excl. VAT: € 135.04 / $ 145.85

.


SICA 12 BP 3 PL 8 (Z007837C)

order no. sica-12BP3PL8

EUR 242,00 excl. VAT: € 203.36 / $ 219.63

.


SICA 12 BS 3 PL 8 (Z007840c)

order no. sica-12BS3PL8

EUR 242,00 excl. VAT: € 203.36 / $ 219.63

.


SICA 12 K 3 PL 8 (Z008010)

order no. sica-12K3PL8

EUR 262,60 excl. VAT: € 220.67 / $ 238.33

.


SICA 12 K 3 PL 4 (Z008012)

order no. sica-12K3PL4

EUR 262,60 excl. VAT: € 220.67 / $ 238.33

.


SICA 12 K 4 PL 4 (Z008022)

order no. sica-12K4PL4

EUR 343,00 excl. VAT: € 288.24 / $ 311.29

.


SICA 12 S 4 PL 16 (Z007952)

order no. sica-12S4PL16

EUR 337,10 excl. VAT: € 283.28 / $ 305.94

.


SICA 12 S 4 CP 8 (Z007953)

order no. sica-12S4CP8

EUR 254,80 excl. VAT: € 214.12 / $ 231.25

.


SICA 12 Passivmembrane DRS Gummisicke (Z007032)

order no. sica-12PassivmembraneDRSGummisicke

- not available

.


SICA 15D2 CS 4 (Z008040)

order no. sica-15D2CS4

EUR 115,60 excl. VAT: € 97.14 / $ 104.91

.


SICA 15 S 2,5 CS 8 (Z008130)

order no. sica-15S25CS8

EUR 122,50 excl. VAT: € 102.94 / $ 111.18

.


SICA 15 E2,5 CS 8 (Z008131C)

order no. sica-15E25CS8

EUR 122,50 excl. VAT: € 102.94 / $ 111.18

.


SICA 15 E2,5 CS 4 (Z008140)

order no. sica-15E25CS4

EUR 122,50 excl. VAT: € 102.94 / $ 111.18

.


SICA 15 S 2,5 CS 6 (Z008198)

order no. sica-15S25CS6

EUR 130,30 excl. VAT: € 109.50 / $ 118.26

.


SICA 15 L 2,5 SL 8 (Z008201)

order no. sica-15L25SL8

EUR 164,60 excl. VAT: € 138.32 / $ 149.38

.


SICA 15 L 2,5 SL 4 (Z008202)

order no. sica-15L25SL4

EUR 164,60 excl. VAT: € 138.32 / $ 149.38

.


SICA 15 S 2,5 SL 8 (Z008205)

order no. sica-15S25SL8

EUR 170,50 excl. VAT: € 143.28 / $ 154.74

.


SICA 15 E 3 CS 8 (Z008291)

order no. sica-15E3CS8

EUR 161,70 excl. VAT: € 135.88 / $ 146.75

.


SICA 15 L 3 SL 4 (Z008293)

order no. sica-15L3SL4

EUR 208,70 excl. VAT: € 175.38 / $ 189.41

.


SICA 15 L 3 SL 8 (Z008294)

order no. sica-15L3SL8

EUR 208,70 excl. VAT: € 175.38 / $ 189.41

.


SICA 15 N 2,5 PL 8 (Z008221)

order no. sica-15N25PL8

EUR 170,50 excl. VAT: € 143.28 / $ 154.74

.


SICA 15 N 2,5 PL 4 (Z008222)

order no. sica-15N25PL4

EUR 170,50 excl. VAT: € 143.28 / $ 154.74

.


SICA 15 BS 3 PL 8 (Z008141)

order no. sica-15BS3PL8

EUR 305,70 excl. VAT: € 256.89 / $ 277.44

.


SICA 15 BS 3 PL 4 (Z008143)

order no. sica-15BS3PL4

EUR 305,70 excl. VAT: € 256.89 / $ 277.44

.


SICA 15 K 3 PL 4 (Z008333)

order no. sica-15K3PL4

EUR 312,60 excl. VAT: € 262.69 / $ 283.70

.


SICA 15 K 4 PL 4 (Z008338)

order no. sica-15K4PL4

EUR 382,20 excl. VAT: € 321.18 / $ 346.87

.


SICA 15 S 3 PL 4 (Z008172)

order no. sica-15S3PL4

EUR 264,60 excl. VAT: € 222.35 / $ 240.14

.


SICA 15 S 3 CP 8 (Z008166c)

order no. sica-15S3CP8

EUR 231,20 excl. VAT: € 194.29 / $ 209.83

.


SICA 15 SR 3 CP 8 (Z008243)

order no. sica-15SR3CP8

EUR 242,00 excl. VAT: € 203.36 / $ 219.63

.


SICA 15 PFS3 4 (Z008315)

order no. sica-15PFS34

EUR 215,60 excl. VAT: € 181.18 / $ 195.67

.


SICA 15 SR 4 CP 8 Ohm (Z008323)

order no. sica-15SR4CP8Ohm

EUR 308,70 excl. VAT: € 259.41 / $ 280.16

.


SICA 18S 3 PL 4 (Z008360)

order no. sica-18S3PL4-

EUR 301,80 excl. VAT: € 253.61 / $ 273.90

.


SICA 18 F 3 CP 4 (Z008364)

order no. sica-18F3CP4-

EUR 219,50 excl. VAT: € 184.45 / $ 199.21

.


SICA 18 F 4 CP 8 (Z008391)

order no. sica-18F4CP8

EUR 321,40 excl. VAT: € 270.08 / $ 291.69

.


SICA 18 F 4 CP 4 (Z008392)

order no. sica-18F4CP4

EUR 321,40 excl. VAT: € 270.08 / $ 291.69

.


SICA 18 K 4 PL 4 (Z008407)

order no. sica-18K4PL4

EUR 409,60 excl. VAT: € 344.20 / $ 371.74

.


SICA 21 S 4 PL 4 (Z008425)

order no. sica-21S4PL4

EUR 448,80 excl. VAT: € 377.14 / $ 407.31

.


SICA LP38x50.18/N5TW 4 (Z008700)

order no. sica-LP38x5018-N5TW4

EUR 14,70 excl. VAT: € 12.35 / $ 13.34

.


SICA LP 13/N2 TW -KIT- 4 (Z008590)

order no. sica-LP13-N2TW-KIT-4

- not available

.


SICA LP 13/N2 TW ind 4 (Z008560)

order no. sica-LP13-N2TWind4

EUR 15,60 excl. VAT: € 13.11 / $ 14.16

.


SICA LP 66.25/N14 TW 4 (Z008949)

order no. sica-LP6625-N14TW4

EUR 28,40 excl. VAT: € 23.87 / $ 25.77

.


SICA LP 85.25/95 TW 4 (Z009050)

order no. sica-LP8525-95TW4

EUR 24,50 excl. VAT: € 20.59 / $ 22.24

.


SICA LP 110.25/245 TW 8 (Z009220)

order no. sica-LP11025-245TW8

- not available

.


SICA LP 111.25/245 TW 4 (Z009216)

order no. sica-LP11125-245TW4

EUR 28,00 excl. VAT: € 23.53 / $ 25.41

.


SICA LP 98.25/245 TW 4 (Z009171C)

order no. sica-LP9825-245TW4

EUR 28,40 excl. VAT: € 23.87 / $ 25.77

.


SICA LP28/N20TW (Z008983)

order no. sica-LP28-N20TW

EUR 32,30 excl. VAT: € 27.14 / $ 29.31

.


SICA LP28/N20TW 4 (Z008982)

order no. sica-LP28-N20TW4

EUR 32,30 excl. VAT: € 27.14 / $ 29.31

.


SICA CD 78.26/245 TW 16 (Z009443)

order no. sica-CD7826-245TW16

EUR 30,30 excl. VAT: € 25.46 / $ 27.50

.


SICA CD 83.26/380 TW 16 (Z009471)

order no. sica-CD8326-380TW16

EUR 46,00 excl. VAT: € 38.66 / $ 41.75

.


SICA CD 78.26/N92 TW 16 (Z009451)

order no. sica-CD7826-N92TW16

EUR 70,50 excl. VAT: € 59.24 / $ 63.98

.


SICA CD 60.38/N92 TW 16 (Z009485)

order no. sica-CD6038-N92TW16

EUR 85,20 excl. VAT: € 71.60 / $ 77.32

.


SICA CD 60.38/405 TW 4 (Z009488)

order no. sica-CD6038-405TW4

EUR 58,80 excl. VAT: € 49.41 / $ 53.36

.


SICA CD 95.44/N240 TW 16 (Z009494c)

order no. sica-CD9544-N240TW16

EUR 173,40 excl. VAT: € 145.71 / $ 157.37

.


SICA HFU 140/78.26 8Ohm (Z009510)

order no. sica-HFU140-78268Ohm

EUR 41,10 excl. VAT: € 34.54 / $ 37.30

.


SICA HFU 140/78.26 16Ohm (Z009511)

order no. sica-HFU140-782616Ohm

EUR 41,10 excl. VAT: € 34.54 / $ 37.30

.


SICA HFU 6x8"/83.26 8Ohm (Z009501)

order no. sica-HFU6x8-83268Ohm

EUR 61,70 excl. VAT: € 51.85 / $ 56.00

.


SICA HFU 6x8"/83.26 16Ohm (Z009502)

order no. sica-HFU6x8-832616Ohm

EUR 61,70 excl. VAT: € 51.85 / $ 56.00

.


SICA CD130.26/380 FFTW8 ( Z009473 )

order no. sica-CD13026-380FFTW8

EUR 57,00 excl. VAT: € 47.90 / $ 51.73

.


SICA Horn 119 x119mm (Q07032A)

order no. sica-Horn119x119mm

EUR 8,80 excl. VAT: € 7.39 / $ 7.99

.


SICA Horn 1,5 "270 x 270mm (Q07035A)

order no. sica-Horn15-270x270mm

EUR 42,10 excl. VAT: € 35.38 / $ 38.21

.


SICA Waveguide short Horn Alum. D130mm (Q02209A)

order no. sica-WG-Alu130mm

EUR 34,30 excl. VAT: € 28.82 / $ 31.13

.

Tweeter   Compression driver for Horns   Full Range   Coaxial speaker   Mids   Woofer   Horn   Diverse
The cabinet volume calculations are executed considering an external resistance of 0.3 Ohm. We are using, if no other data is known or available, the information supplied by the manufacturer.

Please note: the frequency response doesn't say much about the cut-off frequency inside the cabinet! Therefore, we mostly give you 2 examples with dimensioning considerations and an indication, how low the loudspeaker will reproduce.

Home

© Copyright (c) Daniel Gattig, 2023; All rights reserved. - errors and omissions excepted
