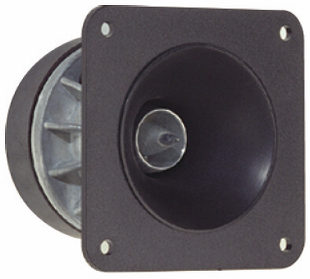

APT 80       order no. ah-EAPT80       EUR 42,00 excl. VAT: € 35.29 / $ 43.41
25,4 mm tweeter with high quality cone.

• power handling (continuous/programme) = 45@3500 Hz W
• frequency range = 3500-20000 Hz
• resonance frequency fs = 600 Hz
• impedance R = 8 Ohm
• total Q factor Qts = (Qms=, Qes=)
• voice coil diameter = 25,4 mm
• mounting diameter d = 80 mm
• overall diameter d = 87x87 mm
• mounting depth (not countersunk) t = 73,6 mm

PDF data sheet

open a bigger photo

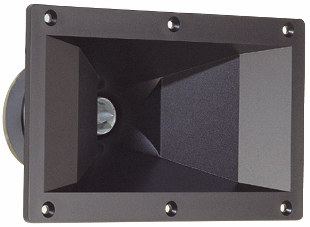

APT 150 V2       order no. ah-EAPT150V2       EUR 42,75 excl. VAT: € 35.92 / $ 44.19
25,4 mm tweeter with high quality cone.

• power handling (continuous/programme) = 45@3500 Hz W
• frequency range = 3500-20000 Hz
• resonance frequency fs = 600 Hz
• impedance R = 8 Ohm
• total Q factor Qts = (Qms=, Qes=)
• voice coil diameter = 25,4 mm
• mounting diameter d = 170x86 mm
• overall diameter d = 191x114 mm
• mounting depth (not countersunk) t = 114,3 mm

open a bigger photo

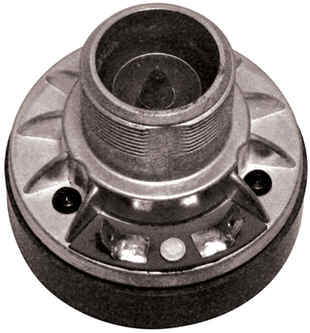

APT 50 V2       order no. ah-EAPT50V2       EUR 42,75 excl. VAT: € 35.92 / $ 44.19
25,4 mm tweeter with high quality cone.

• power handling (continuous/programme) = 45@3500 Hz W
• frequency range = 3500-20000 Hz
• resonance frequency fs = 2500 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 105 dB (2,83V; 1m)
• DC resistance Re = 6,3 Ohm
• voice coil inductance L = 1,5 mH
• total Q factor Qts = (Qms=, Qes=)
• voice coil diameter = 25,4 mm
• overall diameter d = 70 mm
• mounting depth (not countersunk) t = 40 mm

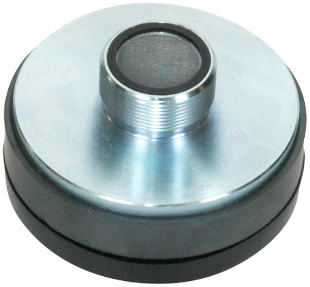

ASD 1001       order no. ah-EASD1001       EUR 53,10 excl. VAT: € 44.62 / $ 54.88
1 inch high frequency compression driver with high quality cone.

• power handling (continuous/programme) = 50 W
• resonance frequency fs = 1230 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 105 dB (2,83V; 1m)
• DC resistance Re = 6,7 Ohm
• voice coil inductance L = 1,1 mH
• total Q factor Qts = (Qms=, Qes=)
• voice coil diameter = 33 mm
• overall diameter d = 88,9 mm

PDF data sheet

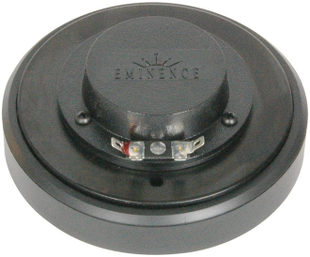

PSD 2002 A       order no. ah-EPSD2002A       EUR 67,50 excl. VAT: € 56.72 / $ 69.77
1 inch high frequency compression driver with high quality cone.

• power handling (continuous/programme) = 80@1600 Hz W
• frequency range = 1200-20000 Hz
• resonance frequency fs = 550 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 105 dB (2,83V; 1m)
• DC resistance Re = 6,1 Ohm
• voice coil inductance L = 1,6 mH
• total Q factor Qts = (Qms=, Qes=)
• voice coil diameter = 51 mm
• overall diameter d = 133 mm
• mounting depth (not countersunk) t = 56 mm

PDF data sheet

PSD 2002 B       order no. ah-EPSD2002B       EUR 79,00 excl. VAT: € 66.39 / $ 81.66
1 inch high frequency compression driver with high quality cone.

• power handling (continuous/programme) = 80@1600 Hz W
• frequency range = 1200-20000 Hz
• resonance frequency fs = 550 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 105 dB (2,83V; 1m)
• DC resistance Re = 6,1 Ohm
• voice coil inductance L = 1,6 mH
• total Q factor Qts = (Qms=, Qes=)
• voice coil diameter = 51 mm
• overall diameter d = 133 mm
• mounting depth (not countersunk) t = 56 mm

PDF data sheet

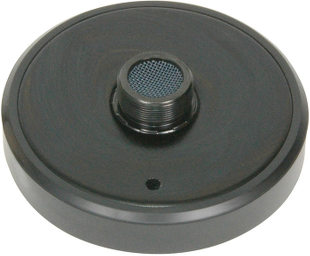

PSD 2002 SA       order no. ah-EPSD2002A       EUR 67,50 excl. VAT: € 56.72 / $ 69.77
1 inch high frequency compression driver with high quality cone.

• power handling (continuous/programme) = 80@1600 Hz W
• frequency range = 1200-20000 Hz
• resonance frequency fs = 550 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 105 dB (2,83V; 1m)
• DC resistance Re = 6,1 Ohm
• voice coil inductance L = 1,6 mH
• total Q factor Qts = (Qms=, Qes=)
• voice coil diameter = 51 mm
• overall diameter d = 133 mm
• mounting depth (not countersunk) t = 56 mm

PDF data sheet

PSD 2002 SB       order no. ah-EPSD2002B       EUR 79,00 excl. VAT: € 66.39 / $ 81.66
1 inch high frequency compression driver with high quality cone.

• power handling (continuous/programme) = 80@1600 Hz W
• frequency range = 1200-20000 Hz
• resonance frequency fs = 550 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 105 dB (2,83V; 1m)
• DC resistance Re = 6,1 Ohm
• voice coil inductance L = 1,6 mH
• total Q factor Qts = (Qms=, Qes=)
• voice coil diameter = 51 mm
• overall diameter d = 133 mm
• mounting depth (not countersunk) t = 56 mm

PDF data sheet

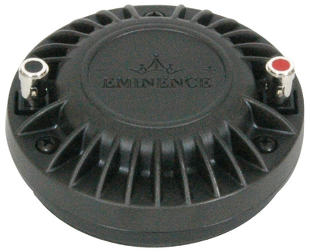

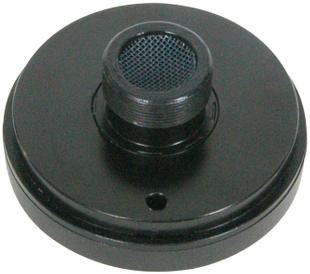

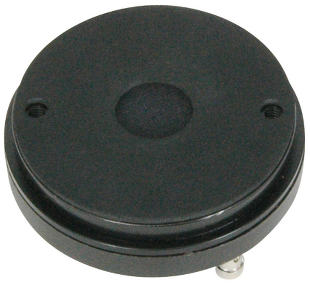

NSD 2005 A       order no. ah-ENSD2005A       EUR 168,00 excl. VAT: € 141.18 / $ 173.65
1 inch high frequency compression driver with high quality cone.

• power handling (continuous/programme) = 50 W
• frequency range = 1500-16000 Hz
• resonance frequency fs = 580 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 111 dB (2,83V; 1m)
• DC resistance Re = 6,8 Ohm
• voice coil inductance L = 0,95 mH
• total Q factor Qts = (Qms=, Qes=)
• voice coil diameter = 51 mm
• overall diameter d = 98,3 mm

PDF data sheet

NSD 2005 B       order no. ah-ENSD2005B       EUR 168,00 excl. VAT: € 141.18 / $ 173.65
1 inch high frequency compression driver with high quality cone.

• power handling (continuous/programme) = 50 W
• frequency range = 1500-16000 Hz
• resonance frequency fs = 580 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 108 dB (2,83V; 1m)
• total Q factor Qts = (Qms=, Qes=)
• voice coil diameter = 51 mm
• overall diameter d = 98,3 mm

PDF data sheet

NSD 2005 SA       order no. ah-ENSD2005SA       EUR 168,00 excl. VAT: € 141.18 / $ 173.65
1 inch high frequency compression driver with high quality cone.

• power handling (continuous/programme) = 50 W
• frequency range = 1500-16000 Hz
• resonance frequency fs = 580 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 111 dB (2,83V; 1m)
• DC resistance Re = 6,8 Ohm
• voice coil inductance L = 0,95 mH
• total Q factor Qts = (Qms=, Qes=)
• voice coil diameter = 51 mm
• overall diameter d = 98,3 mm

PDF data sheet

NSD 2005 SB       order no. ah-ENSD2005SB       EUR 168,00 excl. VAT: € 141.18 / $ 173.65
1 inch high frequency compression driver with high quality cone.

• power handling (continuous/programme) = 50 W
• frequency range = 1500-16000 Hz
• resonance frequency fs = 580 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 108 dB (2,83V; 1m)
• total Q factor Qts = (Qms=, Qes=)
• voice coil diameter = 51 mm
• overall diameter d = 98,3 mm

PDF data sheet

open a bigger photo

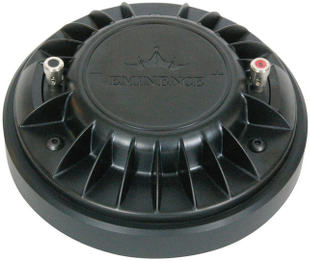

PSD 3006 A       order no. ah-EPSD3006A       EUR 246,06 excl. VAT: € 206.77 / $ 254.33
2 inch high frequency compression driver with high quality cone.

• power handling (continuous/programme) = 80 W
• frequency range = 500-18000 Hz
• resonance frequency fs = 511 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 111,4 dB (2,83V; 1m)
• DC resistance Re = 4,8 Ohm
• total Q factor Qts = (Qms=, Qes=)
• voice coil diameter = 76,2 mm
• overall diameter d = 200,7 mm
• mounting depth (not countersunk) t = 78,7 mm

PDF data sheet

open a bigger photo

open a bigger photo

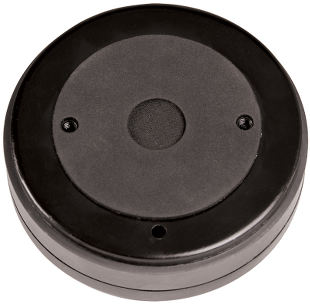

PSD 2013 A       order no. ah-EPSD2013A       EUR 113,05 excl. VAT: € 95.00 / $ 116.85
1 inch high frequency compression driver with high quality cone.

• power handling (continuous/programme) = 85 W
• frequency range = 1500-20000 Hz
• resonance frequency fs = 435 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 108,3 dB (2,83V; 1m)
• DC resistance Re = 6,8 Ohm
• total Q factor Qts = (Qms=, Qes=)
• voice coil diameter = 50,8 mm
• overall diameter d = 133,4 mm
• mounting depth (not countersunk) t = 58,4 mm

PDF data sheet

open a bigger photo

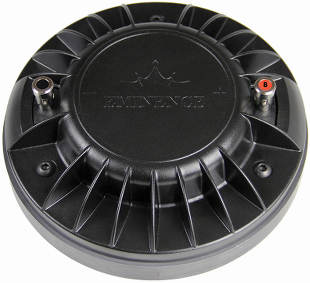

PSD 3014 A       order no. ah-EPSD3014A       EUR 280,26 excl. VAT: € 235.51 / $ 289.68
1.4 inch high frequency compression driver with high quality cone.

• power handling (continuous/programme) = 100 W
• frequency range = 800-20000 Hz
• resonance frequency fs = 439 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 109 dB (2,83V; 1m)
• DC resistance Re = 4,8 Ohm
• total Q factor Qts = (Qms=, Qes=)
• voice coil diameter = 76,2 mm
• overall diameter d = 200,7 mm
• mounting depth (not countersunk) t = 78,7 mm

PDF data sheet

open a bigger photo

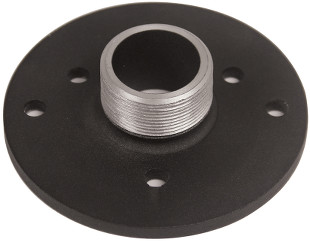

EB 2 SA - Adapter       order no. ah-EB2SA       EUR 15,10 excl. VAT: € 12.69 / $ 15.61
.

• total Q factor Qts = (Qms=, Qes=)

PDF data sheet

open a bigger photo

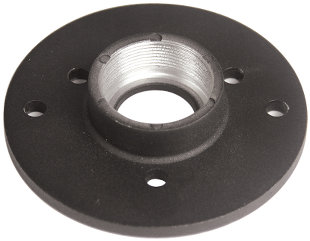

ES 2 BA       order no. ah-ES2BA       EUR 15,10 excl. VAT: € 12.69 / $ 15.61
.

• total Q factor Qts = (Qms=, Qes=)

PDF data sheet

open a bigger photo

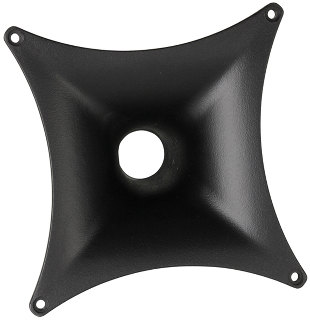

BH 410       order no. ah-EBH410       EUR 22,50 excl. VAT: € 18.91 / $ 23.26
Horn for a compression driver with 1 inch throat.

• Throat diameter = 1 inch
• nominal angle (HxV) = 60x60 Deg
• Cut off frequency : 1200 Hz
• over all dimensions (HxWxD) = 141,9 x 141,9 x 111,2 mm
• baffle cutout dimensions (HxW) = 90,4 x 90,4 mm
• material:

open a bigger photo

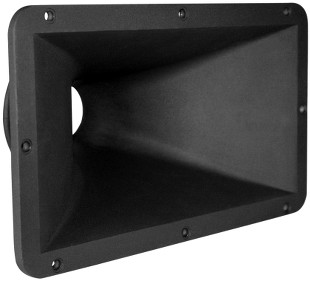

H 2 EA       order no. ah-EH2EA       EUR 103,50 excl. VAT: € 86.97 / $ 106.98
Horn for a compression driver with 2 inch throat.

• Throat diameter = 2 inch
• nominal angle (HxV) = 60x40 Deg
• Cut off frequency : 700 Hz
• over all dimensions (HxWxD) = 315 x 185 x 155 mm
• baffle cutout dimensions (HxW) = 287 x 160 mm
• material: aluminium

recommended cabinet 1:
closed cabinet with 4,2 L volume
from 174/110 Hz (-3dB/-8dB)

recommended cabinet 2:
17 L volume bass reflex cabinet
with HP70 reflex tube, 3 cm long.
from 78/68 Hz (-3dB/-8dB).

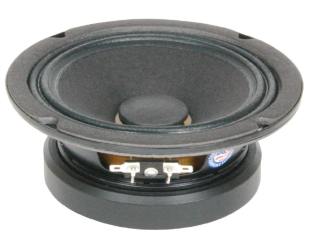

Alpha-6A       order no. ah-EA6A       EUR 59,00 excl. VAT: € 49.58 / $ 60.98
15 cm bass driver with paper cone.

• power handling (continuous/programme) = 100/200 W
• frequency range = 85-6000 Hz
• resonance frequency fs = 118 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 93,6 dB (2,83V; 1m)
• DC resistance Re = 7,2 Ohm
• force factor BL = 8 N/A
• voice coil inductance L = 0,19 mH
• effective piston radiating area Sd = 126,7 cm²
• effective mechanical mass incl. air load mms = 7 g
• equivalent volume of compliance Vas = 5,8 l
• total Q factor Qts = 0,54 (Qms=5,68, Qes=0,6)
• voice coil diameter = 38,1 mm
• maximum peak linear excursion vibration x_lin = +/- 3,5 mm
• mounting diameter d = 144,5 mm
• overall diameter d = 167,4 mm
• mounting depth (not countersunk) t = 71 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 2,6 L volume
from 180/114 Hz (-3dB/-8dB)

recommended cabinet 2:
10,6 L volume bass reflex cabinet
with HP70 reflex tube, 7 cm long.
from 84/70 Hz (-3dB/-8dB).

Alpha-6C       order no. ah-EA6C       EUR 69,00 excl. VAT: € 57.98 / $ 71.32
15 cm bass driver with paper cone.

• power handling (continuous/programme) = 100/200 W
• frequency range = 85-6000 Hz
• resonance frequency fs = 107 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 93,3 dB (2,83V; 1m)
• DC resistance Re = 3,2 Ohm
• force factor BL = 6,4 N/A
• voice coil inductance L = 0,29 mH
• effective piston radiating area Sd = 129,9 cm²
• effective mechanical mass incl. air load mms = 9,3 g
• equivalent volume of compliance Vas = 5,7 l
• total Q factor Qts = 0,45 (Qms=6,12, Qes=0,49)
• voice coil diameter = 38,1 mm
• maximum peak linear excursion vibration x_lin = +/- 3,5 mm
• mounting diameter d = 144,5 mm
• overall diameter d = 167,4 mm
• mounting depth (not countersunk) t = 71 mm

PDF data sheet

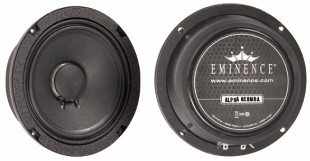

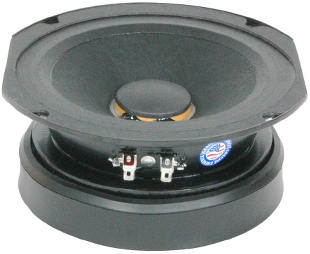

Alpha-6CBMRA       order no. ah-EA6CBMRA       EUR 76,50 excl. VAT: € 64.29 / $ 79.07
15 cm midrange driver with paper cone.

• power handling (continuous/programme) = 100/200 W
• frequency range = 400-5000 Hz
• resonance frequency fs = 407 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 97,8 dB (2,83V; 1m)
• DC resistance Re = 5,26 Ohm
• force factor BL = 7,86 N/A
• voice coil inductance L = 0,38 mH
• effective piston radiating area Sd = 126,7 cm²
• effective mechanical mass incl. air load mms = 8 g
• equivalent volume of compliance Vas = 0,45 l
• total Q factor Qts = 1,35 (Qms=6,04, Qes=1,74)
• voice coil diameter = 38,1 mm
• maximum peak linear excursion vibration x_lin = +/- 1,5 mm
• mounting diameter d = 144,5 mm
• overall diameter d = 167,4 mm
• mounting depth (not countersunk) t = 55,88 mm

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 2,7 L volume
from 178/112 Hz (-3dB/-8dB)

recommended cabinet 2:
10,8 L volume bass reflex cabinet
with HP70 reflex tube, 7 cm long.
from 80/69 Hz (-3dB/-8dB).

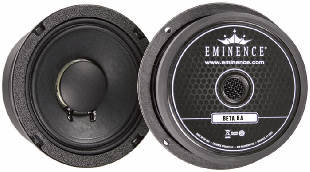

Beta-6A       order no. ah-EB6A       EUR 89,10 excl. VAT: € 74.87 / $ 92.09
15 cm bass driver with paper cone.

• power handling (continuous/programme) = 175/350 W
• frequency range = 84-4000 Hz
• resonance frequency fs = 123 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 94 dB (2,83V; 1m)
• DC resistance Re = 5,18 Ohm
• force factor BL = 8,13 N/A
• voice coil inductance L = 0,43 mH
• effective piston radiating area Sd = 129,9 cm²
• effective mechanical mass incl. air load mms = 10,93 g
• equivalent volume of compliance Vas = 3,51 l
• total Q factor Qts = 0,55 (Qms=3,46, Qes=0,66)
• voice coil diameter = 50,8 mm
• maximum peak linear excursion vibration x_lin = +/- 4,5 mm
• mounting diameter d = 144,5 mm
• overall diameter d = 167,4 mm
• mounting depth (not countersunk) t = 67,6 mm

PDF data sheet

open a bigger photo

LA 6CBMRA       order no. ah-ELA6CBMRA       EUR 85,00 excl. VAT: € 71.43 / $ 87.86
15 cm bass driver with paper cone.

• power handling (continuous/programme) = 150/300 W
• frequency range = 500-5400 Hz
• resonance frequency fs = 460 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 97,8 dB (2,83V; 1m)
• DC resistance Re = 6,3 Ohm
• force factor BL = 11,1 N/A
• voice coil inductance L = 0,33 mH
• effective piston radiating area Sd = 133,1 cm²
• effective mechanical mass incl. air load mms = 9 g
• equivalent volume of compliance Vas = 0,4 l
• total Q factor Qts = 0,89 (Qms=3,13, Qes=1,24)
• voice coil diameter = 38,1 mm
• maximum peak linear excursion vibration x_lin = +/- 0,2 mm
• mounting diameter d = 143,5 mm
• overall diameter d = 167 mm
• mounting depth (not countersunk) t = 70 mm

PDF data sheet

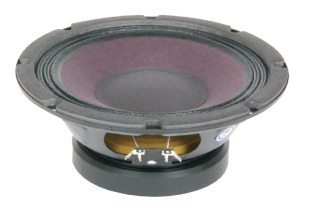

Alpha-8A       order no. ah-EA8A       EUR 75,05 excl. VAT: € 63.07 / $ 77.57
19 cm bass driver with paper cone.

• power handling (continuous/programme) = 125/250 W
• frequency range = 58-5000 Hz
• resonance frequency fs = 73 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 94 dB (2,83V; 1m)
• DC resistance Re = 5,3 Ohm
• force factor BL = 7,8 N/A
• voice coil inductance L = 0,44 mH
• effective piston radiating area Sd = 210 cm²
• effective mechanical mass incl. air load mms = 17 g
• equivalent volume of compliance Vas = 17,7 l
• total Q factor Qts = 0,59 (Qms=4,6, Qes=0,68)
• voice coil diameter = 38,1 mm
• maximum peak linear excursion vibration x_lin = +/- 3,2 mm
• mounting diameter d = 181 mm
• overall diameter d = 209,2 mm
• mounting depth (not countersunk) t = 83 mm

PDF data sheet

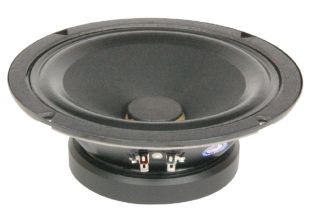

Alpha-8MRA       order no. ah-EA8MRA       EUR 73,00 excl. VAT: € 61.34 / $ 75.45
20 cm midrange driver with paper cone.

• power handling (continuous/programme) = 125/250 W
• frequency range = 400-4800 Hz
• resonance frequency fs = 514 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 100,9 dB (2,83V; 1m)
• DC resistance Re = 7,32 Ohm
• force factor BL = 8,9 N/A
• voice coil inductance L = 0,34 mH
• effective piston radiating area Sd = 205,9 cm²
• effective mechanical mass incl. air load mms = 6,9 g
• equivalent volume of compliance Vas = 0,8 l
• total Q factor Qts = 1,42 (Qms=4,48, Qes=2,08)
• voice coil diameter = 38,1 mm
• maximum peak linear excursion vibration x_lin = +/- 1,6 mm
• mounting diameter d = 182,5 mm
• overall diameter d = 208,8 mm
• mounting depth (not countersunk) t = 83 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 6 L volume
from 134/85 Hz (-3dB/-8dB)

recommended cabinet 2:
22 L volume bass reflex cabinet
with HP70 reflex tube, 5 cm long.
from 67/54 Hz (-3dB/-8dB).

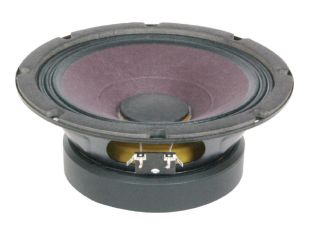

Beta-8A       order no. ah-EB8A       EUR 84,55 excl. VAT: € 71.05 / $ 87.39
19 cm bass driver with paper cone.

• power handling (continuous/programme) = 225/450 W
• frequency range = 78-4500 Hz
• resonance frequency fs = 65 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 95,1 dB (2,83V; 1m)
• DC resistance Re = 5,99 Ohm
• force factor BL = 9,6 N/A
• voice coil inductance L = 0,49 mH
• effective piston radiating area Sd = 210 cm²
• effective mechanical mass incl. air load mms = 16 g
• equivalent volume of compliance Vas = 23,3 l
• total Q factor Qts = 0,39 (Qms=4,95, Qes=0,42)
• voice coil diameter = 50,8 mm
• maximum peak linear excursion vibration x_lin = +/- 3 mm
• mounting diameter d = 181 mm
• overall diameter d = 209,2 mm
• mounting depth (not countersunk) t = 89 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 0,96 L volume
from 284/179 Hz (-3dB/-8dB)

recommended cabinet 2:
1,7 L volume bass reflex cabinet
with HP50 reflex tube, 12 cm long.
from 191/141 Hz (-3dB/-8dB).

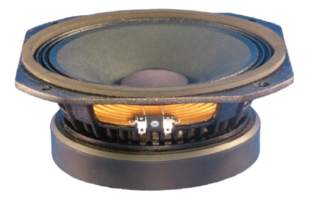

Delta Pro-8A       order no. ah-EDP8A       EUR 119,00 excl. VAT: € 100.00 / $ 123.00
19 cm bass driver with paper cone. The basket is made of die-cast.

• power handling (continuous/programme) = 225/450 W
• frequency range = 100-3000 Hz
• resonance frequency fs = 69 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 97,8 dB (2,83V; 1m)
• DC resistance Re = 5,4 Ohm
• force factor BL = 14,1 N/A
• voice coil inductance L = 0,82 mH
• effective piston radiating area Sd = 218,2 cm²
• effective mechanical mass incl. air load mms = 19,3 g
• equivalent volume of compliance Vas = 18,32 l
• total Q factor Qts = 0,19 (Qms=6,43, Qes=0,2)
• voice coil diameter = 50,8 mm
• maximum peak linear excursion vibration x_lin = +/- 3 mm
• mounting diameter d = 186,9 mm
• overall diameter d = 203,71 mm
• mounting depth (not countersunk) t = 95 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 1,8 L volume
from 217/137 Hz (-3dB/-8dB)

recommended cabinet 2:
4,7 L volume bass reflex cabinet
with HP70 reflex tube, 14 cm long.
from 127/96 Hz (-3dB/-8dB).

Delta Pro-8B       order no. ah-EDP8B       EUR 119,00 excl. VAT: € 100.00 / $ 123.00
19 cm bass driver with paper cone. The basket is made of die-cast.

• power handling (continuous/programme) = 225/550 W
• frequency range = 100-3000 Hz
• resonance frequency fs = 71 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 99 dB (2,83V; 1m)
• DC resistance Re = 10,5 Ohm
• force factor BL = 17,6 N/A
• voice coil inductance L = 0,9 mH
• effective piston radiating area Sd = 218,9 cm²
• effective mechanical mass incl. air load mms = 18 g
• equivalent volume of compliance Vas = 18,28 l
• total Q factor Qts = 0,26 (Qms=7,47, Qes=0,27)
• voice coil diameter = 50,8 mm
• maximum peak linear excursion vibration x_lin = +/- 3 mm
• mounting diameter d = 186,9 mm
• overall diameter d = 203,71 mm
• mounting depth (not countersunk) t = 95 mm

PDF data sheet

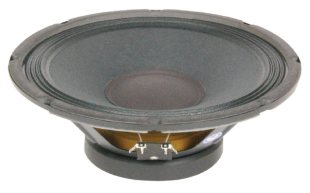

Alpha-10A       order no. ah-EA10A       EUR 78,00 excl. VAT: € 65.55 / $ 80.62
24 cm bass driver with paper cone.

• power handling (continuous/programme) = 150/300 W
• frequency range = 57-4500 Hz
• resonance frequency fs = 50 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 95,6 dB (2,83V; 1m)
• DC resistance Re = 5,31 Ohm
• force factor BL = 7,5 N/A
• voice coil inductance L = 0,66 mH
• effective piston radiating area Sd = 355,4 cm²
• effective mechanical mass incl. air load mms = 22 g
• equivalent volume of compliance Vas = 82,2 l
• total Q factor Qts = 0,59 (Qms=5,21, Qes=0,66)
• voice coil diameter = 38,1 mm
• maximum peak linear excursion vibration x_lin = +/- 3,2 mm
• mounting diameter d = 231,8 mm
• overall diameter d = 256,8 mm
• mounting depth (not countersunk) t = 99 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 31 L volume
from 86/54 Hz (-3dB/-8dB)

recommended cabinet 2:
128 L volume bass reflex cabinet
with 4x HP100 reflex tube, 23 cm long.
from 40/33 Hz (-3dB/-8dB).

Beta-10A       order no. ah-EB10A       EUR 89,00 excl. VAT: € 74.79 / $ 91.99
24 cm bass driver with paper cone.

• power handling (continuous/programme) = 250/500 W
• frequency range = 51-3800 Hz
• resonance frequency fs = 53 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 97 dB (2,83V; 1m)
• DC resistance Re = 5,75 Ohm
• force factor BL = 9,6 N/A
• voice coil inductance L = 0,67 mH
• effective piston radiating area Sd = 344,9 cm²
• effective mechanical mass incl. air load mms = 25 g
• equivalent volume of compliance Vas = 60,1 l
• total Q factor Qts = 0,49 (Qms=8,14, Qes=0,52)
• voice coil diameter = 50,8 mm
• maximum peak linear excursion vibration x_lin = +/- 3 mm
• mounting diameter d = 231,8 mm
• overall diameter d = 256,8 mm
• mounting depth (not countersunk) t = 101 mm

PDF data sheet

Beta-10B       order no. ah-EB10B       EUR 99,00 excl. VAT: € 83.19 / $ 102.33
24 cm bass driver with paper cone.

• power handling (continuous/programme) = 250/500 W
• frequency range = 51-3800 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 94 dB (2,83V; 1m)
• total Q factor Qts = (Qms=, Qes=)
• voice coil diameter = 50,8 mm
• maximum peak linear excursion vibration x_lin = +/- 3 mm
• mounting diameter d = 231,8 mm
• overall diameter d = 256,8 mm
• mounting depth (not countersunk) t = 101 mm

open a bigger photo

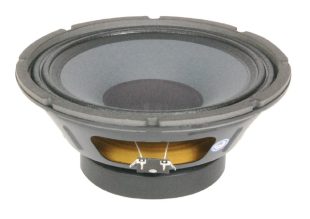

Beta-10CBMRA       order no. ah-EB10CBMRA       EUR 109,00 excl. VAT: € 91.60 / $ 112.66
24 cm midrange driver with paper cone.

• power handling (continuous/programme) = 200/400 W
• frequency range = 300-4000 Hz
• resonance frequency fs = 326 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 99,6 dB (2,83V; 1m)
• DC resistance Re = 5,68 Ohm
• force factor BL = 9,5 N/A
• voice coil inductance L = 0,48 mH
• effective piston radiating area Sd = 350,1 cm²
• effective mechanical mass incl. air load mms = 17,62 g
• equivalent volume of compliance Vas = 1,7 l
• total Q factor Qts = 1,39 (Qms=7,14, Qes=1,73)
• voice coil diameter = 50,8 mm
• maximum peak linear excursion vibration x_lin = +/- 1,5 mm
• mounting diameter d = 233,17 mm
• overall diameter d = 256,3 mm
• mounting depth (not countersunk) t = 90,42 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 5,2 L volume
from 160/101 Hz (-3dB/-8dB)

recommended cabinet 2:
17 L volume bass reflex cabinet
with HP100 reflex tube, 14 cm long.
from 85/66 Hz (-3dB/-8dB).

Delta-10A       order no. ah-ED10A       EUR 107,00 excl. VAT: € 89.92 / $ 110.60
24 cm bass driver with paper cone.

• power handling (continuous/programme) = 350/700 W
• frequency range = 63-3700 Hz
• resonance frequency fs = 66 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 98,8 dB (2,83V; 1m)
• DC resistance Re = 5,42 Ohm
• force factor BL = 14,4 N/A
• voice coil inductance L = 0,74 mH
• effective piston radiating area Sd = 344,9 cm²
• effective mechanical mass incl. air load mms = 32 g
• equivalent volume of compliance Vas = 30,5 l
• total Q factor Qts = 0,33 (Qms=6,53, Qes=0,35)
• voice coil diameter = 63,5 mm
• maximum peak linear excursion vibration x_lin = +/- 3,5 mm
• mounting diameter d = 229,7 mm
• overall diameter d = 256,2 mm
• mounting depth (not countersunk) t = 108 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 6,2 L volume
from 158/99 Hz (-3dB/-8dB)

recommended cabinet 2:
20 L volume bass reflex cabinet
with HP100 reflex tube, 11 cm long.
from 84/65 Hz (-3dB/-8dB).

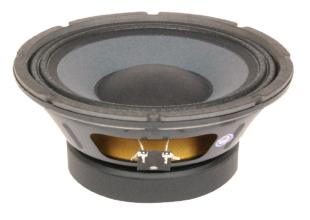

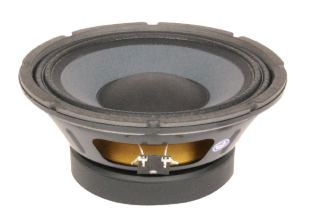

Delta-10B       order no. ah-ED10B       EUR 107,00 excl. VAT: € 89.92 / $ 110.60
24 cm bass driver with paper cone.

• power handling (continuous/programme) = 350/700 W
• frequency range = 71-3700 Hz
• resonance frequency fs = 65 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 98 dB (2,83V; 1m)
• DC resistance Re = 11,6 Ohm
• force factor BL = 19,5 N/A
• voice coil inductance L = 0,79 mH
• effective piston radiating area Sd = 344,9 cm²
• effective mechanical mass incl. air load mms = 28 g
• equivalent volume of compliance Vas = 36 l
• total Q factor Qts = 0,34 (Qms=8,34, Qes=0,35)
• voice coil diameter = 63,5 mm
• maximum peak linear excursion vibration x_lin = +/- 1,8 mm
• mounting diameter d = 229,7 mm
• overall diameter d = 256,2 mm
• mounting depth (not countersunk) t = 108 mm

PDF data sheet

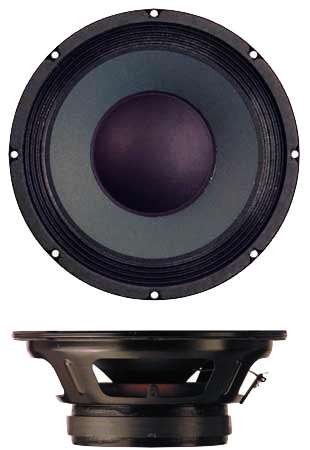

Gamma-10A       order no. ah-EG10A       EUR 99,75 excl. VAT: € 83.82 / $ 103.10
cm bass driver with paper cone.

• power handling (continuous/programme) = 300/600 W
• frequency range = 60-5000 Hz
• resonance frequency fs = 63 Hz
• impedance R = 8 Ohm
• DC resistance Re = 5,43 Ohm
• force factor BL = 10,8 N/A
• voice coil inductance L = 0,84 mH
• effective piston radiating area Sd = 344,9 cm²
• effective mechanical mass incl. air load mms = 29 g
• equivalent volume of compliance Vas = 36,4 l
• total Q factor Qts = 0,51 (Qms=9,04, Qes=0,54)
• voice coil diameter = 63,5 mm
• maximum peak linear excursion vibration x_lin = +/- 1,6 mm

recommended cabinet 1:
closed cabinet with 2,7 L volume
from 190/120 Hz (-3dB/-8dB)

recommended cabinet 2:
4,9 L volume bass reflex cabinet
with HP70 reflex tube, 19 cm long.
from 127/94 Hz (-3dB/-8dB).

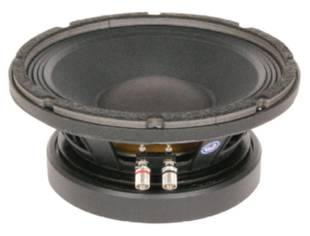

Kappa Pro-10A       order no. ah-EKP10A       EUR 158,00 excl. VAT: € 132.77 / $ 163.31
25 cm bass driver with paper cone. The basket is made of die-cast.

• power handling (continuous/programme) = 500/1000 W
• frequency range = 102-2000 Hz
• resonance frequency fs = 46 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 97 dB (2,83V; 1m)
• DC resistance Re = 6,5 Ohm
• force factor BL = 18,8 N/A
• voice coil inductance L = 1,15 mH
• effective piston radiating area Sd = 344,9 cm²
• effective mechanical mass incl. air load mms = 38 g
• equivalent volume of compliance Vas = 52,2 l
• total Q factor Qts = 0,2 (Qms=10,1, Qes=0,2)
• voice coil diameter = 76,2 mm
• maximum peak linear excursion vibration x_lin = +/- 3,2 mm
• mounting diameter d = 231,8 mm
• overall diameter d = 260,4 mm
• mounting depth (not countersunk) t = 110 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 8,6 L volume
from 111/70 Hz (-3dB/-8dB)

recommended cabinet 2:
24 L volume bass reflex cabinet
with HP100 reflex tube, 24 cm long.
from 63/48 Hz (-3dB/-8dB).

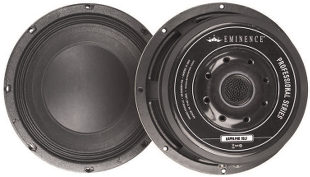

Kappa Pro-10LFA       order no. ah-EKP10LFA       EUR 189,00 excl. VAT: € 158.82 / $ 195.35
25 cm bass driver with paper cone. The basket is made of die-cast.

• power handling (continuous/programme) = 600/1200 W
• frequency range = 47-2000 Hz
• resonance frequency fs = 39 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 91,6 dB (2,83V; 1m)
• DC resistance Re = 5,47 Ohm
• force factor BL = 14,46 N/A
• voice coil inductance L = 0,97 mH
• effective piston radiating area Sd = 376,9 cm²
• effective mechanical mass incl. air load mms = 46 g
• equivalent volume of compliance Vas = 72,8 l
• total Q factor Qts = 0,28 (Qms=8,97, Qes=0,29)
• voice coil diameter = 76 mm
• maximum peak linear excursion vibration x_lin = +/- 7,2 mm
• mounting diameter d = 232,2 mm
• overall diameter d = 260,9 mm
• mounting depth (not countersunk) t = 127 mm

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 0,19 L volume
from 174/110 Hz (-3dB/-8dB)

recommended cabinet 2:
0,46 L volume bass reflex cabinet
with HP70 reflex tube, 292 cm long.
from 104/78 Hz (-3dB/-8dB).

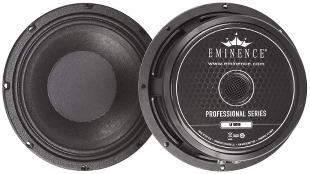

LA 10850 A       order no. ah-ELA10850A       EUR 199,00 excl. VAT: € 167.23 / $ 205.69
25 cm bass driver with paper cone.

• power handling (continuous/programme) = 350/700 W
• frequency range = 120-4300 Hz
• resonance frequency fs = 55 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 98,7 dB (2,83V; 1m)
• DC resistance Re = 5,13 Ohm
• force factor BL = 13,44 N/A
• voice coil inductance L = 0,54 mH
• effective piston radiating area Sd = 366,1 cm²
• effective mechanical mass incl. air load mms = 26 g
• equivalent volume of compliance Vas = 2,04 l
• total Q factor Qts = 0,25 (Qms=9,09, Qes=0,26)
• voice coil diameter = 76 mm
• maximum peak linear excursion vibration x_lin = +/- 2,9 mm
• mounting diameter d = 232,2 mm
• overall diameter d = 260,9 mm
• mounting depth (not countersunk) t = 114,3 mm

PDF data sheet

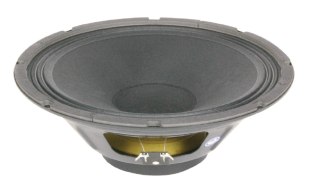

Alpha-12A       order no. ah-EA12A       EUR 85,50 excl. VAT: € 71.85 / $ 88.37
30 cm bass driver with paper cone.

• power handling (continuous/programme) = 150/300 W
• frequency range = 51-4300 Hz
• resonance frequency fs = 49 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 95,6 dB (2,83V; 1m)
• DC resistance Re = 6,3 Ohm
• force factor BL = 8,5 N/A
• voice coil inductance L = 0,79 mH
• effective piston radiating area Sd = 519,5 cm²
• effective mechanical mass incl. air load mms = 33 g
• equivalent volume of compliance Vas = 121,5 l
• total Q factor Qts = 0,78 (Qms=6,53, Qes=0,88)
• voice coil diameter = 38,1 mm
• maximum peak linear excursion vibration x_lin = +/- 2,4 mm
• mounting diameter d = 279,5 mm
• overall diameter d = 311,4 mm
• mounting depth (not countersunk) t = 120 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 52 L volume
from 81/51 Hz (-3dB/-8dB)

recommended cabinet 2:
209 L volume bass reflex cabinet
with 4x HP100 reflex tube, 12 cm long.
from 38/32 Hz (-3dB/-8dB).

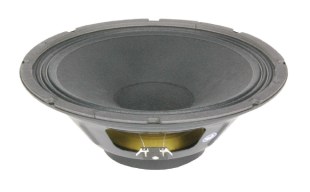

Beta-12A       order no. ah-EB12A       EUR 79,00 excl. VAT: € 66.39 / $ 81.66
29 cm bass driver with paper cone.

• power handling (continuous/programme) = 250/500 W
• frequency range = 43-3800 Hz
• resonance frequency fs = 47 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 98 dB (2,83V; 1m)
• DC resistance Re = 5 Ohm
• force factor BL = 10,8 N/A
• voice coil inductance L = 0,64 mH
• effective piston radiating area Sd = 538,9 cm²
• effective mechanical mass incl. air load mms = 40 g
• equivalent volume of compliance Vas = 120,1 l
• total Q factor Qts = 0,46 (Qms=6, Qes=0,5)
• voice coil diameter = 50,8 mm
• maximum peak linear excursion vibration x_lin = +/- 4,4 mm
• mounting diameter d = 278,1 mm
• overall diameter d = 305,5 mm
• mounting depth (not countersunk) t = 116 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 102 L volume
from 66/42 Hz (-3dB/-8dB)

recommended cabinet 2:
402 L volume bass reflex cabinet
with 4x HP100 reflex tube, 6 cm long.
from 29/26 Hz (-3dB/-8dB).

Beta-12B       order no. ah-EB12B       EUR 94,05 excl. VAT: € 79.03 / $ 97.21
29 cm bass driver with paper cone.

• power handling (continuous/programme) = 250/500 W
• frequency range = 43-3800 Hz
• resonance frequency fs = 47,1 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 95 dB (2,83V; 1m)
• DC resistance Re = 9,81 Ohm
• force factor BL = 13,75 N/A
• voice coil inductance L = 1,33 mH
• effective piston radiating area Sd = 538,9 cm²
• effective mechanical mass incl. air load mms = 40,3 g
• equivalent volume of compliance Vas = 116,6 l
• total Q factor Qts = 0,58 (Qms=9,05, Qes=0,62)
• voice coil diameter = 50,8 mm
• maximum peak linear excursion vibration x_lin = +/- 2,37 mm
• mounting diameter d = 278,1 mm
• overall diameter d = 305,5 mm
• mounting depth (not countersunk) t = 116 mm

recommended cabinet 1:
closed cabinet with 56 L volume
from 75/47 Hz (-3dB/-8dB)

recommended cabinet 2:
229 L volume bass reflex cabinet
with 2x HP100 reflex tube, 3 cm long.
from 35/29 Hz (-3dB/-8dB).

Beta-12C       order no. ah-EB12C       EUR 94,05 excl. VAT: € 79.03 / $ 97.21
29 cm bass driver with paper cone.

• power handling (continuous/programme) = 250/500 W
• frequency range = 43-3800 Hz
• resonance frequency fs = 45,5 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 101 dB (2,83V; 1m)
• DC resistance Re = 3,47 Ohm
• force factor BL = 9,46 N/A
• voice coil inductance L = 0,75 mH
• effective piston radiating area Sd = 538,9 cm²
• effective mechanical mass incl. air load mms = 43,9 g
• equivalent volume of compliance Vas = 115 l
• total Q factor Qts = 0,47 (Qms=9,57, Qes=0,49)
• voice coil diameter = 50,8 mm
• maximum peak linear excursion vibration x_lin = +/- 2,37 mm
• mounting diameter d = 278,1 mm
• overall diameter d = 305,5 mm
• mounting depth (not countersunk) t = 116 mm

Beta-12LTB       order no. ah-EB12LTB       EUR 89,00 excl. VAT: € 74.79 / $ 91.99
29 cm bass driver with paper cone.

• power handling (continuous/programme) = 225/450 W
• frequency range = 48-8000 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 94,7 dB (2,83V; 1m)
• total Q factor Qts = (Qms=, Qes=)
• voice coil diameter = 50,8 mm
• maximum peak linear excursion vibration x_lin = +/- 3,2 mm
• mounting diameter d = 278,1 mm
• overall diameter d = 305,5 mm
• mounting depth (not countersunk) t = 114 mm

recommended cabinet 1:
closed cabinet with 17 L volume
from 114/72 Hz (-3dB/-8dB)

recommended cabinet 2:
60 L volume bass reflex cabinet
with 2x HP100 reflex tube, 12 cm long.
from 59/46 Hz (-3dB/-8dB).

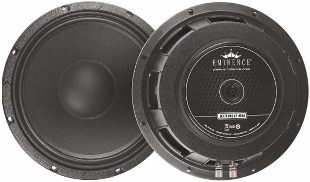

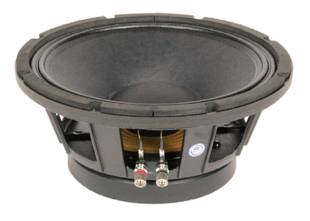

Delta Pro-12A       order no. ah-EDP12A       EUR 199,00 excl. VAT: € 167.23 / $ 205.69
30 cm bass driver with paper cone. The basket is made of die-cast.

• power handling (continuous/programme) = 400/800 W
• frequency range = 52-4500 Hz
• resonance frequency fs = 51 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 99,2 dB (2,83V; 1m)
• DC resistance Re = 5,71 Ohm
• force factor BL = 15,3 N/A
• voice coil inductance L = 0,84 mH
• effective piston radiating area Sd = 532,4 cm²
• effective mechanical mass incl. air load mms = 48 g
• equivalent volume of compliance Vas = 81,7 l
• total Q factor Qts = 0,35 (Qms=7,56, Qes=0,37)
• voice coil diameter = 63,5 mm
• maximum peak linear excursion vibration x_lin = +/- 4,6 mm
• mounting diameter d = 281 mm
• overall diameter d = 314,5 mm
• mounting depth (not countersunk) t = 158 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 27 L volume
from 103/65 Hz (-3dB/-8dB)

recommended cabinet 2:
106 L volume bass reflex cabinet
with 2x HP100 reflex tube, 5 cm long.
from 50/41 Hz (-3dB/-8dB).

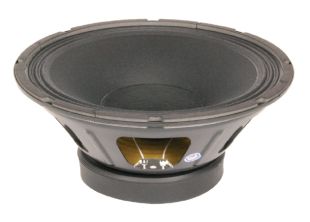

Delta-12A       order no. ah-ED12A       EUR 107,00 excl. VAT: € 89.92 / $ 110.60
29 cm bass driver with paper cone.

• power handling (continuous/programme) = 400/800 W
• frequency range = 54-5000 Hz
• resonance frequency fs = 55 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 98,3 dB (2,83V; 1m)
• DC resistance Re = 6,3 Ohm
• force factor BL = 13,5 N/A
• voice coil inductance L = 0,74 mH
• effective piston radiating area Sd = 519,5 cm²
• effective mechanical mass incl. air load mms = 39 g
• equivalent volume of compliance Vas = 81,3 l
• total Q factor Qts = 0,42 (Qms=5,27, Qes=0,46)
• voice coil diameter = 63,5 mm
• maximum peak linear excursion vibration x_lin = +/- 2,4 mm
• mounting diameter d = 278,1 mm
• overall diameter d = 305,5 mm
• mounting depth (not countersunk) t = 136 mm

PDF data sheet

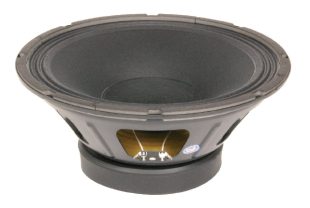

Delta-12B       order no. ah-ED12B       EUR 107,00 excl. VAT: € 89.92 / $ 110.60
29 cm bass driver with paper cone.

• power handling (continuous/programme) = 400/800 W
• frequency range = 54-5000 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 95,3 dB (2,83V; 1m)
• total Q factor Qts = (Qms=, Qes=)
• voice coil diameter = 63,5 mm
• maximum peak linear excursion vibration x_lin = +/- 2,4 mm
• mounting diameter d = 278,1 mm
• overall diameter d = 305,5 mm
• mounting depth (not countersunk) t = 136 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 31 L volume
from 86/54 Hz (-3dB/-8dB)

recommended cabinet 2:
126 L volume bass reflex cabinet
with 2x HP100 reflex tube, 8 cm long.
from 40/34 Hz (-3dB/-8dB).

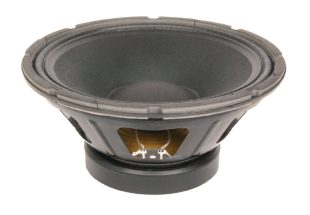

Delta-12LFA       order no. ah-ED12LFA       EUR 113,05 excl. VAT: € 95.00 / $ 116.85
29 cm bass driver with paper cone.

• power handling (continuous/programme) = 500/1000 W
• frequency range = 44-3000 Hz
• resonance frequency fs = 51 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 94,6 dB (2,83V; 1m)
• DC resistance Re = 6,06 Ohm
• force factor BL = 14,1 N/A
• voice coil inductance L = 1,45 mH
• effective piston radiating area Sd = 506,7 cm²
• effective mechanical mass incl. air load mms = 51 g
• equivalent volume of compliance Vas = 67,9 l
• total Q factor Qts = 0,48 (Qms=7,28, Qes=0,51)
• voice coil diameter = 63,5 mm
• maximum peak linear excursion vibration x_lin = +/- 4,8 mm
• mounting diameter d = 278,1 mm
• overall diameter d = 305,5 mm
• mounting depth (not countersunk) t = 136 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 27 L volume
from 89/56 Hz (-3dB/-8dB)

recommended cabinet 2:
111 L volume bass reflex cabinet
with 2x HP100 reflex tube, 9 cm long.
from 42/35 Hz (-3dB/-8dB).

Delta-12LFC       order no. ah-ED12LFC       EUR 113,00 excl. VAT: € 94.96 / $ 116.80
29 cm bass driver with paper cone.

• power handling (continuous/programme) = 500/1000 W
• frequency range = 45-2300 Hz
• resonance frequency fs = 52 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 93,1 dB (2,83V; 1m)
• DC resistance Re = 3,2 Ohm
• force factor BL = 10,9 N/A
• voice coil inductance L = 0,94 mH
• effective piston radiating area Sd = 519,5 cm²
• effective mechanical mass incl. air load mms = 53 g
• equivalent volume of compliance Vas = 63,7 l
• total Q factor Qts = 0,44 (Qms=8,21, Qes=0,47)
• voice coil diameter = 63,5 mm
• maximum peak linear excursion vibration x_lin = +/- 4,8 mm
• mounting diameter d = 278,1 mm
• overall diameter d = 305,5 mm
• mounting depth (not countersunk) t = 149,5 mm

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 32 L volume
from 95/60 Hz (-3dB/-8dB)

recommended cabinet 2:
113 L volume bass reflex cabinet
with 2x HP100 reflex tube, 7 cm long.
from 49/39 Hz (-3dB/-8dB).

Delta-Pro 12-450A       order no. ah-EDP12450A       EUR 125,10 excl. VAT: € 105.13 / $ 129.31
30 cm bass driver with paper cone.

• power handling (continuous/programme) = 375/750 W
• frequency range = 44-4000 Hz
• resonance frequency fs = 44 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 99,8 dB (2,83V; 1m)
• DC resistance Re = 5,04 Ohm
• force factor BL = 11,47 N/A
• voice coil inductance L = 0,54 mH
• effective piston radiating area Sd = 532,4 cm²
• effective mechanical mass incl. air load mms = 36 g
• equivalent volume of compliance Vas = 142 l
• total Q factor Qts = 0,37 (Qms=7,59, Qes=0,39)
• voice coil diameter = 64 mm
• maximum peak linear excursion vibration x_lin = +/- 5,1 mm
• mounting diameter d = 281,2 mm
• overall diameter d = 314,5 mm
• mounting depth (not countersunk) t = 139,7 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 12,5 L volume
from 102/65 Hz (-3dB/-8dB)

recommended cabinet 2:
43 L volume bass reflex cabinet
with 2x HP100 reflex tube, 27 cm long.
from 53/42 Hz (-3dB/-8dB).

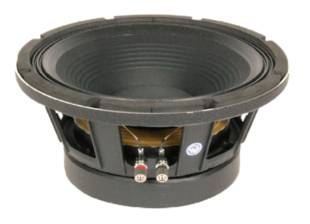

Definimax TM 4012HO       order no. ah-EDM4012HOA       EUR 360,05 excl. VAT: € 302.56 / $ 372.15
30 cm bass driver with paper cone. The basket is made of die-cast.

• power handling (continuous/programme) = 600/1200 W
• frequency range = 49-2500 Hz
• resonance frequency fs = 46 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 94 dB (2,83V; 1m)
• DC resistance Re = 5,85 Ohm
• force factor BL = 19,6 N/A
• voice coil inductance L = 1,17 mH
• effective piston radiating area Sd = 552 cm²
• effective mechanical mass incl. air load mms = 86 g
• equivalent volume of compliance Vas = 59,4 l
• total Q factor Qts = 0,36 (Qms=5,74, Qes=0,38)
• voice coil diameter = 101,6 mm
• maximum peak linear excursion vibration x_lin = +/- 6,2 mm
• mounting diameter d = 281 mm
• overall diameter d = 314,3 mm
• mounting depth (not countersunk) t = 135 mm

PDF data sheet

open a bigger photo

open a bigger photo

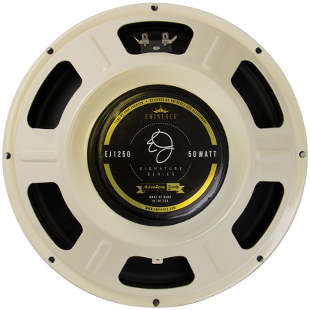

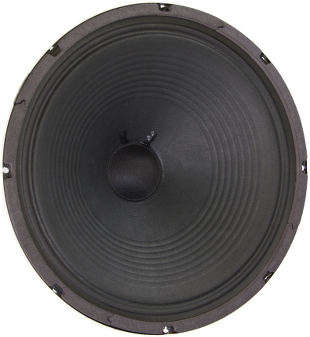

Eric Johnson A - 12", 8 Ohm       order no. ah-EJ1250A       EUR 422,10 excl. VAT: € 354.71 / $ 436.29
29 cm midrange driver with paper cone.

• power handling (continuous/programme) = 50 W
• frequency range = 80-5100 Hz
• resonance frequency fs = 89,98 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 100,9 dB (2,83V; 1m)
• DC resistance Re = 7,19 Ohm
• force factor BL = 12,91 N/A
• voice coil inductance L = 0,62 mH
• effective piston radiating area Sd = 519,5 cm²
• effective mechanical mass incl. air load mms = 26,55 g
• equivalent volume of compliance Vas = 44,96 l
• total Q factor Qts = 0,62 (Qms=12,41, Qes=0,65)
• voice coil diameter = 44,45 mm
• maximum peak linear excursion vibration x_lin = +/- 1,2 mm
• mounting diameter d = 278,64 mm
• overall diameter d = 305,31 mm
• mounting depth (not countersunk) t = 157,98 mm

open a bigger photo

open a bigger photo

Eric Johnson A - 12", 16 Ohm       order no. ah-EJ1250B       EUR 422,10 excl. VAT: € 354.71 / $ 436.29
29 cm midrange driver with paper cone.

• power handling (continuous/programme) = 50 W
• frequency range = 80-5100 Hz
• impedance R = 16 Ohm
• total Q factor Qts = (Qms=, Qes=)
• voice coil diameter = 44,45 mm
• mounting diameter d = 278,64 mm
• overall diameter d = 305,31 mm
• mounting depth (not countersunk) t = 157,98 mm

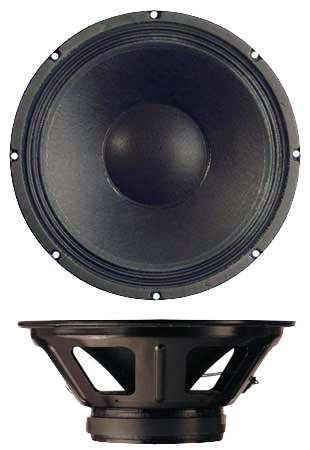

Gamma-12A       order no. ah-EG12A       EUR 93,00 excl. VAT: € 78.15 / $ 96.13
29 cm bass driver with paper cone.

• power handling (continuous/programme) = 300/600 W
• frequency range = 55-5000 Hz
• resonance frequency fs = 57 Hz
• impedance R = 8 Ohm
• DC resistance Re = 6,52 Ohm
• force factor BL = 10,9 N/A
• voice coil inductance L = 0,95 mH
• effective piston radiating area Sd = 506,7 cm²
• effective mechanical mass incl. air load mms = 38 g
• equivalent volume of compliance Vas = 74,1 l
• total Q factor Qts = 0,68 (Qms=6,86, Qes=0,75)
• voice coil diameter = 63,5 mm
• maximum peak linear excursion vibration x_lin = +/- 1,6 mm
• mounting diameter d = 278,6 mm
• overall diameter d = 305,2 mm
• mounting depth (not countersunk) t = 133,35 mm

recommended cabinet 1:
closed cabinet with 10,2 L volume
from 122/77 Hz (-3dB/-8dB)

recommended cabinet 2:
24 L volume bass reflex cabinet
with HP100 reflex tube, 19 cm long.
from 74/55 Hz (-3dB/-8dB).

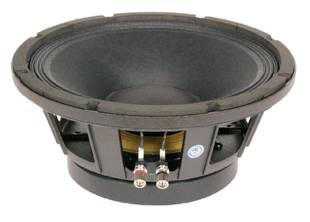

Kappa Pro-12A       order no. ah-EKP12A       EUR 198,00 excl. VAT: € 166.39 / $ 204.66
30 cm bass driver with paper cone. The basket is made of die-cast.

• power handling (continuous/programme) = 500/1000 W
• frequency range = 57-2800 Hz
• resonance frequency fs = 37 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 97,1 dB (2,83V; 1m)
• DC resistance Re = 5,46 Ohm
• force factor BL = 17,3 N/A
• voice coil inductance L = 1,22 mH
• effective piston radiating area Sd = 519,5 cm²
• effective mechanical mass incl. air load mms = 59 g
• equivalent volume of compliance Vas = 121 l
• total Q factor Qts = 0,24 (Qms=6,93, Qes=0,25)
• voice coil diameter = 76,2 mm
• maximum peak linear excursion vibration x_lin = +/- 4,8 mm
• mounting diameter d = 281,1 mm
• overall diameter d = 314,5 mm
• mounting depth (not countersunk) t = 158 mm

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 12,2 L volume
from 132/84 Hz (-3dB/-8dB)

recommended cabinet 2:
32 L volume bass reflex cabinet
with 2x HP100 reflex tube, 20 cm long.
from 76/58 Hz (-3dB/-8dB).

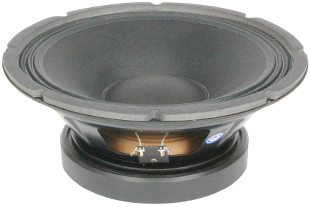

Kappa-12A       order no. ah-EK12A       EUR 139,00 excl. VAT: € 116.81 / $ 143.67
30 cm bass driver with paper cone.

• power handling (continuous/programme) = 450/900 W
• frequency range = 62-4200 Hz
• resonance frequency fs = 45 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 99,3 dB (2,83V; 1m)
• DC resistance Re = 5,41 Ohm
• force factor BL = 15,2 N/A
• voice coil inductance L = 0,77 mH
• effective piston radiating area Sd = 519,5 cm²
• effective mechanical mass incl. air load mms = 42 g
• equivalent volume of compliance Vas = 112,1 l
• total Q factor Qts = 0,27 (Qms=7,76, Qes=0,28)
• voice coil diameter = 76,2 mm
• maximum peak linear excursion vibration x_lin = +/- 3,2 mm
• mounting diameter d = 279,5 mm
• overall diameter d = 311,4 mm
• mounting depth (not countersunk) t = 143 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 32 L volume
from 45/29 Hz (-3dB/-8dB)

recommended cabinet 2:
118 L volume bass reflex cabinet
with HP100 reflex tube, 29 cm long.
from 23/18 Hz (-3dB/-8dB).

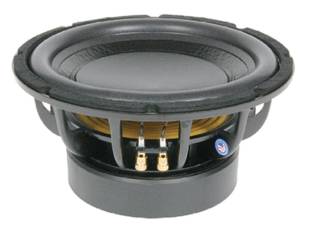

LAB 12       order no. ah-ELAB12       EUR 280,26 excl. VAT: € 235.51 / $ 289.68
30 cm bass driver with paper with kevlar cone. The basket is made of die-cast.

• power handling (continuous/programme) = 400/800 W
• frequency range = 25-125 Hz
• resonance frequency fs = 22 Hz
• impedance R = 6 Ohm
• sound pressure level SPL = 89,2 dB (2,83V; 1m)
• DC resistance Re = 4,29 Ohm
• force factor BL = 15 N/A
• voice coil inductance L = 1,48 mH
• effective piston radiating area Sd = 506,7 cm²
• effective mechanical mass incl. air load mms = 146 g
• equivalent volume of compliance Vas = 125,2 l
• total Q factor Qts = 0,38 (Qms=13,32, Qes=0,39)
• voice coil diameter = 63,5 mm
• maximum peak linear excursion vibration x_lin = +/- 13 mm
• mounting diameter d = 278,9 mm
• overall diameter d = 312,8 mm
• mounting depth (not countersunk) t = 164 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 24 L volume
from 54/34 Hz (-3dB/-8dB)

recommended cabinet 2:
78 L volume bass reflex cabinet
with HP100 reflex tube, 33 cm long.
from 28/22 Hz (-3dB/-8dB).

LAB 12C       order no. ah-ELAB12C       EUR 298,00 excl. VAT: € 250.42 / $ 308.02
30 cm bass driver with paper with kevlar cone. The basket is made of die-cast.

• power handling (continuous/programme) = 500/1000 W
• frequency range = 25-125 Hz
• resonance frequency fs = 22,85 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 88,9 dB (2,83V; 1m)
• DC resistance Re = 3,11 Ohm
• force factor BL = 13,36 N/A
• voice coil inductance L = 1,09 mH
• effective piston radiating area Sd = 506,7 cm²
• effective mechanical mass incl. air load mms = 135,6 g
• equivalent volume of compliance Vas = 128,31 l
• total Q factor Qts = 0,33 (Qms=11,7, Qes=0,34)
• voice coil diameter = 63,5 mm
• maximum peak linear excursion vibration x_lin = +/- 13 mm
• mounting diameter d = 278,9 mm
• overall diameter d = 312,8 mm
• mounting depth (not countersunk) t = 164 mm

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 9,8 L volume
from 118/75 Hz (-3dB/-8dB)

recommended cabinet 2:
30 L volume bass reflex cabinet
with 2x HP100 reflex tube, 31 cm long.
from 65/50 Hz (-3dB/-8dB).

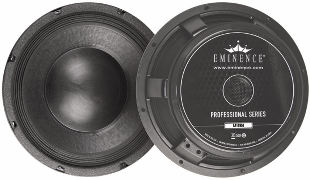

LA 12850 A       order no. ah-ELA12850A       EUR 239,00 excl. VAT: € 200.84 / $ 247.03
30 cm bass driver with paper cone.

• power handling (continuous/programme) = 800/1600 W
• frequency range = 63-2100 Hz
• resonance frequency fs = 46 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 95,9 dB (2,83V; 1m)
• DC resistance Re = 5,87 Ohm
• force factor BL = 19,51 N/A
• voice coil inductance L = 0,96 mH
• effective piston radiating area Sd = 545,4 cm²
• effective mechanical mass incl. air load mms = 73 g
• equivalent volume of compliance Vas = 66,07 l
• total Q factor Qts = 0,31 (Qms=12,73, Qes=0,32)
• voice coil diameter = 102 mm
• maximum peak linear excursion vibration x_lin = +/- 5 mm
• mounting diameter d = 281,4 mm
• overall diameter d = 312,9 mm
• mounting depth (not countersunk) t = 119,4 mm

PDF data sheet

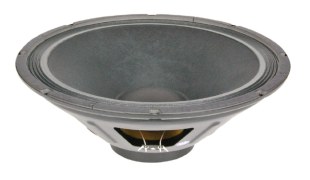

Alpha-15A       order no. ah-EA15A       EUR 89,91 excl. VAT: € 75.55 / $ 92.93
37 cm bass driver with paper cone.

• power handling (continuous/programme) = 200/400 W
• frequency range = 46-3500 Hz
• resonance frequency fs = 41 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 97 dB (2,83V; 1m)
• DC resistance Re = 5,88 Ohm
• force factor BL = 7,7 N/A
• voice coil inductance L = 0,84 mH
• effective piston radiating area Sd = 856,3 cm²
• effective mechanical mass incl. air load mms = 59 g
• equivalent volume of compliance Vas = 260 l
• total Q factor Qts = 1,26 (Qms=7,23, Qes=1,53)
• voice coil diameter = 38,1 mm
• maximum peak linear excursion vibration x_lin = +/- 3,8 mm
• mounting diameter d = 349,6 mm
• overall diameter d = 384,8 mm
• mounting depth (not countersunk) t = 148 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 315 L volume
from 48/30 Hz (-3dB/-8dB)

recommended cabinet 2:
1221 L volume bass reflex cabinet
with 4x HP100 reflex tube, -2 cm long.
from 21/19 Hz (-3dB/-8dB).

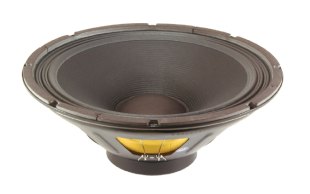

Beta-15A       order no. ah-EB15A       EUR 99,00 excl. VAT: € 83.19 / $ 102.33
37 cm bass driver with paper cone.

• power handling (continuous/programme) = 300/600 W
• frequency range = 45-3700 Hz
• resonance frequency fs = 35 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 98,2 dB (2,83V; 1m)
• DC resistance Re = 6,32 Ohm
• force factor BL = 11,5 N/A
• voice coil inductance L = 1,1 mH
• effective piston radiating area Sd = 823,7 cm²
• effective mechanical mass incl. air load mms = 60 g
• equivalent volume of compliance Vas = 334,6 l
• total Q factor Qts = 0,58 (Qms=8,1, Qes=0,63)
• voice coil diameter = 50,8 mm
• maximum peak linear excursion vibration x_lin = +/- 4 mm
• mounting diameter d = 349,6 mm
• overall diameter d = 384,8 mm
• mounting depth (not countersunk) t = 154 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 71 L volume
from 82/52 Hz (-3dB/-8dB)

recommended cabinet 2:
271 L volume bass reflex cabinet
with 4x HP100 reflex tube, 5 cm long.
from 41/33 Hz (-3dB/-8dB).

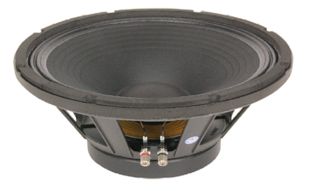

Delta Pro-15A       order no. ah-EDP15A       EUR 219,00 excl. VAT: € 184.03 / $ 226.36
37 cm bass driver with paper cone. The basket is made of die-cast.

• power handling (continuous/programme) = 400/800 W
• frequency range = 54-4200 Hz
• resonance frequency fs = 42 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 101,6 dB (2,83V; 1m)
• DC resistance Re = 5,71 Ohm
• force factor BL = 14,5 N/A
• voice coil inductance L = 0,83 mH
• effective piston radiating area Sd = 856,3 cm²
• effective mechanical mass incl. air load mms = 61 g
• equivalent volume of compliance Vas = 243,5 l
• total Q factor Qts = 0,4 (Qms=4,73, Qes=0,44)
• voice coil diameter = 63,5 mm
• maximum peak linear excursion vibration x_lin = +/- 4,3 mm
• mounting diameter d = 356 mm
• overall diameter d = 389 mm
• mounting depth (not countersunk) t = 154 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 182 L volume
from 60/38 Hz (-3dB/-8dB)

recommended cabinet 2:
739 L volume bass reflex cabinet
with 4x HP100 reflex tube, -1 cm long.
from 27/23 Hz (-3dB/-8dB).

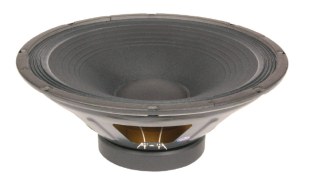

Delta-15A       order no. ah-ED15A       EUR 113,05 excl. VAT: € 95.00 / $ 116.85
37 cm bass driver with paper cone.

• power handling (continuous/programme) = 400/800 W
• frequency range = 48-4000 Hz
• resonance frequency fs = 40 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 100 dB (2,83V; 1m)
• DC resistance Re = 6,3 Ohm
• force factor BL = 13,2 N/A
• voice coil inductance L = 0,64 mH
• effective piston radiating area Sd = 864,6 cm²
• effective mechanical mass incl. air load mms = 62 g
• equivalent volume of compliance Vas = 270,7 l
• total Q factor Qts = 0,53 (Qms=8,05, Qes=0,57)
• voice coil diameter = 63,5 mm
• maximum peak linear excursion vibration x_lin = +/- 2,7 mm
• mounting diameter d = 349,6 mm
• overall diameter d = 384,8 mm
• mounting depth (not countersunk) t = 154 mm

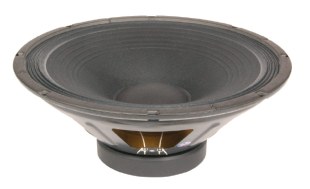

Delta-15B       order no. ah-ED15B       EUR 109,00 excl. VAT: € 91.60 / $ 112.66
37 cm bass driver with paper cone.

• power handling (continuous/programme) = 400/800 W
• frequency range = 48-4000 Hz
• resonance frequency fs = 45 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 97 dB (2,83V; 1m)
• DC resistance Re = 11,3 Ohm
• force factor BL = 17,6 N/A
• voice coil inductance L = 1,35 mH
• effective piston radiating area Sd = 856,3 cm²
• effective mechanical mass incl. air load mms = 64 g
• equivalent volume of compliance Vas = 204 l
• total Q factor Qts = 0,61 (Qms=6,54, Qes=0,67)
• voice coil diameter = 63,5 mm
• maximum peak linear excursion vibration x_lin = +/- 2,7 mm
• mounting diameter d = 349,6 mm
• overall diameter d = 384,8 mm
• mounting depth (not countersunk) t = 154 mm

PDF data sheet

Delta-15C       order no. ah-ED15C       EUR 109,00 excl. VAT: € 91.60 / $ 112.66
37 cm bass driver with paper cone.

• power handling (continuous/programme) = 400/800 W
• frequency range = 48-4000 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 103 dB (2,83V; 1m)
• total Q factor Qts = (Qms=, Qes=)
• voice coil diameter = 63,5 mm
• maximum peak linear excursion vibration x_lin = +/- 2,7 mm
• mounting diameter d = 349,6 mm
• overall diameter d = 384,8 mm
• mounting depth (not countersunk) t = 154 mm

recommended cabinet 1:
closed cabinet with 117 L volume
from 64/41 Hz (-3dB/-8dB)

recommended cabinet 2:
479 L volume bass reflex cabinet
with 4x HP100 reflex tube, 4 cm long.
from 30/25 Hz (-3dB/-8dB).

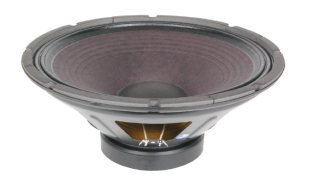

Delta-15LFA       order no. ah-ED15LFA       EUR 119,00 excl. VAT: € 100.00 / $ 123.00
37 cm bass driver with paper cone.

• power handling (continuous/programme) = 400/800 W
• frequency range = 42-3200 Hz
• resonance frequency fs = 39 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 96 dB (2,83V; 1m)
• DC resistance Re = 6,11 Ohm
• force factor BL = 14,6 N/A
• voice coil inductance L = 1,37 mH
• effective piston radiating area Sd = 873 cm²
• effective mechanical mass incl. air load mms = 75 g
• equivalent volume of compliance Vas = 241 l
• total Q factor Qts = 0,48 (Qms=6,3, Qes=0,52)
• voice coil diameter = 63,5 mm
• maximum peak linear excursion vibration x_lin = +/- 4,8 mm
• mounting diameter d = 349,6 mm
• overall diameter d = 384,8 mm
• mounting depth (not countersunk) t = 160 mm

recommended cabinet 1:
closed cabinet with 108 L volume
from 64/40 Hz (-3dB/-8dB)

recommended cabinet 2:
441 L volume bass reflex cabinet
with 4x HP100 reflex tube, 5 cm long.
from 30/25 Hz (-3dB/-8dB).

Delta-15LFC       order no. ah-ED15LFC       EUR 119,00 excl. VAT: € 100.00 / $ 123.00
37 cm bass driver with paper cone.

• power handling (continuous/programme) = 500/1000 W
• frequency range = 42-3200 Hz
• resonance frequency fs = 38,7 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 99 dB (2,83V; 1m)
• DC resistance Re = 3,27 Ohm
• force factor BL = 11,22 N/A
• voice coil inductance L = 1,09 mH
• effective piston radiating area Sd = 856,3 cm²
• effective mechanical mass incl. air load mms = 78,6 g
• equivalent volume of compliance Vas = 221,6 l
• total Q factor Qts = 0,47 (Qms=7,74, Qes=0,5)
• voice coil diameter = 63,5 mm
• maximum peak linear excursion vibration x_lin = +/- 4,8 mm
• mounting diameter d = 349,6 mm
• overall diameter d = 384,8 mm
• mounting depth (not countersunk) t = 160 mm

recommended cabinet 1:
closed cabinet with 64 L volume
from 67/42 Hz (-3dB/-8dB)

recommended cabinet 2:
262 L volume bass reflex cabinet
with 2x HP100 reflex tube, 4 cm long.
from 31/26 Hz (-3dB/-8dB).

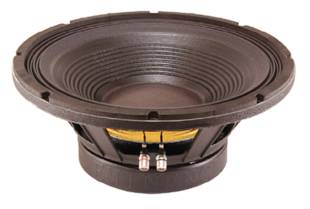

Definimax 4015LF       order no. ah-EDM4015LFA       EUR 388,54 excl. VAT: € 326.50 / $ 401.60
37 cm bass driver with paper cone. The basket is made of die-cast.

• power handling (continuous/programme) = 700/1400 W
• frequency range = 35-1200 Hz
• resonance frequency fs = 42 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 96 dB (2,83V; 1m)
• DC resistance Re = 5,04 Ohm
• force factor BL = 18,4 N/A
• voice coil inductance L = 1,49 mH
• effective piston radiating area Sd = 872,9 cm²
• effective mechanical mass incl. air load mms = 139 g
• equivalent volume of compliance Vas = 115,5 l
• total Q factor Qts = 0,5 (Qms=6,73, Qes=0,54)
• voice coil diameter = 101,6 mm
• maximum peak linear excursion vibration x_lin = +/- 9 mm
• mounting diameter d = 355,6 mm
• overall diameter d = 386,3 mm
• mounting depth (not countersunk) t = 166,7 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 43 L volume
from 88/55 Hz (-3dB/-8dB)

recommended cabinet 2:
127 L volume bass reflex cabinet
with 2x HP100 reflex tube, 8 cm long.
from 49/37 Hz (-3dB/-8dB).

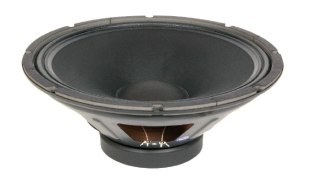

Gamma-15A2       order no. ah-EG15A       EUR 122,55 excl. VAT: € 102.98 / $ 126.67
37 cm bass driver with paper cone.

• power handling (continuous/programme) = 300/600 W
• frequency range = 48-3300 Hz
• resonance frequency fs = 33 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 98,6 dB (2,83V; 1m)
• DC resistance Re = 5,98 Ohm
• force factor BL = 17,2 N/A
• voice coil inductance L = 1,73 mH
• effective piston radiating area Sd = 856,3 cm²
• effective mechanical mass incl. air load mms = 78 g
• equivalent volume of compliance Vas = 314,1 l
• total Q factor Qts = 0,3 (Qms=5,13, Qes=0,32)
• voice coil diameter = 50,8 mm
• maximum peak linear excursion vibration x_lin = +/- 3 mm
• mounting diameter d = 349,6 mm
• overall diameter d = 384,8 mm
• mounting depth (not countersunk) t = 151 mm

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 51 L volume
from 82/52 Hz (-3dB/-8dB)

recommended cabinet 2:
160 L volume bass reflex cabinet
with 2x HP100 reflex tube, 6 cm long.
from 44/34 Hz (-3dB/-8dB).

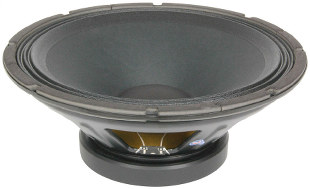

Kappa-15A       order no. ah-EK15A       EUR 158,00 excl. VAT: € 132.77 / $ 163.31
37 cm bass driver with paper cone.

• power handling (continuous/programme) = 450/900 W
• frequency range = 52-2300 Hz
• resonance frequency fs = 33 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 100,5 dB (2,83V; 1m)
• DC resistance Re = 5,22 Ohm
• force factor BL = 15,7 N/A
• voice coil inductance L = 1,05 mH
• effective piston radiating area Sd = 856,3 cm²
• effective mechanical mass incl. air load mms = 76 g
• equivalent volume of compliance Vas = 321,3 l
• total Q factor Qts = 0,32 (Qms=8,9, Qes=0,33)
• voice coil diameter = 76,2 mm
• maximum peak linear excursion vibration x_lin = +/- 4 mm
• mounting diameter d = 349,6 mm
• overall diameter d = 384,9 mm
• mounting depth (not countersunk) t = 156 mm

PDF data sheet

open a bigger photo

Kappa-15B       order no. ah-EK15B       EUR 158,00 excl. VAT: € 132.77 / $ 163.31
37 cm bass driver with paper cone.

• power handling (continuous/programme) = 450/900 W
• frequency range = 52-2300 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 97,5 dB (2,83V; 1m)
• total Q factor Qts = (Qms=, Qes=)
• voice coil diameter = 76,2 mm
• maximum peak linear excursion vibration x_lin = +/- 4 mm
• mounting diameter d = 349,6 mm
• overall diameter d = 384,9 mm
• mounting depth (not countersunk) t = 156 mm

open a bigger photo

Kappa-15C       order no. ah-EK15C       EUR 158,00 excl. VAT: € 132.77 / $ 163.31
37 cm bass driver with paper cone.

• power handling (continuous/programme) = 450/900 W
• frequency range = 52-2300 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 103,5 dB (2,83V; 1m)
• total Q factor Qts = (Qms=, Qes=)
• voice coil diameter = 76,2 mm
• maximum peak linear excursion vibration x_lin = +/- 4 mm
• mounting diameter d = 349,6 mm
• overall diameter d = 384,9 mm
• mounting depth (not countersunk) t = 156 mm

open a bigger photo

recommended cabinet 1:
closed cabinet with 41 L volume
from 80/51 Hz (-3dB/-8dB)

recommended cabinet 2:
150 L volume bass reflex cabinet
with 2x HP100 reflex tube, 7 cm long.
from 40/32 Hz (-3dB/-8dB).

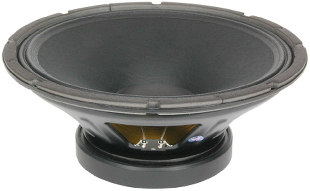

Kappa-15LFA       order no. ah-EK15LFA       EUR 175,75 excl. VAT: € 147.69 / $ 181.66
37 cm bass driver with paper cone.

• power handling (continuous/programme) = 600/1200 W
• frequency range = 38-2700 Hz
• resonance frequency fs = 39 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 99 dB (2,83V; 1m)
• DC resistance Re = 5,4 Ohm
• force factor BL = 18,6 N/A
• voice coil inductance L = 1,27 mH
• effective piston radiating area Sd = 856,3 cm²
• effective mechanical mass incl. air load mms = 105 g
• equivalent volume of compliance Vas = 159 l
• total Q factor Qts = 0,38 (Qms=6,08, Qes=0,41)
• voice coil diameter = 76,2 mm
• maximum peak linear excursion vibration x_lin = +/- 5,5 mm
• mounting diameter d = 349,6 mm
• overall diameter d = 384,9 mm
• mounting depth (not countersunk) t = 162 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 40 L volume
from 99/63 Hz (-3dB/-8dB)

recommended cabinet 2:
146 L volume bass reflex cabinet
with 4x HP100 reflex tube, 11 cm long.
from 50/40 Hz (-3dB/-8dB).

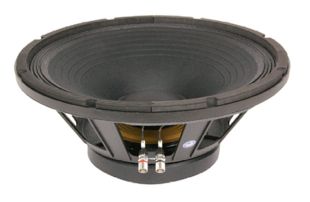

Kappa Pro-15A       order no. ah-EKP15A       EUR 238,00 excl. VAT: € 200.00 / $ 246.00
37 cm bass driver with paper cone. The basket is made of die-cast.

• power handling (continuous/programme) = 500/1000 W
• frequency range = 46-4000 Hz
• resonance frequency fs = 47 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 101 dB (2,83V; 1m)
• DC resistance Re = 5,23 Ohm
• force factor BL = 16,6 N/A
• voice coil inductance L = 1,01 mH
• effective piston radiating area Sd = 856,3 cm²
• effective mechanical mass incl. air load mms = 72 g
• equivalent volume of compliance Vas = 167,7 l
• total Q factor Qts = 0,38 (Qms=8,01, Qes=0,4)
• voice coil diameter = 76,2 mm
• maximum peak linear excursion vibration x_lin = +/- 3,2 mm
• mounting diameter d = 355,6 mm
• overall diameter d = 389,1 mm
• mounting depth (not countersunk) t = 154 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 38 L volume
from 99/63 Hz (-3dB/-8dB)

recommended cabinet 2:
135 L volume bass reflex cabinet
with 2x HP100 reflex tube, 3 cm long.
from 50/40 Hz (-3dB/-8dB).

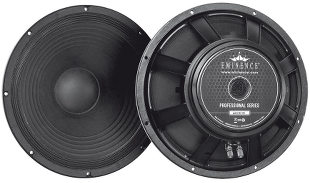

Kappa Pro-15B       order no. ah-EKP15B       EUR 266,00 excl. VAT: € 223.53 / $ 274.94
37 cm bass driver with paper cone. The basket is made of die-cast.

• power handling (continuous/programme) = 500/1000 W
• frequency range = 47-4000 Hz
• resonance frequency fs = 47 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 98 dB (2,83V; 1m)
• DC resistance Re = 10,47 Ohm
• force factor BL = 24,2 N/A
• voice coil inductance L = 1,59 mH
• effective piston radiating area Sd = 864,6 cm²
• effective mechanical mass incl. air load mms = 74 g
• equivalent volume of compliance Vas = 155,67 l
• total Q factor Qts = 0,38 (Qms=13,97, Qes=0,39)
• voice coil diameter = 76 mm
• maximum peak linear excursion vibration x_lin = +/- 3,9 mm
• mounting diameter d = 355,6 mm
• overall diameter d = 389,1 mm
• mounting depth (not countersunk) t = 153,9 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 26 L volume
from 90/57 Hz (-3dB/-8dB)

recommended cabinet 2:
78 L volume bass reflex cabinet
with 2x HP100 reflex tube, 17 cm long.
from 49/38 Hz (-3dB/-8dB).

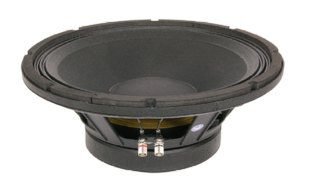

Kappa Pro-15LF-2       order no. ah-EKP15LFA       EUR 248,00 excl. VAT: € 208.40 / $ 256.34
37 cm bass driver with paper cone. The basket is made of die-cast.

• power handling (continuous/programme) = 600/1200 W
• frequency range = 38-1800 Hz
• resonance frequency fs = 35 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 97,8 dB (2,83V; 1m)
• DC resistance Re = 6,12 Ohm
• force factor BL = 20,4 N/A
• voice coil inductance L = 1 mH
• effective piston radiating area Sd = 856,3 cm²
• effective mechanical mass incl. air load mms = 100 g
• equivalent volume of compliance Vas = 172,5 l
• total Q factor Qts = 0,31 (Qms=9,57, Qes=0,32)
• voice coil diameter = 76,2 mm
• maximum peak linear excursion vibration x_lin = +/- 6,7 mm
• mounting diameter d = 355,5 mm
• overall diameter d = 386,4 mm
• mounting depth (not countersunk) t = 167 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 1,1 L volume
from 90/57 Hz (-3dB/-8dB)

recommended cabinet 2:
3,6 L volume bass reflex cabinet
with HP100 reflex tube, 305 cm long.
from 48/37 Hz (-3dB/-8dB).

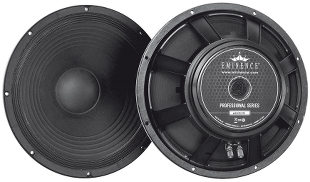

Kappa Pro-15LFC       order no. ah-EKP15LFC       EUR 219,00 excl. VAT: € 184.03 / $ 226.36
37 cm bass driver with paper cone. The basket is made of die-cast.

• power handling (continuous/programme) = 600/1200 W
• frequency range = 38-1800 Hz
• resonance frequency fs = 37 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 96,8 dB (2,83V; 1m)
• DC resistance Re = 3,34 Ohm
• force factor BL = 15,4 N/A
• voice coil inductance L = 0,94 mH
• effective piston radiating area Sd = 856,3 cm²
• effective mechanical mass incl. air load mms = 99 g
• equivalent volume of compliance Vas = 6,47 l
• total Q factor Qts = 0,32 (Qms=10, Qes=0,33)
• voice coil diameter = 76 mm
• maximum peak linear excursion vibration x_lin = +/- 7,9 mm
• mounting diameter d = 355,5 mm
• overall diameter d = 386,4 mm
• mounting depth (not countersunk) t = 167 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 40 L volume
from 84/53 Hz (-3dB/-8dB)

recommended cabinet 2:
146 L volume bass reflex cabinet
with 2x HP100 reflex tube, 6 cm long.
from 42/34 Hz (-3dB/-8dB).

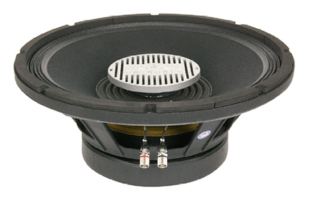

Kilomax Pro-15A       order no. ah-EKMP15A       EUR 329,00 excl. VAT: € 276.47 / $ 340.06
37 cm bass driver with paper cone. The basket is made of die-cast.

• power handling (continuous/programme) = 1250/2500 W
• frequency range = 44-800 Hz
• resonance frequency fs = 41 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 95,5 dB (2,83V; 1m)
• DC resistance Re = 4,97 Ohm
• force factor BL = 17,7 N/A
• voice coil inductance L = 1,78 mH
• effective piston radiating area Sd = 856,3 cm²
• effective mechanical mass incl. air load mms = 98 g
• equivalent volume of compliance Vas = 154,5 l
• total Q factor Qts = 0,38 (Qms=8,8, Qes=0,4)
• voice coil diameter = 101,6 mm
• maximum peak linear excursion vibration x_lin = +/- 7,9 mm
• mounting diameter d = 355,6 mm
• overall diameter d = 386,3 mm
• mounting depth (not countersunk) t = 163 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 20 L volume
from 64/40 Hz (-3dB/-8dB)

recommended cabinet 2:
69 L volume bass reflex cabinet
with HP100 reflex tube, 24 cm long.
from 33/26 Hz (-3dB/-8dB).

LAB 15       order no. ah-ELAB15       EUR 417,06 excl. VAT: € 350.47 / $ 431.08
37 cm bass driver with paper with kevlar cone. The basket is made of die-cast.

• power handling (continuous/programme) = 600/1200 W
• frequency range = 20-125 Hz
• resonance frequency fs = 28 Hz
• impedance R = 6 Ohm
• sound pressure level SPL = 88,5 dB (2,83V; 1m)
• DC resistance Re = 4,9 Ohm
• force factor BL = 26,7 N/A
• voice coil inductance L = 3,23 mH
• effective piston radiating area Sd = 823,7 cm²
• effective mechanical mass incl. air load mms = 308 g
• equivalent volume of compliance Vas = 103,61 l
• total Q factor Qts = 0,35 (Qms=5,36, Qes=0,37)
• voice coil diameter = 76,2 mm
• maximum peak linear excursion vibration x_lin = +/- 11,8 mm
• mounting diameter d = 355,5 mm
• overall diameter d = 389,6 mm
• mounting depth (not countersunk) t = 197 mm

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 40 L volume
from 82/52 Hz (-3dB/-8dB)

recommended cabinet 2:
129 L volume bass reflex cabinet
with 2x HP100 reflex tube, 10 cm long.
from 44/34 Hz (-3dB/-8dB).

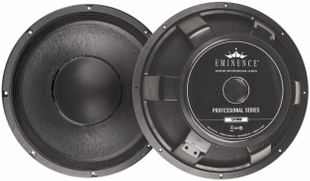

LA 15850 A       order no. ah-ELA15850A       EUR 279,00 excl. VAT: € 234.45 / $ 288.38
37 cm bass driver with paper cone.

• power handling (continuous/programme) = 800/1600 W
• frequency range = 45-1500 Hz
• resonance frequency fs = 34 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 96,2 dB (2,83V; 1m)
• DC resistance Re = 5,83 Ohm
• force factor BL = 18,98 N/A
• voice coil inductance L = 1 mH
• effective piston radiating area Sd = 856,3 cm²
• effective mechanical mass incl. air load mms = 98 g
• equivalent volume of compliance Vas = 234,15 l
• total Q factor Qts = 0,33 (Qms=9,27, Qes=0,34)
• voice coil diameter = 102 mm
• maximum peak linear excursion vibration x_lin = +/- 4,1 mm
• mounting diameter d = 357,6 mm
• overall diameter d = 388,6 mm
• mounting depth (not countersunk) t = 139,7 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 38 L volume
from 85/54 Hz (-3dB/-8dB)

recommended cabinet 2:
116 L volume bass reflex cabinet
with 2x HP100 reflex tube, 10 cm long.
from 46/36 Hz (-3dB/-8dB).

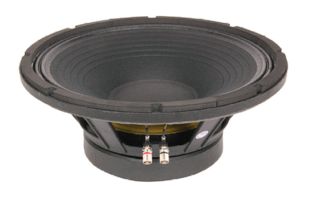

Omega Pro-15A       order no. ah-EOP15A       EUR 289,00 excl. VAT: € 242.86 / $ 298.71
37 cm bass driver with paper cone. The basket is made of die-cast.

• power handling (continuous/programme) = 800/1600 W
• frequency range = 51-1700 Hz
• resonance frequency fs = 33 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 97,3 dB (2,83V; 1m)
• DC resistance Re = 5,28 Ohm
• force factor BL = 17,5 N/A
• voice coil inductance L = 1,04 mH
• effective piston radiating area Sd = 856,3 cm²
• effective mechanical mass incl. air load mms = 94 g
• equivalent volume of compliance Vas = 258,5 l
• total Q factor Qts = 0,31 (Qms=5,69, Qes=0,33)
• voice coil diameter = 101,6 mm
• maximum peak linear excursion vibration x_lin = +/- 4,8 mm
• mounting diameter d = 355,6 mm
• overall diameter d = 386,4 mm
• mounting depth (not countersunk) t = 161 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 47 L volume
from 73/46 Hz (-3dB/-8dB)

recommended cabinet 2:
158 L volume bass reflex cabinet
with 4x HP100 reflex tube, 32 cm long.
from 38/30 Hz (-3dB/-8dB).

Definmax 4018LF       order no. ah-EDM4018LFA       EUR 479,74 excl. VAT: € 403.14 / $ 495.87
44 cm bass driver with paper cone. The basket is made of die-cast.

• power handling (continuous/programme) = 800/1600 W
• frequency range = 36-200 Hz
• resonance frequency fs = 32 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 95 dB (2,83V; 1m)
• DC resistance Re = 6,19 Ohm
• force factor BL = 27 N/A
• voice coil inductance L = 4,78 mH
• effective piston radiating area Sd = 1188 cm²
• effective mechanical mass incl. air load mms = 211 g
• equivalent volume of compliance Vas = 237,9 l
• total Q factor Qts = 0,35 (Qms=10,38, Qes=0,36)
• voice coil diameter = 101,6 mm
• maximum peak linear excursion vibration x_lin = +/- 7,9 mm
• mounting diameter d = 420,9 mm
• overall diameter d = 457,2 mm
• mounting depth (not countersunk) t = 206,4 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 79 L volume
from 70/44 Hz (-3dB/-8dB)

recommended cabinet 2:
246 L volume bass reflex cabinet
with 4x HP100 reflex tube, 18 cm long.
from 38/29 Hz (-3dB/-8dB).

Delta Pro-18A       order no. ah-EDP18A       EUR 229,50 excl. VAT: € 192.86 / $ 237.21
44 cm bass driver with paper cone. The basket is made of die-cast.

• power handling (continuous/programme) = 500/1000 W
• frequency range = 37-250 Hz
• resonance frequency fs = 28 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 96 dB (2,83V; 1m)
• DC resistance Re = 5,3 Ohm
• force factor BL = 18,9 N/A
• voice coil inductance L = 3,43 mH
• effective piston radiating area Sd = 1188 cm²
• effective mechanical mass incl. air load mms = 128 g
• equivalent volume of compliance Vas = 493,2 l
• total Q factor Qts = 0,32 (Qms=10,38, Qes=0,33)
• voice coil diameter = 63,5 mm
• maximum peak linear excursion vibration x_lin = +/- 6,7 mm
• mounting diameter d = 420,9 mm
• overall diameter d = 457,2 mm
• mounting depth (not countersunk) t = 207 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 84 L volume
from 65/41 Hz (-3dB/-8dB)

recommended cabinet 2:
269 L volume bass reflex cabinet
with 4x HP100 reflex tube, 20 cm long.
from 35/27 Hz (-3dB/-8dB).

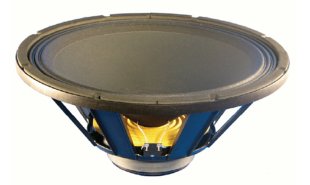

Delta Pro-18C       order no. ah-EDP18C       EUR 239,00 excl. VAT: € 200.84 / $ 247.03
44 cm bass driver with paper cone. The basket is made of die-cast.

• power handling (continuous/programme) = 500/1000 W
• frequency range = 35-200 Hz
• resonance frequency fs = 27 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 94,4 dB (2,83V; 1m)
• DC resistance Re = 3,8 Ohm
• force factor BL = 16,5 N/A
• voice coil inductance L = 2,65 mH
• effective piston radiating area Sd = 1188 cm²
• effective mechanical mass incl. air load mms = 137 g
• equivalent volume of compliance Vas = 488,8 l
• total Q factor Qts = 0,31 (Qms=13,24, Qes=0,32)
• voice coil diameter = 63,5 mm
• maximum peak linear excursion vibration x_lin = +/- 6,7 mm
• mounting diameter d = 420,9 mm
• overall diameter d = 457,2 mm
• mounting depth (not countersunk) t = 207 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 197 L volume
from 47/30 Hz (-3dB/-8dB)

recommended cabinet 2:
782 L volume bass reflex cabinet
with 4x HP100 reflex tube, 7 cm long.
from 21/18 Hz (-3dB/-8dB).

Kilomax Pro-18A       order no. ah-EKMP18A       EUR 379,00 excl. VAT: € 318.49 / $ 391.74
44 cm bass driver with paper cone. The basket is made of die-cast.

• power handling (continuous/programme) = 1250/2500 W
• frequency range = 33-600 Hz
• resonance frequency fs = 33 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 95,5 dB (2,83V; 1m)
• DC resistance Re = 5,84 Ohm
• force factor BL = 19,7 N/A
• voice coil inductance L = 2,38 mH
• effective piston radiating area Sd = 1159 cm²
• effective mechanical mass incl. air load mms = 186 g
• equivalent volume of compliance Vas = 239,9 l
• total Q factor Qts = 0,56 (Qms=14,24, Qes=0,58)
• voice coil diameter = 101,6 mm
• maximum peak linear excursion vibration x_lin = +/- 9,8 mm
• mounting diameter d = 420,6 mm
• overall diameter d = 457,2 mm
• mounting depth (not countersunk) t = 207 mm

PDF data sheet

Kilomax Pro-18C       order no. ah-EKMP18C       EUR 369,00 excl. VAT: € 310.08 / $ 381.40
44 cm bass driver with paper cone. The basket is made of die-cast.

• power handling (continuous/programme) = 1250/2500 W
• frequency range = 33-600 Hz
• impedance R = 4 Ohm
• total Q factor Qts = (Qms=, Qes=)
• voice coil diameter = 101,6 mm
• mounting diameter d = 420,6 mm
• overall diameter d = 457,2 mm
• mounting depth (not countersunk) t = 207 mm

recommended cabinet 1:
closed cabinet with 81 L volume
from 64/41 Hz (-3dB/-8dB)

recommended cabinet 2:
247 L volume bass reflex cabinet
with 4x HP100 reflex tube, 24 cm long.
from 35/27 Hz (-3dB/-8dB).

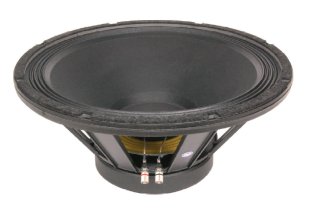

Omega Pro-18A       order no. ah-EOP18A       EUR 305,11 excl. VAT: € 256.39 / $ 315.37
44 cm bass driver with paper cone. The basket is made of die-cast.

• power handling (continuous/programme) = 800/1600 W
• frequency range = 40-800 Hz
• resonance frequency fs = 25 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 97 dB (2,83V; 1m)
• DC resistance Re = 5,2 Ohm
• force factor BL = 18,8 N/A
• voice coil inductance L = 1,67 mH
• effective piston radiating area Sd = 1159 cm²
• effective mechanical mass incl. air load mms = 138 g
• equivalent volume of compliance Vas = 548,7 l
• total Q factor Qts = 0,31 (Qms=8,18, Qes=0,32)
• voice coil diameter = 101,6 mm
• maximum peak linear excursion vibration x_lin = +/- 4,8 mm
• mounting diameter d = 420,5 mm
• overall diameter d = 457,2 mm
• mounting depth (not countersunk) t = 207 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 82 L volume
from 63/40 Hz (-3dB/-8dB)

recommended cabinet 2:
232 L volume bass reflex cabinet
with 4x HP100 reflex tube, 29 cm long.
from 35/27 Hz (-3dB/-8dB).

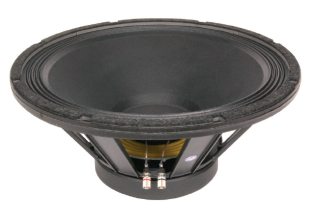

Omega Pro-18C       order no. ah-EOP18C       EUR 305,11 excl. VAT: € 256.39 / $ 315.37
44 cm bass driver with paper cone. The basket is made of die-cast.

• power handling (continuous/programme) = 800/1600 W
• frequency range = 40-800 Hz
• resonance frequency fs = 23 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 96,4 dB (2,83V; 1m)
• DC resistance Re = 2,5 Ohm
• force factor BL = 13,4 N/A
• voice coil inductance L = 0,61 mH
• effective piston radiating area Sd = 1159 cm²
• effective mechanical mass incl. air load mms = 137 g
• equivalent volume of compliance Vas = 639 l
• total Q factor Qts = 0,28 (Qms=6,41, Qes=0,29)
• voice coil diameter = 101,6 mm
• maximum peak linear excursion vibration x_lin = +/- 4,8 mm
• mounting diameter d = 420,5 mm
• overall diameter d = 457,2 mm
• mounting depth (not countersunk) t = 207 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 56 L volume
from 77/49 Hz (-3dB/-8dB)

recommended cabinet 2:
160 L volume bass reflex cabinet
with 4x HP100 reflex tube, 28 cm long.
from 43/33 Hz (-3dB/-8dB).

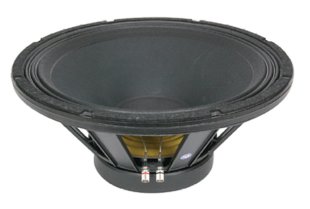

Sigma Pro 18A-2       order no. ah-ESP18A       - not available (_)
44 cm bass driver with paper cone. The basket is made of die-cast.

• power handling (continuous/programme) = 650/1300 W
• frequency range = 41-2400 Hz
• resonance frequency fs = 28 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 99 dB (2,83V; 1m)
• DC resistance Re = 6,29 Ohm
• force factor BL = 22,1 N/A
• voice coil inductance L = 1,9 mH
• effective piston radiating area Sd = 1140 cm²
• effective mechanical mass incl. air load mms = 130 g
• equivalent volume of compliance Vas = 441,2 l
• total Q factor Qts = 0,29 (Qms=8,28, Qes=0,3)
• voice coil diameter = 76,2 mm
• maximum peak linear excursion vibration x_lin = +/- 6,1 mm
• mounting diameter d = 420,5 mm
• overall diameter d = 457,2 mm
• mounting depth (not countersunk) t = 207 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 4,8 L volume
from 144/91 Hz (-3dB/-8dB)

recommended cabinet 2:
14,1 L volume bass reflex cabinet
with HP70 reflex tube, 9 cm long.
from 79/61 Hz (-3dB/-8dB).

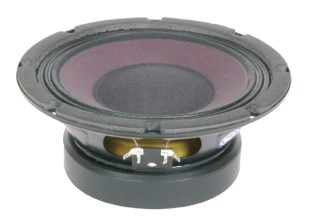

Beta-8CXA       order no. ah-EB8CXA       EUR 99,00 excl. VAT: € 83.19 / $ 102.33
19 cm bass driver with paper cone.

• power handling (continuous/programme) = 250/500 W
• frequency range = 88-20000 Hz
• resonance frequency fs = 54 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 92 dB (2,83V; 1m)
• DC resistance Re = 5,53 Ohm
• force factor BL = 9,5 N/A
• voice coil inductance L = 0,96 mH
• effective piston radiating area Sd = 205,9 cm²
• effective mechanical mass incl. air load mms = 15 g
• equivalent volume of compliance Vas = 34,9 l
• total Q factor Qts = 0,3 (Qms=7,67, Qes=0,31)
• voice coil diameter = 50,8 mm
• maximum peak linear excursion vibration x_lin = +/- 3,2 mm
• mounting diameter d = 181 mm
• overall diameter d = 209,2 mm
• mounting depth (not countersunk) t = 89 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 18 L volume
from 98/62 Hz (-3dB/-8dB)

recommended cabinet 2:
66 L volume bass reflex cabinet
with HP100 reflex tube, 7 cm long.
from 49/39 Hz (-3dB/-8dB).

Beta-10CXA       order no. ah-EB10CXA       EUR 99,00 excl. VAT: € 83.19 / $ 102.33
24 cm coax driver with paper cone.

• power handling (continuous/programme) = 250/500 W
• frequency range = 58-20000 Hz
• resonance frequency fs = 49 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 93,3 dB (2,83V; 1m)
• DC resistance Re = 5,53 Ohm
• force factor BL = 10,4 N/A
• voice coil inductance L = 0,75 mH
• effective piston radiating area Sd = 344,9 cm²
• effective mechanical mass incl. air load mms = 27 g
• equivalent volume of compliance Vas = 64,2 l
• total Q factor Qts = 0,4 (Qms=5,21, Qes=0,43)
• voice coil diameter = 50,8 mm
• maximum peak linear excursion vibration x_lin = +/- 5 mm
• mounting diameter d = 229,7 mm
• overall diameter d = 256,1 mm
• mounting depth (not countersunk) t = 101 mm

PDF data sheet

recommended cabinet 1:
closed cabinet with 74 L volume
from 72/46 Hz (-3dB/-8dB)

recommended cabinet 2:
299 L volume bass reflex cabinet
with 4x HP100 reflex tube, 8 cm long.
from 34/28 Hz (-3dB/-8dB).

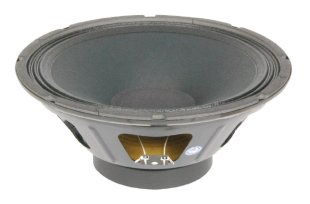

Beta-12CXA       order no. ah-EB12CXA       EUR 109,00 excl. VAT: € 91.60 / $ 112.66
29 cm bass driver with paper cone.

• power handling (continuous/programme) = 250/500 W
• frequency range = 66-20000 Hz
• resonance frequency fs = 43 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 96,7 dB (2,83V; 1m)
• DC resistance Re = 5,57 Ohm
• force factor BL = 10 N/A
• voice coil inductance L = 1,01 mH
• effective piston radiating area Sd = 532,4 cm²
• effective mechanical mass incl. air load mms = 34 g
• equivalent volume of compliance Vas = 161 l
• total Q factor Qts = 0,47 (Qms=6,69, Qes=0,51)
• voice coil diameter = 50,8 mm
• maximum peak linear excursion vibration x_lin = +/- 3,5 mm
• mounting diameter d = 278,1 mm
• overall diameter d = 305,5 mm
• mounting depth (not countersunk) t = 114 mm

PDF data sheet

open a bigger photo

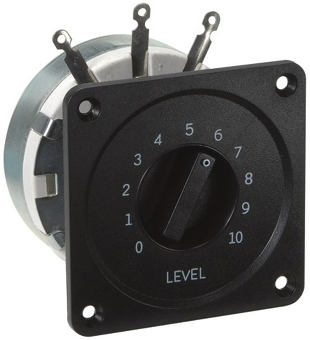

L-Pad for HF Driver       order no. ah-EPXLPAD       EUR 33,25 excl. VAT: € 27.94 / $ 34.37
.

• power handling (continuous/programme) = 100 W
• impedance R = 8 Ohm
• total Q factor Qts = (Qms=, Qes=)

open a bigger photo

D-Fend SA 300       order no. ah-EDFSA300       - not available
.

• total Q factor Qts = (Qms=, Qes=)

PDF data sheet

open a bigger photo

EMDES-Designer Software       order no. ah-EMDES       EUR 119,00 excl. VAT: € 100.00 / $ 123.00
.

• total Q factor Qts = (Qms=, Qes=)

PDF data sheet

open a bigger photo

Fuse for Eminence Crossover       order no. ah-PXBULB       EUR 10,60 excl. VAT: € 8.91 / $ 10.96
.

• total Q factor Qts = (Qms=, Qes=)

LH 240 F       order no. ah-lh240f       EUR 60,00 excl. VAT: € 50.42 / $ 62.02
Horn for a compression driver with 2 inch throat.

• Throat diameter = 2 inch
• nominal angle (HxV) = 90x40 Deg
• over all dimensions (HxWxD) = 238x242x212 mm
• baffle cutout dimensions (HxW) = 210x220 mm
• material: synthetics ABS

LH 280 F       order no. ah-lh280f       EUR 45,00 excl. VAT: € 37.82 / $ 46.51
Horn for a compression driver with 1 inch throat.

• Throat diameter = 1 inch
• nominal angle (HxV) = 60x40 Deg
• over all dimensions (HxWxD) = 283x283x245 mm
• baffle cutout dimensions (HxW) = 245x245 mm
• material: synthetics ABS

LH 325 F       order no. ah-lh325f       EUR 82,80 excl. VAT: € 69.58 / $ 85.58
Horn for a compression driver with 1,5 inch throat.

• Throat diameter = 1,5 inch
• nominal angle (HxV) = 90x40 Deg
• over all dimensions (HxWxD) = 258x325x180 mm
• baffle cutout dimensions (HxW) = 210x280 mm
• material: synthetics ABS

LH 170 F       order no. not-available       - not available
Horn for a compression driver with 1 inch throat.

• Throat diameter = 1 inch
• nominal angle (HxV) = 90x40 Deg
• Cut off frequency : 1000 Hz
• over all dimensions (HxWxD) = 160x170x95 mm
• baffle cutout dimensions (HxW) = 132x137 mm
• material: synthetics ABS

LH 305 F       order no. not-available       - not available
Horn for a compression driver with 1 inch throat.

• Throat diameter = 1 inch
• nominal angle (HxV) = 90x40 Deg
• Cut off frequency : 1000 Hz
• over all dimensions (HxWxD) = 152x305x101 mm
• baffle cutout dimensions (HxW) = 100x265 mm
• material: synthetics ABS

LH 395 F       order no. ah-lh395f       - not available
Horn for a compression driver with 1 inch throat.

• Throat diameter = 1 inch
• nominal angle (HxV) = 90x40 Deg
• Cut off frequency : 1000 Hz
• over all dimensions (HxWxD) = 395x180x155 mm
• baffle cutout dimensions (HxW) = 150x345 mm
• material: synthetics ABS

recommended cabinet 1:
closed cabinet with 2,7 L volume
from 117/74 Hz (-3dB/-8dB)

recommended cabinet 2:
8 L volume bass reflex cabinet
with HP70 reflex tube, 33 cm long.
from 65/50 Hz (-3dB/-8dB).

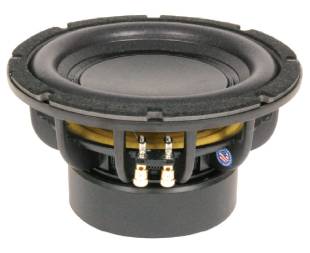

HL-10C       order no. not-available       - not available
26 cm bass driver with paper with kevlar cone.

• power handling (continuous/programme) = 300/600 W
• frequency range = 38-125 Hz
• resonance frequency fs = 44 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 88 dB (2,83V; 1m)
• DC resistance Re = 3,7 Ohm
• force factor BL = 18,3 N/A
• voice coil inductance L = 1,6 mH
• effective piston radiating area Sd = 334,5 cm²
• effective mechanical mass incl. air load mms = 109 g
• equivalent volume of compliance Vas = 19,8 l
• total Q factor Qts = 0,29 (Qms=2,8, Qes=0,32)
• voice coil diameter = 63,5 mm
• maximum peak linear excursion vibration x_lin = +/- 22 mm
• mounting diameter d = 239 mm
• overall diameter d = 272 mm
• mounting depth (not countersunk) t = 132 mm

PDF data sheet
