Tweeter

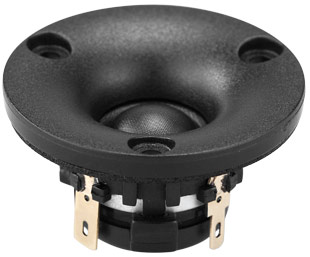

Wavecor TW013WA01

order no. wc-tw013wa01-01

EUR 46,00 excl. VAT: € 38.66 / $ 43.68

13 mm dome tweeter with fabric dome. The magnet system is based on Neodymium technology. Voice coil windings immersed in magnetic fluid increase short term power handling capacity.

  • frequency range = 5000-50000 Hz
  • resonance frequency fs = 1300 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 2,9 Ohm
  • force factor BL = 0,71 N/A
  • voice coil inductance L = 0,017 mH
  • effective piston radiating area Sd = 2,1 cm2
  • effective mechanical mass incl. air load mms = 0,12 g
  • equivalent volume of compliance Vas = 0,00081 l
  • total Q factor Qts = 1,29 (Qms=1,7, Qes=5,3)
  • voice coil diameter = 13 mm
  • maximum peak linear excursion vibration xlin = +/- 0,3 mm
  • mounting diameter d = 31,5 mm
  • overall diameter d = 45 mm
  • mounting depth (not countersunk) t = 26,7 mm
PDF data sheet

journal Hobby HiFi
Wavecors 13-Millimeter-Gewebekallotten-Hochtöner bietet mit ihrer extrem hohen oberen Grenzfrequenz eine interessante Alternative zu Folienhochtönern. Ab vier Kilohertz einsetzbar, eignet sie sich für die Kombination mit kleinen und entsprechend breitbandigen Tief- und Mitteltönern.

show kits to this chassis hide kits

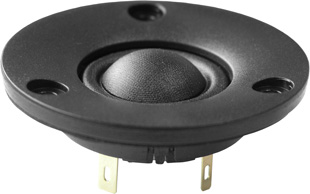

Wavecor TW022WA02

order no. wc-tw022wa02

EUR 45,00 excl. VAT: € 37.82 / $ 42.73

22 mm dome tweeter with fabric dome. The magnet system is based on Neodymium technology. Voice coil windings immersed in magnetic fluid increase short term power handling capacity.

  • frequency range = 2500-30000 Hz
  • resonance frequency fs = 1150 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 3,6 Ohm
  • force factor BL = 1,33 N/A
  • voice coil inductance L = 0,036 mH
  • effective piston radiating area Sd = 6,1 cm2
  • effective mechanical mass incl. air load mms = 0,28 g
  • equivalent volume of compliance Vas = 0,0036 l
  • total Q factor Qts = 1,11 (Qms=1,53, Qes=4,1)
  • voice coil diameter = 22 mm
  • maximum peak linear excursion vibration xlin = +/- 0,45 mm
  • mounting diameter d = 44 mm
  • overall diameter d = 65 mm
  • mounting depth (not countersunk) t = 27,2 mm
PDF data sheet

journal Hobby HiFi
Wavecor bringt das Kunststück fertig, einer gar nicht einmal so kleinen Membran ein hervorragendes Rundstrahlverhalten anzuerziehen, wie man es sonst allenfalls von 19-Millimeler-Kolotten oder Hochtönern mit Diffusor vor der Membran kennt.

show kits to this chassis hide kits

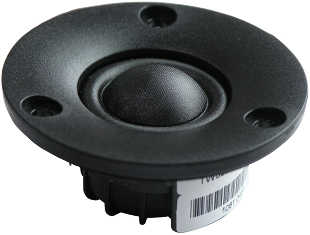

Wavecor TW022WA04

order no. wc-tw022wa04

EUR 57,00 excl. VAT: € 47.90 / $ 54.13

22 mm dome tweeter with fabric dome. The magnet system is based on Neodymium technology.

  • frequency range = 2000-30000 Hz
  • resonance frequency fs = 825 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89,5 dB (2,83V; 1m)
  • DC resistance Re = 3,6 Ohm
  • force factor BL = 1,6 N/A
  • voice coil inductance L = 0,04 mH
  • effective piston radiating area Sd = 6,1 cm2
  • effective mechanical mass incl. air load mms = 0,26 g
  • equivalent volume of compliance Vas = 0,0076 l
  • total Q factor Qts = 0,81 (Qms=1,4, Qes=1,9)
  • voice coil diameter = 22 mm
  • maximum peak linear excursion vibration xlin = +/- 0,45 mm
  • mounting diameter d = 44 mm
  • overall diameter d = 65 mm
  • mounting depth (not countersunk) t = 30,2 mm
PDF data sheet

journal Hobby HiFi
Der TW022WA04 vereint tatsächlich das Beste aus zwei Welten: Er kombiniert das besonders breite Rundstrahlverhalten und die hohe obere Grenzfrequenz einer 19-Millimeter-Kalotte mit der Breitbandigkeit und Pegelfestigkeit eines 25-Millimeter-Hochtöners.

show kits to this chassis hide kits

Wavecor TW022WA05

order no. wc-tw022wa05

EUR 51,00 excl. VAT: € 42.86 / $ 48.43

22 mm dome tweeter with fabric dome.

  • frequency range = 2500-25000 Hz
  • resonance frequency fs = 750 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 91,5 dB (2,83V; 1m)
  • DC resistance Re = 3,7 Ohm
  • force factor BL = 1,9 N/A
  • voice coil inductance L = 0,036 mH
  • effective piston radiating area Sd = 6,1 cm2
  • effective mechanical mass incl. air load mms = 0,28 g
  • equivalent volume of compliance Vas = 0,0085 l
  • total Q factor Qts = 1,08 (Qms=5,3, Qes=1,36)
  • voice coil diameter = 22 mm
  • maximum peak linear excursion vibration xlin = +/- 0,35 mm
  • mounting diameter d = 81 mm
  • overall diameter d = 103,75 mm
  • mounting depth (not countersunk) t = 32,5 mm
PDF data sheet

journal Hobby HiFi
Im TW022WA05 vereint Wavecor tatsächlich das beste aus zwei Welten. Er ist ohne Dynamikeinbußen bis hin zu verblüffenden 1,5 Kilohertz hinab ankoppelbar und zeigt bis in den obersten Hochtonbereich ein vorzügliches Abstrahlverhalten.

show kits to this chassis hide kits

Wavecor TW022WA06

order no. wc-tw022wa06

EUR 51,00 excl. VAT: € 42.86 / $ 48.43

22 mm dome tweeter with fabric dome. Voice coil windings immersed in magnetic fluid increase short term power handling capacity.

  • frequency range = 2000-25000 Hz
  • resonance frequency fs = 750 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90,5 dB (2,83V; 1m)
  • DC resistance Re = 3,7 Ohm
  • force factor BL = 1,9 N/A
  • voice coil inductance L = 0,036 mH
  • effective piston radiating area Sd = 6,1 cm2
  • effective mechanical mass incl. air load mms = 0,3 g
  • equivalent volume of compliance Vas = 0,0079 l
  • total Q factor Qts = 0,92 (Qms=2,5, Qes=1,45)
  • voice coil diameter = 22 mm
  • maximum peak linear excursion vibration xlin = +/- 0,35 mm
  • mounting diameter d = 81 mm
  • overall diameter d = 103,8 mm
  • mounting depth (not countersunk) t = 32,5 mm
PDF data sheet

journal Hobby HiFi
lm TW022WA06 vereint Wavecor tatsächlich das Beste aus zwei Welten. Er ist ohne Dynamikeinbußen bis hin zu verblüffenden 1,5 Kilohertz hinab ankoppelbar und zeigt bis in den obersten Hochtonbereich ein vorzügliches Abstrahlverhalten - und das für atemberaubend günstig 45 Euro.

show kits to this chassis hide kits

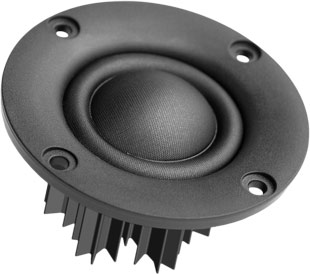

Wavecor TW030WA01

order no. wc-tw030wa01

EUR 68,00 excl. VAT: € 57.14 / $ 64.57

30 mm dome tweeter with fabric dome. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 30/45 W
  • frequency range = 2000-25000 Hz
  • resonance frequency fs = 1050 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 94 dB (2,83V; 1m)
  • DC resistance Re = 3,4 Ohm
  • force factor BL = 2,3 N/A
  • voice coil inductance L = 0,055 mH
  • effective piston radiating area Sd = 11,5 cm2
  • effective mechanical mass incl. air load mms = 0,42 g
  • equivalent volume of compliance Vas = 0,01 l
  • total Q factor Qts = 1,3 (Qms=4,8, Qes=1,78)
  • voice coil diameter = 30 mm
  • maximum peak linear excursion vibration xlin = +/- 0,65 mm
  • mounting diameter d = 56 mm
  • overall diameter d = 76 mm
  • mounting depth (not countersunk) t = 37,7 mm
PDF data sheet

show kits to this chassis hide kits

Wavecor TW030WA02

order no. wc-tw030wa02

EUR 68,00 excl. VAT: € 57.14 / $ 64.57

30 mm dome tweeter with fabric dome. The voice coil windings are immersed in magnetic fluid to increase short term power handling capacity, to reduce the compression and the Q factor.. The magnet system is based on Neodymium technology. .fe

  • power handling (continuous/programme) = 30/45 W
  • frequency range = 2000-25000 Hz
  • resonance frequency fs = 1100 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 94 dB (2,83V; 1m)
  • DC resistance Re = 3,4 Ohm
  • force factor BL = 2,5 N/A
  • voice coil inductance L = 0,047 mH
  • effective piston radiating area Sd = 11,5 cm2
  • effective mechanical mass incl. air load mms = 0,45 g
  • equivalent volume of compliance Vas = 0,0087 l
  • total Q factor Qts = 0,7 (Qms=1,2, Qes=1,69)
  • voice coil diameter = 30 mm
  • maximum peak linear excursion vibration xlin = +/- 0,65 mm
  • mounting diameter d = 56 mm
  • overall diameter d = 76 mm
  • mounting depth (not countersunk) t = 37,7 mm
PDF data sheet

show kits to this chassis hide kits

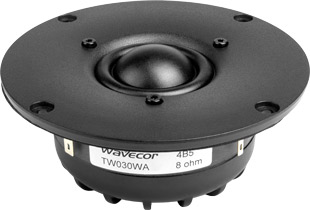

Wavecor TW030WA05

order no. wc-tw030wa05

EUR 79,00 excl. VAT: € 66.39 / $ 75.02

30,4 mm dome tweeter with fabric dome.

  • power handling (continuous/programme) = 50 W
  • frequency range = 1500-25000 Hz
  • resonance frequency fs = 450 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 91,5 dB (2,83V; 1m)
  • DC resistance Re = 3,4 Ohm
  • force factor BL = 2 N/A
  • voice coil inductance L = 0,02 mH
  • effective piston radiating area Sd = 11,5 cm2
  • effective mechanical mass incl. air load mms = 0,4 g
  • equivalent volume of compliance Vas = 0,059 l
  • total Q factor Qts = 0,59 (Qms=1,5, Qes=0,96)
  • voice coil diameter = 30,4 mm
  • maximum peak linear excursion vibration xlin = +/- 0,4 mm
  • mounting diameter d = 93 mm
  • overall diameter d = 115 mm
  • mounting depth (not countersunk) t = 47 mm
PDF data sheet

journal Hobby HiFi
Wavecor bietet mit seinem TW030WA05 den Kalottenhochtöner mit der größten Membranfläche, ermöglicht die niedrigste Trennfrequenz, ist vielen Hochtönern mit kleinerer Schwingspule auch im Superhochtonbereich bis 30 Kilohertz noch überlegen.

show kits to this chassis hide kits

Wavecor TW030WA06

order no. wc-tw030wa06

EUR 79,00 excl. VAT: € 66.39 / $ 75.02

30,4 mm dome tweeter with fabric dome. The voice coil windings are immersed in magnetic fluid to increase short term power handling capacity, to reduce the compression and the Q factor.. Voice coil windings immersed in magnetic fluid increase short term power handling capacity.

  • power handling (continuous/programme) = 60 W
  • frequency range = 1500-25000 Hz
  • resonance frequency fs = 450 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • DC resistance Re = 3,4 Ohm
  • force factor BL = 2 N/A
  • voice coil inductance L = 0,02 mH
  • effective piston radiating area Sd = 11,5 cm2
  • effective mechanical mass incl. air load mms = 0,42 g
  • total Q factor Qts = 0,55 (Qms=1,2, Qes=1,01)
  • voice coil diameter = 30,4 mm
  • maximum peak linear excursion vibration xlin = +/- 0,4 mm
  • mounting diameter d = 93 mm
  • overall diameter d = 115 mm
  • mounting depth (not countersunk) t = 47 mm
PDF data sheet

show kits to this chassis hide kits

Wavecor TW030WA07

order no. wc-tw030wa07

EUR 79,00 excl. VAT: € 66.39 / $ 75.02

30,4 mm dome tweeter with fabric dome.

  • power handling (continuous/programme) = 50 W
  • frequency range = 1500-25000 Hz
  • resonance frequency fs = 470 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 2,4 N/A
  • voice coil inductance L = 0,028 mH
  • effective piston radiating area Sd = 11,5 cm2
  • effective mechanical mass incl. air load mms = 0,37 g
  • equivalent volume of compliance Vas = 0,059 l
  • total Q factor Qts = 0,68 (Qms=1,6, Qes=1,19)
  • voice coil diameter = 30,4 mm
  • maximum peak linear excursion vibration xlin = +/- 0,4 mm
  • mounting diameter d = 93 mm
  • overall diameter d = 115 mm
  • mounting depth (not countersunk) t = 47 mm
PDF data sheet

journal Hobby HiFi
Wavecor bietet mit seinem TW030WA07 einen Kalottenhochtöner mit riesiger Membranfläche, außergewöhnliche breitbandigen Frequenzgang und üppiger Pegelfestigkeit.

show kits to this chassis hide kits

Wavecor TW030WA08

order no. wc-tw030wa08

EUR 79,00 excl. VAT: € 66.39 / $ 75.02

30,4 mm dome tweeter with fabric dome. The voice coil windings are immersed in magnetic fluid to increase short term power handling capacity, to reduce the compression and the Q factor.. Voice coil windings immersed in magnetic fluid increase short term power handling capacity.

  • power handling (continuous/programme) = 60 W
  • frequency range = 1500-25000 Hz
  • resonance frequency fs = 470 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88,5 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 2,4 N/A
  • voice coil inductance L = 0,028 mH
  • effective piston radiating area Sd = 11,5 cm2
  • effective mechanical mass incl. air load mms = 0,39 g
  • equivalent volume of compliance Vas = 0,056 l
  • total Q factor Qts = 0,64 (Qms=1,3, Qes=1,25)
  • voice coil diameter = 30,4 mm
  • maximum peak linear excursion vibration xlin = +/- 0,4 mm
  • mounting diameter d = 93 mm
  • overall diameter d = 115 mm
  • mounting depth (not countersunk) t = 47 mm
PDF data sheet

show kits to this chassis hide kits

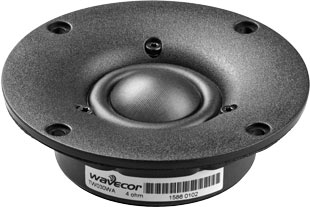

Wavecor TW030WA09

order no. wc-tw030wa09

EUR 73,00 excl. VAT: € 61.34 / $ 69.32

30 mm dome tweeter with fabric dome.

  • frequency range = 2000-27000 Hz
  • resonance frequency fs = 725 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 92,5 dB (2,83V; 1m)
  • DC resistance Re = 3,4 Ohm
  • force factor BL = 2 N/A
  • effective piston radiating area Sd = 11,5 cm2
  • effective mechanical mass incl. air load mms = 0,45 g
  • equivalent volume of compliance Vas = 0,02 l
  • total Q factor Qts = 1,43 (Qms=8,1, Qes=1,74)
  • voice coil diameter = 30 mm
  • maximum peak linear excursion vibration xlin = +/- 0,4 mm
  • mounting diameter d = 80 mm
  • overall diameter d = 104 mm
  • mounting depth (not countersunk) t = 34,1 mm
PDF data sheet

journal Hobby HiFi
Wavecor schafft es mit dem TW030WA09, die bereits hervorragenden 30-Millimeter-Hochtöner des Hauses noch einmal zu übertreffen. Der moderate Preis sollte nicht darüber hinweg täuschen, dass es sich um einen exzellenten Hochtöner mit berechtigten Highend-Ambitionen und grandiosem Preis-Leistungs-Verhältnis handelt.

show kits to this chassis hide kits

Wavecor TW030WA10

order no. wc-tw030wa10

EUR 73,00 excl. VAT: € 61.34 / $ 69.32

30 mm dome tweeter with fabric dome.

  • frequency range = 2000-27000 Hz
  • resonance frequency fs = 750 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 2,4 N/A
  • effective piston radiating area Sd = 11,5 cm2
  • effective mechanical mass incl. air load mms = 0,42 g
  • equivalent volume of compliance Vas = 0,02 l
  • total Q factor Qts = 1,7 (Qms=7,8, Qes=2,17)
  • voice coil diameter = 30 mm
  • maximum peak linear excursion vibration xlin = +/- 0,4 mm
  • mounting diameter d = 80 mm
  • overall diameter d = 104 mm
  • mounting depth (not countersunk) t = 34,1 mm
PDF data sheet

journal Hobby HiFi
Wavecor schafft es mit dem TW030WA10, die bereits hervorragenden 30-Millimeter Hochtöner des Hauses noch einmal zu übertreffen.

show kits to this chassis hide kits

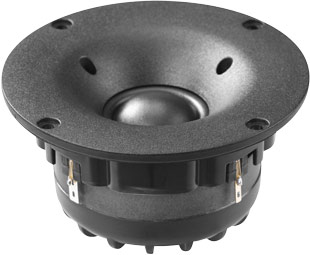

Wavecor TW030WA11

order no. wc-tw030wa11-01

EUR 89,00 excl. VAT: € 74.79 / $ 84.51

30 mm dome tweeter with fabric dome.

  • power handling (continuous/programme) = 45 W
  • frequency range = 1500-25000 Hz
  • resonance frequency fs = 410 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 93,5 dB (2,83V; 1m)
  • DC resistance Re = 3,5 Ohm
  • force factor BL = 1,7 N/A
  • voice coil inductance L = 0,023 mH
  • effective piston radiating area Sd = 11,5 cm2
  • effective mechanical mass incl. air load mms = 0,43 g
  • equivalent volume of compliance Vas = 0,066 l
  • total Q factor Qts = 0,79 (Qms=1,9, Qes=1,34)
  • voice coil diameter = 30 mm
  • maximum peak linear excursion vibration xlin = +/- 0,4 mm
  • mounting diameter d = 94 mm
  • overall diameter d = 115 mm
  • mounting depth (not countersunk) t = 61,5 mm
PDF data sheet

journal Hobby HiFi
Wavecor bringt das Kunststück fertig, den ersten Hochtöner zu bauen, der ohne Wenn und Aber ab 1.000 Hertz einsetzbar ist - Kompliment und Gratulation.

show kits to this chassis hide kits

Wavecor TW030WA12

order no. wc-tw030wa12-01

EUR 89,00 excl. VAT: € 74.79 / $ 84.51

30 mm dome tweeter with fabric dome.

  • power handling (continuous/programme) = 45 W
  • frequency range = 1500-25000 Hz
  • resonance frequency fs = 425 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • force factor BL = 2 N/A
  • voice coil inductance L = 0,035 mH
  • effective piston radiating area Sd = 11,5 cm2
  • effective mechanical mass incl. air load mms = 0,4 g
  • equivalent volume of compliance Vas = 0,066 l
  • total Q factor Qts = 0,91 (Qms=1,9, Qes=1,74)
  • voice coil diameter = 30 mm
  • maximum peak linear excursion vibration xlin = +/- 0,4 mm
  • mounting diameter d = 94 mm
  • overall diameter d = 115 mm
  • mounting depth (not countersunk) t = 61,5 mm
PDF data sheet

journal Hobby HiFi
Heft 2/2015, Seite 3: Aktuell freue ich mich außerordentlich, über einen gewaltigen Schritt nach vorne berichten zu dürfen: Der erste Kalottenhochtöner ist jetzt verfügbar, der schon ab 1000 Hz einsetzbar ist - ohne Wenn und Aber. Hochtöner, die einen dermaßen breitbandigen Auftritt mit Ach und Krach hinbekommen, gab es zwar bereits immer mal wieder. Aber entweder haperte es dann an der Pegelfestigkeit, oder der Glanz der obersten Höhen wirkte eher matt. ... Das ist mehr als ein gradueller Fortschritt, viel mehr ...

show kits to this chassis hide kits

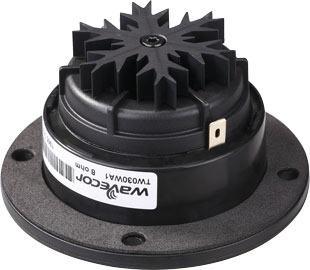

Wavecor TW030WA13

order no. wc-tw030wa13-01

EUR 85,00 excl. VAT: € 71.43 / $ 80.71

30 mm dome tweeter with fabric dome. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 35 W
  • frequency range = 1500-30000 Hz
  • resonance frequency fs = 690 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 93,5 dB (2,83V; 1m)
  • DC resistance Re = 3,5 Ohm
  • force factor BL = 1,95 N/A
  • voice coil inductance L = 0,033 mH
  • effective piston radiating area Sd = 11,5 cm2
  • effective mechanical mass incl. air load mms = 0,43 g
  • equivalent volume of compliance Vas = 0,023 l
  • total Q factor Qts = 1,01 (Qms=2,45, Qes=1,72)
  • voice coil diameter = 30 mm
  • maximum peak linear excursion vibration xlin = +/- 0,65 mm
  • mounting diameter d = 58 mm
  • overall diameter d = 76 mm
  • mounting depth (not countersunk) t = 42,2 mm
PDF data sheet

journal Hobby HiFi
Wavecor fertigt mit dem TW030WA13 einen Neodym-Hochtöner mit perfekten akustischen Qualitäten und sensationell breitbandigem Übertragungsverhalten.

show kits to this chassis hide kits

Wavecor TW030WA14

order no. wc-tw030wa14-01

EUR 85,00 excl. VAT: € 71.43 / $ 80.71

30 mm dome tweeter with fabric dome. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 35 W
  • frequency range = 1500-30000 Hz
  • resonance frequency fs = 715 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90,5 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • force factor BL = 2,25 N/A
  • voice coil inductance L = 0,059 mH
  • effective piston radiating area Sd = 11,5 cm2
  • effective mechanical mass incl. air load mms = 0,4 g
  • equivalent volume of compliance Vas = 0,023 l
  • total Q factor Qts = 1,17 (Qms=2,37, Qes=2,31)
  • voice coil diameter = 30 mm
  • maximum peak linear excursion vibration xlin = +/- 0,65 mm
  • mounting diameter d = 58 mm
  • overall diameter d = 76 mm
  • mounting depth (not countersunk) t = 42,2 mm
PDF data sheet

journal Hobby HiFi
Wavecor fertigt mit dem TW030WA14 einen Neodym-Hochtöner mit perfekten akustischen Qualitäten und sensationell breitbandigem Übertragungsverhalten.

show kits to this chassis hide kits




Full Range

Wavecor FR040WA01

order no. wc-fr040wa01-01

EUR 42,00 excl. VAT: € 35.29 / $ 39.88

cm full range driver with aluminium cone. The magnet system is based on Neodymium technology.

  • frequency range = 200-25000 Hz
  • resonance frequency fs = 233 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 84 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 1,67 N/A
  • effective piston radiating area Sd = 7,8 cm2
  • effective mechanical mass incl. air load mms = 0,63 g
  • equivalent volume of compliance Vas = 0,064 l
  • total Q factor Qts = 0,9 (Qms=9,6, Qes=0,99)
  • voice coil diameter = 16 mm
  • maximum peak linear excursion vibration xlin = +/- 0,5 mm
  • mounting diameter d = 37 mm
  • overall diameter d = 40x40 mm
  • mounting depth (not countersunk) t = 24 mm
PDF data sheet

journal Hobby HiFi
Wavecor liefert mit dem FR040WA01 bzw. FR040WA02 einen exzellenten kleinen Breitbänder, ideal für hochqualitative Line-Arrays mit mindestens vier, gerne natürlich auch wesentlich mehr Chassis. In einer solchen Mehrfach-Anordnung empfehlen wir den Einsatz frühestens ab 300 Hertz. So ist eine hohe, HiFi-Ansrücken gerecht werdende Pegelfestigkeit gewährleistet.

show kits to this chassis hide kits

Wavecor FR040WA02

order no. wc-fr040wa02-01

EUR 42,00 excl. VAT: € 35.29 / $ 39.88

cm full range driver with aluminium cone. The magnet system is based on Neodymium technology.

  • frequency range = 200-25000 Hz
  • resonance frequency fs = 239 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 81 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 2 N/A
  • effective piston radiating area Sd = 7,8 cm2
  • effective mechanical mass incl. air load mms = 0,6 g
  • equivalent volume of compliance Vas = 0,064 l
  • total Q factor Qts = 1,23 (Qms=9,4, Qes=1,42)
  • voice coil diameter = 16 mm
  • maximum peak linear excursion vibration xlin = +/- 0,5 mm
  • mounting diameter d = 37 mm
  • overall diameter d = 40x40 mm
  • mounting depth (not countersunk) t = 24 mm
PDF data sheet

journal Hobby HiFi
Wavecor liefert mit dem FR040WA01 bzw. FR040WA02 einen exzellenten kleinen Breitbänder, ideal für hochqualitative Line-Arrays mit mindestens vier, gerne natürlich auch wesentlich mehr Chassis. In einer solchen Mehrfach-Anordnung empfehlen wir den Einsatz frühestens ab 300 Hertz. So ist eine hohe, HiFi-Ansrücken gerecht werdende Pegelfestigkeit gewährleistet.

show kits to this chassis hide kits

Wavecor FR055WA01

order no. wc-fr055wa01-01

EUR 49,00 excl. VAT: € 41.18 / $ 46.53

cm full range driver with aluminium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 10 W
  • frequency range = 100-22000 Hz
  • resonance frequency fs = 136 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 83,5 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 2,1 N/A
  • voice coil inductance L = 0,079 mH
  • effective piston radiating area Sd = 15,6 cm2
  • effective mechanical mass incl. air load mms = 1,68 g
  • equivalent volume of compliance Vas = 0,28 l
  • total Q factor Qts = 0,91 (Qms=9, Qes=1,01)
  • voice coil diameter = 22 mm
  • maximum peak linear excursion vibration xlin = +/- 1,35 mm
  • mounting diameter d = 51 mm
  • overall diameter d = 55x55 mm
  • mounting depth (not countersunk) t = 32,5 mm
  • mass m = 0,25 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor FR055WA02

order no. wc-fr055wa02-01

on request

cm full range driver with aluminium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 10 W
  • frequency range = 100-22000 Hz
  • resonance frequency fs = 140 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 80,5 dB (2,83V; 1m)
  • DC resistance Re = 6,1 Ohm
  • force factor BL = 2,6 N/A
  • voice coil inductance L = 0,13 mH
  • effective piston radiating area Sd = 15,6 cm2
  • effective mechanical mass incl. air load mms = 1,6 g
  • equivalent volume of compliance Vas = 0,28 l
  • total Q factor Qts = 1,11 (Qms=8,8, Qes=1,27)
  • voice coil diameter = 22 mm
  • maximum peak linear excursion vibration xlin = +/- 1,35 mm
  • mounting diameter d = 51 mm
  • overall diameter d = 55x55 mm
  • mounting depth (not countersunk) t = 32,5 mm
  • mass m = 0,25 kg
PDF data sheet

show kits to this chassis hide kits

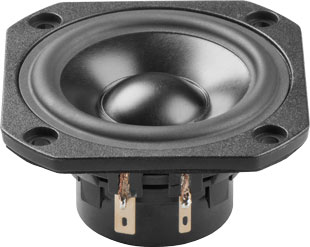

Wavecor FR070WA01

order no. wc-fr070wa01

EUR 62,00 excl. VAT: € 52.10 / $ 58.87

cm full range driver with aluminium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 10 W
  • frequency range = 200-28000 Hz
  • resonance frequency fs = 114 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 86,5 dB (2,83V; 1m)
  • DC resistance Re = 3,45 Ohm
  • force factor BL = 3 N/A
  • voice coil inductance L = 0,071 mH
  • effective piston radiating area Sd = 21 cm2
  • effective mechanical mass incl. air load mms = 2 g
  • equivalent volume of compliance Vas = 0,61 l
  • total Q factor Qts = 0,53 (Qms=12, Qes=0,55)
  • voice coil diameter = 22 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm
  • mounting diameter d = 62,5 mm
  • overall diameter d = 69,9x69,9 mm
  • mounting depth (not countersunk) t = 39,5 mm
  • mass m = 0,15 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor FR070WA02

order no. wc-fr070wa02

EUR 62,00 excl. VAT: € 52.10 / $ 58.87

cm full range driver with aluminium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 10 W
  • frequency range = 200-28000 Hz
  • resonance frequency fs = 117 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 84 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 3,6 N/A
  • voice coil inductance L = 0,11 mH
  • effective piston radiating area Sd = 21 cm2
  • effective mechanical mass incl. air load mms = 1,9 g
  • equivalent volume of compliance Vas = 0,61 l
  • total Q factor Qts = 0,65 (Qms=11,7, Qes=0,69)
  • voice coil diameter = 22 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm
  • mounting diameter d = 62,5 mm
  • overall diameter d = 69,9x69,9 mm
  • mounting depth (not countersunk) t = 39,5 mm
  • mass m = 0,15 kg
PDF data sheet

journal Hobby HiFi
Wavecor liefert dem Anwender mit dem FR070WA02 einen ausgezeichneten kleinen Breitbänder, der bei sorgfähiger Frequenzgangentzerrung sein hohes Klangpotenzial entfaltet.

show kits to this chassis hide kits

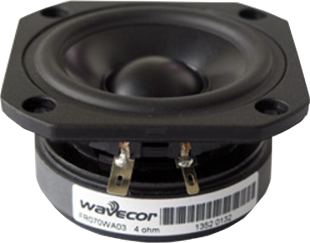

Wavecor FR070WA03

order no. wc-fr070wa03

EUR 46,00 excl. VAT: € 38.66 / $ 43.68

cm full range driver with aluminium cone.

  • power handling (continuous/programme) = 10 W
  • frequency range = 200-28000 Hz
  • resonance frequency fs = 114 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 3,45 Ohm
  • force factor BL = 2,3 N/A
  • voice coil inductance L = 0,071 mH
  • effective piston radiating area Sd = 21 cm2
  • effective mechanical mass incl. air load mms = 2 g
  • equivalent volume of compliance Vas = 0,61 l
  • total Q factor Qts = 0,88 (Qms=13,1, Qes=0,94)
  • voice coil diameter = 22 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm
  • mounting diameter d = 62,5 mm
  • overall diameter d = 69,9x69,9 mm
  • mounting depth (not countersunk) t = 37,5 mm
  • mass m = 0,29 kg
PDF data sheet

journal Hobby HiFi
Wavecor fertigt mit dem FR070WA03 einen hervorragenden Mitteltöner für Sub-Sat-Systeme, FAST-Konstruktionen sowie last, but not least Line-Arrays.

show kits to this chassis hide kits

Wavecor FR070WA04

order no. wc-fr070wa04

EUR 46,00 excl. VAT: € 38.66 / $ 43.68

cm full range driver with aluminium cone.

  • power handling (continuous/programme) = 10 W
  • frequency range = 200-28000 Hz
  • resonance frequency fs = 117 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 83 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 2,9 N/A
  • voice coil inductance L = 0,11 mH
  • effective piston radiating area Sd = 21 cm2
  • effective mechanical mass incl. air load mms = 1,9 g
  • equivalent volume of compliance Vas = 0,61 l
  • total Q factor Qts = 0,99 (Qms=12,7, Qes=1,07)
  • voice coil diameter = 22 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm
  • mounting diameter d = 62,5 mm
  • overall diameter d = 69,9x69,9 mm
  • mounting depth (not countersunk) t = 37,5 mm
  • mass m = 0,29 kg
PDF data sheet

journal Hobby HiFi
Wavecor fertigt mit dem FR070WA04 einen hervorragenden Mitteltöner für Sub-Sat-Systeme, FAST-Konstruktionen sowie last, but not least Line-Arrays.

show kits to this chassis hide kits

Wavecor FR084WA01

order no. wc-fr084wa01

EUR 51,00 excl. VAT: € 42.86 / $ 48.43

cm full range driver with aluminium cone.

  • frequency range = 200-22000 Hz
  • resonance frequency fs = 109 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 3,3 Ohm
  • force factor BL = 2,9 N/A
  • effective piston radiating area Sd = 36 cm2
  • effective mechanical mass incl. air load mms = 3,45 g
  • equivalent volume of compliance Vas = 1,14 l
  • total Q factor Qts = 0,79 (Qms=5,4, Qes=0,93)
  • voice coil diameter = 22 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm
  • mounting diameter d = 76 mm
  • overall diameter d = 83,9x83,9 mm
  • mounting depth (not countersunk) t = 42,5 mm
  • mass m = 0,37 kg
PDF data sheet

journal Hobby HiFi
Wavecors FR084WA01 eignet sich hervorragend für den Einsatz in einem geschlossenen Gehäuse mit Hochpass-Unterstützung (GHP). Dank seines wunderbar linearen und ausewogenen Übertragungsverhalten spielt er in der ersten Lautsprecher-Liga.

show kits to this chassis hide kits

Wavecor FR084WA02

order no. wc-fr084wa02

EUR 51,00 excl. VAT: € 42.86 / $ 48.43

cm full range driver with aluminium cone.

  • frequency range = 200-22000 Hz
  • resonance frequency fs = 110 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 84 dB (2,83V; 1m)
  • DC resistance Re = 6,1 Ohm
  • force factor BL = 3,65 N/A
  • effective piston radiating area Sd = 36 cm2
  • effective mechanical mass incl. air load mms = 3,35 g
  • equivalent volume of compliance Vas = 1,14 l
  • total Q factor Qts = 0,88 (Qms=5,2, Qes=1,06)
  • voice coil diameter = 22 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm
  • mounting diameter d = 76 mm
  • overall diameter d = 83,9x83,9 mm
  • mounting depth (not countersunk) t = 42,5 mm
  • mass m = 0,37 kg
PDF data sheet

show kits to this chassis hide kits

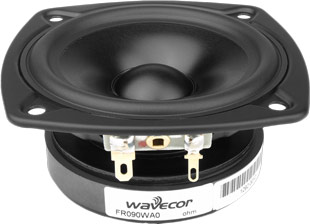

Wavecor FR090WA01

order no. wc-fr090wa01

EUR 51,00 excl. VAT: € 42.86 / $ 48.43

cm full range driver with aluminium cone.

  • frequency range = 200-20000 Hz
  • resonance frequency fs = 113 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 86,5 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 2,75 N/A
  • voice coil inductance L = 0,076 mH
  • effective piston radiating area Sd = 36 cm2
  • effective mechanical mass incl. air load mms = 3,45 g
  • equivalent volume of compliance Vas = 1,14 l
  • total Q factor Qts = 0,86 (Qms=5,9, Qes=1)
  • voice coil diameter = 22 mm
  • maximum peak linear excursion vibration xlin = +/- 2,25 mm
  • mounting diameter d = 76 mm
  • overall diameter d = 90x90 mm
  • mounting depth (not countersunk) t = 42,2 mm
  • mass m = 0,4 kg
PDF data sheet

journal Hobby HiFi
Wavecors FR090WA01 punktet mit überragenden akustischen Qualitäten, für seine Klasse üppiger Pegelfestigkeit sowie besonderem Talent für den Einsatz in einer Transmissionline.

show kits to this chassis hide kits

Wavecor FR090WA02

order no. wc-fr090wa02

EUR 51,00 excl. VAT: € 42.86 / $ 48.43

cm full range driver with aluminium cone.

  • frequency range = 200-20000 Hz
  • resonance frequency fs = 114 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 83,5 dB (2,83V; 1m)
  • DC resistance Re = 6,1 Ohm
  • force factor BL = 3,4 N/A
  • voice coil inductance L = 0,127 mH
  • effective piston radiating area Sd = 36 cm2
  • effective mechanical mass incl. air load mms = 3,35 g
  • equivalent volume of compliance Vas = 1,14 l
  • total Q factor Qts = 1,01 (Qms=5,8, Qes=1,23)
  • voice coil diameter = 22 mm
  • maximum peak linear excursion vibration xlin = +/- 2,25 mm
  • mounting diameter d = 76 mm
  • overall diameter d = 90x90 mm
  • mounting depth (not countersunk) t = 42,2 mm
  • mass m = 0,4 kg
PDF data sheet

journal Hobby HiFi
Mehr Sein als Schein ist das Motto des Wavecor FR090WA02, der bei vergleichsweise schlichter Bauweise überragende akustische Qualitäten ins Feld führt und damit ein besonders empfehlenswerter Anwärter für ein FAST-Lautsprechersystem ist.

show kits to this chassis hide kits




Woofer

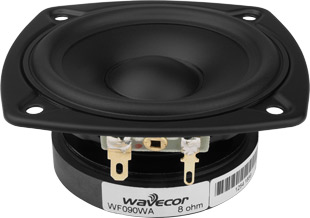

Wavecor WF090WA01

order no. wc-wf090wa01

EUR 50,00 excl. VAT: € 42.02 / $ 47.48

cm midrange driver with paper cone.

  • frequency range = 100-12000 Hz
  • resonance frequency fs = 109 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 86,5 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 2,9 N/A
  • voice coil inductance L = 0,14 mH
  • effective piston radiating area Sd = 36 cm2
  • effective mechanical mass incl. air load mms = 3,45 g
  • equivalent volume of compliance Vas = 1,14 l
  • total Q factor Qts = 0,76 (Qms=6,1, Qes=0,87)
  • voice coil diameter = 22 mm
  • maximum peak linear excursion vibration xlin = +/- 2,75 mm
  • mounting diameter d = 76 mm
  • overall diameter d = 90x90 mm
  • mounting depth (not countersunk) t = 41,2 mm
  • mass m = 0,34 kg
PDF data sheet

journal Hobby HiFi
Mehr Sein als Schein ist das Motto des Wavecor WF090WA01 und 02, die beide bei vergleichsweise schlichter Bauweise überzeugende akustische Qualitäten ins Feld führen. Beide bieten sich für Nahfeldmonitore für den Schreibtisch an, idealerweise in Kombination mit einem kleinen Bändchenhochtöner oder Magnetostaten.

show kits to this chassis hide kits

Wavecor WF090WA02

order no. wc-wf090wa02

EUR 50,00 excl. VAT: € 42.02 / $ 47.48

cm midrange driver with paper cone.

  • frequency range = 100-12000 Hz
  • resonance frequency fs = 110 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 84 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 3,5 N/A
  • voice coil inductance L = 0,22 mH
  • effective piston radiating area Sd = 36 cm2
  • effective mechanical mass incl. air load mms = 3,35 g
  • equivalent volume of compliance Vas = 1,14 l
  • total Q factor Qts = 0,89 (Qms=6, Qes=1,04)
  • voice coil diameter = 22 mm
  • maximum peak linear excursion vibration xlin = +/- 2,75 mm
  • mounting diameter d = 76 mm
  • overall diameter d = 90x90 mm
  • mounting depth (not countersunk) t = 41,2 mm
  • mass m = 0,34 kg
PDF data sheet

journal Hobby HiFi
Mehr Sein als Schein ist das Motto des Wavecor WF090WA01 und 02, die beide bei vergleichsweise schlichter Bauweise überzeugende akustische Qualitäten ins Feld führen. Beide bieten sich für Nahfeldmonitore für den Schreibtisch an, idealerweise in Kombination mit einem kleinen Bändchenhochtöner oder Magnetostaten.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 1 L volume
from 135/85 Hz (-3dB/-8dB)

recommended cabinet 2:
3,7 L volume bass reflex cabinet
with HP35 reflex tube, 12 cm long.
from 68/54 Hz (-3dB/-8dB).

Wavecor WF118WA01

order no. wc-wf118wa01

EUR 56,00 excl. VAT: € 47.06 / $ 53.18

10 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 50 W
  • frequency range = 70-4000 Hz
  • resonance frequency fs = 64 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 4,6 N/A
  • voice coil inductance L = 0,16 mH
  • effective piston radiating area Sd = 55 cm2
  • effective mechanical mass incl. air load mms = 6,2 g
  • equivalent volume of compliance Vas = 4,3 l
  • total Q factor Qts = 0,36 (Qms=8,8, Qes=0,38)
  • voice coil diameter = 33 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 93 mm
  • overall diameter d = 118 mm
  • mounting depth (not countersunk) t = 61,4 mm
  • mass m = 0,95 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,5 L volume
from 119/75 Hz (-3dB/-8dB)

recommended cabinet 2:
6 L volume bass reflex cabinet
with HP35 reflex tube, 9 cm long.
from 57/47 Hz (-3dB/-8dB).

Wavecor WF118WA02

order no. wc-wf118wa02

EUR 56,00 excl. VAT: € 47.06 / $ 53.18

10 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 50 W
  • frequency range = 70-4000 Hz
  • resonance frequency fs = 65 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 84 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 5,8 N/A
  • voice coil inductance L = 0,28 mH
  • effective piston radiating area Sd = 55 cm2
  • effective mechanical mass incl. air load mms = 6 g
  • equivalent volume of compliance Vas = 4,3 l
  • total Q factor Qts = 0,44 (Qms=8,6, Qes=0,46)
  • voice coil diameter = 33 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 93 mm
  • overall diameter d = 118 mm
  • mounting depth (not countersunk) t = 61,4 mm
  • mass m = 0,95 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,6 L volume
from 109/69 Hz (-3dB/-8dB)

recommended cabinet 2:
6,5 L volume bass reflex cabinet
with HP35 reflex tube, 10 cm long.
from 51/43 Hz (-3dB/-8dB).

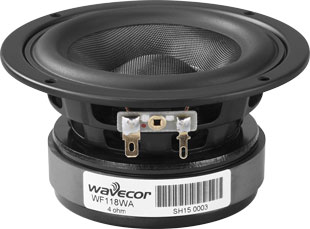

Wavecor WF118WA05

order no. wc-wf118wa05-01

EUR 69,95 excl. VAT: € 58.78 / $ 66.42

10 cm bass-midrange driver with glass fibre cone.

  • power handling (continuous/programme) = 50 W
  • frequency range = 70-4000 Hz
  • resonance frequency fs = 65 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 87,5 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 4,3 N/A
  • voice coil inductance L = 0,16 mH
  • effective piston radiating area Sd = 54 cm2
  • effective mechanical mass incl. air load mms = 7,1 g
  • equivalent volume of compliance Vas = 3,5 l
  • total Q factor Qts = 0,46 (Qms=7,5, Qes=0,49)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 93 mm
  • overall diameter d = 118 mm
  • mounting depth (not countersunk) t = 61,4 mm
  • mass m = 0,95 kg
PDF data sheet

journal Hobby HiFi
Wavecor realisiert mit der neuen Glasfasermembran Frequenzgänge an der Grenze zur absoluten Perfektion. lm Tieftonbereich hat die Vier-Ohm-Version des 118-Millimeter Tiefmitteltöners die besseren Karten.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,7 L volume
from 95/60 Hz (-3dB/-8dB)

recommended cabinet 2:
10,8 L volume bass reflex cabinet
with HP50 reflex tube, 17 cm long.
from 43/37 Hz (-3dB/-8dB).

Wavecor WF118WA06

order no. wc-wf118wa06-01

EUR 69,95 excl. VAT: € 58.78 / $ 66.42

10 cm bass-midrange driver with glass fibre cone.

  • power handling (continuous/programme) = 50 W
  • frequency range = 70-4000 Hz
  • resonance frequency fs = 66 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 84,5 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • force factor BL = 5,6 N/A
  • voice coil inductance L = 0,28 mH
  • effective piston radiating area Sd = 54 cm2
  • effective mechanical mass incl. air load mms = 6,9 g
  • equivalent volume of compliance Vas = 3,5 l
  • total Q factor Qts = 0,55 (Qms=7,4, Qes=0,59)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 93 mm
  • overall diameter d = 118 mm
  • mounting depth (not countersunk) t = 61,4 mm
  • mass m = 0,95 kg
PDF data sheet

journal Hobby HiFi
Wavecor realisiert mit der neuen Glasfasermembran Frequenzgänge an der Grenze zur absoluten Perfektion. lm Tieftonbereich hat die Vier-Ohm-Version des 118-Millimeter Tiefmitteltöners die besseren Karten.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,2 L volume
from 118/75 Hz (-3dB/-8dB)

recommended cabinet 2:
4,3 L volume bass reflex cabinet
with HP35 reflex tube, 14 cm long.
from 60/48 Hz (-3dB/-8dB).

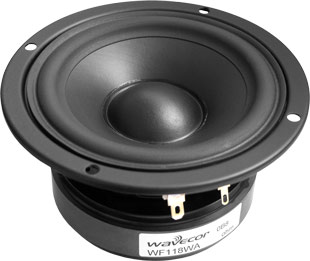

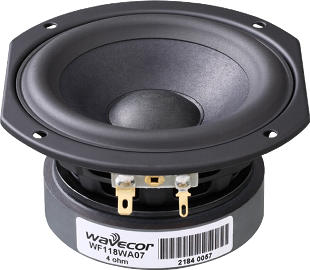

Wavecor WF118WA07

order no. wc-wf118wa07-01

EUR 56,00 excl. VAT: € 47.06 / $ 53.18

10 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 50 W
  • frequency range = 60-8000 Hz
  • resonance frequency fs = 56 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 4,5 N/A
  • voice coil inductance L = 0,22 mH
  • effective piston radiating area Sd = 54 cm2
  • effective mechanical mass incl. air load mms = 6,9 g
  • equivalent volume of compliance Vas = 4,9 l
  • total Q factor Qts = 0,36 (Qms=7,8, Qes=0,38)
  • voice coil diameter = 26 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 92 mm
  • overall diameter d = 118 mm
  • mounting depth (not countersunk) t = 61,4 mm
  • mass m = 0,95 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,6 L volume
from 109/69 Hz (-3dB/-8dB)

recommended cabinet 2:
6,4 L volume bass reflex cabinet
with HP35 reflex tube, 11 cm long.
from 53/43 Hz (-3dB/-8dB).

Wavecor WF118WA08

order no. wc-wf118wa08-01

EUR 56,00 excl. VAT: € 47.06 / $ 53.18

10 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 50 W
  • frequency range = 60-8000 Hz
  • resonance frequency fs = 58 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 84 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 5,8 N/A
  • voice coil inductance L = 0,36 mH
  • effective piston radiating area Sd = 54 cm2
  • effective mechanical mass incl. air load mms = 6,5 g
  • equivalent volume of compliance Vas = 4,9 l
  • total Q factor Qts = 0,42 (Qms=7,6, Qes=0,45)
  • voice coil diameter = 26 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 92 mm
  • overall diameter d = 118 mm
  • mounting depth (not countersunk) t = 61,4 mm
  • mass m = 0,95 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,1 L volume
from 144/91 Hz (-3dB/-8dB)

recommended cabinet 2:
4 L volume bass reflex cabinet
with HP35 reflex tube, 10 cm long.
from 72/58 Hz (-3dB/-8dB).

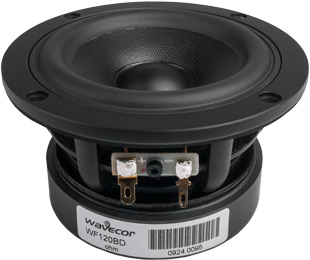

Wavecor WF120BD03

order no. wc-wf120bd03

EUR 99,00 excl. VAT: € 83.19 / $ 94.01

11 cm bass-midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 50 W
  • frequency range = 60-4000 Hz
  • resonance frequency fs = 70 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88,5 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 4,5 N/A
  • voice coil inductance L = 0,086 mH
  • effective piston radiating area Sd = 54 cm2
  • effective mechanical mass incl. air load mms = 6,55 g
  • equivalent volume of compliance Vas = 4,25 l
  • total Q factor Qts = 0,38 (Qms=6, Qes=0,4)
  • voice coil diameter = 26 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 100 mm
  • overall diameter d = 120 mm
  • mounting depth (not countersunk) t = 72 mm
  • mass m = 1,04 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,7 L volume
from 125/79 Hz (-3dB/-8dB)

recommended cabinet 2:
6,9 L volume bass reflex cabinet
with HP50 reflex tube, 15 cm long.
from 60/49 Hz (-3dB/-8dB).

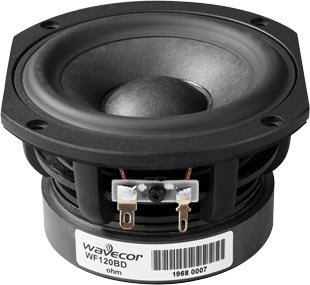

Wavecor WF120BD04

order no. wc-wf120bd04

EUR 99,00 excl. VAT: € 83.19 / $ 94.01

11 cm bass-midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 50 W
  • frequency range = 60-4000 Hz
  • resonance frequency fs = 71,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 5,5 N/A
  • voice coil inductance L = 0,14 mH
  • effective piston radiating area Sd = 54 cm2
  • effective mechanical mass incl. air load mms = 6,25 g
  • equivalent volume of compliance Vas = 4,25 l
  • total Q factor Qts = 0,45 (Qms=5,9, Qes=0,49)
  • voice coil diameter = 26 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 100 mm
  • overall diameter d = 120 mm
  • mounting depth (not countersunk) t = 72 mm
  • mass m = 1,04 kg
PDF data sheet

journal Hobby HiFi
Wavecor liefert mit dem WF120BD04 einen exzellenten Tiefmitteltöner für kompakte und dennoch tiefbassstarke Kleinstmonitore.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,9 L volume
from 92/58 Hz (-3dB/-8dB)

recommended cabinet 2:
7,5 L volume bass reflex cabinet
with HP35 reflex tube, 13 cm long.
from 45/37 Hz (-3dB/-8dB).

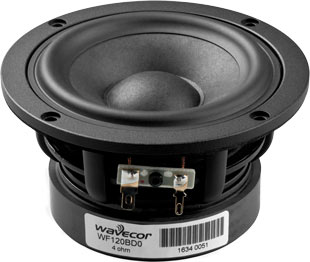

Wavecor WF120BD05 Glass Fiber

order no. wc-wf120bd05-01

EUR 94,00 excl. VAT: € 78.99 / $ 89.26

11 cm bass-midrange driver with glass fibre cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 60 W
  • frequency range = 60-3000 Hz
  • resonance frequency fs = 48 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 4,1 N/A
  • voice coil inductance L = 0,087 mH
  • effective piston radiating area Sd = 54 cm2
  • effective mechanical mass incl. air load mms = 7,3 g
  • equivalent volume of compliance Vas = 6,2 l
  • total Q factor Qts = 0,4 (Qms=7,4, Qes=0,42)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 100 mm
  • overall diameter d = 120 mm
  • mounting depth (not countersunk) t = 72 mm
  • mass m = 1 kg
PDF data sheet

journal Hobby HiFi
Mit WF120BD05 und WF120BD06 liefert Wavecor exzellente kleine Tiefmitteltöner für audiophile Minimonitore. Hinsichtlich möglicher Tieftonabstimmungen gefällt uns die Vier-Ohm-Version noch etwas besser.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,7 L volume
from 86/54 Hz (-3dB/-8dB)

recommended cabinet 2:
10,8 L volume bass reflex cabinet
with HP50 reflex tube, 22 cm long.
from 41/34 Hz (-3dB/-8dB).

Wavecor WF120BD06 Glass Fiber

order no. wc-wf120bd06-01

EUR 94,00 excl. VAT: € 78.99 / $ 89.26

11 cm bass-midrange driver with glass fibre cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 60 W
  • frequency range = 60-3000 Hz
  • resonance frequency fs = 50 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 84 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 5,2 N/A
  • voice coil inductance L = 0,16 mH
  • effective piston radiating area Sd = 54 cm2
  • effective mechanical mass incl. air load mms = 6,7 g
  • equivalent volume of compliance Vas = 6,2 l
  • total Q factor Qts = 0,47 (Qms=7, Qes=0,5)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 100 mm
  • overall diameter d = 120 mm
  • mounting depth (not countersunk) t = 72 mm
  • mass m = 1 kg
PDF data sheet

journal Hobby HiFi
Mit WF120BD05 und WF120BD06 liefert Wavecor exzellente kleine Tiefmitteltöner für audiophile Minimonitore. Hinsichtlich möglicher Tieftonabstimmungen gefällt uns die Vier-Ohm-Version noch etwas besser.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,1 L volume
from 144/91 Hz (-3dB/-8dB)

recommended cabinet 2:
4 L volume bass reflex cabinet
with HP35 reflex tube, 10 cm long.
from 72/58 Hz (-3dB/-8dB).

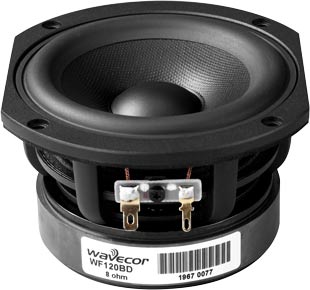

Wavecor WF120BD07

order no. wc-wf120bd07-01

EUR 94,00 excl. VAT: € 78.99 / $ 89.26

11 cm bass-midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 60 W
  • frequency range = 60-4000 Hz
  • resonance frequency fs = 70 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88,5 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 4,5 N/A
  • voice coil inductance L = 0,086 mH
  • effective piston radiating area Sd = 54 cm2
  • effective mechanical mass incl. air load mms = 6,55 g
  • equivalent volume of compliance Vas = 4,25 l
  • total Q factor Qts = 0,38 (Qms=6, Qes=0,4)
  • voice coil diameter = 26 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 100 mm
  • overall diameter d = 120 mm
  • mounting depth (not countersunk) t = 72 mm
  • mass m = 1 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,7 L volume
from 125/79 Hz (-3dB/-8dB)

recommended cabinet 2:
6,9 L volume bass reflex cabinet
with HP50 reflex tube, 15 cm long.
from 60/49 Hz (-3dB/-8dB).

Wavecor WF120BD08

order no. wc-wf120bd08-01

EUR 94,00 excl. VAT: € 78.99 / $ 89.26

11 cm bass-midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 60 W
  • frequency range = 60-4000 Hz
  • resonance frequency fs = 71,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 5,5 N/A
  • voice coil inductance L = 0,14 mH
  • effective piston radiating area Sd = 54 cm2
  • effective mechanical mass incl. air load mms = 6,25 g
  • equivalent volume of compliance Vas = 4,25 l
  • total Q factor Qts = 0,45 (Qms=5,9, Qes=0,49)
  • voice coil diameter = 26 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 100 mm
  • overall diameter d = 120 mm
  • mounting depth (not countersunk) t = 72 mm
  • mass m = 1 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,9 L volume
from 92/58 Hz (-3dB/-8dB)

recommended cabinet 2:
7,5 L volume bass reflex cabinet
with HP35 reflex tube, 13 cm long.
from 45/37 Hz (-3dB/-8dB).

Wavecor WF120BD09 Glass Fiber

order no. wc-wf120bd09-01

EUR 94,00 excl. VAT: € 78.99 / $ 89.26

11 cm bass-midrange driver with glass fibre cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 60 W
  • frequency range = 60-3000 Hz
  • resonance frequency fs = 48 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 4,1 N/A
  • voice coil inductance L = 0,087 mH
  • effective piston radiating area Sd = 54 cm2
  • effective mechanical mass incl. air load mms = 7,3 g
  • equivalent volume of compliance Vas = 6,2 l
  • total Q factor Qts = 0,4 (Qms=7,4, Qes=0,42)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 100 mm
  • overall diameter d = 120 mm
  • mounting depth (not countersunk) t = 72 mm
  • mass m = 1 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,7 L volume
from 86/54 Hz (-3dB/-8dB)

recommended cabinet 2:
10,8 L volume bass reflex cabinet
with HP50 reflex tube, 22 cm long.
from 41/34 Hz (-3dB/-8dB).

Wavecor WF120BD10 Glass Fiber

order no. wc-wf120bd10-01

EUR 94,00 excl. VAT: € 78.99 / $ 89.26

11 cm bass-midrange driver with glass fibre cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 60 W
  • frequency range = 60-3000 Hz
  • resonance frequency fs = 50 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 84 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 5,2 N/A
  • voice coil inductance L = 0,16 mH
  • effective piston radiating area Sd = 54 cm2
  • effective mechanical mass incl. air load mms = 6,7 g
  • equivalent volume of compliance Vas = 6,2 l
  • total Q factor Qts = 0,47 (Qms=7, Qes=0,5)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 100 mm
  • overall diameter d = 120 mm
  • mounting depth (not countersunk) t = 72 mm
  • mass m = 1 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 3,5 L volume
from 103/65 Hz (-3dB/-8dB)

recommended cabinet 2:
14 L volume bass reflex cabinet
with HP50 reflex tube, 11 cm long.
from 49/40 Hz (-3dB/-8dB).

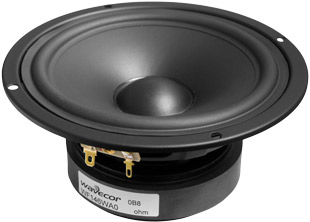

Wavecor WF146WA01

order no. wc-wf146wa01

EUR 64,00 excl. VAT: € 53.78 / $ 60.77

13 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 55 W
  • frequency range = 60-3500 Hz
  • resonance frequency fs = 56 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 5,1 N/A
  • voice coil inductance L = 0,24 mH
  • effective piston radiating area Sd = 95 cm2
  • effective mechanical mass incl. air load mms = 10,4 g
  • equivalent volume of compliance Vas = 10 l
  • total Q factor Qts = 0,42 (Qms=7, Qes=0,45)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 118 mm
  • overall diameter d = 146 mm
  • mounting depth (not countersunk) t = 68,2 mm
  • mass m = 1,03 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 5,5 L volume
from 92/58 Hz (-3dB/-8dB)

recommended cabinet 2:
23 L volume bass reflex cabinet
with HP50 reflex tube, 7 cm long.
from 42/36 Hz (-3dB/-8dB).

Wavecor WF146WA02

order no. wc-wf146wa02

EUR 64,00 excl. VAT: € 53.78 / $ 60.77

13 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 55 W
  • frequency range = 60-3500 Hz
  • resonance frequency fs = 58 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87,5 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 6,4 N/A
  • voice coil inductance L = 0,39 mH
  • effective piston radiating area Sd = 95 cm2
  • effective mechanical mass incl. air load mms = 9,7 g
  • equivalent volume of compliance Vas = 10 l
  • total Q factor Qts = 0,5 (Qms=7, Qes=0,54)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 118 mm
  • overall diameter d = 146 mm
  • mounting depth (not countersunk) t = 68,2 mm
  • mass m = 1,03 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 3,8 L volume
from 92/58 Hz (-3dB/-8dB)

recommended cabinet 2:
14,8 L volume bass reflex cabinet
with HP50 reflex tube, 13 cm long.
from 45/37 Hz (-3dB/-8dB).

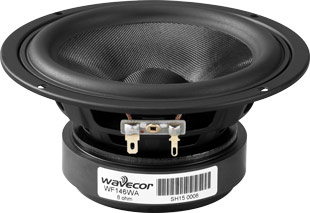

Wavecor WF146WA05

order no. wc-wf146wa05-01

EUR 77,00 excl. VAT: € 64.71 / $ 73.12

13 cm bass-midrange driver with glass fibre cone.

  • power handling (continuous/programme) = 55 W
  • frequency range = 50-4000 Hz
  • resonance frequency fs = 48 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89,5 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 5 N/A
  • voice coil inductance L = 0,24 mH
  • effective piston radiating area Sd = 93 cm2
  • effective mechanical mass incl. air load mms = 11,1 g
  • equivalent volume of compliance Vas = 12,3 l
  • total Q factor Qts = 0,4 (Qms=6,9, Qes=0,43)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 119 mm
  • overall diameter d = 146 mm
  • mounting depth (not countersunk) t = 69,2 mm
  • mass m = 1,03 kg
PDF data sheet

journal Hobby HiFi
Der WF146WA05 bietet beste Voraussetzungen für Zweiweg-Konstruktionen auf höchstem klanglichen Niveau. Er verlangt nach einem großen Gehäuse, für das er den Erbauer mit grandiosem Tiefbass belohnt.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 5,6 L volume
from 82/52 Hz (-3dB/-8dB)

recommended cabinet 2:
23 L volume bass reflex cabinet
with HP50 reflex tube, 10 cm long.
from 39/32 Hz (-3dB/-8dB).

Wavecor WF146WA06

order no. wc-wf146wa06-01

EUR 77,00 excl. VAT: € 64.71 / $ 73.12

13 cm bass-midrange driver with glass fibre cone.

  • power handling (continuous/programme) = 55 W
  • frequency range = 50-4000 Hz
  • resonance frequency fs = 49 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86,5 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 6,4 N/A
  • voice coil inductance L = 0,4 mH
  • effective piston radiating area Sd = 93 cm2
  • effective mechanical mass incl. air load mms = 10,6 g
  • equivalent volume of compliance Vas = 12,3 l
  • total Q factor Qts = 0,47 (Qms=6,8, Qes=0,51)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 119 mm
  • overall diameter d = 146 mm
  • mounting depth (not countersunk) t = 69,2 mm
  • mass m = 1,03 kg
PDF data sheet

journal Hobby HiFi
Der WF146WA06 verlangt nach einem etwas größeren Gehäuse, für das er den Erbauer mit grandiosem Tiefbass belohnt.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,4 L volume
from 111/70 Hz (-3dB/-8dB)

recommended cabinet 2:
8,3 L volume bass reflex cabinet
with HP50 reflex tube, 17 cm long.
from 57/45 Hz (-3dB/-8dB).

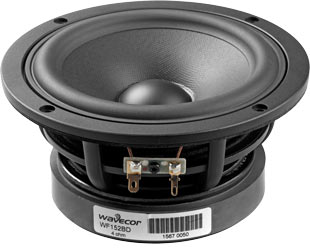

Wavecor WF152BD03

order no. wc-wf152bd03

EUR 120,00 excl. VAT: € 100.84 / $ 113.95

14 cm bass-midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 70 W
  • frequency range = 50-4000 Hz
  • resonance frequency fs = 50 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 5,8 N/A
  • voice coil inductance L = 0,096 mH
  • effective piston radiating area Sd = 93 cm2
  • effective mechanical mass incl. air load mms = 11 g
  • equivalent volume of compliance Vas = 11,4 l
  • total Q factor Qts = 0,34 (Qms=7,5, Qes=0,36)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 128 mm
  • overall diameter d = 152 mm
  • mounting depth (not countersunk) t = 80,5 mm
  • mass m = 1,46 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,8 L volume
from 127/80 Hz (-3dB/-8dB)

recommended cabinet 2:
5,7 L volume bass reflex cabinet
with HP50 reflex tube, 19 cm long.
from 69/53 Hz (-3dB/-8dB).

Wavecor WF152BD04

order no. wc-wf152bd04

EUR 120,00 excl. VAT: € 100.84 / $ 113.95

14 cm bass-midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 70 W
  • frequency range = 50-4000 Hz
  • resonance frequency fs = 51 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88,5 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 7,3 N/A
  • voice coil inductance L = 0,15 mH
  • effective piston radiating area Sd = 93 cm2
  • effective mechanical mass incl. air load mms = 10,5 g
  • equivalent volume of compliance Vas = 11,4 l
  • total Q factor Qts = 0,32 (Qms=7,3, Qes=0,33)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 128 mm
  • overall diameter d = 152 mm
  • mounting depth (not countersunk) t = 80,5 mm
  • mass m = 1,46 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,6 L volume
from 118/75 Hz (-3dB/-8dB)

recommended cabinet 2:
4,7 L volume bass reflex cabinet
with HP50 reflex tube, 29 cm long.
from 65/50 Hz (-3dB/-8dB).

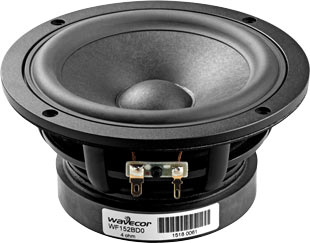

Wavecor WF152BD05 Glass Fiber

order no. wc-wf152bd05

EUR 115,00 excl. VAT: € 96.64 / $ 109.20

14 cm bass-midrange driver with glass fibre cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 70 W
  • frequency range = 50-3500 Hz
  • resonance frequency fs = 44,5 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 6,35 N/A
  • voice coil inductance L = 0,11 mH
  • effective piston radiating area Sd = 93 cm2
  • effective mechanical mass incl. air load mms = 13,5 g
  • equivalent volume of compliance Vas = 11,5 l
  • total Q factor Qts = 0,29 (Qms=8,2, Qes=0,3)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 128 mm
  • overall diameter d = 152 mm
  • mounting depth (not countersunk) t = 80,5 mm
  • mass m = 1,44 kg
PDF data sheet

journal Hobby HiFi
Wavecor liefert mit dem WF152BD05 und WF152BD06 Tiefmitteltöner für den Einsatz in kleineren Bassreflexgehäusen. Der Acht-Ohm-Typ benötigt etwas mehr Gehäusevolumen und liefert den tieferen Bass. Beide überzeugen mit makellosen akustischen Qualitäten - unsere Empfehlung für hochmusikalische Regalboxen.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,3 L volume
from 105/66 Hz (-3dB/-8dB)

recommended cabinet 2:
7,7 L volume bass reflex cabinet
with HP50 reflex tube, 21 cm long.
from 55/43 Hz (-3dB/-8dB).

Wavecor WF152BD06 Glass Fiber

order no. wc-wf152bd06

EUR 115,00 excl. VAT: € 96.64 / $ 109.20

14 cm bass-midrange driver with glass fibre cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 70 W
  • frequency range = 50-3500 Hz
  • resonance frequency fs = 46 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 8 N/A
  • voice coil inductance L = 0,19 mH
  • effective piston radiating area Sd = 93 cm2
  • effective mechanical mass incl. air load mms = 12,8 g
  • equivalent volume of compliance Vas = 11,5 l
  • total Q factor Qts = 0,34 (Qms=8, Qes=0,36)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 128 mm
  • overall diameter d = 152 mm
  • mounting depth (not countersunk) t = 80,5 mm
  • mass m = 1,44 kg
PDF data sheet

journal Hobby HiFi
Wavecor liefert mit dem WF152BD05 und WF152BD06 Tiefmitteltöner für den Einsatz in kleineren Bassreflexgehäusen. Der Acht-Ohm-Typ benötigt etwas mehr Gehäusevolumen und liefert den tieferen Bass. Beide überzeugen mit makellosen akustischen Qualitäten - unsere Empfehlung für hochmusikalische Regalboxen.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,6 L volume
from 118/75 Hz (-3dB/-8dB)

recommended cabinet 2:
4,7 L volume bass reflex cabinet
with HP50 reflex tube, 29 cm long.
from 65/50 Hz (-3dB/-8dB).

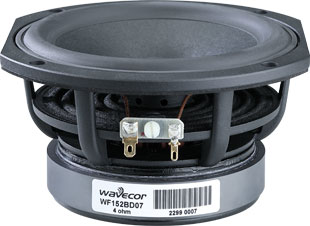

Wavecor WF152BD07 Glass Fiber

order no. wc-wf152bd07-01

EUR 115,00 excl. VAT: € 96.64 / $ 109.20

14 cm bass-midrange driver with glass fibre cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 70 W
  • frequency range = 50-3500 Hz
  • resonance frequency fs = 44,5 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 6,35 N/A
  • voice coil inductance L = 0,11 mH
  • effective piston radiating area Sd = 93 cm2
  • effective mechanical mass incl. air load mms = 13,5 g
  • equivalent volume of compliance Vas = 11,5 l
  • total Q factor Qts = 0,29 (Qms=8,2, Qes=0,3)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 128 mm
  • overall diameter d = 152 mm
  • mounting depth (not countersunk) t = 80,5 mm
  • mass m = 1,44 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,3 L volume
from 105/66 Hz (-3dB/-8dB)

recommended cabinet 2:
7,7 L volume bass reflex cabinet
with HP50 reflex tube, 21 cm long.
from 55/43 Hz (-3dB/-8dB).

Wavecor WF152BD08 Glass Fiber

order no. wc-wf152bd08-01

EUR 115,00 excl. VAT: € 96.64 / $ 109.20

14 cm bass-midrange driver with glass fibre cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 70 W
  • frequency range = 50-3500 Hz
  • resonance frequency fs = 46 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 8 N/A
  • voice coil inductance L = 0,19 mH
  • effective piston radiating area Sd = 93 cm2
  • effective mechanical mass incl. air load mms = 12,8 g
  • equivalent volume of compliance Vas = 11,5 l
  • total Q factor Qts = 0,34 (Qms=8, Qes=0,36)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 128 mm
  • overall diameter d = 152 mm
  • mounting depth (not countersunk) t = 80,5 mm
  • mass m = 1,44 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 9,3 L volume
from 85/54 Hz (-3dB/-8dB)

recommended cabinet 2:
37 L volume bass reflex cabinet
with HP70 reflex tube, 10 cm long.
from 41/34 Hz (-3dB/-8dB).

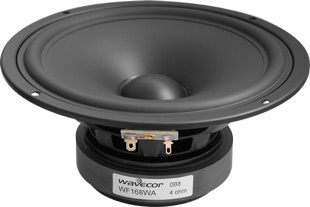

Wavecor WF168WA01

order no. wc-wf168wa01

EUR 72,00 excl. VAT: € 60.50 / $ 68.37

15 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 60 W
  • frequency range = 50-3000 Hz
  • resonance frequency fs = 47,5 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 91,5 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 5,1 N/A
  • voice coil inductance L = 0,24 mH
  • effective piston radiating area Sd = 139 cm2
  • effective mechanical mass incl. air load mms = 12,5 g
  • equivalent volume of compliance Vas = 24,6 l
  • total Q factor Qts = 0,43 (Qms=7, Qes=0,46)
  • voice coil diameter = 33 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 143 mm
  • overall diameter d = 168 mm
  • mounting depth (not countersunk) t = 76,2 mm
  • mass m = 1,03 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 15 L volume
from 75/47 Hz (-3dB/-8dB)

recommended cabinet 2:
63 L volume bass reflex cabinet
with HP70 reflex tube, 6 cm long.
from 34/29 Hz (-3dB/-8dB).

Wavecor WF168WA02

order no. wc-wf168wa02

EUR 72,00 excl. VAT: € 60.50 / $ 68.37

15 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 60 W
  • frequency range = 50-3000 Hz
  • resonance frequency fs = 49 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 6,4 N/A
  • voice coil inductance L = 0,39 mH
  • effective piston radiating area Sd = 139 cm2
  • effective mechanical mass incl. air load mms = 11,8 g
  • equivalent volume of compliance Vas = 24,6 l
  • total Q factor Qts = 0,52 (Qms=7,1, Qes=0,56)
  • voice coil diameter = 33 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 143 mm
  • overall diameter d = 168 mm
  • mounting depth (not countersunk) t = 76,2 mm
  • mass m = 1,03 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 9,8 L volume
from 73/46 Hz (-3dB/-8dB)

recommended cabinet 2:
39 L volume bass reflex cabinet
with HP70 reflex tube, 14 cm long.
from 35/29 Hz (-3dB/-8dB).

Wavecor WF168WA05

order no. wc-wf168wa05-01

EUR 84,00 excl. VAT: € 70.59 / $ 79.76

15 cm bass-midrange driver with glass fibre cone.

  • power handling (continuous/programme) = 60 W
  • frequency range = 50-3000 Hz
  • resonance frequency fs = 40 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 5 N/A
  • voice coil inductance L = 0,24 mH
  • effective piston radiating area Sd = 131 cm2
  • effective mechanical mass incl. air load mms = 14 g
  • equivalent volume of compliance Vas = 27,7 l
  • total Q factor Qts = 0,42 (Qms=7,2, Qes=0,45)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 143 mm
  • overall diameter d = 168 mm
  • mounting depth (not countersunk) t = 76,4 mm
  • mass m = 1,06 kg
PDF data sheet

journal Hobby HiFi
Der WF168WA05 bietet beste Voraussetzungen für Zweiweg-Konstruktionen auf höchstem klanglichen Niveau. Er verlangt nach einem großen Gehäuse, für das er den Erbauer mit grandiosem Tiefbass belohnt.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 15 L volume
from 65/41 Hz (-3dB/-8dB)

recommended cabinet 2:
63 L volume bass reflex cabinet
with HP70 reflex tube, 10 cm long.
from 30/25 Hz (-3dB/-8dB).

Wavecor WF168WA06

order no. wc-wf168wa06-01

EUR 84,00 excl. VAT: € 70.59 / $ 79.76

15 cm bass-midrange driver with glass fibre cone.

  • power handling (continuous/programme) = 60 W
  • frequency range = 50-3000 Hz
  • resonance frequency fs = 41 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 6,4 N/A
  • voice coil inductance L = 0,4 mH
  • effective piston radiating area Sd = 131 cm2
  • effective mechanical mass incl. air load mms = 13,4 g
  • equivalent volume of compliance Vas = 27,7 l
  • total Q factor Qts = 0,5 (Qms=7, Qes=0,54)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 143 mm
  • overall diameter d = 168 mm
  • mounting depth (not countersunk) t = 76,4 mm
  • mass m = 1,06 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 3,3 L volume
from 103/65 Hz (-3dB/-8dB)

recommended cabinet 2:
8,3 L volume bass reflex cabinet
with HP50 reflex tube, 21 cm long.
from 60/46 Hz (-3dB/-8dB).

Wavecor WF182BD03

order no. wc-wf182bd03

EUR 148,00 excl. VAT: € 124.37 / $ 140.54

17 cm bass-midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 80 W
  • frequency range = 30-3000 Hz
  • resonance frequency fs = 33,8 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • DC resistance Re = 3,3 Ohm
  • force factor BL = 6,75 N/A
  • voice coil inductance L = 0,088 mH
  • effective piston radiating area Sd = 131 cm2
  • effective mechanical mass incl. air load mms = 16,7 g
  • equivalent volume of compliance Vas = 32,4 l
  • total Q factor Qts = 0,25 (Qms=8,2, Qes=0,26)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 153 mm
  • overall diameter d = 182 mm
  • mounting depth (not countersunk) t = 90 mm
  • mass m = 2,3 kg
PDF data sheet

journal Hobby HiFi
Wavecor liefert mit dem WF182BD03 einen herausragend guten Tiefmitteltöner, der auch als nach unten sehr tief trennbarer Mitteltöner hervorragende Dienste leistet.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 4,1 L volume
from 92/58 Hz (-3dB/-8dB)

recommended cabinet 2:
11,8 L volume bass reflex cabinet
with HP50 reflex tube, 18 cm long.
from 51/39 Hz (-3dB/-8dB).

Wavecor WF182BD04

order no. wc-wf182bd04

EUR 148,00 excl. VAT: € 124.37 / $ 140.54

17 cm bass-midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 80 W
  • frequency range = 30-3000 Hz
  • resonance frequency fs = 33,4 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 8,5 N/A
  • voice coil inductance L = 0,14 mH
  • effective piston radiating area Sd = 131 cm2
  • effective mechanical mass incl. air load mms = 16,1 g
  • equivalent volume of compliance Vas = 32,4 l
  • total Q factor Qts = 0,29 (Qms=8,1, Qes=0,3)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 153 mm
  • overall diameter d = 182 mm
  • mounting depth (not countersunk) t = 90 mm
  • mass m = 2,3 kg
PDF data sheet

journal Hobby HiFi
Die Papiermembran stellt eine hochinteressante Alternative zum Nomex-Konus dar: Wirkungsgrad, Frequenzgang-Linearität und geringeres Gehäusevolumen schrechen für sie.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 3,3 L volume
from 103/65 Hz (-3dB/-8dB)

recommended cabinet 2:
8,3 L volume bass reflex cabinet
with HP50 reflex tube, 21 cm long.
from 60/46 Hz (-3dB/-8dB).

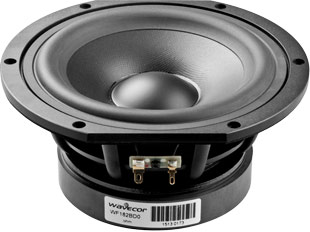

Wavecor WF182BD07

order no. wc-wf182bd07

EUR 148,00 excl. VAT: € 124.37 / $ 140.54

17 cm bass-midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 100 W
  • frequency range = 30-3000 Hz
  • resonance frequency fs = 33,8 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • DC resistance Re = 3,3 Ohm
  • force factor BL = 6,75 N/A
  • voice coil inductance L = 0,088 mH
  • effective piston radiating area Sd = 131 cm2
  • effective mechanical mass incl. air load mms = 16,7 g
  • equivalent volume of compliance Vas = 32,4 l
  • total Q factor Qts = 0,25 (Qms=8,2, Qes=0,26)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 153 mm
  • overall diameter d = 182 mm
  • mounting depth (not countersunk) t = 90 mm
  • mass m = 2,3 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 4,1 L volume
from 92/58 Hz (-3dB/-8dB)

recommended cabinet 2:
11,8 L volume bass reflex cabinet
with HP50 reflex tube, 18 cm long.
from 51/39 Hz (-3dB/-8dB).

Wavecor WF182BD08

order no. wc-wf182bd08

EUR 148,00 excl. VAT: € 124.37 / $ 140.54

17 cm bass-midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 100 W
  • frequency range = 30-3000 Hz
  • resonance frequency fs = 33,4 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 8,5 N/A
  • voice coil inductance L = 0,14 mH
  • effective piston radiating area Sd = 131 cm2
  • effective mechanical mass incl. air load mms = 16,1 g
  • equivalent volume of compliance Vas = 32,4 l
  • total Q factor Qts = 0,29 (Qms=8,1, Qes=0,3)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 153 mm
  • overall diameter d = 182 mm
  • mounting depth (not countersunk) t = 90 mm
  • mass m = 2,3 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 5,2 L volume
from 71/45 Hz (-3dB/-8dB)

recommended cabinet 2:
16 L volume bass reflex cabinet
with HP50 reflex tube, 22 cm long.
from 38/30 Hz (-3dB/-8dB).

Wavecor WF182BD09 Glass Fiber

order no. wc-wf182bd09-01

EUR 140,00 excl. VAT: € 117.65 / $ 132.94

17 cm bass-midrange driver with glass fibre cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 100 W
  • frequency range = 30-3000 Hz
  • resonance frequency fs = 28,5 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88,5 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 6,5 N/A
  • voice coil inductance L = 0,1 mH
  • effective piston radiating area Sd = 131 cm2
  • effective mechanical mass incl. air load mms = 23,4 g
  • equivalent volume of compliance Vas = 32,4 l
  • total Q factor Qts = 0,31 (Qms=9,1, Qes=0,32)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 153 mm
  • overall diameter d = 182 mm
  • mounting depth (not countersunk) t = 88 mm
  • mass m = 1,95 kg
PDF data sheet

journal Hobby HiFi
Wavecor gelingt mit dem WF182BD09 und WF182BD10 das Kunststück, seine exzellenten Tiefmitteltöner mit Papier-Nomex-Membranen im Detail noch weiter zu verbessern. Diese Chassis bieten ein herausragendes Preis-Leistungs-Verhältnis. Für audiophile und wohnraumfreundliche Zweiweg-Standboxen sind sie schlicht und ergreifend perfekt.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 7,3 L volume
from 64/40 Hz (-3dB/-8dB)

recommended cabinet 2:
26 L volume bass reflex cabinet
with HP50 reflex tube, 16 cm long.
from 33/26 Hz (-3dB/-8dB).

Wavecor WF182BD10 Glass Fiber

order no. wc-wf182bd10-01

EUR 140,00 excl. VAT: € 117.65 / $ 132.94

17 cm bass-midrange driver with glass fibre cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 100 W
  • frequency range = 30-3000 Hz
  • resonance frequency fs = 29,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 8,2 N/A
  • voice coil inductance L = 0,17 mH
  • effective piston radiating area Sd = 131 cm2
  • effective mechanical mass incl. air load mms = 21,9 g
  • equivalent volume of compliance Vas = 32,4 l
  • total Q factor Qts = 0,36 (Qms=8,8, Qes=0,38)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 153 mm
  • overall diameter d = 182 mm
  • mounting depth (not countersunk) t = 88 mm
  • mass m = 1,95 kg
PDF data sheet

journal Hobby HiFi
Wavecor gelingt mit dem WF182BD10 das Kunststück, seinen exzellenten Tiefmitteltöner mit Papier-Nomex-Membranen im Detail noch weiter zu verbessern. Dieses Chassis bietet ein herausragendes Preis-Leistungs-Verhältnis. Für eine audiophile und wohnraumfreundliche Zweiweg-Standbox mit grandioser Tiefbass-Darbietung ist er schlicht und ergreifend perfekt.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 5,2 L volume
from 71/45 Hz (-3dB/-8dB)

recommended cabinet 2:
16 L volume bass reflex cabinet
with HP50 reflex tube, 22 cm long.
from 38/30 Hz (-3dB/-8dB).

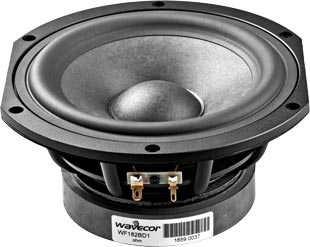

Wavecor WF182BD11 Glass Fiber

order no. wc-wf182bd11

EUR 140,00 excl. VAT: € 117.65 / $ 132.94

17 cm bass-midrange driver with glass fibre cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 100 W
  • frequency range = 30-3000 Hz
  • resonance frequency fs = 28,5 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88,5 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 6,5 N/A
  • voice coil inductance L = 0,1 mH
  • effective piston radiating area Sd = 131 cm2
  • effective mechanical mass incl. air load mms = 23,4 g
  • equivalent volume of compliance Vas = 32,4 l
  • total Q factor Qts = 0,31 (Qms=9,1, Qes=0,32)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 153 mm
  • overall diameter d = 182 mm
  • mounting depth (not countersunk) t = 88 mm
  • mass m = 1,95 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 7,3 L volume
from 64/40 Hz (-3dB/-8dB)

recommended cabinet 2:
26 L volume bass reflex cabinet
with HP50 reflex tube, 16 cm long.
from 33/26 Hz (-3dB/-8dB).

Wavecor WF182BD12 Glass Fiber

order no. wc-wf182bd12

EUR 140,00 excl. VAT: € 117.65 / $ 132.94

17 cm bass-midrange driver with glass fibre cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 100 W
  • frequency range = 30-3000 Hz
  • resonance frequency fs = 29,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 8,2 N/A
  • voice coil inductance L = 0,17 mH
  • effective piston radiating area Sd = 131 cm2
  • effective mechanical mass incl. air load mms = 21,9 g
  • equivalent volume of compliance Vas = 32,4 l
  • total Q factor Qts = 0,36 (Qms=8,8, Qes=0,38)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 153 mm
  • overall diameter d = 182 mm
  • mounting depth (not countersunk) t = 88 mm
  • mass m = 1,95 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 13,2 L volume
from 64/40 Hz (-3dB/-8dB)

recommended cabinet 2:
50 L volume bass reflex cabinet
with HP100 reflex tube, 36 cm long.
from 32/25 Hz (-3dB/-8dB).

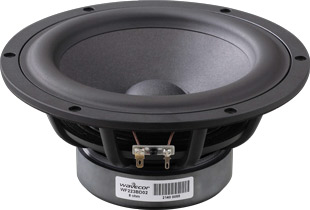

Wavecor WF223BD01 Glass Fiber

order no. wc-wf223bd01-01

EUR 183,00 excl. VAT: € 153.78 / $ 173.77

21 cm bass-midrange driver with glass fibre cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 150 W
  • frequency range = 30-3000 Hz
  • resonance frequency fs = 32,6 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89,5 dB (2,83V; 1m)
  • DC resistance Re = 3,4 Ohm
  • force factor BL = 7,7 N/A
  • effective piston radiating area Sd = 213 cm2
  • effective mechanical mass incl. air load mms = 34 g
  • equivalent volume of compliance Vas = 45 l
  • total Q factor Qts = 0,39 (Qms=14,5, Qes=0,4)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 6,5 mm
  • mounting diameter d = 191 mm
  • overall diameter d = 223,5 mm
  • mounting depth (not countersunk) t = 102 mm
  • mass m = 2,5 kg
PDF data sheet

journal Hobby HiFi
Wavecor setzt mit seinem ersten 20er Tiefmitteltöner ein weiteres Mal Maßstäbe: Für eine bis den Tiefbass hinab pegelfeste Zweiwegbox kennen wir zurzeit keinen besseren Treiber.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 18 L volume
from 58/37 Hz (-3dB/-8dB)

recommended cabinet 2:
73 L volume bass reflex cabinet
with HP100 reflex tube, 28 cm long.
from 28/23 Hz (-3dB/-8dB).

Wavecor WF223BD02 Glass Fiber

order no. wc-wf223bd02-01

EUR 183,00 excl. VAT: € 153.78 / $ 173.77

21 cm bass-midrange driver with glass fibre cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 150 W
  • frequency range = 30-3000 Hz
  • resonance frequency fs = 33,1 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86,5 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 9,5 N/A
  • effective piston radiating area Sd = 213 cm2
  • effective mechanical mass incl. air load mms = 33 g
  • equivalent volume of compliance Vas = 45 l
  • total Q factor Qts = 0,46 (Qms=14,3, Qes=0,47)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 6,5 mm
  • mounting diameter d = 191 mm
  • overall diameter d = 223,5 mm
  • mounting depth (not countersunk) t = 102 mm
  • mass m = 2,5 kg
PDF data sheet

journal Hobby HiFi
Wavecor setzt mit seinem ersten 20er Tiefmitteltöner ein weiteres Mal Maßstäbe: Für eine bis den Tiefbass hinab pegelfeste Zweiwegbox kennen wir zurzeit keinen besseren Treiber.

show kits to this chassis hide kits




Exclusive_Line

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,2 L volume
from 116/73 Hz (-3dB/-8dB)

recommended cabinet 2:
5 L volume bass reflex cabinet
with HP35 reflex tube, 12 cm long.
from 56/46 Hz (-3dB/-8dB).

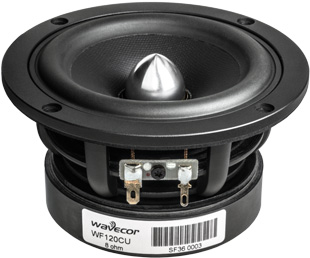

Wavecor WF120CU07

order no. wc-wf120cu07-01

EUR 158,00 excl. VAT: € 132.77 / $ 150.03

11 cm bass-midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 60 W
  • frequency range = 50-8000 Hz
  • resonance frequency fs = 65 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 6,15 Ohm
  • force factor BL = 5,7 N/A
  • effective piston radiating area Sd = 54 cm2
  • effective mechanical mass incl. air load mms = 6,2 g
  • equivalent volume of compliance Vas = 3,3 l
  • total Q factor Qts = 0,45 (Qms=6,5, Qes=0,48)
  • voice coil diameter = 26 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 99 mm
  • overall diameter d = 120,5 mm
  • mounting depth (not countersunk) t = 72 mm
PDF data sheet

journal Hobby HiFi
Der WF120CU07 offenbart hochklassige Breitbänder-Qualitäten.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,4 L volume
from 116/73 Hz (-3dB/-8dB)

recommended cabinet 2:
5 L volume bass reflex cabinet
with HP35 reflex tube, 12 cm long.
from 59/47 Hz (-3dB/-8dB).

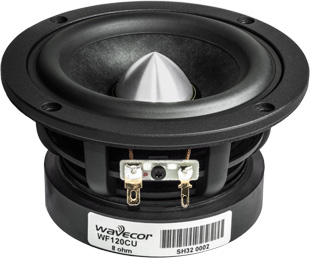

Wavecor WF120CU08

order no. wc-wf120cu08-01

EUR 158,00 excl. VAT: € 132.77 / $ 150.03

11 cm bass-midrange driver with glass fibre cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 60 W
  • frequency range = 50-5000 Hz
  • resonance frequency fs = 55 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86,7 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • force factor BL = 5,9 N/A
  • effective piston radiating area Sd = 54 cm2
  • effective mechanical mass incl. air load mms = 6 g
  • equivalent volume of compliance Vas = 5,8 l
  • total Q factor Qts = 0,37 (Qms=9,4, Qes=0,39)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 99 mm
  • overall diameter d = 120,5 mm
  • mounting depth (not countersunk) t = 72 mm
PDF data sheet

journal Hobby HiFi
Der WF120CU08 ist der ideale Treiber für einen besonders kleinen Lautsprecher mit dennoch überzeugender Tiefbass-Widergabe - zu diesem Glück fehlt allerdings noch eine kleine Passivmembran.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 3,1 L volume
from 97/61 Hz (-3dB/-8dB)

recommended cabinet 2:
12,2 L volume bass reflex cabinet
with HP50 reflex tube, 14 cm long.
from 47/39 Hz (-3dB/-8dB).

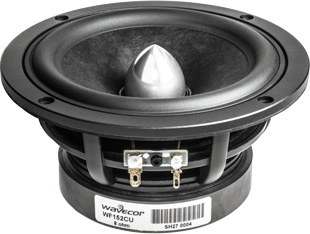

Wavecor WF152CU13

order no. wc-wf152cu13-01

EUR 181,00 excl. VAT: € 152.10 / $ 171.87

14 cm bass-midrange driver with glass fibre cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 70 W
  • frequency range = 45-3000 Hz
  • resonance frequency fs = 52 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87,6 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • force factor BL = 7,7 N/A
  • effective piston radiating area Sd = 93 cm2
  • effective mechanical mass incl. air load mms = 12,2 g
  • equivalent volume of compliance Vas = 9,4 l
  • total Q factor Qts = 0,42 (Qms=10,5, Qes=0,44)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 128 mm
  • overall diameter d = 152 mm
  • mounting depth (not countersunk) t = 80,5 mm
PDF data sheet

journal Hobby HiFi
Die bereits hervorragenden Wavecor-Chassis mit Phase Plug fertigen zu lassen erweist sich als geschickter Schachzug: So gelingen weitere subtile, aber keinesfalls zu vernachlässigende Verbesserungen.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,9 L volume
from 107/67 Hz (-3dB/-8dB)

recommended cabinet 2:
10,8 L volume bass reflex cabinet
with HP50 reflex tube, 13 cm long.
from 53/43 Hz (-3dB/-8dB).

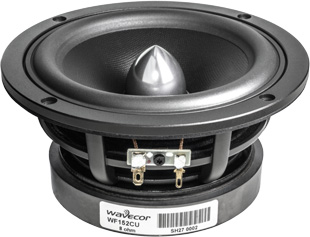

Wavecor WF152CU14

order no. wc-wf152cu14-01

EUR 181,00 excl. VAT: € 152.10 / $ 171.87

14 cm bass-midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 70 W
  • frequency range = 45-8000 Hz
  • resonance frequency fs = 53 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88,7 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 7,4 N/A
  • effective piston radiating area Sd = 93 cm2
  • effective mechanical mass incl. air load mms = 10,5 g
  • equivalent volume of compliance Vas = 10,5 l
  • total Q factor Qts = 0,4 (Qms=11,3, Qes=0,41)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 128 mm
  • overall diameter d = 152 mm
  • mounting depth (not countersunk) t = 80,5 mm
PDF data sheet

journal Hobby HiFi
Durch den Phase Plug gelingen im Vergleich zum Standardtyp subtile Verbesserungen.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 7 L volume
from 70/44 Hz (-3dB/-8dB)

recommended cabinet 2:
25 L volume bass reflex cabinet
with HP70 reflex tube, 28 cm long.
from 35/28 Hz (-3dB/-8dB).

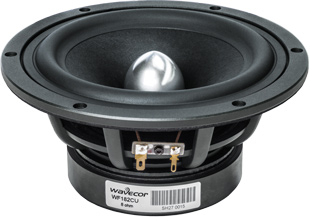

Wavecor WF182CU12

order no. wc-wf182cu12-01

EUR 204,00 excl. VAT: € 171.43 / $ 193.71

17 cm bass-midrange driver with glass fibre cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 100 W
  • frequency range = 35-3000 Hz
  • resonance frequency fs = 33 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87,2 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 8,2 N/A
  • effective piston radiating area Sd = 131 cm2
  • effective mechanical mass incl. air load mms = 19,5 g
  • equivalent volume of compliance Vas = 29 l
  • total Q factor Qts = 0,37 (Qms=9,2, Qes=0,39)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 153 mm
  • overall diameter d = 182 mm
  • mounting depth (not countersunk) t = 88 mm
PDF data sheet

journal Hobby HiFi
Die bereits hervorragenden Wavecor-Chassis mit Phase Plug fertigen zu lassen erweist sich als geschickter Schachzug: So gelingen weitere subtile, aber keinesfalls zu vernachlässigende Verbesserungen.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 6,3 L volume
from 82/52 Hz (-3dB/-8dB)

recommended cabinet 2:
22 L volume bass reflex cabinet
with HP70 reflex tube, 22 cm long.
from 43/34 Hz (-3dB/-8dB).

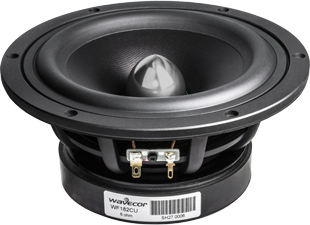

Wavecor WF182CU13

order no. wc-wf182cu13-01

EUR 204,00 excl. VAT: € 171.43 / $ 193.71

17 cm bass-midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 100 W
  • frequency range = 38-4000 Hz
  • resonance frequency fs = 37 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88,8 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • force factor BL = 7,9 N/A
  • effective piston radiating area Sd = 131 cm2
  • effective mechanical mass incl. air load mms = 15,3 g
  • equivalent volume of compliance Vas = 29,9 l
  • total Q factor Qts = 0,36 (Qms=9,5, Qes=0,37)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 153 mm
  • overall diameter d = 182 mm
  • mounting depth (not countersunk) t = 88 mm
PDF data sheet

journal Hobby HiFi
Einen Phase Plug zu implantieren erweist sich auch beim WF182CU13 als geschickter Schachzug.

show kits to this chassis hide kits




PA

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 6,5 L volume
from 119/75 Hz (-3dB/-8dB)

recommended cabinet 2:
23 L volume bass reflex cabinet
with HP100 reflex tube, 20 cm long.
from 61/48 Hz (-3dB/-8dB).

Wavecor WF259PA01

order no. wc-wf259pa01-01

EUR 386,00 excl. VAT: € 324.37 / $ 366.54

25 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 300 W
  • frequency range = 55-4000 Hz
  • resonance frequency fs = 55 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 94 dB (2,83V; 1m)
  • DC resistance Re = 5,65 Ohm
  • force factor BL = 17 N/A
  • voice coil inductance L = 0,38 mH
  • effective piston radiating area Sd = 370 cm2
  • effective mechanical mass incl. air load mms = 56 g
  • equivalent volume of compliance Vas = 29 l
  • total Q factor Qts = 0,37 (Qms=12, Qes=0,38)
  • voice coil diameter = 76 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 237 mm
  • overall diameter d = 259 mm
  • mounting depth (not countersunk) t = 128 mm
  • mass m = 8,2 kg
PDF data sheet

show kits to this chassis hide kits




Subwoofer

Wavecor SW070WA01

order no. wc-sw070wa01

EUR 69,00 excl. VAT: € 57.98 / $ 65.52

cm bass driver with aluminium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 15 W
  • frequency range = 80-5000 Hz
  • resonance frequency fs = 73 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 84,5 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 3,85 N/A
  • voice coil inductance L = 0,16 mH
  • effective piston radiating area Sd = 22 cm2
  • effective mechanical mass incl. air load mms = 3,65 g
  • equivalent volume of compliance Vas = 0,89 l
  • total Q factor Qts = 0,34 (Qms=5,9, Qes=0,36)
  • voice coil diameter = 26 mm
  • maximum peak linear excursion vibration xlin = +/- 2,5 mm
  • mounting diameter d = 62,5 mm
  • overall diameter d = 69,9x69,9 mm
  • mounting depth (not countersunk) t = 39,5 mm
  • mass m = 0,16 kg
PDF data sheet

journal Hobby HiFi
Wavecor fertigt mit dem SW070WA01 / 02 winzige Subwoofer, die ungeachtet ihres Miniaturformats repektable Tieftonleistungen erbringen.

show kits to this chassis hide kits

Wavecor SW070WA02

order no. wc-sw070wa02

EUR 68,00 excl. VAT: € 57.14 / $ 64.57

cm bass driver with aluminium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 10 W
  • frequency range = 80-5000 Hz
  • resonance frequency fs = 76 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 81 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 4,75 N/A
  • voice coil inductance L = 0,28 mH
  • effective piston radiating area Sd = 22 cm2
  • effective mechanical mass incl. air load mms = 3,4 g
  • equivalent volume of compliance Vas = 0,89 l
  • total Q factor Qts = 0,43 (Qms=5,7, Qes=0,46)
  • voice coil diameter = 26 mm
  • maximum peak linear excursion vibration xlin = +/- 2,5 mm
  • mounting diameter d = 62,5 mm
  • overall diameter d = 69,9x69,9 mm
  • mounting depth (not countersunk) t = 39,5 mm
  • mass m = 0,16 kg
PDF data sheet

journal Hobby HiFi
Wavecor fertigt mit dem SW070WA01 / 02 winzige Subwoofer, die ungeachtet ihres Miniaturformats repektable Tieftonleistungen erbringen.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 0,97 L volume
from 114/72 Hz (-3dB/-8dB)

recommended cabinet 2:
3,7 L volume bass reflex cabinet
with HP35 reflex tube, 19 cm long.
from 56/45 Hz (-3dB/-8dB).

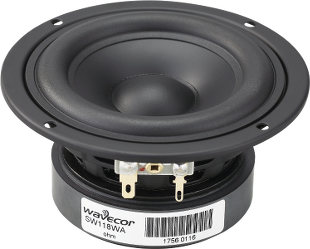

Wavecor SW118WA01

order no. wc-sw118wa01-01

EUR 59,00 excl. VAT: € 49.58 / $ 56.03

10 cm bass driver with paper cone.

  • power handling (continuous/programme) = 40 W
  • frequency range = 50-1500 Hz
  • resonance frequency fs = 58 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 4,7 N/A
  • voice coil inductance L = 0,48 mH
  • effective piston radiating area Sd = 49 cm2
  • effective mechanical mass incl. air load mms = 7,9 g
  • equivalent volume of compliance Vas = 3,3 l
  • total Q factor Qts = 0,39 (Qms=8,4, Qes=0,41)
  • voice coil diameter = 26 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 93 mm
  • overall diameter d = 118 mm
  • mounting depth (not countersunk) t = 62,4 mm
  • mass m = 0,8 kg
PDF data sheet

journal Hobby HiFi
SW118WA01 und SW118WA02 sind exzellente Subwoofertreiber für kleine Bassmodule. Sie ermöglichen für ihre Größe erstaunlich tief reichenden Bass mit herausragender Klangqualität.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,5 L volume
from 101/64 Hz (-3dB/-8dB)

recommended cabinet 2:
6,1 L volume bass reflex cabinet
with HP35 reflex tube, 13 cm long.
from 47/40 Hz (-3dB/-8dB).

Wavecor SW118WA02

order no. wc-sw118wa02-01

EUR 59,00 excl. VAT: € 49.58 / $ 56.03

10 cm bass driver with paper cone.

  • power handling (continuous/programme) = 40 W
  • frequency range = 50-1500 Hz
  • resonance frequency fs = 60 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 83,5 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 5,9 N/A
  • voice coil inductance L = 0,78 mH
  • effective piston radiating area Sd = 49 cm2
  • effective mechanical mass incl. air load mms = 7,3 g
  • equivalent volume of compliance Vas = 3,3 l
  • total Q factor Qts = 0,47 (Qms=8,1, Qes=0,5)
  • voice coil diameter = 26 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 93 mm
  • overall diameter d = 118 mm
  • mounting depth (not countersunk) t = 62,4 mm
  • mass m = 0,8 kg
PDF data sheet

journal Hobby HiFi
SW118WA01 und SW118WA02 sind exzellente Subwoofertreiber für kleine Bassmodule. Sie ermöglichen für ihre Größe erstaunlich tief reichenden Bass mit herausragender Klangqualität.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,9 L volume
from 82/52 Hz (-3dB/-8dB)

recommended cabinet 2:
11,7 L volume bass reflex cabinet
with HP50 reflex tube, 22 cm long.
from 38/32 Hz (-3dB/-8dB).

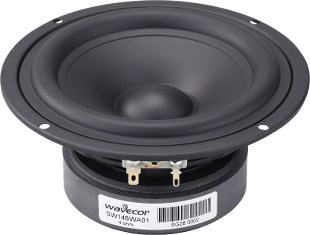

Wavecor SW146WA01

order no. wc-sw146wa01-01

EUR 82,00 excl. VAT: € 68.91 / $ 77.87

13 cm bass driver with paper cone.

  • power handling (continuous/programme) = 55 W
  • frequency range = 40-1000 Hz
  • resonance frequency fs = 51 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 5,9 N/A
  • voice coil inductance L = 0,9 mH
  • effective piston radiating area Sd = 85 cm2
  • effective mechanical mass incl. air load mms = 18,3 g
  • equivalent volume of compliance Vas = 5,5 l
  • total Q factor Qts = 0,48 (Qms=9,5, Qes=0,5)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 119 mm
  • overall diameter d = 146 mm
  • mounting depth (not countersunk) t = 70,2 mm
  • mass m = 1,1 kg
PDF data sheet

journal Hobby HiFi
Der SW146WA01 ist ein exzellenter Subwoofertreiber für ein kompaktes Bassmodul.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 3,7 L volume
from 81/51 Hz (-3dB/-8dB)

recommended cabinet 2:
15 L volume bass reflex cabinet
with HP50 reflex tube, 17 cm long.
from 37/32 Hz (-3dB/-8dB).

Wavecor SW146WA02

order no. wc-sw146wa02-01

EUR 82,00 excl. VAT: € 68.91 / $ 77.87

13 cm bass driver with paper cone.

  • power handling (continuous/programme) = 55 W
  • frequency range = 40-1000 Hz
  • resonance frequency fs = 54 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 85 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 7,8 N/A
  • voice coil inductance L = 1,5 mH
  • effective piston radiating area Sd = 85 cm2
  • effective mechanical mass incl. air load mms = 16,2 g
  • equivalent volume of compliance Vas = 5,5 l
  • total Q factor Qts = 0,54 (Qms=9, Qes=0,57)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 119 mm
  • overall diameter d = 146 mm
  • mounting depth (not countersunk) t = 70,2 mm
  • mass m = 1,1 kg
PDF data sheet

journal Hobby HiFi
Mit seiner hervorragenden Eignung für Transmissionlines stellt der SW146WA02 spannende Projekte in Aussicht.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 4,1 L volume
from 74/47 Hz (-3dB/-8dB)

recommended cabinet 2:
17 L volume bass reflex cabinet
with HP50 reflex tube, 19 cm long.
from 35/29 Hz (-3dB/-8dB).

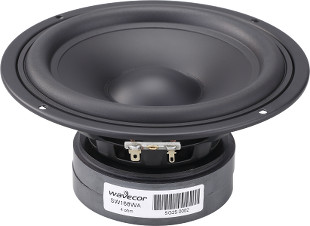

Wavecor SW168WA01

order no. wc-sw168wa01-01

EUR 87,00 excl. VAT: € 73.11 / $ 82.61

15 cm bass driver with paper cone.

  • power handling (continuous/programme) = 100 W
  • frequency range = 40-500 Hz
  • resonance frequency fs = 43 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88,5 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 7,5 N/A
  • voice coil inductance L = 1,3 mH
  • effective piston radiating area Sd = 127 cm2
  • effective mechanical mass incl. air load mms = 32,5 g
  • equivalent volume of compliance Vas = 9,6 l
  • total Q factor Qts = 0,45 (Qms=10,2, Qes=0,47)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 7 mm
  • mounting diameter d = 142 mm
  • overall diameter d = 168 mm
  • mounting depth (not countersunk) t = 85,4 mm
  • mass m = 1,35 kg
PDF data sheet

journal Hobby HiFi
Der SW168WA01 ist ein exzellenter Subwoofertreiber für ein kompaktes Bassmodul.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,7 L volume
from 82/52 Hz (-3dB/-8dB)

recommended cabinet 2:
9,1 L volume bass reflex cabinet
with HP50 reflex tube, 30 cm long.
from 43/34 Hz (-3dB/-8dB).

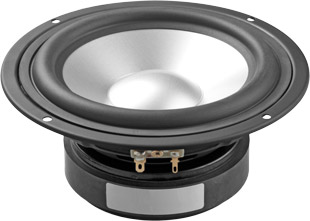

Wavecor SW178WA01

order no. wc-sw178wa01

EUR 99,00 excl. VAT: € 83.19 / $ 94.01

16 cm bass driver with aluminium cone.

  • power handling (continuous/programme) = 100 W
  • frequency range = 35-400 Hz
  • resonance frequency fs = 36 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 85 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 12 N/A
  • voice coil inductance L = 2,2 mH
  • effective piston radiating area Sd = 131 cm2
  • effective mechanical mass incl. air load mms = 35 g
  • equivalent volume of compliance Vas = 13,6 l
  • total Q factor Qts = 0,34 (Qms=18,4, Qes=0,35)
  • voice coil diameter = 38,8 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 142 mm
  • overall diameter d = 178 mm
  • mounting depth (not countersunk) t = 76 mm
  • mass m = 1,81 kg
PDF data sheet

journal Hobby HiFi
Der Wavecor-Bass SW178WA01 bietet hochklassige Subwooferqualitäten bei verführerisch kompaktem Gehäuseformat.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,7 L volume
from 59/37 Hz (-3dB/-8dB)

recommended cabinet 2:
9,5 L volume bass reflex cabinet
with HP50 reflex tube, 60 cm long.
from 30/24 Hz (-3dB/-8dB).

Wavecor SW182BD01

order no. wc-sw182bd01

EUR 139,00 excl. VAT: € 116.81 / $ 131.99

17 cm bass driver with aluminium cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 125 W
  • frequency range = 30-2000 Hz
  • resonance frequency fs = 26,5 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 85,5 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 8,5 N/A
  • voice coil inductance L = 1,5 mH
  • effective piston radiating area Sd = 131 cm2
  • effective mechanical mass incl. air load mms = 49 g
  • equivalent volume of compliance Vas = 13 l
  • total Q factor Qts = 0,34 (Qms=8,2, Qes=0,36)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 8 mm
  • mounting diameter d = 153 mm
  • overall diameter d = 182 mm
  • mounting depth (not countersunk) t = 92 mm
  • mass m = 1,85 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,7 L volume
from 67/42 Hz (-3dB/-8dB)

recommended cabinet 2:
9,5 L volume bass reflex cabinet
with HP50 reflex tube, 46 cm long.
from 34/27 Hz (-3dB/-8dB).

Wavecor SW182BD02

order no. wc-sw182bd02

EUR 139,00 excl. VAT: € 116.81 / $ 131.99

17 cm bass driver with aluminium cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 125 W
  • frequency range = 30-2000 Hz
  • resonance frequency fs = 30 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 83,5 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 11,5 N/A
  • voice coil inductance L = 2,5 mH
  • effective piston radiating area Sd = 131 cm2
  • effective mechanical mass incl. air load mms = 43 g
  • equivalent volume of compliance Vas = 13 l
  • total Q factor Qts = 0,35 (Qms=8, Qes=0,37)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 8 mm
  • mounting diameter d = 153 mm
  • overall diameter d = 182 mm
  • mounting depth (not countersunk) t = 92 mm
  • mass m = 1,85 kg
PDF data sheet

journal Hobby HiFi
Der Wavecor SW182BD01 und -02 löst die Aufgabe, aus einem sehr kleinen Gehäuse tiefsten Bass zu zaubern, mit begeisternder Konsequenz.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 5,1 L volume
from 62/39 Hz (-3dB/-8dB)

recommended cabinet 2:
21 L volume bass reflex cabinet
with HP50 reflex tube, 23 cm long.
from 29/24 Hz (-3dB/-8dB).

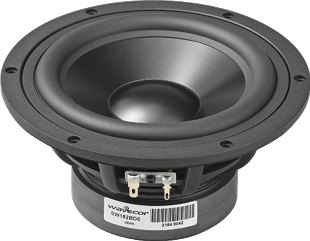

Wavecor SW182BD03

order no. wc-sw182bd03-01

EUR 143,00 excl. VAT: € 120.17 / $ 135.79

17 cm bass driver with aluminium cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 125 W
  • frequency range = 30-600 Hz
  • resonance frequency fs = 35,1 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 84 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 7,6 N/A
  • voice coil inductance L = 1 mH
  • effective piston radiating area Sd = 131 cm2
  • effective mechanical mass incl. air load mms = 39,5 g
  • equivalent volume of compliance Vas = 12,7 l
  • total Q factor Qts = 0,44 (Qms=13,3, Qes=0,45)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 7 mm
  • mounting diameter d = 153 mm
  • overall diameter d = 182 mm
  • mounting depth (not countersunk) t = 93 mm
  • mass m = 1,85 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 6,6 L volume
from 60/38 Hz (-3dB/-8dB)

recommended cabinet 2:
27 L volume bass reflex cabinet
with HP50 reflex tube, 17 cm long.
from 28/23 Hz (-3dB/-8dB).

Wavecor SW182BD04

order no. wc-sw182bd04-01

EUR 143,00 excl. VAT: € 120.17 / $ 135.79

17 cm bass driver with aluminium cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 125 W
  • frequency range = 30-600 Hz
  • resonance frequency fs = 37,2 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 81,5 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 10,2 N/A
  • voice coil inductance L = 1,7 mH
  • effective piston radiating area Sd = 131 cm2
  • effective mechanical mass incl. air load mms = 35,2 g
  • equivalent volume of compliance Vas = 12,7 l
  • total Q factor Qts = 0,49 (Qms=12,6, Qes=0,51)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 7 mm
  • mounting diameter d = 153 mm
  • overall diameter d = 182 mm
  • mounting depth (not countersunk) t = 93 mm
  • mass m = 1,85 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 13,5 L volume
from 53/33 Hz (-3dB/-8dB)

recommended cabinet 2:
55 L volume bass reflex cabinet
with HP70 reflex tube, 21 cm long.
from 25/21 Hz (-3dB/-8dB).

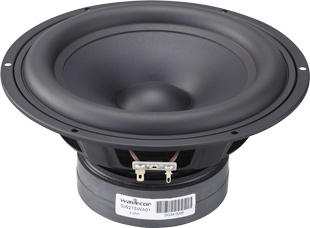

Wavecor SW215WA01

order no. wc-sw215wa01

EUR 115,00 excl. VAT: € 96.64 / $ 109.20

20 cm bass driver with paper cone.

  • power handling (continuous/programme) = 125 W
  • frequency range = 30-500 Hz
  • resonance frequency fs = 32 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 8,4 N/A
  • voice coil inductance L = 1,2 mH
  • effective piston radiating area Sd = 206 cm2
  • effective mechanical mass incl. air load mms = 53 g
  • equivalent volume of compliance Vas = 27,7 l
  • total Q factor Qts = 0,47 (Qms=12, Qes=0,49)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 10 mm
  • mounting diameter d = 187 mm
  • overall diameter d = 215 mm
  • mounting depth (not countersunk) t = 107,5 mm
  • mass m = 2,4 kg
PDF data sheet

journal Hobby HiFi
Wavecor liefert mit dem SW2015WA01 eine preislich hochattraktive und klanglich exzellente Bestückung für Subwoofer und Dreiweg-Lautsprecher.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 13,5 L volume
from 57/36 Hz (-3dB/-8dB)

recommended cabinet 2:
55 L volume bass reflex cabinet
with HP70 reflex tube, 18 cm long.
from 26/22 Hz (-3dB/-8dB).

Wavecor SW215WA02

order no. wc-sw215wa02

EUR 115,00 excl. VAT: € 96.64 / $ 109.20

20 cm bass driver with paper cone.

  • power handling (continuous/programme) = 150 W
  • frequency range = 30-500 Hz
  • resonance frequency fs = 35 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 11,4 N/A
  • voice coil inductance L = 1,7 mH
  • effective piston radiating area Sd = 206 cm2
  • effective mechanical mass incl. air load mms = 49 g
  • equivalent volume of compliance Vas = 26 l
  • total Q factor Qts = 0,5 (Qms=10,7, Qes=0,52)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 10 mm
  • mounting diameter d = 187 mm
  • overall diameter d = 215 mm
  • mounting depth (not countersunk) t = 107,5 mm
  • mass m = 2,4 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 8,8 L volume
from 46/29 Hz (-3dB/-8dB)

recommended cabinet 2:
34 L volume bass reflex cabinet
with HP70 reflex tube, 51 cm long.
from 22/18 Hz (-3dB/-8dB).

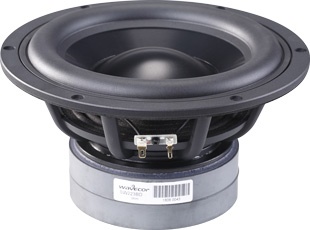

Wavecor SW223BD02

order no. wc-sw223bd02

EUR 274,00 excl. VAT: € 230.25 / $ 260.18

21 cm bass driver with aluminium cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 200 W
  • frequency range = 25-1000 Hz
  • resonance frequency fs = 24 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 83 dB (2,83V; 1m)
  • DC resistance Re = 3,5 Ohm
  • force factor BL = 11 N/A
  • voice coil inductance L = 0,8 mH
  • effective piston radiating area Sd = 206 cm2
  • effective mechanical mass incl. air load mms = 97 g
  • equivalent volume of compliance Vas = 28 l
  • total Q factor Qts = 0,4 (Qms=10,7, Qes=0,42)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 11,7 mm
  • mounting diameter d = 192 mm
  • overall diameter d = 223,5 mm
  • mounting depth (not countersunk) t = 126 mm
  • mass m = 4,4 kg
PDF data sheet

journal Hobby HiFi
Wavecors Subwoofer-Treiber SW223BD02 und SW223BD03 liefern grandiosen Tiefbass mit enormer Pegelfestigkeit und benötigen hierfür nicht einmal besonders große Gehäuse. Dank makelloser Übertragungsqualität bis über zwei Kilohertz bieten sie sich sogar für Zweiweg-Konstruktionen an.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 11,3 L volume
from 44/28 Hz (-3dB/-8dB)

recommended cabinet 2:
45 L volume bass reflex cabinet
with HP70 reflex tube, 41 cm long.
from 21/17 Hz (-3dB/-8dB).

Wavecor SW223BD03

order no. wc-sw223bd03

EUR 274,00 excl. VAT: € 230.25 / $ 260.18

21 cm bass driver with aluminium cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 200 W
  • frequency range = 25-1000 Hz
  • resonance frequency fs = 25 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 81 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 13,1 N/A
  • voice coil inductance L = 1,16 mH
  • effective piston radiating area Sd = 206 cm2
  • effective mechanical mass incl. air load mms = 89 g
  • equivalent volume of compliance Vas = 28 l
  • total Q factor Qts = 0,46 (Qms=10,2, Qes=0,48)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 11,7 mm
  • mounting diameter d = 192 mm
  • overall diameter d = 223,5 mm
  • mounting depth (not countersunk) t = 126 mm
  • mass m = 4,4 kg
PDF data sheet

journal Hobby HiFi
Wavecors Subwoofer-Treiber SW223BD02 und SW223BD03 liefern grandiosen Tiefbass mit enormer Pegelfestigkeit und benötigen hierfür nicht einmal besonders große Gehäuse. Dank makelloser Übertragungsqualität bis über zwei Kilohertz bieten sie sich sogar für Zweiweg-Konstruktionen an.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo
Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 12,2 L volume
from 48/30 Hz (-3dB/-8dB)

recommended cabinet 2:
50 L volume bass reflex cabinet
with HP70 reflex tube, 30 cm long.
from 22/19 Hz (-3dB/-8dB).

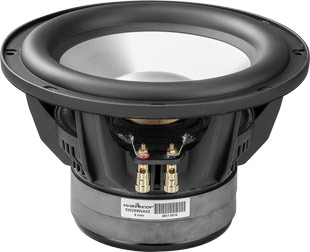

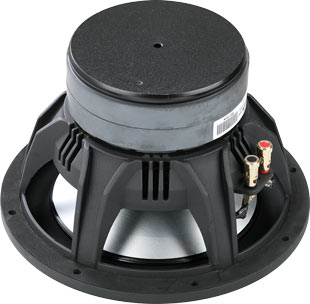

Wavecor SW259WA01

order no. wc-sw259wa01-01

EUR 349,00 excl. VAT: € 293.28 / $ 331.40

24 cm bass driver with aluminium cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 200 W
  • frequency range = 25-400 Hz
  • resonance frequency fs = 29 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 83,5 dB (2,83V; 1m)
  • DC resistance Re = 3,3 Ohm
  • force factor BL = 14,5 N/A
  • voice coil inductance L = 1,5 mH
  • effective piston radiating area Sd = 312 cm2
  • effective mechanical mass incl. air load mms = 173 g
  • equivalent volume of compliance Vas = 25 l
  • total Q factor Qts = 0,47 (Qms=10, Qes=0,49)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 11,5 mm
  • mounting diameter d = 227 mm
  • overall diameter d = 259 mm
  • mounting depth (not countersunk) t = 158 mm
  • mass m = 6,6 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo
Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 13,3 L volume
from 45/28 Hz (-3dB/-8dB)

recommended cabinet 2:
52 L volume bass reflex cabinet
with HP70 reflex tube, 33 cm long.
from 22/18 Hz (-3dB/-8dB).

Wavecor SW259WA02

order no. wc-sw259wa02-01

EUR 349,00 excl. VAT: € 293.28 / $ 331.40

24 cm bass driver with aluminium cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 200 W
  • frequency range = 20-400 Hz
  • resonance frequency fs = 24 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 81,5 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • force factor BL = 18,6 N/A
  • voice coil inductance L = 2,3 mH
  • effective piston radiating area Sd = 312 cm2
  • effective mechanical mass incl. air load mms = 158 g
  • equivalent volume of compliance Vas = 40 l
  • total Q factor Qts = 0,43 (Qms=14,2, Qes=0,44)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 11,5 mm
  • mounting diameter d = 227 mm
  • overall diameter d = 259 mm
  • mounting depth (not countersunk) t = 158 mm
  • mass m = 6,6 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 30 L volume
from 44/27 Hz (-3dB/-8dB)

recommended cabinet 2:
123 L volume bass reflex cabinet
with HP100 reflex tube, 30 cm long.
from 20/17 Hz (-3dB/-8dB).

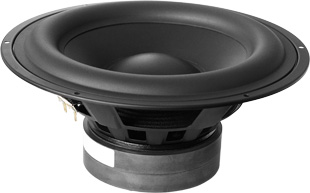

Wavecor SW270WA01

order no. wc-sw270wa01

EUR 158,00 excl. VAT: € 132.77 / $ 150.03

25 cm bass driver with paper cone. The voice coil is ventilated. To avoid compression effects the driver possesses a pole piece hole. The speaker has soldering lugs / faston terminals.

  • power handling (continuous/programme) = 150 W
  • frequency range = 25-400 Hz
  • resonance frequency fs = 28 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 9,7 N/A
  • voice coil inductance L = 1,4 mH
  • effective piston radiating area Sd = 312 cm2
  • effective mechanical mass incl. air load mms = 88 g
  • equivalent volume of compliance Vas = 51 l
  • total Q factor Qts = 0,5 (Qms=8,1, Qes=0,53)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 11 mm
  • mounting diameter d = 228 mm
  • overall diameter d = 270 mm
  • mounting depth (not countersunk) t = 122,6 mm
  • mass m = 3,6 kg
PDF data sheet

journal Hobby HiFi
Wavecor liefert mit dem SW270WA01 eine preislich hochattraktive und klanglich exzellente Alternative zu seinen Highend-Subwooferchassis.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo
Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 29 L volume
from 42/27 Hz (-3dB/-8dB)

recommended cabinet 2:
113 L volume bass reflex cabinet
with HP100 reflex tube, 35 cm long.
from 19/16 Hz (-3dB/-8dB).

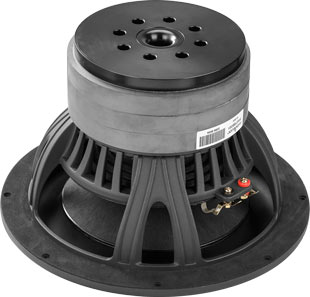

Wavecor SW275BD01

order no. wc-sw275bd01-01

EUR 543,00 excl. VAT: € 456.30 / $ 515.62

25 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 250 W
  • frequency range = 20-400 Hz
  • resonance frequency fs = 30,8 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 85 dB (2,83V; 1m)
  • DC resistance Re = 3,7 Ohm
  • force factor BL = 12,1 N/A
  • voice coil inductance L = 0,94 mH
  • effective piston radiating area Sd = 314 cm2
  • effective mechanical mass incl. air load mms = 121 g
  • equivalent volume of compliance Vas = 31 l
  • total Q factor Qts = 0,56 (Qms=12,7, Qes=0,59)
  • voice coil diameter = 64 mm
  • maximum peak linear excursion vibration xlin = +/- 16 mm
  • mounting diameter d = 228 mm
  • overall diameter d = 275,2 mm
  • mounting depth (not countersunk) t = 161 mm
  • mass m = 8 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor SW275BD02

order no. wc-sw275bd02-01

EUR 543,00 excl. VAT: € 456.30 / $ 515.62

25 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 250 W
  • frequency range = 20-400 Hz
  • resonance frequency fs = 31,6 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 82 dB (2,83V; 1m)
  • DC resistance Re = 7,1 Ohm
  • force factor BL = 15,2 N/A
  • voice coil inductance L = 1,74 mH
  • effective piston radiating area Sd = 314 cm2
  • effective mechanical mass incl. air load mms = 115 g
  • equivalent volume of compliance Vas = 31 l
  • total Q factor Qts = 0,66 (Qms=12,4, Qes=0,7)
  • voice coil diameter = 64 mm
  • maximum peak linear excursion vibration xlin = +/- 16 mm
  • mounting diameter d = 228 mm
  • overall diameter d = 275,2 mm
  • mounting depth (not countersunk) t = 161 mm
  • mass m = 8 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 13,4 L volume
from 50/31 Hz (-3dB/-8dB)

recommended cabinet 2:
52 L volume bass reflex cabinet
with HP70 reflex tube, 26 cm long.
from 24/20 Hz (-3dB/-8dB).

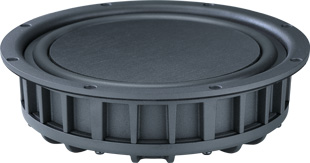

Wavecor SW280WA01

order no. wc-sw280wa01-01

EUR 350,00 excl. VAT: € 294.12 / $ 332.35

27 cm bass driver with glass fibre cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 200 W
  • frequency range = 20-200 Hz
  • resonance frequency fs = 26 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 3,4 Ohm
  • force factor BL = 13,4 N/A
  • voice coil inductance L = 1,4 mH
  • effective piston radiating area Sd = 335 cm2
  • effective mechanical mass incl. air load mms = 138 g
  • equivalent volume of compliance Vas = 43 l
  • total Q factor Qts = 0,4 (Qms=6, Qes=0,43)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 254 mm
  • overall diameter d = 280 mm
  • mounting depth (not countersunk) t = 76 mm
  • mass m = 6 kg
PDF data sheet

show kits to this chassis hide kits

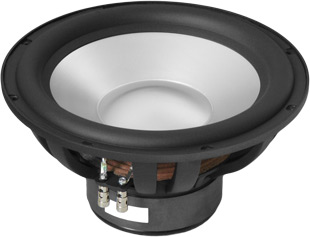

Wavecor SW310WA01

order no. wc-sw310wa01

EUR 365,00 excl. VAT: € 306.72 / $ 346.60

30 cm bass driver with aluminium cone. The basket is made of die-cast. The loudspeaker has terminals for connection.

  • power handling (continuous/programme) = 250 W
  • frequency range = 30-200 Hz
  • resonance frequency fs = 28,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 85 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 18,1 N/A
  • voice coil inductance L = 2,5 mH
  • effective piston radiating area Sd = 513 cm2
  • effective mechanical mass incl. air load mms = 180 g
  • equivalent volume of compliance Vas = 65 l
  • total Q factor Qts = 0,59 (Qms=11,5, Qes=0,62)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 12 mm
  • mounting diameter d = 282 mm
  • overall diameter d = 312 mm
  • mounting depth (not countersunk) t = 158,3 mm
  • mass m = 6,5 kg
PDF data sheet

journal Hobby HiFi
Wavecors SW310WA01 und SW310WA02 ermöglichen ultratiefen und extrem dynamischen Bass und benötigen dafür nicht einmal zu große Gehäuse

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 41 L volume
from 42/26 Hz (-3dB/-8dB)

recommended cabinet 2:
167 L volume bass reflex cabinet
with 2x HP100 reflex tube, 45 cm long.
from 19/16 Hz (-3dB/-8dB).

Wavecor SW310WA02

order no. wc-sw310wa02

EUR 365,00 excl. VAT: € 306.72 / $ 346.60

30 cm bass driver with aluminium cone. The basket is made of die-cast. The loudspeaker has terminals for connection.

  • power handling (continuous/programme) = 250 W
  • frequency range = 30-200 Hz
  • resonance frequency fs = 27,5 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 14,3 N/A
  • voice coil inductance L = 1,55 mH
  • effective piston radiating area Sd = 513 cm2
  • effective mechanical mass incl. air load mms = 194 g
  • equivalent volume of compliance Vas = 65 l
  • total Q factor Qts = 0,51 (Qms=11,5, Qes=0,53)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 12 mm
  • mounting diameter d = 282 mm
  • overall diameter d = 312 mm
  • mounting depth (not countersunk) t = 158,3 mm
  • mass m = 6,5 kg
PDF data sheet

journal Hobby HiFi
Wavecors SW310WA01 und SW310WA02 ermöglichen ultratiefen und extrem dynamischen Bass und benötigen dafür nicht einmal zu große Gehäuse

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 32 L volume
from 45/29 Hz (-3dB/-8dB)

recommended cabinet 2:
130 L volume bass reflex cabinet
with HP100 reflex tube, 26 cm long.
from 21/18 Hz (-3dB/-8dB).

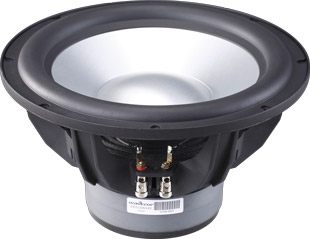

Wavecor SW312WA03

order no. wc-sw312wa03-01

EUR 410,00 excl. VAT: € 344.54 / $ 389.33

30 cm bass driver with aluminium cone. The basket is made of die-cast. The loudspeaker has terminals for connection.

  • power handling (continuous/programme) = 250 W
  • frequency range = 30-200 Hz
  • resonance frequency fs = 28 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 14,5 N/A
  • voice coil inductance L = 1,55 mH
  • effective piston radiating area Sd = 488 cm2
  • effective mechanical mass incl. air load mms = 185 g
  • equivalent volume of compliance Vas = 61 l
  • total Q factor Qts = 0,48 (Qms=11,5, Qes=0,5)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 11,5 mm
  • mounting diameter d = 276 mm
  • overall diameter d = 312 mm
  • mounting depth (not countersunk) t = 173 mm
  • mass m = 6,5 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 54 L volume
from 41/26 Hz (-3dB/-8dB)

recommended cabinet 2:
211 L volume bass reflex cabinet
with 2x HP100 reflex tube, 37 cm long.
from 18/16 Hz (-3dB/-8dB).

Wavecor SW312WA04

order no. wc-sw312wa04-01

EUR 410,00 excl. VAT: € 344.54 / $ 389.33

30 cm bass driver with aluminium cone. The basket is made of die-cast. The loudspeaker has terminals for connection.

  • power handling (continuous/programme) = 250 W
  • frequency range = 30-200 Hz
  • resonance frequency fs = 29 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 6,6 Ohm
  • force factor BL = 18,4 N/A
  • voice coil inductance L = 2,5 mH
  • effective piston radiating area Sd = 488 cm2
  • effective mechanical mass incl. air load mms = 172 g
  • equivalent volume of compliance Vas = 61 l
  • total Q factor Qts = 0,57 (Qms=11, Qes=0,6)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 11,5 mm
  • mounting diameter d = 276 mm
  • overall diameter d = 312 mm
  • mounting depth (not countersunk) t = 173 mm
  • mass m = 6,5 kg
PDF data sheet

show kits to this chassis hide kits




Passive Radiators

Wavecor PR178WA01

order no. wc-pr178wa01

EUR 65,00 excl. VAT: € 54.62 / $ 61.72

16 cm passive radiator.

  • resonance frequency fs = 19,9-26 Hz
  • effective piston radiating area Sd = 131 cm2
  • effective mechanical mass incl. air load mms = 50 g
  • equivalent volume of compliance Vas = 17 l
  • total Q factor Qts = (Qms=24, Qes=)
  • mounting diameter d = 141 mm
  • overall diameter d = 178 mm
  • mounting depth (not countersunk) t = 59 mm
  • mass m = 0,25 kg

show kits to this chassis hide kits

Wavecor PR182BD01

order no. wc-pr182bd01

EUR 105,00 excl. VAT: € 88.24 / $ 99.71

17 cm passive radiator. The basket is made of die-cast.

  • resonance frequency fs = 8,2-10 Hz
  • effective piston radiating area Sd = 131 cm2
  • effective mechanical mass incl. air load mms = 72 g
  • equivalent volume of compliance Vas = 85 l
  • total Q factor Qts = (Qms=9, Qes=)
  • mounting diameter d = 153 mm
  • overall diameter d = 182 mm
  • mounting depth (not countersunk) t = 68 mm
  • mass m = 0,40 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor PR223BD01

order no. wc-pr223bd01

EUR 148,00 excl. VAT: € 124.37 / $ 140.54

21 cm passive radiator. The basket is made of die-cast.

  • resonance frequency fs = 13,9-20 Hz
  • effective piston radiating area Sd = 214 cm2
  • effective mechanical mass incl. air load mms = 165 g
  • equivalent volume of compliance Vas = 25 l
  • total Q factor Qts = (Qms=14,5, Qes=)
  • mounting diameter d = 192 mm
  • overall diameter d = 223,5 mm
  • mounting depth (not countersunk) t = 128 mm
  • mass m = 0,9 kg

show kits to this chassis hide kits

Wavecor PR223BD02

order no. wc-pr223bd02-01

EUR 148,00 excl. VAT: € 124.37 / $ 140.54

21 cm passive radiator. The basket is made of die-cast.

  • resonance frequency fs = 8,5-15 Hz
  • effective piston radiating area Sd = 206 cm2
  • effective mechanical mass incl. air load mms = 162 g
  • equivalent volume of compliance Vas = 41,6 l
  • total Q factor Qts = (Qms=19, Qes=)
  • mounting diameter d = 192 mm
  • overall diameter d = 223,5 mm
  • mounting depth (not countersunk) t = 90 mm
  • mass m = 0,95 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor PR263WA01

order no. wc-pr263wa01

EUR 171,00 excl. VAT: € 143.70 / $ 162.38

25 cm passive radiator. The basket is made of die-cast.

  • resonance frequency fs = 12-18,5 Hz
  • effective piston radiating area Sd = 314 cm2
  • effective mechanical mass incl. air load mms = 255 g
  • equivalent volume of compliance Vas = 40,5 l
  • total Q factor Qts = (Qms=26, Qes=)
  • mounting diameter d = 234 mm
  • overall diameter d = 263 mm
  • mounting depth (not countersunk) t = 101 mm
  • mass m = 1,2 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor PR270WA01

order no. wc-pr270wa01

EUR 91,00 excl. VAT: € 76.47 / $ 86.41

25 cm passive radiator.

  • resonance frequency fs = 16,3-26 Hz
  • effective piston radiating area Sd = 312 cm2
  • effective mechanical mass incl. air load mms = 112 g
  • equivalent volume of compliance Vas = 46 l
  • total Q factor Qts = (Qms=24, Qes=)
  • mounting diameter d = 228 mm
  • overall diameter d = 270 mm
  • mounting depth (not countersunk) t = 84,3 mm
  • mass m = 0,64 kg
PDF data sheet

show kits to this chassis hide kits




speakers for your car

Wavecor TW013WA01

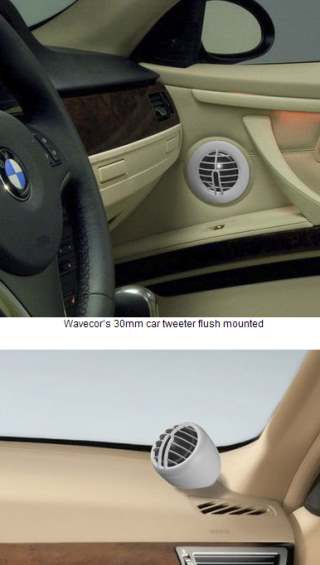

Wavecor TS030TU01 grey

order no. wc-ts30-tu01

EUR 148,00 excl. VAT: € 124.37 / $ 140.54

30 mm dome tweeter with silk dome. The voice coil windings are immersed in magnetic fluid to increase short term power handling capacity, to reduce the compression and the Q factor.. A pair of speakers is delivered (the price is for one pair). The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 35 W
  • frequency range = 2000-25000 Hz
  • resonance frequency fs = 1075 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 94 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • voice coil inductance L = 0,016 mH
  • effective piston radiating area Sd = 11 cm2
  • effective mechanical mass incl. air load mms = 0,47 g
  • equivalent volume of compliance Vas = 0,01 l
  • total Q factor Qts = 0,71 (Qms=1,15, Qes=1,85)
  • voice coil diameter = 30 mm
  • mounting diameter d = 48 mm
  • overall diameter d = 51,5 mm
  • mounting depth (not countersunk) t = 32,5 mm

show kits to this chassis hide kits

Wavecor TW013WA01

Wavecor TS030TU02 black

order no. wc-ts30-tu02

EUR 148,00 excl. VAT: € 124.37 / $ 140.54

30 mm dome tweeter with silk dome. The voice coil windings are immersed in magnetic fluid to increase short term power handling capacity, to reduce the compression and the Q factor.. A pair of speakers is delivered (the price is for one pair). The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 35 W
  • frequency range = 2000-25000 Hz
  • resonance frequency fs = 1075 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 94 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • voice coil inductance L = 0,016 mH
  • effective piston radiating area Sd = 11 cm2
  • effective mechanical mass incl. air load mms = 0,47 g
  • equivalent volume of compliance Vas = 0,01 l
  • total Q factor Qts = 0,71 (Qms=1,15, Qes=1,85)
  • voice coil diameter = 30 mm
  • mounting diameter d = 48 mm
  • overall diameter d = 51,5 mm
  • mounting depth (not countersunk) t = 32,5 mm

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 3,4 L volume
from 105/66 Hz (-3dB/-8dB)

recommended cabinet 2:
13,8 L volume bass reflex cabinet
with HP70 reflex tube, 21 cm long.
from 50/41 Hz (-3dB/-8dB).

Wavecor WF132TU01

order no. wc-wf132tu01

EUR 175,00 excl. VAT: € 147.06 / $ 166.18

14 cm bass-midrange driver with paper cone. The magnet system is based on Neodymium technology. The basket is made of die-cast.

  • power handling (continuous/programme) = 55 W
  • frequency range = 60-4000 Hz
  • resonance frequency fs = 60 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89,5 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • voice coil inductance L = 0,16 mH
  • effective piston radiating area Sd = 95 cm2
  • effective mechanical mass incl. air load mms = 10 g
  • equivalent volume of compliance Vas = 8,5 l
  • total Q factor Qts = 0,43 (Qms=12, Qes=0,45)
  • voice coil diameter = 32,5 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 120 mm
  • overall diameter d = 150 mm
  • mounting depth (not countersunk) t = 65 mm
PDF data sheet

journal Hobby HiFi
Wavecors größter Car-HiFi Bass macht auch in 230-Volt-Umgebungen eine hervorragende Figur. Als Treiber für einen ultratief spielenden Subwoofer ist er unser Favorit.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 3,6 L volume
from 109/69 Hz (-3dB/-8dB)

recommended cabinet 2:
14,6 L volume bass reflex cabinet
with HP70 reflex tube, 18 cm long.
from 52/43 Hz (-3dB/-8dB).

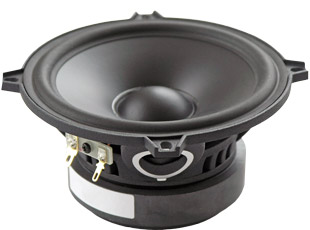

Wavecor WF132TU02

order no. wc-wf132tu02

EUR 89,00 excl. VAT: € 74.79 / $ 84.51

14 cm bass-midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 55 W
  • frequency range = 60-4000 Hz
  • resonance frequency fs = 62 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • voice coil inductance L = 0,23 mH
  • effective piston radiating area Sd = 95 cm2
  • effective mechanical mass incl. air load mms = 10 g
  • equivalent volume of compliance Vas = 9 l
  • total Q factor Qts = 0,44 (Qms=12, Qes=0,46)
  • voice coil diameter = 33 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 120 mm
  • overall diameter d = 150 mm
  • mounting depth (not countersunk) t = 65,5 mm
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 10 L volume
from 86/54 Hz (-3dB/-8dB)

recommended cabinet 2:
40 L volume bass reflex cabinet
with HP70 reflex tube, 9 cm long.
from 41/34 Hz (-3dB/-8dB).

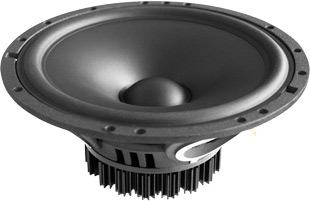

Wavecor WF166TU01

order no. wc-wf166tu01

EUR 184,00 excl. VAT: € 154.62 / $ 174.72

15 cm bass-midrange driver with paper cone. The magnet system is based on Neodymium technology. The basket is made of die-cast.

  • power handling (continuous/programme) = 60 W
  • frequency range = 50-3500 Hz
  • resonance frequency fs = 50 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 91,5 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • voice coil inductance L = 0,16 mH
  • effective piston radiating area Sd = 139 cm2
  • effective mechanical mass incl. air load mms = 12,5 g
  • equivalent volume of compliance Vas = 23,2 l
  • total Q factor Qts = 0,45 (Qms=11, Qes=0,47)
  • voice coil diameter = 32,5 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 149 mm
  • overall diameter d = 165 mm
  • mounting depth (not countersunk) t = 72,5 mm
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 11,6 L volume
from 81/51 Hz (-3dB/-8dB)

recommended cabinet 2:
47 L volume bass reflex cabinet
with HP70 reflex tube, 8 cm long.
from 37/32 Hz (-3dB/-8dB).

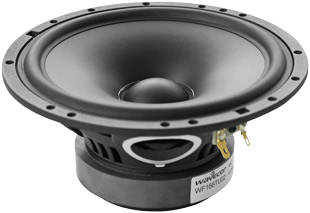

Wavecor WF166TU02

order no. wc-wf166tu02

EUR 92,00 excl. VAT: € 77.31 / $ 87.36

16 cm bass-midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 60 W
  • frequency range = 50-3500 Hz
  • resonance frequency fs = 50 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • voice coil inductance L = 0,23 mH
  • effective piston radiating area Sd = 139 cm2
  • effective mechanical mass incl. air load mms = 12,5 g
  • equivalent volume of compliance Vas = 22,3 l
  • total Q factor Qts = 0,48 (Qms=9,8, Qes=0,5)
  • voice coil diameter = 33 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 149 mm
  • overall diameter d = 165,6 mm
  • mounting depth (not countersunk) t = 73,5 mm
  • mass m = 1,15 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 15 L volume
from 45/28 Hz (-3dB/-8dB)

recommended cabinet 2:
63 L volume bass reflex cabinet
with HP70 reflex tube, 26 cm long.
from 21/18 Hz (-3dB/-8dB).

Wavecor SW263TU01

order no. wc-sw263tu01

EUR 353,00 excl. VAT: € 296.64 / $ 335.20

25 cm bass driver with aluminium cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 200 W
  • frequency range = 35-200 Hz
  • resonance frequency fs = 29,5 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • voice coil inductance L = 0,87 mH
  • effective piston radiating area Sd = 314 cm2
  • effective mechanical mass incl. air load mms = 165 g
  • equivalent volume of compliance Vas = 24,5 l
  • total Q factor Qts = 0,5 (Qms=13, Qes=0,52)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 11,25 mm
  • mounting diameter d = 234 mm
  • overall diameter d = 263 mm
  • mounting depth (not countersunk) t = 150,5 mm
  • mass m = 6,4 kg

journal Hobby HiFi
Wavecors Car-HiFi-Bass SW263TU01 macht auch in 230-Volt-Umgebungen eine hervorragende Figur.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 24 L volume
from 43/27 Hz (-3dB/-8dB)

recommended cabinet 2:
94 L volume bass reflex cabinet
with HP100 reflex tube, 43 cm long.
from 21/17 Hz (-3dB/-8dB).

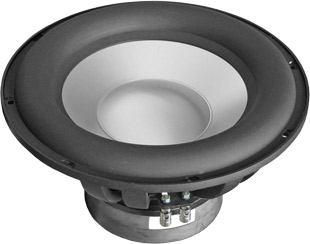

Wavecor SW312TU01

order no. wc-sw312tu01

EUR 388,00 excl. VAT: € 326.05 / $ 368.44

30 cm bass driver with aluminium cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 250 W
  • frequency range = 35-200 Hz
  • resonance frequency fs = 23 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • voice coil inductance L = 0,9 mH
  • effective piston radiating area Sd = 472 cm2
  • effective mechanical mass incl. air load mms = 205 g
  • equivalent volume of compliance Vas = 72 l
  • total Q factor Qts = 0,41 (Qms=20, Qes=0,42)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 11,5 mm
  • mounting diameter d = 281 mm
  • overall diameter d = 312 mm
  • mounting depth (not countersunk) t = 168,3 mm

show kits to this chassis hide kits




OEM

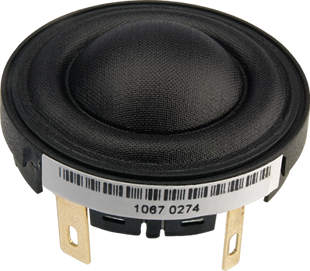

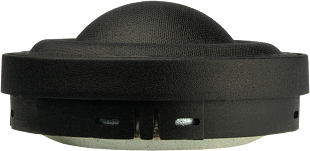

Wavecor TW022WA01

order no. anfrage

- not available (_)

22 mm dome tweeter with fabric dome. The magnet system is based on Neodymium technology.

  • frequency range = 2500-40000 Hz
  • resonance frequency fs = 1200 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 3,8 Ohm
  • effective piston radiating area Sd = 6,6 cm2
  • effective mechanical mass incl. air load mms = 0,22 g
  • voice coil diameter = 22 mm
  • overall diameter d = 39,6 mm
  • mounting depth (not countersunk) t = 19 mm
PDF data sheet

show kits to this chassis hide kits

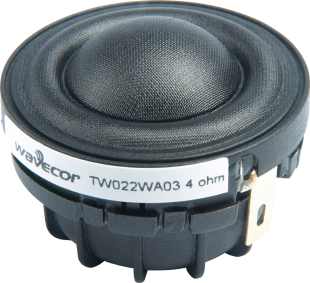

Wavecor TW022WA03

order no. anfrage

- not available (_)

22 mm dome tweeter with fabric dome. The magnet system is based on Neodymium technology.

  • frequency range = 2000-40000 Hz
  • resonance frequency fs = 750 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 3,8 Ohm
  • effective piston radiating area Sd = 6,6 cm2
  • effective mechanical mass incl. air load mms = 0,21 g
  • voice coil diameter = 22 mm
  • overall diameter d = 39,6 mm
  • mounting depth (not countersunk) t = 24 mm
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01

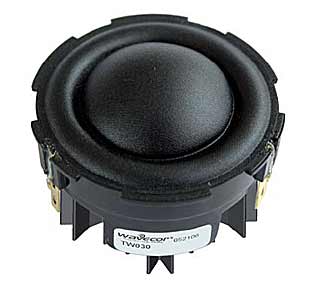

Wavecor TW030WA03

order no. anfrage

- not available (_)

30 mm dome tweeter with fabric dome. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 30 W
  • frequency range = 2000-25000 Hz
  • resonance frequency fs = 1000 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 95 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • voice coil inductance L = 0,016 mH
  • effective piston radiating area Sd = 11 cm2
  • effective mechanical mass incl. air load mms = 0,45 g
  • equivalent volume of compliance Vas = 0,0087 l
  • total Q factor Qts = 1,49 (Qms=5,9, Qes=2)
  • voice coil diameter = 30 mm
  • mounting diameter d = 48 mm
  • overall diameter d = 51,5 mm
  • mounting depth (not countersunk) t = 32,5 mm
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01

Wavecor TW030WA04

order no. anfrage

- not available (_)

30 mm dome tweeter with fabric dome. The voice coil windings are immersed in magnetic fluid to increase short term power handling capacity, to reduce the compression and the Q factor.. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 35 W
  • frequency range = 2000-25000 Hz
  • resonance frequency fs = 1075 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 94 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • voice coil inductance L = 0,016 mH
  • effective piston radiating area Sd = 11 cm2
  • effective mechanical mass incl. air load mms = 0,47 g
  • equivalent volume of compliance Vas = 0,01 l
  • total Q factor Qts = 0,71 (Qms=1,15, Qes=1,85)
  • voice coil diameter = 30 mm
  • mounting diameter d = 48 mm
  • overall diameter d = 51,5 mm
  • mounting depth (not countersunk) t = 32,5 mm
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01

recommended cabinet 1:
closed cabinet with 0,94 L volume
from 146/92 Hz (-3dB/-8dB)

recommended cabinet 2:
3,6 L volume bass reflex cabinet
with HP35 reflex tube, 11 cm long.
from 71/58 Hz (-3dB/-8dB).

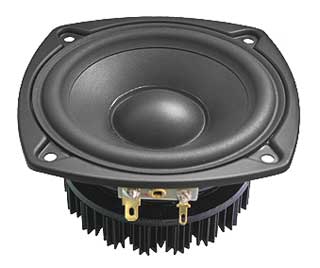

Wavecor WF110WA01

order no. anfrage

- not available (_)

10 cm midrange driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 50 W
  • frequency range = 80-4000 Hz
  • resonance frequency fs = 76 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • voice coil inductance L = 0,12 mH
  • effective piston radiating area Sd = 55 cm2
  • effective mechanical mass incl. air load mms = 6,2 g
  • equivalent volume of compliance Vas = 3 l
  • total Q factor Qts = 0,4 (Qms=8,5, Qes=0,42)
  • voice coil diameter = 32,5 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 93 mm
  • overall diameter d = 110 mm
  • mounting depth (not countersunk) t = 56 mm

show kits to this chassis hide kits

Wavecor TW013WA01

recommended cabinet 1:
closed cabinet with 1,1 L volume
from 136/86 Hz (-3dB/-8dB)

recommended cabinet 2:
4,5 L volume bass reflex cabinet
with HP35 reflex tube, 9 cm long.
from 65/54 Hz (-3dB/-8dB).

Wavecor WF110WA02

order no. wc-wf110wa02

EUR 46,00 excl. VAT: € 38.66 / $ 43.68

10 cm midrange driver with paper cone.

  • power handling (continuous/programme) = 50 W
  • frequency range = 80-4000 Hz
  • resonance frequency fs = 76 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88,5 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • voice coil inductance L = 0,13 mH
  • effective piston radiating area Sd = 55 cm2
  • effective mechanical mass incl. air load mms = 6,2 g
  • equivalent volume of compliance Vas = 3 l
  • total Q factor Qts = 0,43 (Qms=8,5, Qes=0,45)
  • voice coil diameter = 33 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 93 mm
  • overall diameter d = 110 mm
  • mounting depth (not countersunk) t = 56 mm

show kits to this chassis hide kits

Wavecor TW013WA01

recommended cabinet 1:
closed cabinet with 1,8 L volume
from 121/77 Hz (-3dB/-8dB)

recommended cabinet 2:
7,2 L volume bass reflex cabinet
with HP50 reflex tube, 16 cm long.
from 56/47 Hz (-3dB/-8dB).

Wavecor WF110WA03

order no. anfrage

- not available (_)

10 cm midrange driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 50 W
  • frequency range = 80-4000 Hz
  • resonance frequency fs = 78 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86,5 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • voice coil inductance L = 0,18 mH
  • effective piston radiating area Sd = 55 cm2
  • effective mechanical mass incl. air load mms = 6 g
  • equivalent volume of compliance Vas = 3 l
  • total Q factor Qts = 0,51 (Qms=8,5, Qes=0,54)
  • voice coil diameter = 33 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 93 mm
  • overall diameter d = 110 mm
  • mounting depth (not countersunk) t = 56 mm

show kits to this chassis hide kits

Wavecor TW013WA01

recommended cabinet 1:
closed cabinet with 2 L volume
from 117/74 Hz (-3dB/-8dB)

recommended cabinet 2:
8,2 L volume bass reflex cabinet
with HP50 reflex tube, 15 cm long.
from 53/46 Hz (-3dB/-8dB).

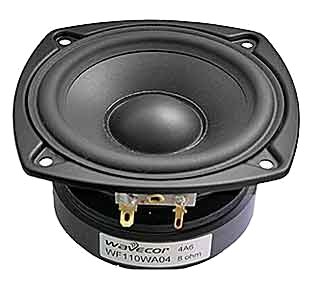

Wavecor WF110WA04

order no. wc-wf110wa04

EUR 46,00 excl. VAT: € 38.66 / $ 43.68

10 cm midrange driver with paper cone.

  • power handling (continuous/programme) = 50 W
  • frequency range = 80-4000 Hz
  • resonance frequency fs = 78 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 85 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • voice coil inductance L = 0,2 mH
  • effective piston radiating area Sd = 55 cm2
  • effective mechanical mass incl. air load mms = 6,3 g
  • equivalent volume of compliance Vas = 3 l
  • total Q factor Qts = 0,53 (Qms=8,5, Qes=0,57)
  • voice coil diameter = 33 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 93 mm
  • overall diameter d = 110 mm
  • mounting depth (not countersunk) t = 56 mm

show kits to this chassis hide kits

Wavecor TW013WA01

recommended cabinet 1:
closed cabinet with 3 L volume
from 113/71 Hz (-3dB/-8dB)

recommended cabinet 2:
11,6 L volume bass reflex cabinet
with HP50 reflex tube, 11 cm long.
from 55/45 Hz (-3dB/-8dB).

Wavecor WF138WA01

order no. wc-wf138wa01

EUR 160,00 excl. VAT: € 134.45 / $ 151.93

13 cm midrange driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 60 W
  • frequency range = 65-3500 Hz
  • resonance frequency fs = 59 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89,5 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • voice coil inductance L = 0,15 mH
  • effective piston radiating area Sd = 95 cm2
  • effective mechanical mass incl. air load mms = 9,75 g
  • equivalent volume of compliance Vas = 9,6 l
  • total Q factor Qts = 0,41 (Qms=7,2, Qes=0,43)
  • voice coil diameter = 32,5 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 118 mm
  • overall diameter d = 138 mm
  • mounting depth (not countersunk) t = 62 mm
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01

recommended cabinet 1:
closed cabinet with 3,6 L volume
from 106/67 Hz (-3dB/-8dB)

recommended cabinet 2:
14,5 L volume bass reflex cabinet
with HP50 reflex tube, 9 cm long.
from 51/42 Hz (-3dB/-8dB).

Wavecor WF138WA02

order no. anfrage

- not available (_)

13 cm midrange driver with paper cone.

  • power handling (continuous/programme) = 60 W
  • frequency range = 65-3500 Hz
  • resonance frequency fs = 59 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • voice coil inductance L = 0,22 mH
  • effective piston radiating area Sd = 95 cm2
  • effective mechanical mass incl. air load mms = 9,75 g
  • equivalent volume of compliance Vas = 9,6 l
  • total Q factor Qts = 0,43 (Qms=7,2, Qes=0,46)
  • voice coil diameter = 33 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 118 mm
  • overall diameter d = 138 mm
  • mounting depth (not countersunk) t = 62,5 mm
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01

recommended cabinet 1:
closed cabinet with 6,4 L volume
from 96/61 Hz (-3dB/-8dB)

recommended cabinet 2:
26 L volume bass reflex cabinet
with HP50 reflex tube, 5 cm long.
from 43/37 Hz (-3dB/-8dB).

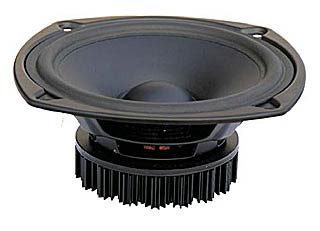

Wavecor WF138WA03

order no. wc-wf138wa03

EUR 160,00 excl. VAT: € 134.45 / $ 151.93

13 cm midrange driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 60 W
  • frequency range = 75-3500 Hz
  • resonance frequency fs = 64 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87,5 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • voice coil inductance L = 0,23 mH
  • effective piston radiating area Sd = 95 cm2
  • effective mechanical mass incl. air load mms = 9 g
  • equivalent volume of compliance Vas = 9,5 l
  • total Q factor Qts = 0,53 (Qms=9,4, Qes=0,56)
  • voice coil diameter = 33 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 118 mm
  • overall diameter d = 138 mm
  • mounting depth (not countersunk) t = 62 mm
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01

recommended cabinet 1:
closed cabinet with 7,4 L volume
from 91/57 Hz (-3dB/-8dB)

recommended cabinet 2:
29 L volume bass reflex cabinet
with HP50 reflex tube, 5 cm long.
from 41/35 Hz (-3dB/-8dB).

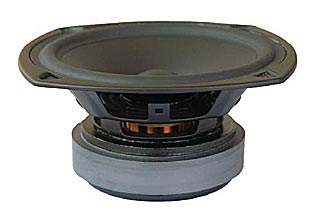

Wavecor WF138WA04

order no. wc-wf138wa04

EUR 52,00 excl. VAT: € 43.70 / $ 49.38

13 cm midrange driver with paper cone.

  • power handling (continuous/programme) = 60 W
  • frequency range = 75-3500 Hz
  • resonance frequency fs = 64 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86,5 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • voice coil inductance L = 0,34 mH
  • effective piston radiating area Sd = 95 cm2
  • effective mechanical mass incl. air load mms = 9 g
  • equivalent volume of compliance Vas = 9 l
  • total Q factor Qts = 0,56 (Qms=7,6, Qes=0,61)
  • voice coil diameter = 33 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 118 mm
  • overall diameter d = 138 mm
  • mounting depth (not countersunk) t = 62,5 mm
PDF data sheet

journal Hobby HiFi
Wavecors WF138WA04 zeigt sich optisch eher unscheinbar, entpuppt sich aber als akustischer Überflieger für eine preisgünstige Regalbox oder zierliche Transmissionline.

show kits to this chassis hide kits

Wavecor TW013WA01

recommended cabinet 1:
closed cabinet with 7,5 L volume
from 94/59 Hz (-3dB/-8dB)

recommended cabinet 2:
28 L volume bass reflex cabinet
with HP70 reflex tube, 11 cm long.
from 46/37 Hz (-3dB/-8dB).

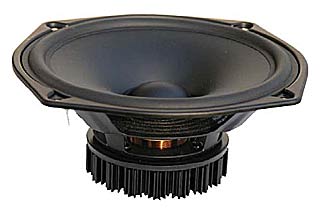

Wavecor WF160WA01

order no. wc-wf160wa01

EUR 160,00 excl. VAT: € 134.45 / $ 151.93

15 cm midrange driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 60 W
  • frequency range = 50-3000 Hz
  • resonance frequency fs = 48 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 91,5 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • voice coil inductance L = 0,15 mH
  • effective piston radiating area Sd = 139 cm2
  • effective mechanical mass incl. air load mms = 11,5 g
  • equivalent volume of compliance Vas = 25,5 l
  • total Q factor Qts = 0,4 (Qms=7, Qes=0,42)
  • voice coil diameter = 33 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 143 mm
  • overall diameter d = 160 mm
  • mounting depth (not countersunk) t = 70 mm
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01

recommended cabinet 1:
closed cabinet with 9,6 L volume
from 86/54 Hz (-3dB/-8dB)

recommended cabinet 2:
38 L volume bass reflex cabinet
with HP70 reflex tube, 9 cm long.
from 41/34 Hz (-3dB/-8dB).

Wavecor WF160WA02

order no. not-available

- not available

15 cm midrange driver with paper cone.

  • power handling (continuous/programme) = 60 W
  • frequency range = 50-3000 Hz
  • resonance frequency fs = 48 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90,5 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • voice coil inductance L = 0,22 mH
  • effective piston radiating area Sd = 139 cm2
  • effective mechanical mass incl. air load mms = 11,5 g
  • equivalent volume of compliance Vas = 25,5 l
  • total Q factor Qts = 0,43 (Qms=7, Qes=0,46)
  • voice coil diameter = 33 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 143 mm
  • overall diameter d = 160 mm
  • mounting depth (not countersunk) t = 70.5 mm
PDF data sheet

show kits to this chassis hide kits




no longer sold

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 1 L volume
from 107/67 Hz (-3dB/-8dB)

recommended cabinet 2:
3,3 L volume bass reflex cabinet
with HP35 reflex tube, 25 cm long.
from 57/44 Hz (-3dB/-8dB).

Wavecor WF120BD01 Nomex

order no. wc-wf120bd01

EUR 80,00 excl. VAT: € 67.23 / $ 75.97

11 cm midrange driver with high quality cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 60 W
  • resonance frequency fs = 44 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 85,5 dB (2,83V; 1m)
  • DC resistance Re = 3,4 Ohm
  • force factor BL = 5,1 N/A
  • voice coil inductance L = 0,12 mH
  • effective piston radiating area Sd = 54 cm2
  • effective mechanical mass incl. air load mms = 9,0 g
  • equivalent volume of compliance Vas = 6,0 l
  • total Q factor Qts = 0,31 (Qms=6,7, Qes=0,33)
  • voice coil diameter = 32 mm
  • mounting diameter d = 99 mm
  • overall diameter d = 120,4 mm
  • mounting depth (not countersunk) t = 71 mm
  • mass m = 1,0 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,3 L volume
from 105/66 Hz (-3dB/-8dB)

recommended cabinet 2:
4,4 L volume bass reflex cabinet
with HP35 reflex tube, 19 cm long.
from 54/43 Hz (-3dB/-8dB).

Wavecor WF120BD02 Nomex

order no. wc-wf120bd02

EUR 80,00 excl. VAT: € 67.23 / $ 75.97

11 cm midrange driver with high quality cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 60 W
  • resonance frequency fs = 47 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 83 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 6,3 N/A
  • voice coil inductance L = 0,18 mH
  • effective piston radiating area Sd = 54 cm2
  • effective mechanical mass incl. air load mms = 8,0 g
  • equivalent volume of compliance Vas = 6,0 l
  • total Q factor Qts = 0,36 (Qms=6,8, Qes=0,38)
  • voice coil diameter = 32 mm
  • mounting diameter d = 99 mm
  • overall diameter d = 120,5 mm
  • mounting depth (not countersunk) t = 71 mm
  • mass m = 1,0 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01

recommended cabinet 1:
closed cabinet with 1,6 L volume
from 118/75 Hz (-3dB/-8dB)

recommended cabinet 2:
4,9 L volume bass reflex cabinet
with HP50 reflex tube, 27 cm long.
from 65/50 Hz (-3dB/-8dB).

Wavecor WF152BD01 Nomex

order no. wc-wf152bd01

EUR 98,00 excl. VAT: € 82.35 / $ 93.06

14 cm bass-midrange driver with high quality cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 70 W
  • resonance frequency fs = 46 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 6,3 N/A
  • voice coil inductance L = 0,12 mH
  • effective piston radiating area Sd = 93 cm2
  • effective mechanical mass incl. air load mms = 13,5 g
  • equivalent volume of compliance Vas = 10,8 l
  • total Q factor Qts = 0,3 (Qms=10, Qes=0,31)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 128 mm
  • overall diameter d = 152 mm
  • mounting depth (not countersunk) t = 80,5 mm
PDF data sheet

journal Hobby HiFi
Wavecor gelingt mit dem WF1528D01 das Kunststück, verlustarme Sicken ohne Sickenresonanz zu kultivieren und damit einen perfekten Frequenzgang zu realisieren.

show kits to this chassis hide kits

Wavecor TW013WA01

recommended cabinet 1:
closed cabinet with 2,6 L volume
from 100/63 Hz (-3dB/-8dB)

recommended cabinet 2:
9,4 L volume bass reflex cabinet
with HP50 reflex tube, 19 cm long.
from 51/40 Hz (-3dB/-8dB).

Wavecor WF152BD02 Nomex

order no. not-available

- not available

14 cm bass-midrange driver with high quality cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 70 W
  • resonance frequency fs = 47,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 7,9 N/A
  • voice coil inductance L = 0,19 mH
  • effective piston radiating area Sd = 93 cm2
  • effective mechanical mass incl. air load mms = 12,8 g
  • equivalent volume of compliance Vas = 10,8 l
  • total Q factor Qts = 0,38 (Qms=11, Qes=0,39)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 128 mm
  • overall diameter d = 152 mm
  • mounting depth (not countersunk) t = 80,5 mm
PDF data sheet

journal Hobby HiFi
Wavecor gelingt mit dem WF1528D02 das Kunststück, verlustarme Sicken ohne Sickenresonanz zu kultivieren und damit einen perfekten Frequenzgang zu realisieren.

show kits to this chassis hide kits

Wavecor TW013WA01

recommended cabinet 1:
closed cabinet with 5,4 L volume
from 72/45 Hz (-3dB/-8dB)

recommended cabinet 2:
19 L volume bass reflex cabinet
with HP50 reflex tube, 18 cm long.
from 37/29 Hz (-3dB/-8dB).

Wavecor WF182BD01 Nomex

order no. wc-wf182bd01

EUR 120,00 excl. VAT: € 100.84 / $ 113.95

17 cm bass driver with high quality cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 80 W
  • resonance frequency fs = 33 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 6,5 N/A
  • voice coil inductance L = 0,10 mH
  • effective piston radiating area Sd = 131 cm2
  • effective mechanical mass incl. air load mms = 23,5 g
  • equivalent volume of compliance Vas = 24 l
  • total Q factor Qts = 0,36 (Qms=11, Qes=0,37)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 153 mm
  • overall diameter d = 182 mm
  • mounting depth (not countersunk) t = 88 mm
  • mass m = 1,9 kg
PDF data sheet

show kits to this chassis hide kits

Wavecor TW013WA01

recommended cabinet 1:
closed cabinet with 8,5 L volume
from 62/39 Hz (-3dB/-8dB)

recommended cabinet 2:
34 L volume bass reflex cabinet
with HP70 reflex tube, 26 cm long.
from 30/25 Hz (-3dB/-8dB).

Wavecor WF182BD02 Nomex

order no. not-available

- not available

17 cm bass driver with high quality cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 80 W
  • resonance frequency fs = 34 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 85 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 8,2 N/A
  • voice coil inductance L = 0,16 mH
  • effective piston radiating area Sd = 131 cm2
  • effective mechanical mass incl. air load mms = 22 g
  • equivalent volume of compliance Vas = 24 l
  • total Q factor Qts = 0,43 (Qms=11, Qes=0,45)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 153 mm
  • overall diameter d = 182 mm
  • mounting depth (not countersunk) t = 88 mm
  • mass m = 1,9 kg
PDF data sheet

journal Hobby HiFi
Wer ein größeres Lautsprechergehäuse nicht scheut, findet im WF182BD02 den perfekten Tiefmitteltöner.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 7,2 L volume
from 52/33 Hz (-3dB/-8dB)

recommended cabinet 2:
26 L volume bass reflex cabinet
with HP70 reflex tube, 53 cm long.
from 27/21 Hz (-3dB/-8dB).

Wavecor SW223BD01

order no. wc-sw223bd01

- not available

21 cm bass driver with aluminium cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 150 W
  • frequency range = 25-2000 Hz
  • resonance frequency fs = 24 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 10,7 N/A
  • voice coil inductance L = 0,5 mH
  • effective piston radiating area Sd = 214 cm2
  • effective mechanical mass incl. air load mms = 87,5 g
  • equivalent volume of compliance Vas = 32 l
  • total Q factor Qts = 0,36 (Qms=11, Qes=0,37)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 10,7 mm
  • mounting diameter d = 191 mm
  • overall diameter d = 223,5 mm
  • mounting depth (not countersunk) t = 128 mm
  • mass m = 4,3 kg

journal Hobby HiFi
Wavecor bietet mit dem SW223BD01 den ultimativen Treiber für kleinste Extrem-Subwoofer mit 20-Hertz-Eignung, und der it -- Tusch -- sogar zweiwegtauglich.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo
Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 11,2 L volume
from 46/29 Hz (-3dB/-8dB)

recommended cabinet 2:
39 L volume bass reflex cabinet
with HP70 reflex tube, 45 cm long.
from 24/19 Hz (-3dB/-8dB).

Wavecor SW263WA01

order no. wc-sw263wa01

EUR 299,00 excl. VAT: € 251.26 / $ 283.92

25 cm bass driver with aluminium cone. The basket is made of die-cast. The loudspeaker has terminals for connection.

  • power handling (continuous/programme) = 200 W
  • frequency range = 22-200 Hz
  • resonance frequency fs = 20,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 84 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 18,7 N/A
  • voice coil inductance L = 2,5 mH
  • effective piston radiating area Sd = 314 cm2
  • effective mechanical mass incl. air load mms = 159 g
  • equivalent volume of compliance Vas = 53 l
  • total Q factor Qts = 0,36 (Qms=10, Qes=0,37)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 12 mm
  • mounting diameter d = 234 mm
  • overall diameter d = 263 mm
  • mounting depth (not countersunk) t = 141,5 mm
  • mass m = 6,2 kg
PDF data sheet

journal Hobby HiFi
Wavecors SW263WA -01 und -03 ermöglichen ultratiefen und extrem dynamischen Bass aus erstaunlich kompakten Gehäusen. Klanglich erscheint die Acht-Ohm-Version wegen deutlich niedrigerer mechanischer Verluste und der noch tieferen Grenzfrequenz als die bessere Wahl.

show kits to this chassis hide kits

Wavecor TW013WA01
open a bigger photo
Wavecor TW013WA01
open a bigger photo

recommended cabinet 1:
closed cabinet with 14,5 L volume
from 44/28 Hz (-3dB/-8dB)

recommended cabinet 2:
59 L volume bass reflex cabinet
with HP70 reflex tube, 30 cm long.
from 20/17 Hz (-3dB/-8dB).

Wavecor SW263WA03

order no. wc-sw263wa03

EUR 299,00 excl. VAT: € 251.26 / $ 283.92

25 cm bass driver with aluminium cone. The basket is made of die-cast. The loudspeaker has terminals for connection.

  • power handling (continuous/programme) = 200 W
  • frequency range = 25-200 Hz
  • resonance frequency fs = 27 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 3,4 Ohm
  • force factor BL = 14,2 N/A
  • voice coil inductance L = 1,5 mH
  • effective piston radiating area Sd = 314 cm2
  • effective mechanical mass incl. air load mms = 173 g
  • equivalent volume of compliance Vas = 28 l
  • total Q factor Qts = 0,47 (Qms=8,8, Qes=0,5)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 12 mm
  • mounting diameter d = 234 mm
  • overall diameter d = 263 mm
  • mounting depth (not countersunk) t = 141,5 mm
  • mass m = 6,2 kg
PDF data sheet

journal Hobby HiFi
Wavecors SW263WA -01 und -03 ermöglichen ultratiefen und extrem dynamischen Bass aus erstaunlich kompakten Gehäusen. Klanglich erscheint die Acht-Ohm-Version wegen deutlich niedrigerer mechanischer Verluste und der noch tieferen Grenzfrequenz als die bessere Wahl.

show kits to this chassis hide kits

Wavecor PR310WA01

order no. wc-pr310wa01

- not available

30 cm passive radiator. The basket is made of die-cast.

  • resonance frequency fs = 12,5-19 Hz
  • effective piston radiating area Sd = 513 cm2
  • effective mechanical mass incl. air load mms = 270 g
  • equivalent volume of compliance Vas = 97 l
  • total Q factor Qts = (Qms=13, Qes=)
  • mounting diameter d = 282 mm
  • overall diameter d = 312 mm
  • mounting depth (not countersunk) t = 110 mm

show kits to this chassis hide kits

Intro: Speaker design   Tweeter   Full Range   Woofer   Exclusive_Line   PA   Subwoofer   Passive Radiators   speakers for your car   OEM   no longer available
The cabinet volume calculations are executed considering an external resistance of 0.3 Ohm. We are using, if no other data is known or available, the information supplied by the manufacturer.

Please note: the frequency response doesn't say much about the cut-off frequency inside the cabinet! Therefore, we mostly give you 2 examples with dimensioning considerations and an indication, how low the loudspeaker will reproduce.

Home

© Copyright 2015 Iris Strassacker; All rights reserved. - errors and omissions excepted
