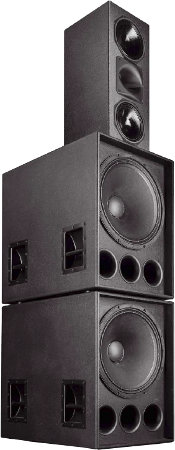

Tas is a powerful satellit subwoofer system. It consists of Tas Top and Tas subwoofer
Tas is developed by Daniel Gattig.
Tas contains Celestion horn driver, horn, mids and mid-woofer.
The crossover consists of a 2nd order high-pass filter (12 dB per octave slope) and a 2rd order low-pass filter.
The frequency response is quite flat at an angle of 0 or 15 degree, the harmonic distortion is low (less than 0.3% between 400 and 3000 Hz at 95 dB, 1m). The decay spectrum shows small resonances at 500 and 1000 Hz; apart from that it is nearly without fault.
Our high-end version employs Rike Audio oil capacitors, produced in Germany. In the woofer part Clarity cap capacitors are used. A Mundorf varnish air core coil and two copper foil coils replace the standard air core coils. The resistors are of type Mundorf MResist Supreme..
If you want to use a valve amplifier with this speaker an impedance correction should be employed. In this case the component quality is less important; therefore, we offer only one kit (upon request higher quality components are available).
If you prefer to mount the crossover components on a 240 x 165 mm universal PCB instead on wood:
Universal PCB RA240, order no.. I-2767, price per unit:
EUR 7,60 excl. VAT: € 6.39 / $ 7.41
We recommend one board per kit (two boards for a speaker pair)
Our kit consists of:
