ViPa-Base   Subwoofer as in Hobby Hifi 6/2023

Technical data
  • impedance: 8 Ohm
  • sensivity (2,83V/1m): 93,5 dB
  • size (HxWxD): 800 x 470 x 400 mm
  • frequency range (-8dB): 38 - 200 Hz
  • crossover frequency(s): aktiv Hz
  • speaker type: bass reflex

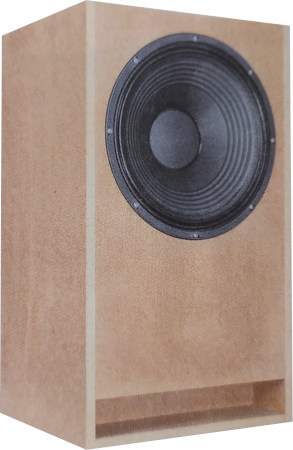

ViPa-Base is a versatile subwoofer which complements the rest of the loudspeakers with a powerful and deep bass.

ViPa-Base is a bass-reflex cabinet loudspeaker with drivers of Visaton .

The kit is delivered with a Visaton PAW 38 woofer

The loudspeaker has been developed by Bernd Timmermanns.

The crossover consists of:

The frequency response of this speaker is perfectly linear.

The decay spectrum is nearly perfect.

At medium volume, i.e. 90 dB at 1 m, the nonlinear distortions are below 0,3% above 40 Hz.

Conclusion of the magazine Hobby HiFi:

Our kit consists of

  • Visaton woofer PAW 38, 8 Ohm
  • Reckhorn Subwoofer Amplifier A-409
  • 4,5x Damping fleece MT Bondum 800 (30 x 50 x 2 cm)
  • PE sealing tape, 5x2 mm, 7.5 m
  • Binding Post PK28 I, gold plated (one pair, red and black)
  • 3m Speaker cable 2x2.5 mm2, transparent
  • 8x Allen screws M6x40 black, 1 pieces, (IS640)
  • 8x 1 pieces drive-in nuts M6, DIN 6930 g zinc-plated

Kit without cabinet, price per speaker   - not available
