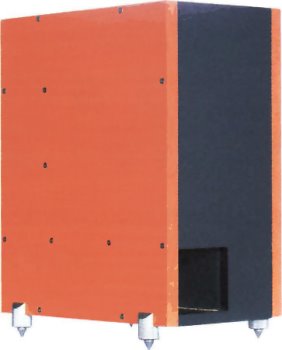

Sub 3000 BPHP   Subwoofer as in Hobby Hifi 5/2016

Technical data
  • impedance: 4 Ohm
  • sensivity (2,83V/1m): 85 dB
  • size (HxWxD): 600 x 310 x 500 mm
  • frequency range (-8dB): 25 - 100 Hz
  • crossover frequency(s): Hz
  • speaker type:

Sub 3000 BPHP is a bandpass suboofer with high pass capacitor. The driver is a Mivoc AW3000.

Sub 3000 BPHP has been developed by Bernd Timmermanns.

The kit is delivered with three capacitors. They are connected in parallel (560 µF + 560 µF + 68 µF= 1188 µF) and are connected in series to the woofer.

The subwoofer have a hard resonance at 260 Hz, because of that, the crossover frequency to the satellites must be so deep as possible.

Our kit consists of

Kit without cabinet, price per speaker   - not available
