Power Trio 2145   Floorstanding as in K+T 3/2019

Technical data
  • impedance: 4 Ohm
  • sensivity (2,83V/1m): 87 dB
  • size (HxWxD): 1195 x 530 x 320 mm
  • frequency range (-8dB): 45 - 19000 Hz
  • crossover frequency(s): Hz
  • speaker type: dipol

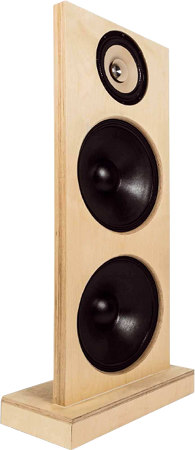

Power Trio 2145 is a two way floorstanding speaker.

Power Trio 2145 is a dipole cabinet loudspeaker with drivers of Tang Band and Omnes Audio.

The kit is delivered with the following drivers:
- a Tang Band W8-2145 full range driver
- two Omnes Audio OBW15PA woofers

The loudspeaker has been developed by Blue Planet Acoustic.

The crossover consists of:
- a 2nd order high-pass filter (12 dB per octave slope) for the full range driver.
- a 2nd order low-pass filter (12 dB per octave slope) for the woofer.

The frequency response of this speaker is nearly linear.

The decay spectrum (waterfall spectrum) shows a decelerated swing-out behaviour in the mid-range.

At low volume, i.e. 85 dB at 1 m, the nonlinear distortions are below 1% above 200 Hz and doesn't exceed 1% at 95 dB at 1 m between 300 and 15000 Hz.

  • 2x Omnes Audio OBW15PA
  • Omnes Audio Crossover for Power Trio 2145
  • Tang Band W8-2145 full range
  • 3m Speaker cable 2x1.5 mm2, transparent
  • 3x Pan screws 4x20 black, torx, 8 pieces

Kit without cabinet, price per speaker   EUR 660,00 excl. VAT: € 554.62 / $ 598.99
