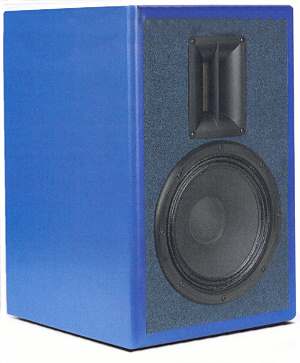

Cheap Trick CT 239 Shelf speaker with Mivoc drivers as in Klang+Ton 6/2008

CT 239 aus Zeitschrift K+T 6/2008
Technical data
- size (HxWxD): 43.8 x 28.5 x 30 cm
- impedance: 8 Ohm
- sensitivity (2.83V/1m): 88 dB
- crossover frequency: 2 kHz
- frequency range (-8dB): 42-25 000 Hz
- speaker type: bass reflex
The CT 239 is a monitor with high power handling, designed by Christian Gather. Drivers employed are the Mivoc KFT 130 M magnetostat and the 20 cm MPA WM8, a PA bass driver.

Both drivers are driven by an 18 dB crossover. The bass reflex port is on the rear side.

Excerpt from the review by Klang+Ton 6/2008:
... "It quickly became noticeable that the speakers should be placed further apart than usual, and also the listener shouldn't be too close. Only then will the CT239 build an unobtrusive but beautiful stage. Another detail: the actual volume is higher than perceived. The high efficiency and the excellent power handling really invite to turn up the volume. Both, the magnetostat as well as bass / midrange driver remain unflappable and handle even the power that's usually expected to come from large floorstanders. That's particularly amazing when leaving the room while the music is playing and re-entering after a while. The volume is so loud that the idea comes up that somebody played a trick and added a few speakers hidden in cupboard. The sound balance is perfect. Bass, midrange and tops are reproduced in the right ratio, only a few songs have a slightly darker timbre. The midrange is pleasantly airy ad the magnetostat just adds the cherries on the cake. Such a neutral sound balance is usually quite rare with these drivers and, above all, not at his price. That's really fun. In particular, thundering rock and pop gets this speaker going. Once in a while some rap lacks some low bass, but then drums and techno are so much punchier and tighter." ...

Our kit consists of:


  • Mivoc magnetostat KFT 130 M
  • Mivoc PA bass driver MPA WM8
  • bass reflex tube HP 70, to be shortened to 9 cm
  • gold plated brass binding posts
  • 2 bags damping material damping material
  • 1.5 m loudspeaker cable 2x2.5 mm2
  • 12 Pan screws 4 x 20 mm
  • the crossover components
    (see right)
  • Klang+Ton building instruction

  • 1.8 mH H71 core coil / 0.34 Ohm
  • 0.27 mH air core coil / 1 mm
  • 6.8 mH core coil / 2.7 Ohm
  • 0.68 mH air core coil / 1 mm
  • 12 μF MKP capacitor / 400V
  • 15 μF ELCO, non-etched
  • 3.9 and 0.68 μF MKP capacitor / 400V
  • 10 Ohm MOX10 resistor (brown-black-black)
  • 15 Ohm MOX10 resistor (brown-green-black)

Price for CT 239 kit without cabinet per unit: - not available

If you prefer to mount the crossover components on a PCB instead on wood:
PCB 220x155 mm, Order No. I-8805002,     Price   EUR 11,80 excl. VAT: € 9.92 / $ 10.71

CT 239 with high-end crossover

Upon request the CT 239 is also available with high grade components:
- baked varnish coils in the signal path to the bass driver,
- one baked varnish coil in the high pass filter of the tweeter,
- MKP capacitors instead of ELCO's,
- in the signal path to the magnetostats two extreme low-loss Mundorf MCAP Supreme capacitors.

  • 1.8 mH baked varnish air core coil / 1.4 mm
  • 0.27 mH baked varnish air core coil / 1.4 mm
  • 6.8 mH core coil / 2.7 Ohm
  • 0.68 mH baked varnish coil / 1 mm
  • 12 μF MKP capacitor/400V
  • 15 μF MKP capacitor/400V
  • 3.9 μF Mundorf MCAP Supreme
  • 0.68 μF Mundorf MCAP Supreme
  • 10 Ohm MOX10 resistor (brown-black-black)
  • 15 Ohm MOX10 resistor (brown-green-black)

Price for CT 239 high-end without cabinet per unit: - not available

If you prefer to mount the crossover components on a PCB instead on wood:
PCB 220x155 mm, Order No. I-8805002,     Price   EUR 11,80 excl. VAT: € 9.92 / $ 10.71
