Faital

Since its inception in 1958 Faital has specialized in the design and manufacture of loudspeakers for a variety of industries. Starting in the early 60’s with 40% of the total Italian market demand for loudspeakers, Faital steadily grew to become today one of Europe’s largest loudspeaker manufacturers. All the while Faital also focused on improving and increasing its industrialization and technological capabilities. Today Faital can count on 8 facilities worldwide.




no longer sold

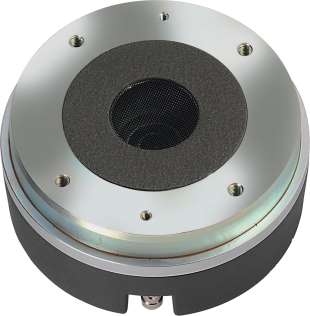

Faital Pro HF 14 ATA
open a bigger photo

Faital Pro HF 14 ATA

order no. not-available

- not available

1.4 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 500-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110 dB (1W; 1m)
  • DC resistance Re = 5,6 Ohm
  • voice coil diameter = 74 mm
  • overall diameter d = 130,5 mm
  • mounting depth (not countersunk) t = 62 mm
  • mass m = 3 kg
PDF data sheet

Faital Pro HF 14 ATB
open a bigger photo

Faital Pro HF 14 ATB

order no. not-available

- not available

1.4 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 500-18000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 107 dB (1W; 1m)
  • voice coil diameter = 74 mm
  • overall diameter d = 130,5 mm
  • mounting depth (not countersunk) t = 62 mm
  • mass m = 3 kg
PDF data sheet

Faital Pro HF 10AT A
open a bigger photo

Faital Pro HF 10AT A

order no. not-available

- not available

1 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 800-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 6,7 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 102 mm
  • mounting depth (not countersunk) t = 54 mm
  • mass m = 1,48 kg
PDF data sheet

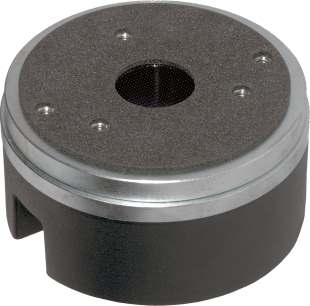

Faital Pro HF 10RK A
open a bigger photo

Faital Pro HF 10RK A

order no. not-available

- not available

1 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 1000-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 6,5 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 102 mm
  • mounting depth (not countersunk) t = 54 mm
  • mass m = 1,48 kg
PDF data sheet

Faital Pro HF 10RT A
open a bigger photo

Faital Pro HF 10RT A

order no. not-available

- not available

1 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 1000-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 108 dB (1W; 1m)
  • DC resistance Re = 6,7 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 102 mm
  • mounting depth (not countersunk) t = 54 mm
  • mass m = 1,48 kg
PDF data sheet

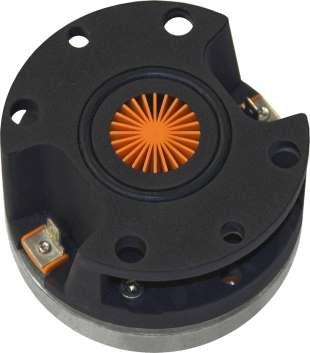

Faital Pro HF 10TX A
open a bigger photo

Faital Pro HF 10TX A

order no. not-available

- not available

1 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 800-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 7 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 87 mm
  • mounting depth (not countersunk) t = 56 mm
  • mass m = 1,1 kg
PDF data sheet

Faital Pro HF 20AT A
open a bigger photo

Faital Pro HF 20AT A

order no. not-available

- not available

2 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 500-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 5,6 Ohm
  • voice coil diameter = 74 mm
  • overall diameter d = 130,5 mm
  • mounting depth (not countersunk) t = 95 mm
  • mass m = 3,3 kg
PDF data sheet

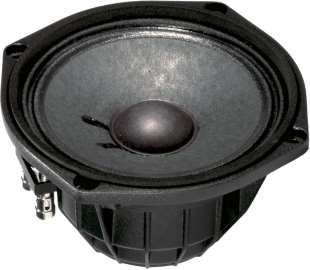

Faital Pro M 5 N 1280 D
open a bigger photo

recommended cabinet 1:
closed cabinet with 0,45 L volume
from 297/187 Hz (-3dB/-8dB)

recommended cabinet 2:
1,8 L volume bass reflex cabinet
with HP50 reflex tube, 9 cm long.
from 138/116 Hz (-3dB/-8dB).

Faital Pro M 5 N 1280 D

order no. not-available

- not available

14 cm midrange driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 180-6300 Hz
  • resonance frequency fs = 180 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99 dB (1W; 1m)
  • DC resistance Re = 7,2 Ohm
  • force factor BL = 11,3 N/A
  • voice coil inductance L = 0,15 mH
  • effective piston radiating area Sd = 94,3 cm2
  • effective mechanical mass incl. air load mms = 8,4 g
  • equivalent volume of compliance Vas = 0,93 l
  • total Q factor Qts = 0,48 (Qms=2,7, Qes=0,59)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 2,75 mm
  • mounting diameter d = 127 mm
  • overall diameter d = 153 mm
  • mounting depth (not countersunk) t = 80,2 mm
  • mass m = 0,9 kg
PDF data sheet

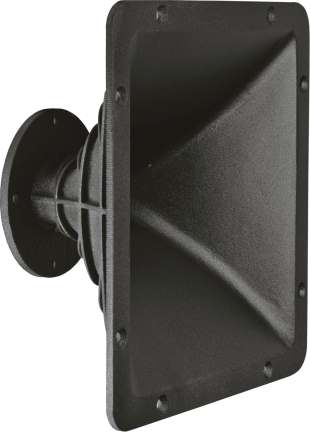

Faital SRH140
open a bigger photo

Faital SRH140

order no. not-available

- not available

Horn for a compression driver with 1,4 inch throat.

  • Throat diameter = 1,4 inch
  • nominal angle (HxV) = 80x60 Deg
  • Cut off frequency : 900 Hz
  • over all dimensions (HxWxD) = 270x270x138 mm
  • net weight = 1,55 kg
  • material: aluminium
PDF data sheet

Faital Pro W6N8 120 A
open a bigger photo

recommended cabinet 1:
closed cabinet with 1 L volume
from 206/130 Hz (-3dB/-8dB)

recommended cabinet 2:
3,7 L volume bass reflex cabinet
with HP50 reflex tube, 10 cm long.
from 103/83 Hz (-3dB/-8dB).

Faital Pro W6N8 120 A

order no. not-available

- not available

17 cm midrange driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 120/240 W
  • frequency range = 100-10000 Hz
  • resonance frequency fs = 100 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 95 dB (1W; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 10,3 N/A
  • voice coil inductance L = 0,35 mH
  • effective piston radiating area Sd = 113 cm2
  • effective mechanical mass incl. air load mms = 11,7 g
  • equivalent volume of compliance Vas = 3,9 l
  • total Q factor Qts = 0,34 (Qms=6,8, Qes=0,41)
  • voice coil diameter = 37 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 147 mm
  • overall diameter d = 186,5 mm
  • mounting depth (not countersunk) t = 88,5 mm
  • mass m = 1,3 kg
PDF data sheet

Faital Pro W8N8 200 A
open a bigger photo

Faital Pro W8N8 200 A

order no. not-available

- not available

21 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 200/400 W
  • frequency range = 80-5000 Hz
  • resonance frequency fs = 74 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92 dB (1W; 1m)
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 8,9 N/A
  • voice coil inductance L = 0,6 mH
  • effective piston radiating area Sd = 177 cm2
  • effective mechanical mass incl. air load mms = 23 g
  • equivalent volume of compliance Vas = 9 l
  • total Q factor Qts = 0,61 (Qms=5,3, Qes=0,69)
  • voice coil diameter = 52 mm
  • maximum peak linear excursion vibration xlin = +/- 8,48 mm
  • mounting diameter d = 183 mm
  • overall diameter d = 223,75 mm
  • mounting depth (not countersunk) t = 116,7 mm
  • mass m = 1,8 kg
PDF data sheet

Faital Faital Pro 3 FE 20 A
open a bigger photo

recommended cabinet 1:
closed cabinet with 0,33 L volume
from 221/140 Hz (-3dB/-8dB)

recommended cabinet 2:
1,2 L volume bass reflex cabinet
with 2cm-Rohr reflex tube, 5 cm long.
from 110/88 Hz (-3dB/-8dB).

Faital Faital Pro 3 FE 20 A

order no. not-available

- not available

7 cm full range driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 20/40 W
  • frequency range = 100-20000 Hz
  • resonance frequency fs = 110 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 91 dB (1W; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 4,5 N/A
  • voice coil inductance L = 0,1 mH
  • effective piston radiating area Sd = 29,4 cm2
  • effective mechanical mass incl. air load mms = 2 g
  • equivalent volume of compliance Vas = 1,2 l
  • total Q factor Qts = 0,39 (Qms=4,64, Qes=0,43)
  • voice coil diameter = 19 mm
  • maximum peak linear excursion vibration xlin = +/- 1,83 mm
  • mounting diameter d = 72 mm
  • overall diameter d = 80 mm
  • mounting depth (not countersunk) t = 39 mm
  • mass m = 0,23 kg
PDF data sheet

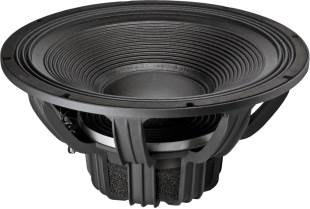

Faital 18XL1500
open a bigger photo

recommended cabinet 1:
closed cabinet with 33 L volume
from 77/49 Hz (-3dB/-8dB)

recommended cabinet 2:
102 L volume bass reflex cabinet
with 2x HP100 reflex tube, 18 cm long.
from 42/32 Hz (-3dB/-8dB).

Faital 18XL1500

order no. not-available

- not available

44 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 1500/3000 W
  • frequency range = 30-1500 Hz
  • resonance frequency fs = 31 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,4 Ohm
  • force factor BL = 28,1 N/A
  • voice coil inductance L = 1,45 mH
  • effective piston radiating area Sd = 1174 cm2
  • effective mechanical mass incl. air load mms = 213 g
  • equivalent volume of compliance Vas = 205 l
  • total Q factor Qts = 0,31 (Qms=7,4, Qes=0,33)
  • voice coil diameter = 98 mm
  • maximum peak linear excursion vibration xlin = +/- 12,9 mm
  • mounting diameter d = 424 mm
  • overall diameter d = 460 mm
  • mounting depth (not countersunk) t = 231 mm
  • mass m = 10,5 kg
PDF data sheet

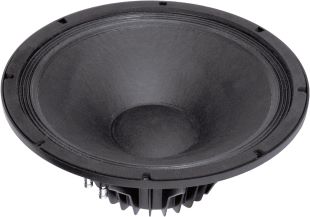

Faital W15N8-350
open a bigger photo

recommended cabinet 1:
closed cabinet with 37 L volume
from 85/54 Hz (-3dB/-8dB)

recommended cabinet 2:
108 L volume bass reflex cabinet
with 2x HP100 reflex tube, 12 cm long.
from 47/36 Hz (-3dB/-8dB).

Faital W15N8-350

order no. not-available

- not available

38 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 350/700 W
  • frequency range = 35-4000 Hz
  • resonance frequency fs = 32 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99 dB (2,83V; 1m)
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 16,7 N/A
  • voice coil inductance L = 0,75 mH
  • effective piston radiating area Sd = 805,5 cm2
  • effective mechanical mass incl. air load mms = 85,2 g
  • equivalent volume of compliance Vas = 267,2 l
  • total Q factor Qts = 0,3 (Qms=6,02, Qes=0,31)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 5,75 mm
  • mounting diameter d = 356 mm
  • overall diameter d = 393 mm
  • mounting depth (not countersunk) t = 164,7 mm
  • mass m = 3,6 kg
PDF data sheet

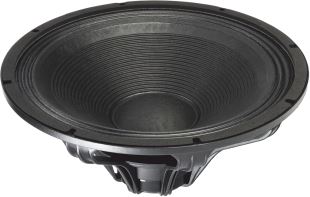

Faital W18N8-1000
open a bigger photo

recommended cabinet 1:
closed cabinet with 23 L volume
from 103/65 Hz (-3dB/-8dB)

recommended cabinet 2:
61 L volume bass reflex cabinet
with 2x HP100 reflex tube, 17 cm long.
from 59/45 Hz (-3dB/-8dB).

Faital W18N8-1000

order no. not-available

- not available

44 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 1000/2000 W
  • frequency range = 35-1600 Hz
  • resonance frequency fs = 35 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99 dB (2,83V; 1m)
  • DC resistance Re = 5,4 Ohm
  • force factor BL = 27,6 N/A
  • voice coil inductance L = 1,6 mH
  • effective piston radiating area Sd = 1136 cm2
  • effective mechanical mass incl. air load mms = 178,7 g
  • equivalent volume of compliance Vas = 211,8 l
  • total Q factor Qts = 0,27 (Qms=10,60, Qes=0,28)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 9,5 mm
  • mounting diameter d = 424 mm
  • overall diameter d = 460 mm
  • mounting depth (not countersunk) t = 202 mm
  • mass m = 6,1 kg
PDF data sheet

Faital Pro 18 HP 1040 A
open a bigger photo

recommended cabinet 1:
closed cabinet with 36 L volume
from 89/56 Hz (-3dB/-8dB)

recommended cabinet 2:
119 L volume bass reflex cabinet
with 4x HP100 reflex tube, 27 cm long.
from 47/37 Hz (-3dB/-8dB).

Faital Pro 18 HP 1040 A

order no. not-available

- not available

44 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 1000/2000 W
  • frequency range = 38-2500 Hz
  • resonance frequency fs = 38 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99 dB (1W; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 24,5 N/A
  • voice coil inductance L = 1,36 mH
  • effective piston radiating area Sd = 1134 cm2
  • effective mechanical mass incl. air load mms = 163 g
  • equivalent volume of compliance Vas = 196,3 l
  • total Q factor Qts = 0,34 (Qms=8,75, Qes=0,35)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm
  • mounting diameter d = 424 mm
  • overall diameter d = 460 mm
  • mounting depth (not countersunk) t = 202 mm
  • mass m = 6,45 kg
PDF data sheet

Compression driver for Horns   Horn   Coaxial speaker   Full Range   Mids   Woofer   8 inch woofer   10 inch woofer   12 inch woofer   15 inch woofer   18 inch woofer   no longer sold
The cabinet volume calculations are executed considering an external resistance of 0.3 Ohm. We are using, if no other data is known or available, the information supplied by the manufacturer.

Please note: the frequency response doesn't say much about the cut-off frequency inside the cabinet! Therefore, we mostly give you 2 examples with dimensioning considerations and an indication, how low the loudspeaker will reproduce.

Home

© Copyright 2020 Iris Strassacker; All rights reserved. - errors and omissions excepted
