This speaker was designed for small cinemas. Applications: High-end PA. This

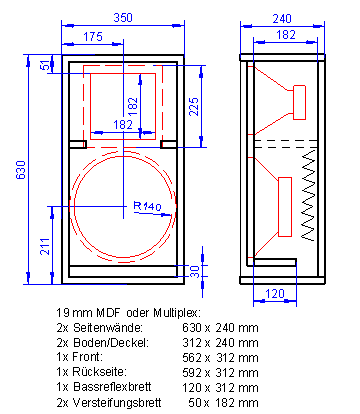

speaker is suitable for classical music. The original cabinets (picture) were
designed without the projecting side panels to ensure absolute top performance.
The Oberton D2544/16 tweeter is being used in conjunction with the RCF Horn H100.
Bass is supplied by the Eminence Kappa 12, showing a beautifully flat frequency

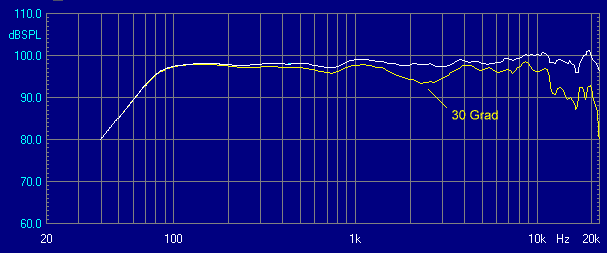

Picture below: Below 30 degree angle (horizontal deviation)
from the axis, the size of the drivers becomes noticeable. The 12.' bass driver
that works up to 2,2 kHz, slops considerably according to the law of physics
as does the tweeter at the highest frequencies.

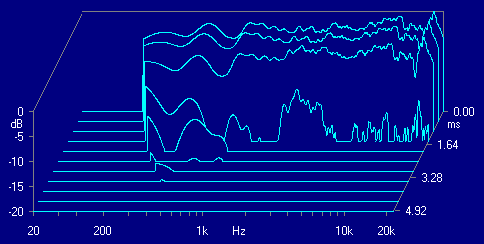

Important for excellent sound is the quick excursion of drivers shown in
the following diagram as rapidly declining volume toward the front. This has
been achieved quite comprehensively.
The crossover components should be mounted on a wooden board and then fitted
in empty space. The terminal should be mounted on the rear panel of the cabinet.
For hi-fi we recommend to fit 1/4 napped foam to the rear panel as well as
1 1/2 bags of damping fleece per speaker. Please bear in mind that the damping fleece
material reduces the power handling to 300 Watts (heat dissipation!).
Price per unit without cabinet and wood: EUR 326,00 excl. VAT: € 273.95 / $ 336.96
Hint: upon request we also supply - instead of Speakon
connector - a terminal with 2 gold plated brass binding posts at no additional
If you prefer to mount the crossover components on a Cu PCB instead on wood:
Price for PCB 205 x 140 mm
EUR 11,70 excl. VAT: € 9.83 / $ 12.09
