Tweeter   Air Motion Transformer   Compression driver for Horns   Horn   Mids   Bass-Shaker   Woofer   8 inch woofer   10 inch woofer   12 inch woofer   15 inch woofer   18 inch woofer   Woofer   Coaxial speaker   Full Range   no longer sold

BEYMA-Systeme

Beyma products are used by professional speaker, studio equipment and home. Beyma is located in Spain.
Propositions for enclosures you find in the beyma paper.




Tweeter


open a bigger photo

open a bigger photo

CP09       order no. by-cp09       EUR 58,00 excl. VAT: € 48.74 / $ 42.75
26 mm tweeter with high quality cone.
  • power handling (continuous/programme) = 15 W
  • frequency range = 2000-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 104 dB (2,83V; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 4 N/A
  • voice coil diameter = 26 mm
  • mounting diameter d = 90x71 mm
  • overall diameter d = 98x92 mm
  • mounting depth (not countersunk) t = 96 mm
  • mass m = 0,75 kg
PDF data sheet

open a bigger photo

open a bigger photo

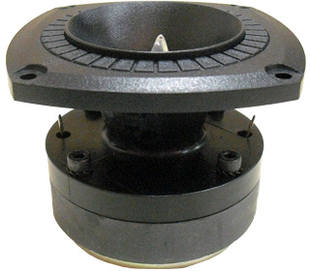

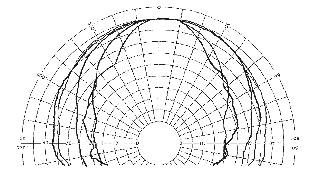

CP12/N       order no. by-cp12n       EUR 49,90 excl. VAT: € 41.93 / $ 36.78
25,8 mm tweeter with high quality cone.
  • power handling (continuous/programme) = 15 W
  • frequency range = 3000-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 107 dB (2,83V; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 4 N/A
  • voice coil diameter = 25,8 mm
  • mounting diameter d = 74 mm
  • overall diameter d = 87x87 mm
  • mounting depth (not countersunk) t = 72 mm
  • mass m = 0,75 kg
PDF data sheet


open a bigger photo

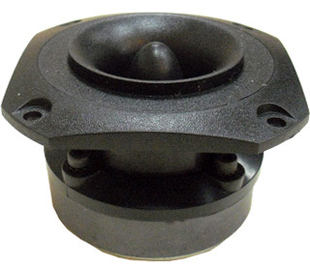

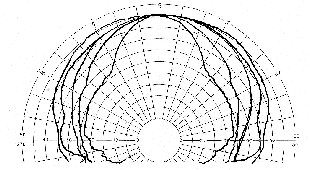

CP16       order no. by-cp16       EUR 49,90 excl. VAT: € 41.93 / $ 36.78
25,8 mm tweeter with high quality cone.
  • power handling (continuous/programme) = 15 W
  • frequency range = 3000-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 105 dB (2,83V; 1m)
  • DC resistance Re = 7,3 Ohm
  • force factor BL = 4 N/A
  • voice coil diameter = 25,8 mm
  • mounting diameter d = 75 mm
  • overall diameter d = 86x86 mm
  • mounting depth (not countersunk) t = 65 mm
  • mass m = 0,8 kg
PDF data sheet

open a bigger photo

open a bigger photo

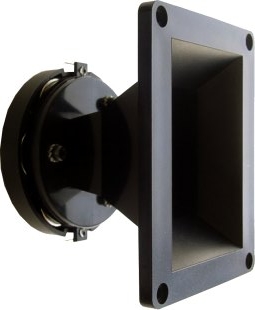

SMC2012N       order no. by-smc2012n       - not available
25,8 mm tweeter with high quality cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 15/30 W
  • frequency range = 1000-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 101 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 5,6 N/A
  • voice coil diameter = 25,8 mm
  • mounting diameter d = 85x62,5 mm
  • overall diameter d = 115x91 mm
  • mounting depth (not countersunk) t = 87,5 mm
  • mass m = 0,5 kg
PDF data sheet


open a bigger photo

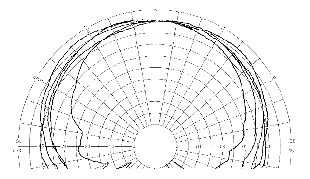

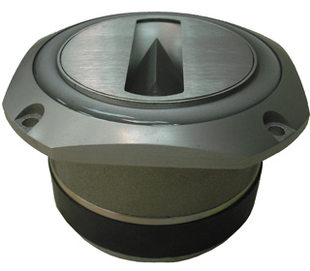

CP21/F       order no. by-cp21f       EUR 109,00 excl. VAT: € 91.60 / $ 80.35
37,6 mm tweeter with high quality cone.
  • power handling (continuous/programme) = 25/50 W
  • frequency range = 3500-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 105 dB (2,83V; 1m)
  • DC resistance Re = 6,1 Ohm
  • force factor BL = 5,2 N/A
  • voice coil diameter = 37,6 mm
  • mounting diameter d = 92 mm
  • overall diameter d = 102x102 mm
  • mounting depth (not countersunk) t = 72 mm
  • mass m = 1,7 kg
PDF data sheet


open a bigger photo

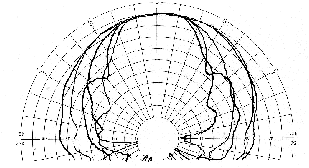

CP22       order no. by-cp22       EUR 105,00 excl. VAT: € 88.24 / $ 77.40
37,6 mm tweeter with high quality cone.
  • power handling (continuous/programme) = 25 W
  • frequency range = 4000-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 107 dB (2,83V; 1m)
  • DC resistance Re = 6,1 Ohm
  • force factor BL = 5,2 N/A
  • voice coil diameter = 37,6 mm
  • mounting diameter d = 92 mm
  • overall diameter d = 102x102 mm
  • mounting depth (not countersunk) t = 71 mm
  • mass m = 1,6 kg
PDF data sheet

open a bigger photo

open a bigger photo

CP25       order no. by-cp25       EUR 99,90 excl. VAT: € 83.95 / $ 73.64
37,6 mm tweeter with high quality cone.
  • power handling (continuous/programme) = 25/50 W
  • frequency range = 2500-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 104 dB (2,83V; 1m)
  • DC resistance Re = 6,1 Ohm
  • force factor BL = 6 N/A
  • voice coil diameter = 37,6 mm
  • mounting diameter d = 120x130 mm
  • overall diameter d = 160x135 mm
  • mounting depth (not countersunk) t = 125 mm
  • mass m = 1,7 kg
PDF data sheet


open a bigger photo

SMC8060       order no. by-smc8060       EUR 109,00 excl. VAT: € 91.60 / $ 80.35
44,4 mm tweeter with high quality cone.
  • power handling (continuous/programme) = 50/100 W
  • frequency range = 800-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 107 dB (2,83V; 1m)
  • DC resistance Re = 4,4 Ohm
  • force factor BL = 8,5 N/A
  • voice coil diameter = 44,4 mm
  • mounting diameter d = 130x115 mm
  • overall diameter d = 140x136 mm
  • mounting depth (not countersunk) t = 121 mm
  • mass m = 1,5 kg
PDF data sheet

open a bigger photo

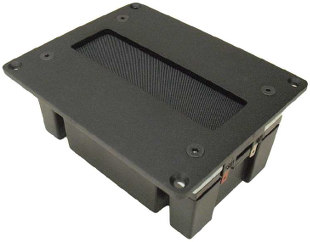

TPL150B       order no. by-tpl150       EUR 549,00 excl. VAT: € 461.34 / $ 404.69
air motion transformer.
  • power handling (continuous/programme) = 80/160 W
  • frequency range = 1000-23000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99 dB (2,83V; 1m)
  • DC resistance Re = 4,9 Ohm
  • overall diameter d = 160x130 mm
  • mounting depth (not countersunk) t = 68,4 mm
  • mass m = 2,08 kg
PDF data sheet

open a bigger photo

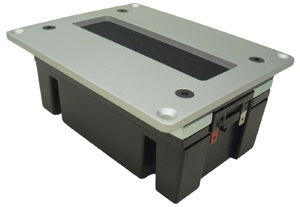

TPL150S       order no. by-tpl150s       EUR 555,60 excl. VAT: € 466.89 / $ 409.55
air motion transformer.
  • power handling (continuous/programme) = 80/160 W
  • frequency range = 1000-23000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99 dB (2,83V; 1m)
  • DC resistance Re = 4,9 Ohm
  • overall diameter d = 160x130 mm
  • mounting depth (not countersunk) t = 68,4 mm
  • mass m = 2,08 kg
PDF data sheet

open a bigger photo

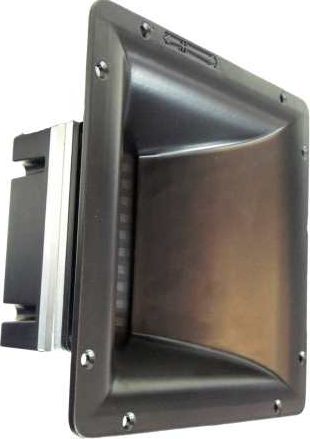

TPL150H       order no. by-tpl150h       EUR 629,00 excl. VAT: € 528.57 / $ 463.66
air motion transformer.
  • power handling (continuous/programme) = 80/160 W
  • frequency range = 700-23000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 102 dB (2,83V; 1m)
  • DC resistance Re = 4,9 Ohm
  • overall diameter d = 230x230 mm
  • mounting depth (not countersunk) t = 148 mm
  • mass m = 2,9 kg
PDF data sheet

open a bigger photo

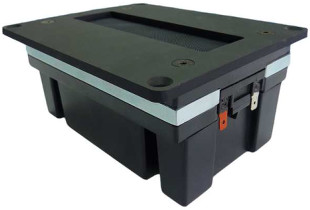

TPL200B       order no. by-tpl200b       EUR 633,70 excl. VAT: € 532.52 / $ 467.12
air motion transformer.
  • power handling (continuous/programme) = 120/240 W
  • frequency range = 1000-23000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 101 dB (2,83V; 1m)
  • DC resistance Re = 4,9 Ohm
  • overall diameter d = 160x130 mm
  • mounting depth (not countersunk) t = 72,4 mm
  • mass m = 2,75 kg
PDF data sheet

open a bigger photo

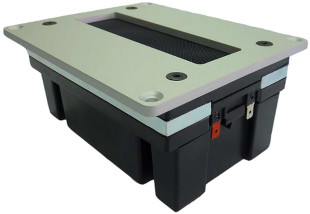

TPL200S       order no. by-tpl200s       EUR 633,70 excl. VAT: € 532.52 / $ 467.12
air motion transformer.
  • power handling (continuous/programme) = 120/240 W
  • frequency range = 1000-23000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 101 dB (2,83V; 1m)
  • DC resistance Re = 4,9 Ohm
  • overall diameter d = 160x130 mm
  • mounting depth (not countersunk) t = 72,4 mm
  • mass m = 2,75 kg
PDF data sheet

open a bigger photo

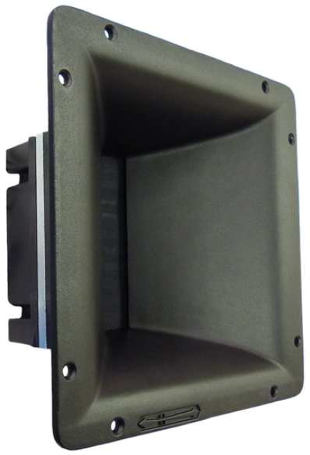

TPL200H       order no. by-tpl200h       EUR 692,30 excl. VAT: € 581.76 / $ 510.32
air motion transformer.
  • power handling (continuous/programme) = 120/240 W
  • frequency range = 1000-23000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 104 dB (2,83V; 1m)
  • DC resistance Re = 4,9 Ohm
  • overall diameter d = 230x230 mm
  • mounting depth (not countersunk) t = 152 mm
  • mass m = 3,55 kg
PDF data sheet

open a bigger photo

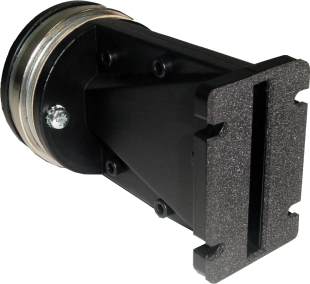

WL3       order no. by-wl3       EUR 219,00 excl. VAT: € 184.03 / $ 161.43
1 inch high frequency compression driver with high quality cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 40/80 W
  • frequency range = 700-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 105 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 8 N/A
  • voice coil diameter = 44,4 mm
  • overall diameter d = 80 mm
  • mounting depth (not countersunk) t = 142 mm
  • mass m = 1 kg
PDF data sheet

open a bigger photo

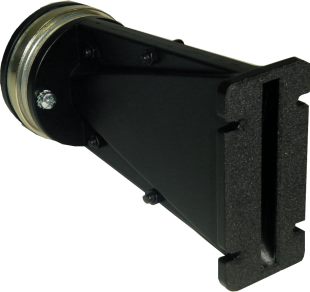

WL4       order no. by-wl4       EUR 229,00 excl. VAT: € 192.44 / $ 168.80
1 inch high frequency compression driver with high quality cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 40/80 W
  • frequency range = 700-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 105 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 8 N/A
  • voice coil diameter = 44,4 mm
  • overall diameter d = 80 mm
  • mounting depth (not countersunk) t = 195 mm
  • mass m = 1,1 kg
PDF data sheet

open a bigger photo

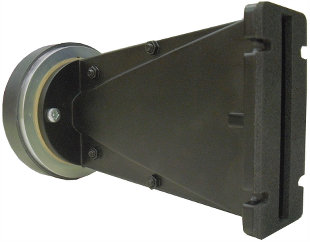

WL4FE       order no. by-wl4fe       EUR 139,00 excl. VAT: € 116.81 / $ 102.46
1 inch high frequency compression driver with high quality cone.
  • power handling (continuous/programme) = 70/140 W
  • frequency range = 700-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 104 dB (2,83V; 1m)
  • DC resistance Re = 4,3 Ohm
  • force factor BL = 6,6 N/A
  • voice coil diameter = 44,4 mm
  • overall diameter d = 100 mm
  • mounting depth (not countersunk) t = 200 mm
  • mass m = 1,81 kg
PDF data sheet

open a bigger photo

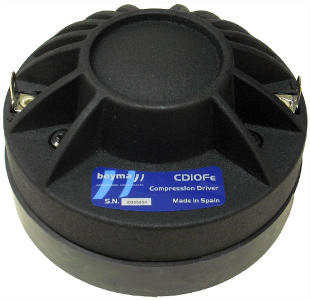

CD10FE       order no. by-cd10fe       EUR 79,00 excl. VAT: € 66.39 / $ 58.23
1 inch high frequency compression driver with high quality cone.
  • power handling (continuous/programme) = 70/140 W
  • frequency range = 700-19000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (2,83V; 1m)
  • DC resistance Re = 4,3 Ohm
  • force factor BL = 6,6 N/A
  • voice coil diameter = 44,4 mm
  • overall diameter d = 102 mm
  • mounting depth (not countersunk) t = 62 mm
  • mass m = 1,3 kg
PDF data sheet

open a bigger photo

CD10ND       order no. by-cd10nd       EUR 169,00 excl. VAT: € 142.02 / $ 124.58
1 inch high frequency compression driver with high quality cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 70/140 W
  • frequency range = 700-19000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 111 dB (2,83V; 1m)
  • DC resistance Re = 4,3 Ohm
  • force factor BL = 8,9 N/A
  • voice coil diameter = 44,4 mm
  • overall diameter d = 100 mm
  • mounting depth (not countersunk) t = 66,4 mm
  • mass m = 1,2 kg
PDF data sheet

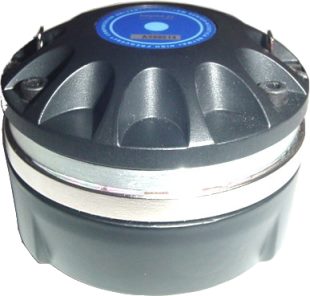

SMC225ND       order no. by-smc225nd       EUR 145,00 excl. VAT: € 121.85 / $ 106.88
1 inch high frequency compression driver with high quality cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 40/80 W
  • frequency range = 800-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 108 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 8 N/A
  • voice coil diameter = 44,4 mm
  • overall diameter d = 80 mm
  • mounting depth (not countersunk) t = 57 mm
  • mass m = 0,7 kg
PDF data sheet

open a bigger photo

CP380M       order no. by-cp380m       EUR 179,00 excl. VAT: € 150.42 / $ 131.95
1 inch high frequency compression driver with high quality cone. The voice coil is made of kapton.
  • power handling (continuous/programme) = 70/140 W
  • frequency range = 800-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 107 dB (2,83V; 1m)
  • DC resistance Re = 4,7 Ohm
  • force factor BL = 7 N/A
  • voice coil diameter = 44 mm
  • overall diameter d = 146,5 mm
  • mounting depth (not countersunk) t = 75 mm
  • mass m = 3,25 kg
PDF data sheet

open a bigger photo

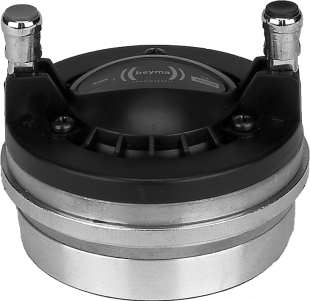

CP385ND       order no. by-cp385nd       EUR 229,00 excl. VAT: € 192.44 / $ 168.80
1 inch high frequency compression driver with high quality cone. The voice coil is made of kapton. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 70/140 W
  • frequency range = 800-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 107 dB (2,83V; 1m)
  • DC resistance Re = 4,7 Ohm
  • force factor BL = 7,5 N/A
  • voice coil diameter = 44 mm
  • overall diameter d = 100 mm
  • mounting depth (not countersunk) t = 80 mm
  • mass m = 1,35 kg
PDF data sheet

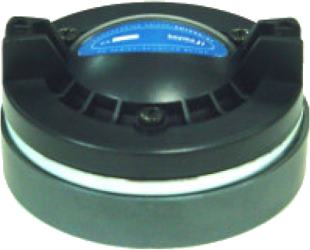

SMC280ST       order no. by-smc280st       EUR 89,00 excl. VAT: € 74.79 / $ 65.61
1 inch high frequency compression driver with high quality cone.
  • power handling (continuous/programme) = 50/100 W
  • frequency range = 800-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 105 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 8,5 N/A
  • voice coil diameter = 44,4 mm
  • overall diameter d = 102 mm
  • mounting depth (not countersunk) t = 53 mm
  • mass m = 1,3 kg
PDF data sheet

SMC1050N       order no. by-smc1050n       EUR 117,00 excl. VAT: € 98.32 / $ 86.25
1 inch high frequency compression driver with high quality cone.
  • power handling (continuous/programme) = 60/120 W
  • frequency range = 800-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 108 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 9,3 N/A
  • voice coil diameter = 44,4 mm
  • overall diameter d = 120 mm
  • mounting depth (not countersunk) t = 61 mm
  • mass m = 2,2 kg
PDF data sheet

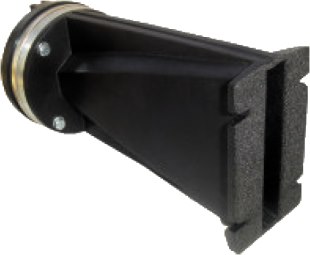

WL5       order no. by-wl5       EUR 429,00 excl. VAT: € 360.50 / $ 316.23
1.4 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 70/140 W
  • frequency range = 600-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 108 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 11 N/A
  • voice coil diameter = 72,2 mm
  • overall diameter d = 123 mm
  • mounting depth (not countersunk) t = 271 mm
  • mass m = 2,62 kg
PDF data sheet

open a bigger photo

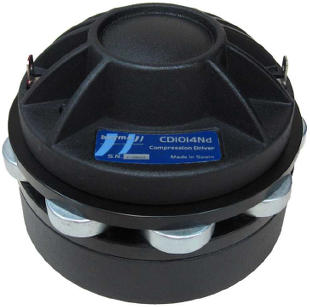

CD1014ND       order no. by-cd1014nd       EUR 179,00 excl. VAT: € 150.42 / $ 131.95
1.4 inch high frequency compression driver with high quality cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 70/140 W
  • frequency range = 700-19000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110 dB (2,83V; 1m)
  • DC resistance Re = 4,3 Ohm
  • force factor BL = 6,6 N/A
  • voice coil diameter = 44,4 mm
  • overall diameter d = 115 mm
  • mounting depth (not countersunk) t = 76 mm
  • mass m = 1,51 kg
PDF data sheet

open a bigger photo

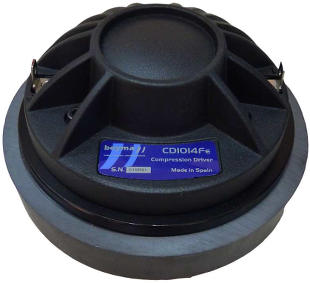

CD1014FE       order no. by-cd1014fe       EUR 117,00 excl. VAT: € 98.32 / $ 86.25
1.4 inch high frequency compression driver with high quality cone.
  • power handling (continuous/programme) = 70/140 W
  • frequency range = 700-19000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110 dB (2,83V; 1m)
  • DC resistance Re = 4,3 Ohm
  • force factor BL = 6,6 N/A
  • voice coil diameter = 44,4 mm
  • overall diameter d = 120 mm
  • mounting depth (not countersunk) t = 65 mm
  • mass m = 2,04 kg
PDF data sheet

open a bigger photo

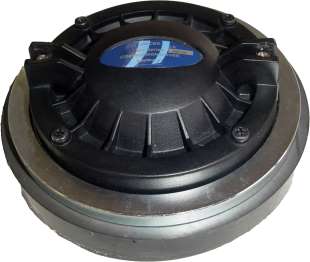

SMC65       order no. by-smc65       EUR 199,00 excl. VAT: € 167.23 / $ 146.69
1.4 inch high frequency compression driver with titanium cone.
  • power handling (continuous/programme) = 50/100 W
  • frequency range = 700-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 107 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 8,8 N/A
  • voice coil diameter = 72,2 mm
  • overall diameter d = 156 mm
  • mounting depth (not countersunk) t = 64 mm
  • mass m = 4,2 kg
PDF data sheet

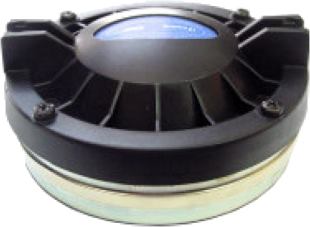

SMC65ND       order no. by-smc65nd       EUR 309,00 excl. VAT: € 259.66 / $ 227.78
1.4 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 70/140 W
  • frequency range = 600-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 108 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 10 N/A
  • voice coil diameter = 72,2 mm
  • overall diameter d = 123 mm
  • mounting depth (not countersunk) t = 53,5 mm
  • mass m = 2,2 kg
PDF data sheet

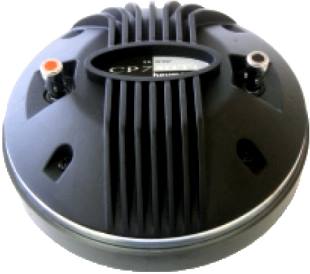

CP755TI       order no. by-cp755ti       EUR 279,00 excl. VAT: € 234.45 / $ 205.66
1.4 inch high frequency compression driver with titanium cone.
  • power handling (continuous/programme) = 70/140 W
  • frequency range = 600-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 10 N/A
  • voice coil diameter = 72,2 mm
  • overall diameter d = 192 mm
  • mounting depth (not countersunk) t = 78 mm
  • mass m = 6,75 kg
PDF data sheet

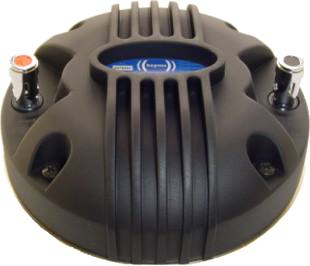

CP755ND       order no. by-cp755nd       EUR 479,00 excl. VAT: € 402.52 / $ 353.09
1.4 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 80/160 W
  • frequency range = 600-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 112 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 11,5 N/A
  • voice coil diameter = 72,2 mm
  • overall diameter d = 145 mm
  • mounting depth (not countersunk) t = 65 mm
  • mass m = 2,96 kg
PDF data sheet

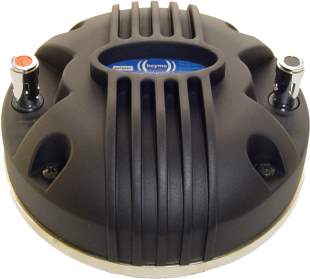

CP755NDAL       order no. by-cp755ndal       EUR 479,00 excl. VAT: € 402.52 / $ 353.09
1.4 inch high frequency compression driver with aluminium cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 80/160 W
  • frequency range = 600-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 112 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 11,5 N/A
  • voice coil diameter = 72,2 mm
  • overall diameter d = 145 mm
  • mounting depth (not countersunk) t = 65 mm
  • mass m = 2,96 kg
PDF data sheet

open a bigger photo

CP855ND       order no. by-cp855nd       EUR 539,00 excl. VAT: € 452.94 / $ 397.32
1.4 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 150/300 W
  • frequency range = 500-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 112 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 16,5 N/A
  • voice coil diameter = 100 mm
  • overall diameter d = 160 mm
  • mounting depth (not countersunk) t = 80 mm
  • mass m = 4,3 kg
PDF data sheet

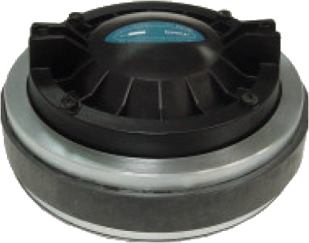

SMC60       order no. by-smc60       EUR 229,00 excl. VAT: € 192.44 / $ 168.80
2 inch high frequency compression driver with titanium cone.
  • power handling (continuous/programme) = 80/160 W
  • frequency range = 500-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 8,8 N/A
  • voice coil diameter = 72,2 mm
  • overall diameter d = 156 mm
  • mounting depth (not countersunk) t = 75 mm
  • mass m = 4,5 kg
PDF data sheet

CP750ND       order no. by-cp750nd       EUR 489,00 excl. VAT: € 410.92 / $ 360.46
2 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 80/160 W
  • frequency range = 600-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 112 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 11,5 N/A
  • voice coil diameter = 72,2 mm
  • overall diameter d = 145 mm
  • mounting depth (not countersunk) t = 89 mm
  • mass m = 3,5 kg
PDF data sheet

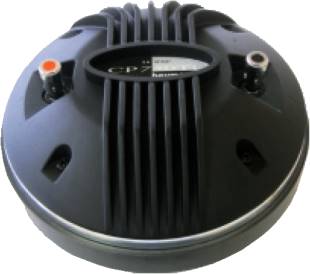

CP750TI       order no. by-cp750ti       EUR 299,00 excl. VAT: € 251.26 / $ 220.40
2 inch high frequency compression driver with titanium cone.
  • power handling (continuous/programme) = 90/180 W
  • frequency range = 600-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 10 N/A
  • voice coil diameter = 72,2 mm
  • overall diameter d = 192 mm
  • mounting depth (not countersunk) t = 88 mm
  • mass m = 7,05 kg
PDF data sheet

open a bigger photo

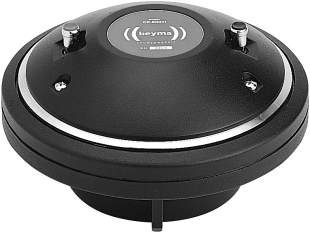

CP800/TI       order no. by-cp800ti       EUR 439,00 excl. VAT: € 368.91 / $ 323.60
2 inch high frequency compression driver with high quality cone.
  • power handling (continuous/programme) = 130/260 W
  • frequency range = 500-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 112 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 15 N/A
  • voice coil diameter = 100 mm
  • overall diameter d = 228 mm
  • mounting depth (not countersunk) t = 117 mm
  • mass m = 10,3 kg
PDF data sheet

open a bigger photo

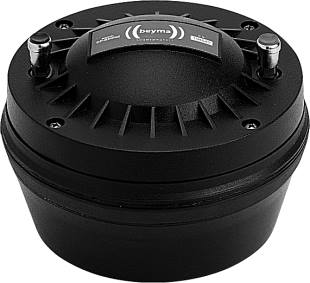

CP850ND       order no. by-cp850nd       EUR 679,00 excl. VAT: € 570.59 / $ 500.52
2 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 130/260 W
  • frequency range = 500-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 112 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 16,5 N/A
  • voice coil diameter = 100 mm
  • overall diameter d = 165 mm
  • mounting depth (not countersunk) t = 114 mm
  • mass m = 4,4 kg
PDF data sheet



Horn


open a bigger photo

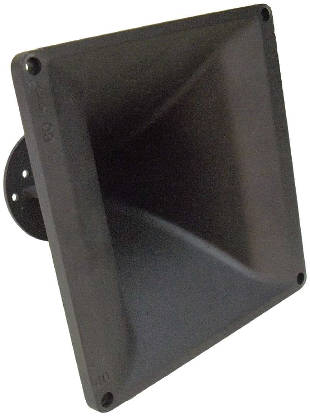

TD164       order no. by-td164       EUR 69,00 excl. VAT: € 57.98 / $ 50.86
Horn for a compression driver with 1 inch throat.
  • nominal angle (HxV) = 60 x 40 Deg
  • Cut off frequency : 1200 Hz
  • over all dimensions (HxWxD) = 202 x 202 x145 mm
  • baffle Cutout dimensions (HxW) = 177 x 177 mm
  • net weight = 1 kg
  • material: aluminium
PDF data sheet

open a bigger photo

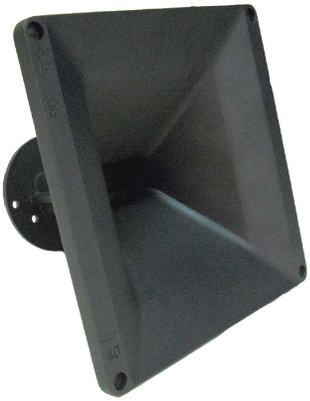

TD194       order no. by-td194       EUR 69,00 excl. VAT: € 57.98 / $ 50.86
Horn for a compression driver with 1 inch throat.
  • nominal angle (HxV) = 90 x 40 Deg
  • Cut off frequency : 1200 Hz
  • over all dimensions (HxWxD) = 202 x 202 x145 mm
  • baffle Cutout dimensions (HxW) = 177 x 177 mm
  • net weight = 1 kg
  • material: aluminium
PDF data sheet

open a bigger photo

open a bigger photo

TD365       order no. by-td365       EUR 89,00 excl. VAT: € 74.79 / $ 65.61
Horn for a compression driver with 1,4 inch throat.
  • nominal angle (HxV) = 60 x 50 Deg
  • Cut off frequency : 800 Hz
  • over all dimensions (HxWxD) = 235 x 235 x 121 mm
  • baffle Cutout dimensions (HxW) = 202 x 204 mm
  • net weight = 1,2 kg
  • material: aluminium
PDF data sheet


open a bigger photo

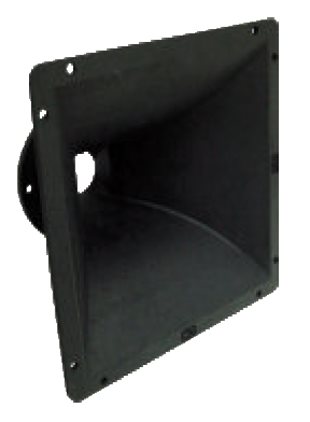

TD385       order no. by-td385       EUR 89,00 excl. VAT: € 74.79 / $ 65.61
Horn for a compression driver with 1,4 inch throat.
  • nominal angle (HxV) = 80 x 50 Deg
  • Cut off frequency : 800 Hz
  • over all dimensions (HxWxD) = 235 x 235 x 120 mm
  • baffle Cutout dimensions (HxW) = 202 x 204 mm
  • net weight = 1,2 kg
  • material: aluminium
PDF data sheet

open a bigger photo

open a bigger photo

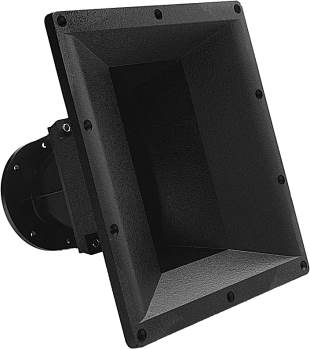

TD595       order no. by-td595       - not available
Horn for a compression driver with 1,4 inch throat.
  • nominal angle (HxV) = 90 x 40 Deg
  • Cut off frequency : 800 Hz
  • over all dimensions (HxWxD) = 280 x 250 x 220 mm
  • baffle Cutout dimensions (HxW) = 245 x 215 mm
  • net weight = 1,2 kg
  • material: high quality
PDF data sheet


open a bigger photo

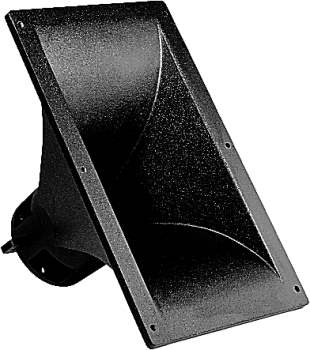

TD460N       order no. by-td460n       EUR 209,00 excl. VAT: € 175.63 / $ 154.06
Horn for a compression driver with 2 inch throat.
  • nominal angle (HxV) = 60 x 40 Deg
  • Cut off frequency : 800 Hz
  • over all dimensions (HxWxD) = 270 x 420 x 227 mm
  • baffle Cutout dimensions (HxW) = 235 x 365 mm
  • net weight = 2 kg
  • material: high quality
PDF data sheet

open a bigger photo

open a bigger photo

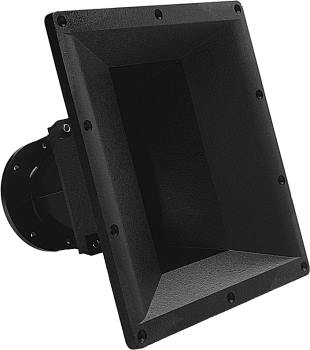

TD590       order no. by-td590       - not available
Horn for a compression driver with 2 inch throat.
  • nominal angle (HxV) = 90 x 40 Deg
  • Cut off frequency : 800 Hz
  • over all dimensions (HxWxD) = 280 x 250 x 220 mm
  • baffle Cutout dimensions (HxW) = 245 x 215 mm
  • net weight = 1,2 kg
  • material: high quality
PDF data sheet

open a bigger photo

open a bigger photo

TD560       order no. by-td560       - not available
Horn for a compression driver with 2 inch throat.
  • nominal angle (HxV) = 60 x 40 Deg
  • Cut off frequency : 800 Hz
  • over all dimensions (HxWxD) = 280 x 250 x 220 mm
  • baffle Cutout dimensions (HxW) = 245 x 215 mm
  • net weight = 2,5 kg
  • material: high quality
PDF data sheet

open a bigger photo

open a bigger photo

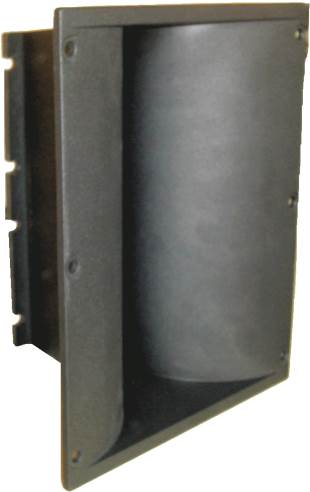

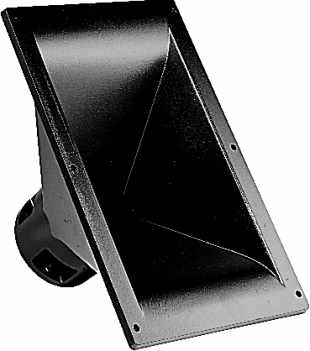

TDWL4       order no. by-tdwl4       EUR 109,00 excl. VAT: € 91.60 / $ 80.35
Horn for a compression driver with 0,47 x 8,19 inch throat.
  • nominal angle (HxV) = 90 x 20 Deg
  • Cut off frequency : 800 Hz
  • over all dimensions (HxWxD) = 250 x 210 x 147 mm
  • baffle Cutout dimensions (HxW) = 247 x 174 mm
  • net weight = 1,5 kg
  • material: aluminium
PDF data sheet



Mids


open a bigger photo

recommended cabinet 1:
closed cabinet with 2,5 L volume
from 220/139 Hz (-3dB/-8dB)

recommended cabinet 2:
9,8 L volume bass reflex cabinet
with HP70 reflex tube, 4 cm long.
from 106/87 Hz (-3dB/-8dB).

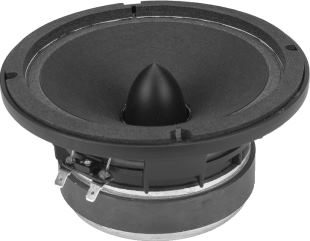

6Mi90       order no. by-6mi90       EUR 83,00 excl. VAT: € 69.75 / $ 61.18
16 cm midrange driver with paper cone.
  • power handling (continuous/programme) = 125/250 W
  • frequency range = 150-8000 Hz
  • resonance frequency fs = 120 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 9,6 N/A
  • voice coil inductance L = 0,5 mH
  • effective piston radiating area Sd = 140 cm2
  • effective mechanical mass incl. air load mms = 9 g
  • equivalent volume of compliance Vas = 7 l
  • total Q factor Qts = 0,44 (Qms=6,8, Qes=0,47)
  • voice coil diameter = 38,5 mm
  • maximum peak linear excursion vibration xlin = +/- 1 mm
  • mounting diameter d = 146 mm
  • overall diameter d = 174 mm
  • mounting depth (not countersunk) t = 85 mm
  • mass m = 2,25 kg
PDF data sheet

recommended cabinet 1:
closed cabinet with 0,45 L volume
from 386/244 Hz (-3dB/-8dB)

recommended cabinet 2:
1,3 L volume bass reflex cabinet
with HP50 reflex tube, 7 cm long.
from 211/163 Hz (-3dB/-8dB).

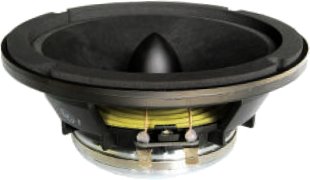

605ND       order no. by-605nd       EUR 165,00 excl. VAT: € 138.66 / $ 121.63
16 cm midrange driver with paper cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 125/250 W
  • frequency range = 150-8000 Hz
  • resonance frequency fs = 150 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 100 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 13,15 N/A
  • voice coil inductance L = 0,5 mH
  • effective piston radiating area Sd = 140 cm2
  • effective mechanical mass incl. air load mms = 10 g
  • equivalent volume of compliance Vas = 3 l
  • total Q factor Qts = 0,31 (Qms=9,68, Qes=0,32)
  • voice coil diameter = 38,5 mm
  • maximum peak linear excursion vibration xlin = +/- 1 mm
  • mounting diameter d = 148 mm
  • overall diameter d = 174 mm
  • mounting depth (not countersunk) t = 67 mm
  • mass m = 1,5 kg
PDF data sheet

recommended cabinet 1:
closed cabinet with 0,86 L volume
from 242/153 Hz (-3dB/-8dB)

recommended cabinet 2:
2,8 L volume bass reflex cabinet
with HP50 reflex tube, 10 cm long.
from 129/100 Hz (-3dB/-8dB).

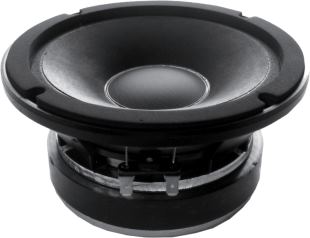

6MI100       order no. by-6mi100       EUR 99,00 excl. VAT: € 83.19 / $ 72.98
16 cm midrange driver with paper cone.
  • power handling (continuous/programme) = 250/500 W
  • frequency range = 150-6000 Hz
  • resonance frequency fs = 100 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97 dB (2,83V; 1m)
  • DC resistance Re = 5,3 Ohm
  • force factor BL = 11,6 N/A
  • voice coil inductance L = 0,6 mH
  • effective piston radiating area Sd = 140 cm2
  • effective mechanical mass incl. air load mms = 14 g
  • equivalent volume of compliance Vas = 5 l
  • total Q factor Qts = 0,29 (Qms=1,9, Qes=0,4)
  • voice coil diameter = 51,7 mm
  • maximum peak linear excursion vibration xlin = +/- 1 mm
  • mounting diameter d = 146 mm
  • overall diameter d = 174 mm
  • mounting depth (not countersunk) t = 85 mm
  • mass m = 2,2 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 10,7 L volume
from 128/81 Hz (-3dB/-8dB)

recommended cabinet 2:
42 L volume bass reflex cabinet
with HP100 reflex tube, 5 cm long.
from 57/50 Hz (-3dB/-8dB).

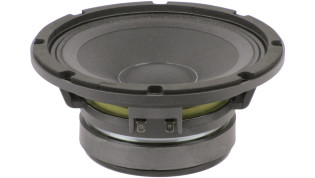

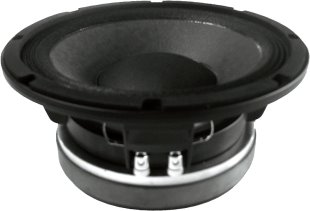

8MI100       order no. by-8mi100       EUR 105,00 excl. VAT: € 88.24 / $ 77.40
20 cm midrange driver with paper cone.
  • power handling (continuous/programme) = 250/500 W
  • frequency range = 150-7000 Hz
  • resonance frequency fs = 90 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 9,8 N/A
  • voice coil inductance L = 0,2 mH
  • effective piston radiating area Sd = 220 cm2
  • effective mechanical mass incl. air load mms = 17 g
  • equivalent volume of compliance Vas = 13 l
  • total Q factor Qts = 0,56 (Qms=8,5, Qes=0,6)
  • voice coil diameter = 51,7 mm
  • maximum peak linear excursion vibration xlin = +/- 1 mm
  • mounting diameter d = 181 mm
  • overall diameter d = 212 mm
  • mounting depth (not countersunk) t = 94 mm
  • mass m = 3,1 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 1,8 L volume
from 282/178 Hz (-3dB/-8dB)

recommended cabinet 2:
4,5 L volume bass reflex cabinet
with HP70 reflex tube, 7 cm long.
from 168/126 Hz (-3dB/-8dB).

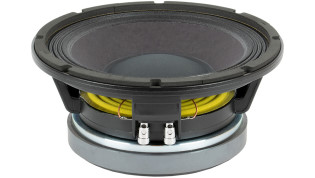

10MI100       order no. by-10mi100       EUR 189,00 excl. VAT: € 158.82 / $ 139.32
24 cm midrange driver with paper cone.
  • power handling (continuous/programme) = 350/700 W
  • frequency range = 70-4000 Hz
  • resonance frequency fs = 89 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 101 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 21,6 N/A
  • voice coil inductance L = 0,8 mH
  • effective piston radiating area Sd = 380 cm2
  • effective mechanical mass incl. air load mms = 34 g
  • equivalent volume of compliance Vas = 20 l
  • total Q factor Qts = 0,25 (Qms=7,2, Qes=0,26)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm
  • mounting diameter d = 228 mm
  • overall diameter d = 260,5 mm
  • mounting depth (not countersunk) t = 120 mm
  • mass m = 7,1 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 4,5 L volume
from 208/131 Hz (-3dB/-8dB)

recommended cabinet 2:
9,6 L volume bass reflex cabinet
with HP100 reflex tube, 15 cm long.
from 131/98 Hz (-3dB/-8dB).

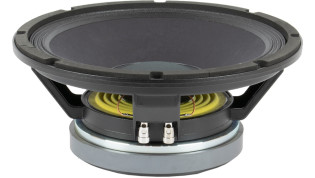

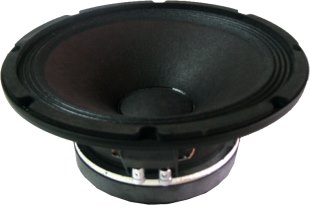

12MI100       order no. by-12mi100       EUR 199,00 excl. VAT: € 167.23 / $ 146.69
30 cm midrange driver with paper cone.
  • power handling (continuous/programme) = 450/900 W
  • frequency range = 40-4000 Hz
  • resonance frequency fs = 58 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 100 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 21,6 N/A
  • voice coil inductance L = 1 mH
  • effective piston radiating area Sd = 530 cm2
  • effective mechanical mass incl. air load mms = 47 g
  • equivalent volume of compliance Vas = 64 l
  • total Q factor Qts = 0,22 (Qms=5,54, Qes=0,23)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm
  • mounting diameter d = 277,5 mm
  • overall diameter d = 312 mm
  • mounting depth (not countersunk) t = 139 mm
  • mass m = 7,2 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 21 L volume
from 132/83 Hz (-3dB/-8dB)

recommended cabinet 2:
60 L volume bass reflex cabinet
with 2x HP100 reflex tube, 7 cm long.
from 74/56 Hz (-3dB/-8dB).

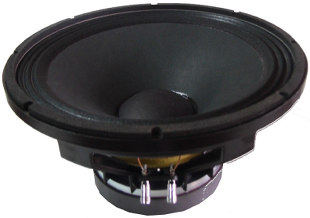

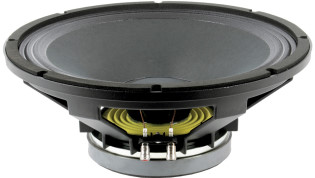

15MI100       order no. by-15mi100       EUR 219,00 excl. VAT: € 184.03 / $ 161.43
34 cm midrange driver with paper cone.
  • power handling (continuous/programme) = 450/900 W
  • frequency range = 30-4000 Hz
  • resonance frequency fs = 48 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 101 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 21,6 N/A
  • voice coil inductance L = 1 mH
  • effective piston radiating area Sd = 880 cm2
  • effective mechanical mass incl. air load mms = 72 g
  • equivalent volume of compliance Vas = 166 l
  • total Q factor Qts = 0,28 (Qms=6,38, Qes=0,3)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm
  • mounting diameter d = 252 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 163 mm
  • mass m = 7,8 kg
PDF data sheet

open a bigger photo

SK07       order no. by-sk07       EUR 179,00 excl. VAT: € 150.42 / $ 131.95
Bass Shaker. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 50/100 W
  • frequency range = 20-100 Hz
  • impedance R = 16 Ohm
  • overall diameter d = 156 mm
  • mounting depth (not countersunk) t = 64 mm
  • mass m = 1,5 kg
PDF data sheet



Woofer


open a bigger photo

recommended cabinet 1:
closed cabinet with 1 L volume
from 170/107 Hz (-3dB/-8dB)

recommended cabinet 2:
3,5 L volume bass reflex cabinet
with HP50 reflex tube, 18 cm long.
from 89/70 Hz (-3dB/-8dB).

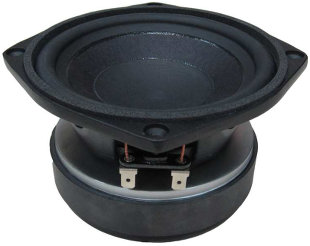

5P200FE       order no. by-5p200fe       EUR 89,00 excl. VAT: € 74.79 / $ 65.61
14 cm bass driver with high quality cone.
  • power handling (continuous/programme) = 150/300 W
  • frequency range = 70-10000 Hz
  • resonance frequency fs = 72 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 8,5 N/A
  • voice coil inductance L = 0,6 mH
  • effective piston radiating area Sd = 95 cm2
  • effective mechanical mass incl. air load mms = 10 g
  • equivalent volume of compliance Vas = 5,69 l
  • total Q factor Qts = 0,33 (Qms=7,5, Qes=0,35)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 5,7 mm
  • mounting diameter d = 122 mm
  • overall diameter d = 155 mm
  • mounting depth (not countersunk) t = 78,9 mm
  • mass m = 2,19 kg
PDF data sheet

recommended cabinet 1:
closed cabinet with 0,46 L volume
from 283/179 Hz (-3dB/-8dB)

recommended cabinet 2:
1,4 L volume bass reflex cabinet
with HP50 reflex tube, 15 cm long.
from 155/119 Hz (-3dB/-8dB).

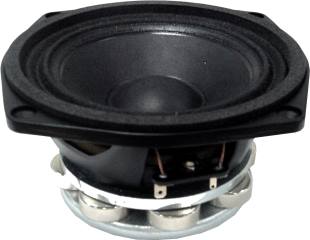

5G40ND       order no. by-5g40nd       EUR 125,00 excl. VAT: € 105.04 / $ 92.14
14 cm bass driver with paper cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 100/200 W
  • frequency range = 90-17000 Hz
  • resonance frequency fs = 110 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • DC resistance Re = 6,9 Ohm
  • force factor BL = 10 N/A
  • voice coil inductance L = 0,4 mH
  • effective piston radiating area Sd = 85 cm2
  • effective mechanical mass incl. air load mms = 7 g
  • equivalent volume of compliance Vas = 3,1 l
  • total Q factor Qts = 0,31 (Qms=4,9, Qes=0,33)
  • voice coil diameter = 38,5 mm
  • maximum peak linear excursion vibration xlin = +/- 1 mm
  • mounting diameter d = 120 mm
  • overall diameter d = 155 mm
  • mounting depth (not countersunk) t = 73,5 mm
  • mass m = 1,3 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 1,4 L volume
from 167/106 Hz (-3dB/-8dB)

recommended cabinet 2:
4,1 L volume bass reflex cabinet
with HP50 reflex tube, 15 cm long.
from 91/70 Hz (-3dB/-8dB).

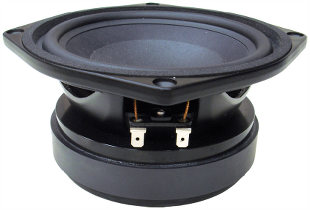

6P200FE       order no. by-6p200fe       EUR 115,00 excl. VAT: € 96.64 / $ 84.77
15 cm bass driver with high quality cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 200/400 W
  • frequency range = 60-9000 Hz
  • resonance frequency fs = 65 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92,7 dB (2,83V; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 10,1 N/A
  • voice coil inductance L = 0,6 mH
  • effective piston radiating area Sd = 135 cm2
  • effective mechanical mass incl. air load mms = 17 g
  • equivalent volume of compliance Vas = 9,13 l
  • total Q factor Qts = 0,31 (Qms=3,58, Qes=0,34)
  • voice coil diameter = 51,7 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 145,3 mm
  • overall diameter d = 162,5 mm
  • mounting depth (not countersunk) t = 86,5 mm
  • mass m = 3,1 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 1,5 L volume
from 154/97 Hz (-3dB/-8dB)

recommended cabinet 2:
4,3 L volume bass reflex cabinet
with HP50 reflex tube, 17 cm long.
from 86/66 Hz (-3dB/-8dB).

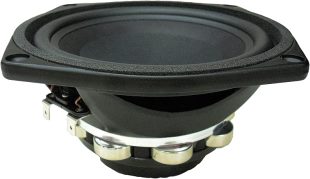

6P200ND       order no. by-6p200nd       EUR 159,00 excl. VAT: € 133.61 / $ 117.20
15 cm bass driver with high quality cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 200/400 W
  • frequency range = 60-9000 Hz
  • resonance frequency fs = 56 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 5,3 Ohm
  • force factor BL = 10,5 N/A
  • voice coil inductance L = 0,6 mH
  • effective piston radiating area Sd = 135 cm2
  • effective mechanical mass incl. air load mms = 17 g
  • equivalent volume of compliance Vas = 11,9 l
  • total Q factor Qts = 0,29 (Qms=3,69, Qes=0,32)
  • voice coil diameter = 51,7 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 145,3 mm
  • overall diameter d = 162,5 mm
  • mounting depth (not countersunk) t = 78 mm
  • mass m = 1,9 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 1,5 L volume
from 200/126 Hz (-3dB/-8dB)

recommended cabinet 2:
5,6 L volume bass reflex cabinet
with HP70 reflex tube, 13 cm long.
from 99/80 Hz (-3dB/-8dB).

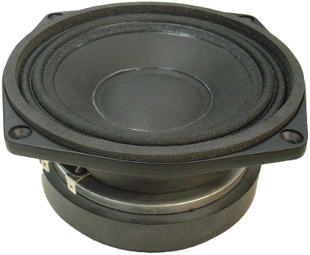

6G40FE       order no. by-6g40fe       EUR 99,00 excl. VAT: € 83.19 / $ 72.98
17 cm bass driver with paper cone.
  • power handling (continuous/programme) = 170/340 W
  • frequency range = 70-9000 Hz
  • resonance frequency fs = 102 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 94,3 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 11 N/A
  • voice coil inductance L = 0,5 mH
  • effective piston radiating area Sd = 140 cm2
  • effective mechanical mass incl. air load mms = 13 g
  • equivalent volume of compliance Vas = 5,04 l
  • total Q factor Qts = 0,4 (Qms=9,25, Qes=0,42)
  • voice coil diameter = 51,7 mm
  • maximum peak linear excursion vibration xlin = +/- 1,1 mm
  • mounting diameter d = 146 mm
  • overall diameter d = 187,5 mm
  • mounting depth (not countersunk) t = 81,5 mm
  • mass m = 3,02 kg
PDF data sheet

recommended cabinet 1:
closed cabinet with 1,2 L volume
from 213/135 Hz (-3dB/-8dB)

recommended cabinet 2:
4 L volume bass reflex cabinet
with HP50 reflex tube, 8 cm long.
from 114/88 Hz (-3dB/-8dB).

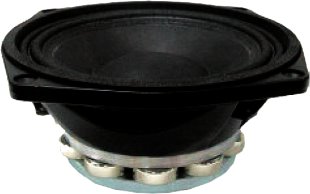

6G40ND       order no. by-6g40nd       EUR 139,00 excl. VAT: € 116.81 / $ 102.46
17 cm bass driver with paper cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 170/340 W
  • frequency range = 70-9000 Hz
  • resonance frequency fs = 88 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 95 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 11 N/A
  • voice coil inductance L = 0,6 mH
  • effective piston radiating area Sd = 140 cm2
  • effective mechanical mass incl. air load mms = 12 g
  • equivalent volume of compliance Vas = 7,2 l
  • total Q factor Qts = 0,33 (Qms=9,1, Qes=0,34)
  • voice coil diameter = 51,7 mm
  • maximum peak linear excursion vibration xlin = +/- 1 mm
  • mounting diameter d = 146 mm
  • overall diameter d = 187,5 mm
  • mounting depth (not countersunk) t = 75,5 mm
  • mass m = 1,7 kg
PDF data sheet

recommended cabinet 1:
closed cabinet with 3,6 L volume
from 150/94 Hz (-3dB/-8dB)

recommended cabinet 2:
12,8 L volume bass reflex cabinet
with HP70 reflex tube, 9 cm long.
from 76/61 Hz (-3dB/-8dB).

SM108       order no. by-sm108       EUR 91,00 excl. VAT: € 76.47 / $ 67.08
20 cm bass driver with paper cone.
  • power handling (continuous/programme) = 150/300 W
  • frequency range = 65-6000 Hz
  • resonance frequency fs = 69 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 95 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 13 N/A
  • voice coil inductance L = 1,5 mH
  • effective piston radiating area Sd = 220 cm2
  • effective mechanical mass incl. air load mms = 24 g
  • equivalent volume of compliance Vas = 16 l
  • total Q factor Qts = 0,37 (Qms=7,01, Qes=0,39)
  • voice coil diameter = 51,7 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 181 mm
  • overall diameter d = 212 mm
  • mounting depth (not countersunk) t = 94 mm
  • mass m = 3,1 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 3,7 L volume
from 148/93 Hz (-3dB/-8dB)

recommended cabinet 2:
11,8 L volume bass reflex cabinet
with HP70 reflex tube, 11 cm long.
from 79/61 Hz (-3dB/-8dB).

8P300FE       order no. by-8p300fe       EUR 139,00 excl. VAT: € 116.81 / $ 102.46
20 cm bass driver with high quality cone.
  • power handling (continuous/programme) = 300/600 W
  • frequency range = 50-8000 Hz
  • resonance frequency fs = 61 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 95,4 dB (2,83V; 1m)
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 11 N/A
  • voice coil inductance L = 0,8 mH
  • effective piston radiating area Sd = 220 cm2
  • effective mechanical mass incl. air load mms = 22 g
  • equivalent volume of compliance Vas = 21,49 l
  • total Q factor Qts = 0,33 (Qms=9,54, Qes=0,34)
  • voice coil diameter = 62,4 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 182,5 mm
  • overall diameter d = 211,5 mm
  • mounting depth (not countersunk) t = 97,5 mm
  • mass m = 4,03 kg
PDF data sheet

recommended cabinet 1:
closed cabinet with 3,6 L volume
from 152/96 Hz (-3dB/-8dB)

recommended cabinet 2:
12,8 L volume bass reflex cabinet
with HP100 reflex tube, 23 cm long.
from 78/61 Hz (-3dB/-8dB).

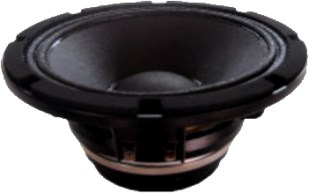

8LW30       order no. by-8lw30       EUR 169,00 excl. VAT: € 142.02 / $ 124.58
20 cm bass driver with paper cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 250/500 W
  • frequency range = 65-6000 Hz
  • resonance frequency fs = 70 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 95 dB (2,83V; 1m)
  • DC resistance Re = 5,8 Ohm
  • force factor BL = 12 N/A
  • voice coil inductance L = 1,1 mH
  • effective piston radiating area Sd = 220 cm2
  • effective mechanical mass incl. air load mms = 22 g
  • equivalent volume of compliance Vas = 16 l
  • total Q factor Qts = 0,37 (Qms=7, Qes=0,39)
  • voice coil diameter = 62,4 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 181 mm
  • overall diameter d = 212 mm
  • mounting depth (not countersunk) t = 96 mm
  • mass m = 2,35 kg
PDF data sheet

recommended cabinet 1:
closed cabinet with 3,6 L volume
from 156/98 Hz (-3dB/-8dB)

recommended cabinet 2:
12,4 L volume bass reflex cabinet
with HP100 reflex tube, 22 cm long.
from 80/63 Hz (-3dB/-8dB).

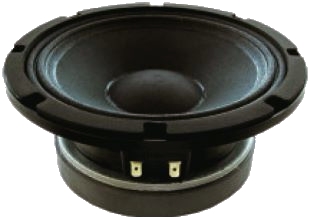

8G40       order no. by-8g40       EUR 118,00 excl. VAT: € 99.16 / $ 86.98
20 cm bass driver with paper cone.
  • power handling (continuous/programme) = 250/500 W
  • frequency range = 65-6000 Hz
  • resonance frequency fs = 70 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 95 dB (2,83V; 1m)
  • DC resistance Re = 6,1 Ohm
  • force factor BL = 12,2 N/A
  • voice coil inductance L = 1,3 mH
  • effective piston radiating area Sd = 220 cm2
  • effective mechanical mass incl. air load mms = 21 g
  • equivalent volume of compliance Vas = 17 l
  • total Q factor Qts = 0,36 (Qms=6,83, Qes=0,38)
  • voice coil diameter = 62,4 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 181 mm
  • overall diameter d = 212 mm
  • mounting depth (not countersunk) t = 96 mm
  • mass m = 3,3 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 2,7 L volume
from 185/117 Hz (-3dB/-8dB)

recommended cabinet 2:
7,2 L volume bass reflex cabinet
with HP70 reflex tube, 12 cm long.
from 107/81 Hz (-3dB/-8dB).

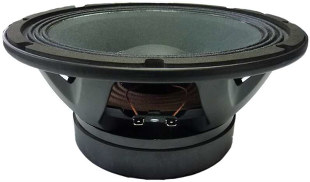

10MC500       order no. by-10mc500       EUR 155,20 excl. VAT: € 130.42 / $ 114.40
25 cm bass driver with high quality cone.
  • power handling (continuous/programme) = 500/1000 W
  • frequency range = 60-5000 Hz
  • resonance frequency fs = 63 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 18,2 N/A
  • voice coil inductance L = 1 mH
  • effective piston radiating area Sd = 350 cm2
  • effective mechanical mass incl. air load mms = 44 g
  • equivalent volume of compliance Vas = 25 l
  • total Q factor Qts = 0,27 (Qms=5, Qes=0,29)
  • voice coil diameter = 63,5 mm
  • maximum peak linear excursion vibration xlin = +/- 8 mm
  • mounting diameter d = 230 mm
  • overall diameter d = 261 mm
  • mounting depth (not countersunk) t = 125 mm
  • mass m = 5,7 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 5,3 L volume
from 137/87 Hz (-3dB/-8dB)

recommended cabinet 2:
16 L volume bass reflex cabinet
with HP100 reflex tube, 22 cm long.
from 74/57 Hz (-3dB/-8dB).

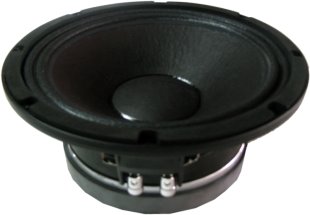

10G40       order no. by-10g40       EUR 159,00 excl. VAT: € 133.61 / $ 117.20
24 cm bass driver with paper cone.
  • power handling (continuous/programme) = 400/800 W
  • frequency range = 45-4000 Hz
  • resonance frequency fs = 55 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 17,9 N/A
  • voice coil inductance L = 1 mH
  • effective piston radiating area Sd = 380 cm2
  • effective mechanical mass incl. air load mms = 51 g
  • equivalent volume of compliance Vas = 33 l
  • total Q factor Qts = 0,31 (Qms=6,47, Qes=0,33)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 228 mm
  • overall diameter d = 260,5 mm
  • mounting depth (not countersunk) t = 133 mm
  • mass m = 5,7 kg
PDF data sheet

recommended cabinet 1:
closed cabinet with 4,3 L volume
from 130/82 Hz (-3dB/-8dB)

recommended cabinet 2:
9,7 L volume bass reflex cabinet
with HP70 reflex tube, 21 cm long.
from 81/60 Hz (-3dB/-8dB).

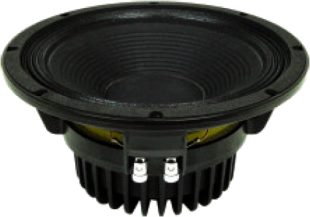

10LW30/N       order no. by-10lw30n       EUR 219,00 excl. VAT: € 184.03 / $ 161.43
24 cm bass driver with paper cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 450/900 W
  • frequency range = 35-3500 Hz
  • resonance frequency fs = 38 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 94 dB (2,83V; 1m)
  • DC resistance Re = 6,1 Ohm
  • force factor BL = 17,9 N/A
  • voice coil inductance L = 1,2 mH
  • effective piston radiating area Sd = 350 cm2
  • effective mechanical mass incl. air load mms = 53 g
  • equivalent volume of compliance Vas = 56 l
  • total Q factor Qts = 0,23 (Qms=9,9, Qes=0,24)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 228 mm
  • overall diameter d = 260,5 mm
  • mounting depth (not countersunk) t = 127,5 mm
  • mass m = 3,75 kg
PDF data sheet

recommended cabinet 1:
closed cabinet with 6,5 L volume
from 122/77 Hz (-3dB/-8dB)

recommended cabinet 2:
20 L volume bass reflex cabinet
with HP100 reflex tube, 22 cm long.
from 66/51 Hz (-3dB/-8dB).

10MW/ND       order no. by-10mwnd       - not available
25 cm bass driver with high quality cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 350/700 W
  • frequency range = 45-5000 Hz
  • resonance frequency fs = 49 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 95 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 15,7 N/A
  • voice coil inductance L = 1,7 mH
  • effective piston radiating area Sd = 350 cm2
  • effective mechanical mass incl. air load mms = 43 g
  • equivalent volume of compliance Vas = 40,7 l
  • total Q factor Qts = 0,32 (Qms=9,95, Qes=0,33)
  • voice coil diameter = 62,4 mm
  • maximum peak linear excursion vibration xlin = +/- 7,5 mm
  • mounting diameter d = 230 mm
  • overall diameter d = 261 mm
  • mounting depth (not countersunk) t = 118 mm
  • mass m = 3,1 kg
PDF data sheet

recommended cabinet 1:
closed cabinet with 13,7 L volume
from 96/60 Hz (-3dB/-8dB)

recommended cabinet 2:
47 L volume bass reflex cabinet
with HP100 reflex tube, 13 cm long.
from 49/39 Hz (-3dB/-8dB).

SM110N       order no. by-sm110n       EUR 99,00 excl. VAT: € 83.19 / $ 72.98
24 cm bass driver with paper cone.
  • power handling (continuous/programme) = 200/400 W
  • frequency range = 45-6500 Hz
  • resonance frequency fs = 43 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 95 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 13,2 N/A
  • voice coil inductance L = 1,7 mH
  • effective piston radiating area Sd = 355 cm2
  • effective mechanical mass incl. air load mms = 38 g
  • equivalent volume of compliance Vas = 65 l
  • total Q factor Qts = 0,35 (Qms=7,88, Qes=0,37)
  • voice coil diameter = 51,7 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 228 mm
  • overall diameter d = 260,5 mm
  • mounting depth (not countersunk) t = 114 mm
  • mass m = 3,5 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 4,5 L volume
from 137/87 Hz (-3dB/-8dB)

recommended cabinet 2:
11,5 L volume bass reflex cabinet
with HP100 reflex tube, 35 cm long.
from 81/61 Hz (-3dB/-8dB).

12SW1300ND       order no. by-12sw1300nd       EUR 449,00 excl. VAT: € 377.31 / $ 330.97
30 cm bass driver with high quality cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 1200/2400 W
  • frequency range = 25-1800 Hz
  • resonance frequency fs = 45 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 4,9 Ohm
  • force factor BL = 25,3 N/A
  • voice coil inductance L = 3,25 mH
  • effective piston radiating area Sd = 550 cm2
  • effective mechanical mass incl. air load mms = 118 g
  • equivalent volume of compliance Vas = 45 l
  • total Q factor Qts = 0,26 (Qms=12,07, Qes=0,27)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 10 mm
  • mounting diameter d = 280 mm
  • overall diameter d = 312 mm
  • mounting depth (not countersunk) t = 132 mm
  • mass m = 7,2 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 2,7 L volume
from 247/156 Hz (-3dB/-8dB)

recommended cabinet 2:
3,5 L volume bass reflex cabinet
with HP100 reflex tube, 38 cm long.
from 192/142 Hz (-3dB/-8dB).

12P80ND       order no. by-12p80nd       EUR 419,00 excl. VAT: € 352.10 / $ 308.86
30 cm bass driver with high quality cone.
  • power handling (continuous/programme) = 700/1400 W
  • frequency range = 25-4000 Hz
  • resonance frequency fs = 45 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 101 dB (2,83V; 1m)
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 23,1 N/A
  • voice coil inductance L = 1,2 mH
  • effective piston radiating area Sd = 550 cm2
  • effective mechanical mass incl. air load mms = 56 g
  • equivalent volume of compliance Vas = 95,7 l
  • total Q factor Qts = 0,15 (Qms=6,6, Qes=0,15)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 7,5 mm
  • mounting diameter d = 280 mm
  • overall diameter d = 312 mm
  • mounting depth (not countersunk) t = 130 mm
  • mass m = 5,6 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 3,5 L volume
from 199/126 Hz (-3dB/-8dB)

recommended cabinet 2:
6 L volume bass reflex cabinet
with HP100 reflex tube, 32 cm long.
from 138/102 Hz (-3dB/-8dB).

12P80FE       order no. by-12p80fe       - not available
30 cm bass driver with high quality cone.
  • power handling (continuous/programme) = 700/1400 W
  • frequency range = 25-4000 Hz
  • resonance frequency fs = 46 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 100 dB (2,83V; 1m)
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 23,1 N/A
  • voice coil inductance L = 1,5 mH
  • effective piston radiating area Sd = 550 cm2
  • effective mechanical mass incl. air load mms = 66 g
  • equivalent volume of compliance Vas = 75,55 l
  • total Q factor Qts = 0,19 (Qms=10,14, Qes=0,189)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 7,4 mm
  • mounting diameter d = 280 mm
  • overall diameter d = 312 mm
  • mounting depth (not countersunk) t = 132 mm
  • mass m = 11,8 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 11,1 L volume
from 101/64 Hz (-3dB/-8dB)

recommended cabinet 2:
41 L volume bass reflex cabinet
with 2x HP100 reflex tube, 30 cm long.
from 51/40 Hz (-3dB/-8dB).

12LX60 V2       order no. by-12lx60-v2       EUR 239,00 excl. VAT: € 200.84 / $ 176.18
30 cm bass driver with high quality cone.
  • power handling (continuous/programme) = 700/1400 W
  • frequency range = 35-2000 Hz
  • resonance frequency fs = 49 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 20 N/A
  • voice coil inductance L = 2,1 mH
  • effective piston radiating area Sd = 550 cm2
  • effective mechanical mass incl. air load mms = 102 g
  • equivalent volume of compliance Vas = 43 l
  • total Q factor Qts = 0,39 (Qms=15,3, Qes=0,4)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm
  • mounting diameter d = 282,5 mm
  • overall diameter d = 312 mm
  • mounting depth (not countersunk) t = 121,5 mm
  • mass m = 9,7 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 13,2 L volume
from 120/76 Hz (-3dB/-8dB)

recommended cabinet 2:
48 L volume bass reflex cabinet
with 2x HP100 reflex tube, 14 cm long.
from 61/49 Hz (-3dB/-8dB).

12MC500       order no. by-12mc500       EUR 178,00 excl. VAT: € 149.58 / $ 131.21
29 cm bass driver with high quality cone.
  • power handling (continuous/programme) = 500/1000 W
  • frequency range = 50-5500 Hz
  • resonance frequency fs = 57 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97,8 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 17,23 N/A
  • voice coil inductance L = 0,7 mH
  • effective piston radiating area Sd = 550 cm2
  • effective mechanical mass incl. air load mms = 59 g
  • equivalent volume of compliance Vas = 54,9 l
  • total Q factor Qts = 0,37 (Qms=8,58, Qes=0,39)
  • voice coil diameter = 63,5 mm
  • maximum peak linear excursion vibration xlin = +/- 8 mm
  • mounting diameter d = 275 mm
  • overall diameter d = 312 mm
  • mounting depth (not countersunk) t = 140 mm
  • mass m = 5,86 kg
PDF data sheet

recommended cabinet 1:
closed cabinet with 17 L volume
from 104/66 Hz (-3dB/-8dB)

recommended cabinet 2:
55 L volume bass reflex cabinet
with 2x HP100 reflex tube, 18 cm long.
from 56/43 Hz (-3dB/-8dB).

12MW/ND       order no. by-12mwnd       - not available
30 cm bass driver with high quality cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 350/700 W
  • frequency range = 35-5000 Hz
  • resonance frequency fs = 43 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 16,9 N/A
  • voice coil inductance L = 1,7 mH
  • effective piston radiating area Sd = 550 cm2
  • effective mechanical mass incl. air load mms = 59 g
  • equivalent volume of compliance Vas = 100 l
  • total Q factor Qts = 0,33 (Qms=9,15, Qes=0,34)
  • voice coil diameter = 62,4 mm
  • maximum peak linear excursion vibration xlin = +/- 7,5 mm
  • mounting diameter d = 278 mm
  • overall diameter d = 312 mm
  • mounting depth (not countersunk) t = 132,3 mm
  • mass m = 3,3 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 10,3 L volume
from 121/76 Hz (-3dB/-8dB)

recommended cabinet 2:
29 L volume bass reflex cabinet
with 2x HP100 reflex tube, 30 cm long.
from 68/52 Hz (-3dB/-8dB).

12G40       order no. by-12g40       EUR 209,00 excl. VAT: € 175.63 / $ 154.06
30 cm bass driver with high quality cone.
  • power handling (continuous/programme) = 500/1000 W
  • frequency range = 35-4000 Hz
  • resonance frequency fs = 44 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97 dB (2,83V; 1m)
  • DC resistance Re = 6,7 Ohm
  • voice coil inductance L = 2,1 mH
  • effective piston radiating area Sd = 530 cm2
  • equivalent volume of compliance Vas = 81 l
  • total Q factor Qts = 0,29 (Qms=11,6, Qes=0,3)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 278 mm
  • overall diameter d = 312 mm
  • mounting depth (not countersunk) t = 139 mm
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 4,9 L volume
from 143/91 Hz (-3dB/-8dB)

recommended cabinet 2:
12,5 L volume bass reflex cabinet
with HP100 reflex tube, 28 cm long.
from 84/63 Hz (-3dB/-8dB).

12P1000ND       order no. by-12p1000nd       EUR 379,00 excl. VAT: € 318.49 / $ 279.37
30 cm bass driver with paper cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 900/1800 W
  • frequency range = 30-2500 Hz
  • resonance frequency fs = 47 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 23,5 N/A
  • voice coil inductance L = 2 mH
  • effective piston radiating area Sd = 550 cm2
  • effective mechanical mass incl. air load mms = 100 g
  • equivalent volume of compliance Vas = 49 l
  • total Q factor Qts = 0,26 (Qms=7,89, Qes=0,27)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 8 mm
  • mounting diameter d = 283 mm
  • overall diameter d = 312 mm
  • mounting depth (not countersunk) t = 131 mm
  • mass m = 5,4 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 36 L volume
from 85/53 Hz (-3dB/-8dB)

recommended cabinet 2:
130 L volume bass reflex cabinet
with 2x HP100 reflex tube, 8 cm long.
from 43/34 Hz (-3dB/-8dB).

SM212       order no. by-sm212       EUR 139,00 excl. VAT: € 116.81 / $ 102.46
30 cm bass driver with paper cone.
  • power handling (continuous/programme) = 350/700 W
  • frequency range = 45-6000 Hz
  • resonance frequency fs = 40 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,8 Ohm
  • force factor BL = 12,8 N/A
  • voice coil inductance L = 1,2 mH
  • effective piston radiating area Sd = 550 cm2
  • effective mechanical mass incl. air load mms = 44 g
  • equivalent volume of compliance Vas = 150 l
  • total Q factor Qts = 0,37 (Qms=5,6, Qes=0,4)
  • voice coil diameter = 62,4 mm
  • maximum peak linear excursion vibration xlin = +/- 7 mm
  • mounting diameter d = 277,5 mm
  • overall diameter d = 312 mm
  • mounting depth (not countersunk) t = 132 mm
  • mass m = 4,6 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 33 L volume
from 79/50 Hz (-3dB/-8dB)

recommended cabinet 2:
132 L volume bass reflex cabinet
with 2x HP100 reflex tube, 10 cm long.
from 38/31 Hz (-3dB/-8dB).

SM112N       order no. by-sm112n       EUR 159,00 excl. VAT: € 133.61 / $ 117.20
30 cm bass driver with paper cone.
  • power handling (continuous/programme) = 400/800 W
  • frequency range = 35-4000 Hz
  • resonance frequency fs = 43 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 95,2 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 15,1 N/A
  • voice coil inductance L = 1,7 mH
  • effective piston radiating area Sd = 550 cm2
  • effective mechanical mass incl. air load mms = 59 g
  • equivalent volume of compliance Vas = 94,24 l
  • total Q factor Qts = 0,43 (Qms=12,43, Qes=0,45)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 7,25 mm
  • mounting diameter d = 277,5 mm
  • overall diameter d = 312 mm
  • mounting depth (not countersunk) t = 138 mm
  • mass m = 5,65 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 17 L volume
from 99/62 Hz (-3dB/-8dB)

recommended cabinet 2:
55 L volume bass reflex cabinet
with 2x HP100 reflex tube, 22 cm long.
from 52/41 Hz (-3dB/-8dB).

SM112W       order no. by-sm112w       - not available
30 cm bass driver with paper cone.
  • power handling (continuous/programme) = 400/800 W
  • frequency range = 35-4000 Hz
  • resonance frequency fs = 42 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 5,8 Ohm
  • force factor BL = 16,3 N/A
  • voice coil inductance L = 1,1 mH
  • effective piston radiating area Sd = 530 cm2
  • effective mechanical mass incl. air load mms = 62 g
  • equivalent volume of compliance Vas = 90 l
  • total Q factor Qts = 0,34 (Qms=4,92, Qes=0,36)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 277,5 mm
  • overall diameter d = 312 mm
  • mounting depth (not countersunk) t = 136 mm
  • mass m = 5,65 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 19 L volume
from 98/62 Hz (-3dB/-8dB)

recommended cabinet 2:
65 L volume bass reflex cabinet
with 2x HP100 reflex tube, 17 cm long.
from 51/40 Hz (-3dB/-8dB).

15SW1300ND       order no. by-15sw1300nd       EUR 509,00 excl. VAT: € 427.73 / $ 375.20
37 cm bass driver with high quality cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 1300/2600 W
  • frequency range = 25-1800 Hz
  • resonance frequency fs = 44 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97 dB (2,83V; 1m)
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 25,1 N/A
  • voice coil inductance L = 3,45 mH
  • effective piston radiating area Sd = 880 cm2
  • effective mechanical mass incl. air load mms = 160 g
  • equivalent volume of compliance Vas = 89,6 l
  • total Q factor Qts = 0,36 (Qms=14,7, Qes=0,37)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 10 mm
  • mounting diameter d = 355 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 155 mm
  • mass m = 7,7 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 19 L volume
from 98/62 Hz (-3dB/-8dB)

recommended cabinet 2:
69 L volume bass reflex cabinet
with 2x HP100 reflex tube, 16 cm long.
from 50/40 Hz (-3dB/-8dB).

15P1000FE       order no. by-15p1000fe       EUR 299,00 excl. VAT: € 251.26 / $ 220.40
37 cm bass driver with paper cone.
  • power handling (continuous/programme) = 1000/2000 W
  • frequency range = 30-2000 Hz
  • resonance frequency fs = 45 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97 dB (2,83V; 1m)
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 23,5 N/A
  • voice coil inductance L = 2 mH
  • effective piston radiating area Sd = 855 cm2
  • effective mechanical mass incl. air load mms = 149 g
  • equivalent volume of compliance Vas = 85,9 l
  • total Q factor Qts = 0,37 (Qms=11,46, Qes=0,38)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 8 mm
  • mounting diameter d = 353 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 167 mm
  • mass m = 12,1 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 12,3 L volume
from 141/89 Hz (-3dB/-8dB)

recommended cabinet 2:
28 L volume bass reflex cabinet
with 2x HP100 reflex tube, 22 cm long.
from 87/65 Hz (-3dB/-8dB).

15P80FE       order no. by-15p80fe       EUR 331,00 excl. VAT: € 278.15 / $ 243.99
37 cm bass driver with high quality cone.
  • power handling (continuous/programme) = 800/1600 W
  • frequency range = 30-5000 Hz
  • resonance frequency fs = 41 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 100,6 dB (2,83V; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 22,9 N/A
  • voice coil inductance L = 1,5 mH
  • effective piston radiating area Sd = 880 cm2
  • effective mechanical mass incl. air load mms = 98 g
  • equivalent volume of compliance Vas = 159,3 l
  • total Q factor Qts = 0,24 (Qms=13,32, Qes=0,24)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 7,4 mm
  • mounting diameter d = 349,5 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 157,5 mm
  • mass m = 12,36 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 44 L volume
from 90/57 Hz (-3dB/-8dB)

recommended cabinet 2:
175 L volume bass reflex cabinet
with 4x HP100 reflex tube, 11 cm long.
from 43/35 Hz (-3dB/-8dB).

15MC500       order no. by-15mc500       EUR 189,00 excl. VAT: € 158.82 / $ 139.32
37 cm bass driver with high quality cone.
  • power handling (continuous/programme) = 500/1000 W
  • frequency range = 50-5000 Hz
  • resonance frequency fs = 50 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98,5 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 18,2 N/A
  • voice coil inductance L = 1,1 mH
  • effective piston radiating area Sd = 880 cm2
  • effective mechanical mass incl. air load mms = 96 g
  • equivalent volume of compliance Vas = 116 l
  • total Q factor Qts = 0,45 (Qms=5, Qes=0,49)
  • voice coil diameter = 63,5 mm
  • maximum peak linear excursion vibration xlin = +/- 8 mm
  • mounting diameter d = 349,5 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 170 mm
  • mass m = 6,2 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 17 L volume
from 103/65 Hz (-3dB/-8dB)

recommended cabinet 2:
59 L volume bass reflex cabinet
with 2x HP100 reflex tube, 17 cm long.
from 54/42 Hz (-3dB/-8dB).

15P1000ND       order no. by-15p1000nd       EUR 405,00 excl. VAT: € 340.34 / $ 298.54
37 cm bass driver with paper cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 1000/2000 W
  • frequency range = 30-2000 Hz
  • resonance frequency fs = 45 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97 dB (2,83V; 1m)
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 24,3 N/A
  • voice coil inductance L = 2 mH
  • effective piston radiating area Sd = 855 cm2
  • effective mechanical mass incl. air load mms = 145 g
  • equivalent volume of compliance Vas = 88 l
  • total Q factor Qts = 0,35 (Qms=9,6, Qes=0,36)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 8 mm
  • mounting diameter d = 352 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 158 mm
  • mass m = 5,9 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 12,6 L volume
from 108/68 Hz (-3dB/-8dB)

recommended cabinet 2:
38 L volume bass reflex cabinet
with 2x HP100 reflex tube, 28 cm long.
from 59/46 Hz (-3dB/-8dB).

15P1200ND       order no. by-15p1200nd       EUR 449,00 excl. VAT: € 377.31 / $ 330.97
37 cm bass driver with paper cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 1200/2400 W
  • frequency range = 25-1800 Hz
  • resonance frequency fs = 42 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97 dB (2,83V; 1m)
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 26,5 N/A
  • voice coil inductance L = 2,7 mH
  • effective piston radiating area Sd = 855 cm2
  • effective mechanical mass incl. air load mms = 165 g
  • equivalent volume of compliance Vas = 84,7 l
  • total Q factor Qts = 0,31 (Qms=14,2, Qes=0,32)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 9,5 mm
  • mounting diameter d = 352 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 155 mm
  • mass m = 7,7 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 42 L volume
from 89/56 Hz (-3dB/-8dB)

recommended cabinet 2:
153 L volume bass reflex cabinet
with 2x HP100 reflex tube, 4 cm long.
from 45/36 Hz (-3dB/-8dB).

15MW/ND       order no. by-15mwnd       - not available
37 cm bass driver with high quality cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 400/800 W
  • frequency range = 30-3500 Hz
  • resonance frequency fs = 42 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99 dB (2,83V; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 17,2 N/A
  • voice coil inductance L = 1,7 mH
  • effective piston radiating area Sd = 880 cm2
  • effective mechanical mass incl. air load mms = 90 g
  • equivalent volume of compliance Vas = 176 l
  • total Q factor Qts = 0,38 (Qms=7,62, Qes=0,4)
  • voice coil diameter = 62,4 mm
  • maximum peak linear excursion vibration xlin = +/- 6,5 mm
  • mounting diameter d = 349,5 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 156,7 mm
  • mass m = 3,6 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 38 L volume
from 91/57 Hz (-3dB/-8dB)

recommended cabinet 2:
105 L volume bass reflex cabinet
with 2x HP100 reflex tube, 10 cm long.
from 52/39 Hz (-3dB/-8dB).

15LW30       order no. by-15lw30       EUR 279,00 excl. VAT: € 234.45 / $ 205.66
37 cm bass driver with paper cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 500/1000 W
  • frequency range = 35-4000 Hz
  • resonance frequency fs = 32 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99 dB (2,83V; 1m)
  • DC resistance Re = 6,1 Ohm
  • force factor BL = 18,9 N/A
  • voice coil inductance L = 1,4 mH
  • effective piston radiating area Sd = 880 cm2
  • effective mechanical mass incl. air load mms = 83 g
  • equivalent volume of compliance Vas = 325 l
  • total Q factor Qts = 0,28 (Qms=8,4, Qes=0,29)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 7 mm
  • mounting diameter d = 352 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 168 mm
  • mass m = 4,47 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 40 L volume
from 75/47 Hz (-3dB/-8dB)

recommended cabinet 2:
159 L volume bass reflex cabinet
with 2x HP100 reflex tube, 9 cm long.
from 36/30 Hz (-3dB/-8dB).

15LX60 V2       order no. by-15lx60-v2       EUR 297,00 excl. VAT: € 249.58 / $ 218.93
37 cm bass driver with high quality cone.
  • power handling (continuous/programme) = 700/1400 W
  • frequency range = 30-1500 Hz
  • resonance frequency fs = 42 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 21,1 N/A
  • voice coil inductance L = 2,1 mH
  • effective piston radiating area Sd = 910 cm2
  • effective mechanical mass incl. air load mms = 147 g
  • equivalent volume of compliance Vas = 105,53 l
  • total Q factor Qts = 0,44 (Qms=21,23, Qes=0,45)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm
  • mounting diameter d = 355 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 145 mm
  • mass m = 10,2 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 18 L volume
from 112/71 Hz (-3dB/-8dB)

recommended cabinet 2:
57 L volume bass reflex cabinet
with 2x HP100 reflex tube, 14 cm long.
from 61/47 Hz (-3dB/-8dB).

15G450N       order no. by-15g450n       EUR 375,00 excl. VAT: € 315.13 / $ 276.43
37 cm bass driver with high quality cone.
  • power handling (continuous/programme) = 750/1500 W
  • frequency range = 30-1500 Hz
  • resonance frequency fs = 45 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 24,3 N/A
  • voice coil inductance L = 1,2 mH
  • effective piston radiating area Sd = 880 cm2
  • effective mechanical mass incl. air load mms = 142 g
  • equivalent volume of compliance Vas = 115 l
  • total Q factor Qts = 0,32 (Qms=10,5, Qes=0,33)
  • voice coil diameter = 114 mm
  • maximum peak linear excursion vibration xlin = +/- 6,5 mm
  • mounting diameter d = 352 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 170 mm
  • mass m = 11,5 kg
PDF data sheet

recommended cabinet 1:
closed cabinet with 21 L volume
from 98/62 Hz (-3dB/-8dB)

recommended cabinet 2:
60 L volume bass reflex cabinet
with 2x HP100 reflex tube, 19 cm long.
from 54/42 Hz (-3dB/-8dB).

15G40       order no. by-15g40       EUR 298,00 excl. VAT: € 250.42 / $ 219.67
37 cm bass driver with high quality cone.
  • power handling (continuous/programme) = 700/1400 W
  • frequency range = 25-1500 Hz
  • resonance frequency fs = 37 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97 dB (2,83V; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 23 N/A
  • voice coil inductance L = 2,9 mH
  • effective piston radiating area Sd = 830 cm2
  • effective mechanical mass incl. air load mms = 122 g
  • equivalent volume of compliance Vas = 149 l
  • total Q factor Qts = 0,3 (Qms=9,95, Qes=0,31)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 7 mm
  • mounting diameter d = 352 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 171 mm
  • mass m = 10,4 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 18 L volume
from 124/78 Hz (-3dB/-8dB)

recommended cabinet 2:
60 L volume bass reflex cabinet
with 2x HP100 reflex tube, 9 cm long.
from 64/51 Hz (-3dB/-8dB).

15P80ND       order no. by-15p80nd       EUR 439,00 excl. VAT: € 368.91 / $ 323.60
37 cm bass driver with high quality cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 800/1600 W
  • frequency range = 25-4000 Hz
  • resonance frequency fs = 54 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 100 dB (2,83V; 1m)
  • DC resistance Re = 5,3 Ohm
  • force factor BL = 22,8 N/A
  • voice coil inductance L = 1,6 mH
  • effective piston radiating area Sd = 880 cm2
  • effective mechanical mass incl. air load mms = 105 g
  • equivalent volume of compliance Vas = 90,43 l
  • total Q factor Qts = 0,34 (Qms=7,95, Qes=0,36)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 7,5 mm
  • mounting diameter d = 349,5 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 157,5 mm
  • mass m = 6 kg
PDF data sheet

recommended cabinet 1:
closed cabinet with 55 L volume
from 80/50 Hz (-3dB/-8dB)

recommended cabinet 2:
156 L volume bass reflex cabinet
with 2x HP100 reflex tube, 8 cm long.
from 45/34 Hz (-3dB/-8dB).

SM115N       order no. by-sm115n       EUR 187,00 excl. VAT: € 157.14 / $ 137.84
37 cm bass driver with paper cone.
  • power handling (continuous/programme) = 400/800 W
  • frequency range = 30-3000 Hz
  • resonance frequency fs = 29 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • force factor BL = 17 N/A
  • voice coil inductance L = 1,1 mH
  • effective piston radiating area Sd = 880 cm2
  • effective mechanical mass incl. air load mms = 77 g
  • equivalent volume of compliance Vas = 430 l
  • total Q factor Qts = 0,29 (Qms=10,1, Qes=0,3)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 352 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 160 mm
  • mass m = 6,5 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 32 L volume
from 86/54 Hz (-3dB/-8dB)

recommended cabinet 2:
78 L volume bass reflex cabinet
with 2x HP100 reflex tube, 20 cm long.
from 51/38 Hz (-3dB/-8dB).

SM115K       order no. by-SM115K       EUR 259,00 excl. VAT: € 217.65 / $ 190.92
37 cm bass driver with paper cone.
  • power handling (continuous/programme) = 500/1000 W
  • frequency range = 25-2000 Hz
  • resonance frequency fs = 27 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,8 Ohm
  • force factor BL = 20,5 N/A
  • voice coil inductance L = 1,2 mH
  • effective piston radiating area Sd = 880 cm2
  • effective mechanical mass incl. air load mms = 106 g
  • equivalent volume of compliance Vas = 345 l
  • total Q factor Qts = 0,25 (Qms=9,01, Qes=0,26)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 7,5 mm
  • mounting diameter d = 361 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 145 mm
  • mass m = 10,2 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 25 L volume
from 94/59 Hz (-3dB/-8dB)

recommended cabinet 2:
66 L volume bass reflex cabinet
with 2x HP100 reflex tube, 19 cm long.
from 54/41 Hz (-3dB/-8dB).

18PW1400FE       order no. by-18pw1400FE       EUR 429,00 excl. VAT: € 360.50 / $ 316.23
44 cm bass driver with high quality cone.
  • power handling (continuous/programme) = 1400/2800 W
  • frequency range = 25-1800 Hz
  • resonance frequency fs = 32 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,05 Ohm
  • force factor BL = 29 N/A
  • voice coil inductance L = 1,2 mH
  • effective piston radiating area Sd = 1255 cm2
  • effective mechanical mass incl. air load mms = 230 g
  • equivalent volume of compliance Vas = 228,9 l
  • total Q factor Qts = 0,27 (Qms=10,23, Qes=0,28)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 10 mm
  • mounting diameter d = 413 mm
  • overall diameter d = 461 mm
  • mounting depth (not countersunk) t = 211 mm
  • mass m = 16,9 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 35 L volume
from 78/49 Hz (-3dB/-8dB)

recommended cabinet 2:
113 L volume bass reflex cabinet
with 4x HP100 reflex tube, 43 cm long.
from 41/32 Hz (-3dB/-8dB).

18SW1600ND       order no. by-18sw1600nd       EUR 665,00 excl. VAT: € 558.82 / $ 490.20
44 cm bass driver with high quality cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 1600/3200 W
  • frequency range = 25-1800 Hz
  • resonance frequency fs = 32 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 29 N/A
  • voice coil inductance L = 3,1 mH
  • effective piston radiating area Sd = 1255 cm2
  • effective mechanical mass incl. air load mms = 260 g
  • equivalent volume of compliance Vas = 205,7 l
  • total Q factor Qts = 0,33 (Qms=11,74, Qes=0,34)
  • voice coil diameter = 126 mm
  • maximum peak linear excursion vibration xlin = +/- 10 mm
  • mounting diameter d = 413 mm
  • overall diameter d = 462 mm
  • mounting depth (not countersunk) t = 212 mm
  • mass m = 11,4 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 73 L volume
from 58/37 Hz (-3dB/-8dB)

recommended cabinet 2:
286 L volume bass reflex cabinet
with 4x HP100 reflex tube, 26 cm long.
from 28/23 Hz (-3dB/-8dB).

18PWB1000FE       order no. by-18pwb1000FE       EUR 369,00 excl. VAT: € 310.08 / $ 272.00
44 cm bass driver with paper cone.
  • power handling (continuous/programme) = 1000/2000 W
  • frequency range = 25-2000 Hz
  • resonance frequency fs = 31 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96,5 dB (2,83V; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 25,8 N/A
  • voice coil inductance L = 2,2 mH
  • effective piston radiating area Sd = 1250 cm2
  • effective mechanical mass incl. air load mms = 233 g
  • equivalent volume of compliance Vas = 220 l
  • total Q factor Qts = 0,43 (Qms=7,9, Qes=0,45)
  • voice coil diameter = 101,6 mm
  • maximum peak linear excursion vibration xlin = +/- 12,5 mm
  • mounting diameter d = 413 mm
  • overall diameter d = 462 mm
  • mounting depth (not countersunk) t = 215 mm
  • mass m = 13,6 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 33 L volume
from 85/54 Hz (-3dB/-8dB)

recommended cabinet 2:
100 L volume bass reflex cabinet
with 4x HP100 reflex tube, 40 cm long.
from 46/36 Hz (-3dB/-8dB).

18P1000FE V2       order no. by-18p1000fe-v2       EUR 373,60 excl. VAT: € 313.95 / $ 275.39
44 cm bass driver with paper cone.
  • power handling (continuous/programme) = 1000/2000 W
  • frequency range = 25-2000 Hz
  • resonance frequency fs = 33 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 27,6 N/A
  • voice coil inductance L = 1,75 mH
  • effective piston radiating area Sd = 1250 cm2
  • effective mechanical mass incl. air load mms = 230 g
  • equivalent volume of compliance Vas = 223 l
  • total Q factor Qts = 0,31 (Qms=7,75, Qes=0,32)
  • voice coil diameter = 101,6 mm
  • maximum peak linear excursion vibration xlin = +/- 8 mm
  • mounting diameter d = 413 mm
  • overall diameter d = 462 mm
  • mounting depth (not countersunk) t = 215 mm
  • mass m = 13,8 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 56 L volume
from 77/48 Hz (-3dB/-8dB)

recommended cabinet 2:
214 L volume bass reflex cabinet
with 4x HP100 reflex tube, 16 cm long.
from 37/30 Hz (-3dB/-8dB).

18P1000ND       order no. by-18p1000nd       EUR 469,00 excl. VAT: € 394.12 / $ 345.72
44 cm bass driver with paper cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 1000/2000 W
  • frequency range = 25-2000 Hz
  • resonance frequency fs = 40 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 24,3 N/A
  • voice coil inductance L = 2,8 mH
  • effective piston radiating area Sd = 1250 cm2
  • effective mechanical mass incl. air load mms = 195 g
  • equivalent volume of compliance Vas = 178 l
  • total Q factor Qts = 0,41 (Qms=9,87, Qes=0,43)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 8 mm
  • mounting diameter d = 413 mm
  • overall diameter d = 460 mm
  • mounting depth (not countersunk) t = 201 mm
  • mass m = 7 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 36 L volume
from 87/55 Hz (-3dB/-8dB)

recommended cabinet 2:
120 L volume bass reflex cabinet
with 4x HP100 reflex tube, 29 cm long.
from 46/36 Hz (-3dB/-8dB).

18P1200ND       order no. by-18p1200nd       EUR 509,00 excl. VAT: € 427.73 / $ 375.20
44 cm bass driver with paper cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 1200/2400 W
  • frequency range = 25-2000 Hz
  • resonance frequency fs = 37 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,3 Ohm
  • force factor BL = 26,3 N/A
  • voice coil inductance L = 2,3 mH
  • effective piston radiating area Sd = 1225 cm2
  • effective mechanical mass incl. air load mms = 199 g
  • equivalent volume of compliance Vas = 198 l
  • total Q factor Qts = 0,34 (Qms=10,39, Qes=0,35)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 9,5 mm
  • mounting diameter d = 415 mm
  • overall diameter d = 460 mm
  • mounting depth (not countersunk) t = 203 mm
  • mass m = 8,5 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 115 L volume
from 58/36 Hz (-3dB/-8dB)

recommended cabinet 2:
470 L volume bass reflex cabinet
with 4x HP100 reflex tube, 10 cm long.
from 27/23 Hz (-3dB/-8dB).

18LX60 V2       order no. by-18lx60-v2       EUR 339,00 excl. VAT: € 284.87 / $ 249.89
44 cm bass driver with high quality cone.
  • power handling (continuous/programme) = 700/1400 W
  • frequency range = 25-1000 Hz
  • resonance frequency fs = 35 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 21,8 N/A
  • voice coil inductance L = 2,1 mH
  • effective piston radiating area Sd = 1320 cm2
  • effective mechanical mass incl. air load mms = 215 g
  • equivalent volume of compliance Vas = 236,52 l
  • total Q factor Qts = 0,48 (Qms=15,72, Qes=0,5)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm
  • mounting diameter d = 418 mm
  • overall diameter d = 460 mm
  • mounting depth (not countersunk) t = 200 mm
  • mass m = 11,7 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 95 L volume
from 63/40 Hz (-3dB/-8dB)

recommended cabinet 2:
359 L volume bass reflex cabinet
with 4x HP100 reflex tube, 13 cm long.
from 31/25 Hz (-3dB/-8dB).

18G40       order no. by-18g40       EUR 337,00 excl. VAT: € 283.19 / $ 248.42
44 cm bass driver with high quality cone.
  • power handling (continuous/programme) = 700/1400 W
  • frequency range = 25-1500 Hz
  • resonance frequency fs = 32 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 22,5 N/A
  • voice coil inductance L = 3 mH
  • effective piston radiating area Sd = 1300 cm2
  • effective mechanical mass incl. air load mms = 171 g
  • equivalent volume of compliance Vas = 323 l
  • total Q factor Qts = 0,41 (Qms=12,7, Qes=0,42)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 7 mm
  • mounting diameter d = 415 mm
  • overall diameter d = 460 mm
  • mounting depth (not countersunk) t = 198,5 mm
  • mass m = 11,5 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 36 L volume
from 97/61 Hz (-3dB/-8dB)

recommended cabinet 2:
117 L volume bass reflex cabinet
with 4x HP100 reflex tube, 21 cm long.
from 52/40 Hz (-3dB/-8dB).

18G50       order no. by-18g50       EUR 449,00 excl. VAT: € 377.31 / $ 330.97
44 cm bass driver with high quality cone.
  • power handling (continuous/programme) = 750/1500 W
  • frequency range = 25-1500 Hz
  • resonance frequency fs = 40 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 6,1 Ohm
  • force factor BL = 28,8 N/A
  • voice coil inductance L = 2 mH
  • effective piston radiating area Sd = 1320 cm2
  • effective mechanical mass incl. air load mms = 170 g
  • equivalent volume of compliance Vas = 212 l
  • total Q factor Qts = 0,32 (Qms=12,05, Qes=0,334)
  • voice coil diameter = 114 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm
  • mounting diameter d = 415 mm
  • overall diameter d = 460 mm
  • mounting depth (not countersunk) t = 210 mm
  • mass m = 12,6 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 51 L volume
from 76/48 Hz (-3dB/-8dB)

recommended cabinet 2:
183 L volume bass reflex cabinet
with 4x HP100 reflex tube, 22 cm long.
from 39/31 Hz (-3dB/-8dB).

18G550       order no. by-18g550       EUR 415,00 excl. VAT: € 348.74 / $ 305.91
44 cm bass driver with high quality cone.
  • power handling (continuous/programme) = 900/1800 W
  • frequency range = 35-1000 Hz
  • resonance frequency fs = 36 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,25 Ohm
  • force factor BL = 24,4 N/A
  • voice coil inductance L = 1,4 mH
  • effective piston radiating area Sd = 1200 cm2
  • effective mechanical mass incl. air load mms = 190 g
  • equivalent volume of compliance Vas = 210 l
  • total Q factor Qts = 0,37 (Qms=8,875, Qes=0,39)
  • voice coil diameter = 114 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm
  • mounting diameter d = 415 mm
  • overall diameter d = 460 mm
  • mounting depth (not countersunk) t = 210 mm
  • mass m = 12,6 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 49 L volume
from 85/54 Hz (-3dB/-8dB)

recommended cabinet 2:
133 L volume bass reflex cabinet
with 4x HP100 reflex tube, 27 cm long.
from 48/37 Hz (-3dB/-8dB).

18P80ND       order no. by-18p80nd       EUR 479,00 excl. VAT: € 402.52 / $ 353.09
44 cm bass driver with paper cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 800/1600 W
  • frequency range = 25-4000 Hz
  • resonance frequency fs = 30 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 100 dB (2,83V; 1m)
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 21,9 N/A
  • voice coil inductance L = 1,9 mH
  • effective piston radiating area Sd = 1225 cm2
  • effective mechanical mass incl. air load mms = 146 g
  • equivalent volume of compliance Vas = 411 l
  • total Q factor Qts = 0,28 (Qms=11,55, Qes=0,29)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 7,5 mm
  • mounting diameter d = 415 mm
  • overall diameter d = 460 mm
  • mounting depth (not countersunk) t = 201 mm
  • mass m = 7 kg
PDF data sheet

recommended cabinet 1:
closed cabinet with 156 L volume
from 58/37 Hz (-3dB/-8dB)

recommended cabinet 2:
637 L volume bass reflex cabinet
with 4x HP100 reflex tube, 3 cm long.
from 27/23 Hz (-3dB/-8dB).

SM118N       order no. by-sm118n       EUR 229,00 excl. VAT: € 192.44 / $ 168.80
44 cm bass driver with paper cone.
  • power handling (continuous/programme) = 400/800 W
  • frequency range = 30-3000 Hz
  • resonance frequency fs = 36 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 18,3 N/A
  • voice coil inductance L = 1,1 mH
  • effective piston radiating area Sd = 1150 cm2
  • effective mechanical mass incl. air load mms = 123 g
  • equivalent volume of compliance Vas = 300 l
  • total Q factor Qts = 0,49 (Qms=6,83, Qes=0,53)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 415 mm
  • overall diameter d = 460 mm
  • mounting depth (not countersunk) t = 187 mm
  • mass m = 7 kg
PDF data sheet



Woofer


open a bigger photo

recommended cabinet 1:
closed cabinet with 79 L volume
from 69/43 Hz (-3dB/-8dB)

recommended cabinet 2:
267 L volume bass reflex cabinet
with 4x HP100 reflex tube, 17 cm long.
from 36/28 Hz (-3dB/-8dB).

21PW1400FE       order no. by-21pw1400fe       EUR 549,00 excl. VAT: € 461.34 / $ 404.69
53 cm bass driver with high quality cone.
  • power handling (continuous/programme) = 1400/2800 W
  • frequency range = 25-1800 Hz
  • resonance frequency fs = 30 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98,5 dB (2,83V; 1m)
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 28,2 N/A
  • voice coil inductance L = 1,3 mH
  • effective piston radiating area Sd = 1734 cm2
  • effective mechanical mass incl. air load mms = 298 g
  • equivalent volume of compliance Vas = 401,5 l
  • total Q factor Qts = 0,34 (Qms=7,44, Qes=0,36)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 10 mm
  • mounting diameter d = 494 mm
  • overall diameter d = 550 mm
  • mounting depth (not countersunk) t = 242 mm
  • mass m = 19,9 kg
PDF data sheet

open a bigger photo

5B30CX       order no. by-5b30cx       - not available
12 cm coax driver with polypropylene cone.
  • power handling (continuous/programme) = 25 W
  • frequency range = 55-22000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • mounting diameter d = 114 mm
  • overall diameter d = 130 mm
  • mounting depth (not countersunk) t = 61 mm
  • mass m = 0,72 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 1,3 L volume
from 178/112 Hz (-3dB/-8dB)

recommended cabinet 2:
4 L volume bass reflex cabinet
with HP50 reflex tube, 13 cm long.
from 97/75 Hz (-3dB/-8dB).

5CX200FE       order no. by-5cx200fe       EUR 174,70 excl. VAT: € 146.81 / $ 128.78
14 cm coax driver with high quality cone.
  • power handling (continuous/programme) = 150/300 W
  • frequency range = 69-20000 Hz
  • resonance frequency fs = 69 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92,5 dB (2,83V; 1m)
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 7,18 N/A
  • voice coil inductance L = 0,22 mH
  • effective piston radiating area Sd = 95 cm2
  • effective mechanical mass incl. air load mms = 7 g
  • equivalent volume of compliance Vas = 8,9 l
  • total Q factor Qts = 0,31 (Qms=10,07, Qes=0,32)
  • voice coil diameter = 38,1 mm
  • maximum peak linear excursion vibration xlin = +/- 5,7 mm
  • mounting diameter d = 119,2 mm
  • overall diameter d = 155 mm
  • mounting depth (not countersunk) t = 107 mm
  • mass m = 2,51 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 0,99 L volume
from 221/139 Hz (-3dB/-8dB)

recommended cabinet 2:
2,6 L volume bass reflex cabinet
with HP50 reflex tube, 13 cm long.
from 127/97 Hz (-3dB/-8dB).

5CX200ND       order no. by-5cx200nd       EUR 279,00 excl. VAT: € 234.45 / $ 205.66
14 cm coax driver with high quality cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 150/300 W
  • frequency range = 75-20000 Hz
  • resonance frequency fs = 75 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92,5 dB (2,83V; 1m)
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 7,32 N/A
  • voice coil inductance L = 0,22 mH
  • effective piston radiating area Sd = 95 cm2
  • effective mechanical mass incl. air load mms = 6 g
  • equivalent volume of compliance Vas = 9,07 l
  • total Q factor Qts = 0,27 (Qms=10,04, Qes=0,28)
  • voice coil diameter = 38,1 mm
  • maximum peak linear excursion vibration xlin = +/- 5,7 mm
  • mounting diameter d = 119,2 mm
  • overall diameter d = 155 mm
  • mounting depth (not countersunk) t = 94,9 mm
  • mass m = 1,6 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 1,7 L volume
from 162/102 Hz (-3dB/-8dB)

recommended cabinet 2:
5,2 L volume bass reflex cabinet
with HP50 reflex tube, 12 cm long.
from 88/68 Hz (-3dB/-8dB).

6CX200FE       order no. by-6cx200fe       EUR 204,00 excl. VAT: € 171.43 / $ 150.38
17 cm coax driver with high quality cone.
  • power handling (continuous/programme) = 200/400 W
  • frequency range = 60-20000 Hz
  • resonance frequency fs = 65 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 94 dB (2,83V; 1m)
  • DC resistance Re = 4,9 Ohm
  • force factor BL = 9,15 N/A
  • voice coil inductance L = 0,3 mH
  • effective piston radiating area Sd = 135 cm2
  • effective mechanical mass incl. air load mms = 14 g
  • equivalent volume of compliance Vas = 10,5 l
  • total Q factor Qts = 0,32 (Qms=5,1, Qes=0,34)
  • voice coil diameter = 50,8 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 145 mm
  • overall diameter d = 188 mm
  • mounting depth (not countersunk) t = 106 mm
  • mass m = 3,6 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 1 L volume
from 191/121 Hz (-3dB/-8dB)

recommended cabinet 2:
2,7 L volume bass reflex cabinet
with HP50 reflex tube, 18 cm long.
from 110/84 Hz (-3dB/-8dB).

6CX200ND       order no. by-6cx200nd       EUR 315,00 excl. VAT: € 264.71 / $ 232.20
17 cm coax driver with high quality cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 200/400 W
  • frequency range = 65-20000 Hz
  • resonance frequency fs = 65 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 10,52 N/A
  • voice coil inductance L = 0,24 mH
  • effective piston radiating area Sd = 135 cm2
  • effective mechanical mass incl. air load mms = 16 g
  • equivalent volume of compliance Vas = 9,4 l
  • total Q factor Qts = 0,27 (Qms=3,95, Qes=0,29)
  • voice coil diameter = 50,8 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 152 mm
  • overall diameter d = 188 mm
  • mounting depth (not countersunk) t = 103 mm
  • mass m = 1,98 kg
PDF data sheet

open a bigger photo

8BX/N       order no. by-8bxn       EUR 167,00 excl. VAT: € 140.34 / $ 123.10
20 cm coax driver with high quality cone.
  • power handling (continuous/programme) = 100/200 W
  • frequency range = 60-20000 Hz
  • resonance frequency fs = 57 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 5,3 Ohm
  • force factor BL = 6,8 N/A
  • voice coil inductance L = 0,4 mH
  • effective piston radiating area Sd = 220 cm2
  • effective mechanical mass incl. air load mms = 23 g
  • equivalent volume of compliance Vas = 22 l
  • total Q factor Qts = 0,66 (Qms=4,83, Qes=0,77)
  • voice coil diameter = 38,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 182 mm
  • overall diameter d = 212 mm
  • mounting depth (not countersunk) t = 111 mm
  • mass m = 2,9 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 3,5 L volume
from 174/110 Hz (-3dB/-8dB)

recommended cabinet 2:
8,9 L volume bass reflex cabinet
with HP70 reflex tube, 11 cm long.
from 102/77 Hz (-3dB/-8dB).

8CX300ND       order no. by-8cx300nd       - not available
20 cm coax driver with high quality cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 250/500 W
  • frequency range = 40-20000 Hz
  • resonance frequency fs = 57 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 9,85 N/A
  • voice coil inductance L = 0,19 mH
  • effective piston radiating area Sd = 220 cm2
  • effective mechanical mass incl. air load mms = 14 g
  • equivalent volume of compliance Vas = 35 l
  • total Q factor Qts = 0,26 (Qms=9,25, Qes=0,27)
  • voice coil diameter = 63,5 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 183 mm
  • overall diameter d = 212 mm
  • mounting depth (not countersunk) t = 105 mm
  • mass m = 2,6 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 4,7 L volume
from 151/95 Hz (-3dB/-8dB)

recommended cabinet 2:
17 L volume bass reflex cabinet
with HP100 reflex tube, 15 cm long.
from 75/60 Hz (-3dB/-8dB).

8XC20       order no. by-8xc20       EUR 229,00 excl. VAT: € 192.44 / $ 168.80
20 cm coax driver with paper cone.
  • power handling (continuous/programme) = 170/340 W
  • frequency range = 65-20000 Hz
  • resonance frequency fs = 75 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 95 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 11,3 N/A
  • voice coil inductance L = 1,2 mH
  • effective piston radiating area Sd = 220 cm2
  • effective mechanical mass incl. air load mms = 18 g
  • equivalent volume of compliance Vas = 17 l
  • total Q factor Qts = 0,4 (Qms=7,4, Qes=0,42)
  • voice coil diameter = 51,7 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 181 mm
  • overall diameter d = 212 mm
  • mounting depth (not countersunk) t = 131 mm
  • mass m = 3,7 kg
PDF data sheet

recommended cabinet 1:
closed cabinet with 14,9 L volume
from 115/73 Hz (-3dB/-8dB)

recommended cabinet 2:
53 L volume bass reflex cabinet
with HP100 reflex tube, 6 cm long.
from 59/47 Hz (-3dB/-8dB).

10XC25       order no. by-10xc25       EUR 279,00 excl. VAT: € 234.45 / $ 205.66
24 cm coax driver with paper cone.
  • power handling (continuous/programme) = 250/500 W
  • frequency range = 55-20000 Hz
  • resonance frequency fs = 53 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 12,5 N/A
  • voice coil inductance L = 1,5 mH
  • effective piston radiating area Sd = 380 cm2
  • effective mechanical mass incl. air load mms = 28 g
  • equivalent volume of compliance Vas = 66 l
  • total Q factor Qts = 0,37 (Qms=10, Qes=0,38)
  • voice coil diameter = 62,4 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 228 mm
  • overall diameter d = 260,5 mm
  • mounting depth (not countersunk) t = 153 mm
  • mass m = 5,1 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 12,6 L volume
from 110/69 Hz (-3dB/-8dB)

recommended cabinet 2:
45 L volume bass reflex cabinet
with HP100 reflex tube, 9 cm long.
from 56/44 Hz (-3dB/-8dB).

10CX300FE       order no. by-10cx300fe       EUR 331,00 excl. VAT: € 278.15 / $ 243.99
24 cm coax driver with high quality cone.
  • power handling (continuous/programme) = 300/600 W
  • frequency range = 50-20000 Hz
  • resonance frequency fs = 52 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96,5 dB (2,83V; 1m)
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 17,5 N/A
  • voice coil inductance L = 0,36 mH
  • effective piston radiating area Sd = 380 cm2
  • effective mechanical mass incl. air load mms = 11,9 g
  • equivalent volume of compliance Vas = 52,3 l
  • total Q factor Qts = 0,38 (Qms=3,3, Qes=0,43)
  • voice coil diameter = 63,5 mm
  • maximum peak linear excursion vibration xlin = +/- 6,6 mm
  • mounting diameter d = 228 mm
  • overall diameter d = 260,5 mm
  • mounting depth (not countersunk) t = 153 mm
  • mass m = 5,1 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 11,1 L volume
from 132/84 Hz (-3dB/-8dB)

recommended cabinet 2:
29 L volume bass reflex cabinet
with 2x HP100 reflex tube, 23 cm long.
from 76/58 Hz (-3dB/-8dB).

12CXA400ND       order no. by-12cxa400nd       EUR 529,00 excl. VAT: € 444.54 / $ 389.95
30 cm coax driver with high quality cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 400/800 W
  • frequency range = 35-20000 Hz
  • resonance frequency fs = 45 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 6,6 Ohm
  • force factor BL = 18,1 N/A
  • voice coil inductance L = 1 mH
  • effective piston radiating area Sd = 550 cm2
  • effective mechanical mass incl. air load mms = 48 g
  • equivalent volume of compliance Vas = 102,2 l
  • total Q factor Qts = 0,27 (Qms=6,24, Qes=0,28)
  • voice coil diameter = 101,6 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 286 mm
  • overall diameter d = 311,7 mm
  • mounting depth (not countersunk) t = 154 mm
  • mass m = 7,18 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 8,7 L volume
from 133/84 Hz (-3dB/-8dB)

recommended cabinet 2:
21 L volume bass reflex cabinet
with HP100 reflex tube, 17 cm long.
from 79/60 Hz (-3dB/-8dB).

12CXA400FE       order no. by-12cxa400fe       EUR 409,10 excl. VAT: € 343.78 / $ 301.56
30 cm coax driver with high quality cone.
  • power handling (continuous/programme) = 400/800 W
  • frequency range = 40-20000 Hz
  • resonance frequency fs = 42 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 6,6 Ohm
  • force factor BL = 19,8 N/A
  • voice coil inductance L = 1,1 mH
  • effective piston radiating area Sd = 550 cm2
  • effective mechanical mass incl. air load mms = 66 g
  • equivalent volume of compliance Vas = 94 l
  • total Q factor Qts = 0,25 (Qms=7,2, Qes=0,26)
  • voice coil diameter = 101,6 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 282,6 mm
  • overall diameter d = 311,7 mm
  • mounting depth (not countersunk) t = 165 mm
  • mass m = 11,3 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 11 L volume
from 131/83 Hz (-3dB/-8dB)

recommended cabinet 2:
22 L volume bass reflex cabinet
with HP100 reflex tube, 17 cm long.
from 84/63 Hz (-3dB/-8dB).

12XA30ND       order no. by-12xa30nd       EUR 489,00 excl. VAT: € 410.92 / $ 360.46
30 cm coax driver with paper cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 350/700 W
  • frequency range = 35-20000 Hz
  • resonance frequency fs = 35 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 6,8 Ohm
  • force factor BL = 18,2 N/A
  • voice coil inductance L = 1,3 mH
  • effective piston radiating area Sd = 530 cm2
  • effective mechanical mass incl. air load mms = 47 g
  • equivalent volume of compliance Vas = 172 l
  • total Q factor Qts = 0,21 (Qms=7,98, Qes=0,22)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 284 mm
  • overall diameter d = 312 mm
  • mounting depth (not countersunk) t = 152 mm
  • mass m = 6,3 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 41 L volume
from 89/56 Hz (-3dB/-8dB)

recommended cabinet 2:
143 L volume bass reflex cabinet
with 2x HP100 reflex tube, 5 cm long.
from 46/36 Hz (-3dB/-8dB).

15CXA400ND       order no. by-15cxa400nd       EUR 549,00 excl. VAT: € 461.34 / $ 404.69
37 cm coax driver with high quality cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 400/800 W
  • frequency range = 35-20000 Hz
  • resonance frequency fs = 40 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 6,6 Ohm
  • force factor BL = 19,04 N/A
  • voice coil inductance L = 0,9 mH
  • effective piston radiating area Sd = 880 cm2
  • effective mechanical mass incl. air load mms = 84 g
  • equivalent volume of compliance Vas = 196 l
  • total Q factor Qts = 0,36 (Qms=4,37, Qes=0,39)
  • voice coil diameter = 101,6 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 349,5 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 180 mm
  • mass m = 7,22 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 60 L volume
from 77/48 Hz (-3dB/-8dB)

recommended cabinet 2:
230 L volume bass reflex cabinet
with 2x HP100 reflex tube, 3 cm long.
from 37/30 Hz (-3dB/-8dB).

15CXA400FE       order no. by-15cxa400fe       EUR 448,20 excl. VAT: € 376.64 / $ 330.38
37 cm coax driver with high quality cone.
  • power handling (continuous/programme) = 400/800 W
  • frequency range = 35-20000 Hz
  • resonance frequency fs = 40 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 18,2 N/A
  • voice coil inductance L = 0,95 mH
  • effective piston radiating area Sd = 880 cm2
  • effective mechanical mass incl. air load mms = 90 g
  • equivalent volume of compliance Vas = 191 l
  • total Q factor Qts = 0,42 (Qms=16,4, Qes=0,43)
  • voice coil diameter = 101,6 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 349,5 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 185 mm
  • mass m = 11,9 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 46 L volume
from 91/57 Hz (-3dB/-8dB)

recommended cabinet 2:
130 L volume bass reflex cabinet
with 2x HP100 reflex tube, 6 cm long.
from 51/39 Hz (-3dB/-8dB).

15XA38ND       order no. by-15XA38ND       EUR 489,00 excl. VAT: € 410.92 / $ 360.46
37 cm coax driver with paper cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 350/700 W
  • frequency range = 25-20000 Hz
  • resonance frequency fs = 33 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99 dB (2,83V; 1m)
  • DC resistance Re = 6,8 Ohm
  • force factor BL = 18,2 N/A
  • voice coil inductance L = 1,6 mH
  • effective piston radiating area Sd = 880 cm2
  • effective mechanical mass incl. air load mms = 72 g
  • equivalent volume of compliance Vas = 359 l
  • total Q factor Qts = 0,29 (Qms=7,5, Qes=0,3)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 352 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 181 mm
  • mass m = 6,8 kg
PDF data sheet

open a bigger photo

8 AG/N       order no. by-8ag-n8       EUR 49,00 excl. VAT: € 41.18 / $ 36.12
19 cm full range driver with paper cone.
  • power handling (continuous/programme) = 35 W
  • frequency range = 60-18000 Hz
  • resonance frequency fs = 101 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 7,5 Ohm
  • force factor BL = 7,27 N/A
  • voice coil inductance L = 0,32 mH
  • effective piston radiating area Sd = 227 cm2
  • effective mechanical mass incl. air load mms = 14 g
  • equivalent volume of compliance Vas = 12,79 l
  • total Q factor Qts = 0,98 (Qms=4,45, Qes=1,26)
  • voice coil diameter = 35 mm
  • mounting diameter d = 180 mm
  • overall diameter d = 205 mm
  • mounting depth (not countersunk) t = 84 mm
PDF data sheet

open a bigger photo

10AGN       order no. by-10ag-n       EUR 69,00 excl. VAT: € 57.98 / $ 50.86
24 cm full range driver with paper cone.
  • power handling (continuous/programme) = 100 W
  • frequency range = 60-17000 Hz
  • resonance frequency fs = 90 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97 dB (2,83V; 1m)
  • DC resistance Re = 7,4 Ohm
  • force factor BL = 6,7 N/A
  • voice coil inductance L = 0,4 mH
  • effective piston radiating area Sd = 360 cm2
  • effective mechanical mass incl. air load mms = 20 g
  • equivalent volume of compliance Vas = 30 l
  • total Q factor Qts = 1,32 (Qms=4,6, Qes=1,85)
  • voice coil diameter = 34,6 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm
  • mounting diameter d = 230 mm
  • overall diameter d = 258 mm
  • mounting depth (not countersunk) t = 100 mm
  • mass m = 1,55 kg
PDF data sheet

12GA50       order no. by-12ga50       EUR 109,00 excl. VAT: € 91.60 / $ 80.35
30 cm full range driver with paper cone.
  • power handling (continuous/programme) = 250/500 W
  • frequency range = 70-18000 Hz
  • resonance frequency fs = 90 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 102 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 10 N/A
  • voice coil inductance L = 0,6 mH
  • effective piston radiating area Sd = 530 cm2
  • effective mechanical mass incl. air load mms = 34 g
  • equivalent volume of compliance Vas = 34 l
  • total Q factor Qts = 1,16 (Qms=14,8, Qes=1,26)
  • voice coil diameter = 52 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm
  • mounting diameter d = 277,5 mm
  • overall diameter d = 312 mm
  • mounting depth (not countersunk) t = 139 mm
  • mass m = 3,55 kg
PDF data sheet

open a bigger photo

CP350/TI       order no. by-cp350ti       EUR 169,00 excl. VAT: € 142.02 / $ 124.58
1 inch high frequency compression driver with high quality cone.
  • power handling (continuous/programme) = 50 W
  • frequency range = 1000-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 104 dB (2,83V; 1m)
  • DC resistance Re = 6,8 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 140 mm
  • mounting depth (not countersunk) t = 65 mm
  • mass m = 3,4 kg
PDF data sheet

CP650/TI       order no. not-available       - not available
$spd mm tweeter with high quality cone.
  • power handling (continuous/programme) = 80 W
  • frequency range = 800-180000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • overall diameter d = 200 mm
  • mounting depth (not countersunk) t = 71 mm
PDF data sheet

recommended cabinet 1:
closed cabinet with 5,2 L volume
from 143/90 Hz (-3dB/-8dB)

recommended cabinet 2:
12,6 L volume bass reflex cabinet
with HP70 reflex tube, 11 cm long.
from 85/64 Hz (-3dB/-8dB).

10G200       order no. not-available       - not available
26 cm bass driver with paper cone.
  • power handling (continuous/programme) = 200 W
  • frequency range = bis 3000 Hz
  • resonance frequency fs = 45 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 5,8 Ohm
  • voice coil inductance L = 1 mH
  • effective piston radiating area Sd = 380 cm2
  • equivalent volume of compliance Vas = 56,1 l
  • total Q factor Qts = 0,25 (Qms=7,02, Qes=0,26)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 240 mm
  • overall diameter d = 270 mm
  • mounting depth (not countersunk) t = 162 mm
  • mass m = 6 kg
PDF data sheet

recommended cabinet 1:
closed cabinet with 4,1 L volume
from 187/118 Hz (-3dB/-8dB)

recommended cabinet 2:
8,3 L volume bass reflex cabinet
with HP70 reflex tube, 10 cm long.
from 120/89 Hz (-3dB/-8dB).

10M250       order no. not-available       - not available
26 cm midrange driver with paper cone.
  • power handling (continuous/programme) = 250 W
  • frequency range = 70-5500 Hz
  • resonance frequency fs = 50 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99 dB (2,83V; 1m)
  • DC resistance Re = 5,8 Ohm
  • voice coil inductance L = 1 mH
  • effective piston radiating area Sd = 380 cm2
  • equivalent volume of compliance Vas = 64 l
  • total Q factor Qts = 0,22 (Qms=7,93, Qes=0,223)
  • voice coil diameter = 62,4 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 240 mm
  • overall diameter d = 270 mm
  • mounting depth (not countersunk) t = 113 mm
  • mass m = 7,4 kg
PDF data sheet

recommended cabinet 1:
closed cabinet with 17 L volume
from 105/66 Hz (-3dB/-8dB)

recommended cabinet 2:
47 L volume bass reflex cabinet
with 2x HP100 reflex tube, 23 cm long.
from 60/45 Hz (-3dB/-8dB).

115NDW       order no. not-available       - not available
37 cm bass driver with high quality cone.
  • power handling (continuous/programme) = 400 W
  • resonance frequency fs = 37 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98,5 dB (2,83V; 1m)
  • DC resistance Re = 5,2 Ohm
  • voice coil inductance L = 2,1 mH
  • effective piston radiating area Sd = 910 cm2
  • equivalent volume of compliance Vas = 145 l
  • total Q factor Qts = 0,28 (Qms=5,6, Qes=0,3)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 6,75 mm
  • mounting diameter d = 352 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 135 mm
PDF data sheet

recommended cabinet 1:
closed cabinet with 0,56 L volume
from 485/306 Hz (-3dB/-8dB)

recommended cabinet 2:
0,37 L volume bass reflex cabinet
with HP70 reflex tube, 47 cm long.
from 495/379 Hz (-3dB/-8dB).

102Nd       order no. not-available       - not available
24 cm midrange driver with paper cone.
  • power handling (continuous/programme) = 200 W
  • frequency range = 100-4000 Hz
  • resonance frequency fs = 53 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 103 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil inductance L = 1,5 mH
  • effective piston radiating area Sd = 380 cm2
  • equivalent volume of compliance Vas = 56 l
  • total Q factor Qts = 0,09 (Qms=10,1, Qes=0,09)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm
  • mounting diameter d = 228 mm
  • overall diameter d = 260,5 mm
  • mounting depth (not countersunk) t = 111 mm
  • mass m = 4,1 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 1,8 L volume
from 330/208 Hz (-3dB/-8dB)

recommended cabinet 2:
2,1 L volume bass reflex cabinet
with HP100 reflex tube, 36 cm long.
from 265/196 Hz (-3dB/-8dB).

122Nd       order no. not-available       - not available
30 cm midrange driver with paper cone.
  • power handling (continuous/programme) = 200 W
  • frequency range = 80-6000 Hz
  • resonance frequency fs = 56 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 103 dB (2,83V; 1m)
  • DC resistance Re = 5,2 Ohm
  • voice coil inductance L = 1,5 mH
  • effective piston radiating area Sd = 530 cm2
  • equivalent volume of compliance Vas = 72 l
  • total Q factor Qts = 0,14 (Qms=12, Qes=0,14)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 1 mm
  • mounting diameter d = 280 mm
  • overall diameter d = 312 mm
  • mounting depth (not countersunk) t = 127 mm
  • mass m = 4,4 kg
PDF data sheet

recommended cabinet 1:
closed cabinet with 13,9 L volume
from 104/66 Hz (-3dB/-8dB)

recommended cabinet 2:
40 L volume bass reflex cabinet
with 2x HP100 reflex tube, 30 cm long.
from 59/45 Hz (-3dB/-8dB).

12LW30/N       order no. not-available       - not available
30 cm bass driver with paper cone. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 450/900 W
  • frequency range = 35-5000 Hz
  • resonance frequency fs = 38 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 6,1 Ohm
  • force factor BL = 17,9 N/A
  • voice coil inductance L = 1,4 mH
  • effective piston radiating area Sd = 540 cm2
  • effective mechanical mass incl. air load mms = 66 g
  • equivalent volume of compliance Vas = 109 l
  • total Q factor Qts = 0,29 (Qms=6,6, Qes=0,3)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 277,5 mm
  • overall diameter d = 312 mm
  • mounting depth (not countersunk) t = 147 mm
  • mass m = 3,83 kg
PDF data sheet

recommended cabinet 1:
closed cabinet with 40 L volume
from 86/55 Hz (-3dB/-8dB)

recommended cabinet 2:
151 L volume bass reflex cabinet
with 2x HP100 reflex tube, 5 cm long.
from 43/35 Hz (-3dB/-8dB).

12XC30       order no. not-available       - not available
30 cm coax driver with paper cone.
  • power handling (continuous/programme) = 250/500 W
  • frequency range = 45-20000 Hz
  • resonance frequency fs = 43 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 12,8 N/A
  • voice coil inductance L = 1,5 mH
  • effective piston radiating area Sd = 550 cm2
  • effective mechanical mass incl. air load mms = 40 g
  • equivalent volume of compliance Vas = 147 l
  • total Q factor Qts = 0,4 (Qms=7,4, Qes=0,42)
  • voice coil diameter = 62,4 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 277,5 mm
  • overall diameter d = 312 mm
  • mounting depth (not countersunk) t = 168 mm
  • mass m = 5,2 kg
PDF data sheet

recommended cabinet 1:
closed cabinet with 16 L volume
from 98/62 Hz (-3dB/-8dB)

recommended cabinet 2:
56 L volume bass reflex cabinet
with 2x HP100 reflex tube, 22 cm long.
from 50/40 Hz (-3dB/-8dB).

12KX       order no. not-available       - not available
30 cm coax driver with paper cone.
  • power handling (continuous/programme) = 300/600 W
  • frequency range = 35-17000 Hz
  • resonance frequency fs = 45 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 14,5 N/A
  • voice coil inductance L = 1 mH
  • effective piston radiating area Sd = 550 cm2
  • effective mechanical mass incl. air load mms = 45 g
  • equivalent volume of compliance Vas = 70 l
  • total Q factor Qts = 0,37 (Qms=10,4, Qes=0,38)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 286 mm
  • overall diameter d = 320 mm
  • mounting depth (not countersunk) t = 160 mm
  • mass m = 7,85 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 9,1 L volume
from 112/70 Hz (-3dB/-8dB)

recommended cabinet 2:
27 L volume bass reflex cabinet
with HP100 reflex tube, 20 cm long.
from 62/47 Hz (-3dB/-8dB).

12LX60       order no. not-available       - not available
24 cm bass driver with high quality cone.
  • power handling (continuous/programme) = 600 W
  • resonance frequency fs = 42 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil inductance L = 1,2 mH
  • effective piston radiating area Sd = 550 cm2
  • equivalent volume of compliance Vas = 66 l
  • total Q factor Qts = 0,3 (Qms=9,8, Qes=0,31)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 6,75 mm
  • mounting diameter d = 286 mm
  • overall diameter d = 230 mm
  • mounting depth (not countersunk) t = 130 mm
PDF data sheet

recommended cabinet 1:
closed cabinet with 6,7 L volume
from 177/111 Hz (-3dB/-8dB)

recommended cabinet 2:
12,7 L volume bass reflex cabinet
with HP100 reflex tube, 16 cm long.
from 116/86 Hz (-3dB/-8dB).

12M300       order no. not-available       - not available
30 cm midrange driver with paper cone.
  • power handling (continuous/programme) = 300 W
  • frequency range = 80-6000 Hz
  • resonance frequency fs = 45 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 100 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • voice coil inductance L = 1,3 mH
  • effective piston radiating area Sd = 550 cm2
  • equivalent volume of compliance Vas = 115 l
  • total Q factor Qts = 0,2 (Qms=8,49, Qes=0,204)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 286 mm
  • overall diameter d = 320 mm
  • mounting depth (not countersunk) t = 138 mm
  • mass m = 9,7 kg
PDF data sheet

recommended cabinet 1:
closed cabinet with 11,3 L volume
from 125/79 Hz (-3dB/-8dB)

recommended cabinet 2:
24 L volume bass reflex cabinet
with HP100 reflex tube, 17 cm long.
from 79/59 Hz (-3dB/-8dB).

12K200       order no. not-available       - not available
30 cm bass driver with high quality cone.
  • power handling (continuous/programme) = 250 W
  • resonance frequency fs = 35 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • voice coil inductance L = 1,5 mH
  • effective piston radiating area Sd = 530 cm2
  • equivalent volume of compliance Vas = 160 l
  • total Q factor Qts = 0,22 (Qms=11,17, Qes=0,229)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 286 mm
  • overall diameter d = 320 mm
  • mounting depth (not countersunk) t = 137 mm
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 105 L volume
from 73/46 Hz (-3dB/-8dB)

recommended cabinet 2:
431 L volume bass reflex cabinet
with 4x HP100 reflex tube, 1 cm long.
from 34/28 Hz (-3dB/-8dB).

15KX       order no. not-available       - not available
37 cm coax driver with paper cone.
  • power handling (continuous/programme) = 300/600 W
  • frequency range = 25-17000 Hz
  • resonance frequency fs = 45 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99 dB (2,83V; 1m)
  • DC resistance Re = 5,68 Ohm
  • force factor BL = 14,5 N/A
  • voice coil inductance L = 1 mH
  • effective piston radiating area Sd = 880 cm2
  • effective mechanical mass incl. air load mms = 70 g
  • equivalent volume of compliance Vas = 203 l
  • total Q factor Qts = 0,5 (Qms=11,4, Qes=0,519)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 352 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 180 mm
  • mass m = 8,25 kg
PDF data sheet

recommended cabinet 1:
closed cabinet with 24 L volume
from 118/74 Hz (-3dB/-8dB)

recommended cabinet 2:
63 L volume bass reflex cabinet
with 2x HP100 reflex tube, 10 cm long.
from 68/51 Hz (-3dB/-8dB).

15M300       order no. not-available       - not available
37 cm midrange driver with paper cone.
  • power handling (continuous/programme) = 300 W
  • resonance frequency fs = 40 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 100 dB (2,83V; 1m)
  • DC resistance Re = 5,8 Ohm
  • voice coil inductance L = 1,3 mH
  • effective piston radiating area Sd = 880 cm2
  • equivalent volume of compliance Vas = 220 l
  • total Q factor Qts = 0,27 (Qms=8,1, Qes=0,28)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 352 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 162 mm
  • mass m = 10 kg
PDF data sheet

recommended cabinet 1:
closed cabinet with 35 L volume
from 82/52 Hz (-3dB/-8dB)

recommended cabinet 2:
88 L volume bass reflex cabinet
with 2x HP100 reflex tube, 19 cm long.
from 48/36 Hz (-3dB/-8dB).

15K200       order no. not-available       - not available
37 cm bass driver with high quality cone.
  • power handling (continuous/programme) = 300 W
  • resonance frequency fs = 27 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • voice coil inductance L = 1,2 mH
  • effective piston radiating area Sd = 880 cm2
  • equivalent volume of compliance Vas = 345 l
  • total Q factor Qts = 0,26 (Qms=9,01, Qes=0,27)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 7,5 mm
  • mounting diameter d = 361 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 135 mm
PDF data sheet

recommended cabinet 1:
closed cabinet with 19 L volume
from 103/65 Hz (-3dB/-8dB)

recommended cabinet 2:
50 L volume bass reflex cabinet
with 2x HP100 reflex tube, 22 cm long.
from 59/45 Hz (-3dB/-8dB).

15G400       order no. not-available       - not available
37 cm bass driver with high quality cone.
  • power handling (continuous/programme) = 400 W
  • resonance frequency fs = 35 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • voice coil inductance L = 1,3 mH
  • effective piston radiating area Sd = 830 cm2
  • equivalent volume of compliance Vas = 175 l
  • total Q factor Qts = 0,27 (Qms=8,3, Qes=0,284)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 352 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 155 mm
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 42 L volume
from 80/51 Hz (-3dB/-8dB)

recommended cabinet 2:
143 L volume bass reflex cabinet
with 2x HP100 reflex tube, 9 cm long.
from 42/33 Hz (-3dB/-8dB).

15LX60       order no. not-available       - not available
37 cm bass driver with high quality cone.
  • power handling (continuous/programme) = 600 W
  • frequency range = 30-1500 Hz
  • resonance frequency fs = 35 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil inductance L = 1,2 mH
  • effective piston radiating area Sd = 910 cm2
  • equivalent volume of compliance Vas = 215 l
  • total Q factor Qts = 0,35 (Qms=8,7, Qes=0,36)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 6,75 mm
  • mounting diameter d = 362 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 145 mm
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 113 L volume
from 59/37 Hz (-3dB/-8dB)

recommended cabinet 2:
399 L volume bass reflex cabinet
with 4x HP100 reflex tube, 14 cm long.
from 30/24 Hz (-3dB/-8dB).

18LX60       order no. not-available       - not available
44 cm bass driver with high quality cone.
  • power handling (continuous/programme) = 600 W
  • resonance frequency fs = 27 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil inductance L = 1,2 mH
  • effective piston radiating area Sd = 1200 cm2
  • equivalent volume of compliance Vas = 500 l
  • total Q factor Qts = 0,37 (Qms=11,45, Qes=0,38)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 6,75 mm
  • mounting diameter d = 415 mm
  • overall diameter d = 460 mm
  • mounting depth (not countersunk) t = 195 mm
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 124 L volume
from 60/38 Hz (-3dB/-8dB)

recommended cabinet 2:
490 L volume bass reflex cabinet
with 4x HP100 reflex tube, 7 cm long.
from 29/24 Hz (-3dB/-8dB).

21L50       order no. not-available       - not available
53 cm bass driver with high quality cone.
  • power handling (continuous/programme) = 800 W
  • frequency range = 30-500 Hz
  • resonance frequency fs = 33 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • voice coil inductance L = 2,4 mH
  • effective piston radiating area Sd = 1600 cm2
  • equivalent volume of compliance Vas = 350 l
  • total Q factor Qts = 0,43 (Qms=12,03, Qes=0,45)
  • voice coil diameter = 114 mm
  • maximum peak linear excursion vibration xlin = +/- 7 mm
  • mounting diameter d = 495 mm
  • overall diameter d = 550 mm
  • mounting depth (not countersunk) t = 235 mm
PDF data sheet

open a bigger photo

open a bigger photo

TD235       order no. not-available       - not available
Horn for a compression driver with 1 inch throat.
  • nominal angle (HxV) = 90 x 40 Deg
  • Cut off frequency : 1200 Hz
  • over all dimensions (HxWxD) = 170 x 230 x 92 mm
  • baffle Cutout dimensions (HxW) = 136 x 180 mm
  • net weight = 0,9 kg
  • material: aluminium
PDF data sheet

open a bigger photo

open a bigger photo

TD245       order no. not-available       - not available
Horn for a compression driver with 1 inch throat.
  • nominal angle (HxV) = 60 x 40 Deg
  • Cut off frequency : 1200 Hz
  • over all dimensions (HxWxD) = 170 x 230 x 92 mm
  • baffle Cutout dimensions (HxW) = 136 x 180 mm
  • net weight = 0,8 kg
  • material: aluminium
PDF data sheet

open a bigger photo

open a bigger photo

TD250       order no. not-available       - not available
Horn for a compression driver with 1 inch throat.
  • nominal angle (HxV) = 90 x 40 Deg
  • Cut off frequency : 800 Hz
  • over all dimensions (HxWxD) = 195 x 420 x 170 mm
  • baffle Cutout dimensions (HxW) = 165 x 380 mm
  • net weight = 0,8 kg
  • material: high quality
PDF data sheet


open a bigger photo

TD400N       order no. not-available       - not available
Horn for a compression driver with 2 inch throat.
  • nominal angle (HxV) = 90 x 40 Deg
  • Cut off frequency : 800 Hz
  • over all dimensions (HxWxD) = 270 x 420 x 227 mm
  • baffle Cutout dimensions (HxW) = 230 x 365 mm
  • net weight = 1,5 kg
  • material: high quality
PDF data sheet

open a bigger photo

open a bigger photo

TD565       order no. not-available       - not available
Horn for a compression driver with 1,4 inch throat.
  • nominal angle (HxV) = 60 x 40 Deg
  • Cut off frequency : 800 Hz
  • over all dimensions (HxWxD) = 280 x 250 x 220 mm
  • baffle Cutout dimensions (HxW) = 245 x 215 mm
  • net weight = 2,5 kg
  • material: high quality
PDF data sheet


open a bigger photo

TD360       order no. not-available       - not available
Horn for a compression driver with 2 inch throat.
  • nominal angle (HxV) = 60 x 40 Deg
  • Cut off frequency : 1000 Hz
  • over all dimensions (HxWxD) = 246 x 191 x 118 mm
  • baffle Cutout dimensions (HxW) = 215 x 150 mm
  • net weight = 0,75 kg
  • material: aluminium
PDF data sheet
Tweeter   Air Motion Transformer   Compression driver for Horns   Horn   Mids   Bass-Shaker   Woofer   8 inch woofer   10 inch woofer   12 inch woofer   15 inch woofer   18 inch woofer   Woofer   Coaxial speaker   Full Range   no longer sold
Die Gehäuseberechnungen werden mit der Berücksichtigung von 0,3 Ohm Zuleitungswiderstand durchgeführt. Dazu werden, wenn wir keine aktuelleren Lautsprecherdaten haben oder kennen, die des Herstellers zugrunde gelegt.

Bitte beachten Sie: der auf einer Normschallwand gemessene Frequenzgang sagt über die Grenzfrequenz im Gehäuse wenig aus! Deswegen geben wir Ihnen meist in 2 Beispielen Dimensionierungshinweise mit der Angabe wie tief der Lautsprecher kommt.

zurück zur Startseite

© Copyright 2014 Iris Strassacker; All rights reserved. - Irrtum vorbehalten
