Ferrite Core Coils

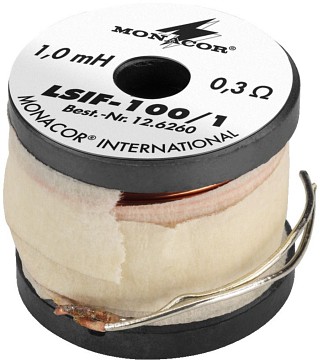

Ferrite Core Coils LSIF-100/1

Enlarge Ferrite Core Coils Very small design, e.g. for car hi-fi crossover networks up to medium power rating or as parallel components. Ferrite core coils,

Specifications:

  • Inductance: 1.0 mH
  • Enam. copper wire (CUL): Ø 0.65 mm
  • Power rating 8 Ω/4 Ω: 60 WRMS/30 WRMS
  • DC resistance: 0.3 Ω
  • Dimensions: Ø 23 mm x 18 mm

Price per unit   (Order No mo-126260) EUR 5,94 excl. VAT: € 4.99 / $ 4.46

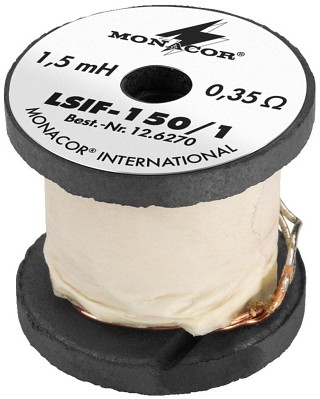

Ferrite Core Coils LSIF-150/1

Enlarge Ferrite Core Coils Very small design, e.g. for car hi-fi crossover networks up to medium power rating or as parallel components. Ferrite core coils,

Specifications:

  • Inductance: 1.5 mH
  • Enam. copper wire (CUL): Ø 0.65 mm
  • Power rating 8 Ω/4 Ω: 60 WRMS/30 WRMS
  • DC resistance: 0.35 Ω
  • Dimensions: Ø 26 mm x 26 mm

Price per unit   (Order No mo-126270) EUR 6,91 excl. VAT: € 5.81 / $ 5.18

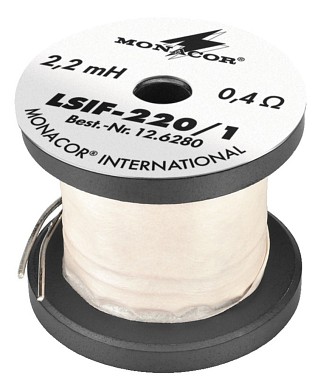

Ferrite Core Coils LSIF-220/1

Enlarge Ferrite Core Coils Very small design, e.g. for car hi-fi crossover networks up to medium power rating or as parallel components. Ferrite core coils,

Specifications:

  • Inductance: 2.2 mH
  • Enam. copper wire (CUL): Ø 0.65 mm
  • Power rating 8 Ω/4 Ω: 60 WRMS/30 WRMS
  • DC resistance: 0.4 Ω
  • Dimensions: Ø 30 mm x 26 mm

Price per unit   (Order No mo-126280) EUR 7,94 excl. VAT: € 6.67 / $ 5.96



Ferrite Core Coils LSIF-330/1

Enlarge Ferrite Core Coils Very small design, e.g. for car hi-fi crossover networks up to medium power rating or as parallel components. Ferrite core coils,

Specifications:

  • Inductance: 3.3 mH
  • Enam. copper wire (CUL): Ø 0.65 mm
  • Power rating 8 Ω/4 Ω: 30 WRMS/30 WRMS
  • DC resistance: 0.5 Ω
  • Dimensions: Ø 30 mm x 26 mm

Price per unit   (Order No mo-126290) EUR 8,78 excl. VAT: € 7.38 / $ 6.59



Series of Ferrite Coils LSIF-390

Enlarge Series of Ferrite Coils Of very low DC resistance. Values from 2.2 to 10 mH, wound on a ferrite carrier for constructing professional crossover networks of high and medium power rating for individual building and production.

Specifications:

  • Inductance: 3.9 mH
  • Enam. copper wire (CUL): Ø 1.4 mm
  • Power rating 8 Ω/4 Ω: 300 WRMS/165 WRMS
  • DC resistance: 0.2 Ω
  • Saturation current (50 Hz): 6.5 A
  • Dimensions: Ø 65 mm x 43 mm

Price per unit   (Order No mo-125150) - not available



Series of Ferrite Coils LSIF-470

Enlarge Series of Ferrite Coils Of very low DC resistance. Values from 2.2 to 10 mH, wound on a ferrite carrier for constructing professional crossover networks of high and medium power rating for individual building and production.

Specifications:

  • Inductance: 4.7 mH
  • Enam. copper wire (CUL): Ø 1.4 mm
  • Power rating 8 Ω/4 Ω: 280 WRMS/140 WRMS
  • DC resistance: 0.25 Ω
  • Saturation current (50 Hz): 6.0 A
  • Dimensions: Ø 68 mm x 43 mm

Price per unit   (Order No mo-125160) - not available



Ferrite Core Coils LSIF-470/1

Enlarge Ferrite Core Coils Very small design, e.g. for car hi-fi crossover networks up to medium power rating or as parallel components. Ferrite core coils,

Specifications:

  • Inductance: 4.7 mH
  • Enam. copper wire (CUL): Ø 0.65 mm
  • Power rating 8 Ω/4 Ω: 60 WRMS/30 WRMS
  • DC resistance: 0.65 Ω
  • Dimensions: Ø 30 mm x 26 mm

Price per unit   (Order No mo-126300) EUR 9,29 excl. VAT: € 7.81 / $ 6.97



Series of Ferrite Coils LSIF-820

Enlarge Series of Ferrite Coils Of very low DC resistance. Values from 2.2 to 10 mH, wound on a ferrite carrier for constructing professional crossover networks of high and medium power rating for individual building and production.

Specifications:

  • Inductance: 8.2 mH
  • Enam. copper wire (CUL): Ø 1.4 mm
  • Power rating 8 Ω/4 Ω: 200 WRMS/100 WRMS
  • DC resistance: 0.4 Ω
  • Saturation current (50 Hz): 5.0 A
  • Dimensions: Ø 65 mm x 43 mm

Price per unit   (Order No mo-125190) - not available
