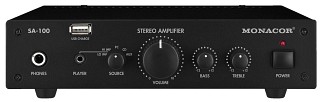

Compact universal stereo amplifier SA-100

Compact universal stereo amplifier

  • Silent operation due to fanless cooling concept
  • Additional 3.5 mm connection with switchable sensitivity on the front panel
  • USB port on the front panel for power supply and for charging external devices
  • Audio source selector
  • Controls for volume, bass and treble
  • 6.3 mm headphone output
  • Robust metal housing
Specifications:
  • Max. power: 2 x 50 WMAX
  • Stereo 4 Ω: 2 x 25 WRMS
  • Stereo 8 Ω: 2 x 20 WRMS
  • Inputs: PC: 140 mV/46 kΩ CD: 140 mV/46 kΩ aux: 140 mV/46 kΩ player: 140 mV/12 kΩ (high), 25 mV/32 kΩ (low)
  • Frequency range: 20-20,000 Hz
  • S/N ratio:>70 dB
  • Digital echo: -
  • Equalizer: bass: ±12 dB treble: ±12 dB
  • Power supply: 230 V /50 Hz/150 VA
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: 212x56x250 mm
  • Weight: 2.6 kg
  • Connections: PC: RCA L/R CD: RCA L/R aux: RCA L/R player: 3.5 mm jack speaker: spring-load. speaker term.

Price per unit   (Order No. mo-254120) EUR 157,10 excl. VAT: € 132.02 / $ 142.58


Universal stereo mixing amplifier SA-230/SW

Universal stereo mixing amplifier

Sing along! The clearly arranged user surface of the SA-230/SW makes listening to music and especially making music really enjoyable. One of the three stereo line sources at a time and three mono microphone sources can be mixed together without any problems. When combined with special karaoke CDs or DVDs, features like "one-touch karaoke" or "vocal partner" are available. An adjustable digital echo can be added to the microphone channels as an effect. The fanless cooling concept of the amplifier ensures a silent operation. The latest protective circuits provide protection against overload, overheating and short circuit.

  • 100 WMAX
  • Silent operation due to fanless cooling concept
  • 3 stereo line inputs
  • 3 mono microphone inputs at the front panel, each with gain control
  • Adjustable digital echo for the microphone inputs
  • Karaoke feature
  • Vocal partner feature
  • LEDs for level control and active line inputs
  • Controls for volume, bass, treble, balance and digital echo
  • Stereo record output
  • 482 mm (19") rack installation, 1 RS, with supplied mounting brackets
Specifications:
  • Output power:
  • Max. power: 2 x 50 WMAX
  • RMS power:
  • Stereo 4 Ω: 2 x 25 WRMS
  • Stereo 8 Ω: 2 x 20 WRMS
  • General information:
  • Inputs: 175 mV/8 kΩ (line) 2.5 mV/3.5 kΩ (mic)
  • Frequency range: 20-20,000 Hz
  • S/N ratio: 62 dB
  • Digital echo: 200 ms
  • Equalizer: bass: ±10 dB treble: ±10 dB
  • Power supply: 230 V /50 Hz/150 VA
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: 432x45x275 mm
  • Weight: 4 kg
  • Connections: line: RCA L/R mic: 6.3 mm jack rec.: RCA L/R speaker: spring-load. speaker term.

Price per unit   (Order No. mo-250740) EUR 161,50 excl. VAT: € 135.71 / $ 146.57


Universal stereo mixing amplifier SA-440/SW

Universal stereo mixing amplifier

Mixing made easy! An easy-to-use operating concept and clearly arranged features. Two stereo line sources and two mono microphone sources can be mixed together without any problems. Each input channel features a tone control. The master output levels can be preadjusted via recessed trimming potentiometers in order to protect them against overload. An optional remote switch can mute the stereo master outputs and the power amplifier

  • 200 WMAX
  • Silent operation due to fanless cooling concept
  • 2 stereo line inputs
  • 2 balanced microphone inputs
  • Parallel stereo line input on the front panel
  • 3-way equalizer for each microphone input
  • Common 2-way tone control for the two line inputs
  • Muting via optional momentary push-button/switch
  • 2 adjustable stereo master outputs
  • Master output level can be preadjusted via trimming potentiometers
  • Adjustable headphone output
  • Stereo record output
  • LEDs for indicating overload (clip)
  • 482 mm (19") rack installation, 1 RS, with supplied mounting brackets
Specifications:
  • Stereo 4 Ω: 2 x 45 WRMS
  • Stereo 8 Ω: 2 x 30 WRMS
  • Max. power: 2 x 100 WMAX
  • Line input, stereo: 125 mV/10 kΩ
  • Microphone input: 1.3 mV/600 Ω
  • Master output, stereo: 1-3 V/100 Ω
  • Record output, stereo: 1 V/100 Ω
  • Headphones, stereo: 32 Ω, 2 x 24 mW
  • Frequency range: 20-20,000 Hz
  • THD: 0.05 %
  • S/N ratio:>60 dB
  • Equalizer, bass: ±12 dB/30 Hz
  • Equalizer, midrange: ±12 dB/1 kHz (voice only)
  • Equalizer, treble: ±12 dB/12 kHz
  • Power supply: 230 V /50 Hz/220 VA
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: 432x52x275 mm, 1 RS
  • Weight: 3.5 kg
  • Line input, stereo: 3 x RCA L/R
  • Microphone input: 2 x 6.3 mm jack, bal.
  • Master output, stereo: 2 x RCA L/R
  • Record output, stereo: 1 x RCA L/R
  • Headphones: 1 x 6.3 mm jack
  • Mute: plug-in screw terminal

Price per unit   (Order No. mo-253880) EUR 215,90 excl. VAT: € 181.43 / $ 195.94

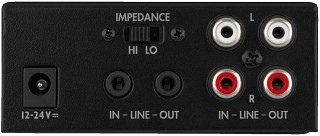

Stereo level and impedance matching amplifier SLA-35

Stereo level and impedance matching amplifier

Volume distortions or volume losses may occur when connecting smartphones, mobile phones, tablet PCs and MP3 players to an amplifier or a mixer. Due to the correct setting of impedance and gain, the SLA-35 is able to provide a better sound.

  • Adjustable attenuation down to 1/10 (-20 dB) or gain up to 10-fold (+20 dB)
  • Impedance switching Hi/Lo
  • RCA and 3.5 mm stereo inputs and outputs
  • Metal housing
  • Supplied with plug-in PSU


tools4music 04/2013

"This unit is an excellent addition to your tool case. With the required connections and a volume control with well-dimensioned amplification, the SLA-35 from MONACOR is an ideal aid for level adjustments. It is of solid workmanship and service-friendly. The SLA-35 was intended as a basic level control and impedance converter. However, due to its excellent S/N ratio and the wide frequency range, it is also suitable for traditional high-end premium hi-fi applications." tastenwelt 04/2013

"With the SLA-35, it is also possible to use smartphones as an audio source at the mixer. The level/impedance converter allows for perfect signals. This results in absolutely clean signals which prevent both clipping and noise. Top workmanship!" EVENT Rookie 03/2013

"An excellent aid for the generation smartphone - the functionality is as simple as it is brilliant - With the rotary control at the front panel, the input signal can either be attenuated or amplified by 20 dB max. This prevents an overload and thus clipping of the following mixer or an underload accompanied by audible noise."
Specifications:
  • Frequency range: 3-50,000 Hz, -1 dB
  • Input voltage: 7 V max.
  • Output voltage: 4.5 V max.
  • Input impedance: 35 kΩ/8.1 kΩ (switch -5.6 dB)
  • Output impedance: 1.6 kΩ
  • Amplification factor: 0.1-10 (±20 dB) continuously adjustable, additionally -5.6 dB, switchable
  • THD:<0.03 %
  • Crosstalk attenuation:>68 dB
  • S/N ratio:>83 dB
  • Power supply: via suppl. PSU
  • Dimensions: 88x37x103 mm
  • Weight: 450 g

Price per unit   (Order No. mo-214010) EUR 73,16 excl. VAT: € 61.48 / $ 66.40
