Crossover networks

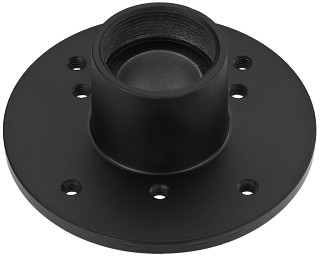

Screw adapter MHA-25

Screw adapter

For general connection of horn drivers with 35 mm (1 3/8 ") standard thread and 25 mm (1") horns with flange connection
Aluminium version

Price per unit (Order No. mo-112000) EUR 26,16 excl. VAT: € 21.98 / $ 23.74

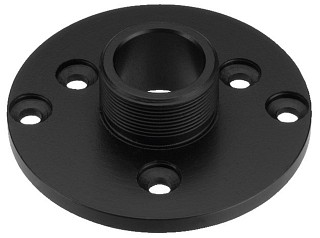

Screw adapter MDM-3002 MHA-35

Screw adapter

For general connection of horn drivers and horns
Aluminium version
35 mm (1 3/8 ") standard thread

Price for Prezzo al paio (Order No. mo-125960) EUR 13,80 excl. VAT: € 11.60 / $ 12.52 pcs (Order No. mo-129920) EUR 30,33 excl. VAT: € 25.49 / $ 27.53

2-way crossover network for 8 Ω DN-1

Crossover networks, 2-way crossover network for 8 DN-1 — Enlarge

2-way crossover network for 8 Ω

Specifications:

General Information: 2-way
Output impedance: 8 Ω
Crossover frequency: 2,500 Hz
Slope/oct.: 6 dB
Max. input power: 60 W
Dimensions: 68x30x54 mm
Weight: 0.08 kg

Price per unit (Order No. mo-120120) EUR 11,13 excl. VAT: € 9.35 / $ 10.10

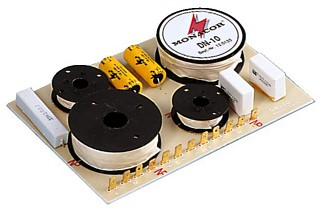

3-way crossover network for 8 Ω DN-10

Crossover networks, 3-way crossover network for 8 DN-10 — Enlarge

3-way crossover network for 8 Ω

High-quality components
Film capacitors in the high-pass filter

Specifications:

General Information: 3-way
Output impedance: 8 Ω
Crossover frequency: 800/4,500 Hz
Slope/oct.: 12 dB
Max. input power: 100 W
Dimensions: 165x23x110 mm
Weight: 0.53 kg

Price per unit (Order No. mo-120130) EUR 51,87 excl. VAT: € 43.59 / $ 47.08

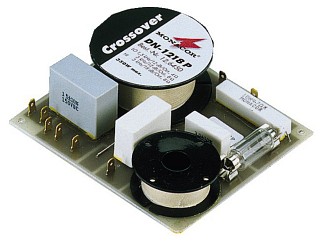

2-way crossover network for 8 Ω for hi-fi and PA DN-1218P

Crossover networks, 2-way crossover network for 8 for hi-fi and PA DN-1218P — Enlarge

2-way crossover network for 8 Ω for hi-fi and PA

High slopes
High-quality version
Film capacitors
Tweeter protection

Specifications:

General Information: 2-way
Output impedance: 8 Ω
Crossover frequency: 3 kHz
Slope/oct.: 12 dB/18 dB
Max. input power: 350 W
Dimensions: 125x32x110 mm
Weight: 0.48 kg

Price per unit (Order No. mo-126450) EUR 60,91 excl. VAT: € 51.18 / $ 55.28

2-way crossover network for 8 Ω DN-1218PAX

Crossover networks, 2-way crossover network for 8 DN-1218PAX — Enlarge

2-way crossover network for 8 Ω

Highest power rating version for PA
Optimum filter effect for typical PA bass speakers of 30 cm and 38 cm

Specifications:

General Information: 2-way
Output impedance: 8 Ω
Crossover frequency: 2,500 Hz
Slope/oct.: 12 dB/18 dB
Max. input power: 600 W
Dimensions: 120x60x132 mm
Weight: 1.1 kg

Price per unit (Order No. mo-125210) EUR 68,82 excl. VAT: € 57.83 / $ 62.46

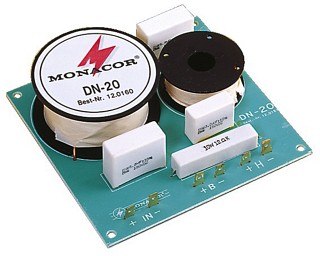

2-way crossover network for 8 Ω DN-20

Crossover networks, 2-way crossover network for 8 DN-20 — Enlarge

2-way crossover network for 8 Ω

For hi-fi applications
Ideal in combination with high-quality speakers

Specifications:

General Information: 2-way
Output impedance: 8 Ω
Crossover frequency: 2,000 Hz
Slope/oct.: 12 dB
Max. input power: 300 W
Dimensions: 125x35x120 mm
Weight: 0.54 kg

Price per unit (Order No. mo-120160) EUR 60,02 excl. VAT: € 50.44 / $ 54.47

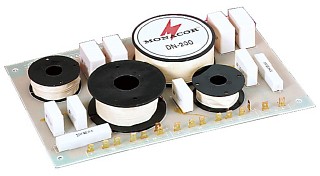

3-way crossover network for 8 Ω DN-200

Crossover networks, 3-way crossover network for 8 DN-200 — Enlarge

3-way crossover network for 8 Ω

High-quality components
For general applications

Specifications:

General Information: 3-way
Output impedance: 8 Ω
Crossover frequency: 700/3,500 Hz
Slope/oct.: 12 dB
Max. input power: 400 W
Dimensions: 243x35x160 mm
Weight: 1.3 kg

Price per unit (Order No. mo-120170) EUR 105,80 excl. VAT: € 88.91 / $ 96.02

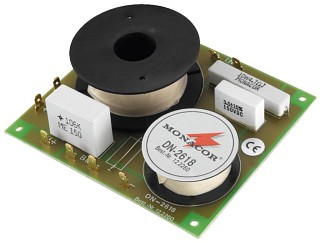

2-way crossover network for 8 Ω DN-2618

Crossover networks, 2-way crossover network for 8 DN-2618 — Enlarge

2-way crossover network for 8 Ω

Film capacitors
Low-pass filter also suitable for 4 Ω

Specifications:

General Information: 2-way
Output impedance: 8 Ω (bass also 4 Ω)
Crossover frequency: 3 kHz (B = 4 Ω : 1.7 kHz)
Slope/oct.: 6 dB/18 dB
Max. input power: 350 W
Dimensions: 125x32x110 mm
Weight: 0.4 kg

Price per unit (Order No. mo-122260) EUR 47,15 excl. VAT: € 39.62 / $ 42.79

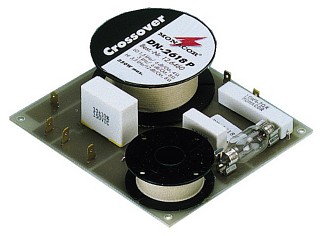

2-way crossover network for 8 Ω DN-2618P

Crossover networks, 2-way crossover network for 8 DN-2618P — Enlarge

2-way crossover network for 8 Ω

Tweeter protection (P)
Film capacitors
Low-pass filter also suitable for 4 Ω

Specifications:

General Information: 2-way
Output impedance: 8 Ω (bass also 4 Ω)
Crossover frequency: 3 kHz, (B = 4 Ω: 1.7 kHz)
Slope/oct.: 6 dB/18 dB
Max. input power: 350 W
Dimensions: 125x32x110 mm
Weight: 0.46 kg

Price per unit (Order No. mo-126460) EUR 44,17 excl. VAT: € 37.12 / $ 40.09

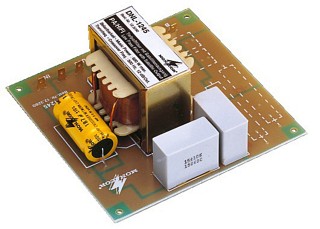

Bass 2-way crossover network for 8 Ω for PA DNL-1245

Crossover networks, Bass 2-way crossover network for 8 for PA DNL-1245 — Enlarge

Bass 2-way crossover network for 8 Ω for PA

Highest power rating
Film capacitors
Transformer core coil
Frequency and slopes typical for PA
Extendable

Specifications:

General Information: PA - sub/sat mono
Output impedance: 8 Ω
Crossover frequency: 200 Hz
Slope/oct.: B: 12 dB /MH: 6 dB
Max. input power: 600 W
Dimensions: 140x60x135 mm
Weight: 1 kg

Price per unit (Order No. mo-123280) EUR 56,79 excl. VAT: € 47.72 / $ 51.54

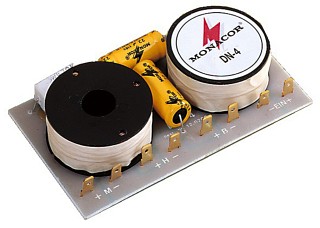

3-way crossover network for 8 Ω DN-4

Crossover networks, 3-way crossover network for 8 DN-4 — Enlarge

3-way crossover network for 8 Ω

Air core coils
High-quality bipolar electrolytic capacitors

Specifications:

General Information: 3-way
Output impedance: 8 Ω
Crossover frequency: 650/6,000 Hz
Slope/oct.: 12/6 dB
Max. input power: 100 W
Dimensions: 120x23x70 mm
Weight: 0.3 kg

Price per unit (Order No. mo-120200) EUR 32,93 excl. VAT: € 27.67 / $ 29.89

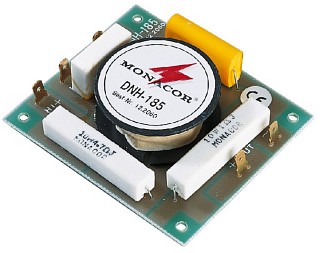

Mono high-pass filter for 8 Ω for hi-fi and PA DNH-185

Crossover networks, Mono high-pass filter for 8 for hi-fi and PA DNH-185 — Enlarge

Mono high-pass filter for 8 Ω for hi-fi and PA

Top-quality components
Low-impedance coils
Film capacitors

Specifications:

General Information: high-pass filter
Output impedance: 8 Ω
Crossover frequency: 5,500 Hz
Slope/oct.: 18 dB
Max. input power: 250 W
Dimensions: 78x23x90 mm
Weight: 0.16 kg

Price per unit (Order No. mo-122060) EUR 22,94 excl. VAT: € 19.28 / $ 20.82
