- impedance: 4 Ohm
- sensivity (2,83V/1m): 90 dB
- size (HxWxD): 1350 x 280 x 420 mm
- frequency range (-8dB): 28 - 24000 Hz
- crossover frequency(s): 130, 1050 Hz
- speaker type: bass reflex

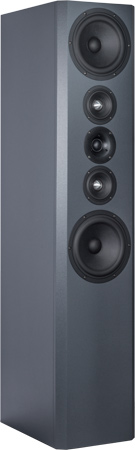

Zaurak is a three way floorstanding speaker.

Zaurak is a bass-reflex cabinet loudspeaker with drivers of Wavecor .

The kit is delivered with the following drivers:

- a Wavecor TW030WA11 tweeter

- two Wavecor WF120CU08 midrange / bass drivers

- two Wavecor WF223BD02 woofers

The loudspeaker has been developed by Dennis Frank and Daniel Gattig.

The crossover consists of:

- a 3rd order high-pass filter (18 dB per octave slope) for the tweeter.

- a band pass consiting of a 2nd order high pass filter (12 dB per octave slope) and a 3rd order low-pass filter (18 dB per octave slope) for the mids-woofesr.

- a 2nd order low-pass filter (12 dB per octave slope) for the woofers.

The frequency response of this speaker is perfectly linear. The decay spectrum as shown in the waterfall diagram is exemplary, above 500 Hz free of any disturbing resonance. At low volume, i.e. 85 dB at 1 m, the nonlinear distortions are lower than 0.2% above 400 Hz and doesn't exceed 0.5% at 95 dB at 1 m between 400 and 10000 Hz. That is quite splendid.

- Wavecor silk dome tweeter TW030WA11, 4 Ohm
- 2x WF120CU08, Wavecor Mid/Woofer, 8 Ohm, paper / glass fiber, BD, phase plug
- 2x Wavecor Mid/Woofer WF223BD02 paper / glass fiber, 8 Ohm
- Bass reflex tube HP100, 100x200 mm, black
- 4x Damping fleece MT Bondum 800 (30 x 50 x 2 cm)
- 2x Damping Sonofil 100 x 35 cm for 20 litres
- Binding Post PK31, gold plated (one pair, red and black)
- 5m Speaker cable 2x1.5 mm2 black/red
- 0,5x Pan screws 3.5x17 black, torx, 8 pieces
- 2x Pan screws 4x20 black, torx, 8 pieces
- Plan for DIY kit

the crossover components (right),

to be mounted on a small wooden board.

- 2x Jantzen Cross Cap MKP capacitor 56 uF / 400V
- 2x Jantzen Cross Cap MKP capacitor 68 uF / 400V
- Audaphon MKP CAP Superior 3.3 uF / 400 Vdc
- Audaphon MKP CAP Superior 15 uF / 400 Vdc
- Audaphon MKP CAP Superior 22 uF / 400 Vdc
- 2x Mundorf, electrolytic capacitor, etched, 220 uF/63 Vdc
- 1.0 mm air core coil, 0.47 mH/0.32 Ohm
- 1.3 mm air core coil, 0.68 mH/0.22 Ohm
- 1.3 mm air core coil, 1.0 mH/0.32 Ohm
- Mundorf bs125 core coil 8.2mH/0.41Ohm
- Mundorf H core coil H71, 3.9 mH/0.5 0hm
- Mundorf H core coil H71, 33 mH/1.93 0hm
- 2x ceramic resistor 10 Ohm/20 Watt
- 3x Metal-oxide resistor, 10W 2.2 Ohm (red-red-gold)

Kit without cabinet, price per speaker

The high-end kit is delivered with baked varnish air core coils on important parts of the crossover for minimizing microphonic effects. - The current flow through the coil creates a magnetic field which sets the reel of wire in motion. This motion induces a voltage in the coil which adds itself to the signal. The stiffer the reel of wire is, the less the signal will be altered. The capacitors for the two mids-drivers and the tweeter are of type polypropylen (MKP): Clarity-Cap PWA and Clarity Cap CSA.

- 2x ClarityCap PWA capacitor 56 uF / 160 Vdc
- 2x ClarityCap PWA capacitor 68 uF / 160 Vdc
- ClarityCap CSA capacitor 3.3 uF / 630 Vdc
- ClarityCap CSA capacitor 15 uF / 630 Vdc
- ClarityCap CSA capacitor 22 uF / 630 Vdc
- 2x Mundorf, electrolytic capacitor, etched, 220 uF/63 Vdc
- Mundorf baked varnish air core coil BL100, 0.47 mH/0.32 Ohm
- Mundorf baked varnish air core coil BL140, 0.68 mH/0.23 Ohm
- Mundorf baked varnish air core coil BL140, 1.0 mH/0.30 Ohm
- Mundorf bs125 core coil 8.2mH/0.41Ohm
- Mundorf H core coil H71, 3.9 mH/0.5 0hm
- Mundorf H core coil H71, 33 mH/1.93 0hm
- 2x ceramic resistor 10 Ohm/20 Watt
- 3x Metal-oxide resistor, 10W 2.2 Ohm (red-red-gold)

Kit with high-end-crossover without cabinet, price per speaker

If you prefer to mount the crossover components on a 240 x 165 mm universal PCB instead on wood:

Universal PCB RA240, order no.. I-2767, price per unit:

We recommend one board per kit (two boards for a speaker pair)
