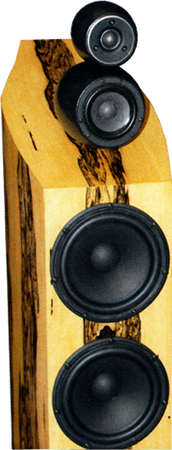

White Ebony is a 3 Way floorstanding speaker with drivers of high quality from Scan-Speak. The tweeter is the Scan-Speak D3004/66000. In the White Ebony kit the Scan-Speak 12MU/8731T00 is used as mids speaker.The woofers are two Scan-Speak 22W/8851T00. White Ebony has been developed by Dr. Werner Hartmann and is shown in journal Hobby HiFi as readers project .
The crossover consists of a 3rd order high-pass filter (18 dB per octave slope) for the tweeter, a bandpass filter (12 dB high - and 12 dB low-pass) for the mids. The two woofers are connected to a 3rd order low-pass filter each.
Between 40 Hz and 20000 Hz, the frequency response of this loudspeaker is linear on axis.
the crossover components (right),
to be mounted on a small wooden board.
Kit without cabinet, price per speaker EUR 1289,00 excl. VAT: € 1083.19 / $ 1256.50
Kit with high-end-crossover without cabinet, price per speaker EUR 1389,00 excl. VAT: € 1167.23 / $ 1353.98
If you prefer to mount the crossover components on a universal PCB instead on wood
PCB 150x115 mm, tin plated, price per unit: EUR 4,70 excl. VAT: € 3.95 / $ 4.58
We recommend four boards per kit (8 boards per speaker pair)
