WaveMon 118/13 is a two way compact speaker.

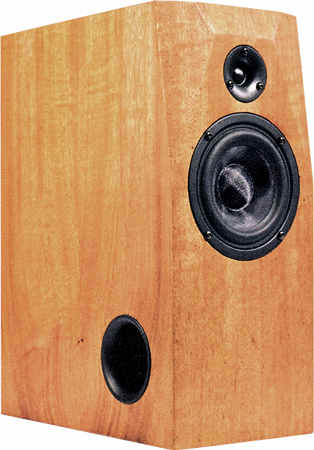

WaveMon 118/13 is a bass-reflex cabinet loudspeaker with drivers of Wavecor .
The kit is delivered with the following drivers:
- a Wavecor TW013WA01 tweeter
- a Wavecor WF118WA05 woofer
The loudspeaker has been developed by Bernd Timmermanns.
The crossover consists of:
- a 2nd order high-pass filter (12 dB per octave slope) for the tweeter.
- a 2nd order low-pass filter (12 dB per octave slope) for the woofer.
The frequency response of this speaker is perfectly linear.
The decay spectrum as shown in the waterfall diagram is exemplary, free of any disturbing resonance.
At medium volume, i.e. 90 dB at 1 m, the nonlinear distortions are below 0,3% above 200 Hz.
the crossover components (right),
to be mounted on a small wooden board.
Kit without cabinet, price per speaker EUR 160,00 excl. VAT: € 134.45 / $ 155.97
For the loudspeaker, an HTB DN50 87° elbow is additionally required for the bass reflex channel from the DIY store or the Internet.
The high-end kit is delivered with baked varnish air core coils on important parts of the crossover for minimizing microphonic effects. - The current flow through the coil creates a magnetic field which sets the reel of wire in motion. This motion induces a voltage in the coil which adds itself to the signal. The stiffer the reel of wire is, the less the signal will be altered. The capacitors for the fullrange driver are of type polypropylen (MKP) Clarity-Cap, 630 V.
Kit with high-end-crossover without cabinet, price per speaker EUR 190,00 excl. VAT: € 159.66 / $ 185.21
If you want to use a valve amplifier with this speaker an impedance correction should be employed. In this case the component quality is less important; therefore, we offer only one kit (upon request higher quality components are available).
If you prefer to mount the crossover components on a 140 x 102 mm universal PCB instead on wood:
Universal PCB RA140, order no.. I-2765, price per unit: EUR 3,70 excl. VAT: € 3.11 / $ 3.61
We recommend one board per kit (two boards for a speaker pair)
