Versacube as in Klang+Ton 1/07

technical data
- size (HxWxD): 36.8 x 36.8 x 36.8 cm
plus two bass cubes:
- size (HxWxD): 110.4 x 36.8 x 36.8 cm
- impedance: 8 Ohm
- sensitivity: 84 dB (2.83V/1m)
- frequency range (-8dB): 60 - 22 000 Hz
- speaker type: sealed cabinet

Versacube is the first system kit that can be placed on the Versacube subwoofer cubes introduced in Klang+Ton 6/2006. For the left side you need two Versacube subwoofer cubes and the top cube with Peerless drivers.

The top cube is equipped with a Peerless HDS DM 26 fabric dome tweeter and a Peerless HDS Exclusive 180 midrange / bass driver.

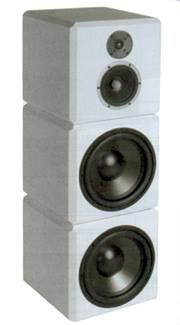

This cube (the top cube in the picture) can be used on its own or in conjunction with one or several subwoofer cubes.

Excerpt of the review in Klang+Ton 1/2007:
... "Initially, the sound was rather unspectacular and reserved, but soon after turned out to be extremely balanced and almost unexpectedly sensitive. Both drivers formed a coherent unit where the tweeter here and there added some highlights by emphasising the upper tops just slightly, but, due to extremely fine dynamics, never got out of line. Playing some standard songs used for reviews it became clear, even without close listening, that the great Danes were capable of bringing out details that some other speakers would just ignore. At the same time they possess a pleasant, musical behaviour and they don't get carried away in over-analysing, providing some excitement for a short while but starting to bug soon after. Needless to say that the matching bass cubes showed the same tightness and fine dynamics. In a nutshell, this combination works extremely well. The cubes are outstanding long-term instruments, reproducing everything, from lowest bass to highest tops, revealing new details on recordings all the time without turning the fun of listening to music into some artificial process."

Our kit (the top cube) consists of:

- 1 x Peerless HDS DM 26
- 1 x Peerless HDS Exclusive 180
- 1 bag (2 mats) polyester fleece
- 10 PAN screws 3.5 x 17
- 2 x binding posts
- 1.5 m cable 2x1.5 mm2
- the crossover kit
(on the right)
- building instruction

the crossover components to be mounted on wood:
- 1.5 mH air core coil, 1.4 mm wire
- 1.2 mH air core coil, 1.4 mm wire
- 0.22 mH air core coil, 1.4 mm wire
- 0.68 mH air core coil, 1.0 mm wire
- 22 μF Audaphon MKP CAP Superior with 2.7 μF Audaphon MKP CAP Superior
- 22 μF ELCO, non-etched
- 3.3 μF Audaphon MKP CAP Superior
- 2x 10 Ohm, MOX10 resistors (brown-black-black)
- 18 Ohm, MOX10 resistor (brown-grey-black)

Price for Versacube kit
without cabinet and without subwoofer cube per speaker: - not available

If you prefer to mount the crossover components on a universal PCB instead on wood (1 PCB per speaker is needed):
PCB 220x155 mm, tinned, price per unit: EUR 11,80 excl. VAT: € 9.92 / $ 10.71

Versacube High-End-Version

If you prefer a high-end version we recommend:
- 2x 2.5 mm2 silver plated copper cable instead of the cheaper 2x 1.5 mm2 cable
- a Mundorf MCAP Supreme capacitor instead of MKP standard
- a 0.9 mm baked varnish air core coil instead of the 0.68 mH air core coil
- a MKP capacitor instead of the 22 μF ELCO, non-etched

Price for the Versacube high-end
without cabinet and without subwoofer cube per unit: - not available

plus the matching bass cubes

Price for Versacube Bass Cube kit (two per side recommended)
without cabinet and without amplifier module per unit: - not available

For four subwoofer cubes we recommend one of the following amplifier modules

One of the following amplifier modules can drive 4 subwoofer cubes;
two amplifier modules can also be used:
one for the left and one for the right channel.
The wiring is shown on the right.

DT 300 amplifier module	- not available
Hypex DS 4.0 amplifier module	- not available
