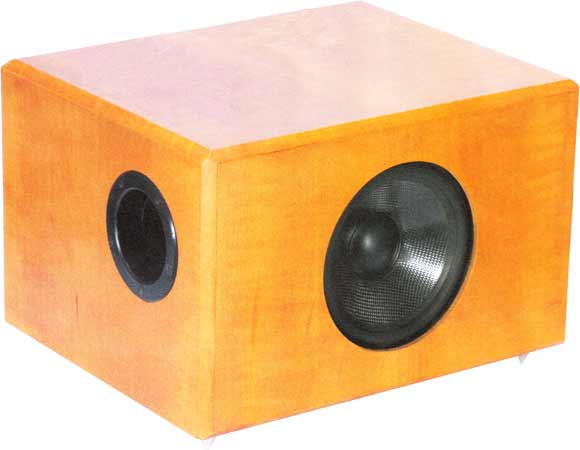

The Base DVC   Subwoofer as in Hobby Hifi 5/2016

Technical data
  • impedance: 2x6 Ohm
  • sensivity (2,83V/1m): 89 dB
  • size (HxWxD): 214 x 436 x 328 mm
  • frequency range (-8dB): 42 - 200 Hz
  • crossover frequency(s): Hz
  • speaker type: bass reflex

The base DVC is a small subwoofer with double voice coil woofer Monacor SPH-200CTC.

The base DVC has been developed by Bernd Timmermanns.

We offer "the base DVC" in different combinations: active mono or in stereo with amplifier module or with digital signal processor and amplifier module or passive.

The plate amplifier AMP-24 provides:

Additional information on digital signal processors (DSP): what is a DSP?, Tuning according to room conditions and Examples Of DSP use (e.g. in subwoofers).

Active kit with digital signal processor and two channel amplifier

Kit without cabinet, price per speaker   EUR 555,00 excl. VAT: € 466.39 / $ 503.70

Active kit with Mivoc AM80 amplifier

Kit without cabinet, price per speaker   EUR 255,00 excl. VAT: € 214.29 / $ 231.43

The Base DVC with passive crossover (without amplifier) and with different cut-off frequencies

kit up to 100 Hz

  • Monacor SPH-200CTC, 2x8 Ohm
  • 0,5x PE sealing tape, 5x2 mm, 7.5 m
  • 2x Binding Post PK31, gold plated (one pair, red and black)
  • 2m Speaker cable 2x2.5 mm2, transparent
  • 0,5x Allen wood screws, black, 4x25 mm, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • 2x electrolytic capacitor, etched, 33 μF/100 Vdc
  • 2x electrolytic capacitor, etched, 47 μF/100 Vdc
  • 6x electrolytic capacitor, etched, 100 μF/100 Vdc
  • 2x Mundorf bs125 core coil 22mH/0.75Ohm
  • 2x Mundorf H core coil H71, 33 mH/1.93 0hm
  • 2x Metal-oxide resistor, 10W 8.2 Ohm (grey-red-gold)
  • 2x Metal-oxide resistor, 10W 10 Ohm (brown-black-black)

Kit without cabinet, price per speaker   EUR 406,00 excl. VAT: € 341.18 / $ 368.47

kit up to 115 Hz

  • Monacor SPH-200CTC, 2x8 Ohm
  • 0,5x PE sealing tape, 5x2 mm, 7.5 m
  • 2x Binding Post PK31, gold plated (one pair, red and black)
  • 2m Speaker cable 2x2.5 mm2, transparent
  • 0,5x Allen wood screws, black, 4x25 mm, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • 2x electrolytic capacitor, etched, 33 μF/100 Vdc
  • 2x electrolytic capacitor, etched, 47 μF/100 Vdc
  • 2x electrolytic capacitor, etched, 68 μF/100 Vdc
  • 4x electrolytic capacitor, etched, 100 μF/100 Vdc
  • 2x Mundorf bs125 core coil 18mH/0.66Ohm
  • 2x Mundorf H core coil H71, 33 mH/1.93 0hm
  • 2x Metal-oxide resistor, 10W 8.2 Ohm (grey-red-gold)
  • 2x Metal-oxide resistor, 10W 10 Ohm (brown-black-black)

Kit without cabinet, price per speaker   EUR 394,00 excl. VAT: € 331.09 / $ 357.58

kit up to 130 Hz

  • Monacor SPH-200CTC, 2x8 Ohm
  • 0,5x PE sealing tape, 5x2 mm, 7.5 m
  • 2x Binding Post PK31, gold plated (one pair, red and black)
  • 2m Speaker cable 2x2.5 mm2, transparent
  • 0,5x Allen wood screws, black, 4x25 mm, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • 4x electrolytic capacitor, etched, 33 μF/100 Vdc
  • 2x electrolytic capacitor, etched, 47 μF/100 Vdc
  • 4x electrolytic capacitor, etched, 100 μF/100 Vdc
  • 2x Mundorf bs125 core coil 15mH/0.59Ohm
  • 2x Mundorf H core coil H71, 33 mH/1.93 0hm
  • 2x Metal-oxide resistor, 10W 8.2 Ohm (grey-red-gold)
  • 2x Metal-oxide resistor, 10W 10 Ohm (brown-black-black)

Kit without cabinet, price per speaker   EUR 386,00 excl. VAT: € 324.37 / $ 350.32

kit up to 150 Hz

  • Monacor SPH-200CTC, 2x8 Ohm
  • 0,5x PE sealing tape, 5x2 mm, 7.5 m
  • 2x Binding Post PK31, gold plated (one pair, red and black)
  • 2m Speaker cable 2x2.5 mm2, transparent
  • 0,5x Allen wood screws, black, 4x25 mm, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • 2x electrolytic capacitor, etched, 10 μF/100 Vdc
  • 2x electrolytic capacitor, etched, 33 μF/100 Vdc
  • 2x electrolytic capacitor, etched, 47 μF/100 Vdc
  • 4x electrolytic capacitor, etched, 100 μF/100 Vdc
  • 2x Mundorf bs125 core coil 12mH/0.51Ohm
  • 2x Mundorf H core coil H71, 33 mH/1.93 0hm
  • 2x Metal-oxide resistor, 10W 8.2 Ohm (grey-red-gold)
  • 2x Metal-oxide resistor, 10W 10 Ohm (brown-black-black)

Kit without cabinet, price per speaker   EUR 355,00 excl. VAT: € 298.32 / $ 322.18

kit up to 175 Hz

  • Monacor SPH-200CTC, 2x8 Ohm
  • 0,5x PE sealing tape, 5x2 mm, 7.5 m
  • 2x Binding Post PK31, gold plated (one pair, red and black)
  • 2m Speaker cable 2x2.5 mm2, transparent
  • 0,5x Allen wood screws, black, 4x25 mm, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • 2x electrolytic capacitor, etched, 22 μF/100 Vdc
  • 2x electrolytic capacitor, etched, 33 μF/100 Vdc
  • 2x electrolytic capacitor, etched, 47 μF/100 Vdc
  • 2x electrolytic capacitor, etched, 68 μF/100 Vdc
  • 2x electrolytic capacitor, etched, 100 μF/100 Vdc
  • 2x Mundorf bs125 core coil 10mH/0.46Ohm
  • 2x Mundorf H core coil H71, 33 mH/1.93 0hm
  • 2x Metal-oxide resistor, 10W 8.2 Ohm (grey-red-gold)
  • 2x Metal-oxide resistor, 10W 10 Ohm (brown-black-black)

Kit without cabinet, price per speaker   EUR 349,00 excl. VAT: € 293.28 / $ 316.74

Kit with high-end crossover

If you are looking for a high-end crossover in your subwoofer we recommend the following kits.

Our 100 Hz high-end kit consists of

  • Monacor SPH-200CTC, 2x8 Ohm
  • 0,5x PE sealing tape, 5x2 mm, 7.5 m
  • 2x Binding Post PK28 I, gold plated (one pair, red and black)
  • 2m Speaker cable 2x2.5 mm2, transparent
  • 0,5x Allen wood screws, black, 4x25 mm, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • 2x electrolytic capacitor, unetched, 33uF / 70 Vdc
  • 2x electrolytic capacitor, unetched, 47uF / 70 Vdc
  • 6x electrolytic capacitor, unetched, 100uF / 50 Vdc
  • 2x Mundorf bs140 core coil 22mH/0.56Ohm
  • 2x Mundorf H core baked varnish coil BH71, 33 mH/2.02 0hm
  • 2x Metal-oxide resistor, 10W 8.2 Ohm (grey-red-gold)
  • 2x Metal-oxide resistor, 10W 10 Ohm (brown-black-black)

Kit without cabinet, price per speaker   EUR 551,00 excl. VAT: € 463.03 / $ 500.07

Our 115 Hz high-end kit consists of

  • Monacor SPH-200CTC, 2x8 Ohm
  • 0,5x PE sealing tape, 5x2 mm, 7.5 m
  • 2x Binding Post PK28 I, gold plated (one pair, red and black)
  • 2m Speaker cable 2x2.5 mm2, transparent
  • 0,5x Allen wood screws, black, 4x25 mm, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • 2x electrolytic capacitor, unetched, 33uF / 70 Vdc
  • 2x electrolytic capacitor, unetched, 47uF / 70 Vdc
  • 2x electrolytic capacitor, unetched, 68uF / 50 Vdc
  • 4x electrolytic capacitor, unetched, 100uF / 50 Vdc
  • 2x Mundorf bs140 core coil 18mH/0.54Ohm
  • 2x Mundorf H core baked varnish coil BH71, 33 mH/2.02 0hm
  • 2x Metal-oxide resistor, 10W 8.2 Ohm (grey-red-gold)
  • 2x Metal-oxide resistor, 10W 10 Ohm (brown-black-black)

Kit without cabinet, price per speaker   EUR 532,00 excl. VAT: € 447.06 / $ 482.82

Our 130 Hz high-end kit consists of

  • Monacor SPH-200CTC, 2x8 Ohm
  • 0,5x PE sealing tape, 5x2 mm, 7.5 m
  • 2x Binding Post PK28 I, gold plated (one pair, red and black)
  • 2m Speaker cable 2x2.5 mm2, transparent
  • 0,5x Allen wood screws, black, 4x25 mm, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • 4x electrolytic capacitor, unetched, 33uF / 70 Vdc
  • 2x electrolytic capacitor, unetched, 47uF / 70 Vdc
  • 4x electrolytic capacitor, unetched, 100uF / 50 Vdc
  • 2x Mundorf bs140 core coil 15mH/0.48Ohm
  • 2x Mundorf H core baked varnish coil BH71, 33 mH/2.02 0hm
  • 2x Metal-oxide resistor, 10W 8.2 Ohm (grey-red-gold)
  • 2x Metal-oxide resistor, 10W 10 Ohm (brown-black-black)

Kit without cabinet, price per speaker   EUR 504,00 excl. VAT: € 423.53 / $ 457.41

Our 150 Hz high-end kit consists of

  • Monacor SPH-200CTC, 2x8 Ohm
  • 0,5x PE sealing tape, 5x2 mm, 7.5 m
  • 2x Binding Post PK28 I, gold plated (one pair, red and black)
  • 2m Speaker cable 2x2.5 mm2, transparent
  • 0,5x Allen wood screws, black, 4x25 mm, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • 2x electrolytic capacitor, unetched, 10 μF / 70 Vdc
  • 2x electrolytic capacitor, unetched, 33uF / 70 Vdc
  • 2x electrolytic capacitor, unetched, 47uF / 70 Vdc
  • 4x electrolytic capacitor, unetched, 100uF / 50 Vdc
  • 2x Mundorf bs140 core coil 12mH/0.42Ohm
  • 2x Mundorf H core baked varnish coil BH71, 33 mH/2.02 0hm
  • 2x Metal-oxide resistor, 10W 8.2 Ohm (grey-red-gold)
  • 2x Metal-oxide resistor, 10W 10 Ohm (brown-black-black)

Kit without cabinet, price per speaker   EUR 485,00 excl. VAT: € 407.56 / $ 440.17

Our 175 Hz high-end kit consists of

  • Monacor SPH-200CTC, 2x8 Ohm
  • 0,5x PE sealing tape, 5x2 mm, 7.5 m
  • 2x Binding Post PK28 I, gold plated (one pair, red and black)
  • 2m Speaker cable 2x2.5 mm2, transparent
  • 0,5x Allen wood screws, black, 4x25 mm, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • 2x electrolytic capacitor, unetched, 22uF / 70 Vdc
  • 2x electrolytic capacitor, unetched, 33uF / 70 Vdc
  • 2x electrolytic capacitor, unetched, 47uF / 70 Vdc
  • 2x electrolytic capacitor, unetched, 68uF / 50 Vdc
  • 2x electrolytic capacitor, unetched, 100uF / 50 Vdc
  • 2x Mundorf bs140 core coil 10mH/0.38Ohm
  • 2x Mundorf H core baked varnish coil BH71, 33 mH/2.02 0hm
  • 2x Metal-oxide resistor, 10W 8.2 Ohm (grey-red-gold)
  • 2x Metal-oxide resistor, 10W 10 Ohm (brown-black-black)

Kit without cabinet, price per speaker   EUR 477,00 excl. VAT: € 400.84 / $ 432.91

universal PCBs

If you prefer to mount the crossover components on a 159 x 127 mm universal PCB instead on wood:
Universal PCB RA160, order no.. str-RA160, price per unit:   EUR 5,90 excl. VAT: € 4.96 / $ 5.35
We recommend one board per kit (two boards for a speaker pair)
