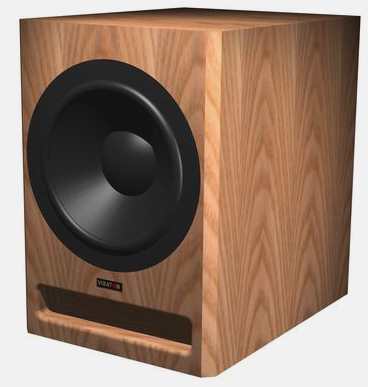

The SUB T30.60 is available with or without amplifier module. This sub is a
solid low bass specialist. The somewhat smaller Sub
T25.30 produces less bass and possesses less reserves; the Sub
T25.50 produces more bass,but plays with less volume.
The SUB T30.60 shows the following characteristics:

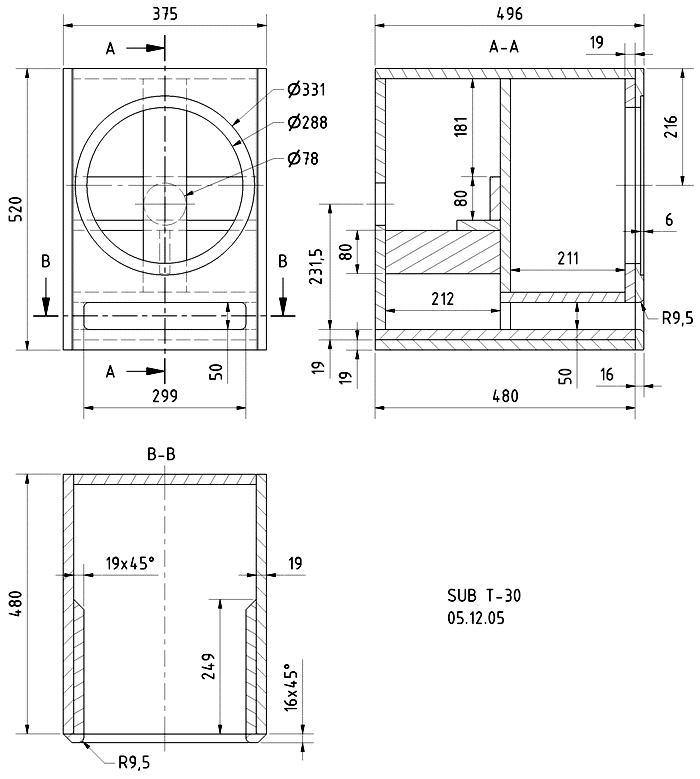

The plan of the cabinet.
Order No. str-t3060, Price for one subwoofer kit (without amplifier and without cabinet):
EUR 324,00 excl. VAT: € 272.27 / $ 315.83
The subwoofer is available with different amplifier modules. If you are looking
for a solid but not very expensive module we recommend Mivoc AM 80.
technical data of Mivoc AM 80 MK II:
- output: 80/160 Watt into 4 Ohm
- cut-off frequency: adjustable 50-150 Hz, 12 db/oct
Subwoofer module Mivoc AM 80 MK II is a module with
gain control, cut-off frequency control and phase inversion switch.
RCA sockets (to connect to pre-amp out) and binding
posts (to connect to the main amp) are available. The satellites may be
looped through the module. Required cut-out
see description of the module.
Required cut-out for the amplifier see description of the module
Order No. str-t3060-am80, Price for one subwoofer kit with amplifier AM80 (without cabinet):
EUR 409,00 excl. VAT: € 343.70 / $ 398.69
The kit is also available with amplifier Audaphon AMP-24
with digital signal processor (DSP)
The DSP plate amplifier AMP-24 provides:
Additional information on digital signal processors (DSP):
what is a DSP?, Tuning according to room conditions
and Examples Of DSP use (e.g. in subwoofers).
Required cut-out for the amplifier
see description of the module
Order No. str-t3060-amp24, Price for one subwoofer kit with amplifier Audaphon AMP-24 (without cabinet):
EUR 672,00 excl. VAT: € 564.71 / $ 655.06
Upon request we also supply the Sub T30.60 with amplifier modules by Hypex
or other manufacturers. Please enquire.
